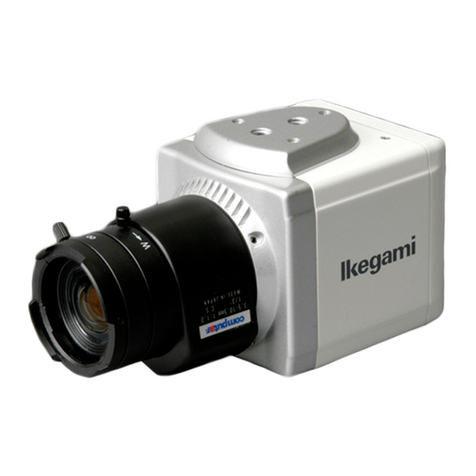

Hybrid Camera
MODEL
ICD-525S

Thank you for choosing this Ikegami Hybrid Camera.
Please read this Instruction Manual carefully to keep your Ikegami camera at
peak performance for longer service period.
This unit is a cube-type 1 CMOS color camera and making use of a 1/2.9” sensor.
This Ikegami product is made of ECO friendly components based upon the
Company policy and corporate social responsibility to contribute towards the
Global Environmental Solution for energy conservation and environmental
sustainability, all the components used in this product are Non-hazardous, Toxic
Free, Non-Lead and conform with Japan's Green Product regulation, EU's RoHS
directive and other Environmental and hazardous chemical substances related
regulations and laws.
1. Handling Precautions..................................................................E-1
2. General........................................................................................E-1
3. Features.......................................................................................E-2
4. Name of each section and its function........................................E-3
5. Operating Procedure...................................................................E-6
5-1. User Setup..........................................................................E-6
5-2. Names and functions of the setup buttons.........................E-6
5-3. Setup mode Procedures.....................................................E-6
6. Warranty and after-sale service..................................................E-13
7. Specifications ..............................................................................E-14
8. External Appearance
9. Setup Flow Chart
Contents Page

The exclamation point within an equilateral triangle is intended to alert theuser to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
NOTE:
This equipment has been testedand found to comply with the limits for a Class A digital
device, pursuant topart 15 of the FCC Rules.These limits are designed to provide
reasonable protectionagainstharmful interference when the equipment is operated in a
commercial environment.This equipment generates, uses, and can radiate radio frequency
energy and,if not installed and used in accordance with the instruction manual,may cause
harmful interferenceto radio communications. Operation of this equipment in a residential
area islikely tocause harmful interference in which case the user will be required to
correcttheinterference athis own expense.
CAUTION;
ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PART
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USERS AUTHORITY TO
OPERATE THE EQUIPMENT.
Instructions for Disposal of Electrical and Electronic Equipment in Private
Households
Disposal of used Electric and Electronic Equipment
(Applicable in the European Union and other European countries with
separated waste disposal and collection methods)
This symbol on the product, or in the related documents in the package, indicates
that this product shall not be treated as normal household waste.Instead, it should
be taken to a proper applicable collection point or depot for the recycling of electric
and electronic equipment.
By ensuring this product is disposed ofcorrectly, you will help prevent possible negative
consequences for theenvironment and human health, which could otherwise be caused by
inappropriate wastehandling of this product.The recycling of materials will help to conserve natural
resources.
For more detailed information about recycling of this product, please contact your local city
authority, your household wastedisposal service or the place where you purchased the product.

IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the
manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. When the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked onor pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15) CAUTION - These servicing instructions are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you
are qualified to do so.

E-1
1. Handling Precautions
• Do not expose the internal mechanism of the camera in a water-splashed
or highly humid environment.
• Do not use the camera where the ambient temperature drops below
-10°C or rises above +50°C. The images and component parts may be
adversely affected or the camera may not function correctly.
• Do not open the case of the camera, unless it is absolutely necessary
for setup or installation because there are precision electrical and
electronic components inside and accident may result.
• Be sure to turn off the power before installing or making connections.
• Be careful not to drop or give a strong shock to the camera while
transporting it.
• Do not touch the image sensor
• Do not orientate the camera directly towards the sun.
• Because of the digital image device characteristics, images may look
unnatural at high temperatures, this does not mean the camera is faulty.
2. General
This color camera is provided with a 1/2.9-inch CMOS sensor. The CCTV
camera features wide dynamic range, high sensitivity and high resolution,
and is equipped with the color/black-and-white switching, back-light
compensation, automatic iris control, line lock and other functions. The
unit is best suited for general surveillance.

E-2
3. Features
(1) Wide Dynamic Range (CVI,TVI,AHD)
The WDR function provides for very effective compensation of high
light and dark areas in screen. This situation may occur generally
outside or viewing from indoor to outdoor scenes. Even in large light
fluctuations, bright-and-dark subjects can be captured and viewed
clearly with a natural appearance.
(2) Small-size cube shape
The small-size cube shape of the camera allows it to be most suitable
to be installed into various devices such as ATM units.
(3) High-quality picture and high resolution
The camera is designed for smear-free imaging and low noise. The
well-designed DSP, Digital Signal Processor, effectively enhances
details, which achieves crisp and sharp images with a high signal-to-
noise ratio.
(4) Automatic white balance
Thanks to the automatic follow-up white balance control (ATW), the
white balance adjusts itself no matter how great the subject's color
temperature fluctuates.
(5) Automatic Sensitivity Control
In conjunction with the wide dynamic control by the multi-sampling
system, the camera incorporates the automatic sensitivity control
function that always provides adequate and bright images even
through its fixed-iris lens.

E-3
4.
Name of each section and its function
LENS
MAX40mA
AC24V 50/60Hz 160mA
DC12V 170mA
VIDEO OUT SET UP
E
D
POWER
UR L
4
2
5
7
6
8
9
3
1

E-4
Lens mount (CS mount)
This is used to mount the lens on the camera. Many types of CS mount
lens can be attached.
Back focus lock screw
After completing the flange back adjustment of the camera, use the
supplied Allen wrench to tighten the screw until it is fully fixed.
Holder mounting screw holes
These holes are used to install and fix the camera on the camera
mounting or bracket. They can be also applicable to general use tripods
which have a quarter inch thread.
Note
To use these holes to attach the camera on a tripod or other
mount, make sure you use suitable size mounting bolts as follows
(1/4” -20UNC), they should not be longer than 5.5 mm to avoid
an un-stable installation.
Auto iris lens connector
Specifically used to connect the auto iris lens.
Applicable connector: E4-191J-100 or equivalent
DC Iris System
— Connector cable leads —
1. Damping coil (-)
2. Damping coil (+)
3. Driving coil (+)
4. Driving coil (-)
* Connect the leads as shown above.
Please refer also to the instructions of the lens to be used.
3
2
14
Connector pin assignment
3
2
1
4
Auto iris lens
①
②
③
④

E-5
⑤ Video output terminal (VIDEO OUT)
To be used to give out the video signal. Connect this to the video input
terminal of a monitor, switcher etc. (To be terminated with 75-ohm
impedance.)
⑥ Power indicator (POWER)
The LED indicator stays on in green while the camera power is on.
⑦ DC12V/AC24V power input terminal
Keep the input power at DC10.5-15.0 V or AC24V±10%.
* This installation should be made by a qualified service person and
should conform to all local codes.
⑧ -⑨Camera setup function switches
Please refer to the Operation Procedure chapter.

E-6
5. Operating Procedure
5-1. User Setup
This camera is provided with user setup function for picture quality, and
camera ID. The setup menu is a tree type on-screen-display.
When installing the camera it is possible to set up the various functions.
5-2. Names and functions of the setup buttons
U To select setup parameters
D (up and down)
RTo change setup parameters
L
ETo get in or get out to setup
mode, and to enter and
execute procedures.
5-3. Setup mode Procedures
Hold down the E button and the setup menu screen at left appears on screen.
A highlighted item is now selected.
Use the L/R buttons to change the selection items.
SET UP
E
D
U
RL

When the OSD menu is launched, you are presented with the adjacent
opening screen.
A menu option followed by a indicates the presence of a sub-menu.
Options set to OFF will not show a until set to ON.
Use RETURN to the previous menu.
E-7
5-3-1.MAIN MENU
(1)FOCUS ADJUST
FOCUS ADJUST is a function to support focus adjustment.
A focus indicator displayed on the screen can be used to confirm
the focus conditions.
- From the Main Menu, turn the Focus ADJ from OFF to ON to create
a Focus Adjust Box on the screen’s bottom left
- Move the lens to direct towards the object to be focused, and turn the lens focus
from near to far until the location from the Focus Assist Box shows a green bar.
Next turn the lens focus until the yellow bar has a similar size with the green bar
for focus. Your camera should now have a clear crisp image.
OFF
OFF
AUTO
MIDDLE
OFF
DNR
ADJUST
MOTION
SYSTEM
EXIT
FOCUS ADJUST
EXPOSURE
BACKLIGHT
DAY&NIGHT
WHITE BAL
MAIN MENU

(2)EXPOSURE
E-8
It seleccts Lens Mode, Brightness, Shutter speed, Sens-up and AGC Gain.
(3)BACKLIGHT
Setting the backlight compensation and light source correction function
are available.
WDR - Used to improve contrast in bright/dark areas
( NOTE : WDR function is only inactive on CVBS output.)
BLC - Adjust the area to be enhanced and sets the level
HLC - It is the ability to reverse bright points to black or gray,
(areas such as headlights, any high luminance areas) this function will
improve this function will improve the overall picture.
LENS - DC or Manual selection
BRIGHTNESS - Sets the level of the overall
SHUTTER - Auto, Manual, FLK selection, 1/30~1/30K.
Set this on to reduce the exposure time of each image.
This can be used to reduce blur in images with fastchanging content.
FLK mode Use this when flicker is observed in the image
underfluorescent lighting
SENS UP - Slows frame rate and increases low light sensitivity
AGC- Level Control -Used to adjust overall gain
①
②
③
④
⑤
①
②
③
DC
10
AUTO
X4
10
BRIGHTNESS
SHUTTER
LENS
SENS-UP
AGC
EXPOSURE
RETURN

(4)DAY & NIGHT
E-9
Selecting Day or Night is available.
AUTO - The image is automatically switched between high-quality
color image for the day and highly-sensitive monochrome image
for the night.
COLOR - Fixes the camera in color mode.
B/W - Fixes the camera in monochrome mode.
EXTERN - This mode which forcibly switches the Day/Night mode using
an external input.
(5)WHITE BALANCE
Setting a white balance is available.
AUTO
The camera automatically samples the image for optimum
white balance.
AUTOext(default)
The camera automatically samples the image for optimum white balance
in an exterior environment.
PRESET
Allows the white balance to be set automatically and locked. This option is
normally used when no white reference is present in the image.
To set the white balance, hold a white object in front of the camera,
with light from the source falling on it and press the joystick to set and
lock the white balance.
MANUAL
This option allows a selection of color temperature, Red and Blue gain
to be manually set in the image. Note, using this option requires care to
ensure all cameras on one system have the same color response.
①
②
③
④
①
②
③
④
AUTOext
RETURN
AWB
WHITE BAL

(6)DNR(Digital Noise Reduction)
This function is used to improve the picture quality by filtering the noise
which is generated under low light conditions.
(7)ADJUST
Color gain, sharpness, gamma, mirror, flip, ace, defog and privacy are
available.
COLOR GAIN
It adjusts the color intensity.
SHARPNESS
It adjusts the edge intensity of the video.
GAMMA
This function is for compensating the saturation and brightness of
the images shown on the display.
①
②
③
MIRROR
It flips the video vertically.
E-10
④
FLIP
It flips the video horizontally.
⑤
ACE(Adaptive contrast enhancer)
Preserves fine details, reduces artifacts and loss of local contrast
in the image areas of bright/dark.
⑥
DEFOG
Used to help improve the captured image in poor weather conditions
such as smog, fog, or smoke. It automatically controls contrast ratio
by spatially analyzing the histogram characteristics.
PRIVACY
The maximum 16 privacy masks can be set.
Setting mask color, intensity, and size are available.
⑦
⑧
15
0.5
OFF
OFF
OFF
OFF
FILP
COLOR GAIN
SHARPNESS
GAMMA
MIRROR
ACE
DEFOG
PRIVACY
RETURN
ADJUST

(8)MOTION
This function detects and dispalys the object in motion.
DET WINDOWS
Select and set up to 4 motion areas
①
②
③
SENSITIVITY
Level control
④
TEXT ALARM
Display “Motion Alarm” on Screen
SIGNAL OUT - N/A
E-11
2
ON
5
ON
SENSITIVITY
DET WINDOWS
DET TONE
MDDECT FILL
MOTION
MOTION OSD
ON
ON
OFF
MOTION OSD
TEXT ALARM
SIGNAL OUT
RETURN

(9)SYSTEM
OUTPUT
CVBS(default), CVI, TVI, AHD Selectable
①
FRAME RATE
Select from 1080P - 30P or 720P - 30P or 720 - 60P
②
FREQ
60Hz or 50Hz can be seleted.
③
COM
Set com port and speed
④
IMAGE RANGE
Used to adjust black level in dark sceen
⑤
COLOR BAR
Vertical flip of image
⑥
LANGUGE
Select from 5 languages(ENG, CHN, CHN(s), JPN, KOR)
⑦
CAMERA TITLE
The screen can display 8 characters
⑧
RESET
It returns to the factory default
⑨
E-12
CVBS
1080-30
p
60Hz
FULL
OFF
ENG
OFF
ON
OUTPUT
HD ANALOG
RETURN
RESET
OUTPUT
FRAME RATE
FREQ
COM
Image range
COLOR BAR
LANGUAGE
CAMERA TITLE
RETURN
SYSTEM

E-13
6. Warranty and after-sale service
A warranty accompanies this product. Read and fill out the warranty card
that you have received at your dealer. Keep this card in a safe place.
●Please consult Ikegami Electronics (U.S.A.) Inc. or Ikegami Electronics
(Europe) GmbH or your dealer for full warranty information. Your dealer
will repair or replace free of charge within the warranty period according
to the warranty coverage.
●For repairs after the expiration of the warranty period, consult your
dealer or sales representative. It will first be judged whether the fault is
repairable or not. Charged servicing will then be made upon request of
the user.
●Before you ask for servicing, please ensure you read the Instruction
Manual. If the unit still fails, take note of the model number, date of
purchase, problem, etc. in detail, and inform your dealer or sales
representative.
●If you have questions about the after-sale service, contact your dealer
or sales representative.
* We suggest you ask for preventive inspection as soon as possible.

E-14
7.
(1) Image Sensor:
(2) HD Resolution:
(3) Scanning system:
(4) Sync system:
(5) Video output:
(6) Day/Night switching:
(7) S/N ratio:
(8) Minimum object illumination:
(9) Wide Dynamic Range:
(10) AGC:
(11) Eletronic shutter:
(12) White Balance Control:
(13) Digital Noise Reduction:
(14) ACE:
(15) DEFOG:
(16) Private Mask Setting:
(17) Camera ID:
(18) Motion Detection:
(19) Operating Temperature
and Relative humidity:
(20) Lens mount:
(21) Auto iris function:
(22) Lens flange back adjustment:
(23) Power Requirement:
(24) Power consumption:
2Mega Pixel Cmos Sensor
Full HD (1920 x 1080)
16:9 Progressive scan
Internal
Analog Output-CVBS(default)
HD Output-CVI,TVI,AHD(Full HD)
Digital Day/Night
Over 52dB(p-p/rms)
0.08Lx at B/W at Sens up<<off>>
Support (1080p@15fps)
ON/OFF(Variable)
Auto, Manual, Flicker,
1/30,000 sec maxiam
AUTOext/AUTO/PRESET/MANUAL
Built-in, On or OFF, Selectable
Built-in, On or OFF, Selectable
Built-in, On or OFF, Selectable
Built-in, Up to 16 areas
1 Line, up to 8 characters
(alphanumeric)
Built-in, On or OFF, Selectable
-10 to + 50
°
C
RH 30% to 90%(no condensation)
CS mount (C-mount adapter attachment
possible)
Compatible with DC iris
Built-in
AC 24 V±10%(50/60Hz)
DC 12 V (+10.5V ~ +15V)
2.0W

E-15
(25) Outer dimensions:
(26) Weight:
(27) Input/Output connectors:
(28) Supplied accessories:
52(W)×52(H)×55(D) mm
(no protrusion included)
Approx. 350g
• VIDEO OUT BNC
• LENS 4P(E4-191J-100 or equivalent)
• DC 12V/AC 24V input;2-pin terminal block
Instruction Manual
Allen wrench (for flange back adjustment)
Power input connector
* Specifications and design are subject to change for product improvements
without notice.
Table of contents
Other Ikegami Digital Camera manuals

Ikegami
Ikegami ICD 525 User manual

Ikegami
Ikegami ICD-E11 User manual

Ikegami
Ikegami ISD-A15 User manual

Ikegami
Ikegami HDK-97C User manual

Ikegami
Ikegami HDK-99 User manual

Ikegami
Ikegami ICD-879S User manual

Ikegami
Ikegami HDL-20 User manual

Ikegami
Ikegami ISD-A35 User manual

Ikegami
Ikegami SKC-141TC User manual

Ikegami
Ikegami ISD-A15 User manual

Ikegami
Ikegami HDK-73 User manual

Ikegami
Ikegami IHD-D525S User manual

Ikegami
Ikegami ISD-A10 Owner's manual

Ikegami
Ikegami ISD-200HD User manual

Ikegami
Ikegami ISD-2500HD User manual

Ikegami
Ikegami HDK-79GX User manual

Ikegami
Ikegami MKC-507 User manual

Ikegami
Ikegami HDL-4500 User manual

Ikegami
Ikegami ISD-A14 User manual

Ikegami
Ikegami ICD-48E User manual
