IKI-Kiuas 6,9 User manual




























10/2015

2

TableofcontentsPage

Installationinstructions3‐4
Connectingtheelectricheatertoelectricalnetwork  4
Controlunit4
Temperaturerestrictor4
Usingthethermostatandadjustingthetemperature  5
Timer5
Instructionsforbathing5
Requirementsforwaterquality    6
Trouble‐shooting6
Circuitconnectorinstallation6,9‐9kW   7
Circuitconnectorinstallation13,8‐18kWwithtwocircuits 8
Circuitconnectorinstallation13,8‐18kWwithonecircuit 9
Safetydistances10
Pilingofthestones11
Warranty12‐13

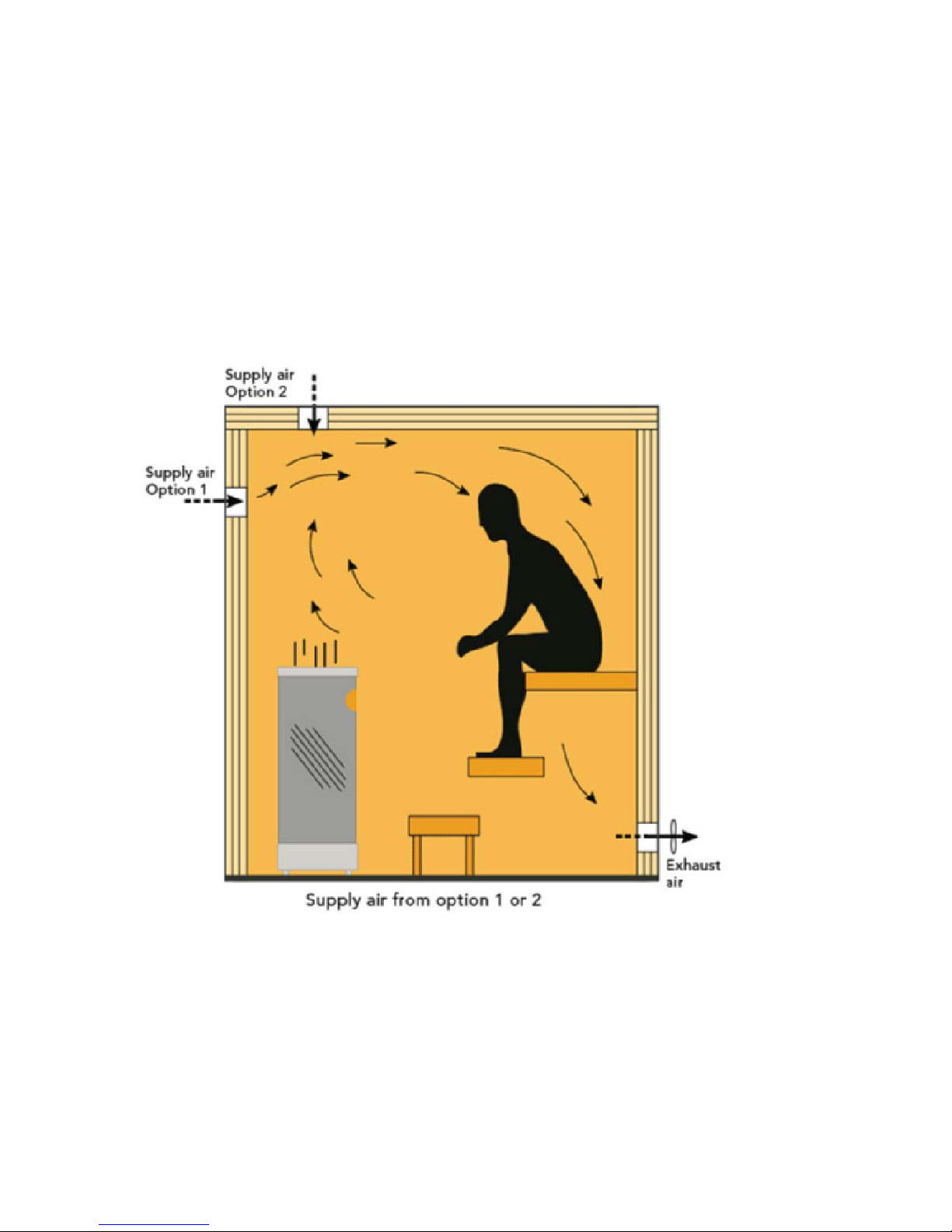

Ventilationinthesauna14
Warnings15






3

Installationinstructions
‐Readthroughtheseinstructionswithcarebeforeyoubegintheinstallationprocess.
‐Theelectricalinstallationmustbeperformedbyaqualifiedelectrician.
‐Separateinstructionsforelectricalconnectionscomewiththecontrolunitand/orthe
circuitdiagramsoftheseinstructions.
‐Bewareofsharpedgesandusealong‐sleevedshirtandprotectiveglovesduringthe
installationandwhilepilingthestones.

1. Removetheprotectiveplasticcoveringfromtheheater.

2. Choosetheplacefortheheateraccordingtotherequiredsafetydistances.The
minimumsafetydistancestoinflammablesurfacesforMonolithelectricheater,
measuredfromtheheater'sframeoutwards,are100mmonthesidesandthebackof
theheaterand800mmtotheceiling(Page9).

3. Payattentiontotheventilationofthesaunaroom,theidealplacementforthe
thermostat'ssensorandthecontrolunit.(PAGE7‐8)

4. Liftthesteelframefromtheresistorcasing/stand.

5. Opentheelementboxlocatedattheunderneaththeheaterandconnectthefive‐pole
electriccablethroughthesocketsealtotheterminalblockinsidethebox.(PAGE6)

6. Attachtheotherendofthecabletothecontrolunitandconnectitaccordingtothe
specifiedinstructionsinsidethecontrolunit(controller).

7. Takethecablefromthecontrolunit(controller)eithertothesocketorelectricalmain
center.

8. Testthatalltheheatingelementsfunctionproperlybyswitchingtheheateron.Ifallthe
heatingelementsheatup,youcanclosetheelementboxpanel.(Ifoneormoreofthe
heatingelementsfailstoheatuporanotherproblemoccurssuchasafuseblowingout,
contactthemanufacturer'stechnicalsupport.

9. Placetheheaterinitsplace.Checkthesafetydistancestoflammablematerialsbefore
pilingonthestones.

10. Liftthesteelframeontopoftheresistorcasing/standandstraightentheheaterby
adjustingtheadjustablelegs.

11. PILINGOFTHESTONES:Readseparateinstructions(PAGE10).Incommunallyorpublicly
usedsaunaswerecommendtheuseofceramicKerkesstonesaroundtheheating
elements(www.kerkes.fi).Kerkesstonessupportandhelppreservetheheating
elementsandtheydonotdisintegrateprematurelyduetohightemperaturechanges.
Notethattheuseofsoapstoneandnaturalstonesisallowedonlyontheouteredgesand
onthetopoftheheater.

4


12. IKI‐KiuasLtd.recommendstheuseofsafetyrailingsaroundtheheater.However,the
stainlesssteelframedoesnotover‐heatthewayordinarysteel‐casedheatersdo.

13. Thesurfaceofthestonessinksinalittleaftertheheaterhasbeeninuseforawhile.
Frequentlycheckthattheheatingelementsdonotbecomeexposed.Ifthisshould
happen,pileinmorestones.Thedisintegrationofthestonesdependsonthetypeof
stonesandthefrequencyofuse.Theconditionofthestonesshouldbecheckedyearly
andbrokenstonesshouldbereplacedbynewones.


Connectingtheelectricheatertoelectricalnetwork


Theheaterisconnectedtotheelectricalnetworksemi‐stationarilywithaH07RN‐Frubbercableor
itsequivalent.TheuseofPVC‐insulatedcableasaconnectingcableisprohibitedduetothermal
embrittlement.Theelectricinstallationmayonlybeadministeredbyaqualifiedelectrician
adheringtocurrentregulations.Themaximumdistanceofthejunctionboxfromtheflooris400
mm,measuredfromtheuppercornerofthebox.Makesurethattheconnectingcablewillnotbe
exposedtothermalradiationormechanicalstrain.Iftherubbercablerunninginsidethewallof
thesaunaisabove1000mmfromthefloor,itneedstoenduretemperaturesupto170
degreesCelsius(forexampleSSJ).


Controlunit

Thecontrolcableforelectricalheatingisbroughtdirectlyintothejunctionboxoftheheater,and
fromtheretotheterminalblockoftheheater.Thepowerandcontrolunitshouldbeinstalledin
toadryplacebetweentheheaterandtheelectricalcenter,eitherinthesaunaoroutsidethe
sauna(dependingonthemodel).Thethermostatisinstalledintothewall/orroofofthesauna
accordingtoinstructionsandisconnectedwithSSJorsimilarsiliconecabletothepowerunit.
Seethemoredetailedinstructionsprovidedbythecontrolunit'smanufacturer.


Temperaturerestrictor(overheatprotector)

Thetemperaturerestrictorswitchesoffthepowerifthetemperatureinthesaunaroomclimbs
dangerouslyhigh.Iftherestrictorgoesoff,thecauseisnotatemporarymalfunction.Inthiscase
consultthemanufacturerstechnicalsupport.
Seethemoredetailedinstructionsprovidedbythecontrolunit'smanufacturer.







5

Usingthethermostatandadjustingthetemperature

Invariouscontrolunitmodelstheselectedbathingtemperatureisshownonthescreenofthe
controlpanel.Thethermostatsensormustnotbeinstalledlessthan1000mmfromanundirected
incomingairvalveorlessthan500mmawayfromanincomingairvalvewhichhasbeendirected
awayfromthecontrolunit.
Seethemoredetailedinstructionsprovidedbythecontrolunit'smanufacturer.


Timerfunctions

Variouscontrolunitmodelshavemanyvarioustimeroptions.Attn.morethan4hroperational
timeisprohibitedinprivateuseandshouldbeconsultedbyqualifiedelectrician.
Seethemoredetailedinstructionsprovidedbythecontrolunit'smanufacturerandlocallaws.


Instructionsforbathing

Beforebathingforthefirsttime,heatuptheheateroncetoburnofftheprotectiveoilsolvents.
Notethatyouneedtoventilatethesaunaroomefficientlybeforeyoubeginbathing.

Theheatingtimeforthestonesandthesaunaroomisabout60minutesdependingonthesizeof
theroomanditsventilation.Throwingwaterontheheaterincreasestemperatureandhumidity.
Thetopofthepillarcreatesmoreheat,whilethesidescreateagentlersteam.

Thetemperatureshouldbesetbythetemperaturecontrolinthecontrolunit.Arecommended
temperatureforthebathingwiththisheateris55–70degrees.

Maintenance:

Duetolargevariationintemperature,thesaunastonesdisintegrateinuse.Payattention
especiallytothegradualsettlingofthestones.Besurethattheheatingelementsdonotappear
withtime.Thestonessettlemostrapidlywithintwomonthsofpiling.Rearrangethestonesat
leastonceayearorevenmoreoftenifthesaunaisinfrequentuse.Atthesametime,removeany
piecesofstonesfromthebottomoftheheaterandreplaceanydisintegratedstoneswithnew
ones.Byalsoleavingfreeairflowandspacingbetweenthesaunastones,theheatingcapabilityof
theheaterstaysoptimal,isfasterandtheriskofoverheatingisavoided.

NOTE!Themaximumvolumeoftheladleis0.5litres.Ifanexcessiveamountofwaterispouredon
thestones,onlypartofitwillevaporateandtherestmaysplashasboilinghotwateronthe
bathers.Neverthrowwateronthestoneswhentherearepeopleneartheheater,becausehot
steammayburntheirskin.






6

Requirementsforwaterquality
   

WaterpropertyEffectsRecommendation
HumusconcentrationColor,taste,precipitates<12mg/l
IronconcentrationColor,smell,taste,precipitates<0,2mg/l
Hardness:mostimportant
substancesaremanganese
(Mn)andlime,i.e.calsium(Ca)
PrecipitatesMn:<0,05mg/l
Ca:<100mg/l
ChlorinatedwaterRisktohealthUseiscompletelyforbidden
SeawaterFastcorrosionUseiscompletelyforbidden


Troubleshooting

Iftheheaterorsaunaroomdoesnotheatup,checkthat:

1. Thepowerison.

2. Thepowerswitch(startbuttononthecontrolpanel)ison.

3. Thetemperatureknobissettoahighertemperaturethanthetemperatureinthesauna
room.

4. Thefusesareintact.

5. Thetemperaturerestrictor(overheatprotector)hasnotswitchedoff.Iftemperature
restrictorhasgoneoff,thereasonmustbesolvedbeforeusingheateragain

6. Checktheerrormessage“E‐number”fromthecontrolpanel.Thecauseofthedefectcan
becheckedfromthecontrolunitmanufacturer'sinstructions.

7. Thestonesarepiledcorrectly.


Thisinstallationandoperationmanualisgiventotheowner/useroftheheaterafterthe
installation.









7


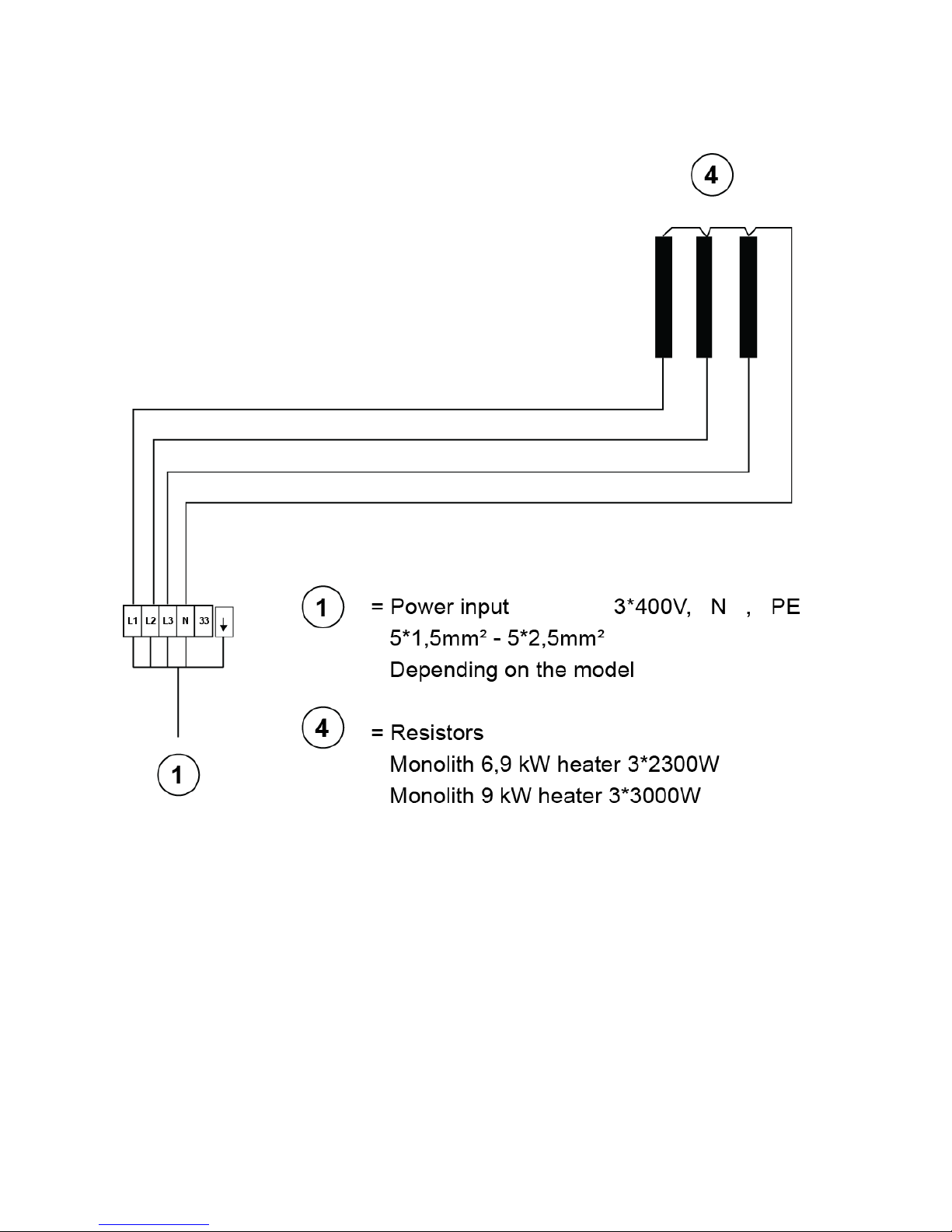

CircuitconnectordiagramMonolith6,9and9kW















8

CircuitconnectordiagramMonolith13,8,15,9and18kWwithtwocircuits






9

CircuitconnectordiagramMonolith13,8,15,9and18kWwithonecircuit








10
Safety distances from the heater
Safety distances to flammable structures:
Back Front Side Up
Monolith 6,9 kW 100 mm 100 mm 100 mm 800 mm
Monolith 9 kW 100 mm 100 mm 100 mm 800 mm
Monolith 13,8 kW 100 mm 100 mm 100 mm 800 mm
Monolith 15,9 kW 100 mm 100 mm 100 mm 1000 mm
Monolith 18 kW 100 mm 100 mm 100 mm 1000 mm

11

Pilingofthestones

Useprotectivegloveswhenpilingthestonestotheheaterbecausetheremaybesharpedgesin
theheater.Ifneededwashthestonesbeforeyoupilethem.

Max.amountofstones:
Monolith6,9‐9kW120kg
Monolith13,8‐18kW220kg

Pilingthestonesshouldbedonewithcare.Thestonesshouldbeplacedsothatthegapbetween
theheatingelementsandtheframeoftheheateriscompletelyfilledwithstonesforthewhole
heightoftheheater.Thestonesshouldnotbeplacedtootightlytogether;insteadthereshouldbe
enoughspacebetweenthestonestoallowairtoflowfreely.Pleasemakesurethatelements
makeNOTcontactwitheachotherorwiththeheaterframe.

Inprivateuse,werecommendolivine,olivine‐doleriteandperidotitestones.Thestonesshouldbe
smallerthan10cmindiameter,sothattheyareeasytopileinbetweentheheatingelementsand
themeshframe.Inordinaryusethestonesshouldbechangedevery2to5years,dependingon
howfrequentlythesaunaisused.











12



Warranty

IKI‐KiuasLtd.(themanufacturer)grantsitsproductswarrantyaccordingtothefollowing
conditions.Themanufacturerguaranteesthequalityandfunctionalityofitsproductsforthe
durationofthewarrantyperiodThewarrantyappliestoproductssoldandinuseinEUregion.The
warrantyrequiresthatthebuyeroftheproductfollowsthemanufacturer’sinstructionsregarding
theplacementoftheheater,itsinstallation,useandmaintenanceaswellasthoseregardingthe
qualitiesofthestonesusedintheheater.Thelengthofthewarrantyinprivateuseis24months
fromthedayofpurchase.Thewarrantyperiodforspasaunasandotherpublicusesaunasis6
months,ordeterminedaccordingtothefrequency/levelofuse.Contactthemanufacturersfor
moredetails.

Thewarrantyforelectricheatersrequiresthat:

1. Incaseofdefectormalfunction,thebuyermustalwayscontactsthemanufacturerorsales
agentfirstbeforesearchingforthecauseorattemptingtorepairit.
2. Inprivateapartmentuse,theheater’sstonespaceneedstobere‐piledatleastoncea
yearandweatheredstonesneedtobereplacedwithnewones.
3. Ininstitutionalorprofessionaluse,theheater’sstonesmustbere‐piledatleastthreetimes
ayearduringthewarrantyperiod.Inaddition,thestonesmustbechangedtonewonesat
leastonceayear.Proofoftheoperationmustbepresentedatrequest.Theproduct’s
purchasereceiptorbuildsite’sacceptancecertificateorsimilarreportfunctionsasthe
warrantycertificate.Theuseofceramicheaterstones(otherthanKerkesceramicheater
stones)isprohibited.Incaseofuseofceramicstones,themanufacturer’swarrantydoes
notapply.
4. Thewarrantydoesnotcoverdismantlementorreinstallationonsaunabenches,removalof
saunastonesnorre‐pilingthem.IKI‐KiuasLtd.recommendsusingforthelowerlevels
saunabenchesthatcanbemovedwithoutusingtoolstodismantlestructures.
5. Thewarrantyforreplacementpartsis12monthsfromthedayofpurchase.The
replacementforadamagedpartwillbedeliveredtotheresellercostfree.Theuseofan
authorizedmechanicisrequiredforinstallationofthereplacementpart.Themanufacturer
isnotliabletoreimburseanycostsoccurredduringtheremovalofthefaultypartorthe
installationofthereplacement.Thefaultypartmustbereturnedtothemanufacturerat
requestandattheexpenseoftheowner.Themanufacturerwillissueitsfreightcontacts
numberbeforereturnofthepart.Receiptfromtheresellerorcertificatefroma
manufacturer’sauthorizedmechanicwillfunctionasawarrantycertificate.
6. Limitationstowarranty:Theproductownermusttakegoodcareoftheproduct.On
receivingtheproduct,theownerisexpectedtocheckthatitdoesnotshowsignsof
damagecausedduringshippingorstorage.Incaseofsuchdamage,theymustcontactthe
salesagentortransportcompanyimmediately,maximum7daysafterreceivingthe
product.Themanufacturerisnotliableforanydamagescausedduringshipping,orby
inappropriatestorage,installationoruseagainstmanufacturer’sinstructions,neglectof
maintenance,ordamagecausedbyplacementoftheheaterinaplacewhichdoesnot
meettherecommendationsmadebythemanufacturer.

13

7. Damagenotifications:Theownerisresponsiblefornotifyingthemanufacturer,thesales
agent,ormanufacturer’sauthorizedmechanicofanydamageormalfunctionassoonasit
appearsandwithin14days.Anywarrantyrelatedclaimsmustbesubmittedwithin14days
fromtheclosingdateoftheproduct’swarrantyperiod.
8. Manufacturer’sactionsregardingwarranty,continuationofwarranty:Inreceiptofa
substantiatedwarrantyclaim,themanufacturerwillrepairorchangetheproduct.Thisis
doneinthemanufacturer’sexpense,andthemanufacturerisfreetoselectthemostcost‐
effectivealternative.Thewarrantyforreplacementpartsisoutlinedaboveinsection5.
Thereplacementpartisgrantedwarrantyaccordingtospecificationsinsection5.The
warrantyforarepairedpartcontinuesasbefore.
Themanufacturerisnotliableforreimbursinganyexpenses,businesslossorotherdirect
orindirectharmoccurredtothebuyerfromdamagesormalfunction.

QualityGuarantee

Guaranteeofmaterials.Themanufacturerguaranteesthedurabilityofthestainlesssteelparts
(resistorplatformandframe)inprivatehomeusefor10years.Duringthewarrantyperiodany
defectsthatappearintheheater'srawmaterialsorareproduction‐basedwillberepairedfreeof
charge.Forexample,theuseofseawaterontheheaterisforbidden.Readthroughthe
requirementsforwaterqualityintheinstallationsinstructions.Thewarrantydoesnotcovercolor
changes,slippingorhair‐linefractures,characteristictonaturalstones,whichdonotaffecttheuse
orthesafetyoftheheater.

Freightwarranty

Damagesoccurredwhileshippingmusttoberecordedinthewaybillwhentheproductisreceived
orwithin7daysofdelivery.Shippingdamagemustalsoalwaysbereportedtotheshipping
company’slastcontact.Thedamagedpartneedstobestoredforinspection.Insurance
compensatesforthenewpart,whichwillbedeliveredbyapublictransporter.Inallissues
concerningwarrantycontactthestoretheproductwasboughtfrom.


















14


Mechanicalventilationinasaunawithanelectricheater

Attentionshouldbepaidtotheventilationinthesaunaroom.Duetoproperventilation,the
sauna‐goerscanenjoycleanandfresh,oxygen‐richair.Theairinthesaunashouldchangesix
timesinonehour.Thefreshairpipeshouldbelocatedontopoftheheatereitherinthewallor
theceiling,atapproximately500mmfromtheheaterandthediameterofthepipeshouldbe50–
100mm.Theexhaustairpipeshouldbeasfarawayfromtheheateraspossible,yetclosetothe
floor.Theexhaustairpipeshouldbetwicethesizeofthesupplyairpipe.














15

Warnings


1. Stayinginthehotsaunaforlongperiodsmakesthebodytemperaturerise,whichcanbe
dangerous.

2. Keepawayfromtheheaterwhenitshot.Thestonesandoutersurfaceoftheheatermay
burn.

3. Consultyourdoctoraboutanyhealth‐relatedlimitationstobathing.

4. Consultyourchildwelfareclinicabouttakinglittlebabiestothesauna.

5. Alwaysmovecarefullyinthesauna,astheplatformandfloorsmaybeslippery.

6. Nevergotoahotsaunaifyouhavetakenalcohol,strongmedicinesornarcotics.

7. Neversleepinahotsauna.

8. Seaairandahumidclimatemaycorrodethemetalsurfacesoftheheater.

9. Donothangclothestodryinthesauna,asthismaycauseariskoffire.Excessivemoisture
contentmayalsocausedamagetotheelectricalequipment.

10. Keepchildrenawayfromtheheater.

11. Donotletyoung,handicappedorillpeoplebatheinthesaunabythemselves.




















16

















