Setup
Includes
•RCA stereo audio cable
•User's Guide
•45 rpm adapter
Power
Plug the external power adapter into a standard wall outlet.
USB
AUX OUTRL AC ~ 12V
PHONO LINE

6
Orientation
Tone Arm
& Stylus
Turntable
Tone Arm
Lift Switch
Features & Controls
45
PHONO LINE
33 RECORDING
REC. STOP
PAIR
45
78
PHONO LINE
33 RECORDING
REC. STOP
PAIR
Controls
Counterweight
Adjustment
Turn to adjust the
weight of the stylus
onto the record. Note:
3 grams of weight is
recommended
Anti-Skating Adjustment
Use to stop the stylus
from sliding toward the
center of the record.
Pitch Adj.
Use to fine tune the speed of the turntable.
78/45/30
Press to select playback speed of a record.
Power
Press to power ON/OFF.
Rec. Stop
Press to stop recording music to a USB.
Recording
Press to start recording music to a USB drive.
Pair
Press to begin pairing to a Bluetooth device. Press
and hold for 5 seconds to turn Bluetooth OFF.

7

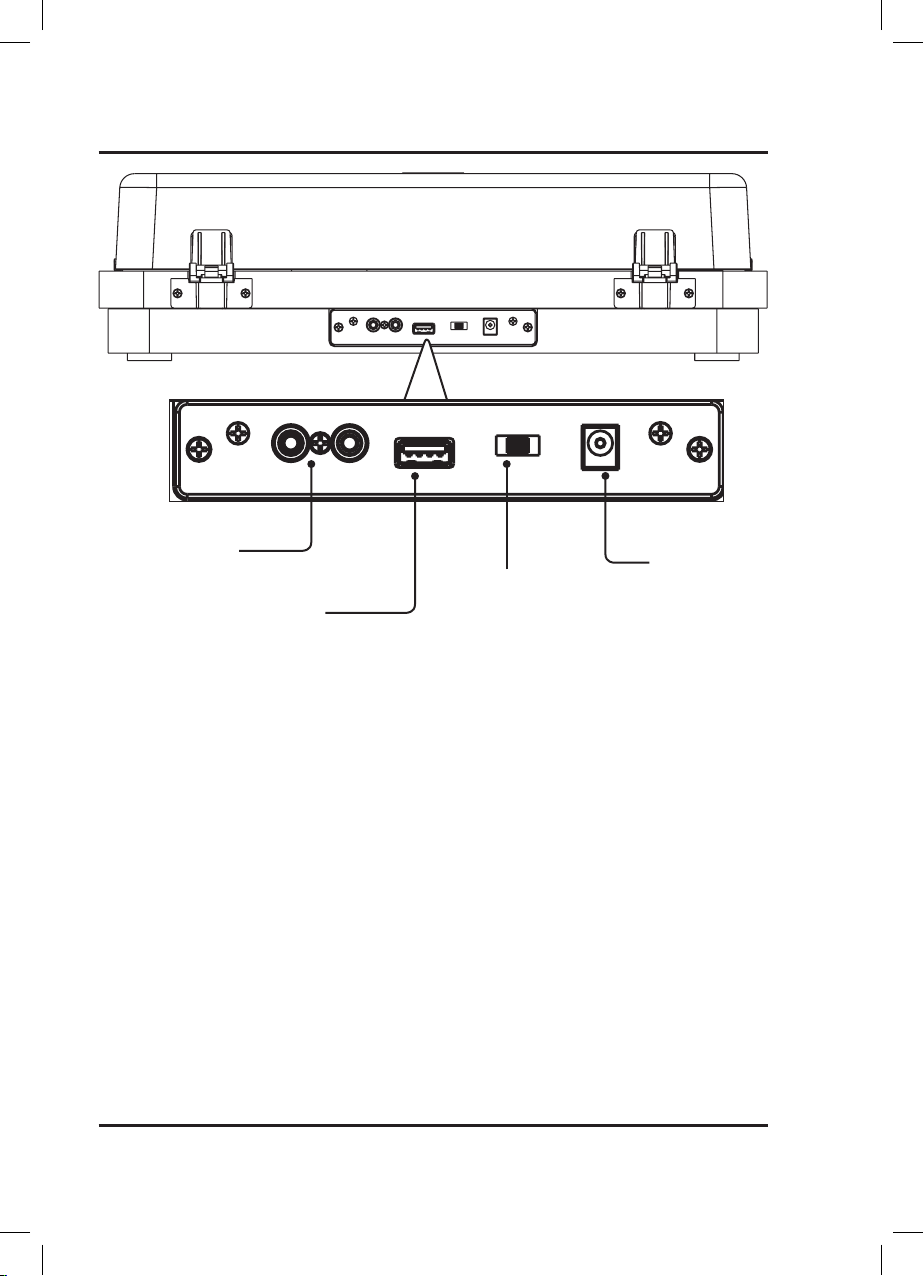

Aux Out
USB
Insert USB drive
to record audio
from turntable.
AC Power Input
Playback Switch
Select Line If your speaker
system (amplifier) does not
have phono inputs.
Select Phono if your stereo
system (amplifier) has
Phono inputs connect your
turntable to the phono
inputs on your stereo
system to play music out
loud.
USB
AUX OUTRL AC ~ 12V
PHONO LINE
USB
AUX OUTRL AC ~ 12V
PHONO LINE

8

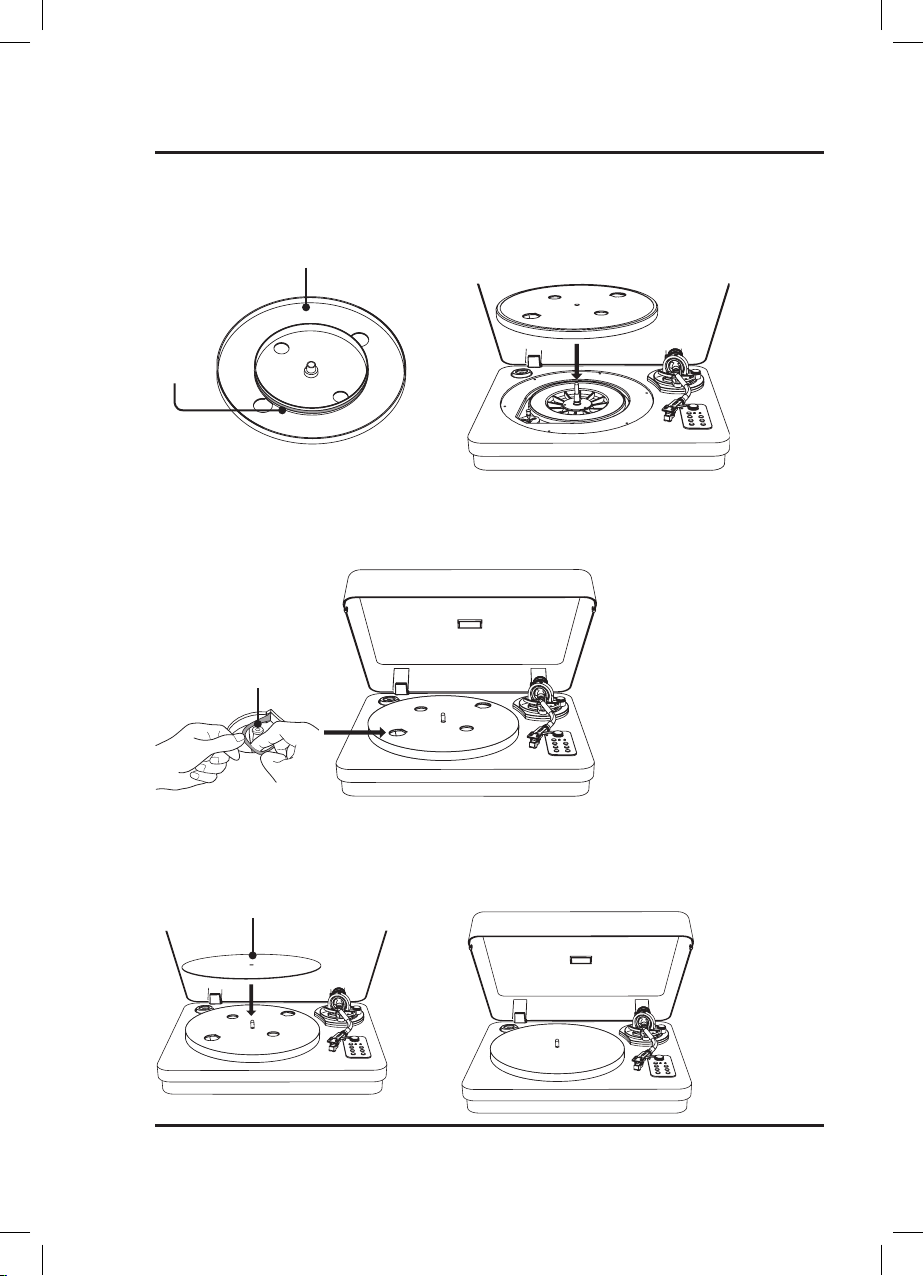

Assembly
Belt Plate
Belt
Step 1
Place the Belt plate onto the main
unit as seen below.
Step 2
Pull the Belt of the Belt Plate around the
Roller as shown below.
Step 3
Place the Plate Cover over the Belt Plate as shown
below. You may now load a record onto the turntable.
Roller
Plate Cover

9
Using the Aux Out
Requires RCA audio cable (included).
1. Plug the included RCA audio cable into the Aux Out on the turntable and your amplifier.
2. Set the Playback Switch to Phono mode, the backlighting will turn white.
3. Audio from the record will now be heard through the connected amplifier/speakers.
1. Start by enabling Pairing Mode on the Bluetooth Speaker you want to use. Before beginning the pairing process,
be sure no other devices are connected to the speaker.
2. Press the Pair button on the turntable to begin pairing to your speaker. The backlight on the turntable will
quickly flash blue while it attempts to connect to the speaker.
3. When successfully paired, the indicator light on the turntable will turn solid. Note: If the turntable fails to
connect, the indicator light will continue flashing blue. Press the Pair button to try again.
4. Audio from the record will now be heard through the connected speakers system.
Note: This turntable has a Bluetooth transmitter and can stream the audio from a record to
a speaker for room-filling sound. This unit does not have a Bluetooth Receiver, therefore it
cannot receive Bluetooth signals from a phone or tablet to play music.
Connecting to Devices
Preamp
Speakers
USB
AUXOUTRL AC~ 12V
PHONO LINE
Connecting to a Bluetooth Speaker
Note: Select Phono on the Playback Switch if your stereo
system (amplifier) has Phono inputs connect your turntable to
the phono inputs on your stereo system to play music out loud.
If your stereo system (amplifier) does not have Phono inputs
set the Playback Switch to Line.

10
Operation
Playing a Record
It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components of this
turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly handled.
1. Remove the shroud that protects the stylus and release the lock that holds the Tone Arm in place.
2. Use the Tone Arm Lift Switch to raise the Tone Arm from its catch.
3. Using your hand, gently swing the Tone Arm into the desired location over the record. The turntable will start
spinning as the Tone Arm is moved into position.
4. Use the Tone Arm Lift Switch to safely lower the stylus onto the record.
Using the Lift Switch instead of your hand will reduce the chance of accidentally damaging the record or the stylus.
5. When not in use, secure and lock the Tone Arm in its resting position and replace the protective shroud over the
stylus. This will minimize the risk of accidental damage to these sensitive parts.
Lock Unlock
Stylus

11
Note: This unit can record playback from a record onto a USB drive to be saved via MP3 format.
Please Check to make sure Bluetooth is OFF.
1. Insert a USB drive into the rear of the unit.
2. Press the Recording button to begin recording the audio of the record being played. When recording the
backlighting will turn red.
3. To pause recording, press the Rec. Stop button. The red backlighting will begin flashing slowly.
4. When the recording is finished or you want to stop it, press and hold the Recording/Rec. Stop button for 5
seconds, the red backlighting will turn off and the unit will exit recording mode.
USB
AUX OUTRL AC ~ 12V
PHONO LINE
Recording (USB)

12
Protect for Today
Sustain for Tomorrow
Made
Green
International Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit
the support section at: www.iliveelectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes,
visite la sección de apoyo en: www.iliveelectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour obtenir des réponses à des
questions fréquemment posées, consultez la rubrique d’assistance sur: www.iliveelectronics.com
Contact Information
Website: www.iliveelectronics.com
Email Support: [email protected]
Email Parts: [email protected]
Phone Support: 1-888-999-4215
Warranty
For Warranty Information and the most up-to-date version of this User’s Guide, go to:
www.iliveelectronics.com
Customer Support
Copyright © 2021 Digital Products International (DPI, Inc.). All other trademarks appearing herein are the property of
their respective owners. Specifications are subject to change without notice.
