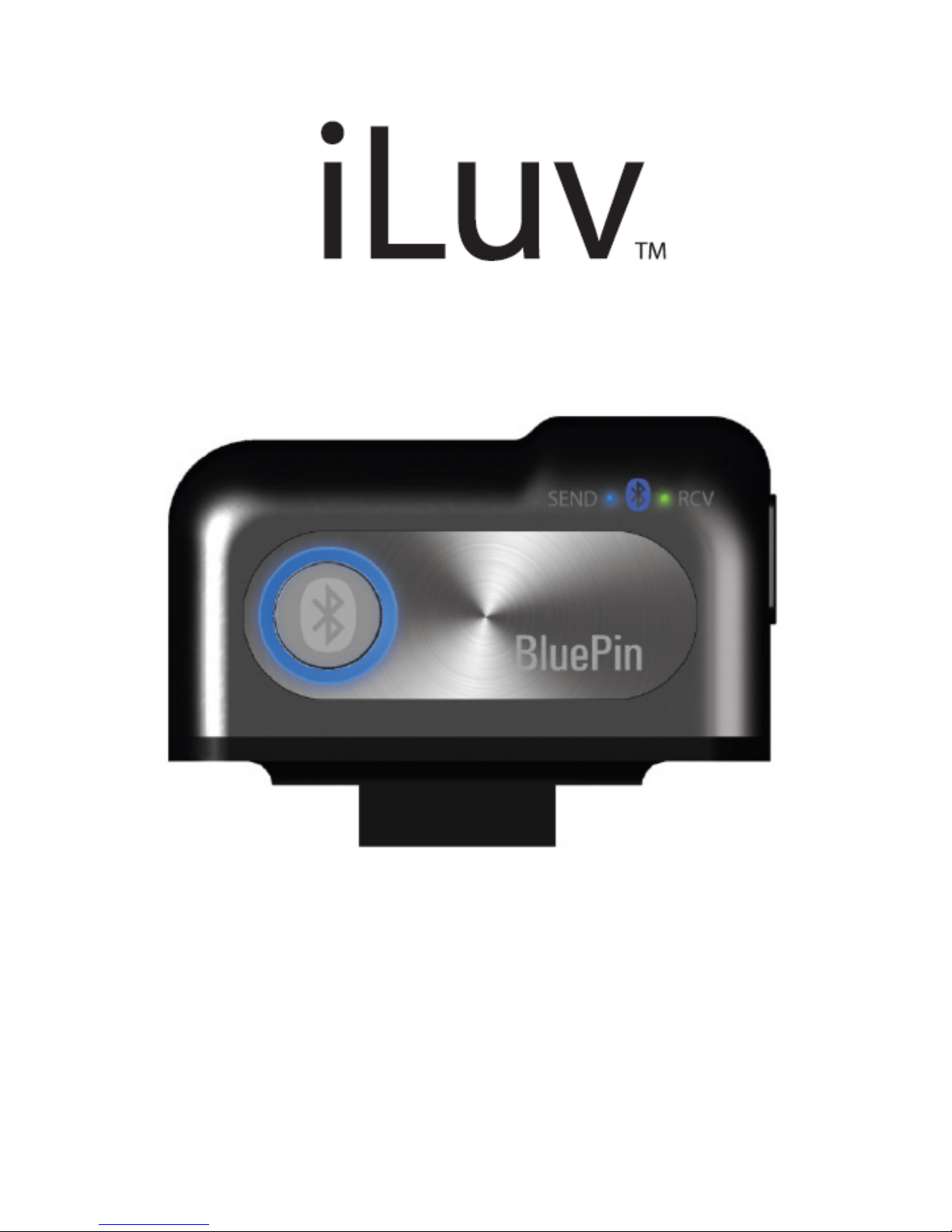

Iluv BluePin 2 i120 User manual

BluePin 2
Instruction Manual
i120
Please read this manual carefully before operating and save it
for future reference.
Have a question? Please visit http://www.i-Luv.com

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 1 -

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 2 -
USER SAFETY GUIDE
INSTRUCTIONS ON ENVIRONMENT PROTECTION
Do not dispose of this product in the usual household garbage at
the end of its life cycle; bring it to a collection point for the
recycling of electrical and electronic appliances.
This symbol on the product means the instructions
for use or the packaging will inform about the
methods of disposal. The materials are recyclable
as mentioned in its marking. By recycling, material
recycling, and other forms of re-utilization of old appliances, you
make an important contribution to the protection of the
environment. Please inquire at your local community
administration for an authorized disposal location.
Important Safety Instructions
1. Read instructions – All safety and operating instructions
should be read before the appliance is operated.
2. Retain instructions – The safety and operating instructions
should be retained in a secure place for future reference.
3. Heed warnings – All warnings on the appliance and in the
operating instructions should be observed.
4. Follow instructions – All operating and use instructions
should be followed.
5. Water and moisture – The appliance should not be used
near water (bathtub, kitchen sink, laundry tub, pool, etc.).
6. Heat – The appliance should be situated away from heat

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 3 -
USER SAFETY GUIDE
Important Safety Instructions-Continued
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. Power sources – The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Cleaning – The appliance should be cleaned with a dry cloth.
9. Objects and liquids entry – Care should be taken so that
objects do not fall and liquids are not spilled into the device’s
openings.
10.Servicing – The user should not attempt to service the
appliance beyond that described in the user's operating
instructions. All other servicing should be referred to qualified
service professional.
FCC Notice (USA)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 4 -
USER SAFETY GUIDE
FCC Notice (USA)-Continued
communications, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment. Refer to 47 CFR Sec.
15.21.
Industry Canada Notice to Canadian Users
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device. Refer to IC
RSS 210 Sec. 5.11. The term “IC” before the certification or
registration number only means that the registration was
performed based on a Declaration of Conformity and that
Industry Canada technical specifications were met. It does not
imply that Industry Canada (IC) approved this equipment. Refer
to Self-Marking 6(f) and RSP 100 Sec. 4.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 5 -
USER SAFETY GUIDE
Additional Safety Instructions
•When not in use, keep your device in a safe place where it
will not be bent or crushed.
•Keep this device away from children. This is a small item and
may be swallowed by children and result in serious harm.
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the
exposure limit for radio frequency energy, which is set by the
Federal Communications Commission of the U.S government.
The term “EMI” is short for the electromagnetic interference
caused by the electromagnetic field generated by electronic
devices. In fact, most electrical appliances and devices emit
electric and magnetic fields, and most of modern electronic
devices are susceptible to the EMI if they are inadequately
shielded or designed.
•If you use any personal medical device, such as a pacemaker,
please consult the manufacture of your medical device to
determine if it is adequately shielded from EMI. Your
physician might assist you in obtaining this information.
•Please turn off this device if you are instructed to do so,
especially on an airplane or in a hospital.
•Please keep away from medical instruments in a hospital or
medical unit while using this device.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 6 -

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 7 -
GETTING STARTED
BluePin 2
Thank you for purchasing the i120 from iLuv. Please keep this
manual in a safe place for future reference.
•Turns its host player into a Bluetooth system
•Answer or make a phone call wirelessly when Bluetooth
mobile phone is paired.
•Pair BluePin 2 with Bluetooth-enabled music player and
listen to your favorite music from your host system.
•Control your music on the paired device with the remote
control of the BluePin 2 host system.
•Pair with Bluetooth stereo headset for wireless listening
experience.
•Control the BluePin host system with the remote control of
the paired headset.
•Control your iPod connected with Bluetooth dongle using
the dock remote control.
•Supports HSP, HFP, A2DP, and AVRCP profiles
•Communication range up to 300ft*
•Compliant with Bluetooth V2.0
What’s Included
•BluePin 2
•Instruction manual
•Warranty card

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 8 -
GETTING STARTED
What is Bluetooth wireless technology?
Bluetooth wireless technology is a short-range wireless
communication technology intended to replace the cables
connecting electronic devices while maintaining the high level of
security. With Bluetooth wireless technology, two devices can be
connected at the same time without the need to face each other
or the concern of interference from other wireless communication
within its optimum range of 300 feet.
Through a process called “Pairing,” two or more devices with
Bluetooth wireless technology can interact with each other
without interference from other wireless platforms nearby,
including other Bluetooth wireless communications between
unrelated devices.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 9 -
1
2
3
4
5
6
GETTING STARTED
LOCATION OF CONTROLS
1. SEND (TX) Indicator light
2. RCV (Receive/RX) Indicator light
3. Built-in Microphone
4. SEND/RCV Button
5. PAIRING Button
6. 10pin Connector

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 10 -
OPERATING INSTRUCTIONS
Operating the BluePin 2
The i120 has no independent power source (battery) and must
be connected to an iLuv device in order to operate.
Pairing in TX (Send) Mode
1. Connect the i120 to the 10pin connector on your iLuv
audio device.
2. Press the SEND/RCV button on the side of the BluePin 2
until the SEND indicator light shows.
3. Follow the pairing instructions for the device with which
you wish to pair the i120 (mobile phone, MP3 player,
stereo headset, etc.).
Note: Your connected device may ask for a PIN code. Enter,
“0000” to continue pairing.
4. Press and hold the PAIRING button on the i120 for
approximately three (3) seconds until blue and red LED
lights blink alternatively around the button. There will also
be a “beep” sound.
Note: Pairing mode will begin immediately if no pairing
information has been previously stored in the i120. If the
Bluetooth device has been previously paired with the i120, the
LED light around the PAIRING button will light in solid blue.
5. When the blue and red blinking lights become solid blue
(not blinking), the i120 has successfully paired with the
other device.
* In TX (Send) mode, the pairing button has Pairing and Search
functions.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 11 -
OPERATING INSTRUCTIONS
Pairing in RX (Receive) Mode
1. Connect the i120 to the 10pin connector on your iLuv
audio device.
2. Press the SEND/RCV button on the side of the BluePin 2
until the RCV indicator light shows.
3. Follow the pairing instructions for the device with which
you wish to pair the i120 (mobile phone, MP3 player,
stereo headset, etc.).
Note: Your connected device may ask for a PIN code. Enter,
“0000” to continue pairing.
4. Press and hold the PAIRING button on the i120 for
approximately three (3) seconds until blue and red LED
lights blink alternatively around the button. There will also
be a “beep” sound.
Note: Pairing mode will begin immediately if no pairing
information has been previously stored in the i120. If the
Bluetooth device has been previously paired with the i120, the
LED light around the PAIRING button will light in solid blue.
5. When the blue and red blinking lights become solid blue
(not blinking), the i120 has successfully paired with the
other device.
* Once RX (Receive) mode has been established, the Pairing
button has Pairing and Search when in Standby. In the Speaker
phone state, the Pairing button has Receive, Reject, End, Voice
Call, Last Number Dial and Transfer Call functions.
Switching between TX and RX Mode
Once pairing has been successfully completed, press the
SEND/RCV button to switch between TX and RX modes.
The SEND or RCV indicator lights will identify which mode the
BluePin 2 is in.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 12 -
TROUBLESHOOTING GUIDE
1. The i120 does not work with my mobile phone.
Be certain that your mobile phone is equipped with Bluetooth
wireless technology. This BluePin 2 will only work with such
mobile phones. Additionally, your mobile phone must be
paired with the i120 before all other pairing.
2. There is interference on the headset with my phone or
music playing devices when paired with i120.
The maximum distance for Bluetooth wireless communication
is 300 feet (Class 1). When this distance is approached,
background noise will increase. Also, a poor signal on the
mobile phone may contribute to degradation the quality of
sound as well.
3. There is no sound from the iLuv device or paired device
•Make sure the volume is turned up on your iLuv music
device and/or the connected Bluetooth device.
•Make sure the BluePin 2 is set to the correct mode
(TX/RX). If wireless Bluetooth signal is being sent from
the BluePin II, press the SEND/RCV button until the
SEND indication lights. If the wireless signal is being sent
to the BluePin 2, press the SEND/RCV button until the
RCV indication lights.

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 13 -
SPECIFICATIONS
•Bluetooth Core: Version 2.0
•Bluetooth Profile: HFP, HSP, AVRCP, A2DP
•Communication Range: Up to 300ft (optimized), Class 1
•Powered by the host system

BluePin 2 V10M10_IM_EN_11262007
www.i-Luv.com
- 14 -

iLuv is a trademark of jWIN Electronics Corp. Features and specifications are
subject to change without prior notification. The Bluetooth word mark and
logos are owned by Bluetooth SIG, Inc. and any use of such marks by jWIN
Electronics Corp. is under license.
© 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed
material or product enclosed herewith including design, shape and graphics,
may be reproduced or transmitted in any form without the expressed written
consent of jWIN Electronics Corp. by any means, electronic or mechanical,
including photocopying, recording or the use of an information storage and
retrieval system. Any unauthorized distribution or reproduction of this printed
material or product, or any portion thereof, will be prosecuted to the fullest
possible extent of the law.
Printed in China
TEL: [phone]
FAX: [phone]
website: www.i-Luv.com
