Iluv i705 User manual

FM Transmitter
Instruction Manual
i705
Please read this manual carefully before operating and save it
for future reference.
Have a question? Please visit http://www.i-Luv.com

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-1-
USER SAFETY GUIDE
YOU CAN HELP TO PROTECT THE ENVIRONMENT!
Please remember to respect the local regulations: Hand
in the non-working electrical equipment to an
appropriate waste disposal center.
Important Safety Warnings
1. FCC regulations state that any change or modification to
the equipment, not expressly approved by maker or its
authorized parties, could void user’s authority to operate
this equipment.
2. To prevent fire or electric shock, do not expose the unit to
rain or moisture.
3. Never attempt to open the cabinet. Always refer servicing to
a qualified technician.
Important Safety Instructions
1. READ INSTRUCTIONS - All the safety and operating
instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating
instructions should be retained in a secure place for future
reference.
3. HEED WARNINGS - All warnings on the appliance and in
the operating instructions should be upheld.
4. FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be
used near water. For example: near a bathtub, kitchen sink,
laundry tub, and/or swimming pool.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-2-
USER SAFETY GUIDE
Important Safety Instructions – Continued
6. HEAT - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. POWER SOURCES - The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
8. CLEANING - The appliance should only be cleaned with a
dry cloth.
9. OBJECT AND LIQUID ENTRY - Care should be taken so
that objects do not fall and liquids are not spilled into the
device’s openings.
10. CARTS AND STANDS - The appliance
should be used only with a cart or stand that
is recommended by the manufacturer. An
appliance and cart combination should be
moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and
cart combination to overturn causing possible injury to the
user and/or damage to the unit.
11. DAMAGE REQUIRING SERVICE - The appliance should
be serviced by qualified service professional when:
a. Objects have fallen into, or liquid has been spilled
into the appliance’s apertures.
b. The appliance has been exposed to rain.
c. The appliance has been dropped and suffered
damage.
d. The appliance does not appear to operate normally,
or exhibits a change in performance.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-3-
USER SAFETY GUIDE
Important Safety Instructions – Continued
12. SERVICING - The user should not attempt to service the
appliance beyond what is described in the user's operating
instructions. All other servicing should be referred to
qualified service professional.
13. LEAD AND MERCURY - This product may contain lead
and/or mercury. Disposal of these materials may be
regulated by your local authorities due to environmental
considerations. For more detailed disposal or recycling
information, please contact your local authorities or the EIA
(Electronic Industries Alliance) – http://www.eiae.org
Additional Safety Instructions
•When not in use, keep your device in a safe place where it
will not be bent or crushed.
•Do not listen to music with high volume while driving.
Warning horn sounds may not be heard which could result
in a traffic accident.
NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment. Refer to 47 CFR Sec.
15.21.
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the
exposure limit for radio frequency energy, which is set by the
Federal Communications Commission of the U.S government.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-4-
USER SAFETY GUIDE
About Electromagnetic Interference (EMI)
– Continued
The term “EMI” is short for the electromagnetic interference
caused by the electromagnetic field generated by electronic
devices. In fact, most electrical appliances and devices emit
electric and magnetic fields, and most of modern electronic
devices are susceptible to electromagnetic interference (EMI) if
they are inadequately shielded or designed.
•If you use any personal medical device, such as a
pacemaker, please consult the manufacturer of the device
to determine if it is adequately shielded from
electromagnetic interference. Your physician may assist
you in obtaining this information.
•Please turn off this device if you are instructed to do so,
especially on an airplane and in a hospital.
•Please keep away from the medical instruments in a
hospital or medical unit while using this device.
FCC Notice to U.S. Users
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-5-
USER SAFETY GUIDE
FCC Notice to U.S. Users – Continued
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications, which can be determined by turning the
equipment off and on, the user is encouraged to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and
receiver.
•Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician
for help.
Industry Canada Notice to Canadian Users
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device. Refer to IC
RSS 210 Sec. 5.11. The term “IC” before the certification or
registration number only means that the registration was
performed based on a Declaration of Conformity and that
Industry Canada technical specifications were met. It does not
imply that Industry Canada (IC) approved this equipment. Refer
to Self-Marking 6(f) and RSP 100 Sec. 4.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-6-
GETTING STARTED
Thank you for purchasing the i705. Unpack the unit and make
sure all the accessories are put aside so they will not be lost.
FM transmitter for your iPod®nano sends the
DJ packing
Disc jockeys everywhere will worry about job security when you
play music on the radio using this FM transmitter for your iPod
nano. You can find a frequency on the FM dial while it displays
on the LCD screen after simply plugging the transmitter directly
into the bottom of your iPod nano.Without removing the FM

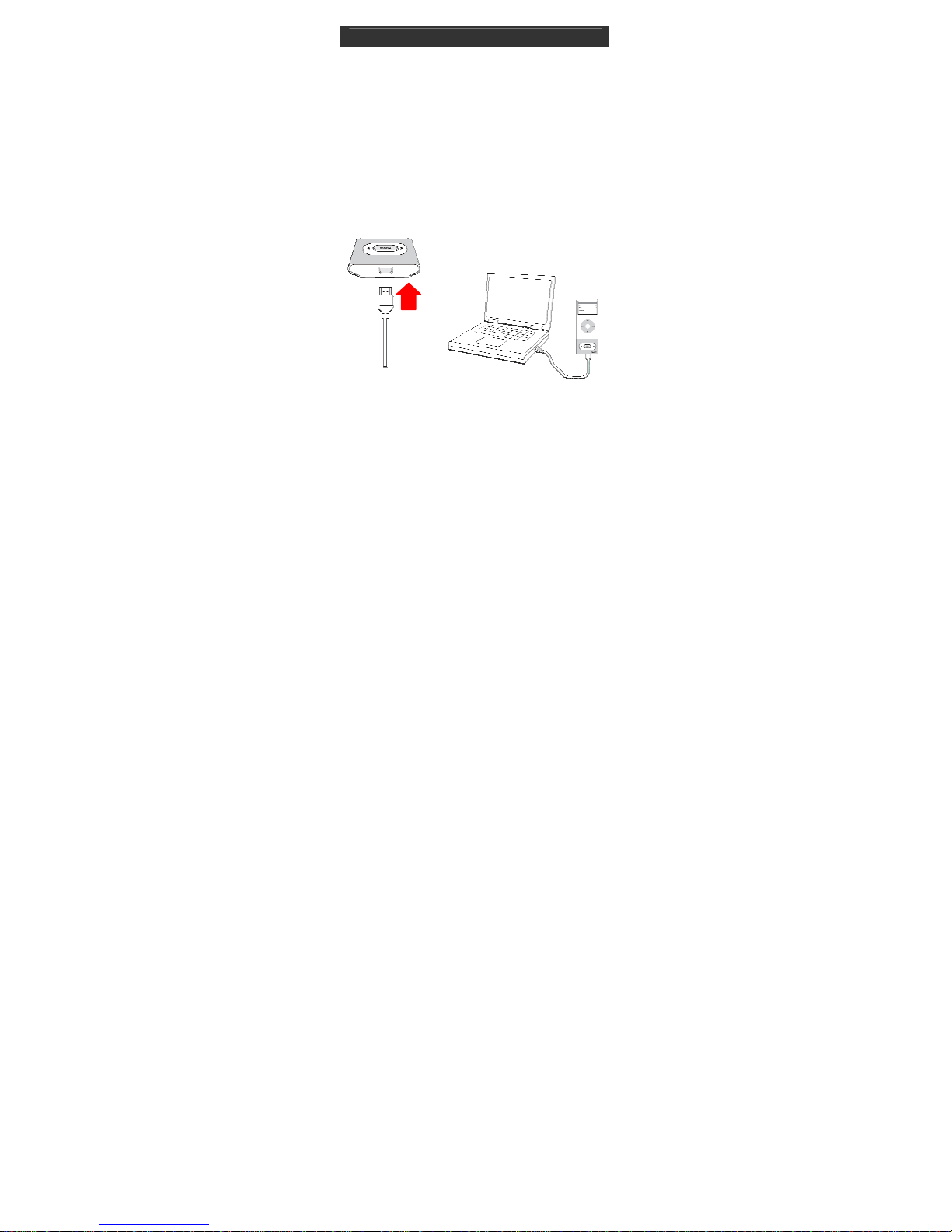

transmitter, you can charge and synchronize your iPod nano and
play music over the airwaves for hours. You can even pre-
program your desired FM frequency so you can find your station
every time. When you control the radio, DJs might just become
relics of yesteryear.
•Transmit your favorite songs on your iPod to any FM radio
near you
•Displays FM frequencies on the iPod screen
•Wide range of selectable frequencies (88.1MHz to
107.9MHz)
•Capable of programming favorite FM frequencies
•Able to charge and synchronize your iPod without removing
i705
•No battery or software installation required
•Compact easy-to-use design
What’s included
•FM transmitter
•Additional color covers for menu button
•USB Cable
•Instruction manual

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-7-
GETTING STARTED

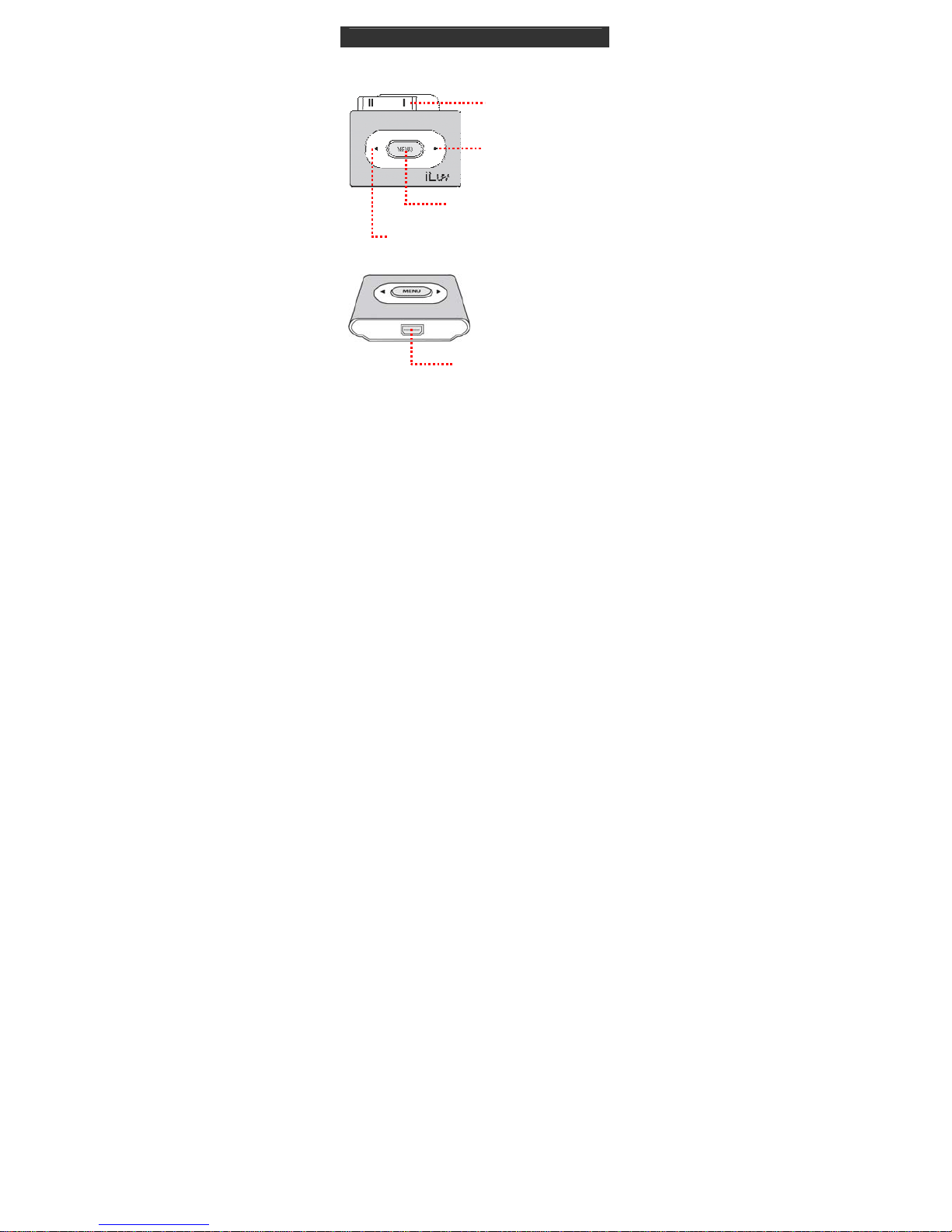

Location of Controls
30-pin connector for your
iPod nano (2nd generation)
Right-arrow (X) button for
changing FM frequency
and preset
Left-arrow (W) button for changing FM
frequency and preset
MEMU button for the frequency /
preset display and setup
USB port for charging and
synchronizing

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-8-
GETTING STARTED
Screen Indications
Turning on/off the FM Transmitter
When connected to your iPod, it automatically turns on. When
disconnected, it automatically turns off. If there is no audio input
signal until 1 minute after connected to your iPod, this unit
automatically enters the standby mode. In the standby mode, it
stops transmitting. If there is an audio signal, it automatically
wakes up and begins transmitting the music.
Indication for active preset
memory number
FM frequency from 88.1MHz to
107.9MHz

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
-9-
OPERATING INSTRUCTIONS
Setting up the Preset Memory
You can store up to 9 FM frequencies in the preset memory and
easily call them up later.
1. Connect the FM transmitter to your iPod.
2. Press the “MENU” button to
see the FM frequency on your
iPod screen.
3. Check whether the “M” indication is currently on. If currently
on, press the “MENU” button to turn off.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 10 -
OPERATING INSTRUCTIONS
Setting up the Preset Memory – Cont.

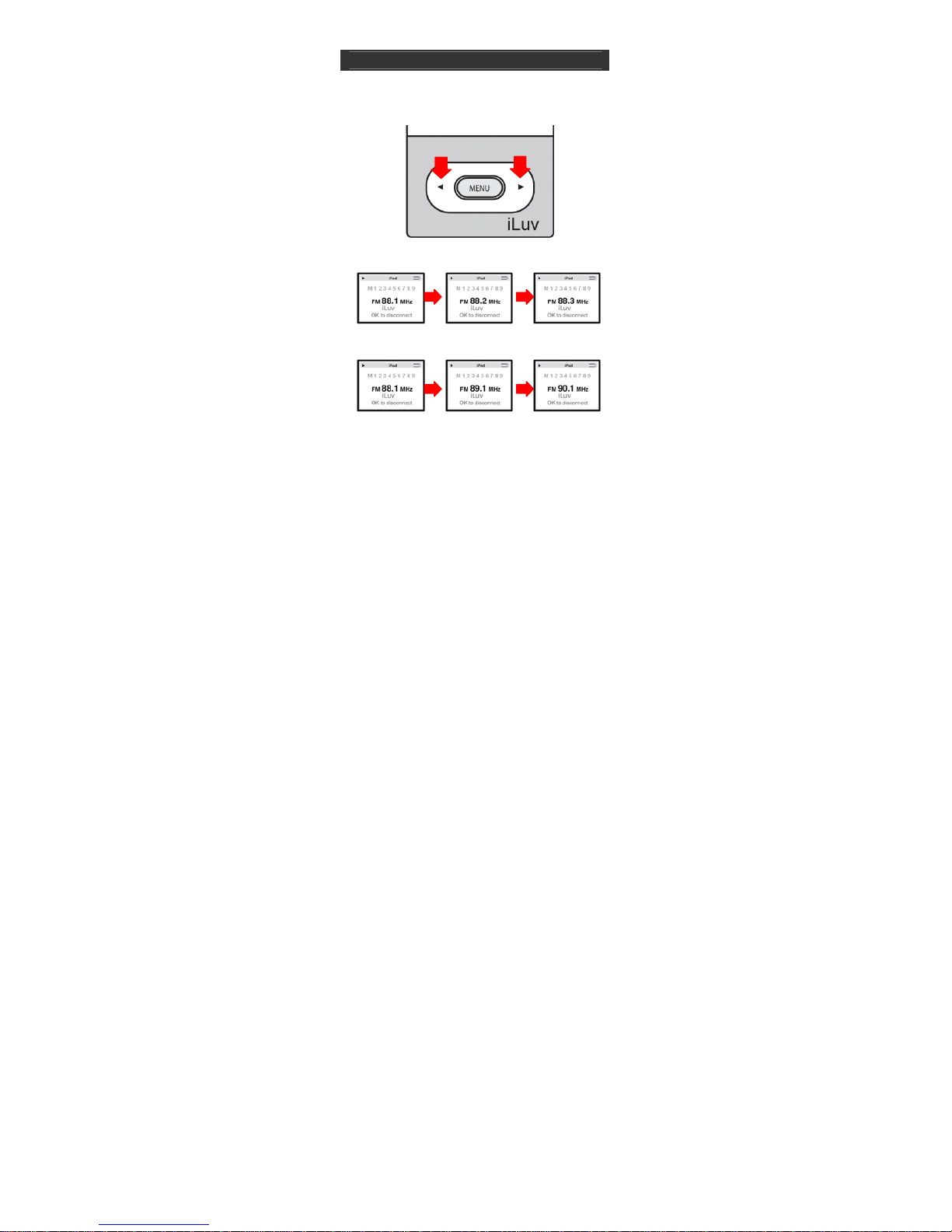

4. Select an FM frequency using the left-arrow “W” or right-
arrow “X” buttons.
•Press the “W” or “X” button to change the frequency
with 0.1MHz step.
•Press and hold the “W” or “X” button to change the
frequency with 1MHz step.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 11 -
OPERATING INSTRUCTIONS
Setting up the Preset Memory – Cont.

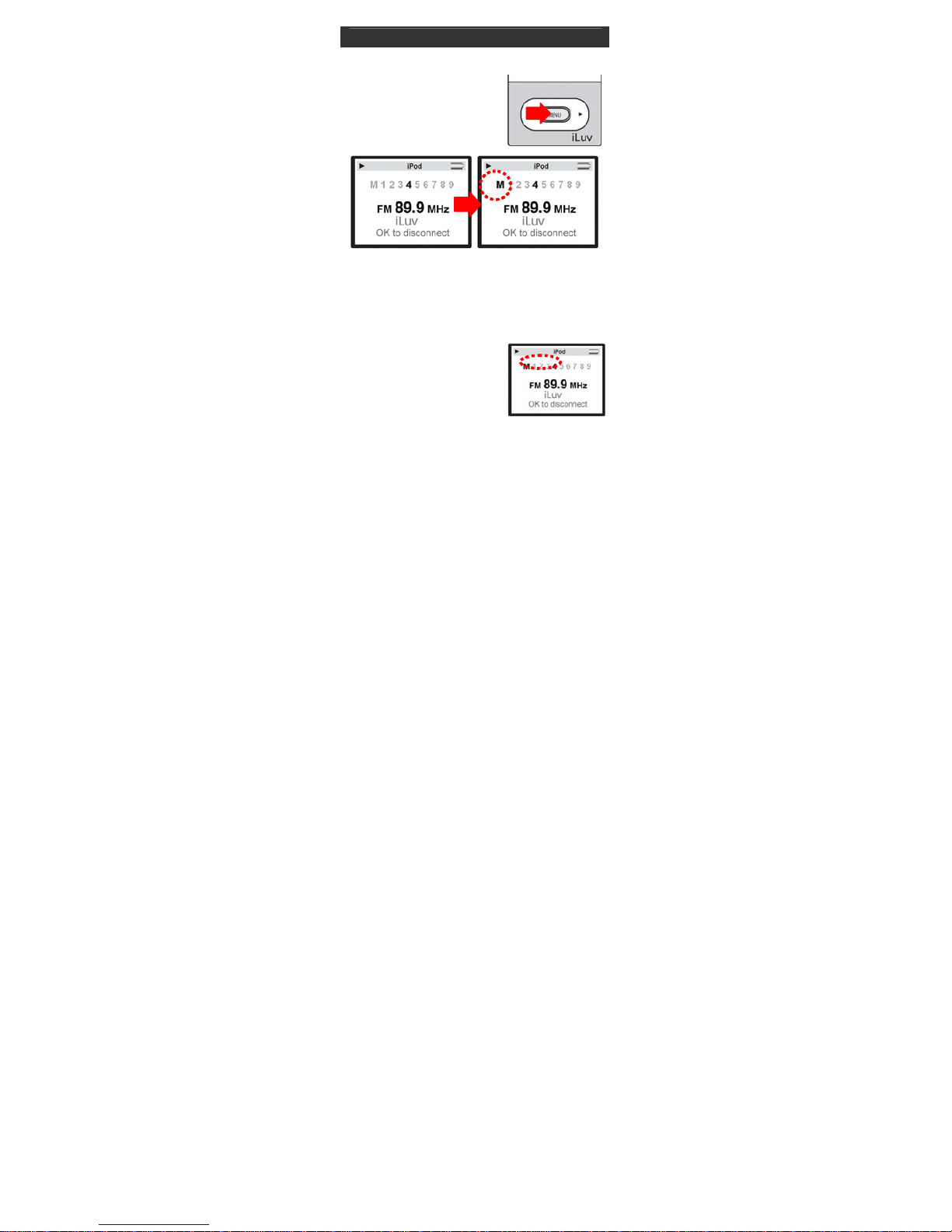

5. Press and hold the “MENU”
button until one of the preset
numbers is activated.
6. Select the preferred preset memory number using the left-
arrow “W” or right-arrow “X” buttons.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 12 -
OPERATING INSTRUCTIONS
Setting up the Preset Memory – Cont.
7. Press and hold the “MENU”
button to store the frequency
into the selected preset number.
The indication “M” will be on.
8. Repeat Steps 2 to 7 to preset other frequencies.
Changing One Preset to Another
1. Press the “MENU” button to see the FM frequency on your
iPod screen.
2. Check whether the “M” and
preset number indications are
currently on.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 13 -
OPERATING INSTRUCTIONS
Changing One Preset to Another – Cont.
•If they are currently on, select a preset memory
number using the left-arrow “W” or right-arrow “X”
buttons.
•If they are currently off,
press the “MENU” button to
turn on the preset mode and
then, select a preset
memory number using the
left-arrow “W” or right-arrow
“X” buttons.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 14 -
OPERATING INSTRUCTIONS
Transmitting Your Favorite Songs to a
Nearby FM Radio
1. Connect the FM transmitter to your iPod.
2. Select the preset number using
the left-arrow “W” or right-arrow
“X” buttons.
Note: The FM transmitter screen
will change to the normal iPod
screen if there is no action for 5 seconds with the FM
transmitter. If the screen changes to the normal iPod screen,
you can always change to the FM transmitter screen by
pressing the “MENU” button.
3. Leave for 5 seconds without any action on the transmitter.
The iPod screen will return to normal.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 15 -
OPERATING INSTRUCTIONS
Transmitting Your Favorite Songs to a
Nearby FM Radio – Cont.
4. Play a song on your iPod as usual.
5. Tune your nearby radio to the FM frequency that you want
to listen to.
6. If properly set, you will hear the song from your iPod on the
radio.
7. Adjust the volume to an appropriate level for listening.
Note: Do not listen to music with high volume while driving.
Warning horn sounds may not be heard which could result
in a traffic accident.
Helpful Tips on Getting the Clearer Sound
•An FM transmitter employs frequency modulation to
transmit a song to an FM radio, and it can be disturbed by a
nearby strong FM broadcast. Thus, before transmitting a
song using this unit, it is very important to select a clear FM
station which has no other signal which renders only static
noises.
•The sound quality of an FM transmitter also depends on the
direction of its built-in antenna and surroundings. If you
hear some static noises while listening to music using the
FM transmitter, rotate or move the FM transmitter around
until you get a clearer sound.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 16 -
OPERATING INSTRUCTIONS
Helpful Tips on Getting the Clearer Sound –
Cont.
•If the battery of your iPod is low, the sound quality may also
be poor. In this case, charge your iPod first and try it again.
Charging and Synchronizing Your iPod
You can charge or synchronize your iPod without disconnecting
the FM transmitter. To do so, connect the mini USB plug of the
supplied USB cable to the mini USB port located at the bottom of
the FM transmitter. Connect the other end of the USB cable to
your computer or USB power adapter. Your iPod will be charged
or synchronized as usual.

FM Transmitter V10M10_IM_EN_01312007
www.i-Luv.com
- 17 -
OPERATIING INSTRUCTIONS
Specifications
•Modulation: FM Stereo
•Tuning Type: PLL (Phase-Lock Loop)
•Oscillating frequency: 16MHz
•Frequency Range: 88.1MHz – 107.9MHz
•Frequency Response (Audio): 80Hz – 20kHz
•Audio Input Level: 800mV
•Total Harmonic Distortion: 2.0%
•Transmitting Power: ≤90 dBm
•Transmitting Range: ≤33ft (Limited by FCC)
•Power Requirement
oPower Source: iPod
oOperating Voltage: 2.7V – 3.5V
oOperating Current: 35mA (Max)
•Power Consumption: ≤100mW
•Operating Temperature: -4°F to 122°F (-20℃to 50℃)
•Storage Temperature: 14°F to 113°F (-10℃to 45℃)
•Unit Dimension (W x H x D)
o40.5mm x 34.7mm x 8.7mm
o1.594” x 1.367” x 0.343”
•Unit Weight: 8±0.3g
* Features and specifications are subject to change without prior
notification. The unit dimensions and weights are approximate.

iLuv is a trademark of jWIN Electronics Corp. iPod and iTunes
are trademarks of Apple Computer, Inc. iPod not included with
the product. All other trademarks and trade names are those of
their respective owners. The illustrated product and
specifications may differ slightly from that supplied.
©2007 jWIN Electronics Corp. All rights reserved. No portion of
this printed material or product enclosed herewith including
design, shape and graphics, may be reproduced or transmitted
in any form without the prior written consent of jWIN Electronics
Corp. by any means, electronic or mechanical, including
photocopying, recording or use of an information storage and
retrieval system. Any unauthorized reproduction of this printed
material or product, or any portion thereof, will be prosecuted to
the fullest possible extent of the law. Printed in China
TEL: [phone]
FAX: [phone]
website: www.i-Luv.com
e-mail: [e-mail]
