imex Bullseye 30 User manual

Bullseye 30
USER MANUAL 1.0

2
User Manual
Congratulations on the purchase of the Imex Bullseye 30.
Carefully read the Safety Instructions and the User Manual before using this product.
The person responsible for the Bullseye 30 must ensure that all users understand these
directions and adhere to them.
CONTENTS
Safety Instructions 2
Start-up 7
Menu Functions 7
Operation 8
Functions 9
Appendix 9
Technical Data 10
Measuring Conditions 11

3
Safety Instructions
SYMBOLS USED
The following displays are used to distinguish precautions by the degree of injury or
damage that may result if the precaution is ignored.
WARNING:
Indicates a potentially hazardous situation or an unintended use which if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation or an unintended use which if not avoided,
could result in death or serious injury.
Important paragraphs which must be adhered to in practice as they enable the
product to be used in a technically correct and efficient manner.
USE OF THE BULLSEYE 30
a) Press the button to switch on the device. The laser beam emits from
the front.
b) Press again to measure the distance. The result will show on the
screen.
Possible danger when using the device:
-
The laser beam will harm eyes when aimed at eyes directly
-
The device may produce a spark and ignite dust or gas
-
When cleaning battery electrolyte, fingers may be affected
-
The device may cause hazardous radiation explosion
-
Laser exposure radiation damage
Caution:
-
Do not look straight at the laser beam
-
Do not use the device in inflammable and explosive environment
-
Remove the batteries to avoid the electrolyte leakage when not using the
device.
-
Do not attempt to try other functions that the device does not have
-
Do not attempt to convert the performance of the device in any way

4
CARE
Wipe off dirt with a damp, soft cloth. If the water does not clean the dirt, use a clean cloth
moistened with alcohol to wipe the dirt. Be careful with the optical components (such as
optical lens). Wipe with a clean soft cloth or cotton swab moistened with distilled water
(as cleaning glass or camera lens). Do not use aggressive cleaning agents or solutions.
PERMITTED USE
-
Measuring distances
-
Computing functions, e.g. areas and volumes
PROHIBITED USE
-
Using the Bullseye 30 without instructions.
-
Using outside the stated limits.
-
Deactivation of safety systems and removal of explanatory and hazard
labels.
-
Opening of the Bullseye 30 by using tools (screw drivers, etc.), as far as not
specifically permitted for certain cases.
-
Carrying out modification or conversion of the product.
-
Use of accessories from other manufacturers without the express approval
of Imex.
-
Deliberate or irresponsible behavior on scaffolding, when using ladders,
when measuring near machines which are running, or near parts of
machines or installations which are unprotected.
-
Aiming directly into the sun.
-
Deliberate dazzling of third parties; also in the dark.
-
Inadequate safeguards at the surveying site {e.g. when measuring on roads,
construction sites, etc.)

5
LIMITS OF USE
See section "Technical Data".
The product is designed for use in areas permanently habited by humans; do not use the
product in explosive hazardous areas or in aggressive environments.
AREAS OF RESPONSIBILITY
IMEX RESPONSIBILITY:
-
Responsible for providing security products including manual and origin of
the parts.
RESPONSIBILITIES OF THE MANUFACTURER OF NON-ORIGINAL
ACCESSORIES:
The manufacturers of non-original accessories for the product are responsible for
developing, implementing and communicating safety concepts for their products. They
are also responsible for the effectiveness of these safety concepts in combination with the
Bullseye 30.
RESPONSIBILITIES OF THE PERSON IN CHARGE OF THE BULLSEYE 30:
WARNING:
The person responsible for the Bullseye 30 must ensure that the Bullseye 30 is used in
accordance with the instructions. This person is also accountable for the placement of
personnel and their training and for the safety of the Bullseye 30 when in use. The person
in charge of the Bullseye 30 has the following duties:
-
To understand the safety instructions on the product and the instructions in
the User Manual.
-
To be familiar with local safety regulations relating to accident prevention.
-
To inform Imex immediately if the Bullseye 30 becomes unsafe.
HAZARDS IN USE
CAUTION:
Watch out for inaccurate distance measurements if the Bullseye 30 is defective or if it has
been dropped or has been misused or modified.

6
PRECAUTIONS:
Carry out periodic test measurements, particularly after the Bullseye 30 has been subject
to abnormal use, and before, during and after important measurements.
Make sure the optics is kept clean and that there is no mechanical damage to the
bumpers.
CAUTION:
In using the Bullseye 30 for distance measurements or for positioning moving objects
(e.g. cranes, building equipment, platforms, etc.) Unforeseen events may cause inaccurate
measurements.
Only use this product as a measuring sensor, not as a control device. Your system must
be configured and operated in such a way, that in case of an inaccurate measurement,
malfunction of the device or power failure due to installed safety measures (e.g. safety
limit switch); it is assured that no damage will occur.
WARNING:
Flat batteries must not be disposed of with household waste. Care for the
environment. Always prevent access to the product by unauthorized
personnel, and take them to the collection points provided in accordance
with national or local regulations. The product must not be disposed of with
household waste. Dispose of the product appropriately in accordance with
the national regulations in force in your country.
ELECTROMAGNETIC COMPATIBILITY (EMC)
The term “electromagnetic compatibility" is taken to mean the capability of the product
to function smoothly in an environment where electromagnetic radiation and electrostatic
discharges are present, and without causing electromagnetic interference to other
equipment.
WARNING:
The product conforms to the most stringent requirements of the relevant standards and
regulations. Yet, the possibility of it causing interference in other devices cannot be
totally excluded.

7
CAUTION:
Never attempt to repair the product yourself. In case of damage, contact Imex.

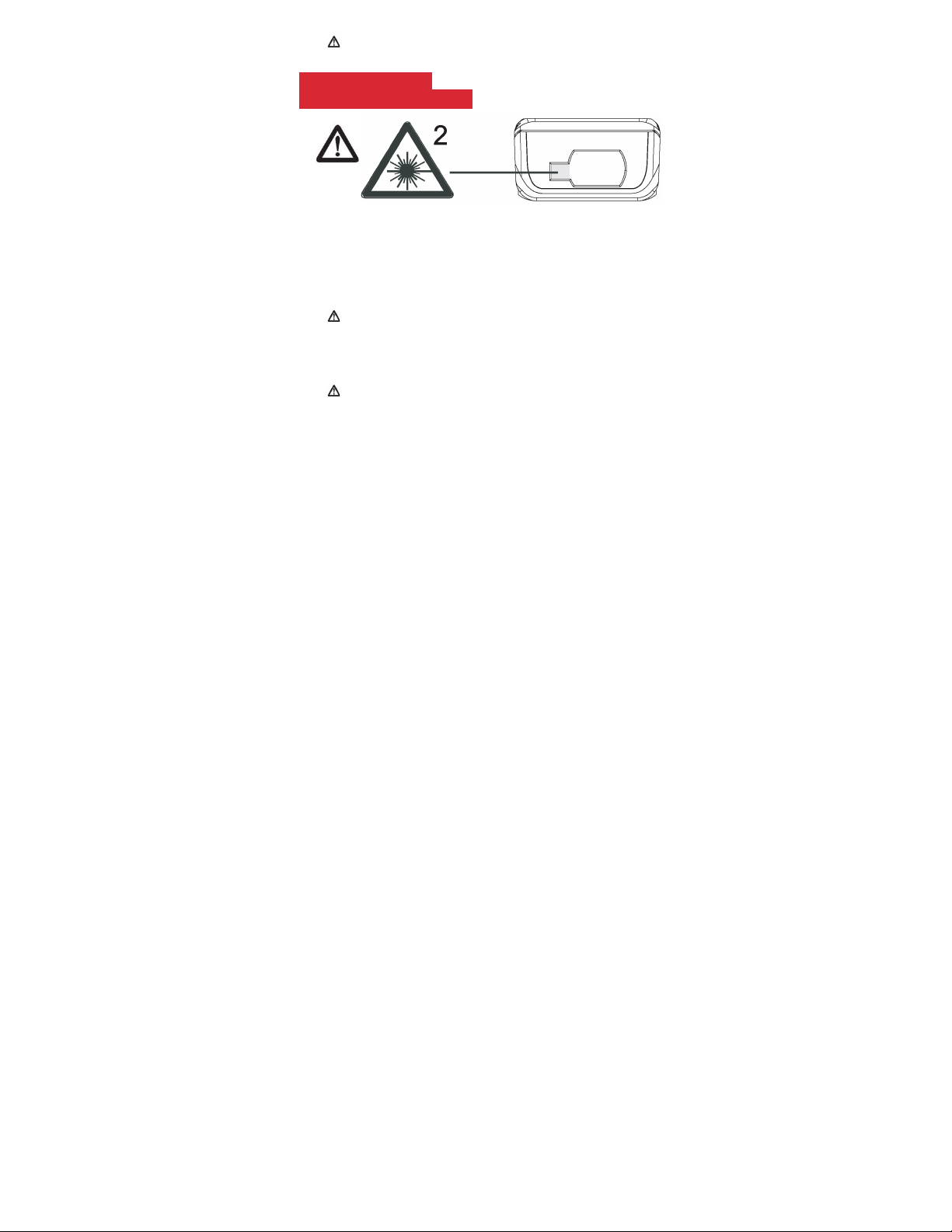

Laser Classification:
Integrated distance meter
The Bullseye 30 produces a visible laser beam which emerges from the front of the
Bullseye 30.
It is a Class 2 laser product in accordance with:
-
IEC60825-1: 2007 "Radiation safety of laser products" Laser Class 2
products
Do not stare into the laser beam or direct it towards other people unnecessarily. Eye
protection is normally afforded by aversion responses including the blink reflex.
WARNING:
Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be
hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous to the eyes.
Precautions:
Do not look into the laser beam. Make sure the laser is aimed above or below eye level
(particularly with fixed installations, in machines, etc.).

8
Start-up

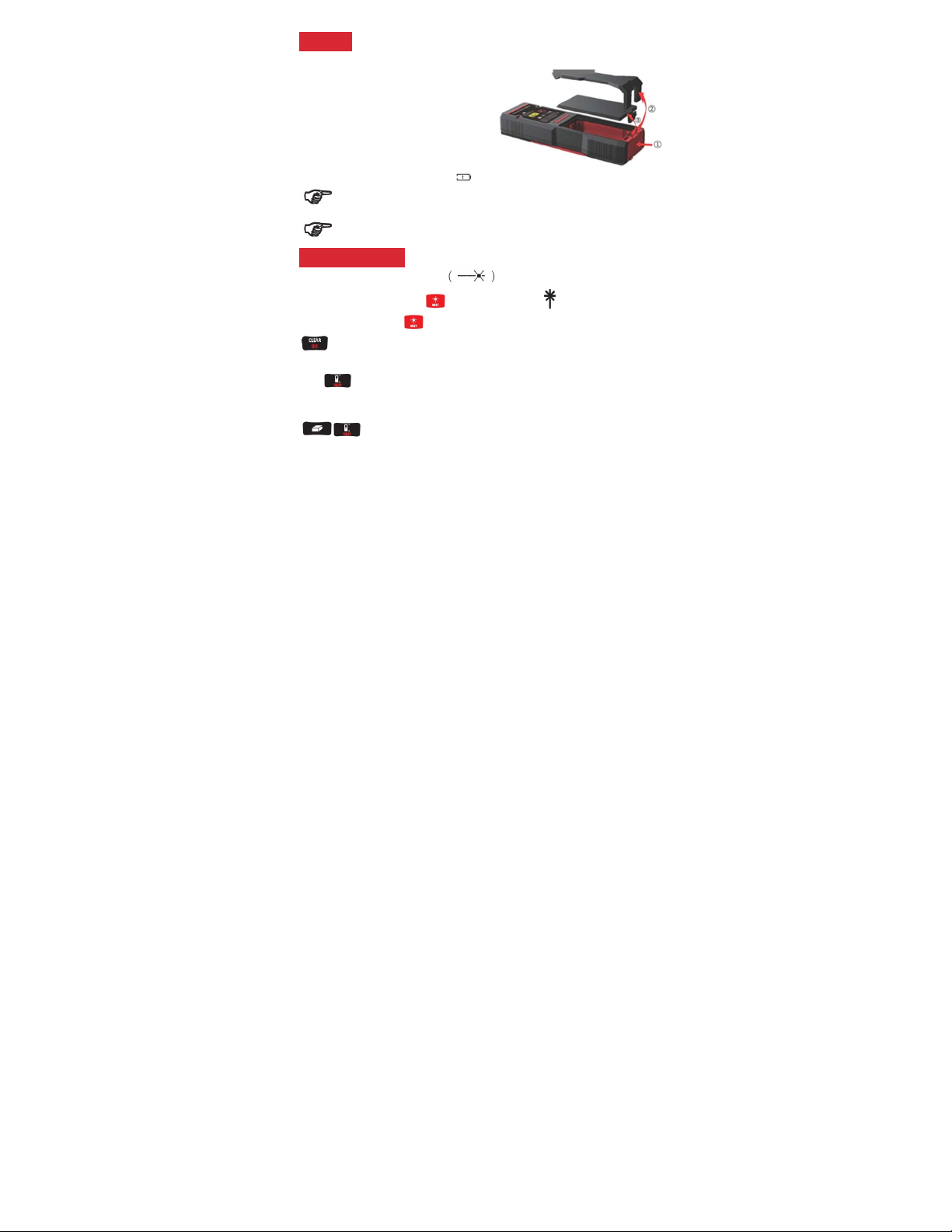

1. INSERTING/REPLACING BATTERIES
Operation diagram
1. Press the end of device
2. Pull out the buckle belt
3. Open the battery compartment
lid
Replace the batteries when the symbol flashes permanently in the display.
Remove the batteries before any long period of non-use to avoid the danger of
corrosion.
Only use alkaline or rechargeable batteries.
Menu Functions
1. TURN ON THE LASER
To turn on the Laser press the button. Display shows mark.
Aim the target and press button again, to display the measurement result. Press
button and tum off the laser.
2. MEASUREMENTS
Press button and hold to change the unit of distance measurement. The following
units are available: m (meter), ft. (feet), in (inch), ft. / in (feet -inch 1/16), (ruler).
3. SCREEN CHANGE
Press these two buttons together to change the orientation of the screen.

9
Operation
1. SWITCHING ON AND OFF
Button switches on the Bullseye 30 and laser. The display shows the battery symbol
until the next button is pressed.
Press and hold the button to switch OFF the Bullseye 30.
The Bullseye 30 switches off automatically after three minutes of inactivity.
2. CLEAR BUTTON
The last action is cancelled. While making area or volume measurements, each
single measurement can be deleted and remeasured in series.
3. REFERENCE SETTING
The default reference setting is from the rear of the Bullseye 30. The display will show
Press the button to change the reference to the front. The display will show
Press the button, to set the rear reference again.
Release belt clip and replace in opposite direction to extend the device.
Press the button to measure with the bracket as the reference edge. The display
will show
Measuring
1. SINGLE DISTANCE MEASUREMENT
Press to activate the laser. Press again to trigger the distance measurement.
The result is displayed immediately.
2. CONTINUOUS MEASUREMENT
Press and hold down this button for 2 seconds to make a continuous measurement.
Press it again to stop the continuous measurement.

10
Functions
1. AREA
Press once. The symbol appears in the display.
Press the button to take the first length measurement (e.g. Length). Press again
to take the second length measurement (e.g. Width). The result is displayed in the
summary line.
2. VOLUME
Press this button twice. The symbol appears in the display.
Press this button to take the first length measurement (e.g. Length).
Press this button to take the second length measurement (e.g. Width)
Press this button to take the third length measurement (e.g. Height).
The volume then appears in the summary line.
Appendix
MESSAGE CODES
All message codes are displayed with either the icons below or "Error". The following
errors can be corrected:

11
Technical Data
*Use a target plate to increase the measurement range during daylight or if the target has
poor reflection properties.
**Measurement accuracy could reach ± 2mm in good conditions (good measurement
surface, room temperature). If under adverse measuring conditions, such strong light,
high temperature, or reflected surface, the deviation over distance could increase slightly.

12
Measuring Conditions
1. MEASURING RANGE
Refer to technical specification for the measuring range. At night or dusk and if the target
is in shadow, the measuring range without target plate is increased. Use a target plate to
increase the measurement range during daylight or if the target is poorly reflected
2. TARGET SURFACES
Measuring errors can occur when measuring toward colorless liquids (e.g. water) or dust
free glass, Styrofoam or similar semipermeable surfaces. Aiming at high gloss surfaces
may deflect the laser beam and lead to measurement errors. Against non-reflective and
dark surfaces the measuring time may increase.
-
If the Bullseye 30 is used in a manner not specified by the Imex, the
protection provided by the Bullseye 30 may be impaired.
-
This Bullseye 30 contains no operator serviceable parts; it must be serviced
by the qualified person only.
CARE
Do not immerse the Bullseye 30 in water. Wipe off dirt with a damp, soft cloth. Do not
use aggressive cleaning agents or solutions. Handle the Bullseye 30 as you would a
telescope or camera.
WARRANTY
The Bullseye 30 comes with a one-year warranty. This warranty effective premise is
according to the company’s operating instructions for correct operation, processing,
cleaning and maintenance of the tool, and the tool is maintained good technical condition.
This means that in the tool can be used in the company’s original components and spare
parts. This warranty is provided in the tool during the whole life expectancy of the
defective parts of the repaired or replaced free of charge. If the component due to
normal wear and in need of repair of replacement, is not in the warranty range.
All illustrations, descriptions and technical specifications may be
subject to change without prior notice.

13
WARRANTY CARD
Copyright © Imex Group International 2016
www.imexlaseres.com
Instrument Model
Serial Number
Date of sales
Sale company
Sale Address
