imilab EC3 User manual

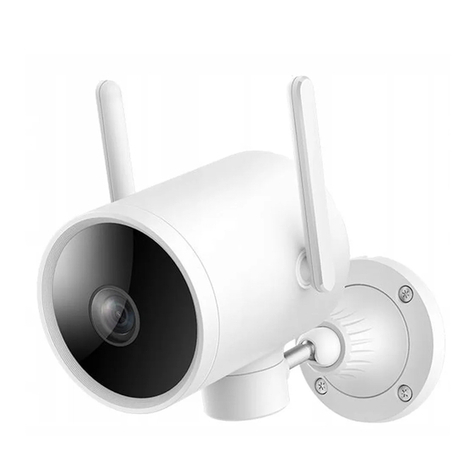

IMILAB EC3 Outdoor
Security Camera
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –20
Čeština
21 –38
Slovenčina
39 –56
Magyar
57 –74
Deutsch
75 –92

3
The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
Product Introduction
In this instruction manual, images of the device, accessories and user interface are for
illustrative purposes only and should only be used for reference.
The actual device may differ from the illustrations due to product updates and
upgrades. Please refer to the actual device.

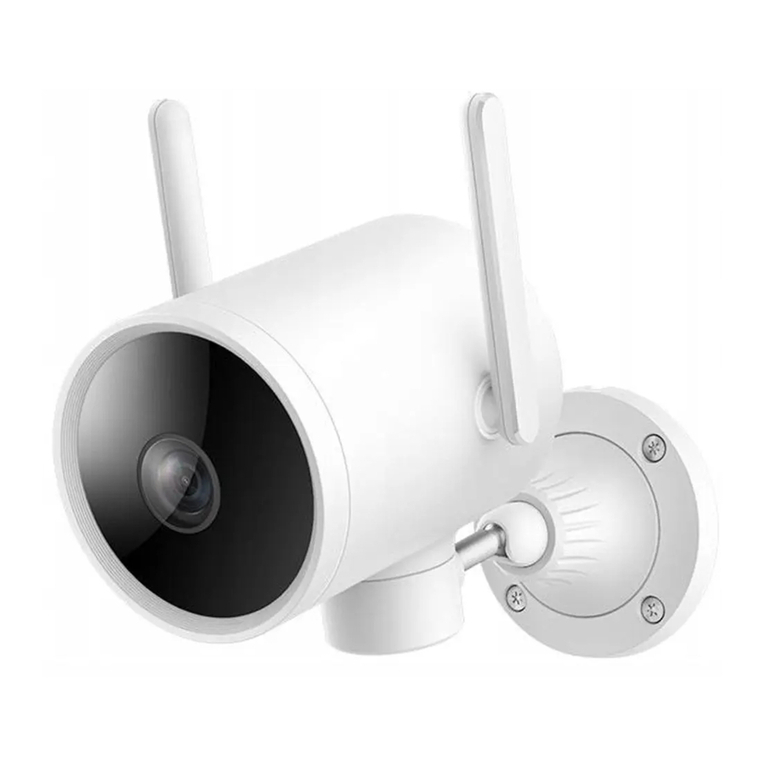

Packing list: IMILAB EC3 Outdoor Security Camera, wall mounting pack, power adapter,
waterproofing tape for power/LAN cable，user manual
Wall base (Can be
rotated to adjust
the camera angle
Knob
Speaker
Micro SD Card Slot
Reset Button
Mic
Antenna
Indicator
Light
Power Supply
LAN Port

5
Installing the Device
Assemble the camera as shown below. Then secure the camera to the metal rod with a
screw.
Note: The warranty does not cover any damage caused by improper installation. Please
follow the instructions.
Connecting screw (1 Spare
screw is available in the
accessory pack)
Locking Mechanism

6
Mounting the device
Note:
Please check that the Wi-Fi signal is strong enough before mounting the device.
1. Attach the positioning sticker on the desired installation location. Drill four holes at
the positions indicated on the sticker. Drilling diameter of around 6.0mm; drilling depth
of around 30mm.
2. Insert four plastic expansion nuts into the holes.

7
3. Cover part of 2-in-1 power and LAN cable with the base plate as indicated.
4. Put the base plate on the wall. Ensure that the 2-in-1 power, and LAN cable goes
straight down. Secure the base plate by inserting the screws into the expansion nuts.
Note:
•In order to prevent accidents and injuries, please secure the device firmly onto
the wall as illustrated. The wall on which the device is mounted must have a
loading capacity of at least 3 times the weight of the device.
•Do not install the device near a heat source, such as an air-conditioner
compressor, air vent of a range hood or air vent of a gas water heater.
•As the camera can be rotated horizontally, please pay attention to the safe
turning distance during installation. Do not install the device at a location where
its horizontal movement would be impeded.

8
Top View:
The distance between the base plate and the wall should be at least 50mm to allow for a
safety turning distance. Any gap of less than 50mm will result in an obstruction to the
camera's movement.
Waterproofing Kit
The camera has a power supply port and a LAN port. Waterproofing must be done on
both these ports.
1. Wrap the power supply port with the waterproofing tape as shown below.
2. Wrap the LAN port with the waterproofing tape or a waterproofing
sleeve.
•The LAN port can be wrapped with the waterproofing tape in the same way as
the power supply port.
•For instructions on the use of a waterproofing sleeve, visit the IMiLab WeChat
account.

9
Using a waterproofing sleeve on the LAN port
Using the waterproofing tape on the power supply port
Wrapping with the waterproofing tape
Wrapping with the waterproofing tape
Scan the QR code below to follow the IMiLab WeChat account. Public WeChat account.
Public WeChat Account:

10
Connecting the Device
Turn on the camera
Step 1: Insert the power supply cable into the camera's power supply port. Connect the
other end of the power supply cable to a power source.
Step 2: When connected to a power supply, the indicator light will show the camera's
status. When the indicator light is yellow, the camera is being turned on; when the
indicator light is flashing yellow, it is waiting to be connected.
Insert a micro SD card
Ensure that the camera is disconnected from the power supply. Use a screwdriver to
remove the protective case and expose the micro SD card slot.
The contact points of the micro SD card should be facing the same direction as the
camera. Insert the micro SD card into the slot.
Note:
When inserting or removing the micro SD card, please disconnect the camera from the
power supply. Please use a micro SD card from a reputable manufacturer. The
recommended read and write speed of the micro SD card is at least U1/Class 10.
Micro SD Card Slot

11
Restoring factory settings
Press and hold the reset button to restore the factory settings. The content inside the
micro SD card will not be deleted.
Specifications
Name: IMILAB EC3 Outdoor Security Camera
Model: CMSXJ25A
Input: 12 V 1 A
Resolution: 2304 x 1296
Operating Temperature: -20 ℃~ 40 ℃
Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
LAN Connection: 1 x 10/100M adaptive network port
Compatible With: Android 4.4 or iOS 9.0 or higher
FCC ID: 2APA9-IPC025B
Item Dimensions: 117 x 91 x 116 mm
Net Weight: 495 g
Lens Angle: 110°
Aperture: F1.6

12
Connecting to Mi Home App
This product works with Mi Home and can be controlled using the Mi Home app.
Scan the QR code to download and install the Mi Home app. If you already have Mi
Home app installed, you will be directed to the device connection page. You can also
search for "Mi Home" in an app store to download and install the Mi Home app.
About Works with Mi Home
A product that works with Mi Home can be controlled using the Mi Home app. Please
note that such products are only verified at the software level. Xiaomi and Mi Home are
not responsible for the production, implementation of standards and quality control of
these products and their manufacturers.
Note:
The actual operation may differ from the instructions above due to Mi Home app
upgrades and updates. Please follow the instructions shown by the Mi Home app.

13
Infrared Night-Vision
The light sensor can automatically switch the device to night vision mode through IR-
CUT based on changes in the lighting of the environment. The device features 10 built-in
infrared night vision lights that ensure recording stays clear even in darkness.
Infrared night-vision effect illustration

14
Video Playback
Past videos can only be viewed when a compatible micro-SD card is inserted in IMILAB
EC3 Outdoor Security Camera. After inserting a micro-SD card and turning on the device,
the camera will automatically start recording. In the control interface for. in the Mi Home
app, tap the playback button to enter the video playback page. You can also view a
recording by selected a time period.

15
Sharing a Video
In the control interface for IMILAB EC3 Outdoor Security Camera in the Mi Home app,
you can set the device as a shared device in the settings menu and invite others to
watch the recordings. Users must download the Mi Home app and login to their Xiaomi
account in order to view the recordings of the shared device.

16
Home Security
•The Home Security function can be turned on/off in the control interface for
IMILAB EC3 Outdoor Security Camera in the Mi Home app.
•The device can detect and record movements within the viewing angle and push
the recording to the client. Users can set the surveillance time, alert sensitivity,
alert interval, etc.

17
Precautions
•The working temperature of the device is -20℃to 40℃. Do not use the device
when the temperature is too high or too low.
•For better results, avoid placing the camera in front of or next or a glass surface,
a white-coloured wall or other reflective surfaces as this may cause the recording
to have un-even lighting between the foreground and background or be over-
exposed.
•Please ensure that the device is within Wi-Fi signal coverage. Place it at a location
with good Wi-Fi signal strength. Try to avoid placing the device near a metallic
object, a microwave oven or other objects that may cause signal interference.

18
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

19
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
CIN: 27082440
Subject of the declaration:
Title: IMILAB EC3 Outdoor Security Camera
Model / Type: CMSXJ25A
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the
Directive(s):
