Immergas MINI NIKE X 24 3 E Product manual

MINI EOLO
X 24 3 E
IE
Instructions and warnings
Installer
User
Maintenance technician
*1.048921ENG*
*1.048921ENG*

2

3
CONTENTS
General warnings ............................................................................. 4
Safety symbols used.......................................................................... 5
Personal protective equipment....................................................... 5
1 Boiler installation................................................................. 6
1.1 Installation recommendations. .......................................... 6

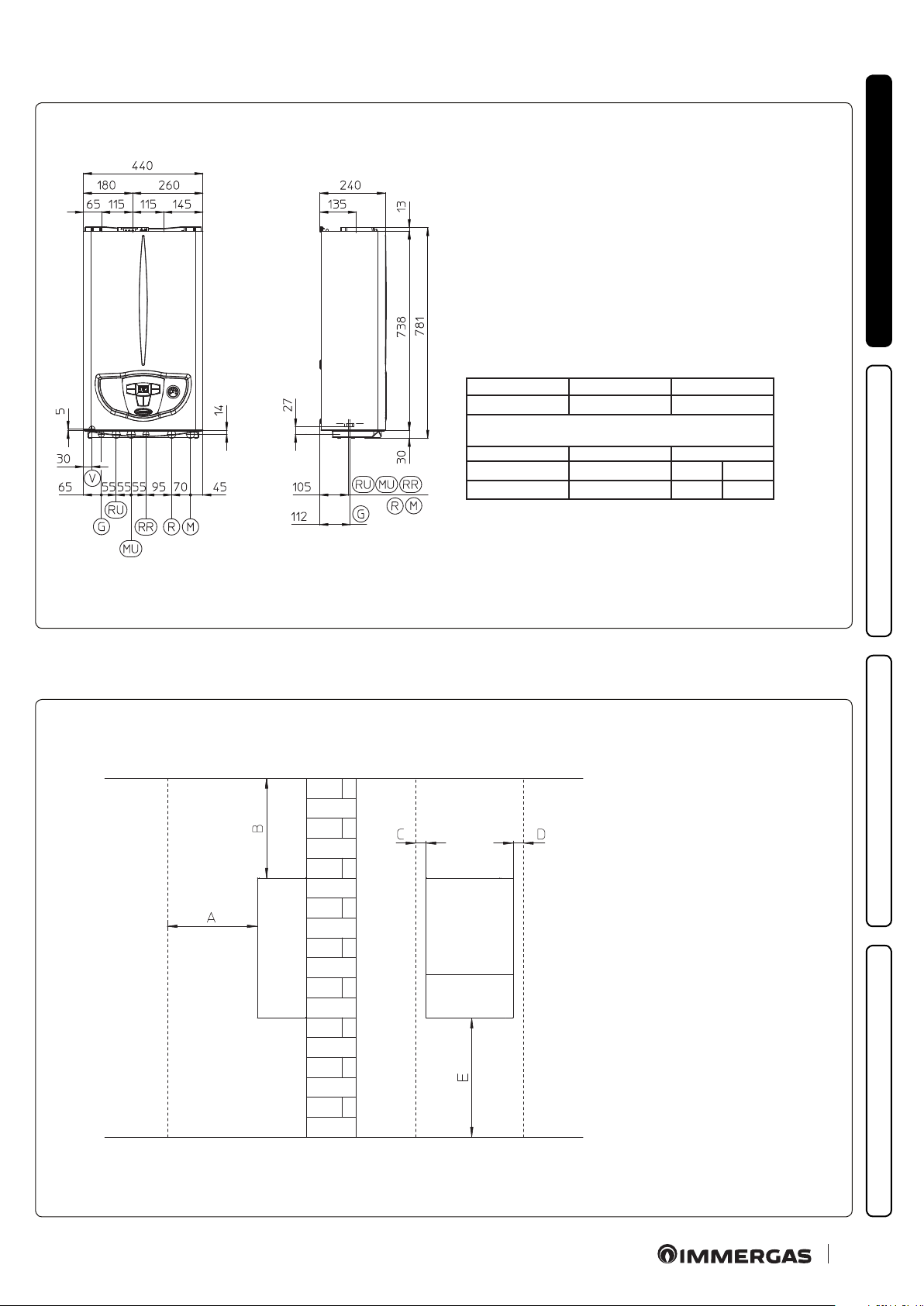

1.2 Main dimensions. ................................................................ 9
1.3 Minimum installation distances........................................ 9
1.4 Antifreeze protection. ....................................................... 10
1.5 Boiler connection group (Optional). .............................. 10
1.6 Gas connection. ................................................................. 11
1.7 Hydraulic connection........................................................ 12
1.8 Electrical connection......................................................... 12
1.9 Remote controls and room chrono-thermostats
(Optional). .......................................................................... 13
1.10 External temperature probe (Optional).......................... 14
1.11 Immergas ue systems. ..................................................... 15
1.12 Tables of resistance factors and equivalent lengths....... 17
1.13 Outdoor installation in partially protected area............ 18
1.14 Indoor installation............................................................. 19
1.15 Concentric vertical kit installation.................................. 21
1.16 Separator kit installation................................................... 22
1.17 Flue exhaust to ue/chimney............................................ 25
1.18 Ducting of ues or technical slots. .................................. 25
1.19 Conguration for C6 ue installation............................. 25
1.20 Flues, chimneys and chimney caps. ................................ 26
1.21 System lling. ..................................................................... 26
1.22 Gas system start-up. .......................................................... 26
1.23 Boiler start-up (ignition). ................................................. 26
1.24 Circulation pump............................................................... 27
1.25 Kits available on request. .................................................. 27
1.26 Boiler components............................................................. 28
2 Instructions for use and maintenance............................. 29
2.1 General warnings............................................................... 29
2.2 Cleaning And Maintenance.............................................. 31
2.3 Control panel...................................................................... 31
2.4 Ignition of the boiler.......................................................... 32
2.5 Fault and anomaly signals. ............................................... 33
2.6 Information Menu. ............................................................ 34
2.7 Boiler shutdown................................................................. 35
2.8 Restore central heating system pressure......................... 35
2.9 Draining the system. ......................................................... 35
2.10 Anti-freeze protection....................................................... 35
2.11 Draining the domestic hot water circuit......................... 35
2.12 Cleaning the case. .............................................................. 35
2.13 Decommissioning.............................................................. 35
3 Instructions for maintenance and initial check............. 36
3.1 General warnings............................................................... 36
3.2 Initial check. ....................................................................... 36
3.3 Yearly appliance check and maintenance. ...................... 37
3.4 Boiler Hydraulic diagram................................................. 38
3.5 Wiring diagram.................................................................. 39
3.6 Possible problems and their causes. ................................ 40
3.7 Converting the boiler to other types of gas.................... 41
3.8 Programming the P.C.B. ................................................... 42
3.9 Possible adjustments.......................................................... 44
3.10 Automatic slow ignition function with timed ramp
delivery. ............................................................................... 44
3.11 "Chimney sweep” function............................................... 44
3.12 Pump anti-block function. ............................................... 44
3.13 ree-way anti-block system............................................ 44
3.14 Radiators anti-freeze function. ........................................ 44
3.15 P.C.B. periodical self-check. ............................................. 44
3.16 Solar panels coupling function. ....................................... 45
3.17 Casing removal................................................................... 45
4 Technical data..................................................................... 47
4.1 Variable heat output. ......................................................... 47
4.2 Combustion parameters. .................................................. 48
4.3 Technical data..................................................................... 48
4.4 Key for Data nameplate..................................................... 49

4
e manufacturer declines all liability due to printing or transcription errors, reserving the right to make any modications to its tech-
nicalandcommercial documentswithoutforewarning.
Dear Customer,
Congratulations forhavingchosen a top-quality Immergasproduct, able to assure well-being and safety for a long period of time. As an Im-
mergas customer you can also count on a Qualied Technical Assistance Centre, prepared and updated to guarantee constant eciency of
yourappliance.Readthefollowing pages carefully: youwillbeable to drawuseful tips on the proper useofthedevice, compliancewith which
willconrmyoursatisfaction withtheImmergas product.
Forany assistance and scheduled maintenanceplease contact Authorised Aer-Sales centres: theyhaveoriginal spareparts and are speci-
cally trained bythemanufacturer.
GENERAL WARNINGS
is book contains important information for the:
Installer (section 1);
User (section 2);
Maintenance Technician (section 3).
• e user must carefully read the instructions in the specic section (section 2).
• e user must limit operations on the appliance only to those explicitly allowed in the specic section.
• Every operation carried out on the heat pump (e.g. set up, inspection, installation and commissioning), must mandatorily be
performed by authorised personnel alone and in possession of a technical engineering or professional degree qualifying them to
perform these tasks. ey must also have attended a refresher course acknowledged by competent authorities. is particularly
applies to personal specialised in C.H. and air-conditioning systems and qualied electricians who, due to their specialised train-
ing, skills and experience are experts in the correct installation and maintenance of C.H., cooling and air-conditioning systems.
• e appliance must be installed by qualied and professionally trained personnel.
• e instruction booklet is an integral and essential part of the product and must be given to the new user in the case of transfer
or succession of ownership.
• It must be stored with care and consulted carefully, as all of the warnings provide important safety indications for installation,
use and maintenance stages.
• In compliance with legislation in force, the systems must be designed by qualied professionals, within the dimensional limits
established by the Law. Installation and maintenance must be performed in compliance with the regulations in force, according
to the manufacturer's instructions and by professionally qualied sta, intended as sta with specic technical skills in the system
sector, as envisioned by the Law.
• Improper installation or assembly of the Immergas appliance and/or components, accessories, kits and devices can cause unexpected
problems for people, animals and objects. Read the instructions provided with the product carefully to ensure proper installation.
• is instructions manual provides technical information for installing Immergas products. As for the other issues related to the
installation of products (e.g. safety at the workplace, environmental protection, accident prevention), it is necessary to comply
with the provisions of the standards in force and the principles of good practice.
• All Immergas products are protected with suitable transport packaging.
• e material must be stored in a dry place protected from the weather.
• Damaged products must not be installed.
• Maintenance must be carried out by skilled technical sta that represents a guarantee of qualications and professionalism.
• e appliance must only be destined for the use for which it has been expressly declared. Any other use will be considered improper
and therefore potentially dangerous.
• If errors occur during installation, operation and maintenance, due to non-compliance with technical laws in force, standards or
instructions contained in this book (or however supplied by the manufacturer), the manufacturer is excluded from any contractual
and extra-contractual liability for any damage and the appliance warranty is invalidated.
• In the event of malfunctions, faults or incorrect operation, turn the appliance o and contact an authorised company (e.g. the
Authorised Technical Assistance Centre, which has specically trained sta and original spare parts). Do not attempt to modify
or repair the appliance alone.
Product not intended for EU countries

5
SAFETY SYMBOLS USED.
GENERIC HAZARD
Strictly follow all of the indications next to the pictogram. Failure to follow the indications can generate hazard situa-
tions resulting in possible harm to the health of the operator and user in general.
ELECTRICAL HAZARD
Strictly follow all of the indications next to the pictogram. e symbol indicates the appliance’s electrical components
or, in this manual, identies actions that can cause an electrical hazard.
MOVING PARTS
e symbol indicates the appliance’s moving components that can cause hazards.
HOT SURFACES
e symbol indicates the appliance’s very hot components that can cause burns.
SHARP SURFACES
e symbol indicates the appliance’s components or parts that can cause cuts if touched.
EARTH TERMINAL CONNECTION
e symbol identies the appliance’s earth terminal connection point.
READ AND UNDERSTAND THE INSTRUCTIONS
Read and understand the appliance’s instructions before performing any operation, carefully following the indications
provided.
INFORMATION
Indicates useful tips or additional information.
SAFETY GLOVES
PERSONAL PROTECTIVE EQUIPMENT.
SAFETY GOGGLES
SAFETY FOOTWEAR
e user must not dispose of the appliance at the end of its service life as municipal waste, but send it to appro-
priate collection centres.

1
OK
6
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1BOILER INSTALLATION.
1.1 INSTALLATION RECOMMENDATIONS.
ATTENTION:
operators who install and service the
appliance must wear the personal
protective equipment required by ap-
plicable law.
is boiler has been designed for wall-mounted in-
stallation only; for central heating and production
of domestic hot water for domestic use and similar
purposes.
e place of installation of the appliance and relative
Immergas accessories must have suitable features
(technical and structural), such as to allow for (always in safe,
ecient and comfortable conditions):
- installation (according to the provisions of technical legisla-
tion and technical regulations);
- maintenance operations (including scheduled, periodic,
routine and special maintenance);
- removal (outdoors in the place for loading and transporting
the appliances and components) as well as their eventual
replacement with appliances and/or equivalent components.
e wall surface must be smooth, without any protrusions or
recesses enabling access to the rear part. ey are not designed
to be installed on plinths or oors (Fig. 1).
By varying the type of installation the classication of the boiler
also varies, precisely:
- Type B22 boiler: if installed without the 2 intake caps and with
the top cover kit.
- Type C boiler: if installed using concentric pipes or other
types of pipes envisioned for the sealed chamber boiler for
intake of air and expulsion of ue gas.
Only professionally qualied companies are authorised to
install Immergas gas appliances.
Installation must be carried out according to regulation stand-
ards, current legislation and in compliance with local technical
regulations and the required technical procedures.
ATTENTION:
It is not permitted to install boilers that
are removed and decommissioned from
other systems. e manufacturer declines all
liability for damage caused by boilers removed
from other systems or for any non-conformi-
ties of such equipment.
ATTENTION:
check the environmental operating
conditions of all parts relevant to in-
stallation, referring to the values shown in the
technical data table in this booklet.
ATTENTION:
Installation of the boiler when powered
by LPG must comply with the rules re-
garding gases with a greater density than air
(remember, as an example, that it is prohibited
to install plants powered with the above-men-
tioned gas in rooms where the oor is at a
lower quota than the country level).
ATTENTION:
if installing a kit or servicing the ap-
pliance, always empty the system’s
domestic hot water circuit rst so as not to
compromise the appliance’s electrical safety
(Par. 2.9 and 2.11).

7
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
Before installing the appliance, ensure it has been
delivered in perfect condition; if in doubt, contact
the supplier immediately. Packing materials (staples,
nails, plastic bags, polystyrene foam, etc.) constitute a
hazard and must be kept out of the reach of children.
If the appliance is installed inside or between cabinets, ensure
sucient space for normal servicing; therefore it is advisable to
leave clearance of at least 3 cm between the boiler casing and
the vertical sides of the cabinet.
Leave adequate space above the boiler for possible water and
ue removal connections (Fig. 3).
It is just as important that the intake grids and exhaust
terminals are not obstructed.
It is recommended to check that no ue gas recirculation
is found in the air sample points (0.5% maximum per-
mitted CO2).
Keep all ammable objects away from the appliance (paper,
rags, plastic, polystyrene, etc.).
e minimum distance for exhaust pipes from ammable
materials must be at least 25 cm.
Do not place household appliances underneath the boiler as
they could be damaged if the safety valve intervenes (if not
conveyed away by a draining funnel), or if there are leaks from
the hydraulic connections; otherwise, the manufacturer cannot
be held responsible for any damage caused to the household
appliances.
For the aforementioned reasons, we recommend not placing
furnishings, furniture, etc. under the boiler.
In the event of malfunctions, faults or incorrect operation, turn
the appliance o immediately and contact an authorised com-
pany (e.g. the Authorised Technical Assistance centre, which
has specically trained sta and original spare parts). Do not
attempt to modify or repair the appliance alone.
Any modication to the appliance that is not explicitly indicated
in this section of the booklet is forbidden.
Installation Standards:
- this boiler must not be installed out-
doors, even in a partially protected
place. A partially protected area is one in
which the boiler is not exposed to the direct
action of the weather (rain, snow, hail, etc.).
- Installation of gas appliances, ue exhaust
pipes and combustion air intake pipes is for-
bidden in places with a re risk (for example:
garages, closed parking stalls), and in poten-
tially dangerous places.
- Installation on the vertical projection of
cooking hobs is forbidden.
- Installation is also prohibited in places/
environments that constitute com-
mon parts of oce condominiums
such as stairs, cellars, entrance halls,
attics, los, escape routes, etc. if they are
not located inside technical compartments
under the responsibility of each individual
building and only accessible to the user (for
the features of the technical compartments,
see the technical standards in force).
- ese boilers are not suitable for installation
on walls made of combustible material.
N.B.: installing the wall recessed frame kit must gua-
rantee the boiler stable, ecient support. e recessed
frame kit ensures appropriate support only if installed
correctly (according to the rules of good practice), fol-
lowing the instructions on its instructions leaet. e
recessed frame for the boiler is not a supporting structure
and must not replace the wall removed. It is necessary to position
the boiler inside the wall. For safety reasons against any leaks it is
necessary to plaster the boiler housing in the brick wall.

8
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
N.B.: wall mounting of the boiler must guarantee
stable and ecient support for the boiler. e plugs
(standard supply) are only to be used to x the boi-
ler to the wall; they only ensure adequate support if
inserted correctly (according to technical standards)
in walls made of solid or semi-hollow brick or block.
In the case of walls made of hollow bricks or blocks, parti-
tions with limited static properties, or in any case walls other
than those indicated, a static test must be carried out on the
mounting system.
ese boilers are used to heat water to below boiling
temperature in atmospheric pressure.
ey must be connected to a central heating system
and domestic hot water circuit suited to their perfor-
mance and capacity.
ey cannot be connected directly to low-temperature
systems.
Risk of damage due to corrosion caused by unsuit-
able combustion air and environment.
Spray, solvents, chlorine-based detergents, paints,
glue, ammonium compounds, powders and similar
cause product and ue duct corrosion.
- Check that combustion air power supply is free from chlorine,
sulphur, powders, etc.
- Make sure that no chemical substances are stored in the place
of installation.
- If you want to install the product in beauty salons, paint
workshops, carpenter’s shop, cleaning companies or
similar, choose a separate installation area that ensures
combustion air supply that is free from chemical substances.
- Make sure the combustion air is not fed from chimneys that
were used with gas boilers or other heating devices. In fact,
these may cause an accumulation of soot in the chimney.
ATTENTION:
- Type B open chamber boilers must
not be installed in places where com-
mercial, artisan or industrial activities take
place, which use products that may develop
volatile vapours or substances (e.g. acid
vapours, glues, paints, solvents, combusti-
bles, etc.), as well as dusts (e.g. dust deriv-
ing from the working of wood, coal nes,
cement, etc.), which may be harmful for the
components of the appliance and jeopardise
operation.
- in B conguration, unless otherwise pro-
vided for by local regulations in force: the
boilers must not be installed in bedrooms,
bathrooms or bedsits. ey must neither be
installed in rooms containing solid fuel heat
generators nor in rooms communicating
with said rooms.
- e installation rooms must be permanently
ventilated, in compliance with the local reg-
ulations in force (at least 6 cm2for every kW
of installed heat input, except in the event of
any increases needed for electro-mechanical
vacuum cleaners or other devices that could
put the installation room under vacuum).
- e installation of appliances in B congu-
ration is only recommended in places that
are not lived in and which are permanently
ventilated.
ATTENTION:
Failure to comply with the above implies
personal responsibility and invalidates
the warranty.

2
3
9
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.2 MAIN DIMENSIONS.
Key:
A - 450 mm
B - 350 mm
C - 30 mm
D - 30 mm
E - 350 mm
1.3 MINIMUM INSTALLATION DISTANCES.
Key:
V - Electrical connection
G - Gas supply
RU - Cylinder unit return (optional)
MU - Cylinder unit ow (optional)
RR - System lling
R - System return
M - System ow
N.B.: connection group (optional)
Height (mm) Width (mm) Depth (mm)
781 440 240
CONNECTIONS
GAS WATER SYSTEM
G RR R M
3/4” 1/2” 3/4” 3/4”

4
1R2 M
RR
MU
RU
3
V
G4
10
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.5 BOILER CONNECTION GROUP OPTIONAL.
e connection unit consisting of all the necessary parts to
perform the hydraulic and gas system connections of the appli-
ance comes as optional kit, perform the connections based on
the type of installation to be made and according to the layout
shown in Fig 4.
1.4 ANTIFREEZE PROTECTION.
Minimum temperature -5°C. The boiler comes
standard with an antifreeze function that activates the
pump and burner when the system water temperature
in the boiler falls below 4°C.
In these conditions the boiler is protected against freez-
ing to an ambient temperature of -5°C.
Minimum temperature -15°C. If the boiler is installed in a
place where the temperature falls below -5°C, and in the event
there is no gas (or the boiler goes into ignition block), the
appliance can freeze.
To prevent the risk of freezing follow the instructions below:
- protect the central heating circuit from freezing by inserting
a good-quality antifreeze liquid into this circuit, which is
specially suited for central heating systems and which is
manufacturer guaranteed not to cause damage to the heat
exchanger or other components of the boiler. e antifreeze
liquid must not be harmful to one’s health. e instructions
of the manufacturer of this liquid must be followed scrupu-
lously regarding the percentage necessary with respect to the
minimum temperature at which the system must be kept.
Attention: the excessive use of glycol could jeopardise the
proper functioning of the appliance.
An aqueous solution must be made with potential pollution
class of water 2 (EN 1717:2002 or local standards in force).
e materials used for the central heating circuit of Immergas
boilers withstand ethylene and propylene glycol based anti-
freeze liquids (if the mixtures are prepared perfectly).
For life and possible disposal, follow the supplier’s instruc-
tions.
- Protect the domestic hot water circuit against freezing by
using an accessory that is supplied on request (antifreeze kit)
comprising two electric heating elements, the relevant wir-
ing and a control thermostat (carefully read the installation
instructions contained in the accessory kit pack).
In these conditions the boiler is protected against freezing to
temperature of -15°C.
Boiler antifreeze protection (both -5°C and -15°C) is thus
ensured only if:
- the boiler is correctly connected to gas and electricity power
supply circuits;
- the boiler is powered constantly;
- the boiler is not in “o ” mode.
- the boiler is not in anomaly conditions (Parag. 2.5);
- the essential components of the boiler and/or antifreeze kit
are not faulty.
e warranty does not cover damage due to interruption of the
electrical power supply and failure to comply with that stated
on the previous page.
N.B.: if the boiler is installed in places where the temperature
falls below 0°C the domestic hot water and central heating
attachment pipes must be insulated.
Note: the antifreeze systems described in this chapter are
only to protect the boiler. e presence of these functions
and devices does not exclude the possibility of parts of the
system or domestic hot water circuit outside the boiler from
freezing.
Key:
V - Electric connection
G - Gas supply
RU - Storage tank unit return (optional)
MU - Storage tank unit ow (optional)
RR - System lling
M - System ow
R - System return
1 - System lling cock
2 - System draining valve
3 - 3-bar safety valve drain tting
4 - Storage tank unit bypass pipe, to be used only
in case of boiler operating in room heating
mode only

11
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.6 GAS CONNECTION.
Our boilers are designed to operate with methane gas (G20) or
LPG. Supply pipes must be the same as or larger than the 3/4”G
boiler tting.
ATTENTION:
Before connecting the gas line, carefully
clean inside all the fuel feed system pipes
to remove any residue that could impair boiler
eciency. Also make sure the gas corresponds
to that for which the boiler is prepared (see
boiler data nameplate). If dierent, the boiler
must be converted for operation with the other
type of gas (see converting appliance for other
gas types). e dynamic gas supply (methane
or LPG) pressure must also be checked accord-
ing to the type used in the boiler, which must
be in compliance, as insucient levels can re-
duce generator output and cause malfunctions.
Ensure correct gas cock connection.
According to local regulations in force,
make sure that a gas cock is installed
upstream of each connection between
the appliance and the gas system. is cock,
if supplied by the appliance’s manufacturer,
can be directly connected to the appliance
(i.e. downstream from the pipes connecting
the system to the appliance), according to the
manufacturer’s instructions.
e Immergas connection unit, supplied as
an optional kit, also includes the gas cock,
whose installation instructions are provided
in the kit.
In any case, make sure the gas cock is connect-
ed properly.
e gas supply pipe must be suitably dimensioned according to
current regulations in order to guarantee correct gas ow rate to
the burner even in conditions of maximum generator output and
to guarantee appliance eciency (technical specications). e
coupling system must conform to standards in force (EN 1775).
ATTENTION:
the appliance was designed to operate
with combustible gas free of impurities;
otherwise it is advisable to t special lters
upstream of the appliance to restore the purity
of the fuel.
Storage tanks (in case of supply from LPG depot).
- New LPG storage tanks may contain residual inert gases (nitro-
gen) that degrade the mixture delivered to the appliance casing
functioning anomalies.
- Due to the composition of the LPG mixture, layering of the
mixture components may occur during the period of storage in
the tanks. is can cause a variation in the caloric value of the
mixture delivered to the appliance, with subsequent change in
its performance.

5
a
1
2
e
4
b
c
3
d
12
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.7 HYDRAULIC CONNECTION.
In order not to void the heat primary exchanger
warranty, before making the boiler connections,
carefully clean the heating system (pipes, radiators,
etc.) with special pickling or de-scaling products to
remove any deposits that could compromise correct
boiler operation.
A treatment of the heating and water system water is required,
in compliance with the technical standards in force, in order to
protect the system and the appliance from deposits (e.g. scale),
slurry or other hazardous deposits.
Hydraulic connections must be made in a rational way using the
couplings on the boiler template.
ATTENTION:
the manufacturer declines all liability
in the event of damage caused by the
installation of an automatic lling system.
In order to meet the system requirements established by EN 1717
in terms of pollution of drinking water, we recommend installing
the IMMERGAS anti-backow kit to be used upstream of the cold
water inlet connection of the boiler. We also recommend using a
category 2 heat transfer uid (ex: water + glycol) in the boiler's pri-
mary circuit(C.H. circuit),asdened in standardEN 1717.
To preserve the duration of appliance eciency fea-
tures, in the presence of water whose features can
lead to the deposit of lime scale, installation of the
“polyphosphate dispenser” kit is recommended .
3 bar safety valve.
Safety valve discharge must always be conveyed through a draining
funnel. Otherwise, the manufacturer declines any responsibility
in case of ooding if the drain valve cuts in.
1.8 ELECTRICAL CONNECTION.
e appliance has an IPX5D protection degree; electrical safety of
the appliance is achieved only when it is connected properly to an
ecientearthing system,asspeciedbycurrentsafetystandards.
ATTENTION:
the manufacturer declines any respon-
sibility for damage or physical injury
caused by failure to connect the boiler
to an ecient earth system or failure to
comply with the reference standards.
Openthecontrolpanelconnectionscompartment(Fig. 5)
To carry out electrical connections, all you have to do is open the
connectionscompartment asfollows.
Removethecasing:
1. Loosenthescrew(a)atthebottom.
2. Placethecontrolpanel(b) horizontally;
3. Removethescrew(c)securing the controlpanel(b) cover(d);
4. Removethecover(d)fromthe controlpanel(b);
At this point,it ispossibleto accesstheterminalboard(e).
Also ensure that the electrical installation corresponds to maxi-
mum absorbed power specications as shown on the boiler data
nameplate.
Boilersaresuppliedcompletewithan“X”type powercablewithout
plug.

6
CAVO ALIMENTAZIONE
13
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
ATTENTION:
e power supply cable must be con-
nected to a 230V~ ±10% / 50Hz mains
supply respecting L-N polarity and earth
connection; this network must also have
a multi-pole circuit breaker with class III
overvoltage category in compliance with
installation regulations.
ATTENTION:
No appliance pipes must ever be used
to earth the electric system or telephone
lines.
ATTENTION:
To protect from possible dispersions of
DC voltage, it is necessary to provide a
type A dierential safety device.
ATTENTION:
If the power cable is damaged, contact a
qualied company (e.g. the Authorised
Technical Assistance Centre) for its re-
placement to avoid a hazard.
epowercablemustfollowtheprescribedroute(Fig. 6);
If the network fuse on the P.C.B. needs replacing, this must also be
donebyqualiedpersonnel:use a 5x20 250V3.15Afast fuse.
For the main power supply to the appliance, never use adapters,
multiplesocketsorextensionleads.
1.9 REMOTE CONTROLS AND ROOM CHRONO
THERMOSTATS OPTIONAL.
e boiler is prepared for the application of room chrono-ther-
mostats or remote controls, which are available as optional kits.
Carefully read the user and assembly instructions contained in
the accessory kit.
ATTENTION:
disconnect power to the appliance be-
fore any electrical connection.
• On/O Immergas digital chrono-thermostat.
e chrono-thermostat allows:
- set two room temperature value: one for day (comfort temper-
ature) and one for night (reduced temperature);
- set a weekly programme with four daily switch on and switch
o times;
- selecting the required function mode from the various possible
alternatives:
• manual mode (with adjustable temperature).
• automatic mode (with set programme).
• forced automatic mode (momentarily changing the temperature
of the automatic programme).
e chrono-thermostat is powered by two 1.5V LR 6 type alkaline
batteries.
POWER CABLE

8
45
31
58
7
14
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
•Comando Amico RemotoV2 Remote Control Device (CARV2)
with climate timer thermostat function.
In addition to the functions described in the previous point,
the CARV2 panel enables the user to control all the important
information regarding operation of the appliance and the heating
system with the opportunity to easily intervene on the previously
set parameters, without having to go to where the appliance is
installed. e panel is provided with self-diagnosis to display
any boiler functioning anomalies. e climate chrono-thermo-
stat incorporated into the remote panel enables the system ow
temperature to be adjusted to the actual needs of the room being
heated, in order to obtain the desired room temperature with
extreme precision and therefore with evident saving in running
costs.
CARV2 or chrono-thermostat On/Off electric connection
(Optional). e operations described below must be performed
aer having removed the voltage from the appliance. Any On/O
room chrono-thermostat must be connected to clamps 40 and
41 eliminating jumper X40 (Fig. 37). Make sure that the On/O
thermostat contact is of the “clean” type, i.e. independent of the
mains voltage, otherwise the P.C.B. would be damaged. Any CARV2
must be connected to clamps 40 and 41 eliminating jumper X40
on the circuit board, paying attention not to invert the polarity
in the connections (Fig. 37). Connection with the wrong polarity
prevents functioning, but without damaging the CARV2 e boiler
can only be connected to one remote control.
If the CARV2 remote control or any other On/O
chronothermostat is used, arrange two separate lines
in compliance with current regulations regarding
electrical systems. No boiler pipes must ever be used to
earth the electric system or telephone lines. Ensure elimination
of this risk before making the boiler electrical connections.
EXTERNAL PROBE
Correction law of the ow temperature depending on the external
temperature and user adjustment of the central heating temperature.
Position of the central heating
temperature user adjustment
1.10 EXTERNAL TEMPERATURE PROBE OPTIONAL.
e boiler is designed for the application of the external temper-
ature probe (Fig. 7), which is available as an optional kit. Refer to
the relative instruction sheet for positioning of the external probe.
The probe can be connected directly to the boiler electrical
system and allows the max. system ow temperature to be au-
tomatically decreased when the external temperature increases,
in order to adjust the heat supplied to the system according to
the change in external temperature. e external probe always
operates when connected, regardless of the presence or type of
room chrono-thermostat used and can work in combination with
Immergas chrono-thermostats. e correlation between system
ow temperature and external temperature is determined by the
position of the central heating selector switch on the boiler control
panel (or on the CARV2 control panel if connected to the boiler)
according to the curves shown in the diagram (Fig. 8). e electric
connection of the external probe must be made on clamps 38 and
39 on the terminal board in the boiler control panel (Fig. 37).

911
10
2
1
15
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA

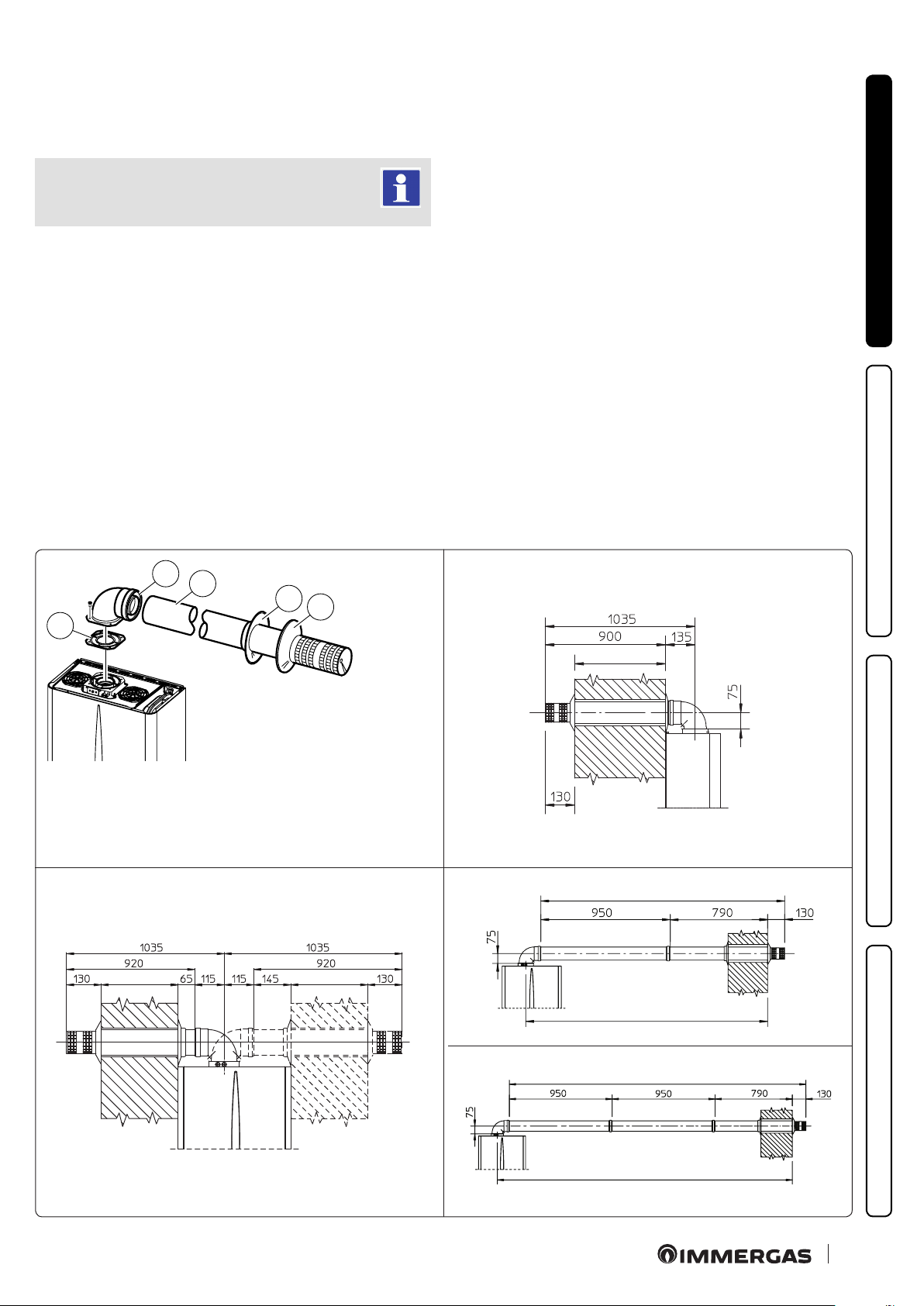

1.11 IMMERGAS FLUE SYSTEMS.
Immergas supplies various solutions separately from the boilers
regarding the installation of air intake terminals and ue exhaust,
which are fundamental for boiler operation.
ATTENTION:
the boiler must only be installed togeth-
er with an original Immergas air intake
and ue gas exhaust system, in compliance
with the standards in force.
is ue can be identied by an identication
mark and special distinctive marking bearing
the note "not for condensing boilers".
e ue exhaust pipes must not be in contact
with or be near to ammable materials. More-
over, they must not pass through buildings or
walls made of ammable material.
See following paragraphs for the detailed description of the kits
available.
• Positioning of double lip seals.
For correct positioning of lip seals on elbows and extensions,
follow the direction of assembly given in gure (Fig. 9).
• Resistance factors and equivalent lengths.
Each ue component has a Resistance Factor based on exper-
imental tests and specied in the table below. e Resistance
Factor for individual components is independent from the type
of boiler on which it is installed and has a dimensionless size. It
is however, conditioned by the temperature of the uids that pass
through the pipe and therefore, varies according to applications
for air intake or ue exhaust. Each single component has a resist-
ance corresponding to a certain length in metres of pipe of the
same diameter; the so-called equivalent length, can be obtained
from the ratio between the relative Resistance Factors.
All boilers have an experimentally obtainable maximum Re-
sistance Factor equal to 100.
e maximum Resistance Factor allowed corresponds to the
resistance encountered with the maximum allowed pipe length
for each type of Terminal Kit. is information allows calcula-
tions to be made to verify the possibility of setting up various
ue congurations.
• Coupling of extension pipes.
To install any push-t extensions with other ue extraction ele-
ments, it is necessary to do the following: install the concentric
pipe or elbow with the male side (smooth) on the female section
(with lip seal) to the end stop on the previously installed element.
is will ensure the sealing and joining of the elements correctly.
ATTENTION:
if the exhaust terminal and/or exten-
sion concentric pipe needs shortening,
consider that the internal duct must always
protrude by 5 mm with respect to the external
duct.
• Diaphragminstallation.
ATTENTION:
based on the boiler model (checking
which type of fan is installed), use ap-
propriate diaphragms.
For correct functioning of the boiler it is necessary to install a
diaphragm on the outlet of the sealed chamber and before the
intake and exhaust pipe (Fig. 11).
e appropriate diaphragm is chosen based on type of pipe and
its maximum extension: this calculation can be made using the
tables below:
N.B.: the diaphragms are supplied together with the boiler.
DIAPHRAGM
Key:
1 - Concentric
ue extraction
diaphragm
2 - Divided ue
extraction
diaphragm

16
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
FAN POWER (Fig. 11).
Diaphragm (g. 11) Pipe extension in metres
Ø 60/100 horizontal
Ø 40 From 0 to 0.5
Ø 41.5 From 0.5 to 1.5
WITHOUT Over 1.5
Diaphragm (g. 11) Pipe extension in metres
Ø 60/100 vertical
Ø 40 From 0 to 2.2
Ø 41.5 From 2.2 to 3.2
WITHOUT Over 3.2
Diaphragm (g. 11) *Extension in metres
horizontal pipe Ø 80 with two bends
Ø 40 From 0 to 17
Ø 41.5 From 17 to 24
WITHOUT Over 24
Diaphragm (g. 11) *Extension in metres
vertical pipe Ø 80 without bends
Ø 40 From 0 to 22
Ø 41.5 From 22 to 29
WITHOUT Over 29
Diaphragm (g. 11) Pipe extension in metres
Ø 80/125 horizontal
Ø 40 From 0 to 0.5
Ø 41.5 From 0.5 to 3.3
WITHOUT Over 3.3
Diaphragm (g. 11) Pipe extension in metres
Ø 80/125 vertical
Ø 40 From 0 to 5.4
Ø 41.5 From 5.4 to 8.1
WITHOUT Over 8.1
* e values for maximum length are considered with 1 metre of
exhaust pipe and the remaining on intake.

17
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.12 TABLES OF RESISTANCE FACTORS AND EQUIVALENT LENGTHS.
TYPE OF DUCT
Resistance
Factor
(R)
Equivalent length
in m of concentric
pipe
Ø 60/100
Equivalent length
in m of concentric
pipe
Ø 80/125
Equivalent length
in m of pipe
Ø 80
Concentric pipe Ø 60/100 m 1 Intake and
Exhaust 16.5 m 1 m 2.8 Intake m 7.1
Exhaust m 5.5
Concentric bend 90° Ø 60/100 Intake and
Exhaust 21 m 1.3 m 3.5 Intake m 9.1
Exhaust m 7.0
Concentric bend 45° Ø 60/100 Intake and
Exhaust 16.5 m 1 m 2.8 Intake m 7.1
Exhaust m 5.5
Terminal complete with
intake-exhaust horizontal
concentric Ø 60/100
Intake and
Exhaust 46 m 2.8 m 7.6
Intake m 20
Exhaust m 15
Intake-exhaust terminal
horizontal concentric Ø 60/100
Intake and
Exhaust 32 m 1.9 m 5.3 Intake m 14
Exhaust m 10.6
Intake-exhaust terminal
vertical concentric Ø 60/100
Intake and
Exhaust 41.7 m 2.5 m 7 Intake m 18
Exhaust 14
Concentric pipe 80/125 Ø m 1 Intake and
Exhaust 6 m 0.4 1.0 m Intake m 2.6
Exhaust m 2.0
Concentric bend 90° 80/125 Ø Intake and
Exhaust 7.5 m 0.5 m 1.3 Intake m 3.3
Exhaust m 2.5
Concentric bend 45° Ø 80/125 Intake and
Exhaust 6 m 0.4 1.0 m Intake m 2.6
Exhaust m 2.0
Terminal complete with in-
take-exhaust vertical concentric
Ø 80/125
Intake and
Exhaust 33 m 2.0 m 5.5
Intake m 14.3
Exhaust m 11.0
Intake-exhaust terminal
vertical concentric Ø 80/125
Intake and
Exhaust 26.5 m 1.6 m 4.4 Intake m 11.5
Exhaust m 8.8
Terminal complete with intake-ex-
haust horizontal concentric
Ø 80/125
Intake and
Exhaust 39 m 2.3 m 6.5
Intake m 16.9
Exhaust m 13
Intake-exhaust terminal
horizontal concentric Ø 80/125
Intake and
Exhaust 34 m 2.0 m 5.6 Intake m 14.8
Exhaust m 11.3
Concentric adapter from Ø 60/100
to Ø 80/125 with condensate trap
Intake and
Exhaust 13 m 0.8 m 2.2 Intake m 5.6
Exhaust m 4.3
Concentric adapter from
Ø 60/100 to Ø 80/125
Intake and
Exhaust 2 m 0.1 m 0.3 Intake m 0.8
Exhaust m 0.6
Pipe Ø 80 m 1 (with and without
insulation)
Intake 2.3 m 0.1 m 0.4 Intake m 1.0
Exhaust 3 m 0.2 m 0.5 Exhaust m 1.0
Complete intake terminal Ø 80 m 1
(with or without insulation) Intake 5 m 0.3 m 0.8 Intake m 2.2
Complete intake terminal Ø 80 m 1
(with or without insulation)
Intake 3 m 0.2 m 0.5 Intake m 1.3
Exhaust 2.5 m 0.1 m 0.4 Exhaust m 0.8
Bend 90° Ø 80 Intake 5 m 0.3 m 0.8 Intake m 2.2
Exhaust 6.5 m 0.4 m 1.1 Exhaust m 2.1
Bend 45° Ø 80 Intake 3 m 0.2 m 0.5 Intake m 1.3
Exhaust 4 m 0.2 m 0.6 Exhaust m 1.3
Divided parallel Ø 80
from Ø 60/100 to Ø 80/80
Intake and
Exhaust 8.8 m 0.5 m 1.5 Intake m 3.8
Exhaust m 2.9

14
13
12
18
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
VERTICAL TERMINAL KIT
FOR DIRECT DRAINING
INTAKE
COVER KIT
1.13 OUTDOOR INSTALLATION IN PARTIALLY
PROTECTED AREA.
A partially protected location is a place where the
appliance is not exposed to the direct eects of the
weather (rain, snow, hail, etc.).
If the appliance is installed in a place where the am-
bient temperature drops below 0°C, use the optional
antifreeze kit, checking the ambient operating tem-
perature range shown in the technical data table in
this instruction booklet.
•Conguration type B, open chamber and fan assisted.
e relevant terminal must be used for this conguration (pres-
ent in the intake kit for the installation in question), which must
be placed on the central hole of the boiler (Fig. 13). Air intake
takes place directly from the environment in which the boiler
is installed and ue exhaust in individual ue or to the outside.
In this conguration the boiler is classied as type B22.
With this conguration:
- air intake takes place directly from the environment in which
the appliance is installed (external);
- the ue exhaust must be connected to its own individual ue
or channelled directly into the external atmosphere.
e technical regulations in force must be respected.
•Max. length of exhaust duct.
e ue pipe (vertical or horizontal) can be extended to a max.
length of 12 m straight route, using insulated pipes (Fig. 30). To
prevent problems of fume condensate in the exhaust pipe Ø 80,
due to fume cooling through the wall, the length of the pipe (not
insulated) must be limited to just 5 m.
Example of installation with direct vertical terminal in par-
tially protected location. When the vertical terminal for direct
discharge of combustion fumes is used, a minimum gap of 300
mm must be le between the terminal and the balcony above. e
height X+Y+Z+W evaluated with respect to the balcony above,
must be equal to or more than 2000 mm (Fig. 14). e term W
must only be considered if the balcony above has closed balustrade
(W=0 if the balustrade is open).
• Conguration without cover kit (boiler type C).
By leaving the side plugs tted, it is possible to install the appli-
ance externally, in partially covered places, without the cover
kit. Installation takes place using the Ø60/100 and Ø80/125
concentric horizontal intake/ exhaust kits. Refer to the paragraph
relative to indoor installation. In this conguration the upper
cover kit guarantees additional protection for the boiler. It is
recommended but not compulsory.
• Fitting the cover kit.
To assemble and congure the cover kit correctly, please refer
to the relative instructions sheet.
(300 Min.)

C12
C12 C12
C12
16
17 19
C12
18
1
3
2
45
15
19
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
1.14 INDOOR INSTALLATION.
• Type C conguration, sealed chamber and fan assisted.
Installation of this terminal is governed by standards contained
in local building regulations, as amended.
In addition to the traditional “Ø60/100 horizontal kit”
there is also a specic “Ø60/100 Star” version, with the
same measurements and equivalent head loss.
is terminal is connected directly to the outside of the building
for air intake and ue exhaust. e horizontal kit can be installed
with the rear, right side, le side or front outlet.
• External grid. N.B.: for safety purposes, do not obstruct the
boiler intake-exhaust terminal, even temporarily.
•Horizontal intake - exhaust kit Ø 60/100.
Kit assembly (Fig. 15): install the bend with ange (2) onto the
central hole of the boiler inserting the gasket (1) and tighten
using the screws in the kit. Couple the terminal pipe (3) with
the male end (smooth) into the female end of the bend (with lip
seals) up to the stop; making sure that the internal wall sealing
plate and external wall sealing plate have been tted, this will
ensure sealing and joining of the elements making up the kit.
• Application with rear outlet (Fig. 16). e 970 mm pipe length
enables routing through a maximum thickness of 770 mm. Nor-
mally the terminal must be shortened. Calculate the distance by
adding the following values: Part thickness + internal projection
+ external projection. e minimum indispensable projection
values are given in the gure.
• Application with side outlet (Fig. 17); Using the horizontal in-
take-exhaust kit, without the special extensions, enables routing
through a wall thickness of 725 mm with the le side outlet and
645 with the right side outlet.
• Extensions for horizontal kit. e horizontal intake-exhaust kit Ø
60/100 can be extended up to a max. horizontal distance of 3,000
mm including the terminal with grid and excluding the concen-
tric bend leaving the boiler. is conguration corresponds to
a resistance factor of 100. In these cases the special extensions
must be requested.
Connection with N°1 extension (Fig. 18). Max. distance between
vertical boiler axis and external wall is 1855 mm.
Connection with N°2 extensions (Fig. 19). Max. distance between
vertical boiler axis and external wall is 2805 mm.
e kit includes:
N°1 - Gasket (1)
N°1 - Concentric bend 90° (2)
N°1 - Intake/Exhaust concentric pipe
Ø 60/100 (3)
N°1 - Internal wall sealing plate (4)
N°1 - External wall sealing plate (5)
Max. 770
Max. 1870
Max. 1855
Max. 2820
Max. 2805
MAX. 725 MAX. 645

C12 C12
20 21
1
3
2
56
4
20
INSTALLER
USER
MAINTENANCE TECHNICIAN
TECHNICAL DATA
• Horizontal intake-exhaust kit Ø 80/125.
Kit assembly (Fig. 20): install the bend with ange (2) onto the
central hole of the boiler inserting the gasket (1) and tighten
using the screws in the kit. Fit the male end (smooth) of the
adapter (3) up to the stop on the female end of the bend (2) (with
lip seal). Fit the Ø 80/125 (4) concentric terminal pipe with the
male end (smooth) to the female end of the adapter (3) (with lip
gasket) up to the stop; making sure that the internal wall sealing
plate and external wall sealing plate have been tted, this will
ensure sealing and joining of the elements making up the kit.
Normally the horizontal intake/exhaust kit Ø 80/125
is used if particularly long extensions are required
• Extensions for horizontal kit. e Ø 80/125 horizontal intake-ex-
haust kit can be extended up to a max. horizontal distance of
7,300 mm including the terminal with grid and excluding the
concentric bend leaving the boiler and the adapter Ø 60/100 in
Ø 80/125 (Fig. 21). is conguration corresponds to a resist-
ance factor of 100. In these cases the special extensions must be
requested.
When installing the ducts, a section clamp with pin
must be installed every 3 metres.
e kit includes:
N°1 - Gasket (1)
N°1 - Concentric bend Ø 60/100 (2)
N°1 - Adapter Ø 60/100 for
Ø 80/125 (3)
N°1 - Concentric terminal
int./exh. Ø 80/125 (4)
N°1 - Internal wall sealing plate (5)
N°1 - External wall sealing plate (6)
Max. 7300
Max. 7195
