impact BH360 User manual

User Guide
User Guide
Electronic Balances
BH360, BH380, BH490, BH500
BH510, BH520, BH530, BH540
Impact Test Equipment Ltd
www.impact-test.co.uk & www.impact-test.com

Impact Test Equipment Ltd.
Building 21 Stevenston Ind. Est.
Stevenston
Ayrshire
KA20 3LR
T: 01294 602626
F: 01294 461168
E: [email protected]
Test Equipment Web Site
www.impact-test.co.uk
Test Sieves & Accessories Web Site
www.impact-test.com

Ohaus Corporation
29 Hanover Road
Florham Park, NJ
07932-0900
Operating Instructions
Ranger Scale
Ranger

Ohaus Corporation, 29 Hanover Road, Florham Park, New Jersey, 07932, USA
Declaration of Conformity We, Ohaus Corporation, declare under our sole responsibility that the balance models listed below
marked with “CE” - are in conformity with the directives and standards mentioned.
Konformitätserkärung Wir, die Ohaus Corporation, erklären in alleiniger Verantwortung, dass die untenstehenden
Waagentypen, gekennzeichnet mit “CE” - mit den genannten Richtlinien und Normen übereinstimmen.
Déclaration de conformité Nous, Ohaus Corporation, déclarons sous notre seule responsabilité, que les types de balance ci-
dessous cité - munis de la mention «CE» - sont conformes aux directives et aux normes mentionnées ci-après.
Declaración de Conformidad Nosotros, Ohaus Corporation, declaramos bajo responsabilidad exclusiva que los modelos de
balanzas indicados a continuación - con el distintivo ,CE’ - están conformes con las directivas y normas citadas.
Dichiarazione di conformità Noi, Ohaus Corporation, U.S.A, dichiariamo sotto nostra unica responsabilità, che i tipi di bilance
specificati di seguito - contrassegnati con la marcatura “CE” - sono conformi alle direttive e norme citate.
Balance Type/Waagentyp/Type de balance/Tipo de balanza/Tipo di bilancia Ranger Scale
Marked with: Directive Standard
gekennzeichnet mit: Richtlinie Norm
munis de la mention: Directive Norme
con el distintivo: Directiva Norma
contrassegnati con la Direttiva Norma
marcatura:
EU 73/23/EEC Low Voltage EN61010-1:1993 + A2: 1995 Safety Regulations
EU 73/23/EEC Niederspannung EN61010-1:1993 + A2: 1995 Sicherheitsbestimmungen
EU 73/23/EEC Basse tension EN61010-1:1993 + A2: 1995 Consignes de sécurité
EU 73/23/EEC Baja tensión EN61010-1:1993 + A2: 1995 Disposiciones sobreseguridad
EU 73/23/EECBassatensione EN61010-1:1993 + A2: 1995 Prescrizioni di sicurezza
EU 89/336/EEC EN55011: 1991 (class B) Emissions; EN61000-3-2
Electromagnetic compatibility EN50082-2:1995 Immunity; EN61000-3-3
EU 89/336/EEC EN55011: 1991 (class B) Funkstörungen; EN61000-3-2
elektromagnetische Verträglichkeit EN50082-2:1995 Immunität; EN61000-3-3
EU 89/336/EEC EN55011: 1991 (class B) Emissions parasites; EN61000-3-2
Compatibilité électromagnétique EN50082-2:1995 Immunité; EN61000-3-3
EU 89/336/EEC EN55011: 1991 (class B) Radiointerferencias; EN61000-3-2
Compatibilidad electromagnética EN50082-2:1995 Inmunidad; EN61000-3-3
EU 89/336/EEC EN55011: 1991 (class B) Radiointerferenze; EN61000-3-2
Compatibilità elettromagnetica EN50082-2:1995 Immunità; EN61000-3-3
1) 1)
EU 90/384 NAWI EN45501:1992 Non Automatic Weighing Instruments
EU 90/384 FNSW EN45501:1992 Für nicht selbsttätige Waagen
EU 90/384 BFNA EN45501:1992 Balances à fonctionnement non automatique
EU 90/384 PBNA EN45501:1992 Para balanzas no automátäcas
EU 90/384 BFNA EN45501:1992 Per bilance a funzionamento non automatics
Year of
attachment of
the CE mark
Jahr der ersten
Eichung
Année de la
premère
vérification
Año de la
primera
verificación
annodella
prima verifica
ISO9001Registrationfor Ohaus Corporation. OhausCorporation,USA,wasexaminedandevaluatedin1994bythe BureauVeritasQuality International,
BVQI,andwasawardedISO9001registration. ThiscertifiesthatOhausCorporation,USA,hasaqualitysystemthatconformswiththeinternationalstandardsforquality
managementandqualityassurance(ISO9000series). RepeatauditsarecarriedoutbyBVQIatintervalstocheckthatthequalitysystemisoperatedinthepropermanner.
ISO9001-Zertifikat für OhausCorporation. Die FirmaOhausCorporation,USA, wurde1994durch dasBureauVeritasQuality InternationalBVQI geprüft,und
erhieltdasISO9001Zertifikat. Diesesbescheinigt,dassOhausCorporation,USAübereinQualitätssystemverfügt,welchesdeninternationalenNormenfür
QualitätsmanagementundQualitátssicherung(ISO9000er-Reihe)entspricht. Anlässlich vonWiederhol-AuditsdurchdasBVQI wirdperiodischüberprüft,obdas
Qualitätssystemzweckmässiggehandhabtwird.
Certificat ISO 9001pour Ohaus Corporation. LasociétéOhaus Corporation,USA,aété contrôléeen1994par BureauVeritasQualityInternationalBVQIeta
obtenulecertificat,degréISO9001. Celui-ciattestequeOhausCorporation,USA,disposed’unsystèmequalitécorrespondant auxnormesinternationalespourlagestion
delaqualitéetpourI’assurancequalité(degréISO9000). DesauditsrégulierseffectuésparlaBVQIvérifientsilesystèmequalitéestappliquédefaconappropriée.
Certificado ISO 9001para Ohaus Corporation. Lafirma OhausCorporation,USA, hasidoinspeccionadaporlaBureauVeritasQualityInternational(BVQI)y
haobtenidoelcertificadoISO9001. Estoacredita queOhaus Corporation,USA,disponede unsistemadecalidadque cumplelas normasinternacionalesparagestión
ygarantfadecalidad(ISOserie9000). ConocasióndelasinspeccionesderepetibilidadporpartedelaBVQI,secompruebaperiódicamentesielsistemadecalidadse
manipuladeformacorrecta.
CertificatoISO 9001per laOhaus Corporation. llsistemadigaranziadellaqualitàdellaSocietàOhausCorporation,USAè certificatoISO9001sindal 1994dal
BureauVeritasQualityInternationalBVQI,ecosìfomisceladimostrazionecheilsuosistemadiGaranziaQualitàsoddisfaimassimirequisiti.VerificheperiodichedelBVQI
garantisconoche il sistema qualit àopera correttamente.
00
122 M
1) applies only to certified balances/scale

NOTE: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A
DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.
THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFER-
ENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GEN-
ERATES, USES, AND CAN RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTALLED AND USED IN
ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO COM-
MUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL
INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS
OWN EXPENSE.
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS A LIMITS FOR RADIO NOISE EMISSIONS FROM
DIGITAL APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING EQUIPMENT STANDARD ENTITLED
DIGITAL APPARATUS, ICES-003 OF THE DEPARTMENT OF COMMUNICATIONS.
CET APPAREIL NUMERIQUE RESPECTE LES LIMITES DE BRUITS RADIOELECTRIQUES APPLICABLES AUX
APPAREILS NUMERIQUES DE CLASSE A PRESCRITES DANS LA NORME SUR LE MATERIEL BROUILLEUR :
APPAREILS NUMERIQUES, NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
Unauthorized changes or modifications to this equipment are not permitted.

4
Contents
OVERVIEW OF CONTROLS .................................................................................................................. 6
1. INTRODUCTION ................................................................................................................................7
1.1 Introduction ...................................................................................................................................... 7
1.2 Overview of the scale ......................................................................................................................... 7
2. INSTALLATION .................................................................................................................................. 8
2.1 Unpacking and checking contents ....................................................................................................... 8
2.2 Safety considerations ......................................................................................................................... 8
2.3 Locating and leveling the scale ........................................................................................................... 9
2.4 Connecting power ............................................................................................................................. 9
2.5 Battery operation ............................................................................................................................. 10
2.6 Connecting communications ............................................................................................................ 10
3. OPERATION .................................................................................................................................... 11
3.1 Menu structure ................................................................................................................................ 11

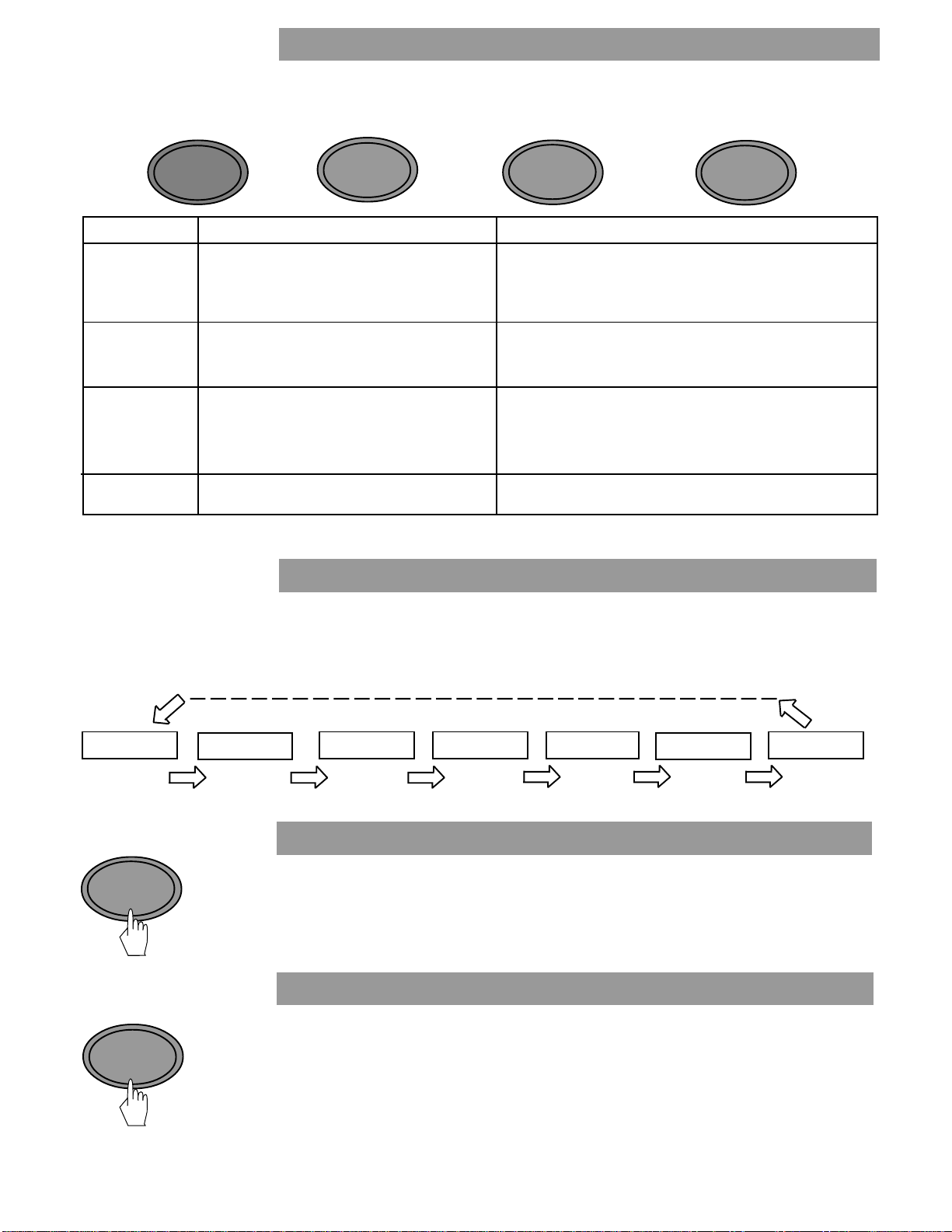

3.2 Switch functions .............................................................................................................................. 13
3.3 Menu operation ............................................................................................................................... 13
3.4 Turning on the scale and zeroing ...................................................................................................... 15
3.5 Basic weighing ............................................................................................................................... 15
3.6 Weighing with tare .......................................................................................................................... 15
3.7 Gross/Net/Tare recall operation ......................................................................................................... 16
3.8 Unit switch operation ....................................................................................................................... 16
4. SETTING UP YOUR SCALE ............................................................................................................... 17
4.1 Overview ........................................................................................................................................ 17
4.2 Setup menu .................................................................................................................................... 17
4.3 Read menu..................................................................................................................................... 18
4.4 RS232-1 / RS232-2 menus ............................................................................................................. 19
4.5 Lockout menu ................................................................................................................................. 20
4.6 Quit menu ...................................................................................................................................... 20
5. CALIBRATION AND SEALING ............................................................................................................ 21
5.1 Calibration masses.......................................................................................................................... 21
Contents

5
Contents
5.2 Calibration ...................................................................................................................................... 22
5.3 Unlocking the menus ....................................................................................................................... 22
5.4 Weights and measures sealing ......................................................................................................... 23
6. CARE AND MAINTENANCE ............................................................................................................... 24
6.1 Troubleshooting .............................................................................................................................. 24
6.2 RS232 Interface .............................................................................................................................. 25
6.3 Error codes list ................................................................................................................................ 27
6.4 Service information .......................................................................................................................... 27
6.5 Accessories .................................................................................................................................... 27
6.6 Specifications.................................................................................................................................. 28

6
1
Overview of controls
1
2
3
4
5
6
7
89a 10
11 12 13
14 15
16 17 18
Rear of scale
Display
1Keypad
2Display
3Capacity label
4Weighing pan
5Power cord
6AC Adapter (Scale with battery)
7Adjustable feet
8Jack for AC Adapter (battery)
9a Serial # label (Europe)
9b Serial # Label (USA) under weighing platform
10 Hole for antitheft device
11 Spirt level
12 RS232 Interface (Optional)
13 RS232 Interface (Standard)
14 Stability indicator
15 Weighing range display (for dual range scales)
16 Center of zero
17 weighing unit
18 Net symbol when weighing with tare
19 Battery discharge status (optional)
Ranger
kg Pcs
Com
tbz NET
12
9b

7
Thank you for deciding to purchase a Ranger Scale from Ohaus. Behind your instrument stands OHAUS, a
leading manufacturer of precision Scales, Moisture Analyzers, Balances, and Indicators. An Aftermarket Depart-
ment with trained instrument technicians is dedicated to provide you with the fastest service possible in the event
your instrument requires servicing. OHAUS also has a Customer Service Department to answer any inquiries
regarding applications and accessories.
To ensure you make full use of the possibilities offered by your new Ranger Scale, please read the manual
completely before installation and operation.
The Ranger Scale offers a high level of operating convenience and useful functions to make accurate measure-
ments.
The Ranger Scale has the following features:
 Extremely rugged cast aluminum case and chemically resistant paint finish construction.
 Weighing pan constructed of stainless-steel.
 Fully programmable with front panel controls.
 Ergonomic operating controls and a large, easily readable display.
 Easy to follow menus for simplified operation.
 Lockout feature prevents inadvertent changing of menu settings.
 Back lighted display.
 Gross, Net, Tare operation.
 Selectable graduations.
 Auto zero operation.
 Auto tare operation.
 Built-in leveling feet and level indicator.
 Built-in functions for manual, automatic timing of printing intervals.
 Built-in RS232 communication interface (and optional additional channel ).
 Optional built-in battery operation .
 Up to 40 hours continuous operation with optional battery.
 Legal for trade operation.
 Calibration with either kg or lb.
 A variety of accessories includes interface communication cables, printer, and a security device.
Section 1 - Introduction
1.1 Introduction
1.2 Overview of the scale

8
In this section, you will learn how you unpack and install your new Ranger Scale and prepare it for operation.
On completion of the steps described in this section, your Scale is ready for operation.
Remove packing material from the instrument.
Check the instrument for transport damage. Immediately inform your
Ohaus dealer if you have complaints or parts are missing.
Store all parts of the packaging. This packaging guarantees the best
possible protection for the transport of your instrument.
Open the package and remove the instrument and the accessories.
Check the completeness of the delivery. The following accessories are
part of the standard equipment of your new scale.
 1 Removable power cable (supplied with battery operated scales)
 1 Set of operating instructions
 1 Warranty card
2.1 Unpacking and checking contents
Your scale employs state of the art technology and meets the latest
demands regarding instrument safety. For safe and dependable opera-
tion, please comply with the following instructions:
 The Scale must not be operated in a hazardous environment and
only under ambient conditions specified in these instructions.
 Only use approved accessories and peripherals.
 Do not tamper with the retaining screws for the load plate support
underneath the weighing pan.
 It is not permitted to open the scale by removing screws in its base.
 The scale is a precision instrument, handle it carefully,
2.2 Safety considerations
Section 2 - Installation

9

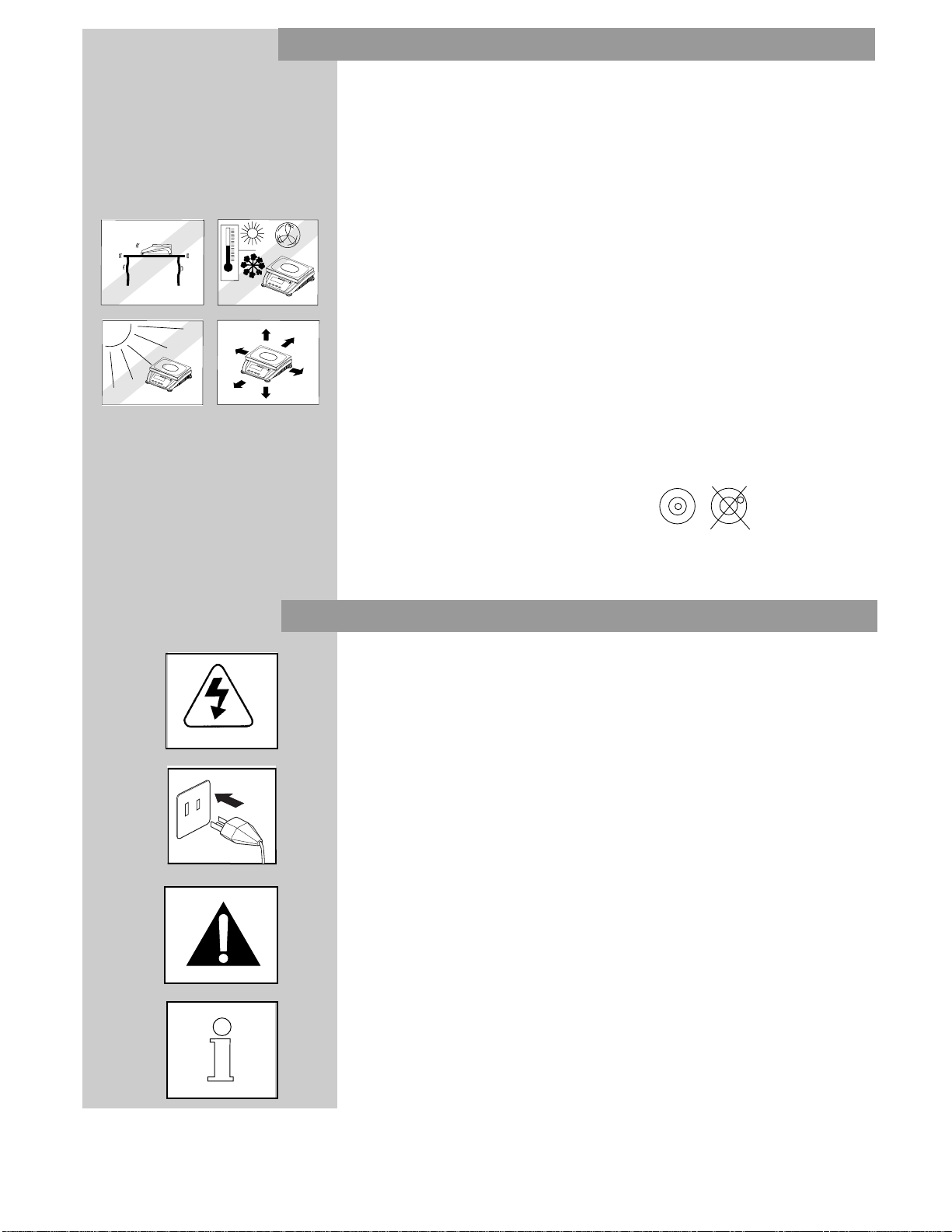

2.3 Locating and leveling the scale
2.4 Connecting power
The scale should always be used in an environment which is free from
excessive air currents, corrosives, vibration, and temperature or humidity
extremes. These factors will affect displayed weight readings.
DO NOT install the scale:
 Next to open windows or doors causing drafts or rapid temperature
changes.
 Near air conditioning or heat vents.
 Near vibrating, rotating or reciprocating equipment.
 Near magnetic fields or equipment that generate magnetic fields.
 On an unlevel work surface.
 In confined areas, allow sufficient space around the instrument for
ease of operation and keep away from radiating heat sources.
 Adjust the leveling feet so that the scale is exactly horizontal and the
air bubble in the indicator is centered.
NOTE: The instrument should be leveled each time its location is
changed.
Check to ensure the voltage printed on the scale label matches your local
line voltage. If this is not the case, DO NOT connect the scale to the
power supply, but contact your responsible OHAUS dealer.
Connect the power cord from the scale to a suitable power source. If the
scale is equipped with an optional internal battery, connect the AC cord
supplied to the rear of the scale.
Allow your scale to warm up for at least 30 minutes to enable it to
adapt itself to the ambient conditions. If the scale has been stored in a
very cold environment before installation, it may require several hours to
stabilize.
The scale now performs a self-test, displays the software version and the
normal weight display then appears.
Ranger
Ranger
Ranger

10

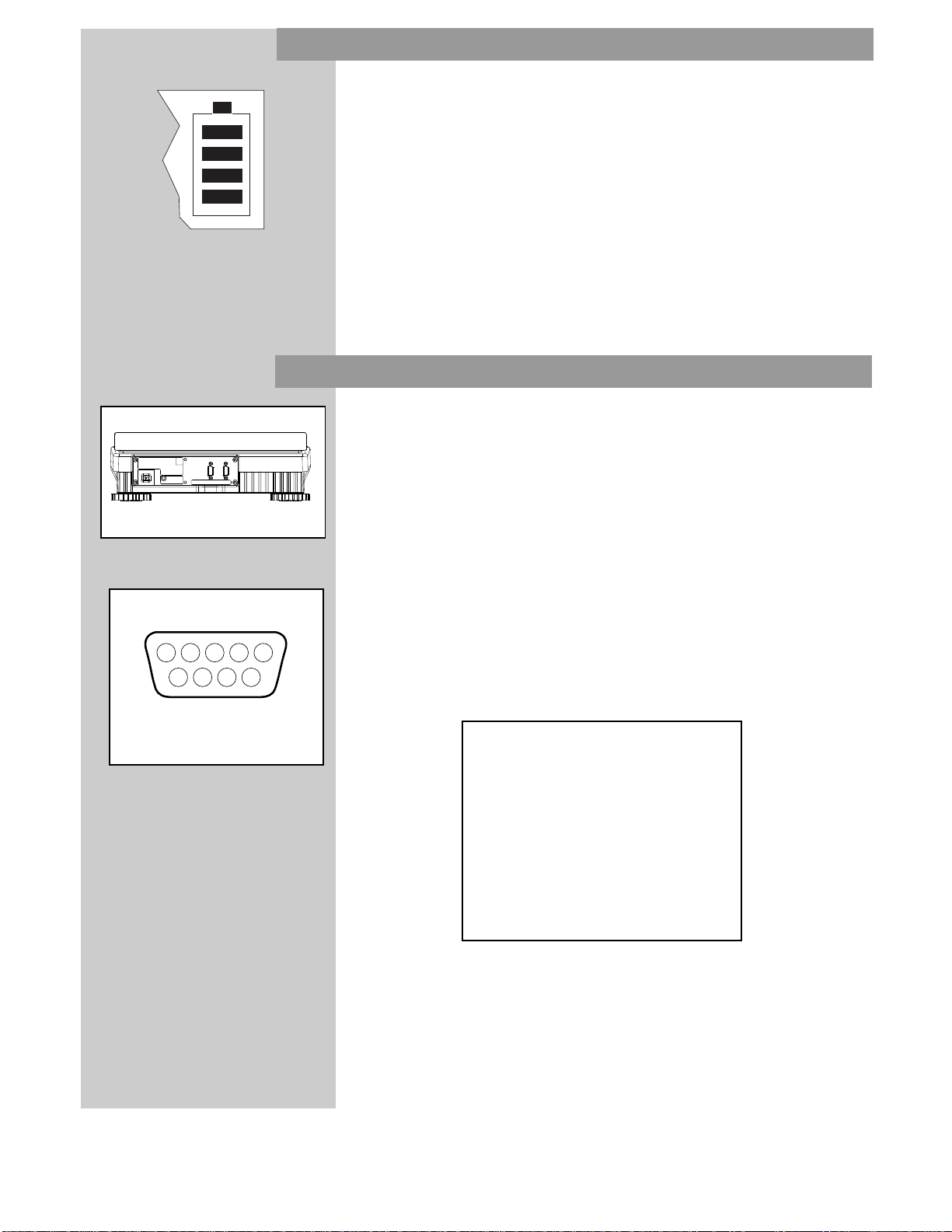

2.5 Battery operation
The scale is equipped with one bi-directional RS232 interface for commu-
nication with printers and computers. When the scale is connected
directly to a printer, displayed data can be output at any time by simply
pressing the PRINT UNITS button or by using one of the RS232 Mode
print features. (A second optional RS232 interface is also available).
Connecting the scale to a computer or printer enables you to operate the
scale from the computer, as well as receive data such as displayed
weight, weighing mode, stability status, etc. and to have a permanent
printed record.
On the rear of the scale, a 9-pin male subminiature D connector is
provided for interfacing to other devices. Table below indicates pin
connections.
1
2 Data Out (TXD)
3 Data In (RXD)
4
5 GND
6
7
8
9
See Accessories listed in paragraph 6.5. Connect a suitable cable from
the scale to the external device.
Review paragraph 6.2, RS232 Interface for additional information regard-
ing formats and command table.
(See rear of balance)
12345
6789
2.6 Connecting communications
Scales with a built-in battery automatically switch to battery operation if
there is a power failure or the power cord is removed. The battery symbol
indicates the current discharge status of the battery (1 segment = 25%
capacity). If the symbol flashes, the battery must be recharged.
A discharged battery requires at least 8 hours until it is recharged. During
the charging process, work with the scale can continue, but under these
conditions, a longer charging time is needed.
In normal use, the battery can operate the scale for up to 40 hours
independent of the AC power line. The battery is protected against
overcharging and the scale can remain connected to the AC power line.

11
Section 3 - Operation
CALIBRATION
Setup
reset
res sp
LFT
ON, OFF,CAN
quit
CAL UN
Lb, Kg
Grad
0.0005, 0.001,
0.002, 0.005,
0.0001,0.0002,
quit
APPL IC
Stand
Fill
quit
Bac lt
ON,OFF
quit
List
Print
End set
Read
reset
res rd
Al
med
high
low
quit
Unit 1
Unit 1LB , Unit 1g, Unit 1kg,
Unit 1 OZ
quit
Unit 2
Unit 2LB , Unit 2g, Unit 2kg,
Unit 2 OZ
quit
Azt
0.5d, 1d, 3d, OFF
quit
A-t
OFF, ON
quit
Aot
YES, NO
quit
Rzd
OFF, ON
quit
End rd
CAL
Span
-0-
(full capacity weight)
-done-
Lin
-0-
(50% capacity weight)
(100% capacity weight)
-done-
EndCAL
The following table illustrates the first three menus in the Ranger Scale. The Main Menu contains 7 sub menus.
The remaining menus appear on the next page.
3.1 Menu structure
SETUP READ

12
Loc
Cal
ON, OFF
quit
Setup
ON, OFF
quit
Read
ON, OFF
quit
RS232-1
ON, OFF
quit
RS232-2
ON, OFF
quit
Locset
ON, OFF
quit
Endloc
quit
rs232-1 Com 1
reset
reset rs
Mode
Print,On Stb, Stbonly,
Cont, Disp 2
quit
baud
300,600,1200, 2400,
4800, 9600, 19200,
quit
Parity
7 even, 7 no p,
8 no p, 7 odd
quit
Stop
1, 2
quit
Handsh
YES, NO
quit
Defstr
Header
ON, OFF
Gross
ON, OFF
Net
ON, OFF
Tare
ON, OFF
4 L INF
ON, OFF
F Feed
ON, OFF
LN For
Single, multi,
End rs1
QUIT
3.1 Menu structure
RS232-1 RS232-2 LOCKOUT
Quit
Store ?
rs232-2 Com 2
reset
reset rs
Mode
Print, On Stb, Stbonly,
Cont, Disp 2
quit
baud
300,600,1200, 2400,
4800, 9600, 19200,
quit
Parity
7 even, 7 no p,
8 no p, 7 odd
quit
Stop
1, 2
quit
Handsh
YES, NO
quit
Defstr
Header
ON, OFF
Gross
ON, OFF
Net
ON, OFF
Tare
ON, OFF
4 L INF
ON, OFF
F Feed
ON, OFF
LN For
Single, multi,
End rs1

13
In this section, you will learn how to work with the menu. The menu allows you to match your scale to your
specific weighing needs. In the menu, you can change the settings of your scale and activate functions. The
Main Menu contains 7 sub menus. Each of the seven sub menus are described in detail in the following
sections.
3.3 Menu operation
3.2 Switch functions
The button switches located on the front panel of the scale provide several functions. Please read the following
information before pressing any of these buttons.
ON/ZERO
OFF
G/N/T
MENU TARE
PRINT
UNITS
BUTTONS PRIMARY FUNCTION SECONDARY FUNCTION
ON/ZERO Short press - Turns scale ON if OFF. When scale is ON, short press zeros the scale.
OFF Long press - Turns scale OFF if ON.
PRINT Short press - Sends PRINT command. When in MENU MODE: short press = NO.
UNITS Long press - Changes UNITS.
G/N/T Short presses - Gross/Net/Tare. When in MENU MODE: short press = YES.
MENU No action for 5 secs., scale returns NET.
Long press - Enter MENU.
TARE Short press - enter TARE.
How to enter the menus
To enter the menus, press and hold the G/N/T MENU button until CAL
appears. This is the first menu, CALIBRATION.
G/N/T
MENU (Long press)
CALIBRATION SETUP READ RS232-1 RS232-2 LOCKOUT QUIT
A short press on the PRINT UNITS button = NO. When in MENU MODE
short presses will advance to the next menu as shown below. When
QUIT is reached, the next press on the PRINT UNITS button will return to
the CALIBRATION menu.
(Short press= NO)
How to select a specific menu
PRINT
UNITS

14
How to enter an individual menu item
When in any menu, a short press on the G/N/T MENU button = YES and
you can enter a specific menu item. To advance through a given menu,
make short presses on the PRINT UNITS =NO button.
G/N/T
MENU
PRINT
UNITS
How to save and store an individual menu item
When a menu item has been changed once the desired selection is
shown, make a short press on G/N/T MENU button, Quit appears on the
display. If NO is selected by pressing the PRINT UNITS button, the next
menu item appears. If yes is selected by pressing G/N/TMENU, StorE?
appears. Pressing the G/N/T MENU button will store the change and
return the scale to a weighing mode. If NO is selected, the menu change
is ignored and scale returns to weighing mode.
G/N/T
MENU
PRINT
UNITS
A short press on the PRINT UNITS button = NO. When in MENU MODE,
short presses will advance through the menus until QUIT is reached. To
quit, make a short press on the G/N/T MENU button, StorE? appears,
answer YES to save and scale returns to a weighing mode, or NO to
ignore changes and continue.
How to quit the menus
G/N/T
MENU
How to enter an individual menu
A short press on the G/N/T MENU button = YES and you can enter a
specific menu.
G/N/T
MENU (Short press=YES)
PRINT
UNITS

15
Briefly press the ON/ZERO OFF button to turn the scale ON.
The scale performs a display test routine and then is ready for weighing.
Briefly press the ON/ZERO OFF button again to zero the display. When
O is displayed in the lower left of the display, the scale is at the center of
zero.
3.4 Turning on the scale and zeroing
3.5 Basic weighing
ON/ZERO
OFF
Place the object to be weighed on the scale.
Wait until the stability indicator (an asterisk in the upper left corner of the
display) appears, then read the indicated weight.
3.6 Weighing with tare
Place an empty weighing container or packaging on the scale.
Press the TARE button briefly to tare the scale. The zero display and NET
(net weight) symbol appear. Items to be weighed can now be placed on
the platform. The weight of the tared item (container) is automatically
subtracted and the weight of the item is displayed. If the container is also
removed, the scale will indicate a negative number which represented the
tared weight. To clear this, press the TARE button.
NOTE: If the AUTO TARE function (A-t) has been activated in the READ
menu, there is no need to press the TARE button
TARE
Ranger
Ranger
kg
1
kg
2
kg
2
kg
NET
1

16
3.7 Gross/Net/Tare recall operation
3.8 Unit switch operation
When the Read menu Unit 1 and Unit 2 have been set to either g, kg, oz
or lb, you may press and hold the PRINT UNITS button to select one of
the preset units. See Read Menu for selecting units.
When a container has been placed on the scale and tared, it's weight is
stored in memory. Adding material to the container is shown as NET
weight. The gross weight is a combination of the tared weight and the
material. The G/N/T Menu button allows switching between GROSS, NET
and TARE weights.
Repeately press (short presses) the G/N/T Menu button to cycle through
Gross, Tare and Net readings. The sample illustrations indicate a tare
weight of 0.02kg simulating a container, a net weight of 1.000kg which
would be the material in a container and a gross weight of 1.020kg
which is the total weight of the container and material. After 5 seconds,
display returns to net weighing.
NOTE: The display uses symbols for NET and Tare. NET=NET, T=Tare.
Gross=no symbol.
G/N/T
MENU
G/N/T
MENU
PRINT
UNITS
kg
kg
T
kg
NET
kg
lb

17
In this section, each of the menus are described as to the settings and
application in the scale. Using the buttons previously described, you can
configure your scale to specific weighing needs. The menus, allow you
to change the settings and activate functions. Calibration menu is
covered separately in Section 5.
Section 4 - Setting up your scale
4.2 Setup menu
Function/Display Available Settings Application
Legal for trade
Graduation
Application
Back Light
List
End Settings
The Setup menu contains entries for LFT, calibration units, graduations,
processing, back light, list and end set. See table below for details.
Bold equals factory default settings.
Off
On
CAN
Legal for trade applications
when set ON or CAN.
0.001, 0.002, 0.005, 0.0001,
0.0002, 0.0005
This is the graduation size and
available options vary with the
capacity of the scale.
Stand-Standard
FILL-Filling
Regular weighing.
Dispensing for filling
applications.
On
Off
Back light can turned on or off.
Print Allows printing of complete
setup menu.
End of setup menu, when
selected by pressing G/N/T
MENU button, display advances
to READ MENU.
4.1 Overview
Reset res sp Press G/N/T MENU =reset and
keep factory settings. Press
PRINT UNITS =NO, advances to
next menu.
End of setup menu.
Calibration unit Kg, lb Calibration may be set using
either kg or lb.

18
4.3 Read menu
Function/Display Available Settings Application
Reset
Averaging level
Unit 1
Unit 2
Auto-Zero Tracking
Auto Tare
Auto Power Off
The Read menu contains entries for reset, average level, unit 1, unit 2,
auto zero, auto tare, auto power off, retain zero data and end. See table
below for details. Bold equals factory default settings.
reset rd
Low, Med, High Averaging level.
High=greater stability, Med=
mid stabilty, Low=less stability,
faster processing time.
This is the first weighing unit.
0.5d, 1d, 3d, Off Settings minimize temperature
and small disturbances on the
zero reading.
On
Off
Enables automatic tare when
set to ON.
When set ON, power is removed
after 5 minutes if battery pack is
present and power cord is not
plugged in.
Retain Zero Data
End Read Settings
Retains stored zero point when
scale is turned off.
End of Read menu, when
selected, display advances to
RS232-1 menu.
g, kg, oz, lb
g, kg, oz, lb This is the alternate weighing
unit.
Yes
No
On
Off
End of read menu.
Press G/N/T MENU =reset and
keep factory settings. Press
PRINT UNITS =NO, advances to
next menu.
