BEFORE YOU BEGIN
Thank you for selecting the MARCY®Magnetic Upright Bike ME-710 by
IMPEX®INC. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents
will provide immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]
1

2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your machine.
In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other
abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. The Maximum Weight Capacity is 300 lbs.
13. Read all warnings posted on the exercise bike.
14. Inspect the exercise bike for worn or loose component prior to use.
Tighten/replace any loose or wore components prior to use.
15. Care should be taken in mounting or dismounting the exercise bike.
16. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR
PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR
THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

WARNING LABEL PLACEMENT
The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or
illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in
location shown.
3

HARDWARE PACK
No. Description Identifier Q’ty
12 Ø 5/8” Washer 2
15 M8 x 2 ½” Carriage Bolt 2
16 Ø 7/8” Curved Washer
6
17 M8 Acorn Nut 2
18 M8 x 5/8” Allen Bolt
8
19 Ø 1” Flat Washer 2
26 T-shaped Lock Knob
1
#6 Allen Wrench 1
Crossing Wrench 1
Above hardware are all you need to assemble this machine. Before you start to
assemble, please check the hardware pack to make sure they are included.
4

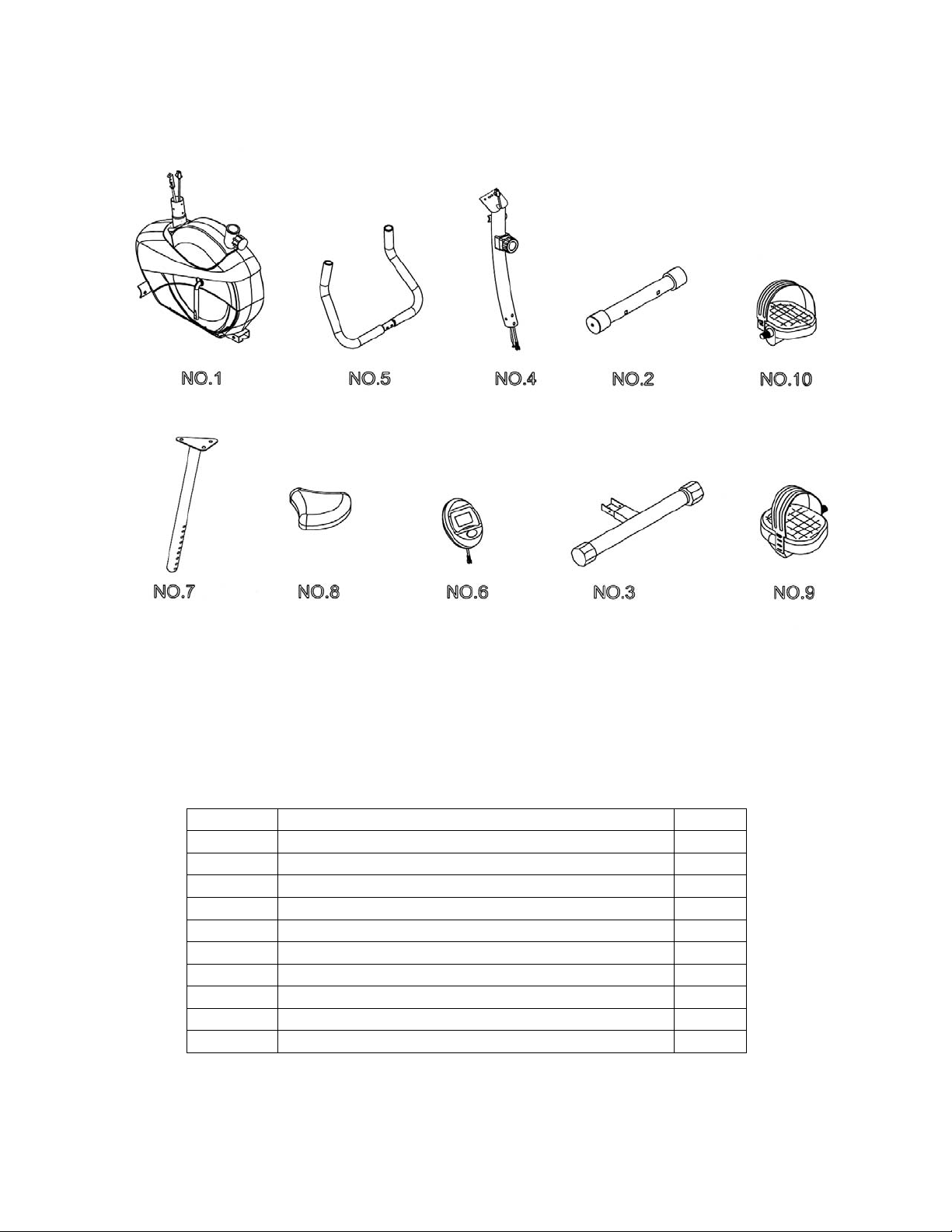

PRE-ASSEMBLY CHECK LIST
PART NO. DESCRIPTION Q’TY
01 Main Frame 1
02 Front Stabilizer 1
03 Rear Stabilizer 1
04 Front Post 1
05 Handlebar 1
06 Computer 1
07 Seat Post 1
08 Seat 1
09 Left Pedal 1
10 Right Pedal 1
User Manual 1
+
5

ASSEMBLY INSTRUCTION
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

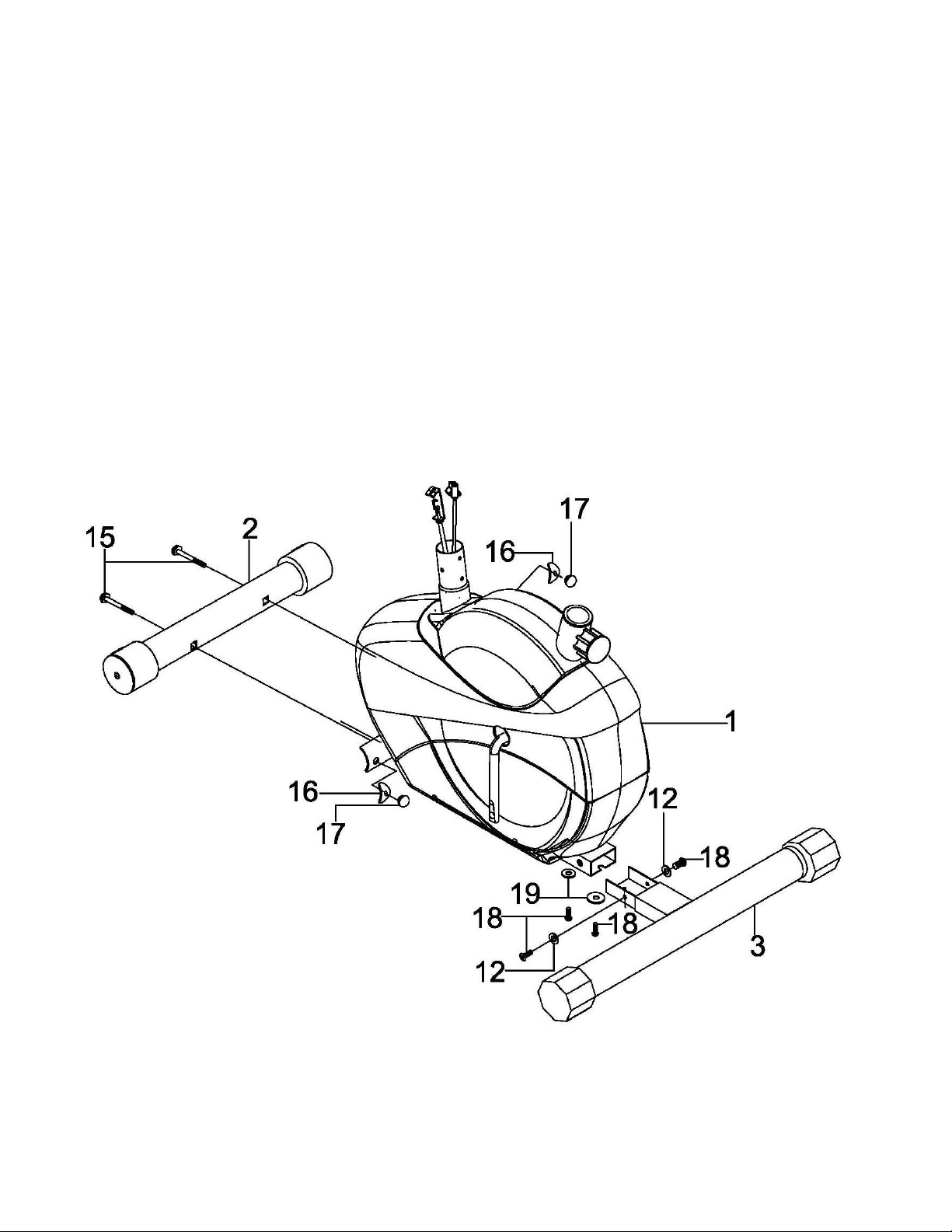

STEP 1 (See Diagram1)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M8 x 2 ½”
Carriage Bolts (#15), two 7/8” Curved Washers (#16), and two M8 Acorn Nuts (#17).
C.) Attach the Rear Stabilizer (#3) to the Main Frame. Secure it with two M8 x 5/8” Allen Bolts
(#18) and two Ø 1” Flat Washers (#19) from the bottom. Secure it with two M8 x 5/8” Allen
Bolts (#18) and two Ø 5/8” Washers (#12) from the sides.
D.) Securely tighten all Nuts and Bolts.
DIAGRAM 1
6

STEP 2 (See Diagram 2)
A.) Note: In order to hold the Front Post (#4) while connecting the cables and wires,
extra help may be needed.
B.) Attach the Front Post (#4) to the Main Frame (#1). Connect the Middle Computer Wire
(#21) from the bottom of Front Post to the Lower Computer Wire (#22) from the main
Fame.
C.) Pull the tension connector from the Upper Tension Cable (#20) and slide in between
the opening on the connector holder on the Lower Tension Cable (#23). Pull the Upper
Tension Cable upward and slide the wire through the slot on the bracket.
D.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.
E.) Secure the Front Post to the Main Frame with four M8 x 5/8” Allen Bolts (#18) and four
Ø 7/8” Curved Washers (#16).
DIAGRAM
7

STEP 3 (See Diagram 3)
A.) Attach the Handle (#5) to the Front Post (#4). Secure it with one Bracket (#30), one
M8 x ¾” Allen Bolt (#31), one T-shaped Lock Knob (#26), and two Ø 5/8” Washers
(#12).
B.) Connect Upper Computer Wire (#28) to the Middle Computer Wire (#21).
C.) Remove the two M5 x 3/8” Philips Screws (#29) from Computer. Slide the Computer
onto the bracket on Front Post. Secure it with the two Screws.
DIAGRAM 3
8

STEP 4 (See Diagram 4)
A.) Remove the three Ø 5/8” Washers (#12), three Ø 3/8” Lock Washers (#13),
and three M8 Aircraft Nuts (#14) from the Seat (#8).
B.) Attach the Seat to the Seat Post (#7). Secure it with three Ø 5/8” Washers
(#12), three Ø 3/8” Lock Washers (#13), and three M8 Aircraft Nuts (#14).
C.)Insert the Seat Post into the opening on Main Frame (#1). Thread the Lock
Knob (#11) through the hole on Seat Post to securely lock it at desired
height.
DIAGRAM 4
9

STEP 5 (See Diagram 5)
A.) Thread the Left Pedal (#9) counterclockwise into the Crank (#25).
B.) Thread the Right Pedal (#10) clockwise into the Crank on the other side.
DIAGRAM 5
10

EXPLODED DIAGRAM
11

12
PARTS LIST
KEY NO. DESCRIPTION QUANTITY
1 Main Frame 1
2 Front Stabilizer 1
3 Rear Stabilizer 1
4 Front Post 1
5 Handle 1
6 Computer 1
7 Seat Post 1
8 Seat 1
9 Left Pedal 1
10 Right Pedal 1
11 Lock Knob 1
12 Ø 5/8” Washer 7
13 Ø 3/8” Lock Washer 3
14 M8 Aircraft Nut 3
15 M8 x 2 ½” Carriage Bolt 2
16 Ø 7/8“ Curved Washer 6
17 M8 Acorn Nut 2
18 M8 x 5/8“ Allen Bolt 8
19 Ø 1” Flat Washer 2
20 Upper Tension Cable 1
21 Middle Computer Wire 1
22 Lower Computer Wire 1
23 Lower Tension Cable 1
24 Front Stabilizer Roller End Cap 2
25 Crank 1
26 T-shaped Lock Knob 1
27 Rear Stabilizer End Cap 2
28 Upper Computer Wire 1
29 M5 x 3/8” Philips Screw 2
30 Bracket 1
31 M8 x ¾” Allen Bolt 1

COMPUTER
AUTO START / STOP
When exercise starts, the monitor will automatically turn on and display the progress.
When exercise stops, the monitor will automatically turn off after 8 minutes to save
energy.
Press “MODE” key, will automatically scan Time, Speed, Distance, Calories, and ODO
for every 4 seconds.
DISPLAY:
Time Display the elapsed time. Max value is up to 99:59
Speed Display the current speed in miles per hour.
Distance Display the distance traveled in Miles. Max value is 99.99 miles.
Calories Display the calorie consumption in cal.
(ODO) Odometer Display the accumulation of distance from previous and current
exercises. Max value is 9999 miles.
REPLACE BATTERY:
1. Remove the battery cover on the back of the computer.
2. Replace two 1.5V (AAA) batteries.
3. Make sure the batteries are installed correctly and the polarities are correct.
4. If the display is not clear or only partial segments appeared, remove the batteries
and wait for 15 seconds before re-install them.
5. The battery life is approx. 3 months under normal usage.
6. When the batteries are removed, all the functional values will reset to zero.
Note:
Please note all values on this computer are approximate and they are for
comparison purpose only. Do not use these values for any medical or
rehabilitation purpose.
Maintenance and Storage
1. Inspect and tighten all parts each time you use the machine. Replace any
worn parts immediately.
2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent.
Do not use solvents.
3. Store the machine IN-DOOR. Excess moisture and water would cause rust on
the frame.
4. The machine shall be placed at least 24 inches away from the wall or/and any
other object such as furniture to provide safe access to and passage around
the machine.
5. To avoid possible injury, the help of two or more people are needed when
moving the machine around.
13

EXERCISE INSTRUCTIONS
Using your MAGNETIC BIKE will provide you with several benefits, it will improve your
physical fitness, tone muscle and in conjunction with calorie controlled diet help you
lose weight.
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working
properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a
few stretching exercises as shown below. Each stretch should be held for
approximately 30 seconds, do not force or jerk your muscles into a stretch - if it hurts,
STOP.
CALF / ACHILLES
INNER THIGH
FORWARD
BENDS
SIDE BENDS OUTER THIGH
2. The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs
will become more flexible. Work to your but it is very important to maintain a steady
tempo throughout. The rate of work should be sufficient to raise your heartbeat into the
target zone shown on the graph below.
This stage should last for a minimum of 12 minutes though most people start at
about 15-20 minutes
14

15
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a
repeat of the warm up exercise e.g. reduce your tempo, continue for approximately 5
minutes. The stretching exercises should now be repeated, again remembering not to
force or jerk your muscles into the stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least
three times a week, and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your MAGNETIC BIKE you will need to have the resistance
set quite high. This will put more strain on our leg muscles and may mean you cannot
train for as long as you would like. If you are also trying to improve your fitness you
need to alter your training program. You should train as normal during the warm up and
cool down phases, but towards the end of the exercise phase you should increase
resistance making your legs work harder. You will have to reduce your speed to keep
your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and
longer you work the more calories you will burn. Effectively this is the same as if
you were training to improve your fitness, the difference is the goal.

16
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material,
under normal use and service conditions, for a period of two years on the Frame from the date of
purchase. This warranty extends only to the original purchaser. IMPEX's obligation under this
Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights for products return to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused
by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided
by an IMPEX authorized service center or for products used for commercial or rental purposes. No
other warranty beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic
loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation
or other consequential damages or whatsoever natures. Some states do not allow the exclusion or
limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to
state. Register on-line www.impex-fitness.com
IMPEX®INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-
8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[email protected]
When ordering replacement part, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
