Impex MARCY PL-43231 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
PL-43231
Retain This
Manual for
Reference
07-01-05
OWNER'S
MANUAL
MARCY
Magnetic Recumbent Bike
PL-43231
IMPEX INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................…. 1
IMPORTANT SAFETY NOTICES..................................................................…. 2
HARDWARE PACK……….....…....................................................................…. 4
ASSEMBLY INSTRUCTIONS........................................................................…. 5

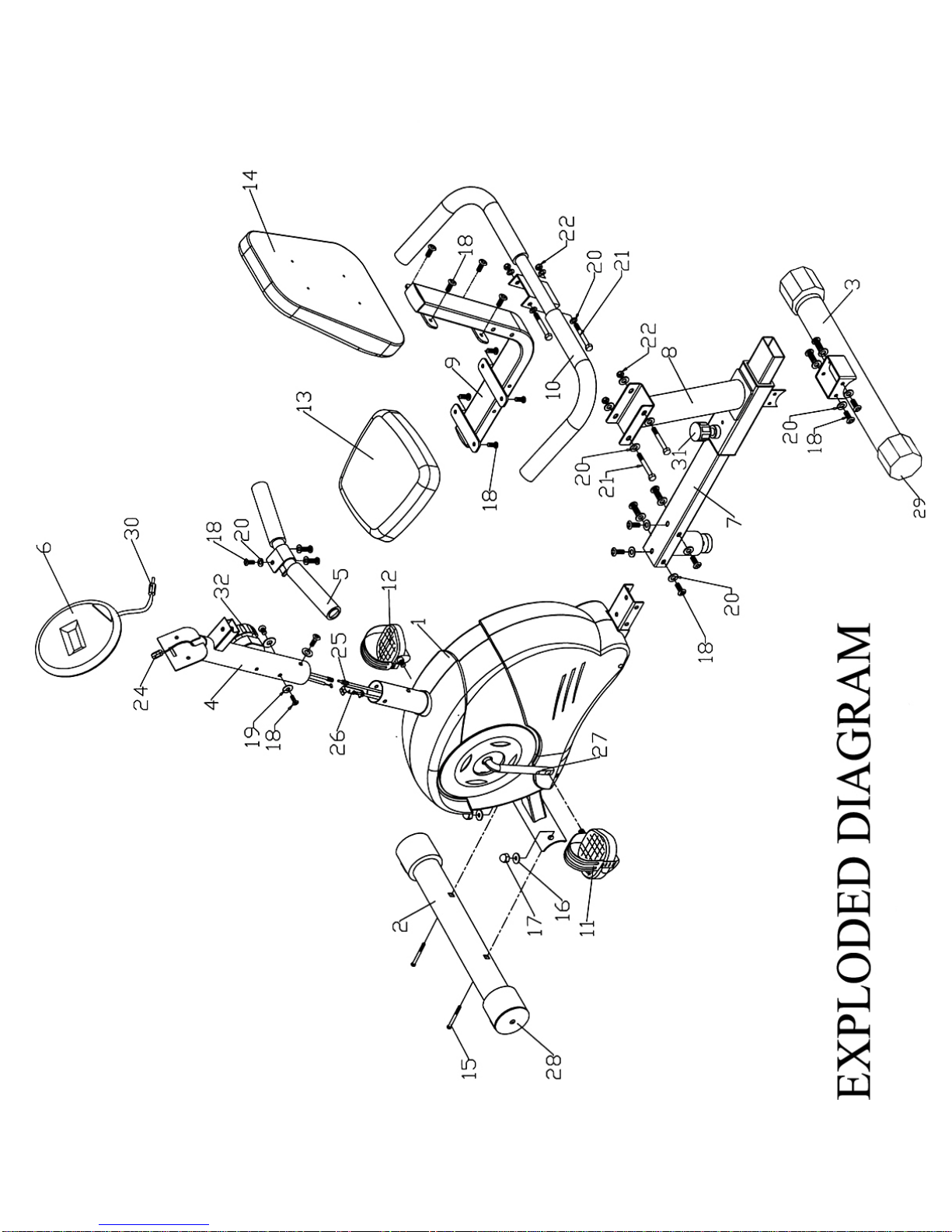

EXPLODED DIAGRAM……………………………………………………………. 10
PARTS LIST...................................................................................................…. 11
COMPUTER................................................................................................…… 12
WARRANTY.................................................................................................…. 14
ORDERING PARTS....................................................................................... 14
BEFORE YOU BEGIN
Thank you for selecting the MARCY Magnetic Recumbent Bike PL-43231
by IMPEX INC. For your safety and benefit, read this manual carefully
before using the machine. As a manufacturer, we are committed to
provide you complete customer satisfaction. If you have any questions, or
find there are missing or damaged parts, we guarantee you complete
satisfaction through direct assistance from our factory. To avoid
unnecessary delays, please call our TOLL-FREE customer service number.
Our Customer Service Agents will provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain
precautions apply whenever you operate a piece of exercise equipment. Be
sure to read the entire manual before you assemble or operate your machine.
In particular, note the following safety precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other
abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. The Maximum Weight Capacity is 300 lbs.
13. Read all warnings posted on the exercise bike.
14. Inspect the exercise bike for worn or loose component prior to use.
Tighten/replace any loose or wore components prior to use.
15. Care should be taken in mounting or dismounting the exercise bike.
16. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR
PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR
THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS. 2

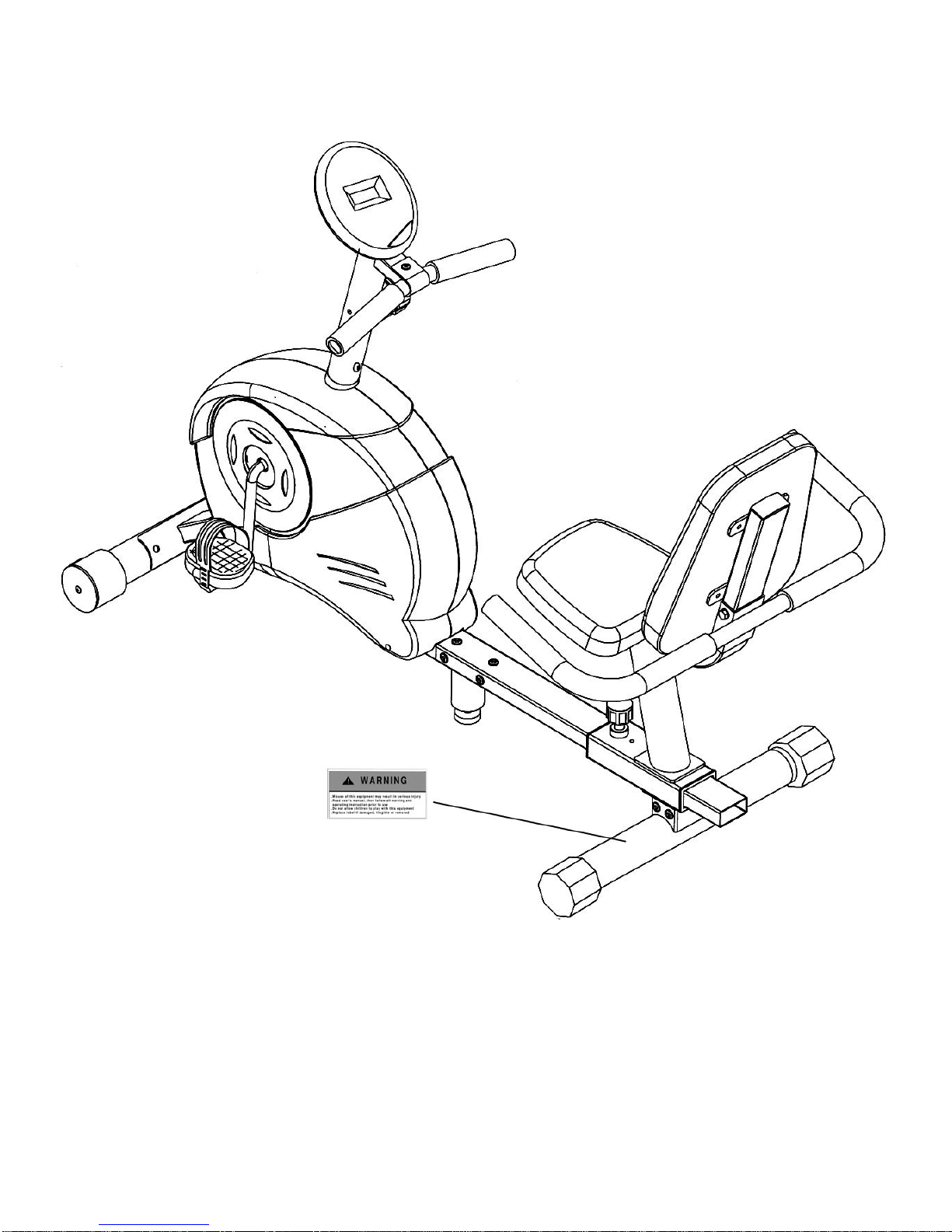

WARNING LABEL REPLACEMENT
The Warning Label shown here has been placed on the Rear Stabilizer. If the label is missing or
illegible, please call customer service at 1-800-999-8899 for replacement. Apply the label in
location shown.
3

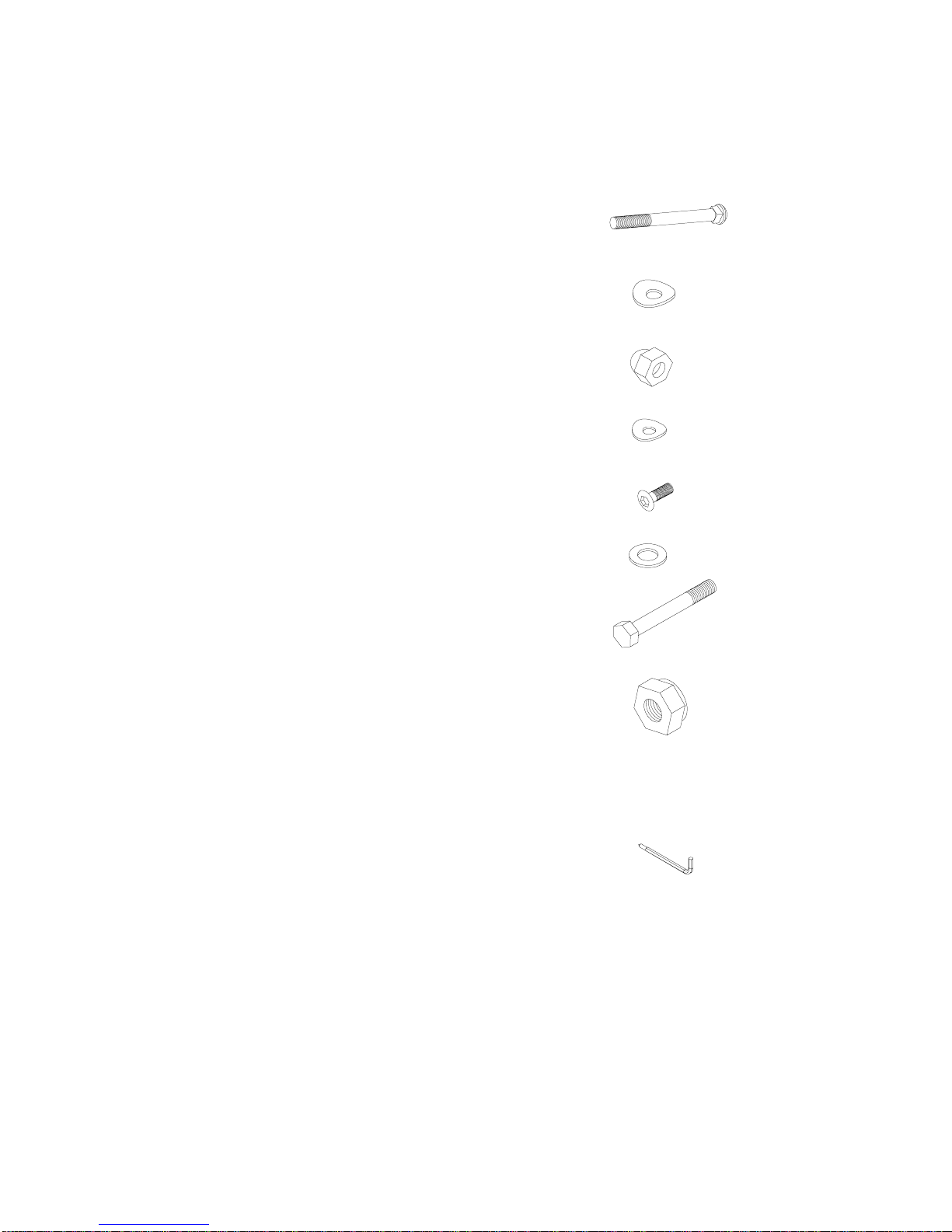

HARDWARE PACK
Part# Description Identifier
#15 M10 x 3” Carriage Bolt (Qty 2)
#16 Ø 1” Bent Washer (Qty 2)
#17 M10 Acorn Nut (Qty 2)
#19 Ø 7/8” Bent Washer (Qty 3)
#18 M8 x 5/8” Allen Bolt (Qty 24)
#20 Ø 5/8” Washer (Qty 21)
#21 M8 x 2 ¾” Hex Bolt (Qty 4)
#22 M8 Aircraft Nut (Qty 4)
Tools:
Allen Wrench (Qty 1)
4

ASSEMBLY INSTRUCTION
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.
STEP 1 (See Diagram1)
A.) Attach the Front Stabilizer (#2) to the Main Frame (#1). Secure it with two M10 x 3”
Carriage Bolts (#15), ∅1” Bent Washers (#16), and M10 Acorn Nuts (#17).
B.) Attach the Base Frame (#7) to the Main Frame (#1). Secure it with six M8 x 5/8” Allen Bolts
(#18) and Ø 5/8” Washers (#20).
C.) Slide the Seat Post (#8) onto the Base Frame (#7). Secure it with a Seat Post Lock Knob
(#31). Attach the Rear Stabilizer (#3) to the Seat Post (#8). Secure it with four M8 x 5/8”
Allen Bolts (#18) and ∅5/8” Washers (#20).
D.) Plug the Roller Caps (#28) onto both ends of Front Stabilizer. Plug the Rear Stabilizer End
Caps (#29) onto both ends of Rear Stabilizer. Set the bike firmly on a flat surface. If the
surface is uneven, rotate the Rear Stabilizer End Caps to level the bike.
DIAGRAM 1
5

STEP 2 (See Diagram 2)
A.) Note: In able to hold the Handlebar Post (#4) while connecting the cables and wires,
extra help may be needed. Attach the Handlebar Post (#4) to the Main Frame (#1).
Connect the Middle Computer Sensor Wire (#24) from the bottom of Handlebar Post to
the Lower Computer Sensor Wire (#25) from the main body of the bike.
B.) Slide the cable wire from the Upper Tension Connector (#23) in between the opening
on the wire holder on the Lower Tension Connector (#26). Pull the Upper Tension
Connector upward and slide the wire through the slot on the bracket.
C.) Drop down the Connector so the fitting sits firmly on top of the bracket.
D.) Secure the Handlebar Post to the Main Frame with three M8 x 5/8” Allen Bolts (#18)
and Ø 7/8” Bent Washers (#19).
E.) Connect Middle Computer Sensor Wire (#24) to the Upper Computer Sensor Wire
(#30). Slide the Computer (#6) onto the plate on the Handlebar Post.
F.) Connect the Handlebar (#5) to the Handlebar Post (#4) and secure it with three M8 x
5/8” Allen Bolts (#18) and ∅5/8” Washers (#20).
6

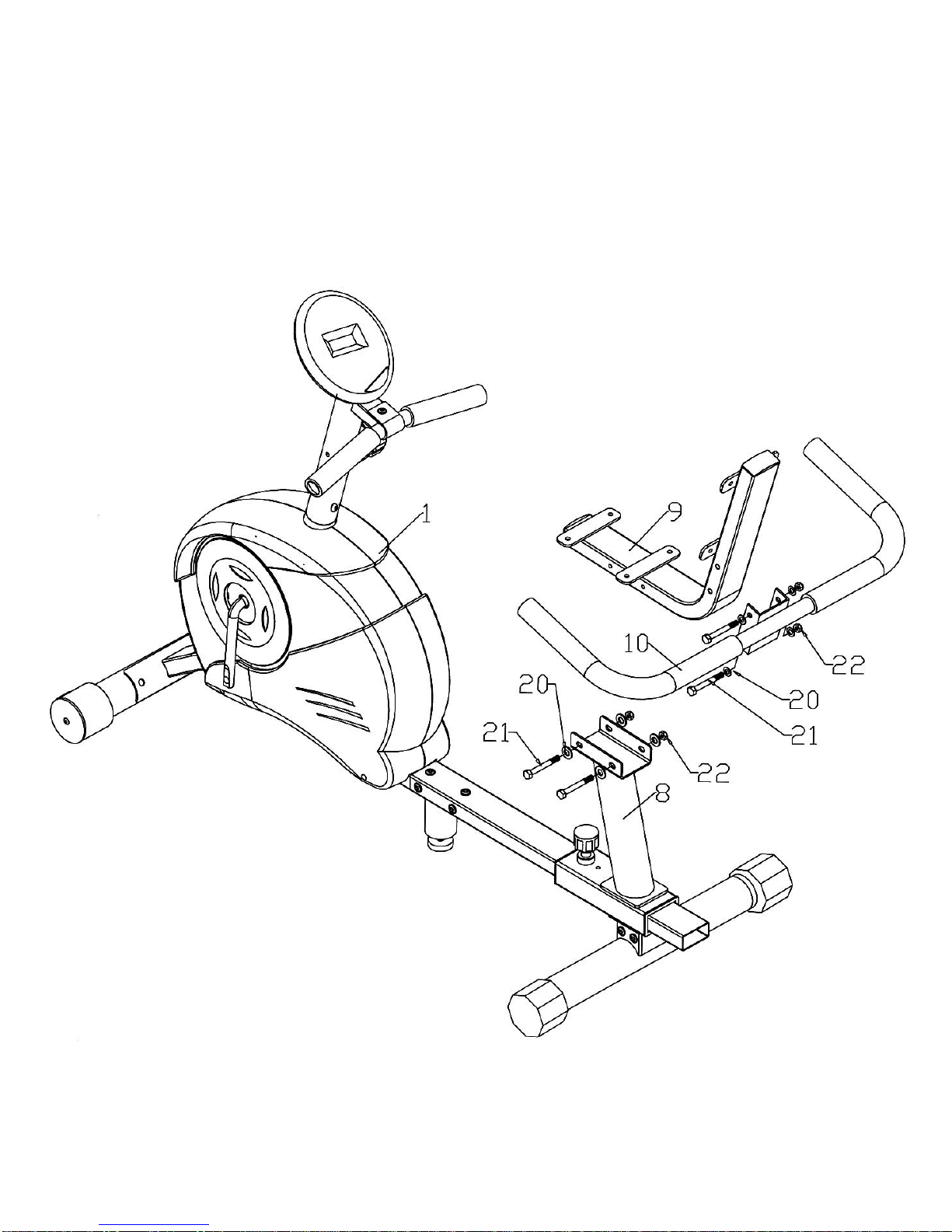

STEP 3 (See Diagram 3)
A.) Attach the Seat Support (#9) to the Seat Post (#8). Secure it with two M8 x 2 ¾” Hex
Bolts (#21), four Ø 5/8” Washers (#20), and two M8 Aircraft Nuts (#22).
B.) Attach the Seat Handle (#10) to the Seat Support. Secure it with two M8 x 2 ¾” Hex
Bolts (#21), four Ø 5/8” Washers (#20), and two M8 Aircraft Nuts (#22).
DIAGRAM 3
7

STEP 4 (See Diagram 4)
A.) Attach the Seat (#13) onto the Seat Support (#9). Secure it with four M8 x
5/8” Allen Bolts (#18).
B.) Attach the Backrest Board (#14) to the Seat Support. Secure it with four
M8 x 5/8” Allen Bolts (#18).
DIAGRAM 4
8

STEP 5 (See Diagram 5)
A.) Thread the Left Pedal (#11) Counterclockwise into the Left Crank. Thread
the Right Pedal (#12) Clockwise into the Crank on the other side.
DIAGRAM 5
9

10

PARTS LIST
KEY NO. DESCRIPTION QUANTITY
1 Main Frame 1
2 Front Stabilizer 1
3 Rear Stabilizer 1
4 Handlebar Post 1
5 Handle Bar 1
6 Computer 1
7 Base Frame 1
8 Seat Post 1
9 Seat Support 1
10 Seat Handle 1
11 Left Pedal 1
12 Right Pedal 1
13 Seat 1
14 Backrest Board 1
15 M10 x 3” Carriage Bolt 2
16 Ø 1” Bent Washer 2
17 M10 Acorn Nut 2
18 M8 x 5/8” Allen Bolt 24
19 Ø 7/8” Bent Washer 3
20 Ø 5/8” Washer 21
21 M8 x 2 ¾” Hex Bolt 4
22 M8 Aircraft Nut 4
23 Upper Tension Connector 1
24 Middle Computer Sensor Wire 1
25 Lower Computer Sensor Wire 1
26 Lower Tension Connector 1
27 Crank 1
28 Roller Cap 2
29 Rear Stabilizer End Cap 2
30 Upper Computer Sensor Wire 1
31 Seat Post Lock Knob 1
32 Tension Adjustment Knob 1
11

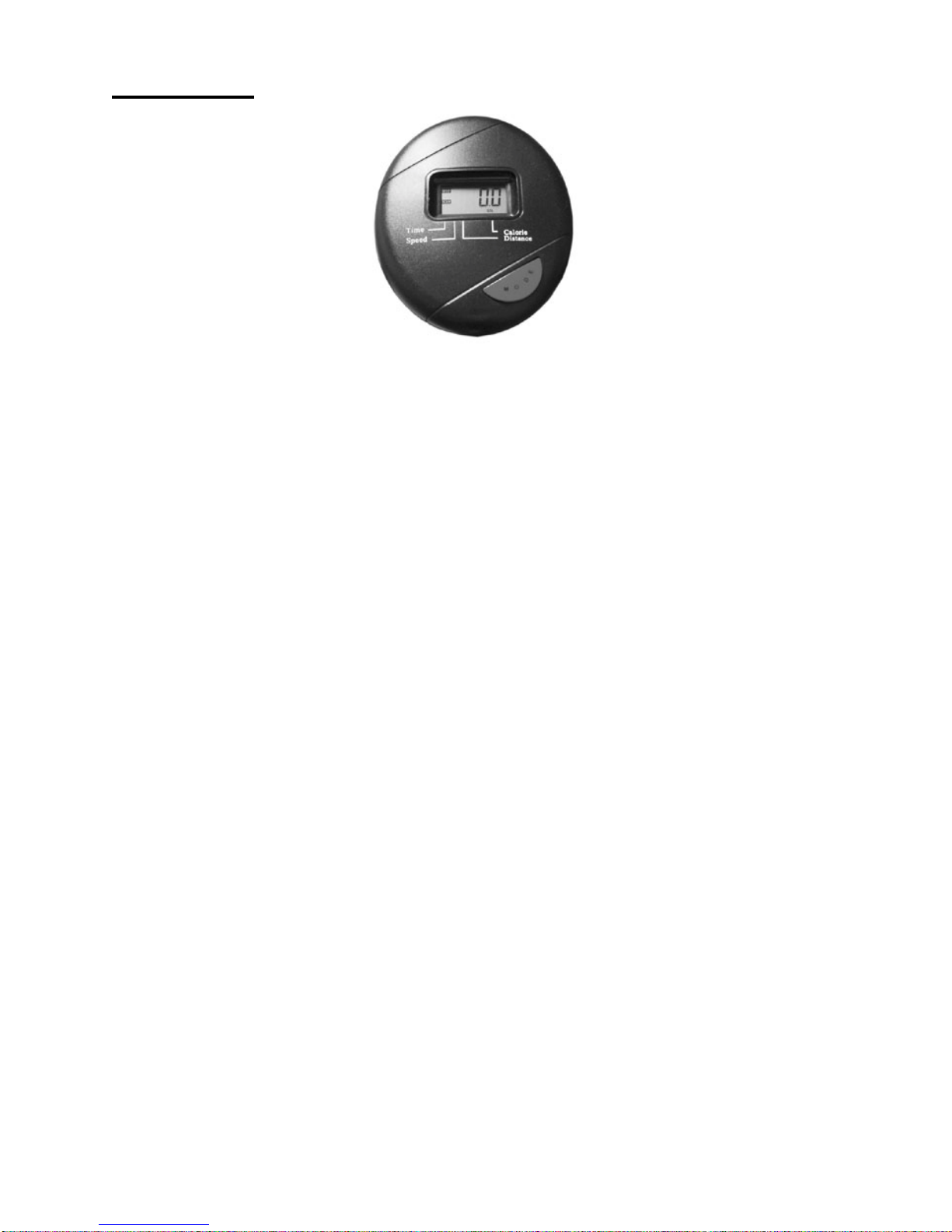

COMPUTER
AUTO START / STOP
When exercise starts, the monitor will automatically turn on and display the progress.
When exercise stops, the monitor will automatically turn off (after 4 minutes) to save
energy.
Press “MODE” key to scan Time, Speed, Distance, and Calories.
DISPLAY:
Time Display the elapsed time. Max value is up to 99:59
Speed Display the current speed in miles per hour.
Distance Display the distance traveled in Miles. Max value is 99.99 miles.
Calories Display the calorie consumption in Kcal.
REPLACE BATTERY:
1. Remove the battery cover on the back of the computer.
2. Replace two 1.5V (AA) batteries.
3. Make sure the batteries are installed correctly and the polarities are correct.
4. If the display is not clear or only partial segments appeared, remove the batteries
and wait for 15 seconds before re-install them.
5. The battery life is approx. 3 months under normal usage.
6. When the batteries are removed, all the functional values will reset to zero.
Note:
Please note all values on this computer are approximate and they are for
comparison purpose only. Do not use these values for any medical or
rehabilitation purpose.
12

Maintenance and Storage
1. Inspect and tighten all parts each time you use the machine. Replace any
worn parts immediately.
2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent.
Do not use solvents.
3. Store the machine IN-DOOR. Excess moisture and water would cause rust on
the frame.
4. The machine shall be placed at least 24 inches away from the wall or/and any
other object such as furniture to provide safe access to and passage around
the machine.
5. To avoid possible injury, the help of two or more people are needed when
moving the machine around.
13

IMPEX INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase.
This warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited
to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX
Customer Service Department at 1-800-999-8899. All freights for products return to IMPEX must be
prepaid by the customer. This warranty does not extend to any product or damage to a product caused
by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided
by an IMPEX authorized service center or for products used for commercial or rental purposes. No other
warranty beyond that specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic
loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation
or other consequential damages or whatsoever natures. Some states do not allow the exclusion or
limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to
state. Register on-line www.impex-fitness.com
IMPEX INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-
8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
14
