Impex NS-908R Installation and operating instructions

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
NS-908R
Retain This
Manual for
Reference
120731
ASSEMBLY &
OWNER'S
MANUAL
Magnetic-Resistance
Recumbent Bike/Hand Pulse
NS-908R
IMPEX®INC.
2801 South Towne Ave., Pomona, CA 91766
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

©IMPEX INC. www.impex-fitness.com1
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................…. 1
IMPORTANT SAFETY NOTICES..................................................................…. 2
WARNING LABEL PLACEMENT……………………………………………………. 3
HARDWARE PACK, COMPONENTS FOR ASSEMBLY ……….....…..................4
ASSEMBLY INSTRUCTIONS........................................................................…. 6
EXPLODED DIAGRAM……………………………………………………………… 11
PARTS LIST...................................................................................................… 12
CARE, MAINTENANCE, AND STORAGE………………………………………… 13
OPERATING NOTES………………………………………………………………… 13
COMPUTER…………………………………………………………………………… 14
EXERCISE GUIDELINES……………………………………………………………. 15
WARRANTY.................................................................................................…. 17
ORDERING PARTS.....................................................................................….. 17
BEFORE YOU BEGIN
Thank you for selecting the MARCY Magnetic-Resistance Recumbent Bike with Hand
Pulse NS-908R by IMPEX®INC. For your safety and benefit, read this manual
carefully before using the bike. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are missing
or damaged parts, we guarantee you complete satisfaction through direct assistance
from our factory. To avoid unnecessary delays, please call our TOLL-FREE customer
service number. Our Customer Service Agents will provide immediate assistance to
you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[e-mail]

©IMPEX INC. www.impex-fitness.com2
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm
up.
11. Never operate the machine if the machine is not functioning properly.
12. Read all warnings posted on the exercise bike.
13. Inspect the exercise bike for worn or loose component prior to use. Tighten/replace any
loose or wore components prior to use.
14. Care should be taken in mounting or dismounting the exercise bike.
15. This exercise bike is for consumer and home use only.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES
NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.

©IMPEX INC. www.impex-fitness.com3
NS-908R WARNING LABEL PLACEMENT
The Warning Labels and Caution Label shown here have been placed on the Rear Stabilizer, Main Frame.
If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the
labels in location shown.

©IMPEX INC. www.impex-fitness.com4
HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
NO. Description QTY
4 Carriage Bolt M8 x 2 3/8” 4
7 Curved Washer Ø 5/8” 10
8 Acorn Nut M8 8
13 Carriage Bolt M8 x 1 5/8” 4
15 Quick Release Knob 1
24 Allen Bolt M8 x 5/8” 12
25 Washer Ø 5/8” 2
30 Leverage Knob 1
Allen Wrench 6# 1
Box Wrench 1

©IMPEX INC. www.impex-fitness.com5

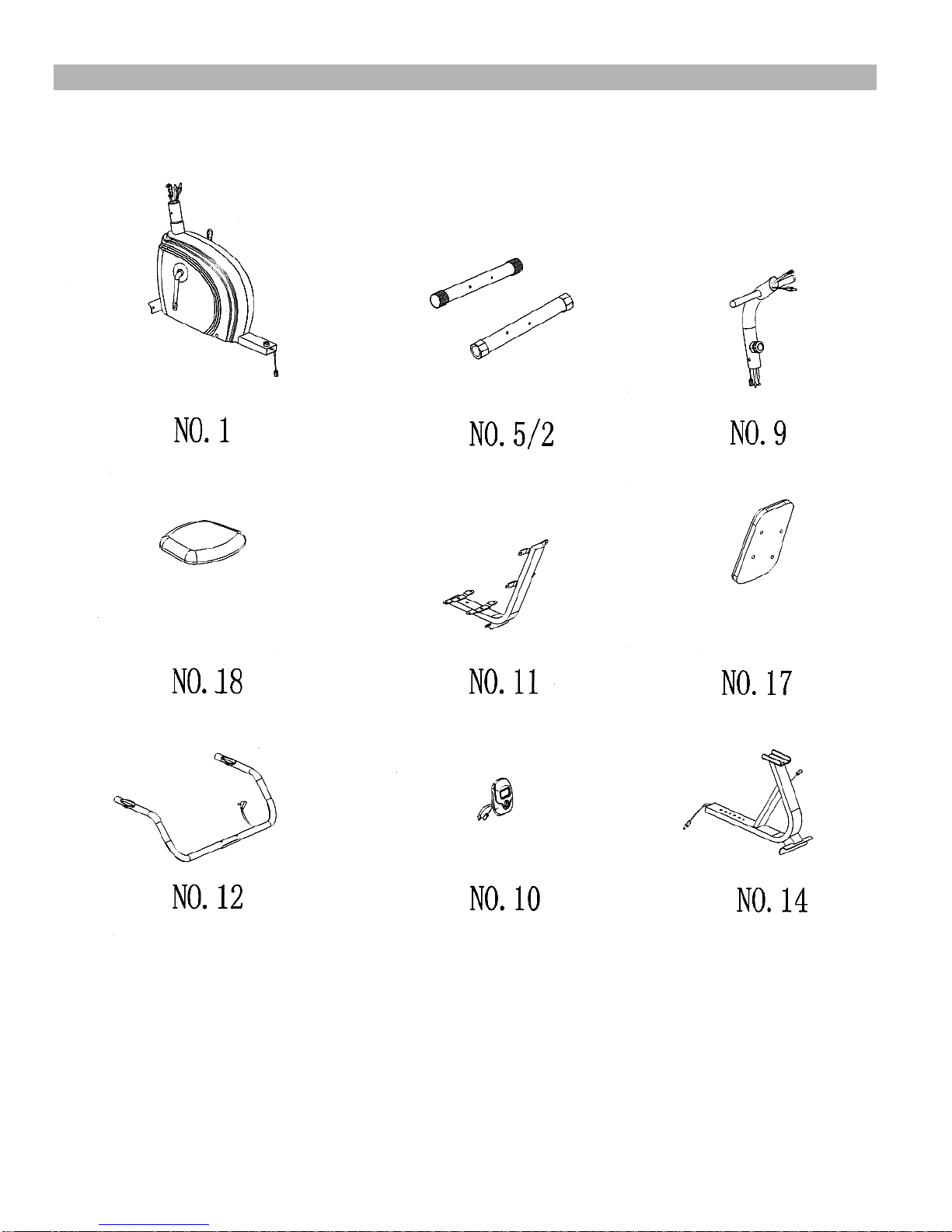

NS-908R COMPONENTS FOR ASSEMBLY

©IMPEX INC. www.impex-fitness.com6
ASSEMBLY INSTRUCTION
•Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench,
provided by manufacturer.
•NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.
STEP-1
A.) Attach the Front Stabilizer (#5) to the Main Frame (#1). Secure it with two M8 x 2 3/8” Carriage Bolts
(#4), two Ø 5/8” Curved Washers (#7), and two Acorn Nuts (#8).
DIAGRAM 1

©IMPEX INC. www.impex-fitness.com7
STEP 2
A.) Note: Extra help may be needed to hold the Front Post (#4) while connecting the
tension cables and computer wires.
B.) Attach the Front Post (#9) to the Main Frame (#1). Connect the Middle Sensor Wire
(#34) from Main Frame to the Middle Sensor Wire (#33) from the bottom of Front Post.
C.)Connect the Lower Computer Wire (#22) from Main Frame to the Middle Computer
Wire (#23) from the Front Post.
D.)Pull the tension connector from the Upper Tension Cable (#16) and slide in between
the opening on the connector holder on the Lower Tension Cable (#21) from Main
Frame. Pull the Upper Tension Cable Upward and slide the wire through the slot on
the bracket.
E.) Drop down the Upper Tension Cable so the fitting sits firmly on top of the bracket.
F.) Secure the Front Post to Main Frame with four M8 x 5/8” Allen Bolts (#24) and four Ø
5/8” Curved Washers (#7).
G.)Connect the Middle Sensor Wire (#33) from Front Post to the Upper Sensor Wire (#32)
from the Computer (#10). Connect the Middle Computer Wire (#23) from Front Post to
Upper Computer Wire (#31) from Computer. Attach the Computer on to the Front Post.
DIAGRAM 2

©IMPEX INC. www.impex-fitness.com8
STEP 3
A.) Connect the Middle Sensor Wire (#34) from Main Frame (#1) to the Middle Sensor Wire (#35)
from the Sliding Frame (#14).
B.) Insert the Sliding Frame (#14) into the Main Frame (#1). Thread the Quick Release Knob (#15)
through selected hole on Main Frame into Sliding Frame to lock it in position. Thread a Leverage
Knob (#30) into the Sliding Frame from bottom. The Leverage Knob needs to touch the floor.
C.)Attach the Rear Stabilizer (#2) to Main Frame. Secure them together with two M8 x 2 3/8”
Carriage Bolts (#4), two Ø 5/8” Curved Washers (#7), and two M8 Acorn Nuts (#8).
D.)Place Seat Support (#11) to Sliding Frame. Secure them together with two M8 x 1 5/8” Carriage
Bolts (#13), two Ø 5/8” Washers (#25), and two M8 Acorn Nuts (#8). DIAGRAM 3

©IMPEX INC. www.impex-fitness.com9
STEP 4
A.) Attach the Backrest Board (#17) to Seat Support (#11). Secure it with four M8 x 5/8”
Allen Bolts (#24).
B.) Attach the Seat Pad (#18) to Seat Support. Secure it with four M8 x 5/8” Allen Bolts
(#24). DIAGRAM 4

©IMPEX INC. www.impex-fitness.com10
STEP 5
A.) Attach the Handle (#12) to Seat Support (#11). Secure it with two M8 x 1 5/8” Carriage Bolts
(#13), two Ø 5/8” Curved Washers (#7), and two M8 Acorn Nuts (#8).
B.) Connect the Lower Sensor Wire *#36) from the Handle to the Middle Sensor Wire (#35)
from the Sliding Frame.
C.) Thread the left Pedal (#19) counterclockwise into the left Crank (#27).
D.) Thread the Right Pedal (#20) clockwise into the Crank on the other side.

©IMPEX INC. www.impex-fitness.com11
DIAGRAM 5

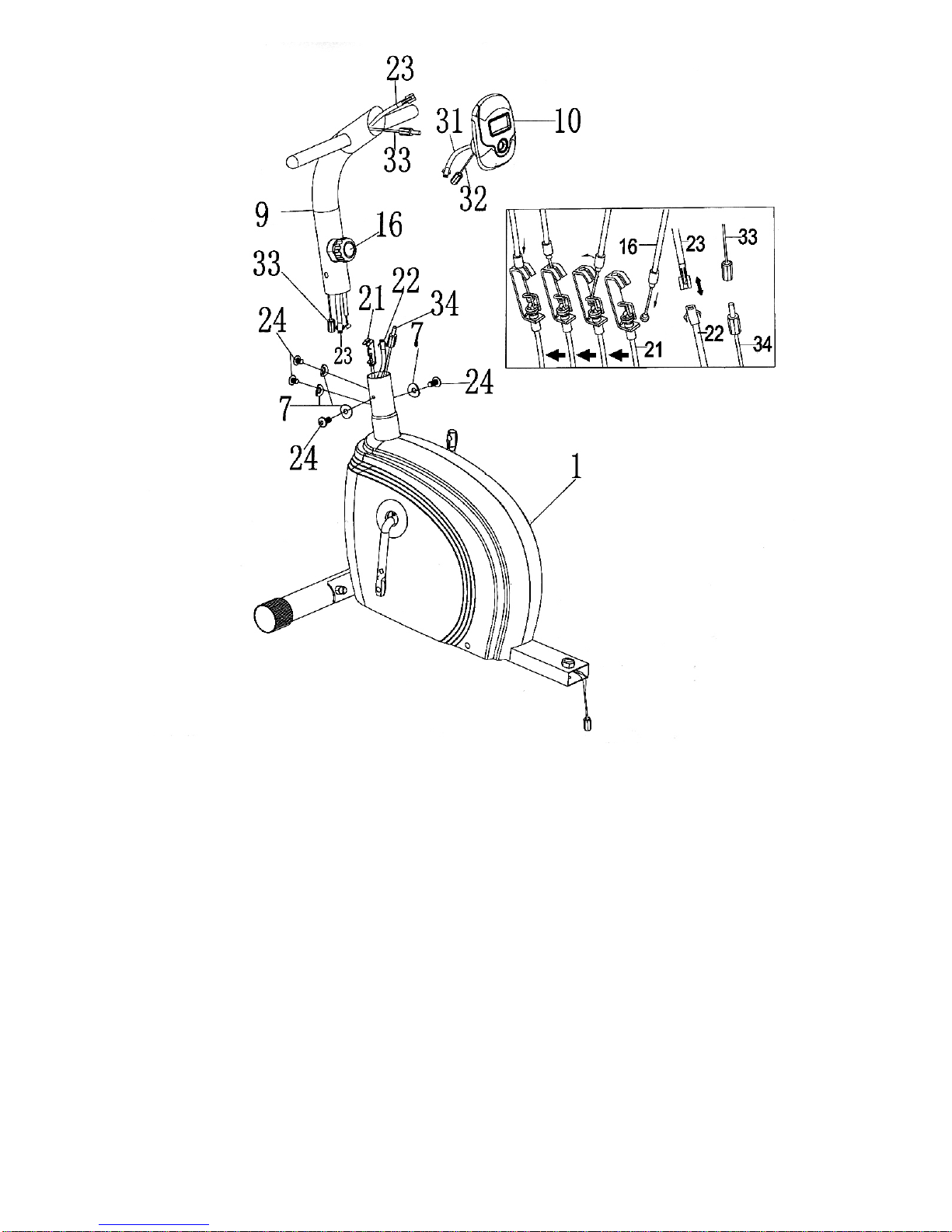

NS-908R EXPLODED DIAGRAM

©IMPEX INC. www.impex-fitness.com12
NS-908R PARTS LIST

©IMPEX INC. www.impex-fitness.com13
PART
NO.
DESCRIPTION
SPEC.
QUANTITY
1
Main Frame
1
2
Rear Stabilizer
1
3
Rear Stabilizer End Cap
2
4
Carriage Bolt
M8 x 2 3/8”
4
5
Front Stabilizer
1
6
Front Stabilizer End Cap
2
7
Curved Washer
Ø 5/8”
10
8
Acorn Nut
M8
8
9
Front Post
1
10
Computer
1
11
Seat Support
1
12
Handle
1
13
Carriage Bolt
M8 x 1 5/8”
4
14
Sliding Frame
1
15
Quick Release Knob
1
16
Tension Knob/Upper Tension Cable
1
17
Backrest Board
1
18
Seat Pad
1
19
Left Pedal
1
20
Right Pedal
1
21
Lower Tension Cable
1
22
Lower Computer Wire
1
23
Middle Computer Wire
1
24
Allen Bolt
M8 x 5/8”
12
25
Washer
Ø 5/8”
2
26
Seat Support End Cap
2
27
Crank
1
28
Foam Grip
2
29
Bushing
2
30
Leverage Knob
1
31
Upper Computer Wire
1
32
Upper Sensor Wire
1
33
Middle Sensor Wire/Front Post
1
34
Middle Sensor Wire/Main Frame
1
35
Middle Sensor Wire/Sliding Frame
1
36
Lower Sensor Wire
1
CARE, MAINTENANCE AND STORAGE
1. Inspect and tighten all parts each time you use the machine. Replace any worn parts

©IMPEX INC. www.impex-fitness.com14
immediately.
2. The bike can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use
solvents.
3. Store the bike IN-DOOR. Excess moisture and water would cause rust on the frame.
4. The Bike shall be placed at least 24 inches away from the wall or/and any other object such as
furniture to provide safe access to and passage around the machine.
5. To avoid possible injury, the help of two or more people are needed when moving the machine
around.
6. Disposal Instructions – The equipment can be safely disassembled and disposed without
unreasonable hazards. Call your local recycle agency regarding details of recycling.
7. The maximum user weight is 300 lbs.
8. Assembled Dimension: 49.25” x 25.5” x 36.25”
OPERATING NOTES
ADJUSTMENT
1. Use the Tension Knob on Front Post to adjust the resistance for exercise.
2. The seat can be adjusted for 6 different positions ranges 23” to 28” from Backrest Board
to both Pedals while positioned in the middle.
3. Loosen and pull out the Lock Knob. Slide the Sliding Frame to selected scale marked on
the Frame, then release the Lock Knob and securely fasten the Knob to lock the Sliding
Frame.
4. The seat adjustment is in approximately 1” increment.
TRANSPORT
The Bike has a pair of Roller Caps on Front Stabilizer.
To move, carefully raise the Handle and Rear Stabilizer up from floor, and roll.

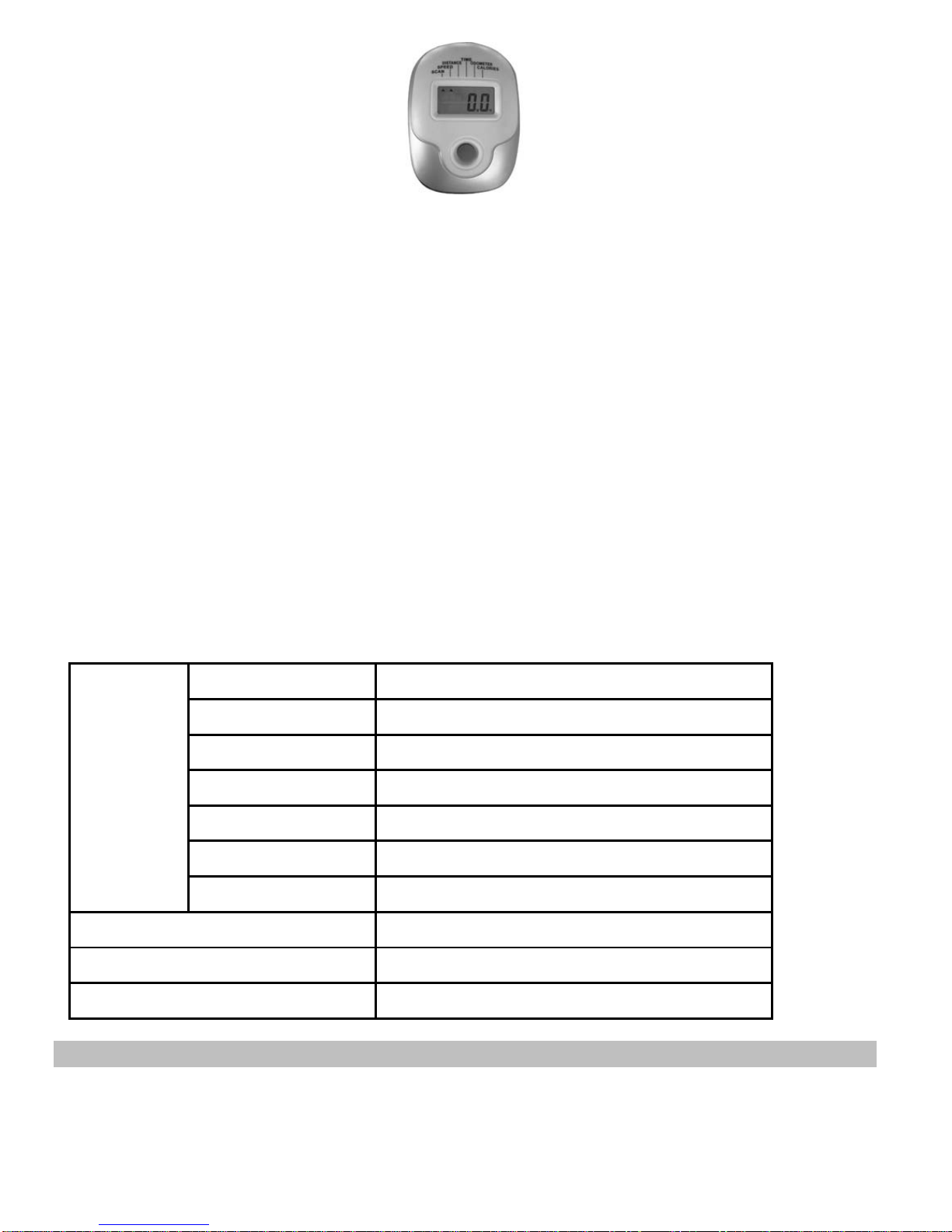

COMPUTER

©IMPEX INC. www.impex-fitness.com15
FUNCTIONAL BUTTON:
MODE/RESET – Push down to select functions.
-Push down to reset time, distance and calories for 3 seconds.
1. SCAN: Press MODE button until “▼” appears at SCAN position, monitor will rotate
through the following functions: time, speed, distance and calorie, each display will
be hold 4 seconds.
2. TIME : Count the total time from exercise start to end.
3. SPEED: Display current speed.
4. DIST: Count the distance from exercise start to end.
5. CALORIES: Count the total calories from exercise start to end.
6. ODO：monitor will display the total accumulated distance.
7. Pulse: Display the heart pulse per minute during exercises.
a. Consult your physician to determine your normal resting heart rate Pulse Value.
The default value is 72.
SPECIFICATIONS:
FUNCTION
AUTO SCAN Every 4 seconds
TIME 00:00’~99:59’
CURRENT SPEED The maximum signal can be pickup is 99.9 Miles/H
TRIP DISTANCE 0.00~99.99 Miles
CALORIES 0.1~999 CAL
ODO 0~9999 Miles
Pulse Rate 40~206 BPM
BATTERY TYPE 2pcs of SIZE –AAA or UM –3
OPERATING TEMPERATURE 32°F ~ +102°F
STORAGE TEMPERATURE 14°F ~ +140°F

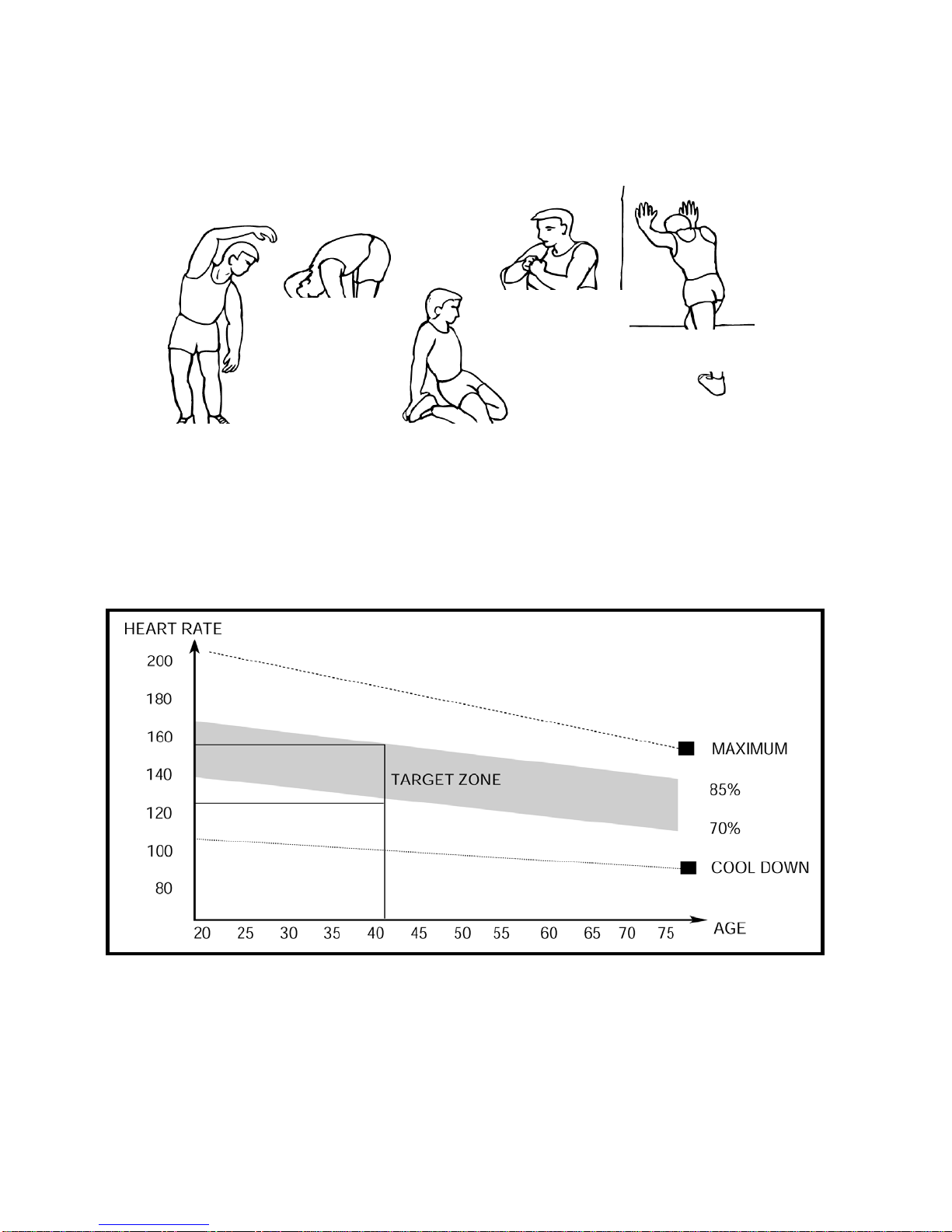

EXERCISE GUIDELINES
Using your MAGNETIC BIKE will provide you with several benefits, it will improve your physical
fitness, tone muscle and in conjunction with calorie controlled diet help you lose weight.

©IMPEX INC. www.impex-fitness.com16
1. The Warm Up Phase
This stage helps get the blood flowing around the body and the muscles working properly. It will
also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as
shown below. Each stretch should be held for approximately 30 seconds, do not force or jerk your
muscles into a stretch - if it hurts, STOP.
2. The Exercise Phase
This is the stage where you put the effort in. After regular use, the muscles in your legs will
become more flexible. Work to your but it is very important to maintain a steady tempo
throughout. The rate of work should be sufficient to raise your heartbeat into the target zone shown
on the graph below.
This stage should last for a minimum of 12 minutes though most people start at about 15-20
minutes
3. The Cool Down Phase
This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the
warm up exercise e.g. reduce your tempo, continue for approximately 5 minutes. The stretching
SIDE BENDS OUTER THIGH
INNER THIGH
FORWARD
BENDS
CALF / ACHILLES

©IMPEX INC. www.impex-fitness.com17
exercises should now be repeated, again remembering not to force or jerk your muscles into the
stretch.
As you get fitter you may need to train longer and harder. It is advisable to train at least three times
a week, and if possible space your workouts evenly throughout the week.
MUSCLE TONING
To tone muscle while on your MAGNETIC BIKE you will need to have the resistance set quite
high. This will put more strain on our leg muscles and may mean you cannot train for as long as
you would like. If you are also trying to improve your fitness you need to alter your training
program. You should train as normal during the warm up and cool down phases, but towards the
end of the exercise phase you should increase resistance making your legs work harder. You will
have to reduce your speed to keep your heart rate in the target zone.
WEIGHT LOSS
The important factor here is the amount of effort you put in. The harder and longer you work
the more calories you will burn. Effectively this is the same as if you were training to
improve your fitness, the difference is the goal.

©IMPEX INC. www.impex-fitness.com18
IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under normal use
and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only
to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer Service
Department at 1-800-999-8899. All freights for products return to IMPEX must be prepaid by the customer. This
warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized service center or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by
IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the
use or performance of the product or other damages with respect to any economic loss, loss of property, loss of
revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or
whatsoever natures. Some states do not allow the exclusion or limitation of incidental or consequential damages.
Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability
or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not
allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state. Register
on-line www.impex-fitness.com
IMPEX®INC.
2801 S. Towne Ave.
Pomona, CA 91766
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899 during our
regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement part, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
