BEFORE YOU BEGIN
Thank you for selecting the IRON GRIP STRENGTH IGS-8862 Olympic
Bench by IMPEX INC. For your safety and benefit, read this manual
carefully before using the machine. As a manufacturer, we are
committed to provide you complete customer satisfaction. If you have
any questions, or find there are missing or damaged parts, we
guarantee you complete satisfaction through direct assistance from our
factory. To avoid unnecessary delays, please call our TOLL-FREE
customer service number. Our Customer Service Agents will provide
immediate assistance to you.
Toll-Free Customer Service Number
1-800-999-8899
Mon. – Fri. 9 a.m. – 5 p.m. PST
www.impex-fitness.com
[email protected]m
1

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
13. Maximum user’s weight: 300 lbs.
14. Maximum weight on uprights: 600 lbs.
15. Maximum weight on leg developer: 100 lbs.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the machine.
2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT
YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS
OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH
PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS
EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL
INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE
OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

WARNING LABEL REPLACEMENT
The Warning Labels shown here have been placed on the Cross Brace and the Rear Stabilizer. If the
labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply
the labels in location shown
3

HARDWARE PACK
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
4

ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches.
NOTE: It is strongly recommended that two or more people assemble this machine to
avoid possible injury.

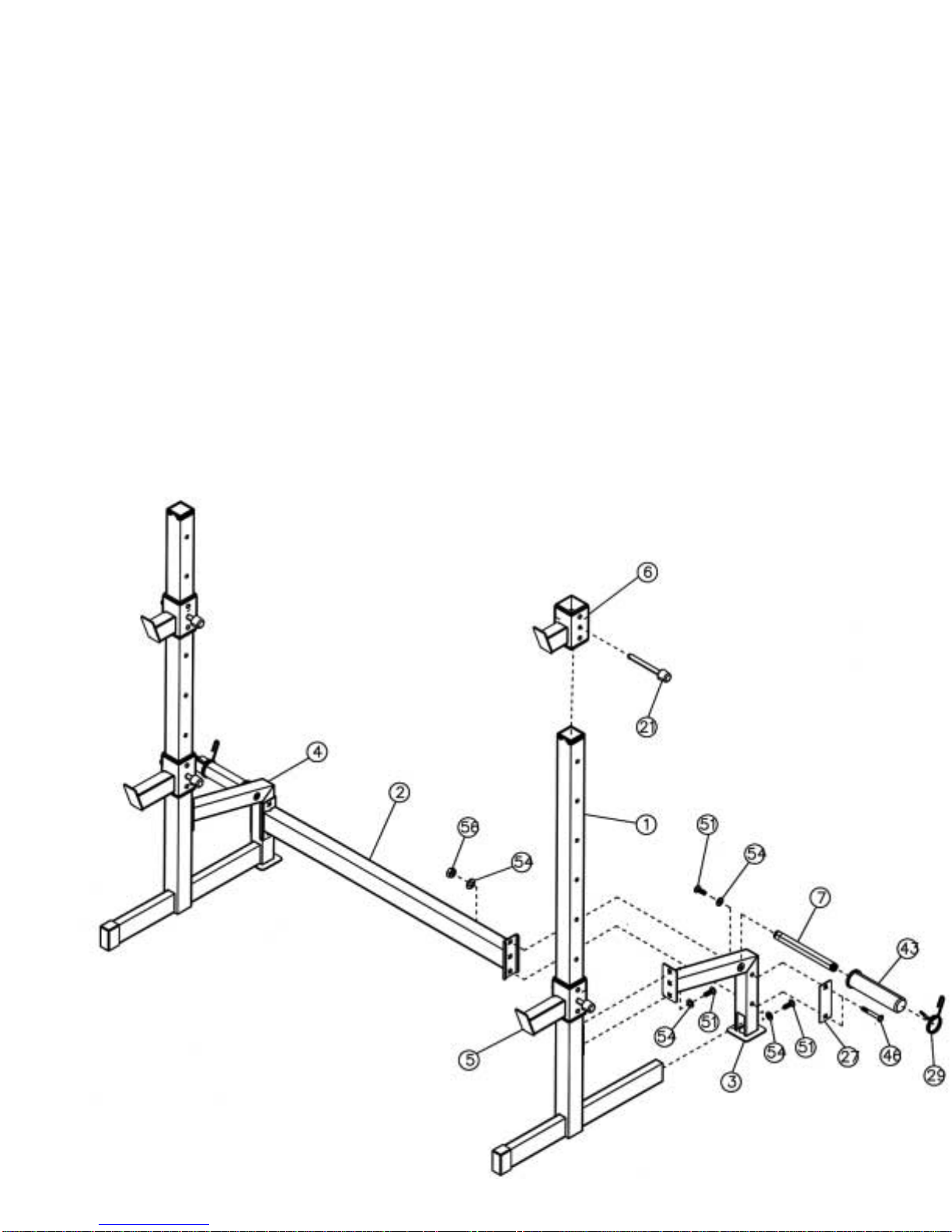

STEP 1 (See Diagram 1)
A.) Do not tighten the Nuts and Bolts until instructed to do so.
B.) Attach the Left Diagonal Support (#3) to an Upright Beam (#1). Secure the top & bottom to
the Upright with four M10 x ¾” Allen Bolts (#51) and four Ø ¾” Washers (#54). Repeat the
same procedure to install the Right Diagonal Support (#4) to another Upright Beam.
C.)Connect the Left & Right Diagonal Support (#3) & (#4) with a Cross Brace (#2) in the mid-
span. Secure each end with two M10 x 2 ¾” Carriage Bolts (#46), one 5 ½” x 2” Bracket
(#27), two Ø ¾” Washers (#54), and two M10 Aircraft Nuts (#56).
D.)Securely tighten all Nuts and Bolts installed.
E.) Insert two Weight Posts (#7) into the Left & Right Diagonal Support. Secure each Weight
Post with one M10 x ¾” Allen Bolt (#51) and one Ø ¾” Washer (#54). Slide an Olympic
Sleeve (#43) onto each Weight Post. Attach a Spring Clip (#29) onto each Sleeve.
F.) Attach the two Safety Catches (#5) onto the Upright Beams, and then attach the two Bar
Catches (#6) onto the Upright Beams. Use a 3 5/8” Long Pin (#21) to lock each Safety
Catch and Bar Catch at selected position.
5

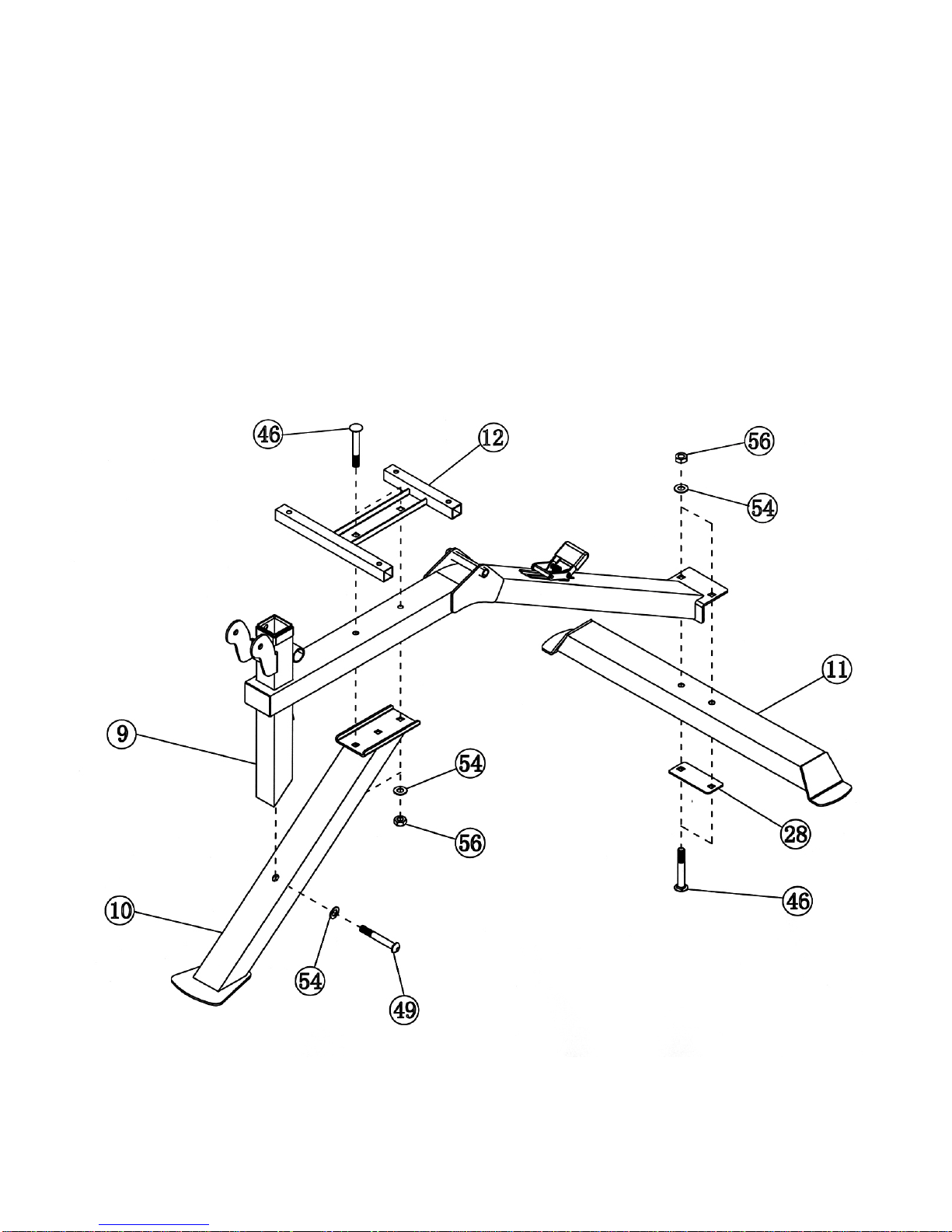

STEP 2 (See Diagram 2)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Attach the rear of the Main Seat Support (#9) to the Rear Stabilizer (#11). Secure it with
two M10 x 2 ¾” Carriage Bolts (#46) from bottom, one 4 3/8” x 1 ¾” Bracket (#28), two
Ø ¾” Washers (#54), and two M10 Aircraft Nuts (#56).
C.)Place the Main Seat Support onto the Front Post (#10). Attach the Seat Bracket ($12)
onto the Main Seat Support. Secure them together with M10 x 2 ¾” Carriage Bolts
(#46), two Ø ¾” Washers (#54), and two M10 Aircraft Nuts (#56).
D.)Secure the leg developer holder on Main Seat Support to the Front Post with one M10 x
2 ¾” Allen Bolt (#49) and one Ø ¾” Washer (#54).
E.) Securely tighten all Nuts and Bolts installed.
DIAGRAM 2
6

STEP 3 (See Diagram 3)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Align the bracket on the Backrest Adjustment Support (#20) in between the two
Backrest Supports (#25). Secure it with four M8 x 1 5/8” Allen Bolts (#52), eight Ø 5/8”
Washers (#55), and four M8 Aircraft Nuts (#57).
C.) Insert the Backrest Adjustment Support into the opening on the Main Seat Support
(#9). Press or step down on the Backrest Adjustment Lever (#26) to allow the Support
to go through.
D.) Attach the bottom side-holes on the two Backrest Supports to the pivot on the Main
Seat Support. Secure it with one M10 x 6 ½” Allen Bolt (#47), two Ø ¾” Washers
(#54), and one M10 Aircraft Nut (#56).
E.) Attach the Backrest Board (#17) to the Backrest Supports. Secure it with four M8 x 1
5/8” Allen Bolts (#52) and four Ø 5/8” Washers (#55).
F.) Place the Seat Pad (#18) onto the Seat Bracket (#12). Secure it with four M8 x 1 5/8”
Allen Bolts (#52) and four Ø 5/8” Washers (#55).
G.) Securely tighten all Nuts and Bolts installed.
DIAGRAM 3
7

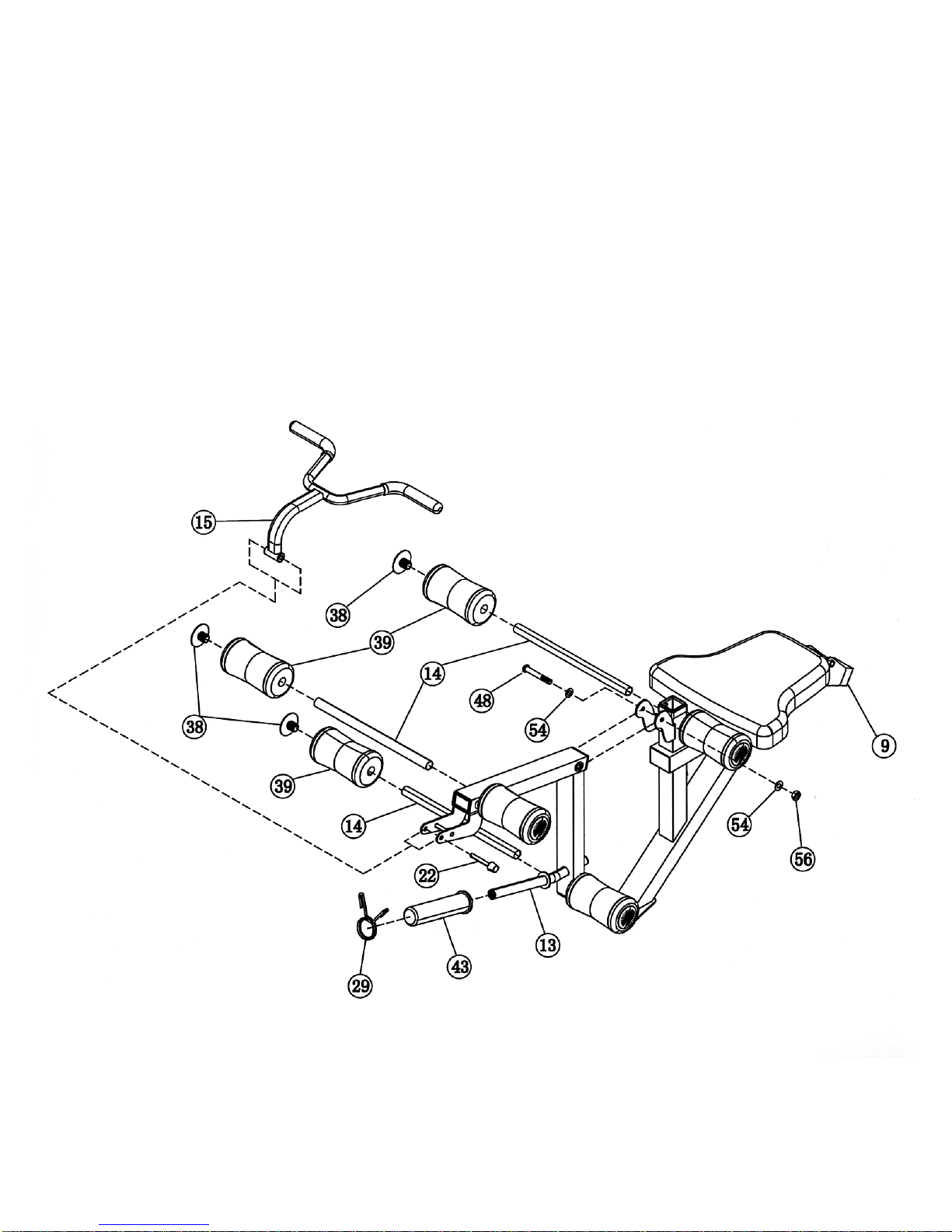

STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#13) to the leg developer holder on the Main Seat Support
(#9). Secure it with one M10 x 3 ½” Allen Bolt (#48), two ∅¾” Washers (#54), and one
M10 Aircraft Nut (#56).
B.) Insert two Foam Tubes (#14) halfway through the holes on the Leg Developer. Push
four Foam Rolls (#39) onto the Tubes from both ends. Plug four Foam Roll End Caps
(#38) into the ends.
C.)Slide an Olympic Sleeve (#43) onto the weight post on the Leg Developer. Attach a
Spring Clip (#29) to the Sleeve.
D.)Attach the Arm Curl Handle (#15) to the open bracket on the Leg Developer. Secure it
with a Lock Pin (#22).
DIAGRAM 4
8

STEP 5 (See Diagram 5)
A.) Attach the Arm Curl Pad (#19) to the Arm Curl Bracket (#16). Secure it with two M8 x
5/8” Allen Bolts (#53) and Ø 5/8” Washers (#55).
B.) Insert the Arm Curl Stand into the top opening on the Leg Developer holder. Use the
Lock Knob (#42) to lock the Arm Curl Stand in position.
C.)Remove the Arm Curl Stand when doing Leg Developer exercises. DIAGRAM 5
9

10

11

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Upright Beam 2
2 Cross Brace 1
3 Left Diagonal Support 1
4 Right Diagonal Support 1
5 Safety Catch 2
6 Bar Catch 2
7 Weight Post 2
8 2 ¾” x 1 1/8” End Cap 2
9 Main Seat Support 1
10 Front Post 1
11 Rear Stabilizer 1
12 Seat Bracket 1
13 Leg Developer 1
14 Foam Tube 3
15 Arm Curl Handle 1
16 Arm Curl Stand 1
17 Backrest Board 1
18 Seat Pad 1
19 Arm Curl Pad 1
20 Backrest Adjustment Support 1
21 3 5/8” Long Lock Pin 4
22 Lock Pin 1
23 5 ¾” Rubber Bumper 2
24 3” Rubber Bumper 2
25 Backrest Support 2
26 Backrest Adjustment Lever 1
27 5 ½” x 2” Bracket 2
28 4 3/8” x 1 ¾” Bracket 1
29 Spring Clip 3
30 Spring 1
31 2 3/8” x 1 5/8” End Cap 3
32 2 ¾” x 2” End Cap 1
33 2 3/8” Square End Cap 2
34 1” Square End Cap 2
35 Ø 1” End Cap 4
36 2” Sleeve 1
37 3” Sleeve 8
38 Foam Roll End Cap 6
39 Foam Roll 6
40 Ø ½” Bushing 2
41 Ø 1 Bushing 2
42 Lock Knob 1
43 Olympic Sleeve 3
44 Grip 2
45 Spring Cover 1
12
46 M10 x 2 ¾” Carriage Bolt 8
47 M10 x 6 ½” Allen Bolt 1
48 M10 x 3 ½” Allen Bolt 1
49 M10 x 2 ¾” Allen Bolt 1
50 M10 x 2 ½” Allen Bolt 1
51 M10 x ¾” Allen Bolt 8
52 M8 x 1 5/8” Allen Bolt 12
53 M8 x 5/8” Allen Bolt 2
54 Ø ¾” Washer 23
55 Ø 5/8” Washer 18
56 M10 Aircraft Nut 11
57 M8 Aircraft Nut 4
#4 Allen Wrench (Tool) 1
#5 Allen Wrench (Tool) 1
#6 Allen Wrench (Tool) 1

IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of two years on the Frame from
the date of purchase. This warranty extends only to the original purchaser. IMPEX's obligation
under this Warranty is limited to replacing or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling
IMPEX Customer Service Department at 1-800-999-8899. All freights on products returned to
IMPEX must be prepaid by the customer. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or
abnormal usage or repairs not provided by an IMPEX authorized service center or for products
used for commercial or rental purposes. No other warranty beyond that specifically set forth
above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or
in connection with the use or performance of the product or other damages with respect to any
economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of
removal, installation or other consequential damages or whatsoever natures. Some states do not
allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above
limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied
warranties of merchantability or fitness for a particular purpose is limited in its scope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state
to state. Register on-line at www.impex-fitness.com
IMPEX®INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-
999-8899 during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific
standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
13
