Impex MCB-5700 User manual

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MCB-5700
Retain This
Manual for
Reference
07-12-06
OWNER'S
MANUAL
MARCY CLASSIC
Deluxe Mid-Size Bench
MCB-5700
IMPEX®INC.
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: [phone] Fax: [phone]
www.impex-fitness.com
[email protected]

TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................... 1
IMPORTANT SAFETY NOTICE....................................................................... 2
HARDWARE PACK……….....…....................................................................... 4
ASSEMBLY INSTRUCTIONS........................................................................... 5

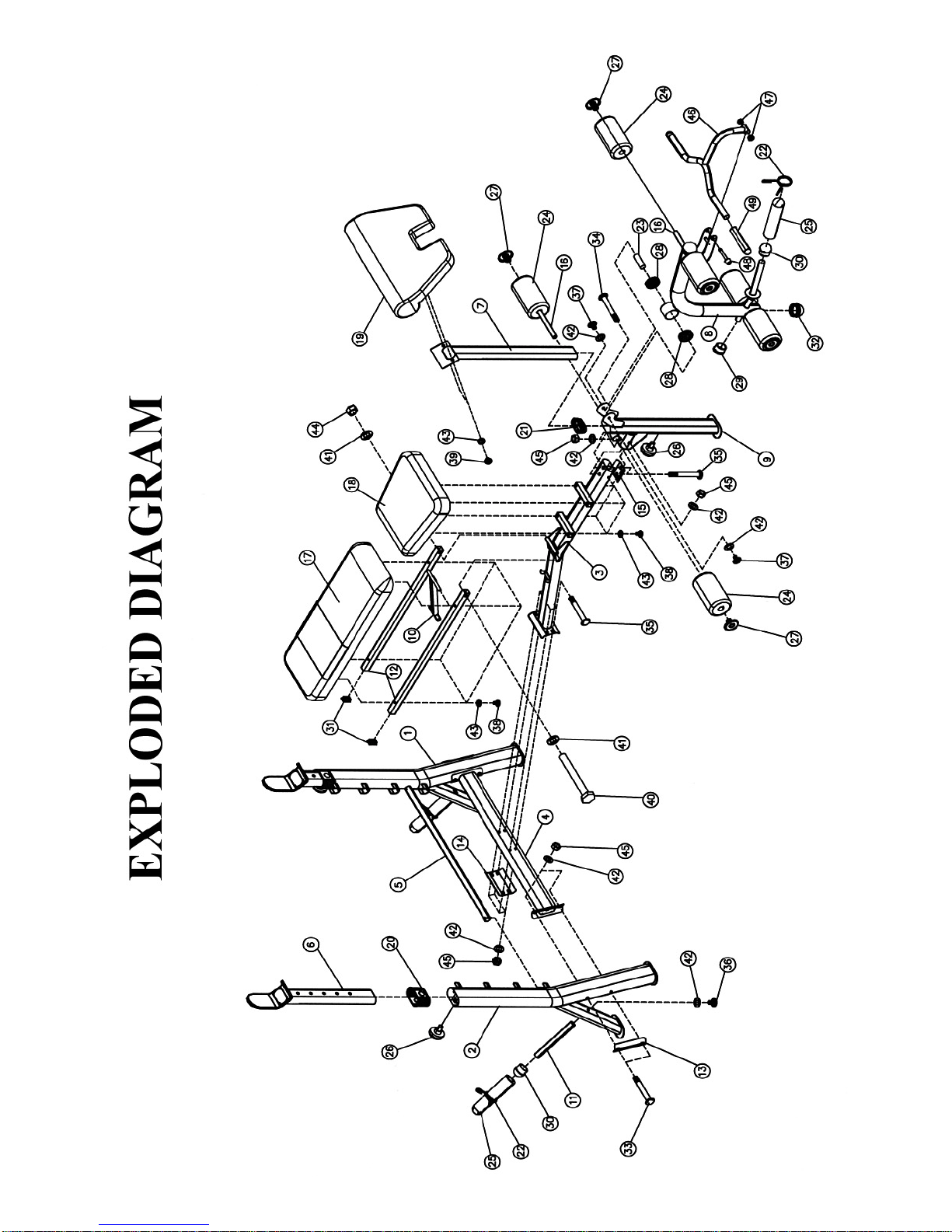

EXPLODED DIAGRAM.........................................................................………. 9
PARTS LIST…………………………………………………………………………. 10
WARRANTY.................................................................................................… 11
ORDERING PARTS......................................................................................... 11
BEFORE YOU BEGIN
Thank you for selecting the Marcy Classic Deluxe Mid-Size Bench MCB-5700
by IMPEX®Inc. For your safety and benefit, read this manual carefully before
using the machine. As a manufacturer, we are committed to provide you
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our TOLL-FREE customer service number. Our Customer Service Agents will
provide immediate assistance to you.
1
Toll-Free Customer Service Number
1-800-999-8899
Mon. - Fri. 9 a.m. - 5 p.m. PST
www.impex-fitness.com
[email protected]m

IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT
leave children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms, STOP the workout at once. CONSULT A PHYSICIAN
IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear
robes or other clothing that could become caught in the machine. Running
or aerobic shoes are also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO
NOT use attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or
physician in attendance.
10. Before using the machine to exercise, always do stretching exercises to
properly warm up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Inspect and tighten all parts before using the machine.
2. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
3. Maximum weight capacity 600 lbs. including the user’s weight.
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS.
2

WARNING LABEL PLACEMENT
The Warning Label shown here has been placed on the Cross Brace. If the label is missing or illegible, please
call customer service at 1-800-999-8899 for replacement. Apply the label in location shown.
3

HARDWARE PACK
4

ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches. NOTE: It is strongly recommended two or more people assembling this
machine to avoid possible injury.

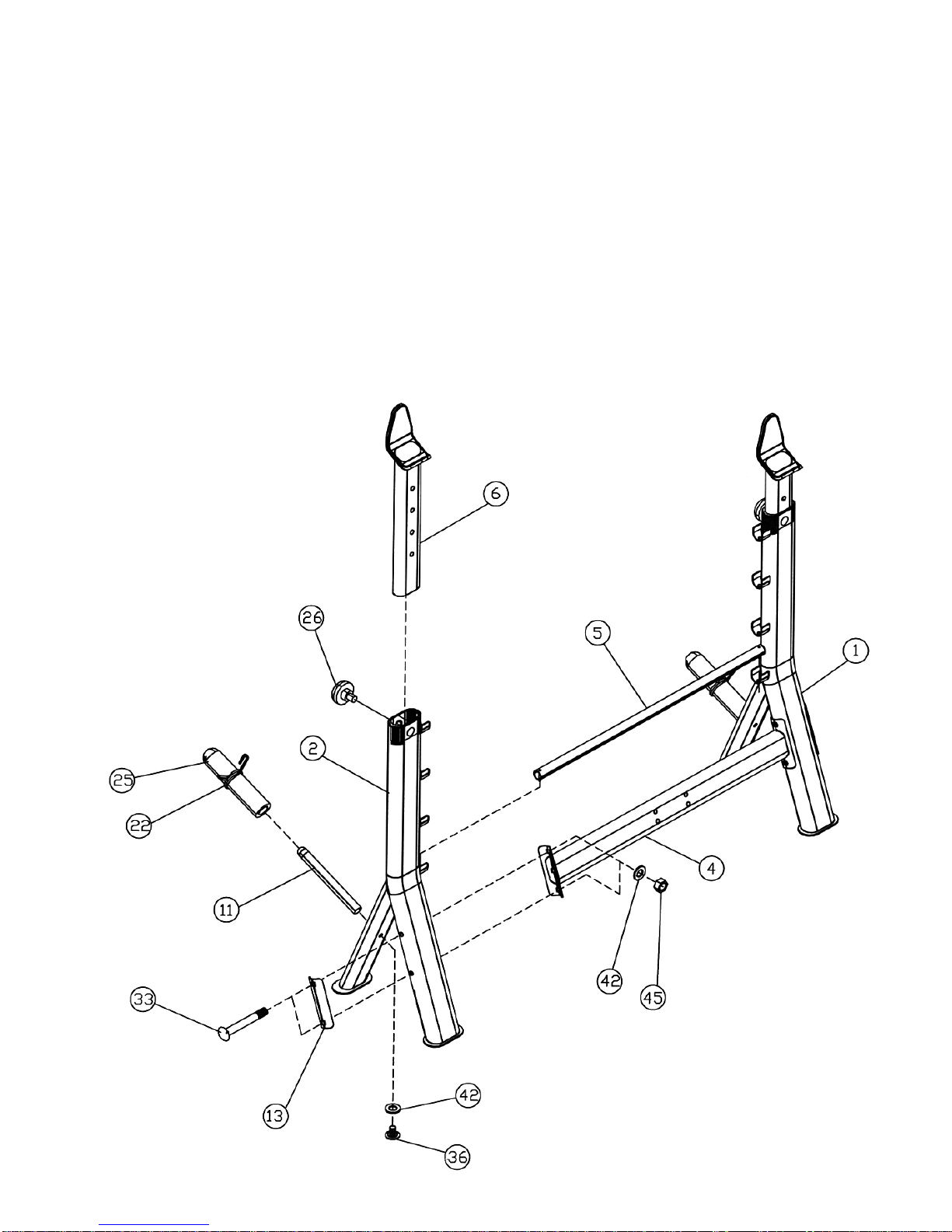

STEP 1 (See Diagram 1)
A.) Connect the Left & Right Upright Beams (#1 & #2) by a Cross Brace (#4) in the mid-
span. Align the holes and secure each end with two M10 x 4 ¾” Carriage Bolts (#33),
one 5 ½” x 1 ¾” Bent Bracket (#13), two ∅¾” Washers (#42), and two M10 Aircraft
Nuts (#45).
B.) Insert two Crutches (#6) into the top openings on the Upright Beams. Secure them with
two Lock Knobs (#26) through selected holes to obtain desired height of the Supports.
C.) Place the Backrest Adjustment Bar (#5) onto the selected slot on Upright Beams.
D.) Attach the Weight Post (#11) to each Upright Beam. Secure it with one M10 x 1” Allen
Bolt (#36) and ∅¾” Washer (#42). Attach one Olympic Sleeve (#25) to each Post.
Attach a Spring Clip (#22) to each Sleeve.
5

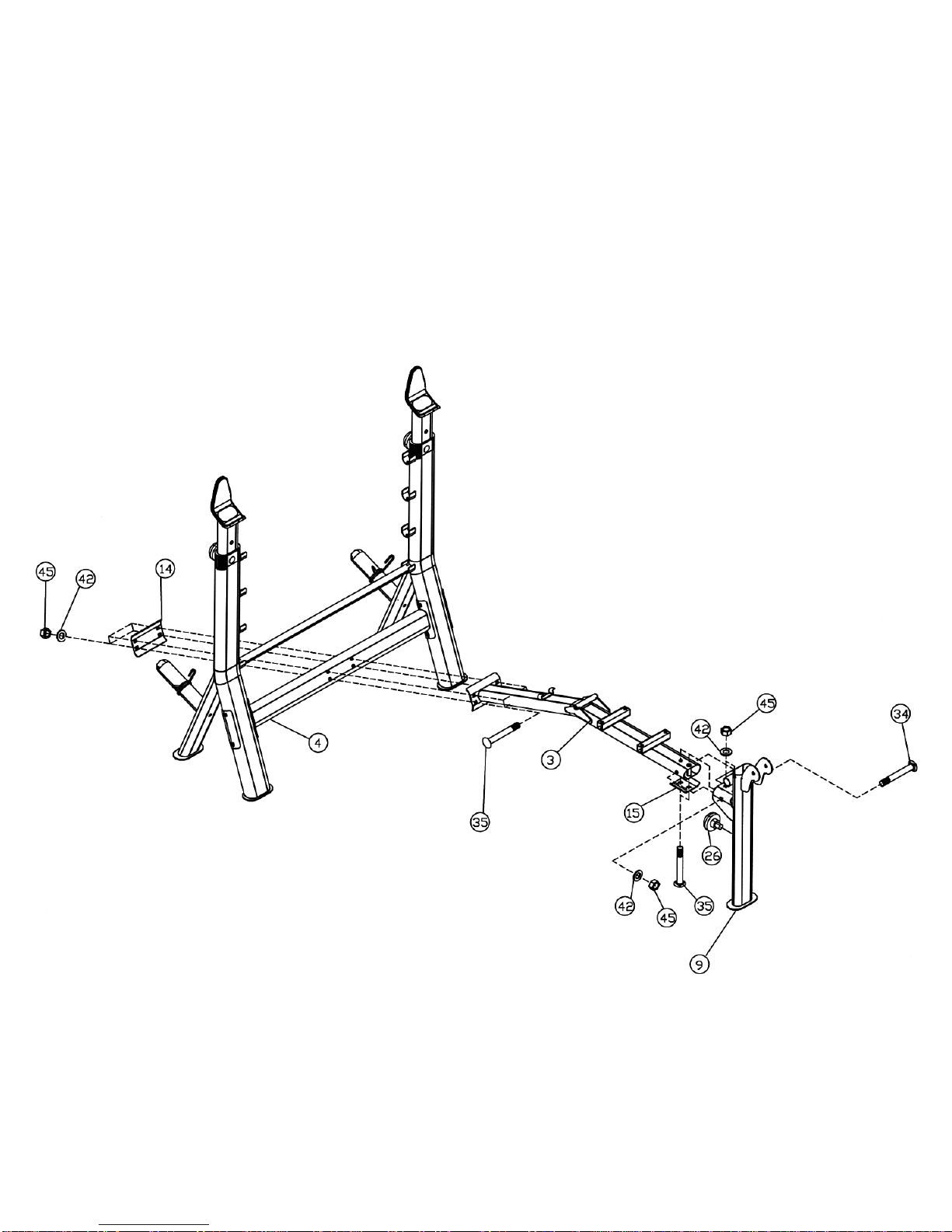

STEP 2 (See Diagram 2)
A.) Attach the Main Seat Support (#3) to the Leg Developer Holder (#9). Secure it with two
M10 x 2 3/8” Carriage Bolts (#35), one 2 ¾” x 3” Bent Bracket (#15), two Ø ¾” Washers
(#42), and two M10 Aircraft Nuts (#45) vertically. Secure it with one M10 x 4” Carriage
Bolt (#34), ∅¾” Washer (#42), and M10 Aircraft Nut (#45) horizontally.
B.) Attach the Main Seat Support (#3) to the Cross Brace (#4). Secure it with four M10 x 2
3/8” Carriage Bolts (#35), one 5 ½” x 3” Bracket (#14), four ∅¾” Washers (#42), and
four M10 Aircraft Nuts (#45). DIAGRAM 2
6

STEP 3 (See Diagram 3)
A.) Attach the Backrest Incline Support (#10) in between the two side-holes on the
Backrest Supports (#12). Attach the Backrest Supports to the pivot on the Main Seat
Support (#3). Secure it with one M12 x 6 ¾” Hex Bolt (#40), two ∅1” Washers (#41),
and one M12 Aircraft Nut (#44).
B.) Place the other end of Backrest Supports rest against the Backrest Adjustment Bar.
C.) Place the Backrest Board (#17) onto the Backrest Supports (#12). Secure it with four
M8 x 1 5/8” Allen Bolts (#38) and Ø 5/8” Washers (#43).
D.) Place the Seat (#18) onto the Main Seat Support. Secure it with four M8 x 1 5/8” Allen
Bolts (#38) and ∅5/8” Washers (#43). DIAGRAM 3
7

STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#8) to the Leg Developer Holder (#9). Secure it with an
Axle (#23), two M10 x 5/8” Allen Bolts (#37), and two Ø ¾” Washers (#42).
B.) Insert one Foam Tube (#16) halfway through the hole on the Leg Developer Holder.
Insert two Foam Tubes halfway through the holes on the Leg Developer.
C.)Push six Vinyl Foam Rolls (#24) onto the Tubes from both ends. Plug six Foam Roll
End Caps (#27) into the ends.
D.)Attach an Olympic Sleeve (#25) onto the weight post on the Leg Developer. Attach a
Spring Clip (#22) to the Sleeve.
E.) Attach the Arm Curl Pad (#19) to the Arm Curl Stand (#7). Secure it with two M8 x
5/8” Allen Bolts (#39) and two Ø 5/8” Washers (#43).
F.) Insert the Arm Curl Stand into the opening on the Leg Developer Holder. Secure it
with a Lock Knob (#26).
G.)Attach the Arm Curl Handle (#46) to the bracket on the Leg Developer. Secure it with
a Lock Pin (#48). Pull off the Pin and remove Arm Curl Handle and Arm Curl Stand
when doing Leg Developer exercises. DIAGRAM 4
8

9

PARTS LIST
KEY NO. DESCRIPTION Q’ty
1 Left Upright Beam 1
2 Right Upright Beam 1
3 Main Seat Support 1
4 Cross Brace 1
5 Backrest Adjustment Bar 1
6 Crutch 2
7 Arm Curl Stand 1
8 Leg Developer 1
9 Leg Developer Holder 1
10 Backrest Incline Support 1
11 Weight Post 2
12 Backrest Support 2
13 5 ½” x 1 ¾” Bent Bracket 2
14 5 ½” x 3” Bent Bracket 1
15 2 ¾” x 3” Bent Bracket 1
16 Foam Tube 3
17 Backrest Board 1
18 Seat 1
19 Arm Curl Pad 1
20 2” x 4” Sleeve 2
21 1 5/8” x 3 1/8” Sleeve 1
22 Spring Clip 3
23 Axle 1
24 Vinyl Foam Roll 6
25 Olympic Sleeve 3
26 Lock Knob 3
27 Foam Roll End Cap 6
28 ∅2 3/8” Axle Bushing 2
29 Ø 1” End Cap 1
30 ∅1” Cone-shaped End Cap 3
31 1” Square End Cap 2
32 Ø 2 3/8” Cone-shaped End Cap 2
33 M10 x 4 ¾” Carriage Bolt 4
34 M10 x 4” Carriage Bolt 1
35 M10 x 2 3/8” Carriage Bolt 6
36 M10 x 1” Allen Bolt 2
37 M10 x 5/8” Allen Bolt 2
38 M8 x 1 5/8” Allen Bolt 8
39 M8 x 5/8” Allen Bolt 2
40 M12 x 6 ¾” Hex Bolt 1
41 ∅1” Washer 2
42 Ø ¾” Washer 15
43 Ø 5/8” Washer 10
44 M12 Aircraft Nut 1
45 M10 Aircraft Nut 11
46 Arm Curl Handle 1
47 Ø 1” x Ø 7/8” Bushing 2
48 Lock Pin 1
49 Arm Curl Handle Grip 2
10

IMPEX®INC.
LIMITED WARRANTY
IMPEX Inc. ("IMPEX®") warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of two years on the Frame from the date of purchase. This
warranty extends only to the original purchaser. IMPEX's obligation under this Warranty is limited to replacing
or repairing, at IMPEX's option.
All returns must be pre-authorized by IMPEX. Pre-authorization may be obtained by calling IMPEX Customer
Service Department at 1-800-999-8899. All freights on products returned to IMPEX must be prepaid by the
customer. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an IMPEX authorized
service center or for products used for commercial or rental purposes. No other warranty beyond that
specifically set forth above is authorized by IMPEX.
IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in
connection with the use or performance of the product or other damages with respect to any economic loss,
loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other
consequential damages or whatsoever natures. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal right. You may also have other rights which vary from state to state.
Register on-line at www.impex-fitness.com
IMPEX®INC.
14777 Don Julian
City of Industry, CA 91746
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Service Department toll-free at 1-800-999-8899
during our regular business hours: Monday through Friday, 9 am until 5 pm Pacific standard time.
[e-mail]
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
11
