In-Ex SPRAYER 30 Manual

1
Sprayer 30 Pt.No 1111
(Leaflet 2400-1450 Issue 4, Feb 2017)
DESCRIPTION
The In-Ex SPRAYER 30 is an entry-level spot sprayer which can be used in a variety of
applications. It is especially suitable for use with small vehicles or anywhere where there is a flat
surface to attach it to and a source of 12VDC power. The Sprayer 30 is supplied ready to use and
includes a sturdy tie down strap and 2.2metre power cable.
(pump size 7.6Lpm)
WARRANTY
1WARRANTY AND LIABILITY
Use of the equipment
1.1 You must satisfy yourself as to the suitability of the equipment for your intended use(s) of the
equipment.
Your relationship with the retailer
1.2 Where you consider you have a warranty claim (or any other claim) in relation to the equipment, you
must contact the retailer who sold you the equipment, not C-Dax directly. The retailer is responsible
for liaising with C-Dax in respect of your claim.
Warranty
1.3 C-Dax warrants to the original purchaser that the equipment is sold free from defects in materials and
workmanship for a period of 12 months from date of first retail sale (6 months from date of first retail
sale if the equipment is sold in the U.K.) subject to the terms set out below.
1.4 C-Dax will at its option repair or replace the defective equipment (or part of the equipment) or notify
the retailer of the equipment to refund the purchase price for such defective equipment to you in the
event of a breach of this warranty, subject to the terms set out below.
Liability
1.5 Except for the warranty set out in clause 1.2 above, all warranties and representations (including
those expressed or implied by law) in respect of the equipment or advice relating to the equipment
provided to you by C-Dax are excluded to the extent permitted by law.
1.6 Notwithstanding anything else in this manual, C-Dax’s maximum liability to you (in the event that such
liability exists) in respect of any breach of warranty, any matter set out in this manual, or for defective
equipment or advice relating to the equipment provided is limited at C-Dax’s option to:
(a) repairing or replacing the equipment (or part of the equipment); or
(b) notifying the retailer of the equipment to refund the price for the equipment paid by you.

2
1.7 Notwithstanding anything else in this manual, in no event will C-Dax be liable, whether in contract,
tort (including negligence) or otherwise:
(a) where you have altered or modified the equipment, misused or misapplied the equipment, or
the equipment has been subjected to any unusual, excessive or non-recommended use, service
or handling (including as set out in this manual);
(b) where the equipment is not transported, stored, handled or used in accordance with any
directions given by C-Dax (or the retailer) to you (including as set out in this manual);
(c) where the equipment:
(i) has been subject to neglect, accident or hireage, or the damage arises from fair wear and
tear, battery damage or chemical attack;
(ii) has been built to a customer’s specifications; or
(iii) has been dismantled, repaired or serviced other than by an authorised service agent of C-
Dax;
(d) for loss or damage caused by any factors beyond C-Dax’s control; or
(e) for any loss of profit or revenue, or for any special, indirect, incidental or consequential damage,
loss or injury of any kind suffered by you.
1.8 Where C-Dax elects to repair or replace the equipment it will use reasonable endeavours to do so as
soon as practicable but will not be liable for any delay in doing so.
1.9 You agree that the transactions entered into between you and the retailer (and C-Dax) are for the
purposes of trade and that, having regard to all relevant circumstances of the transactions, it is fair
and reasonable that the provisions of the Consumer Guarantees Act 1993 (NZ) do not apply to those
transactions to the fullest extent permitted by law.

3
CONTENTS
Part No. Description Quantity
N/A Tank assembly complete with; lid, pump,
spray gun and hose. 1
8410-8450 Strap-Ratchet 1
1500-3700 Cable ASY-Battery-2.2M 1
INSTALLATION
Place the Sprayer 30 on the vehicle with the switch facing the operator. Secure the tank in place
using the ratchet strap. Connect the cable assembly to the male connector on the pump then
attach to the vehicle battery ensuring that the red wire is connected to the positive terminal.
OPERATING INSTRUCTIONS
Place fluid in the tank then turn the switch on. The pump will run. Place the end of the spray gun in
the tank and press the trigger until all of the air has been expelled from the hose. The pump will
stop running when the trigger is released.
Operate the spray gun and adjust the tip until the pump runs smoothly and the desired spray
pattern is obtained.
MAINTENANCE
Cleaning Tank and Spray Gun
When spraying is finished rinse the tank with clean water and pump the contents out through the
spray gun. A triple rinse is recommended. Do not leave spray in the tank between uses.
TROUBLE SHOOTING
Pump will not prime
Operate the spray gun to release air from the pump.
Pump pulses
Adjust the spray tip to increase pump flow.
Pump will not run
Check electrical connections and fuse.

4

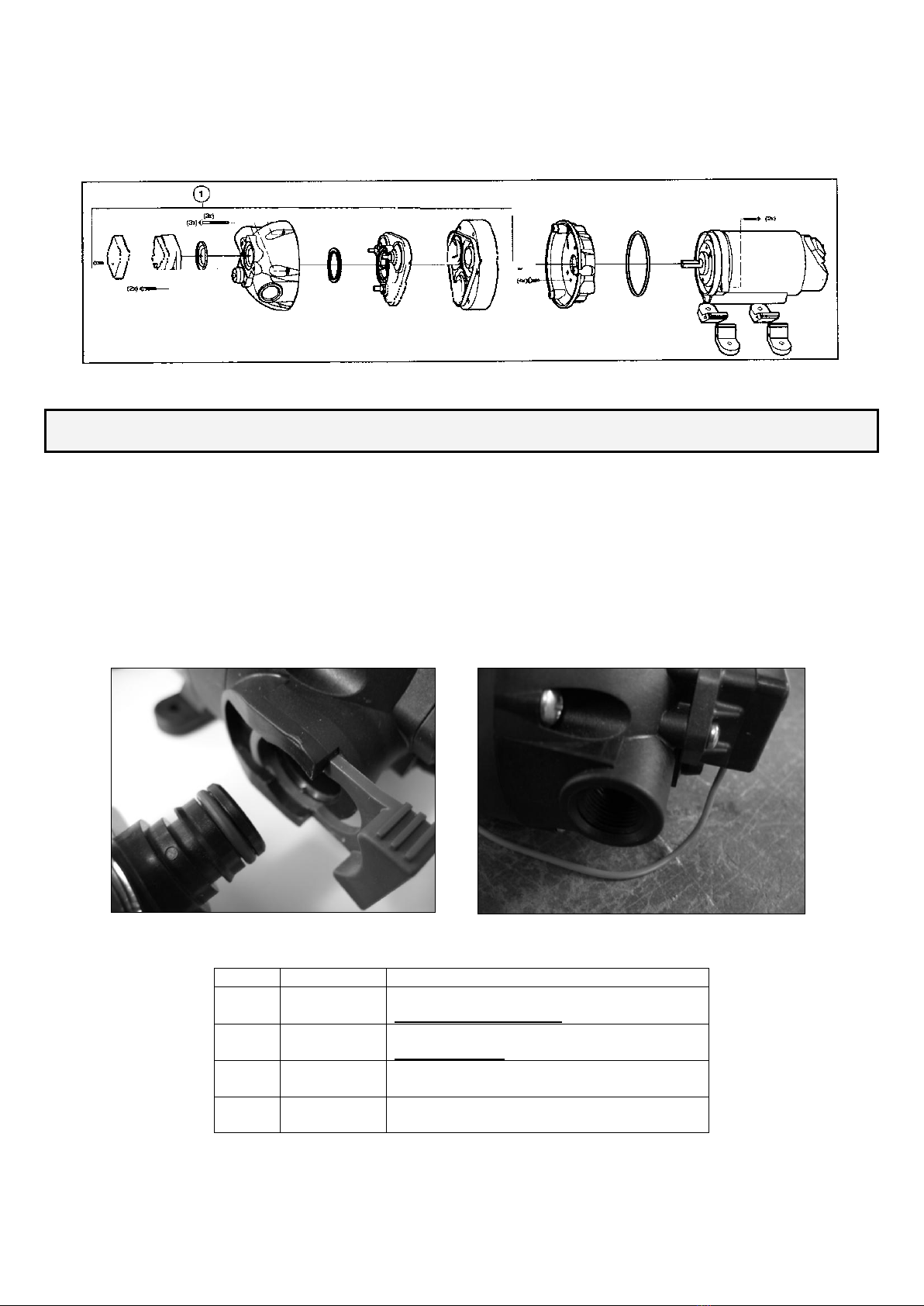

FLOJET SPRAY PUMP RELACEMENT PARTS
The following replacement parts for the 12V Flojet 7.6 L/Min pump are available from any C-Dax dealer:
NOTE
Please select the correct hose connection type for your pump
The below pictures show the quadport type (Left hand photo) and threaded type (Right hand
photo). The threaded type is no longer available for ordering and should be replaced with a
quadport type. When replacing a threaded pump head with a quadport type you will require
replacement quadport hose fittings in addition to the pump head.
Quadport Type:
Screw Type:
ITEM
PART NO.
DESCRIPTION
1
6800-5160
Pumphead Kit (includes pressure switch)
To Suit Quadport Type
6800-5000
Replacement Pump
Quadport Type
6200-2980
Pipe-Fitting-Flojet-Elbow-10-13mm
ShankxQuad Port Pump-Nylon
6200-3020
Pipe-Fitting-Flojet-Straight-10-13mm
ShankxQuad Port Pump-Plastic

5
PARTS DIAGRAM

6
PARTS LIST
Item
No.
QTY.
e9 part no
e9 description
1
1
1500-3700
Cable-Electrical-Loom-Battery Feed-2M
2
1
1500-7300
Cable-Electrical-Single Core-1mm2-1000VDC-Red
3
2
2000-2014
Clamp-Hose-Oetiker-Single Ear Stepless-14.5<>7.0mm-S/S
4
2
2000-2017
Clamp-Hose-Oetiker-Single Ear Stepless-16.6<>19.8mm-S/S
5
1
2250-8200
Cover-Switch-Water Proof Boot-Toggle Lever-Rubber-Black
6
3
3110-0516
Fastener-Machine-Screw-Pan-M5x16-Pozi-ZP
7
4
3110-0520
Fastener-Machine-Screw-Pan-M5x20-Pozi-ZP
8
4
3170-0005
Fastener-Nut-Nyloc-M5-ZP
9
6
3270-8012
Fastener-Self Tap-Screw-CSK-8Gx1/2"-Pozi-Stainless
10
11
3310-6005
Fastener-Washer-Flat-M5-ZP
11
1
3400-1110
Filter-Basket-D150-Mesh
12
1
4000-6020
Hand Gun-Teejet-Trigger Jet X18-Shank 10mm
13
1
4100-0008
Hose-Spray-Delivery-40 Bar-8.5mm ID-Yellow
14
1
4100-3013
Hose-Suction-Wire Reinforced-13mm ID-Clear Plastic
15
2
6200-2980
Pipe-Fitting-Flojet-Elbow-10 ShankxQuad Port Pump-Nylon
16
1
6250-3001
Plug-Electrical-2 Pin-Male-20 Amp-With Cover
17
1
6800-5000
Pump-Flojet-Triplex-12 Volt-7.6LPM-Quad Ports
18
1
7500-3350
Rota-Tank-& Base-35L-Spray-Natural/Red-MDPE
19
1
8410-8450
Strap-Tie Down-Ratchet-Blue
20
1
8427-6000
Sub-Lid & Ring Assembly-D150-In-Ex Vented-Nylon-Black
21
1
8450-2410
Switch-Electrical-Toggle-SPST-250V-16Amp
22
2
8790-8020
Terminal-Spade-Female-6.3mm-Blue
