Information Sheet
Level TROLL®
Aqua TROLL®
MP TROLL®9500
(over)
USB TROLL®COm
DiReCT COnneCT
AppLiCATiOn
Communication interface between a Level TROLL, Aqua TROLL, or MP TROLL
9500 and a desktop/laptop computer running Microsoft®Windows®2000 or higher.
Includes external power jack and vent with replaceable membrane. Connects
directly to the instrument for indoor use while programming/downloading the device.
phySiCAL DeSCRipTiOn
Materials Delrin®, nylon, Viton®, polyurethane
Environmental rating Not designed for submersion
Dimensions 3.2 cm (1.25 in) O.D.,16.3 cm (6.4 in) long ,
including strain relief
Input
Level TROLL, Aqua TROLL: RS485 Modbus
MP TROLL 9500: RS485
Output USB Type A
DC power jack 2.5 mm
Compatible DC power plug 5.5 mm O.D., 2.1 mm I.D., center positive
External power input
Level TROLL, Aqua TROLL: 8 to 36 VDC
MP TROLL 9500: 16 VDC Maximum
Cable Black polyurethane, 91 cm (3 ft) long
Operating temperature -20°C to 50°C (-4°F to 122°F)
Storage temperature -20°C to 80°C (-4°F to 176°F)
COnneCTiOnS
Connects to a USB port
Female connector mates directly with the instrument back end
inSTALLATiOn—hARDwARe
Attach via snap-on connection to the TROLL back end
A
B
Catalog No. 0052510
Dust cap
Vent
External
power input
A
B
Plastic
Female
Connector

Information is subject to change without notice. In-Situ and the In-Situ logo, Win-Situ, TROLL, BaroTROLL, RuggedReader, RuggedCable, and RDO are
trademarks or registered trademarks of In-Situ Inc. Viton is a registered trademark of DuPont Dow Elastomers. Delrin is a registered trademark of E. I.
DuPont de Nemours and Company. Microsoft, Windows, and Windows Vista are trademarks or registered trademarks of Microsoft Corporation Copyright
© 2007, 2009 by In-Situ Inc. All rights reserved.
Level TROLL®/ Aqua TROLL®/ MP TROLL®9500
1 800 446 7488
(toll-free, US and Canada) or 970 498 1500 www.in-situ.com
0052512 rev. 002 01/09
CAUTION: DO NOT EXCEED 16V EXTERNAL
POWER FOR AN MP TROLL 9500. Use a con-
verter that supplies 16V or less.

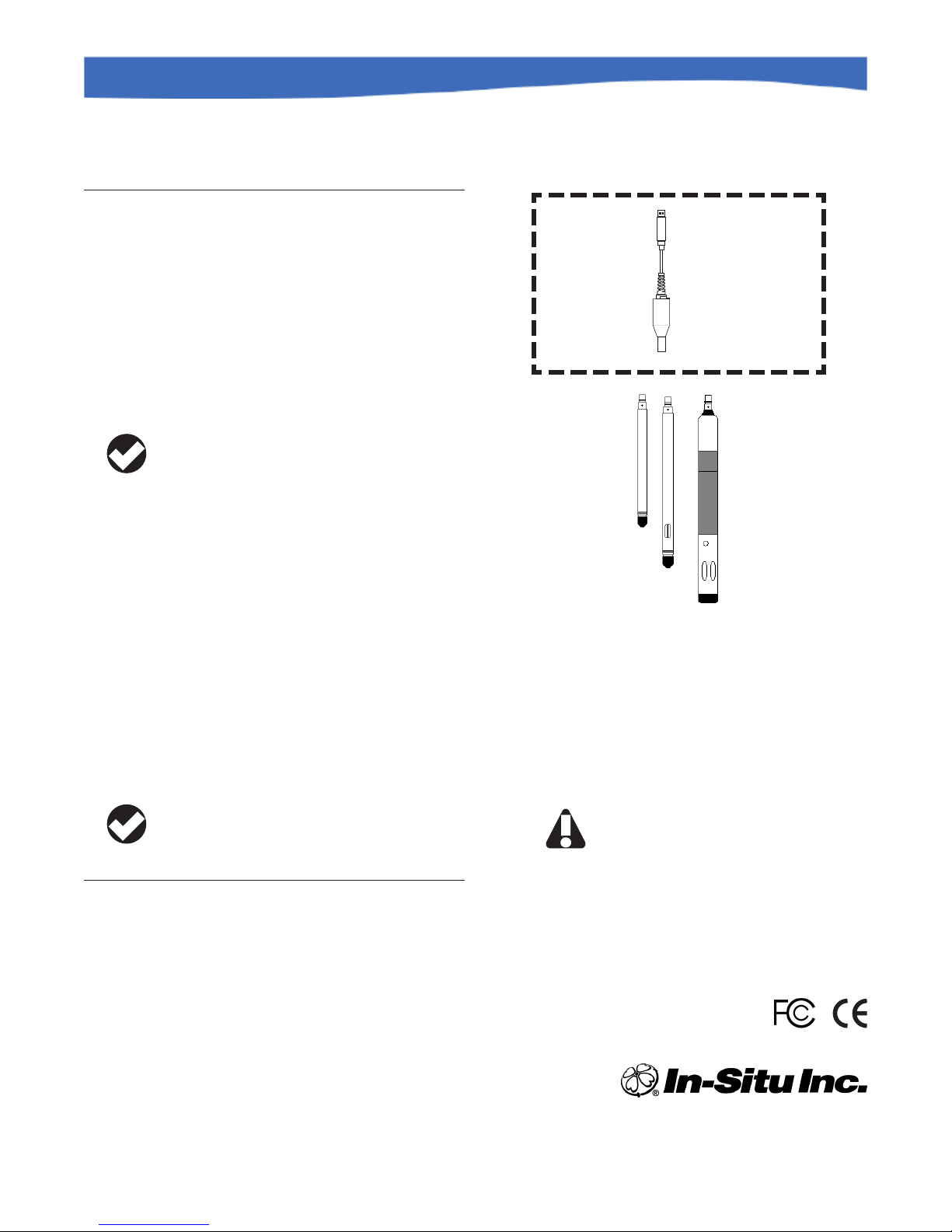

Level TROLL
MP TROLL 9500
Aqua TROLL
inSTALLATiOn—USB SOfTwARe
1. Install the latest Win-Situ®software from the In-Situ CD or web-
site to a desktop/laptop computer running Microsoft Windows
2000 or higher.
• Win-Situ5,version5.6orhigherforaLevelTROLLor
Aqua TROLL,
• Win-Situ4,version4.57.4orhigherforaMulti-Parameter
TROLL 9500
When asked, select the option "Install USB TROLL Com Drivers."
Two drivers will be loaded to your hard drive, one for the USB
TROLL Com, one for the USB TROLL Com serial port.
TIP: Be sure to install USB TROLL Com drivers when
installing Win-Situ.
2. After installation, plug the USB TROLL Com into a USB port on your
computer.
• Windows2000,WindowsVista:Whennewhardwareis
detected, the drivers are installed automatically.
• WindowsXP:FollowtheinstructionsintheFoundNew
Hardware Wizard. Select the option "Install software auto-
matically."
3. After installation, check as follows to find which COM port the
USB drivers are using:
• Windows2000,WindowsXP:ControlPanel>System>
Hardwaretab>DeviceManager>Ports.Clicktheplus
sign to display the ports.
• WindowsVista:ControlPanel>System>DeviceManager
(Administratorpermissionrequired)>Ports.Clicktheplus
sign to display the ports.
Remember the port number. You will need it when
connecting to the instrument in Win-Situ.
GUiDeLineS AnD pReCAUTiOnS
• DO NOT SUBMERGE.
• OperatingsystemrequirementsforWin-SituandUSBTROLLCom
drivers:Windows2000ProfessionalSP4orhigher,WindowsXP
Professional SP2 or higher, or Windows Vista SP1 or higher.
USB TROLL COm
Direct Connect
0052510
