Indel B BUILT-IN 24 HOMME CELLAR User manual

User Guide
WINE CELLAR FRIDGE
BUILT - IN 24 HOMME
GB
1
IGB F
Italiano, English, 1 Français,
DE
Deutsch, Espanol,
Table of Contents
Features, 2
Warnings
Technical data
Installation, 3
Positioning and connecting
Description of the device, 4
Overview
Control panel
Starting up and using, 5
Aging compartments
Manual temperature setting
Taking out the wooden shelves
Storing the bottles, 6
Storing
Maintenance and troubleshooting, 7
Maintenance and care
Troubleshooting

GB
2
I
Features
Notices
! Remember to keep this booklet so you can refer to it at
any time. In case of sale, transfer or should you move,
remember to keep it together with the device.
! Read the instructions carefully: there is important
information about installation, use and safety.
! To prevent danger stemming from instability of the
device, you must fasten it in place, following the
assembly instructions strictly.
! Whenever moving or transporting the device, keep it
in a vertical position.
! The beverage centre must not be used by children or
invalids, without supervision by an adult or a tutor, in
order to prevent the cellar from being used improperly.
! Children may use the beverage centre only if supervised
by an adult, in order to prevent them from playing with
the cellar.
! After installing the device, the power cable and socket
must be easy to reach.
! Keep the ventilation openings on the casing of the
device free.
! Do not use mechanical devices, or any means
not suggested by the manufacturer, to speed up
defrosting.
! Do not damage the coolant circuit.
! Contact the after sales service to replace the neon.
! The cable must not be bent or crushed.
! The cable must be checked on a routine basis and
replaced only by authorised technicians.
! The power supply cable is of a Y type. Contact the
after sales service to replace it.
! Do not use electrical equipment inside the food
compartments, unless they are of a kind suggested by
the manufacturer.
! The Manufacturer shall not be liable if any of the above
rules are not complied with.
DATA SHEET
Model BUILT-IN 24 HOMME CELLAR
Temperatures 1 Zone
width cm 60
Dimensions length cm 44,8
depth cm 55
Weight** 30,5 Kg
Weight 35,5 kg
Power 120 W
Current 0,54 A
Lamp 1 x 6 W
Consumption 0,9 kWh / 24h
Voltage* 115 - 220 V
Frequency Hz* 50 - 60
* These values may change in different countries.
In order to find the specific features of your device,
check the product features plate.
** When the device is empty.

GB
3
Positioning and connection
Unpacking
1 Unpack the device immediately and make sure it has
not been damaged during transport. Should it be
damaged, do not connect, and get in touch with the
Dealer.
2 Carefully remove the protections and the adhesives,
open the door and make sure all the components
are present.
3 Take out the power supply cable.
Positioning
1 Position the device in a well ventilated area, not
damp and free (avoid cabinets with closed walls).
2 Keep the device away from heat sources.
3 Make sure the minimum distances between the
device and the walls of the room where it is placed
are kept, in order to ensure perfect ventilation of the
device.
See figure.
Wiring connection
After transport, stand the device vertically, and wait
for at least 3 hours before connecting it to the wiring
system. Before putting the plug into the power socket,
make sure that:
• the socket is earthed and according to legal
regulations;
• the socket is able to hold up to the maximum power
load of the machine, indicated on the Data Sheet
table or on the feature plate to the bottom right (see
Description of the device);
• the power supply voltage falls within the range
indicated on the Data Sheet table or on the feature
plate to the bottom right (see Description of the
device);
• the power socket is compatible with the plug of the
device. Otherwise, replace the socket or the plug; do
not use extensions or multiple sockets.
189A0431
Ventilation space:
at least 50 mm
189A0432
189A0433
560
587
460
448
540
Furniture side area
560 min.
450 min.
560
min.
Dimensions
of the
compartment
Dimensions
of the cellar
Installation

GB
4
Product Description
Interior Parts
Control Panel
CONTROL
PANNEL
LEAF
GLASS
BOTTLE AGEING
COMPARTMENT
SHELVES
DATA PLATE
DISPLAY
REDUCE
TEMPERATURE INCREASE
TEMPERATURE
TEMPERATURE
SETTING BUTTON
WARNING LAMP
FOR LIGHT ON
OPERATION
WARNING LAMP
LIGHT
ON/OFF
BUTTON
WARNING LAMP
FOR POWER
SUPPLY ON

GB
5
Using the wine cellar
Bottle ageing compartment
The ageing compartment's main function is that of
guaranteeing that your wines are preserved in optimal
conditions.
The wine cellar's temperature was factory pre-set at 15°
C, a temperature that is considered optimal for most
wines.
Wine has a complex nature and it derives from a long
and slow process. In order to best express its attributes,
very specific conditions are necessary.
All wines are preserved at the same temperature, but,
depending on their different characteristics, wines are
served and tasted at very different temperatures.
Therefore, just as for manufacturers' wine cellars, for
your new appliance, the absolute temperature value
is not important for preserving your wine. Rather, the
constant temperature through time is important. Wine
preservation is ideal at any temperature, as long as that
temperature does not vary.
Manual temperature control
Should you need to adjust the temperature inside the
wine cellar, follow the instructions below:
1. When you plug in your wine cellar, the display shows
the temperature that has been set
2. Press the button (see Control Panel) for one
second. The temperature will begin to blink.
3. Press the or buttons until you reach the
desired temperature.
4. Wait 5 seconds for the temperature to stop blinking.
5. Wait until the wine cellar reaches its temperature
before you place the wine bottles inside.
The inside light does not go on (or it goes off temporarily)
when the inside temperature goes over 24° C. This
allows you to reach the pre-set temperature more
quickly.
Taking out the wooden shelves
WARNING:
The wooden shelves are not sliding. Do not take them
out when loaded with bottles, to prevent the risk of the
bottles breaking.
You can take the shelves out for cleaning only when
they are not loaded with any bottles.

GB
6
Standard 24-bottle stock
The 24-bottle stock (for standard, mixed, and renana
bottles) is recommended for wines that need to be
visible and easily removed.
Position each bottle into the slots on the 3 wooden
shelves. 6 bottles can be placed on the bottom of the
wine cellar.
We suggest placing the longer bottles (Rhine wine
type) at the cellar base. The base is suitable for
hosting larger bottles.
! The wooden shelf can
safely hold up to 22
bottles.
Champagne bottle stock
Champagne bottles are larger than standard bottles.
They must be placed onto the base of the wine cellar,
which can hold up to 5.
If you want to stock more than 5 Champagne bottles
in your wine cellar, remove the 3th shelf and stock the
bottles in two rows (placing the bottles in the second
row between those on the bottom row). This will hold
up to 9 bottles.

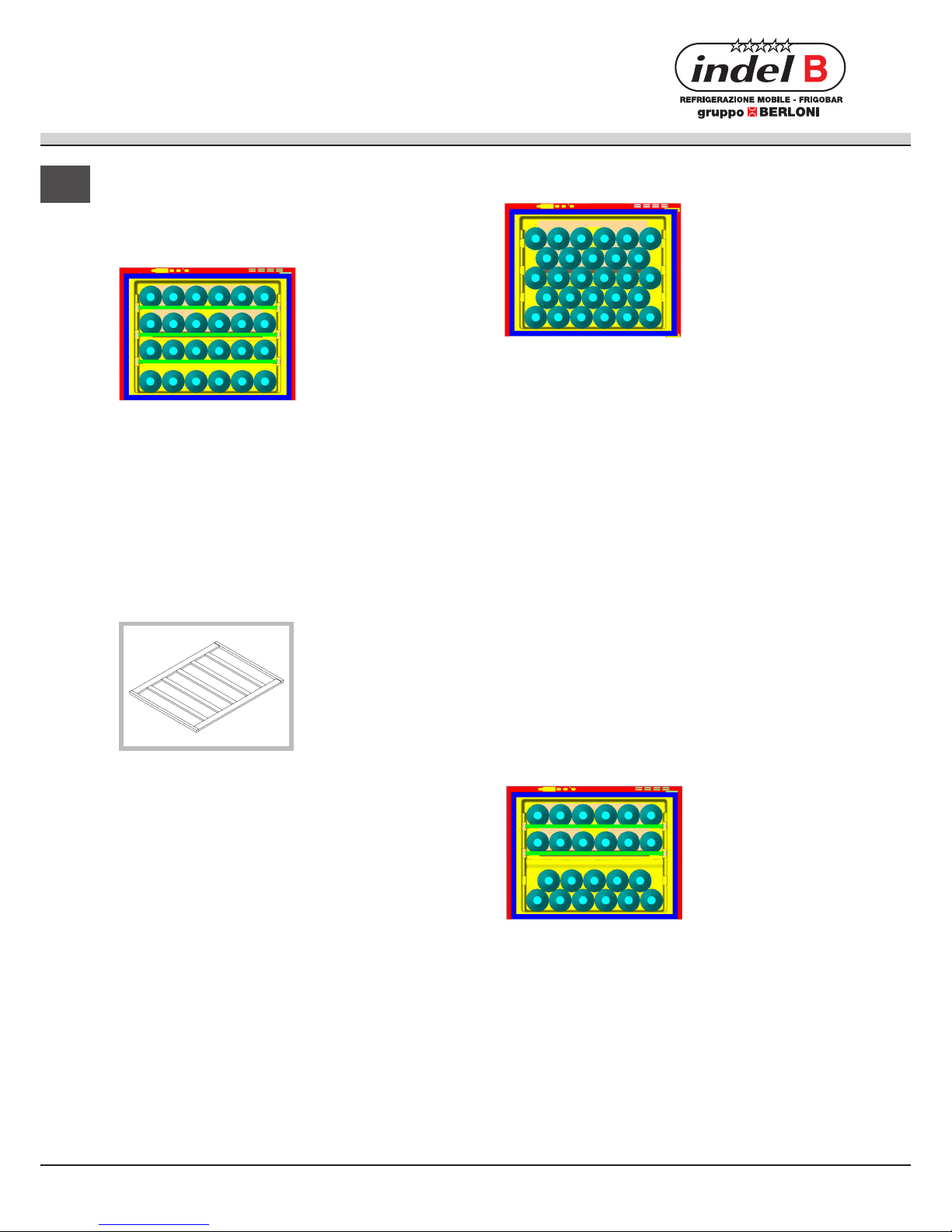

Some stocking configurations
Stocking the wine bottles
STANDARD
24 Bottles
(100% lying down)
3 shelves
PRESERVATION
28 Bottles
(100% lying down)
1 shelf

GB
7
Maintenance and
troubleshooting
Care and maintenance
Disconnecting the wine cellar
During cleaning and maintenance, it is imperative that you unplug the wine cellar
Troubleshooting
If you notice that your wine cellar is not working properly, check with the following list before you call your Service
Centre.
! Any work that is done to the wine cellar should be performed by your authorized local Service Centre Indel B.
! Short term faults, such as power failure, will not compromise the wines. It is only when working faults are left
unsettled for a long time that the wine may suffer.
Problem
The compressor does not work
The compressor never stops
Possible causes/solutions
• The plug is not plugged into the wall-outlet or not enough to make
contact. Or, there could be a power failure in your home.
• The wall-outlet is not in working order. Plug the wine cellar into another
wall-outlet to check.
• Contact the Service Centre Indel B
