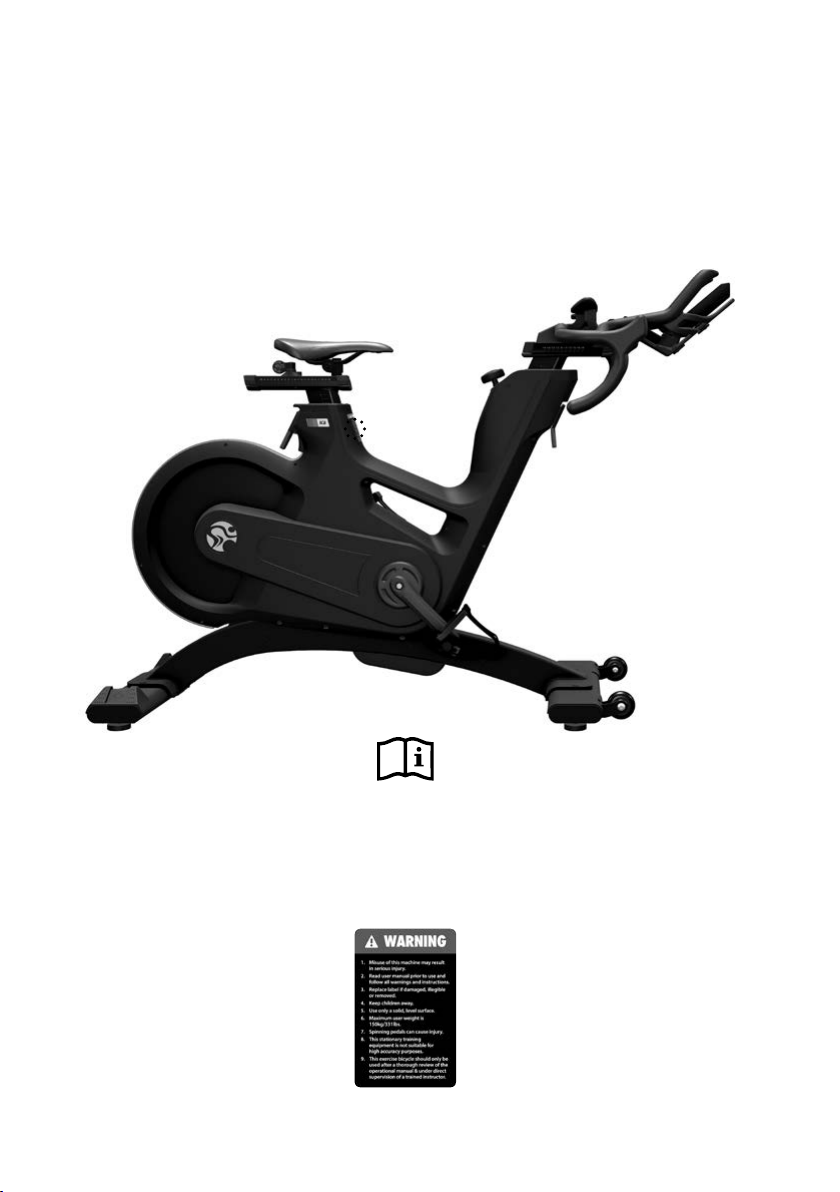

Indoor Cycling LifeFitness IC8 POWER TRAINER User manual

MANUFACTURED BY:
Indoor Cycling Group GmbH
Happurger Str. 86
90482 NUERNBERG | Germany
[email protected]om
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
ENG
IC8 POWER TRAINER
MODEL NO:IC-LFIC8C1-01

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
ATTENTION
Warning labels on the IC8 Power Trainer must be replaced by
warning labels in your language during the assembly process.
A
A

3
ENG
ATTENTION
To download the owners manual in
your language, visit the IC8 support
section at: www.teamicg.com
Um das Handbuch in Ihrer Sprache
herunterzuladen, besuchen Sie bitte
den IC8 Support Bereich auf unserer
Webseite unter www.teamicg.com
Pour télécharger le manuel d‘utilisation
dans votre langue, consultez la section
Assistance IC8 sur: www.teamicg.com
Per scaricare il manuale nella vostra
lingua, visitate la sezione del supporto
per IC8 su: www.teamicg.com
Ga om de gebruiksaanwijzing in
uw taal te downloaden naar het IC8
supportgedeelte onder:
www.teamicg.com
Para descargarse el manual de usuario
en su idioma, por favor acceda a la
sección de soporte técnico de la bici IC8
en: www.teamicg.com
Para transferir o manual de utilizador no
seu idioma, visite a secção„Suporte“ da
IC8 em: www.teamicg.com
Besøg IC8 supportafsnittet www.
teamicg.com for at downloade
brugermanualen på dit sprog
Lataa omistajan käsikirja omalla
kielelläsi IC8-ohjeosiosta sivustolta:
www.teamicg.com
Du kan laste ned bruksanvisningen
på ditt eget språk ved å gå til IC8
støttesiden på: www.teamicg.com
Du kan hämta bruksanvisningen på ditt
språk under IC8-support på
www.teamicg.com
Aby pobrać podręcznik użytkowania w
swoim języku, należy wejść na zakładkę
IC8 support na stronie:
www.teamicg.com
Kullanıcı kılavuzunu kendi dilinizde
indirmek için www.teamicg.com
sayfasının IC8 deste bölümünü ziyaret
edebilirsiniz
在IC8的客户服务网站，您可以下载
各种语言的用户手册
www.teamicg.com
オーナーズマニュアルの各言語版
は、以下サイトの IC8 サポートペー
ジからダウンロードいただけます。
www.teamicg.com
IC8 지원 센터(www.teamicg.com)
에서 해당 언어 버전의 사용설명서를
다운로드할 수 있습니다..
EN
DE
FR
IT
NL
ES
PT
DK
FI
NO
SE
PL
TR
CN
JP
KR

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
WEIGHT OF BIKE: 56 KG
MAX USER WEIGHT: 150 KG
USER HEIGHT: SUITABLE FOR USERS BETWEEN APPROX. 155 AND 215 CM
REQUIRED FOOT PRINT: APPROX. 144 X 52 CM
MAX SADDLE & HANDLEBAR HEIGHT: APPROX. 120 CM
TECHNICAL SPECIFICATIONS:
The IC8 Power Trainer is, according to EN ISO 20957-1 and EN ISO 20957-5, a Class S B product
for use in a controlled environment such as sports or tness facilities
under the supervision of a trainer.
The IC8 Power Trainer uses a magnetic brake which provides resistance independent from the
speed (rpms) at which the training equipment is being used.
Electronic components adhere to DIN EN 60335-1 for electrical safety.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS P.5-6
GETTING STARTED P.7
HOW TO ASSEMBLE THE IC8 POWER TRAINER P.8-15
INSTALLATION AND DISPOSING OF BATTERIES P.16-17
HOW TO ADJUST THE IC8 POWER TRAINER P.18-20
HOW TO OPERATE THE IC8 POWER TRAINER P.21-24
PREVENTIVE MAINTENANCE P.25-29
MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE P.30-31
SPARE PARTS P.32-33
WARRANTY P.34

5
ENG
IMPORTANT
PRECAUTIONS
WARNING!
To reduce the risk of serious injury due to improper use of the
training equipment, carefully read and adhere to the following
important precautions and information before operating the bike.
1. It is the responsibility of the owner to ensure that all users
are informed of all warnings and precautions for proper use
of the training equipment and it is only authorized for use in
a supervised environment with qualied instructors.
2. Do not operate the training equipment until it has been properly
assembled and inspected as described in this manual.
3. Keep the training equipment away from moisture and dust. Do not place
the training equipment in a garage, covered patio, near water or pools.
Operating temperature of the training equipment has to be between
15°C~ 40°C Celsius (59°~104°F) at max. humidity of 65%.
4. Always place the training equipment on a stable, level surface.
If the training equipment is to be placed on a hardwood oor
or carpet, it is recommended to place a oor mat beneath
the bike, to protect the oor from becoming damaged.
5. The level of safety of the training equipment can only be guaranteed if it
is regularly checked for possible damage as well as wear and tear (e.g. xing
points, pedals, toe straps, etc.). Consult an authorized service provider or the
manufacturer to ensure the regular inspections are properly carried out.
6. Carry out all maintenance, care and service procedures as described
in this manual on a regular basis. Defective parts must be replaced
immediately, and the device must not be used until the repairs have been
carried out. Only use original parts from the manufacturer. Repairs must
only be carried out by from manufacturer authorized service technicians.
7. Unsupervised children should be kept away
from the training device at all times.

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
WARNING!
If you have pre-existing health problems or a disability, it is
recommended that you consult your physician, in order to
nd the training method which is best suited to you. Incorrect
or extensive training can result in serious health injuries.
The manufacturer expressly assumes no responsibility for
health risks, personal injury, property damage or consequential
damages sustained by or through the use of this device, unless
it is a case of consequential damage which can be traced
back to faulty material and/or manufacturing, and which
come under the responsibility of the manufacturer.
8. WARNING: The training equipment can be used by children
aged from 14 years and above and persons with lack of experience
and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Persons with reduced physical, sensory or mental
capabilities are prohibited from using the training equipment.
Children shall not play with the training equipment. Cleaning and user
maintenance shall not be made by children without supervision.
9. The training equipment must not be used by
persons exceeding weight of 330 lbs/150 kg.
10. Always wear appropriate tight-tting cycling or athletic attire and
sturdy shoes, preferably cycling shoes, while operating the bike. Unfastened
shoelaces may become caught in the drive system and lead to injury.
11. If you feel pain or dizziness while exercising, stop
immediately. It is recommended that you consult a doctor if
the pain does not subside for an extended period of time.
12. All data shown on the display serve merely as information and to
help guide training. Only exercise within your physical limitations.
13. This stationary training equipment is not
suitable for high accuracy purposes.
IMPORTANT
PRECAUTIONS

7
ENG
FLIP LEVER FOR VERTICAL
SADDLE ADJUSTMENT
DEAR CUSTOMER,
We would like to thank you for your condence and purchase. With the IC8 Power Trainer,
you have chosen a high-quality product, which is designed according to the latest technical
developments and thus fulls the highest standards in quality and reliability.
This high level of reliability can however only be ensured with regular care and maintenance.
Adhering to the maintenance procedures outlined in this manual will ensure a maximized
stability and prolonged lifespan in return for minimal maintenance eort. This will guarantee
long-standing, interruption-free operation.
Instructions on operation and managing training for the computer can be found in it‘s manual
also included with delivery.

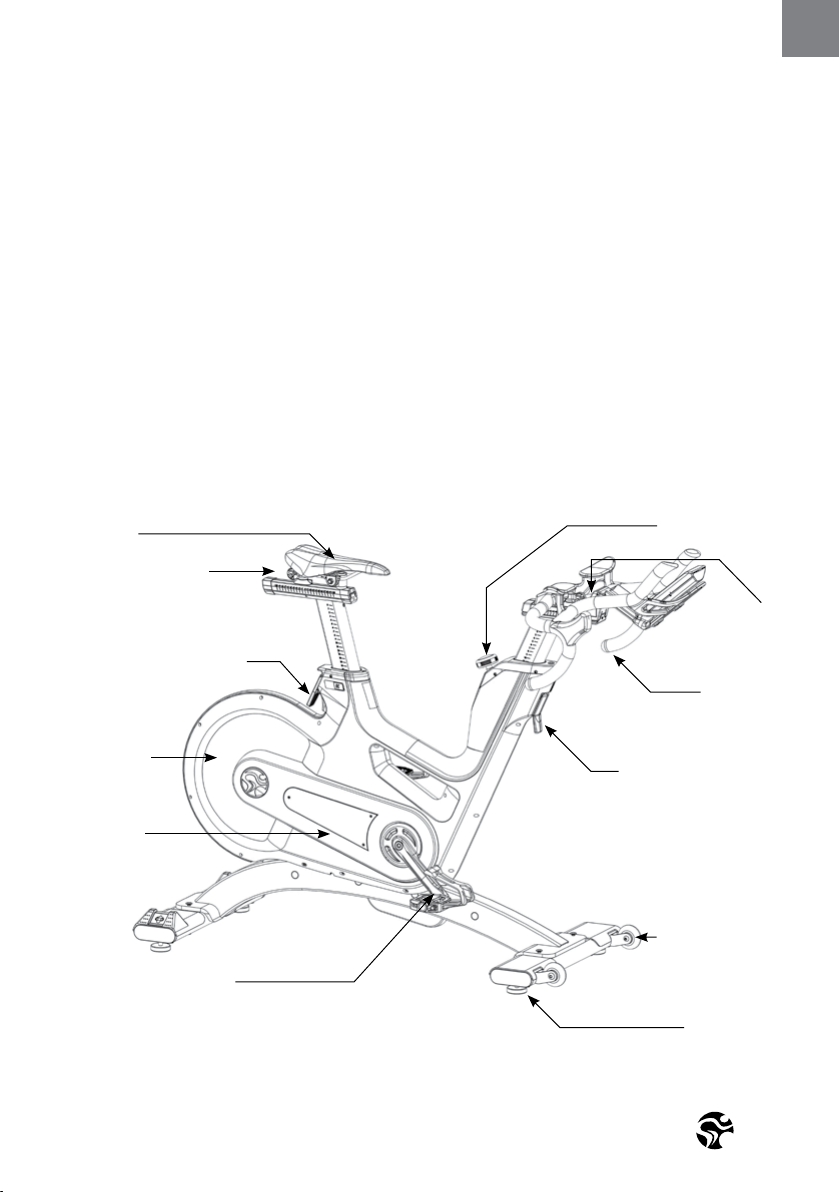

GETTING STARTED
SADDLE
THUMB LEVER FOR
HORIZONTAL SADDLE
ADJUSTMENT
FLYWHEEL
SHROUD
DUAL SIDED SPD PEDAL
THUMB LEVER
FOR HORIZONTAL
HANDLEBAR
ADJUSTMENT
FLIP LEVER FOR VERTICAL
HANDLEBAR ADJUSTMENT
HANDLEBAR
RESISTANCE KNOB
TRANSPORT WHEELS
LEVELING FEET
WARNING!
You will nd the production code for the IC8 trainer on the tag plate which is located on the lower left side of the frame
tube. Please enter this production code into care and maintenance lists.
It is a strict requirement to provide the production code in all warranty claims.

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
TORQUE WRENCH 17 MM 2
PEOPLE
WARNING!
Avoid high uctuations in temperature when transporting the bike from the store to the
installation site. If great uctuations in temperature cannot be avoided, please allow the bike
to acclimatize to the surrounding temperature before proceeding with assembly.
WARNING!
Please ensure that bolts are tightened with signicant force to minimize loosening during use.
If bolts are loosened after initial assembly, we recommend using medium-strength LOCTITE®
243 when reassembling.
1. 2.
50 NM
50 NM

9
ENG
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
2
PEOPLE
3. 4.
SET THE VERTICAL ADJUSTMENT OF THE
HANDLEBAR STEM TO THE HIGHEST POSITION
BEFORE BEGINNING WITH ASSEMBLY. DO NOT
REMOVE WARNING TAPE FROM THE SLIDER
PRIOR TO THE HANDLEBAR BEING ASSEMBLED.
WHEN SETTING THE HANDLEBAR INTO POSITION ON
THE SLIDER, MAKE SURE THAT THE CABLE IS FACING
UPWARDS THROUGH THE HANDLEBARS.
4.1 5.
MAKE SURE THAT THE CABLE IS IN THE ABOVE
POSITION BEFORE MOVING TO THE NEXT STEP.
LOOSELY FIT SCREWS BUT DO NOT TIGHTEN THEM.
HAND TIGHT 2.5 MM

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
6. 7.

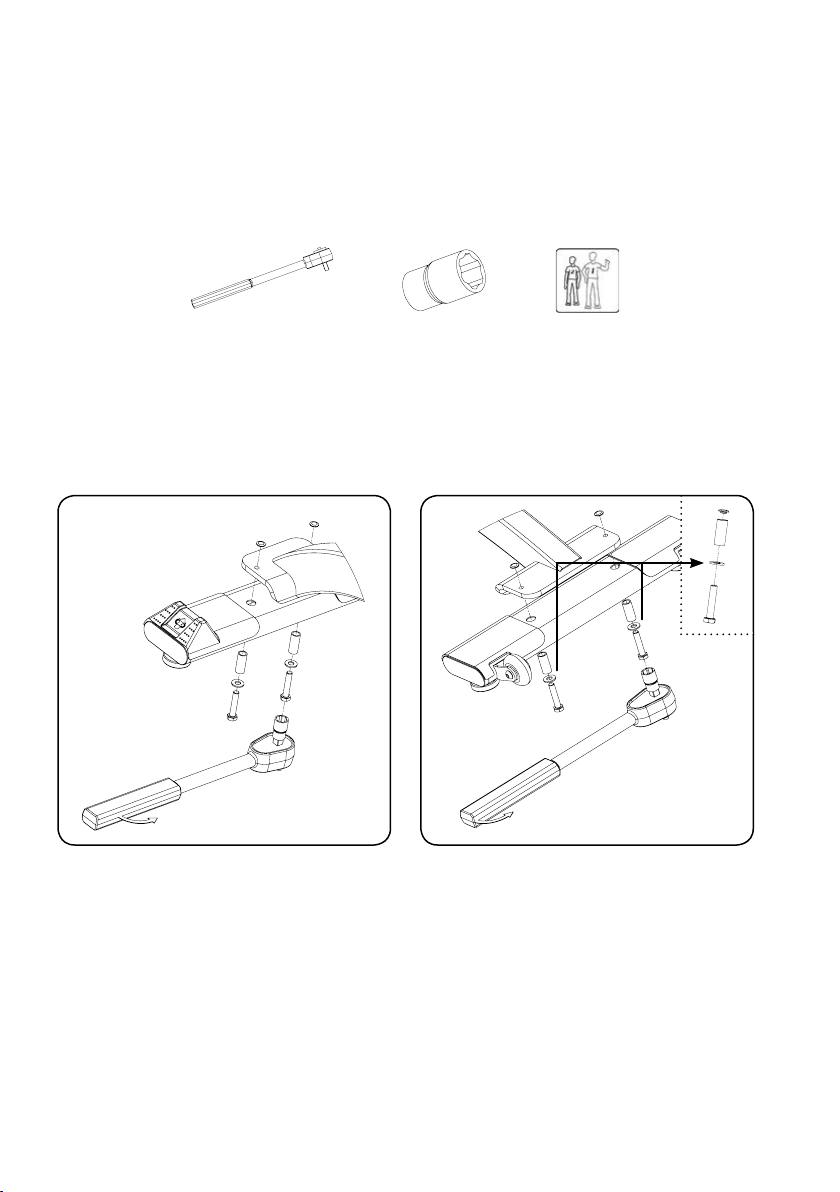

TORQUE THE BOLTS WITH 30 NM USING A TORQUE
WRENCH.
THE SUPPLIED COUNTERSUNK BOLTS ARE COATED
WITH NYLOC AT THE FACTORY TO PREVENT THEM
FROM BECOMING LOOSE DURING USE.
IF BOLTS ARE LOOSENED AFTER INITIAL ASSEMBLY,
WE RECOMMEND USING HIGH-STRENGTH LOCTITE®
2701 WHEN REASSEMBLING.
AFTER ASSEMBLY, REMOVE THE WARNING TAPE.
PUSH THE HANDLEBARS ONLY FORWARD!
NEVER MOVE THE HANDLEBAR BACKWARDS.
TORQUE WRENCH 6MM HEX SOCKET 2
PEOPLE
30 NM
8.

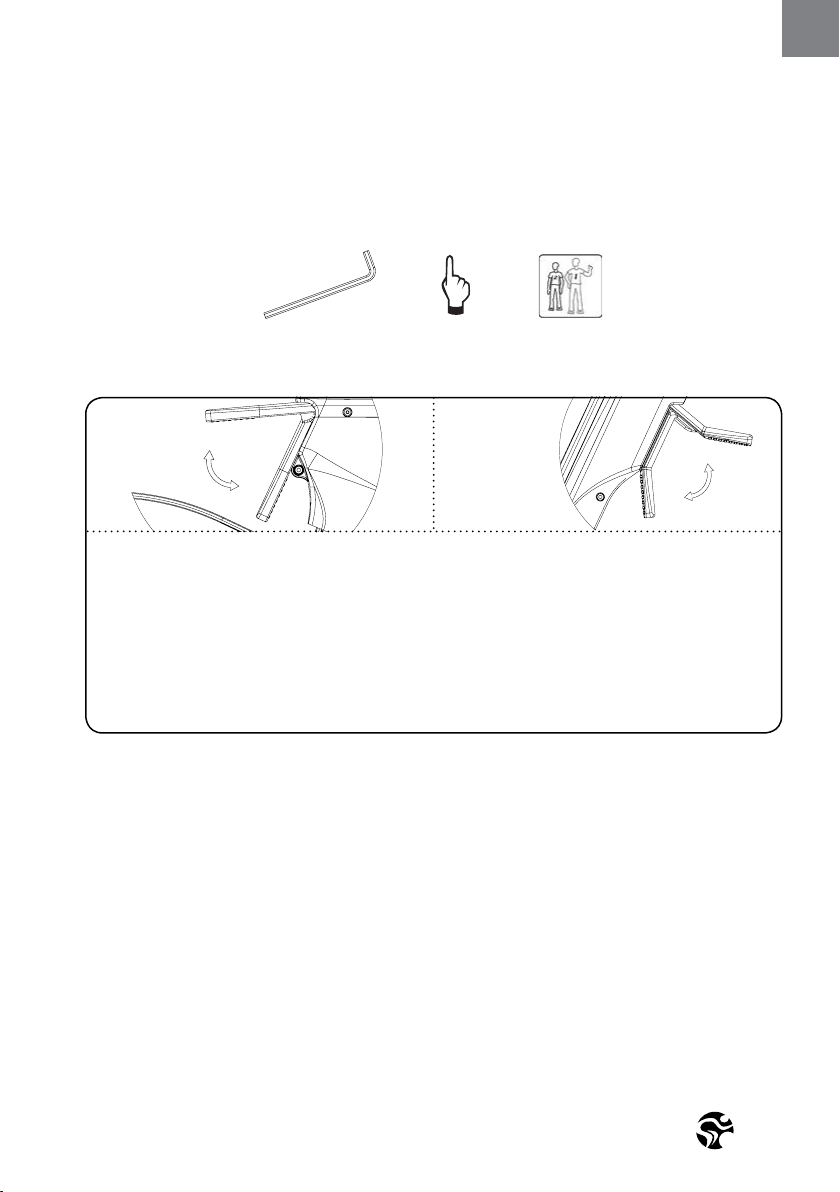

OPEN THE THUMBLEVER AND PUSH
THE HANDLEBAR FORWARD.
HAND TIGHTEN THE BOLTS FROM STEP 5.
2.5 MM

11
ENG
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
2
PEOPLE
9. 6.

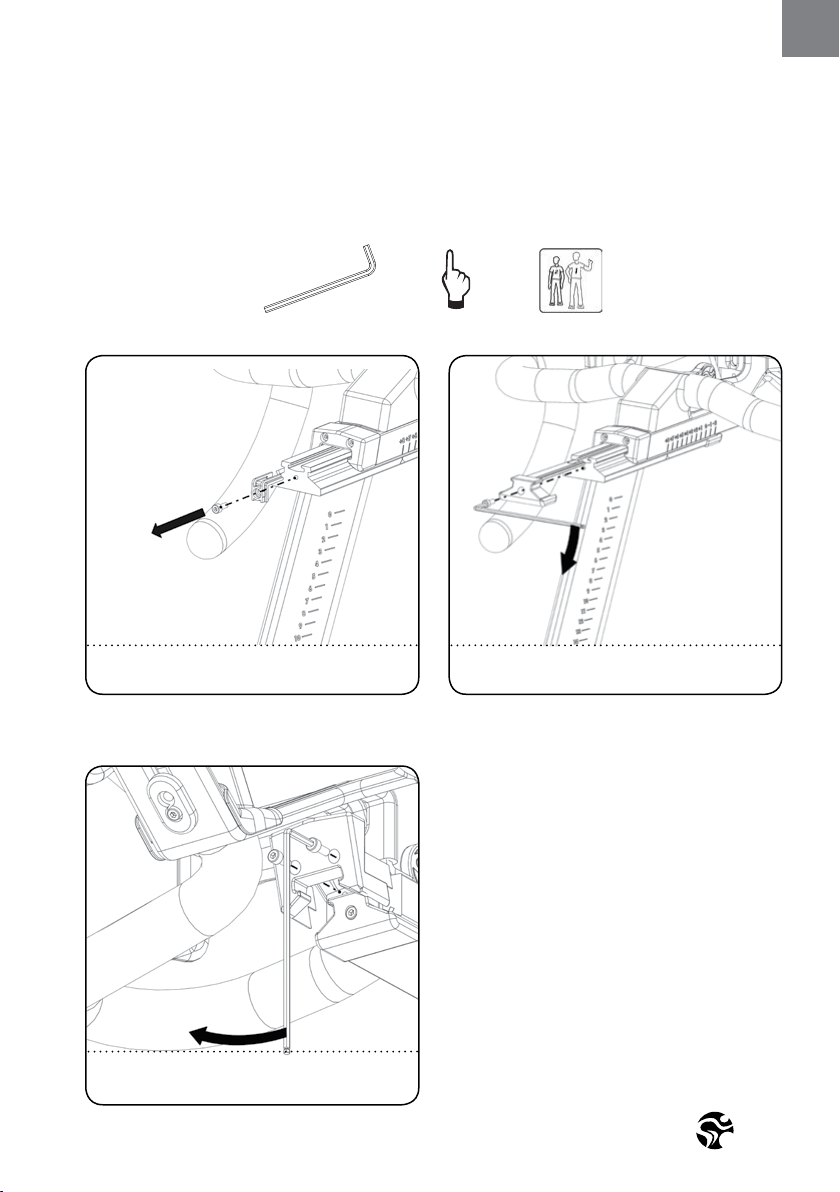

REMOVE THE LIMIT STOP FROM INSIDE THE
SLIDER. THE BOLT IS REUSED IN STEP 10.
3MM HAND TIGHT
MOUNT THE ENDCAP AND HANDTIGHTEN
USING THE LIMIT STOP BOLT.
10.
6.
11.
MOUNT THE ENDCAP FOR THE UPPER
HANDLEBAR SLIDER AND HANDTIGHTEN
USING THE LIMIT STOP BOLT.

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
2
PEOPLE
PLACE THE SMALL SIDE OF THE CONNECTOR
INTO THE BOTTOM OF THE BRACKET
HAND TIGHT
REMOVE THE BACKING OF THE TAPE FROM
THE COMPUTER BRACKET COVER.
14.13.1
REMOVE THE BACKING OF THE DOUBLE SIDE TAPE. INSERT THE CABLE INTO THE SLOTS AS DEPICTED ABOVE.
POSITION THE CONNECTOR ON THE TAPE AT THE TOP
OF THE BRACKET AND PRESS THE CONNECTOR AT
THE END OF THE CABLE INTO POSITION (SEE12.1).
12. 13.

13
ENG
16.
HAND TIGHTEN THE COVER TO THE COMPUTER
BRACKET WITH THE COUNTERSUNK BOLT.
POSITION THE COVER ON THE COMPUTER BRACKET.
15.
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
17.
TURN THE THUMBLEVER TO THE SIDE
AND HAND TIGHTEN THE BOLT.
SLIDE A SPACER WITH THE SMALL SIDE DOWN,
BETWEEN THE HANDLEBAR AND COMPUTER BRACKET.
16.1
2,5 MM HAND TIGHT 2
PEOPLE

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
20.
R
L
55 NM
WARNING!
Attach the pedal marked R on the right
crank and tighten by turning clockwise
(standard right-hand thread). Attach the
pedal marked L on the left crank and tighten
by turning counter-clockwise (left-hand
thread). Please make sure that both pedals
are fastened with sucient force (55 NM),
to ensure that the bolt does not become loose
during use.
The threads are provided with TufLok® at the
factory to prevent them from becoming loose
during use. If bolts are loosened after initial
assembly, we recommend using medium-
strength LOCTITE® 243 when reassembling.
OBSERVE ASSEMBLY
INSTRUCTIONS!
15 MM
PEDAL WRENCH
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
2
PEOPLE
3MM HAND TIGHT
SLIDE THE COMPUTER ON THE BRACKET. HAND TIGHTEN THE COMPUTER TO THE
HANDLEBAR USING THE SECOND SPACER.
18. 19.

15
ENG
21.
CHECK THE VERTICAL ADJUSTMENT, WITH THE FLIP LEVER OPENED,
FOR EASE OF MOTION WHEN ADJUSTING.
CHECK THE CLAMPING FORCE OF THE VERTICAL ADJUSTMENT WITH THE
FLIP LEVER CLOSED. MAKE SURE THE VERTICAL ADJUSTMENT PERFORMS SUFFICIENTLY.
ADJUST IF REQUIRED REFERING TO SERVICE GUIDELINES ON AVAILABLE ON
MANUFACTURER‘S SERVICE WEBSITE OR CONTACT YOUR LOCAL DISTRIBUTOR.
22.
HOW TO ASSEMBLE THE
IC8 POWER TRAINER
2
PEOPLE
3MM HAND TIGHT

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
INSTALLATION
Instructions stated in this manual must be performed during initial installation of the
training equipment in order to ensure optimal performance and a long lifespan. Please
read and follow the following instructions carefully. If the bike is not installed and
congured as described, the components may be subjected to excessive wear and tear
and the bike may become damaged. If you have any questions regarding installation,
please contact [e-mail].
Please note: Lubricants are required for some maintenance procedures. Please only use an
acid- and solvent-free spray lubricant and white lithium grease.
1. Make sure the bike is level. If bike rocks on the oor, turn the levelling feet underneath the
front and/or rear stabilizer until the rocking motion is eliminated. Make sure that the levelling
feet are not screwed out further than 10 mm.
2. Check that both crank arm Allen bolts, with which the cranks (on the right and left side of the
bottom bracket) are fastened, are secure (tightening torque 60 NM). These bolts are provided
with TufLok® at the factory to prevent them from becoming loose during use.
If the bolts become lose, we recommend applying medium-strength LOCTITE® 243 and then
reattaching the crank xing bolts with a tightening torque of 60 NM.
3. Wipe down bike frame with a rag moistened with solvent-free spray lubricant.
4. Some parts of the bike may become loose during shipment. Check crank arms and all exposed
screws, bolts and nuts, and make sure that they are all secure and properly tightened.
CUSTOMER SERVICE
1. Provide the customer with basic maintenance instructions, and direct them to detailed
maintenance instructions.
2. Have the sign-o sheet for the manual, explanation of maintenance procedures and
verication of impeccable condition of the bikes conrmed by the customer when handing over
the goods. A copy of this conrmation counter-signed by yourself is withheld by the customer.
3. Repairs must only be carried out by manufacturer authorised service technicians.

17
ENG
DISPOSING OF BATTERIES
BATTERIES MAY NOT:
• come into contact with re.
• come into contact with coins or other metallic objects.
Products or batteries labelled with this symbol may not be disposed of along with normal
household refuse. For proper disposal, please nd out about the applicable laws or guidelines
on disposing of electrical devices and batteries in your local area and adhere to them.

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
The training equipment can be very easily adjusted, depending on the requirements of various
user groups. This enables maximum riding comfort to be ensured whilst achieving optimal
training results. The congurations described in the following paragraphs demonstrate
just a few of the most often used adjustment variations of which the training equipment is
capable. It is up to the user to adjust the training equipment to a riding position best suited
to their requirements.

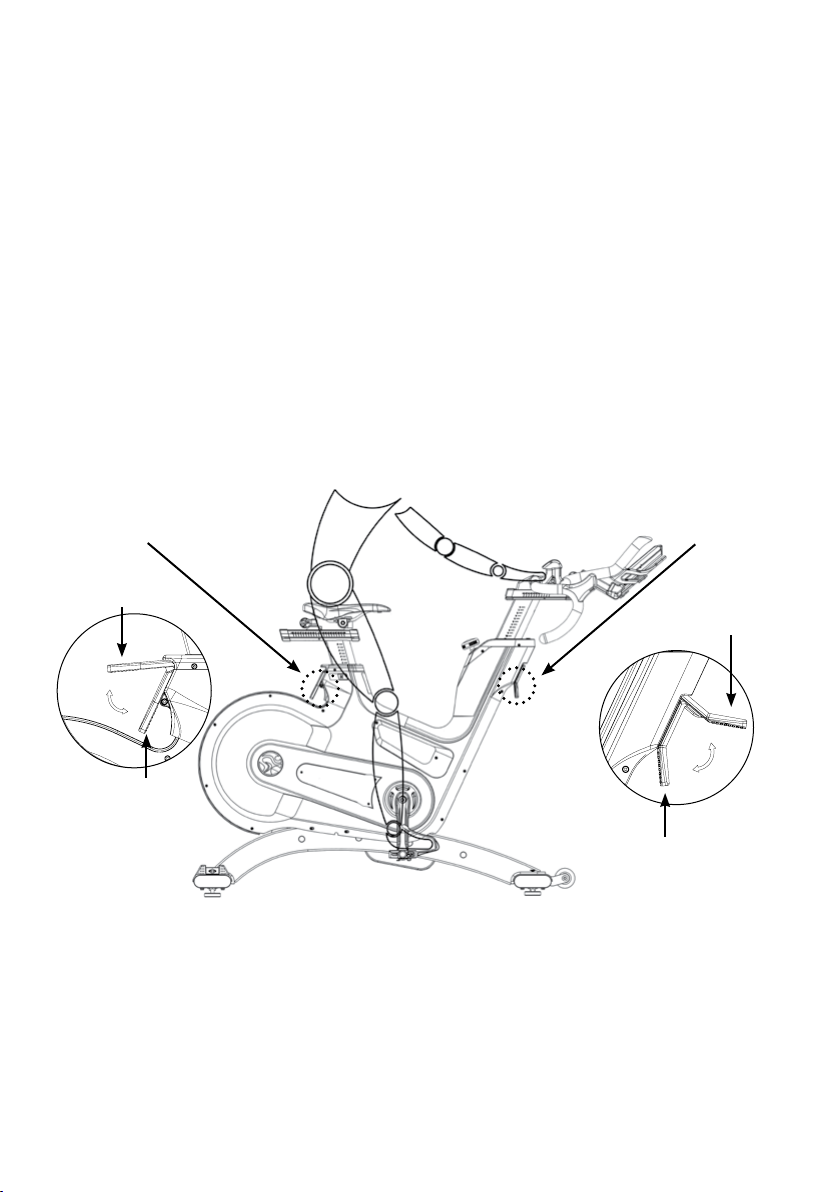

ADJUSTING THE SEAT HEIGHT:
Sit on the saddle and ensure that your hip is not tilted to one side when the pedal has assumed
the position as shown in the picture. Place your shoes in the toe clips (cages) on the pedals, or
in the SPD cleats if you are using cycling shoes, if your bike is tted with a combi pedal system.
HOW TO ADJUST THE
IC8 POWER TRAINER
VERTICAL HANDLEBAR
ADJUSTMENT
WARNING!
Do not adjust seat and handlebar during exercise. Ensure that all levers (vertical and horizontal)
are closed, before you sit on the bike and always step o the bike when making adjustments to
the handlebars and/or saddle.
Start pedalling slowly, until the pedal has reached the position as shown in the picture.
The vertical saddle sliders should be adjusted so that your knees are always slightly bent
when this pedal position is reached, without dropping your hip one side. Rule of thumb:
When standing next to the bike, the upper edge of the saddle should be a hand‘s width/four
ngers below your iliac crest. Please avoid cycling with your knees fully extended or your hip
tilted to one side.
VERTICAL SADDLE
ADJUSTMENT
CLOSED
CLOSED
OPEN
OPEN

19
ENG
WARNING!
Ensure that all levers (vertical and horizontal) are closed, before sitting on the bike and always step o the bike when
making adjustments to the handlebars and/or saddle.
ADJUSTING THE SADDLE HORIZONTALLY:
Properly positioning the saddle horizontally is very important in order to avoid injury to the
knees. Sit on the saddle and move the pedals until the crank arms are in the horizontal position.
The knee of your forward-facing leg should be positioned directly above the centre of the pedal.
If this does not correspond to your bike‘s setting, please align the horizontal saddle adjustment
to the front or rear in order to attain this seat position.
HOW TO ADJUST THE
IC8 POWER TRAINER
HORIZONTAL
SADDLE ADJUSTMENT
HORIZONTAL
HANDLEBAR ADJUSTMENT
OPEN
OPEN
CLOSED
CLOSED

Version 1.0 2017 IC-LFIC8C1-01 Copyright by Indoor Cycling Group GmbH 2017 | www.indoorcycling.com
HOW TO ADJUST THE
IC8 POWER TRAINER
The next step is to adjust the horizontal position of the handlebar as precisely as possible to your
height. An ideal and protective seating position for inexperienced riders is achieved if your back
assumes an inclination at an angle of 45°.
The handlebars oer a wide variety of hand positions and adjustment possibilities, which provide
the experienced rider with every possibility to nd his/her ideal seating and hand positioning.
It is recommended to change hand positions frequently during extended workouts in order to
minimise one-sided and monotonous exertions on your muscles, ligaments and joints.
HANDLEBAR POSITIONING:
Begin with the top of the handlebars at approximately the same height as the saddle
(dotted horizontal line A in the drawing below) for inexperienced users set to the“0“ marking
(see dotted vertical line B in the drawing below). If your knees touch the handlebars or if
you experience back discomfort when pedalling in the standing riding position for extended
periods, the handlebars should rst be adjusted slightly higher.
A.
B. Horizontally
adjusting the handlebars
using the lever
Vertically
adjusting the handlebars
using the lever
