WELCOME TO YOUR NEW SPA EXACT®EZ PHOTOMETER
This guide shows you the technical details on your Spa eXact®EZ
photometer and gets you started with tips for the tests you will use daily.
Your Spa eXact
®
EZ Photometer comes with:
Cleaning Brush
Quick Start Guide
6 Strips each of: Bromine (DPD-1), Free Chlorine (DPD-1),
Combined/Total Chlorine (DPD-3), pH, Calcium Hardness, and
Total Alkalinity
You will need Four (4) AAA batteries and a Phillips head screwdriver to
start testing your water.
BATTERY INSTALLATION (BATTERIES NOT INCLUDED)

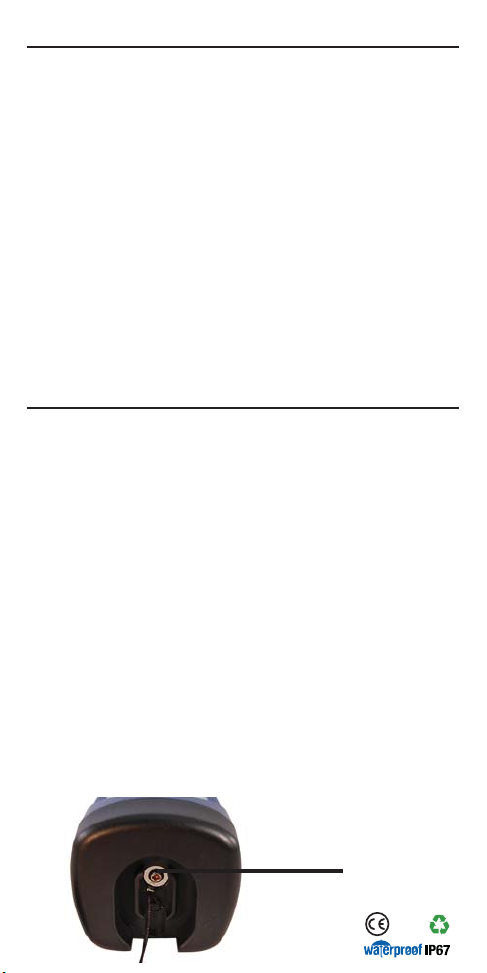

1. Use a Phillips head screwdriver to remove the screw from the
base of your Spa eXact®EZ Photometer.
2. Remove the base.
3. Install 4 new AAA batteries as illustrated inside your Spa
eXact®EZ Photometer. We recommend using high quality
batteries.
4. Replace the base firmly with pressure while tightening the
screw. The meter will power on automatically.
CONTENTS
WELCOME
Welcome
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Meter Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Fill, Dip, Read
Standard Strip Method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Combined/Total Chlorine Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
About
Accuracy and Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Health Department Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . .10
About the Built-In Sample Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Assigned Value for Ready Snap
®
3 . . . . . . . . . . . . . . . . . . . . . . . . .10
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Reorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SCREW
Unscrew to
remove base

3
We developed the revolutionary Spa eXact
®
EZ photometer to easily
maintain spa water quality. It uses state of the art technology to
produce lab-quality results on-site. The Spa eXact
®
EZ photometer
is waterproof (IP-67) and has a built-in sample cell to enhance
usability.
METER OVERVIEW
SAMPLE CELL
Built-in plastic 4ml cell for
collecting your water sample
LCD DISPLAY
Displays results and
test name
READ BUTTON
Starts test timer
MENU BUTTON
Cycles through test
menus
BASE
Install/replace batteries here
(IP67 rated waterproof)
RESULT
UNITS
LOW
BATTERY
LCD DISPLAY
ZERO/ON BUTTON
Turns the meter on and
creates a baseline for
your water testing
CELL COVER
Covers the cell for
mixing and bright light
situations
&RPELQHG&KORULQH'3'7HVWUHTXLUHV)UHH&KORULQH'3'WREHUXQ¿UVW
)RUUHVHOOHUVDQGGLVWULEXWRUVSURGXFWVVROGLQFDVHTXDQWLWLHVXQLWVSHUFDVH
PARAMETER/TEST
No. PART # RANGE (ppm)
1
2
3
4
5
6
7
For use in accordance with 863DWHQW1R863DWHQW1R6RXWK$IULFDQ3DWHQW1R
(83DWHQWDQG,QWHUQDWLRQDO3DWHQW$SSOQ1R3&786
1
9DOXHSURYLGHGUHSUHVHQWVEHVWSRVVLEOHDFFXUDF\XQGHUODERUDWRU\FRQGLWLRQVEXWPD\YDU\WKURXJKRXWWKHGHWHFWLRQUDQJH
RESOLUTION
H;DFW6SD:DWHU5H¿OO.LW
%URPLQH7RWDO
$ONDOLQLW\7RWDO
Calcium (as CaCO3)
&KORULQH)UHH'3'
&KORULQH&RPELQHG'3'
&KORULQH7RWDO'3'
pH
486212
486636
486641

486637
486638

,,
1$






S+
1$
SSP
1
1




R110314
Spa eXact®EZ Photometer Specifications
BEST
1
ACCURACY %
1$


5
5
5
8
5
All tests have been calibrated at 100°F / 38°C

4
This method can be used with the following tests:
Total Alkalinity Free Chlorine (DPD-1)
pH Total Bromine
Calcium Hardness (20 sec count-up)
Remove one eXact
®
Strip Micro (e.g. Free Chlorine / DPD-1)
from the bottle or foil packet and set in a dry, convenient place.
Turn meter on by pressing . The display will indicate
current MENU, followed by the last test result.
Press and re-press until the display shows the
parameter to be tested (e.g. CL1 matches CL on bottle).
STANDARD SPA STRIP METHOD
1
2
3
FILL, DIP, READ
CL1

5
Rinse the sample cell 3 times with the water sample you are
testing and FILL the built-in sample cell.

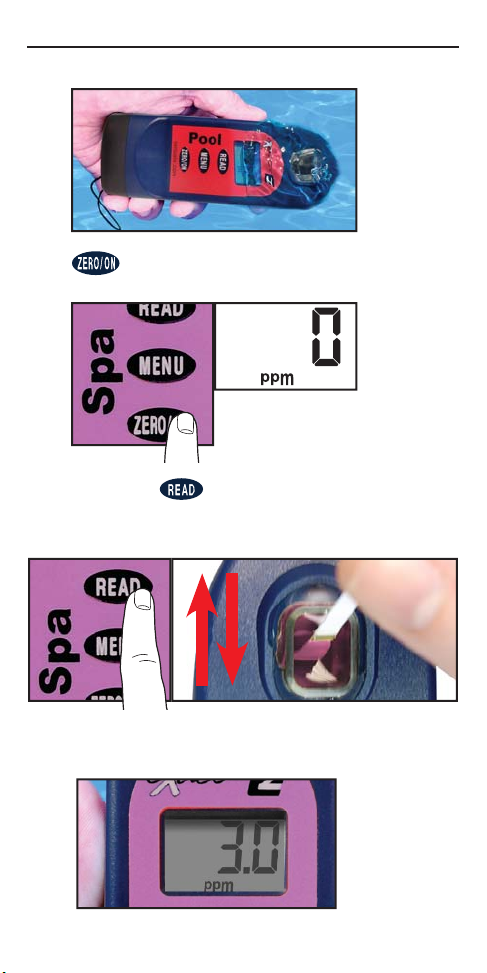

Press . The cursor will move across the display
followed by 0 PPM or PH.
DIP the eXact
®
Strip Micro into the sample cell and
simultaneously press . This starts the 10 SECOND
countdown timer. During this time move the strip in a gentle
back and forth motion (approx. 2 strokes/sec). Remove and
discard the strip after “1” on the display disappears.
The cursor will move across the display while the meter
prepares to measure the sample. READ result displayed. After
testing is complete, rinse the sample cell immediately.
5
6
7
FILL, DIP, READ
4
NOTE If running the Combined Chlorine test, keep the sample in the
sample cell.

6
This procedure is a continuation from Standard Strip Method
on previous page after running Free Chlorine (DPD-1). DO
NOT DISCARD SAMPLE AFTER FREE CHLORINE TEST.
Remove one (1) eXact
®
Strip Micro CL (DPD-3), Part No. 486638
from the bottle or foil packet. Set it in a dry, convenient place.
With the DPD-1 sample still in the cell, press .
The display reads 0 PPM.
DIP the eXact
®
Strip Micro CL (DPD-3) into the CELL
and simultaneously press . This starts another
10
SECOND
countdown timer. During this time move the
strip in a gentle back and forth motion (approx. 2 strokes/
sec). Remove and discard the strip after “1” on the display
disappears.
FILL, DIP, READ
8
9
10
COMBINED/TOTAL CHLORINE TEST

7
The cursor will move across the display while the meter
measures the sample. READ the Combined Chlorine value
displayed.
If you require a value for Total Chlorine, press
again and record result displayed. After testing is
complete, rinse the sample cell immediately.
FILL, DIP, READ
11
12
SCAN FOR TEST
DEMO VIDEO

8NOTES
_______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
________________________________________________________________
________________________________________________________________

9
NOTES
_______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
_ _______________________________________________________________
________________________________________________________________
________________________________________________________________

10 ABOUT
ACCURACY & CALIBRATION
All tests have been calibrated at 100°F/38°C using certified reference
standards and standard analytical spectrophotometric methods. The
algorithms in the software reflect the best correlation of the Spa eXact
®
EZ system against the AWWA, US EPA , DIN, and ISO reference test
methods for chlorine. Studies show that the Spa eXact
®
EZ System
repeatedly agrees with an EPA Compliant reference method greater
than 99%. The Spa eXact
®
EZ meter Advanced Photometric System has
been factory calibrated and you can expect the fixed calibrations in the
meter to be valid for the life of the meter because of the quality, Long-
Life LED, the photo cell, and the software.
HEALTH DEPARTMENT COMPLIANCE
This DPD test system for Chlorine and Bromine are USEPA (DIN
Standard 38 408 G4, ISO 7393/2) accepted for testing requirements for
Free and Total Chlorine. The compliance requirement is a photometer
wavelength to measure between 490 and 530nm. The Spa eXact®EZ
photometer uses a 525nm wavelength. The eXact®Strip Micro CL (DPD-
1) uses the same reagents and proportions, and the resulting solution
pH is maintained between 6.2 and 6.5 as specified by AWWA method
4500-Cl G. The USEPA does not “approve” commercial DPD delivery
systems. The eXact®Strip Micro CL (DPD-1) for Free Chlorine, and the
eXact®Strip Micro CL (DPD-3) for Combined Chlorine or the
eXact®Strip Micro CL (DPD-4) for Total Chlorine meet your
reportable testing requirements because the eXact®Strip
Micro CL delivers the same chemicals in identical proportions.
ABOUT THE BUILT-IN SAMPLE CELL
The built-in sample cell is made of transparent plastic; the sturdy cell design
will last for over 20,000 readings. Scratches on the cell will not compromise
the accuracy of your results because of the cell’s fixed position.
CLEANING THE SAMPLE CELL
Fill the sample cell with water and use the enclosed cleaning brush
to scrub the sample cell thoroughly. Rinse the cell. You can use dish
soap or distilled white vinegar for cleaning the cell if needed. NEVER
use solvents such as acetone.
COMPONENT
(FREE CHLORINE)
AWWA
4500-CL G
EXACT®
DPD-1
Anhydrous DPD sulfate 1.5% 1.5%
Anhydrous Na2HPO433.4% 33.4%
Anhydrous KH2PO4Na264.0% 64.0%
EDTA 1.1% 1.1%
®

11
• The Spa eXact®EZ photometer has a 5 minute automatic shutdown timer.
• Each test menu can store 20 results. To retrieve the stored results, go to the desired
test using the MENU key. When the desired test is displayed, press and hold down the
MENU key. Continue holding down the MENU key to scroll the stored results for that
test, starting with the most recent result. The meter will display, from memory, the last
20 readings in sequence beginning with -20, which is the latest result, followed by -19,
which is the 2nd latest result, etc; and finally -01, which is the oldest result retained.
Only the last 20 readings are stored in each menu. This meter is able to store 100
results in memory (20 in each menu).
• Before testing, rinse the meter sample cell with the sample water 3 times.
• Spa water samples should be taken 18 inches below the surface. Submerge the meter
with open cell facing down 18 inches then turn meter upright at that depth to fill the cell.
Remove meter from water with the sample for testing.
• Always fill the cell to capacity (4ml); be careful not to splash liquid over the side.
• Test immediately after filling the cell with the water sample.
• To obtain optimal accuracy when testing outdoors (sunlight), use the cell cover when
zeroing and reading the sample.
• Due to the strip slitting process, you may find one or two strips that are noticeably
smaller or larger in width than the normal strips in the bottle. These should be
discarded. Using these strips may give unreliable results.
• Meter is not compatible for use with powder pillows, tablets, or liquids from other
manufacturers.
• Dip strip for entire countdown.
• Each eXact®Strip Micro is valid for ONLY one test. Discard strip after use.
• Dry the outside of the meter before storage.
• Remove batteries before storing for prolonged periods.
• Store the meter and test materials out of direct sunlight and away from chemical
storage areas.
• Minimize exposure of meter and test reagents to heat above 90°F (32°C).
• When installing batteries, verify the O-ring is still attached to the screw before
tightening.
• Cleaning the cell with water and brush after each test is recommended for best
accuracy and prior to storage of unit.
TIPS
Issue Cause Solution
Dim screen or no Low battery Replace batteries
response from meter
Low battery Replace batteries
LO on LCD Display Dirty cell Clean cell (see pg.15)
while zeroing Cloudy sample Dilute sample or use sieve
Bad LED Contact ITS.
HI on LCD Display Result above
while reading detection level Re-run test to verify result
LO on LCD Display Result below
while reading detection level Re-run test to verify result
LO flashes on LCD Improper test procedure Re-read test procedure
Display, then Err for Combined Chlorine
and follow directions carefully
HI flashes on LCD Combined Chlorine result Re-run test to verify result
Display, then Err above detection level Dilute and re-run test
Total Chlorine result Improper test procedure Re-read test procedure
less than Free Chlorine and follow carefully
TROUBLESHOOTING

12
1875 Langston Street
Rock Hill, SC 29730 USA
[phone] | [phone]
[email protected] | SENSAFE.COM
UK Centre for Homeland Security
Building 7
Chilmark Salisbury, Wiltshire
SP3 5DU UK
[phone]
[email protected] | ITSEUROPE.CO.UK
ITS Europe Ltd.
Innovators of Water Quality Testing
SENSAFE ITSSENSAFE
WARRANTY
Registration of your eXact®photometer must be received within 30 days from date of
purchase to activate the warranty. Registration is available over the phone [phone]-
9712 Ext. 0) or online at http://www.sensafe.com/product-registration-form/ (Personal
data is kept confidential). The eXact®photometer is warranted to be free from defects
in materials and workmanship for a period of two (2) years from the date of purchase by
the customer. ITS will repair or replace, at its discretion, product which is deemed to be
faulty due to manufacturing defect. Warranty does not cover product damage caused by
abuse (such as crushing a tablet in the cell), battery corrosion damage, or improper use.
If the meter is faulty or otherwise defective contact ITS by phone [phone] Ext.
0) or email ([email protected]) to describe the problem and obtain a return authorization
form before returning the photometer to ITS. Damage caused by improper packing of the
photometer for return shipment to ITS will not be covered by the warranty. Customer is
responsible for shipping charges to ITS. ITS pays postage when photometer is returned
to customer. A maximum processing fee of $75 will be charged for repair or replacement
of non-registered photometers and damages not covered by this warranty. The repair
or replacement of the photometer will not extend or renew the period of guarantee. This
warranty does not affect your statutory rights. The warranty is not transferable.
REORDER
TECHNICAL SUPPORT
Please visit www.sensafe.com/spa-ez for the latest technical
information and how-to videos.
For additional technical support, call [phone] or send us an
email at [e-mail].
R1114
&RPELQHG&KORULQH'3'7HVWUHTXLUHV)UHH&KORULQH'3'WREHUXQ¿UVW
)RUUHVHOOHUVDQGGLVWULEXWRUVSURGXFWVVROGLQFDVHTXDQWLWLHVXQLWVSHUFDVH
PARAMETER/TEST
No. PART # RANGE (ppm)
1
2
3
4
5
6
7
For use in accordance with 863DWHQW1R863DWHQW1R6RXWK$IULFDQ3DWHQW1R
(83DWHQWDQG,QWHUQDWLRQDO3DWHQW$SSOQ1R3&786
1
9DOXHSURYLGHGUHSUHVHQWVEHVWSRVVLEOHDFFXUDF\XQGHUODERUDWRU\FRQGLWLRQVEXWPD\YDU\WKURXJKRXWWKHGHWHFWLRQUDQJH
RESOLUTION
H;DFW6SD:DWHU5H¿OO.LW
%URPLQH7RWDO
$ONDOLQLW\7RWDO
Calcium (as CaCO3)
&KORULQH)UHH'3'
&KORULQH&RPELQHG'3'
&KORULQH7RWDO'3'
pH
486212
486636
486641

486637
486638

,,
1$






S+
1$
SSP
1
1




R110314
Spa eXact®EZ Photometer Specifications
BEST
1
ACCURACY %
1$


5
5
5
8
5
