Infineon TLE5014 User manual

Application Note 1 Rev. 1.0
www.infineon.com 2017-08-02
TLE5014 Programmer
Application Note
About this document
Scope and purpose
This document describes the Evaluation Kit for the TLE5014 GMR based angle sensor.
The purpose of this manual is to describe the software installation process and how to use the TLE5014 angle
sensor Evaluation Kit.
Intended audience
This document is intended for anyone who wants to use the TLE5014 Evaluation Kit.

Application Note 2 Rev. 1.0
2017-08-02
TLE5014 Programmer
About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1 General description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Sensor connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 TLE5014 satellite board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Jumper setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Programmer connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Angle read-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 User menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 EEPROM Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.2 Program by feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.2.1 PWM frequency calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3 Read SSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.4 Burn Angle Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Look-up table programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 EEPROM map PWM interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 EEPROM map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 TLE5014 EEPROM 0x00A2H: PWI_MD_USR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3 Angle base calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 SPC address configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Comments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table of contents

Application Note 3 Rev. 1.0
2017-08-02
TLE5014 Programmer
General description
1 General description
The programmer consists of an Infineon XMC1100 Boot Kit and a “shield”, which can be plugged onto the
Boot Kit.

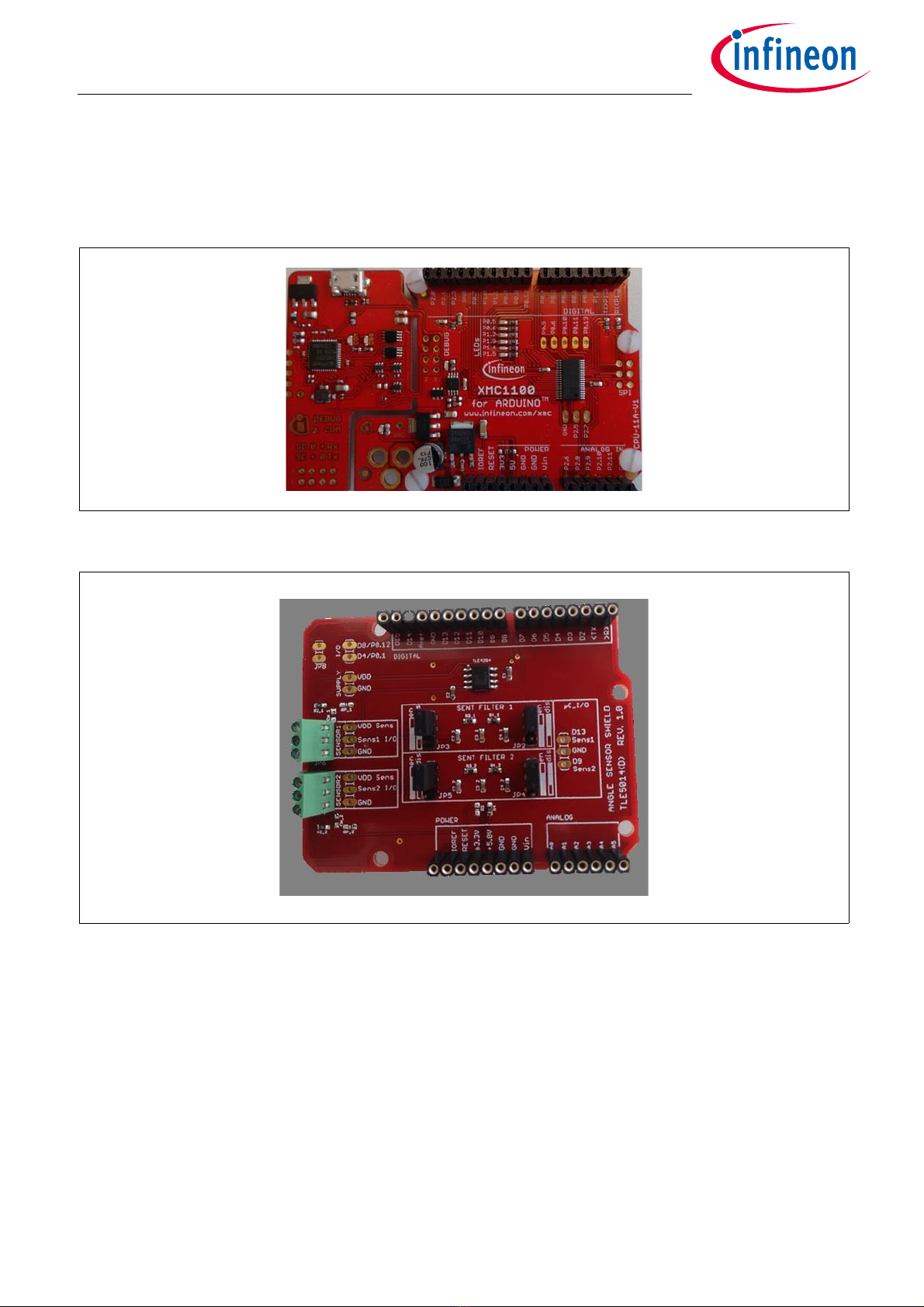

Figure 1 Infineon XMC1100 Boot Kit
Figure 2 TLE5014 programmer shield
The software consists of one file: TLE5014 - BootKit – V2.x.x.zip
For connection to a PC, a USB cable is required.

Application Note 4 Rev. 1.0
2017-08-02
TLE5014 Programmer
General description
1.1 Sensor connection
The shield has to be plugged onto the Boot Kit. Care has to be taken that the correct pins are connected.
The TLE5014 can be connected via a cable to the shield.
Three connections are required:
•VDD
•I/O
•GND
The shield supports two sensors with separated connectors.

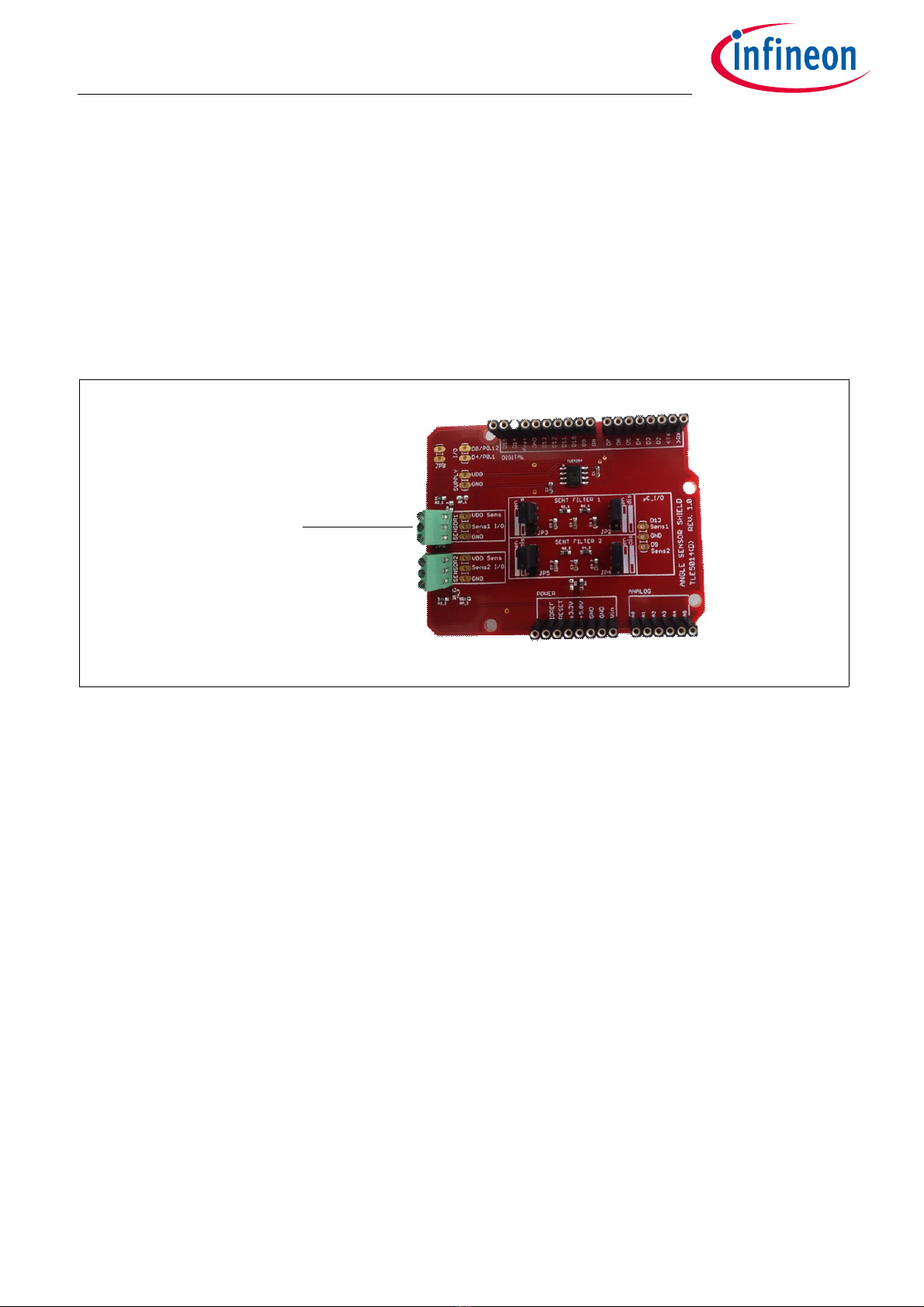

Figure 3 TLE5014 sensor connection
Care has to be taken that all pins of the TLE5014 are connected according to the TLE5014 datasheet.
TLE5014
connection

Application Note 5 Rev. 1.0
2017-08-02
TLE5014 Programmer
General description
1.2 TLE5014 satellite board
A satellite board is provided with a TLE5014D dual channel angle sensor which can be connected to the shield
of the Eval Kit. The TLE5014 on this board is pre-programmed with the following settings:
• SENT single secure sensor (incl. rolling counter and inverted nibble)
• UT=3.0 µs, pause pulse, no short serial message
The sensor is fully configurable and can be set to different protocol options and interfaces (SENT, SPC, PWM).
For a SPC bus mode:
• channel 1 has the default hard-wired address ID=0
• channel 2 has ID =1
It is possible to change the address by changing the “zero-ohm” resistors on the board (see figure and table
below).
Figure 4 Satellite board
Table 1 Change the address
RIF1_1C RIF1_1G RIF2_1C RIF2_1G
ID = 0 x x
ID = 1 x x
ID = 2 x x
ID = 3 x x

Application Note 6 Rev. 1.0
2017-08-02
TLE5014 Programmer
General description
1.3 Jumper setting
Note: For reading/writing the EEPROM the SENT filter has to be disabled.
Table 2 Jumper setting
Jumper Position Description
J2/J3 en SENT filter for sensor 1 enabled
J2/J3 dis SENT filter for sensor 1disabled
J4/J5 en SENT filter for sensor 2 enabled
J4/J5 dis SENT filter for sensor 2 disabled

Application Note 7 Rev. 1.0
2017-08-02
TLE5014 Programmer
Installation
2 Installation
1. Download and install the Seeger driver from following web page:
https://www.segger.com/downloads/jlink/JLink _Windows.exe
2. Connect the programmer with an USB cable to an USB 2.0 port.
3. Install the programmer software by double-clicking on the file: TLE5014 – BootKit – V2.x.x.msi.
4. Start the installed software TLE5014 – BootKit.
5. If you use the microcontroller the first time or if you use a new software revision, click on the Flash MCU
button (µC is flashed with firmware).

Application Note 8 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
3 Programming
3.1 Programmer connection

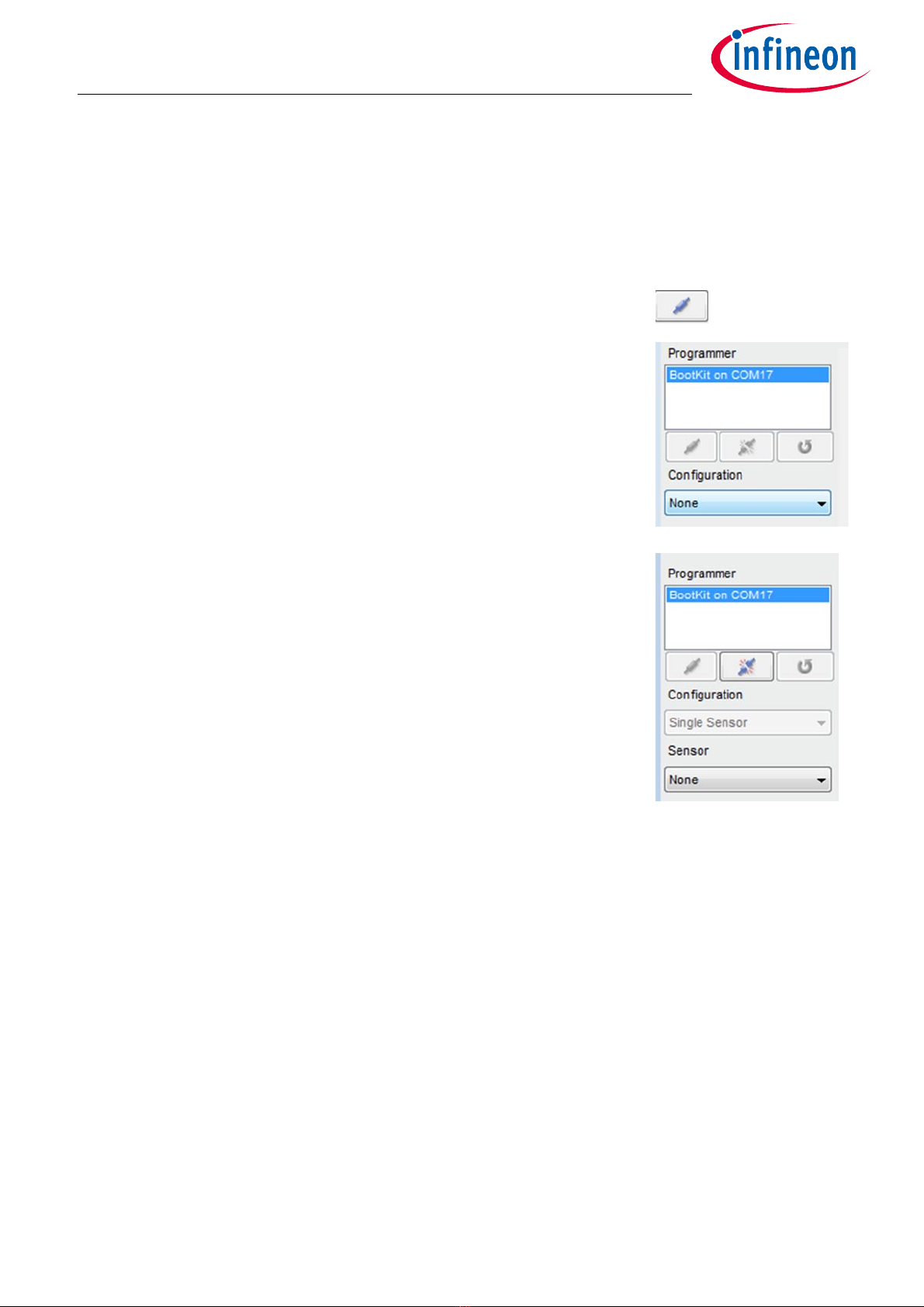

After starting the software, click the Connect button to connect the Programmer.
In the Configuration drop-down list select your configuration:
• Single sensor (= no bus operation)
• Bus operation (several sensors on one SPC line)
In the Sensor drop-down list select the sensor which you want to read. The
Eval Kit supports two channels which correspond to the two connectors on the
PCB:
• TLE5014 CH1 = Sens1
• TLE5014 CH2 = Sens2

Application Note 9 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
3.2 Angle read-out

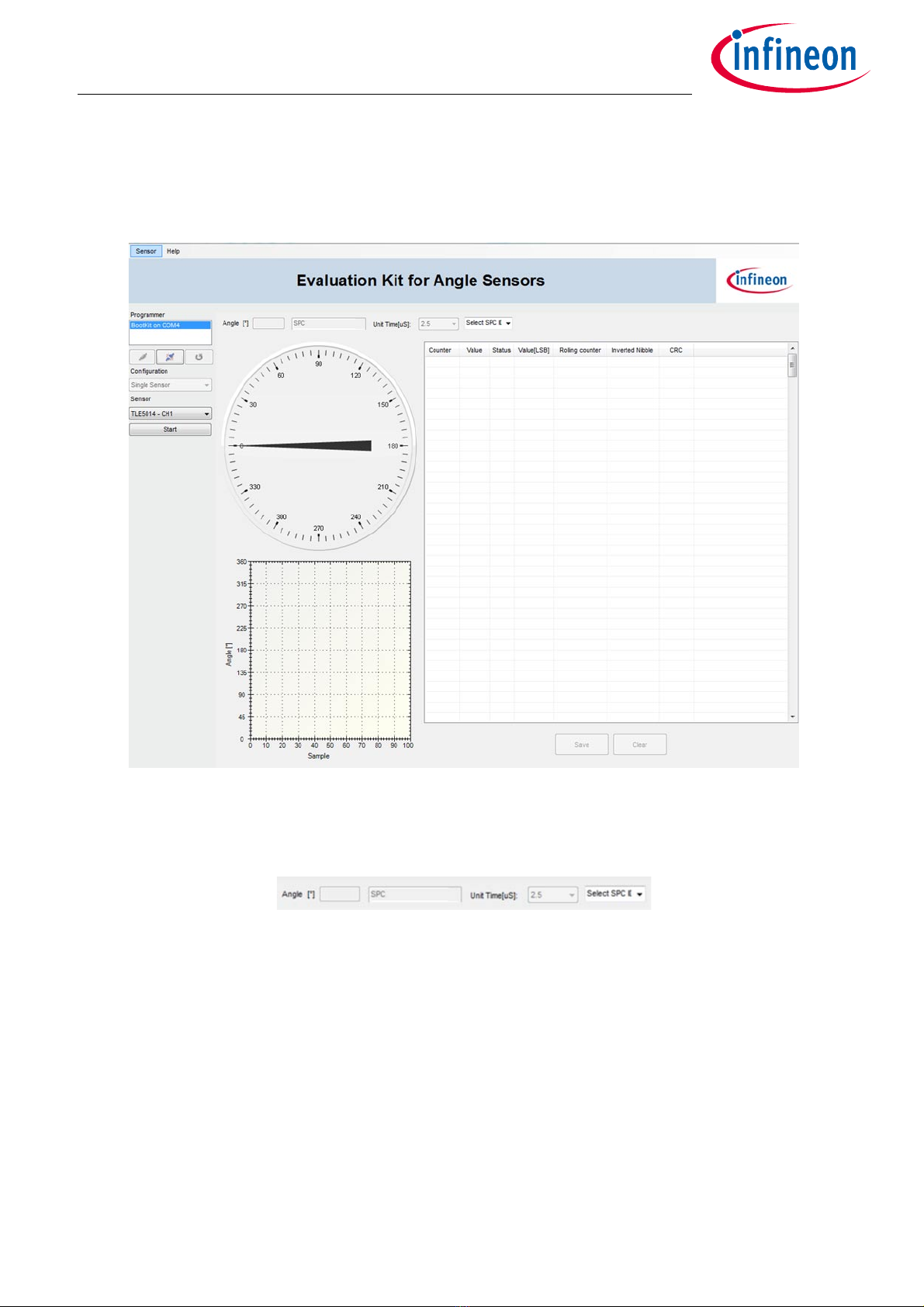

Click the Start button to start the angle read-out. The display shows the real time angle read-out of the sensor
and other protocol related values (e.g. status nibble for SENT/SPC).
Click the Stop button to stop the sensor read-out.
The tool automatically displays the preprogrammed sensor interface and unit time.
The SPC address has to be set manually:

Application Note 10 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
3.3 User menu
Click on the Sensor menu and select one of the following options:
3.3.1 EEPROM Register

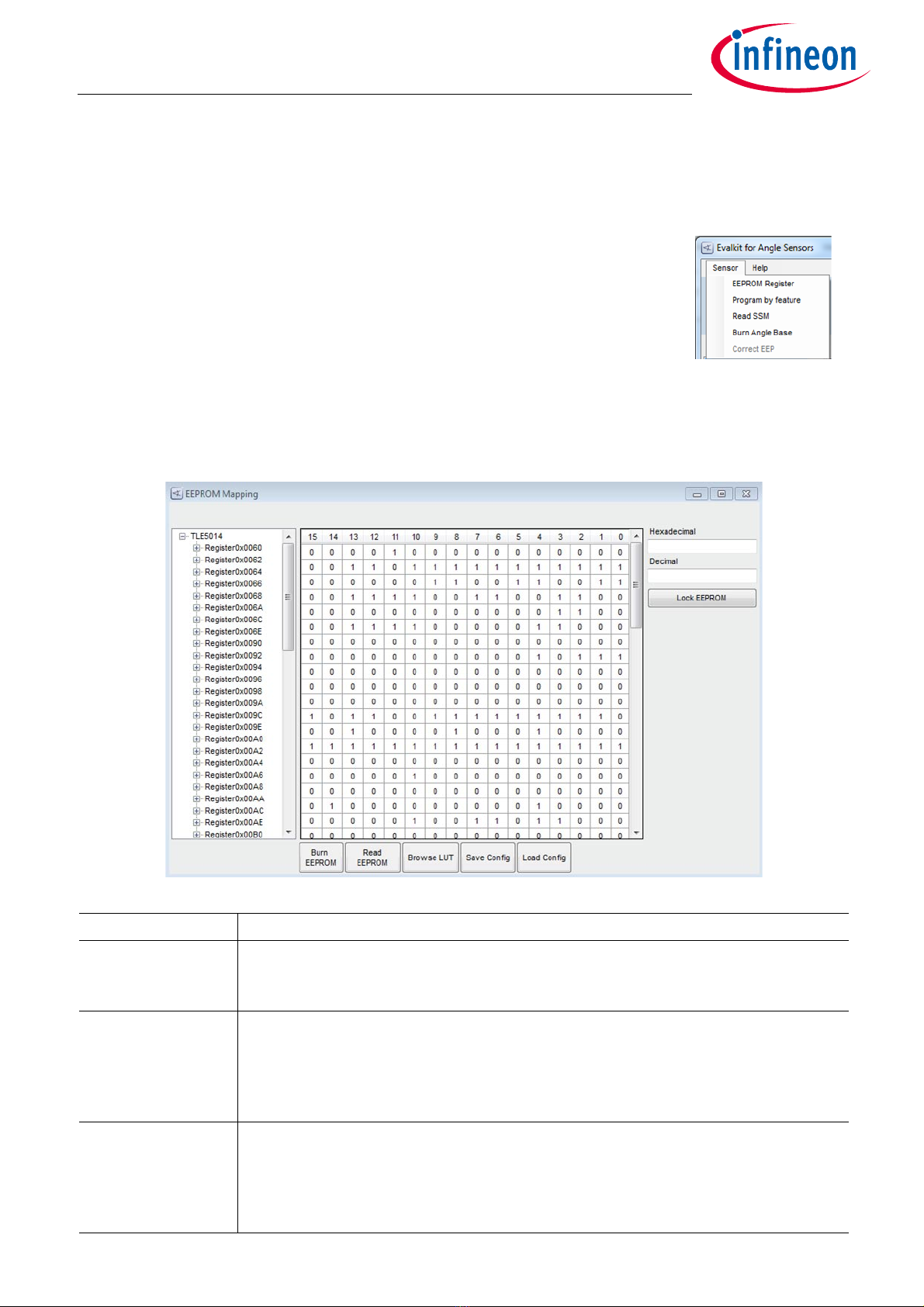

Select Sensor > EEPROM Register in the menu bar on the top to display the EEPROM register mapping.
Click on the register in the left column to highlight the register and to display the content on the right.
•EEPROM Register
•Program by feature
•Read SSM
•Burn Angle Base
Button Description
Read EEPROM Read the current EEPROM values and update the displayed EEPROM content.
A register content can be modified by editing the value on the right either in a
hexadecimal or a decimal value and pressing RETURN.
Burn EEPROM Burn the displayed content to the TLE5014 EEPROM.
A successfully EEPROM burning is indicated with a “Burn successful!” message.
Note: Care has to be taken not to modify EEPROM registers which change the
sensor configuration. This could result in a wrong function of the device.
Browse LUT Browse for a .txt file which contains the values intended to be used in the look-up
table. See Chapter 3.4 for more details.
Note: After re-loading LUT values (Browse LUT) or EEPROM content (Load Config)
the EEPROM has to be burned by pressing Burn EEPROM.

Application Note 11 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
3.3.2 Program by feature

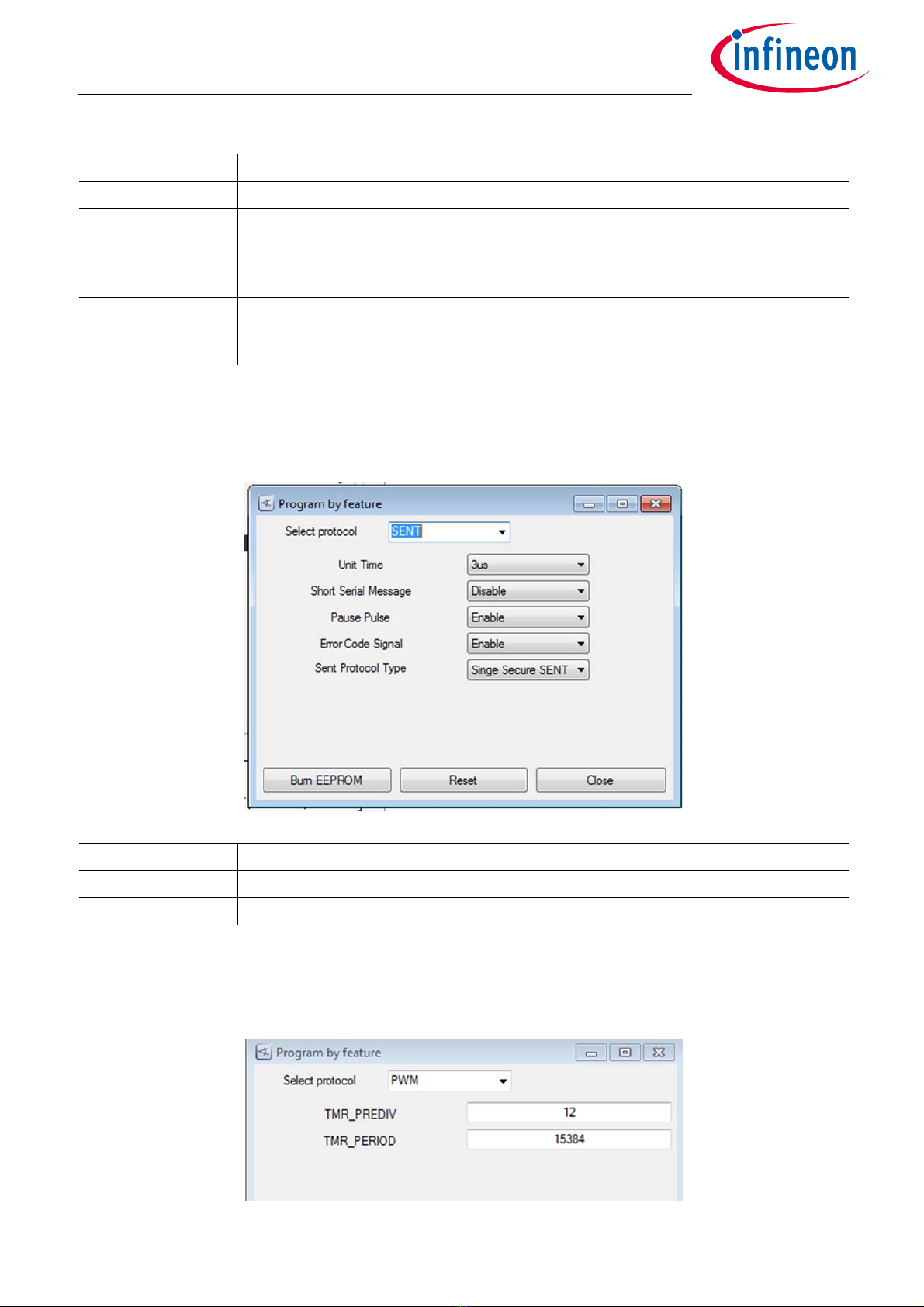

Select Sensor > Program by feature in the menu bar on the top to display the actual sensor configuration.
Modifications can be done and then burned to the EEPROM.
3.3.2.1 PWM frequency calculation
When setting the Select protocol to PWM, two parameters have to be specified which give the
PWM frequency.
Save Config Save the actual EEPROM settings in a .txt file.
Load config Load the EEPROM content from a .txt file.
Note: After re-loading LUT values (Browse LUT) or EEPROM content (Load Config)
the EEPROM has to be burned by pressing Burn EEPROM.
Lock EEPROM Locks the EEPROM. A further re-programming is not possible.
Note: There is no “Unlock” function implemented.
Button Description
Burn EEPROM Burn the EEPROM.
Reset Restore the default configuration but only as long as the EEPROM has NOT be burned.
Button Description

Application Note 12 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
The PWM frequency is calculated according following formula:
(3.1)
3.3.3 Read SSM
Select Sensor > Read SSM in the menu bar on the top to display the actual content of the short serial message
SSM:
•Temperature
• Angle base & rotation direction
• 32-bit customer ID
fHz[] 40000000
1 TMR_PREDIV+()TMR_PERIOD()
----------------------------------------------------------------------------------------------=

Application Note 13 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming

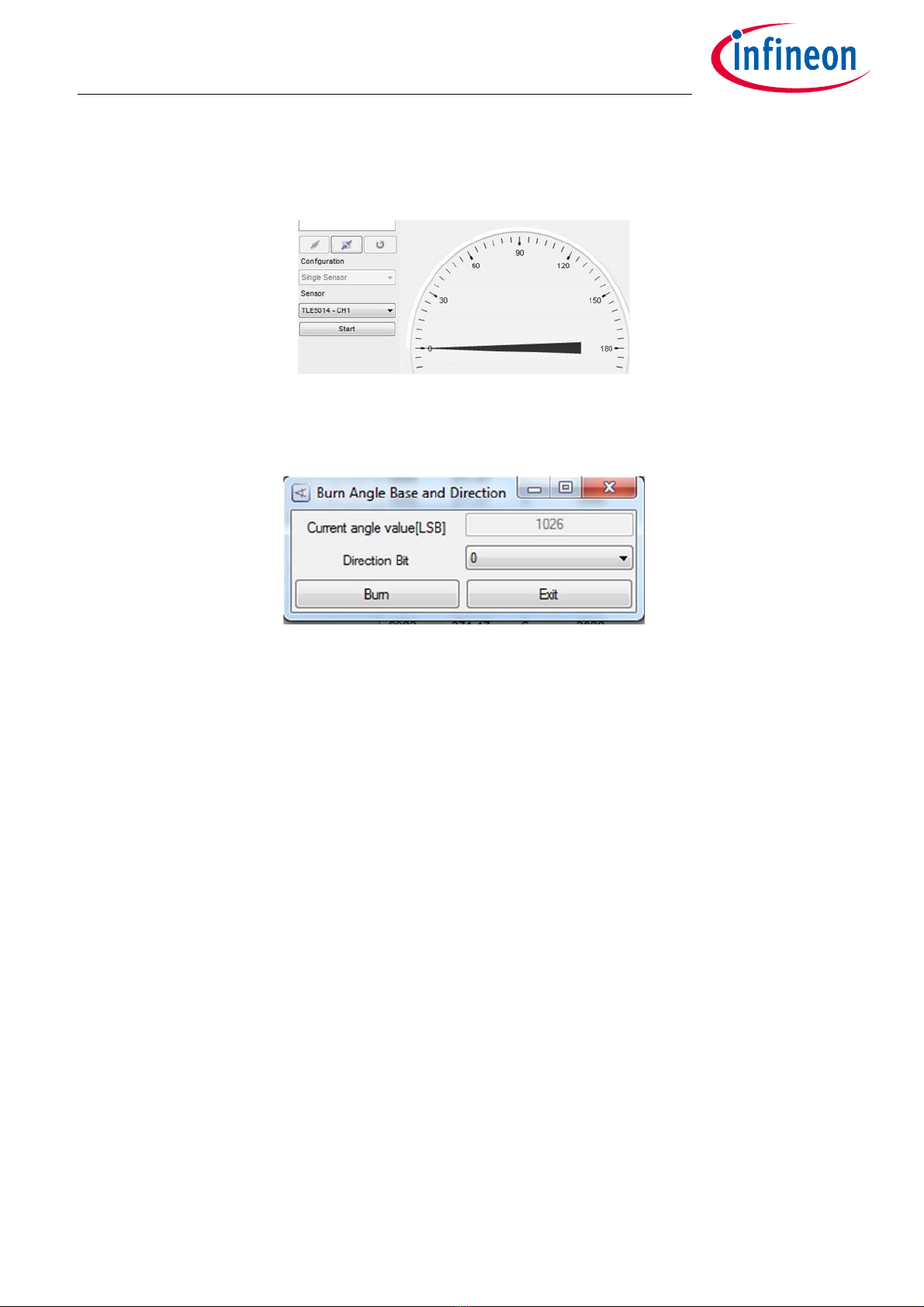

3.3.4 Burn Angle Base
To define a new angle base, first Start the read-out of angle values.
The application has to be turned to the desired new zero-value and read-out has to be stopped by clicking
Stop.
Select Sensor > Burn Angle Base in the menu bar on the top to display the Burn Angle Base window.
Click Burn to burn the value to the EEPROM as new angle base.

Application Note 14 Rev. 1.0
2017-08-02
TLE5014 Programmer
Programming
3.4 Look-up table programming
The Browse LUT button opens a window to select a .txt file with the data which should be programmed into
the look-up table (LUT).
Opening the .txt file loads the content in the displayed EEPROM mapping.
After loading the file press Burn EEPROM to burn the LUT values to the EEPROM.
txt file with values for LUT
The .txt file for the LUT values consists of a header and 32 pair of data, separated by a comma. One pair
consists of the real angle value and the read out of the sensor at this position as a 12-bit value. The 32 real
angle values can not be modified and have to be 0°, 11.25°, 22.5°, … 348.75°.
Figure 5 Pair of data
Sensor readout (12-bit value)
Real position (in degree)

Application Note 15 Rev. 1.0
2017-08-02
TLE5014 Programmer
EEPROM map PWM interface
4 EEPROM map PWM interface
4.1 EEPROM map
Only a few registers should be modified by the user, all others are pre-programmed. Changing these registers
might change sensor behavior and accuracy.
The following registers can be changed by the user:
Table 3 EEPROM map PMW interface
Register address Register name Bit Description
0x0060HData duty cycle min. value [13:0] 0% … 100% mapped to 0 … 16383
0x0062HData duty cycle max. value [13:0] 0% … 100% mapped to 0 … 16383
0x0064HDiagnostic value low [13:0] 0% … 100% mapped to 0 … 16383
0x0066HDiagnostic value high [13:0] 0% … 100% mapped to 0 … 16383
0x0068HPWM predevider [7:0] TMP_PREDIV
0x006AHPWM period [13:0] TMP_PERIOD
Example: Data duty cycle range Example: Diagnostic range
0x0060H= 2048 →12.5%
0x0062H= 14335 →87.5%
0x0064H= 819 →5% (diagnostic low value)
0x0066H= 15564 →95% (diagnostic high value)
0° … 360° mapped to 12.5% … 87.5%
Table 4 EEPROM map overview
Register address Register name Bit Description
0x00A0HANG_BASE [15:2] 14-bit angle base
0x00A0HANG_BASE [1] Rotation direction
0x00A2HPWI_MD_USR [15:0] Protocol and interface settings
0x00A4HSPC_ADDR [9:8] Determines the SPC address of the sensor
0x00B0H… EEHLUT [15:0] Look-up table, 32 registers in total
0x00F2HCust_ID [15:0] Customer ID, will be transmitted via SSM
0x00F4HCust_ID [15:0] Customer ID, will be transmitted via SSM
0x00F6H… FEHCust_ID [15:0] Customer ID

Application Note 16 Rev. 1.0
2017-08-02
TLE5014 Programmer
EEPROM map PWM interface
4.2 TLE5014 EEPROM 0x00A2H: PWI_MD_USR
Note: Depending on the software version not all interface settings may be supported and the angle value
and/or additional protocol information may not be displayed EEPROM reading and programming is
possible in any case, however.
Table 5 PWI_MD_USR
Name Bit Description Value
PWI_MODE [15:13] Interface selection 100B: PWM
010B: SENT
001B: SPC
PWM_EDGE [12] PWM starting edge 0B: Rising
1B: Falling
SENT/SPC_LT_5_3 [11] SENT/SPC low time 0B: 5UT
1B: 3UT
SPC_TEMP [10] Temperature information 0B: No temp. nibble
1B: Temperature nibble
SPC_RCNIB [9] Rolling counter 0B: RC nibble enabled
1B: No RC nibble
SPC_RCCRC [8] Rolling counter in CRC 0B: No RC in CRC
1B: RC in CRC
SPC_TRIG [7] SPC bus mode 0B: 90 µs trigger length fix
1B: variable trigger length
SENT_PROMO [6] SENT protocol type 0B: Single secure sensor
1B: Standard SENT
SENT_ERR_SIG [5] SENT Error indication 0B: error code “4091” in data range and
status nibble
1B: Error in status nibble only
SENT_PAPU [4] Pause pulse activation 0B: No pause pulse
1B: Pause pulse
SENT/SPC_PWI_SSM [3] SENT/SPC short serial message 0B: No short serial message
1B: Short serial message
SENT/SPC_UT [2:0] Unit time setting 000B: 3.0 µs
001B: 2.5 µs
010B: 2.0 µs
011B: 1.5 µs
100B: 1.0 µs

Application Note 17 Rev. 1.0
2017-08-02
TLE5014 Programmer
EEPROM map PWM interface
4.3 Angle base calculation
For PWM/SPC protocol and SENT when feature error code “4091” is disabled
• Determine the position were “0°” should occur.
• Read out the 12-bit angle value at this position (in LSB).
• Multiply this value by 16.
• Write this (decimal) value in register 0x00A0Hand burn EEPROM.
• To change the rotation direction:
– Add “2” to this value in case bit[1] in 0x00A0His “0” and burn EEPROM again.
– Subtract “2” from this value in case bit[1] in 0x00A0His “1” and burn EEPROM again.
For SENT protocol when feature error code “4091” is enabled
• Determine the position were “0°” should occur.
• Read out the 12-bit angle value at this position (in LSB) -> LSB12’.
• Calculate: 4 * trunc[16384/4088 * (LSB12’ - 1)].
• Write this (decimal) value in register 0x00A0Hand burn EEPROM.
• To change the rotation direction:
– add “2” to this value in case bit[1] in 0x00A0His “0” and burn EEPROM again
– subtract “2” from this value in case bit[1] in 0x00A0His “1” and burn EEPROM again
4.4 SPC address configuration
If SPC in bus mode is used it is mandatory that the address of each sensor is written in the corresponding
EEPROM. This address must match with the address which is assigned via hardware pinout to this sensor.
Following values have to be written to address 0x00A4H:
• For ID = 0: 0x0400H
• For ID = 1: 0x0500H
• For ID = 2: 0x0600H
• For ID = 3: 0x0700H
Note: The bit [7:0] of register 0x00A4Hcontain the CRC for protecting the sensor configuration. After a
change of the configuration (e.g. angle base or SPC ID) is written to the EEPROM (EEPROM is burned)
the CRC is updated automatically.

Application Note 18 Rev. 1.0
2017-08-02
TLE5014 Programmer
EEPROM map PWM interface
4.5 Comments
If using SPC bus mode, the first step should be to write the corresponding SPC ID in address 0x00A4H
(Chapter 4.4).
The sensor comes with an enabled, default programmed look-up table (LUT) to reach the specified accuracy.
The default LUT values may not be changed as long as no own data are available. A change causes an
increased angle error.
The default values of the LUT can be overwritten in case own data are generated (for e.g. to correct for
magnetic circuit assembly tolerances).
If look-up table is used, the angle base correction (bit [15:2] of address 0x00A0H) has to be performed before
look-up table values are modified.
No other bits as the described may be changed as this could cause an unpredictable sensor behavior.

Application Note 19 Rev. 1.0
2017-08-02
TLE5014 Programmer
Revision history
5 Revision history
Revision Date Changes
Rev. 1.0 2017-08-02 Initial creation.

Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
Edition 2017-08-02
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2018 Infineon Technologies AG.
All Rights Reserved.
Do you have a question about any
aspect of this document?
Email: [email protected]
Document reference
IMPORTANT NOTICE
The information given in this document shall in no
event be regarded as a guarantee of conditions or
characteristics ("Beschaffenheitsgarantie").
With respect to any examples, hints or any typical
values stated herein and/or any information regarding
the application of the product, Infineon Technologies
hereby disclaims any and all warranties and liabilities
of any kind, including without limitation warranties of
non-infringement of intellectual property rights of any
third party.
In addition, any information given in this document is
subject to customer's compliance with its obligations
stated in this document and any applicable legal
requirements, norms and standards concerning
customer's products and any use of the product of
Infineon Technologies in customer's applications.
The data contained in this document is exclusively
intended for technically trained staff. It is the
responsibility of customer's technical departments to
evaluate the suitability of the product for the intended
application and the completeness of the product
information given in this document with respect to
such application.
For further information on technology, delivery terms
and conditions and prices, please contact the nearest
Infineon Technologies Office (www.infineon.com).
WARNINGS
Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies office.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or any
consequences of the use thereof can reasonably be
expected to result in personal injury.
