Infinity TCYC-7 User manual

Infinity TCYC-7 Cyclorama V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 200300
Firmware Version 1.04
MANUAL
ENGLISH

1
Ordercode: 200300
TCYC-7 Cyclorama
Table of contents
Warning ...............................................................................................................................................................................3
Safety Instructions .........................................................................................................................................................4
Operating Determinations ..........................................................................................................................................5
Rigging ............................................................................................................................................................................5
Bracket Installation .......................................................................................................................................................6
Clamp Installation.........................................................................................................................................................7
Connection with the mains.........................................................................................................................................7
Return Procedure..........................................................................................................................................................8
Claims..............................................................................................................................................................................8
Description of the device.................................................................................................................................................9
Overview ......................................................................................................................................................................10
Back...............................................................................................................................................................................10
Focus Angle .................................................................................................................................................................11
Installation.........................................................................................................................................................................11
Set Up and Operation .....................................................................................................................................................11
Using the Barndoor .....................................................................................................................................................12
Control Modes.............................................................................................................................................................13
One Cyclorama (Manual control) .......................................................................................................................13
Multiple Cycloramas (DMX Control) ....................................................................................................................13
Fixture Linking...............................................................................................................................................................14
Data Cabling...............................................................................................................................................................14
Control Panel ...............................................................................................................................................................15
Control Mode ..............................................................................................................................................................15
DMX Addressing ..........................................................................................................................................................15
Menu Overview...........................................................................................................................................................16
Activate Focus Mode ................................................................................................................................................18
Main Menu Options....................................................................................................................................................18
1. DMX Configuration..............................................................................................................................................19
2. DMX Address ........................................................................................................................................................19
3. Manual...................................................................................................................................................................19
3.1 Dimmer ................................................................................................................................................................19
3.2 Color Temperature ............................................................................................................................................19
3.3 Color Wheel ........................................................................................................................................................20
3.4 Tilt Position ...........................................................................................................................................................20
4. Dimmer Curves.....................................................................................................................................................21
5. Dimmer Speed .....................................................................................................................................................21
6. CCT Mode.............................................................................................................................................................22
7. Tungsten Simulation.............................................................................................................................................22
8. DMX Lost Mode....................................................................................................................................................23
9. Fan Mode..............................................................................................................................................................23
10. PWM Frequency.................................................................................................................................................23
11. Calibration ..........................................................................................................................................................23
12. Display .................................................................................................................................................................24
13. Tilt Motor ..............................................................................................................................................................24
13.1 Tilt Motor Reset .................................................................................................................................................24
13.2 Tilt Motor Encoder............................................................................................................................................24
13.3 Tilt Motor On/OFF.............................................................................................................................................24
14. Info........................................................................................................................................................................25
15. Reset Factory Settings.......................................................................................................................................25
DMX Channels Quickguide ......................................................................................................................................26
DMX Channels .............................................................................................................................................................27
1 Channel (Basic).....................................................................................................................................................27
6 Channels (Basic) ...................................................................................................................................................27
7 Channels (Thungsten)..........................................................................................................................................29

2
Ordercode: 200300
TCYC-7 Cyclorama
11 Channels (RGB Pro Mode)................................................................................................................................31
11 Channels (CMY Pro Mode)...............................................................................................................................34
11 Channels (HSI Pro Mode) ..................................................................................................................................37
21 Channels (RAW Mode)......................................................................................................................................40
Maintenance....................................................................................................................................................................44
Troubleshooting ...............................................................................................................................................................44
No Light.........................................................................................................................................................................44
No Response to DMX..................................................................................................................................................44
Product Specifications....................................................................................................................................................46
Dimensions........................................................................................................................................................................47
Notes ..................................................................................................................................................................................48

3
Ordercode: 200300
TCYC-7 Cyclorama
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
●Infinity TCYC-7 Cyclorama
●Neutrik PowerCON to Schuko power cable (1,4 m)
●Safety cable
●2x brackets
●User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving your lifespan expectancy is of a higher priority, place care in providing
for lower operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.

4
Ordercode: 200300
TCYC-7 Cyclorama
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
●Never strain the cable insert or the female part in the device. There must always be sufficient cable
going to the device. Otherwise, the cable will be damaged, which can cause serious damage.
●Never remove warning or informative labels from the unit.
●Never use anything to cover the ground contact.
●Never lift the device holding it by the projector-head, as the mechanics may be damaged. Always
hold the device by the transport handles.
●Never place any material over the lens.
●Never look directly into the light source.
●Never leave any cables lying around.
●Never use the device during thunderstorms, unplug the device immediately.
●Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger. 
●Do not insert objects into air vents.
●Do not open the device and do not modify the device.
●Do not connect this device to a dimmer pack.
●Do not switch the device on and off in short intervals, as this will reduce the device’s life.
●Do not touch the device’s housing bare-handed during its operation (housing becomes hot). Allow
the device to cool for at least 5 minutes before handling.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Only use the device indoors, avoid contact with water or other liquids.
●Only operate the device after having checked if the housing is firmly closed and all screws are tightly
fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always keep the case closed while operating.
●Always allow a free air space of at least 50 cm around the unit for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.

5
Ordercode: 200300
TCYC-7 Cyclorama
●Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
●If the lens is obviously damaged, it has to be replaced to prevent its functions from being impaired,
due to cracks or deep scratches.
●If the external cable is damaged, it has to be replaced by a qualified technician.
●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Infinity dealer for service.
●For adult use only. The device must be installed beyond the reach of children. Never leave the unit
running unattended.
●Never attempt to bypass the thermostatic switch or fuses.
●For replacement use fuses of same type and rating only.
●The user is responsible for correct positioning and operating of the device. The manufacturer will not
accept liability for damages caused by the misuse or incorrect installation of this device.
●This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
●The maximum ambient temperature ta= 40°C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
●If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
●If the device is lowered from the ceiling or high joists, professional trussing systems have to be used.
●Use a clamp to mount the device, with the mounting-bracket, to the trussing system.
●The device must never be fixed swinging freely in the room.
●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
●When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.

6
Ordercode: 200300
TCYC-7 Cyclorama
Bracket Installation
01) Carefully place the Cyclorama on its side.
02) Slide the lip of the clamp under the
designated area.
03) Slide the lip of the other clamp under the
designated area.
04) Align both parts, so that both pins can slide
into the holes.
05) For extra safety, you have to install the split
pins in the tiny holes.

7
Ordercode: 200300
TCYC-7 Cyclorama
Clamp Installation
The Infinity TCYC-7 Cyclorama can be placed on a flat stage floor or mounted to any kind of truss with a
clamp.
Improper installation can cause serious injuries and/or damage of property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NULL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious injuries and/or damage of property !

8
Ordercode: 200300
TCYC-7 Cyclorama
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause of
the return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging
is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name.
02) Your address.
03) Your phone number.
04) A brief description of the symptoms.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period, complaints will not be handled anymore.
Complaints will only be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

9
Ordercode: 200300
TCYC-7 Cyclorama
Description of the device
Features
The Infinity TCYC-7 Cyclorama is an extremely bright and powerful luminaire.
●300W Lumiled 7 colour LED engine using custom designed array
●CRI > 96 Consistently on full CCT range
●LED Colour Linearity Compensation
●LED Colour Temperature Drift Compensation (on all LEDs)
●Optics Colour Shift compensation
●Colour wheel with 64 spectrum matching Filter gels
●2000 –8000K Seamless CCT channel
●RGB, CMY and HSI Colour control
●16 bit Intelligent high resolution virtual dimming
●Tungsten mode with natural colour drift & timing simulations
●Flicker-Free with selectable PWM by DMX
●RDM allowing for remote setting and recall of information
●Motorized 30° focusing
●1CH DMX mode for conventional replacement
●Light output: 6000lm
●Light quality: >96 CRI Consistently (High CRI Mode)
●Colour Temperature: 2000K ~ 8000K
●Beam Angle: asymmetric 75°
●Tilt adjustment: 30° manual and motorized
●Input voltage: 100-240V AC, 50/60Hz
●Power Factor: 0,96
●Consumption: 310W max
●Dimmer: 0-100%
●Strobe: 0-20Hz
●Ambient temperature: 0°-40°C (operating)
●Startup temperature: -10°-45°C
●LC-display for easy setup
●DMX-control: via standard DMX/RDM controller
●Control: DMX-512, Manual control
●
●IP Rating: IP 20, indoor use only
●Control: On board Menu, RDM, DMX512
●Fan mode: Silent, Auto, Full
●DMX Channels: Dimmer Mode, 1CH
Basic Mode, 6CH
Tungsten Mode, 7CH
HSI Pro Mode, 11CH
RGB Pro Mode, 11CH
CMY Pro Mode, 11CH
RAW Mode, 21CH
●Power connections: Neutrik PowerCON (IN/OUT)
●Data connections: Neutrik 5-pin XLR data (IN/OUT)
●Construction: Machined Aluminium, sheet metal, moulded engineering grade plastics.
●Colour: Black
●Dimensions: 566 x 195 x 257 mm (LxWxH) excl. bracket
●Weight: 11,2Kg
Note: Knowledge of DMX is required to fully utilize this unit.

10
Ordercode: 200300
TCYC-7 Cyclorama
Overview
Fig. 01
01) Mirror
02) 300W Lumiled 7-color LED
Back
Fig. 02
03) Safety Eye
04) Neutrik PowerCON OUT (Gray)
05) Neutrik PowerCON IN (Blue)
06) 5-pin DMX signal connector IN
07) 5-pin DMX signal connector OUT
08) LCD Display
09) Back/Home Button (hold down >3sec = focus mode)
10) Menu Button
11) Control wheel / Enter

11
Ordercode: 200300
TCYC-7 Cyclorama
Focus Angle
Focus angle 0°-Electronic adjustment
Focus angle 30°- Electronic adjustment
Fig. 03
Installation
Remove all packing materials from the Infinity TCYC-7. Check that all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

12
Ordercode: 200300
TCYC-7 Cyclorama
Using the Barndoor

13
Ordercode: 200300
TCYC-7 Cyclorama
Control Modes
There are 2 modes:
●Manual control
●DMX512 (1CH, 6CH, 7CH, 11CH, 11CH, 11CH or 21CH)
One Cyclorama (Manual control)
06) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
07) Always use a safety cable (ordercode 70140 / 70141).
08) Plug the end of the electric mains power cord into a proper electric power supply socket.
09) When the Cyclorama is not connected with a DMX cable, it functions as a stand-alone device.
10) Please see pages 19 and 20 for more information about the Manual control mode.
Multiple Cycloramas (DMX Control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) Use a 3-pin/5-pin XLR cable to connect the Cycloramas and other devices.
05) Link the units as shown in fig. 12. Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
06) Supply electric power: Plug electric mains power cords into each unit's PowerCON socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.

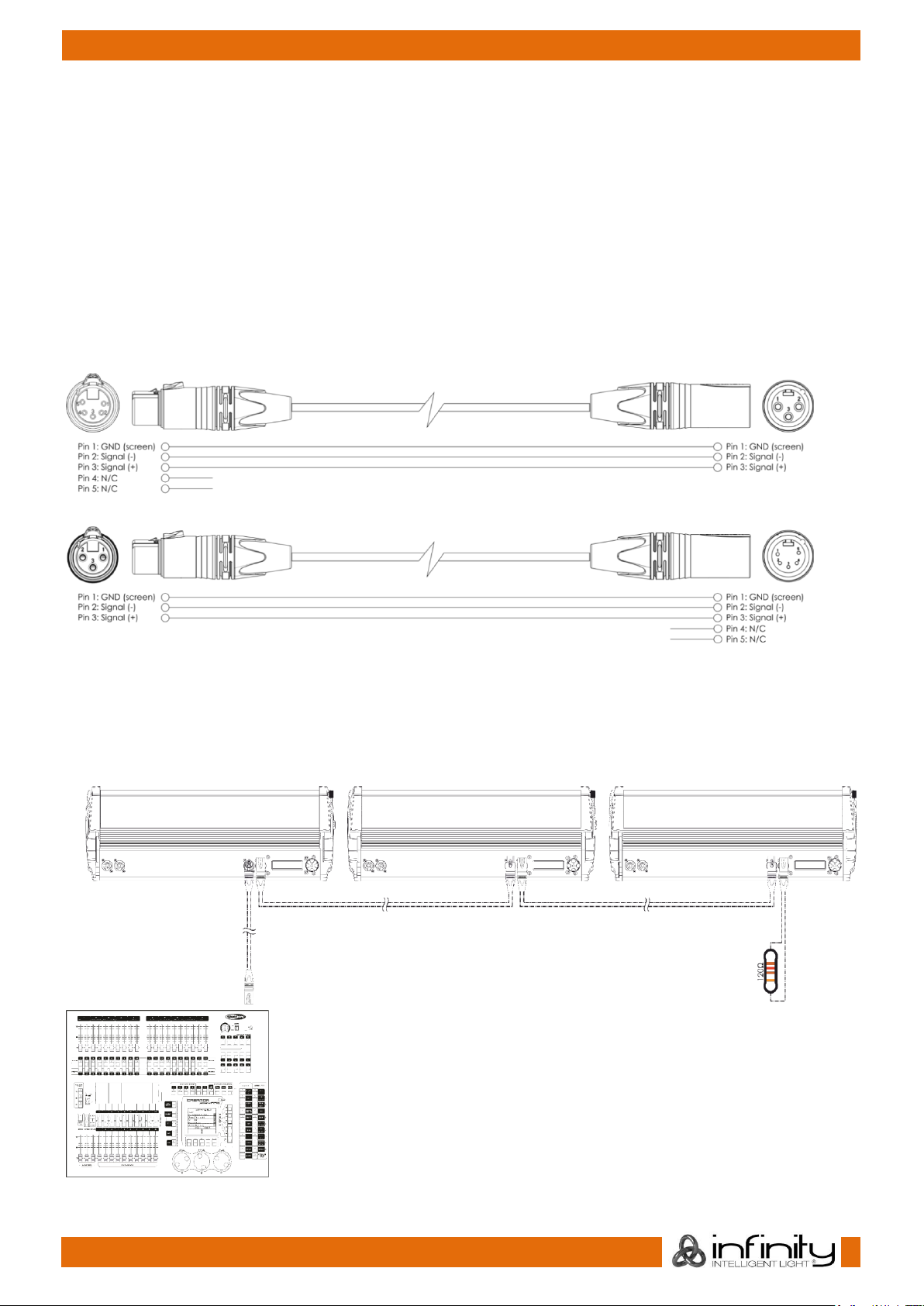

Multiple Cycloramas DMX Set Up
Fig. 12
Note: Link all cables before connecting electric power

14
Ordercode: 200300
TCYC-7 Cyclorama
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy chained in one single line. To comply with the
EIA-485 standard no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX
optically isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @120V: 4 fixtures
Maximum recommended number of fixtures on a power link @230V: 8 fixtures
Data Cabling
To link fixtures together you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DMX Data Cables
●DAP 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
●DAP data cable FL08 DMX/AES-EBU, XLR/M 5-pin > XLR/F 5-pin.Ordercode FL08150 (1,5 m), FL083
(3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m).
●DAP DMX adapter: 5-pin > 3-pin. Ordercode FLA29.
●DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30.
●DAP DMX Terminator 3-pin. Ordercode FLA42.
●DAP DMX Terminator 5-pin. Ordercode FLA43.
The Infinity TCYC-7 Cyclorama can be operated with a controller in control mode or without the
controller in stand-alone mode.

15
Ordercode: 200300
TCYC-7 Cyclorama
Control Panel
A)
B)
C)
D)
LC-display
Back/Home button
(hold down >3sec = focus mode)
Menu button
Enter button (PRESS) + Up/down (TURN)
Fig. 13
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Cyclorama will respond to the controller.
Please note when you use the controller, the unit has 21 channels.
When using multiple Cycloramas, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Cyclorama should be 1(001); the DMX address of the second
Cyclorama should be 1+21=22 (022); the DMX address of the third Cyclorama should be 22+21=43 (043),
etc.
Please, be sure that you do not have any overlapping channels in order to control each Cyclorama
correctly. If two or more Cycloramas are addressed similarly, they will work similarly.
Controlling:
After having addressed all Cyclorama fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Cyclorama will automatically detect whether DMX 512 data is received or
not. If not the problem may be:
●The XLR cable from the controller is not connected with the input of the Cyclorama.
●The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

16
Ordercode: 200300
TCYC-7 Cyclorama
Menu Overview

17
Ordercode: 200300
TCYC-7 Cyclorama

18
Ordercode: 200300
TCYC-7 Cyclorama
Activate Focus Mode
Press and hold down the Home button (B) for 2 sec. The output will be open white 3200K(Focus mode).
The device automatically returns to normal mode after 3 min. or when the Home button is pressed again.
Main Menu Options
DMX Configuration
DMX Address
Manual mode
Dimmer curves
Dimmer speed
CCT mode
Tungsten mode
DMX Lost mode
Fan mode
PWM Frequency
Calibration
Display
Tilt Motor
Info
Reset factory settings

19
Ordercode: 200300
TCYC-7 Cyclorama
1. DMX Configuration
In this menu you can choose a DMX configuration.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to choose one of the 7 channel modes , , ,
, , or .
04) Press the ENTER button to confirm.
2. DMX Address
In this menu you can set the DMX address.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to set the device’s DMX starting address. The adjustment range is
between .
04) Press the ENTER button to confirm.
3. Manual
In this menu you can set the manual settings from the Cyclorama.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the submenu.
03) Press the UP/DOWN buttons to choose between 4 options:
Dimmer
Color temperature
Color wheel
Tilt Position
04) Press the ENTER button to confirm.
3.1 Dimmer
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the submenu.
03) Press the UP/DOWN buttons to set the dimmer value. The adjustment range is between
.
04) Press the ENTER button to confirm.
3.2 Color Temperature
01) Press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the submenu.
03) Press the UP/DOWN buttons to set the color temperature. The adjustment range is between
, in increments of 50K.
04) Press the ENTER button to confirm.
