inform 500 User manual

S
ST TA AN ND DB BY Y U UP PS S

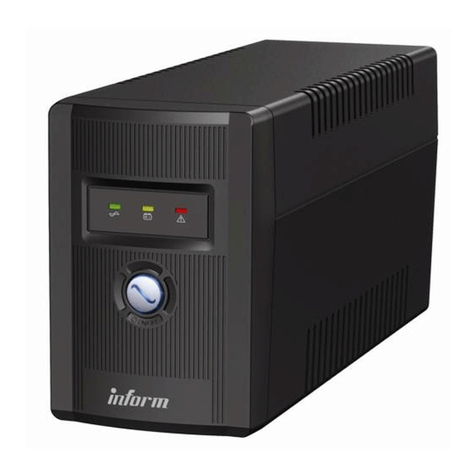

GUARD STANDBY SERIES
500VA to 1500VA
Uninterruptible Power System
USER MANUAL
1
IMPORTANT SAFETY INSTRUCTIONS
WARNING : (SAVE THESE INSTRUCTIONS) This manual
contains important safety instructions. Please follow up all
instructions carefully during installation. Read this manual
thoroughly before attempting to unpack, install or operate.
CAUTION : To prevent the risk of fire or electric shock, please
install the unit in a temperature and humidity controlled indoor area,
which is free of conductive contaminants.
CAUTION : Risk of electric shock, do not remove the cover. No
user serviceable parts. Refer servicing to qualified service personnel.
CAUTION : Risk of electric shock. Hazardous live parts inside this
UPS can be energized from the battery supply even when the input
AC power is disconnected.
CAUTION : Risk of electric shock. Battery Circuit is not isolated
from AC input, hazardous voltage may exist between battery
terminals and ground. Please test it before touching.
NOTICE: The UPS is designed for computer loads only.

2
1) INTRODUCTION
Please read and save this manual !
Thank you for selecting this uninterruptible power system (UPS). It
provides you with a perfect protection for connected equipment. The
manual is a guide to install and use the UPS. It includes important
safety instructions for operation and correct installation of the UPS. If
you should have any problems with the UPS, please refer to this
manual before calling customer service.
2) PRESENTATION
Standby Technology provides a reliable power supply to the
powered loads. It has advanced microprocessor controller and LED
Display Panel. With the audible alarms it enables the consumer to be
informed about the abnormal situation.
The UPS has the following benefits;
•Microprocessor control Standby Technology
•Boost and buck Automatic Voltage Regulation (AVR)
•Intelligent Battery Management System
•LED Display Panel
•Line, Battery, AVR indications
•Soft Start Function For Critical Applications
•Over/Low Voltage Protections
•Short Circuit, OverLoad, Over Discharge Protections
•Buzzer Alarm Function
•Optional Communication Port and Remote Monitoring Software
•Optional Phone Line Protection
•Compact size and user friendly operation
3
3) PLACEMENT
4) INSTALLATION & OPERATION
Inspect the UPS upon receipt. Notify the carrier and dealer if there is
damage. The package is recyclable; save it for reuse or dispose of it
properly.
1.Connect the UPS to the wall receptacle.
2.Push on the Main Switch for 2 seconds to initialize the UPS.
3.Connect your computer equipment with sockets of the UPS present
on the rear panel.
4.Try the field working condition by running some application
programs on your computer and repeating step.
5.Check if the UPS is initiated properly to support continuous
operation.
IMPORTANT NOTICE: Plug the UPS into the wall outlet to charge
the UPS for over 8 hours before using the UPS.
Caution: Do not connect a laser printer to the outlets. These UPS’s
outlets provide battery power and surge protection to the equipment
when utility voltage is outside acceptable limits .

4
5) FRONT PANEL DEFINITIONS
6) REAR PANEL DEFINITIONS
1.
POWER
( LINE )
2. BATTERY Mode
3. AVR Mode
(Regulation)
4. OUTPUT SOCKETS
5. FUSE
6. INPUT SOCKET 7. PHONE LINE (Available at APmodels )
8. RS232 Port (Available at AP models )
5
7) STORAGE:
Store at -15 to +30 °C (+5 to +86 °F), charge the UPS battery every
six months.
Store at +30 to +45 °C (+86 to +113 °F), charge the UPS battery
every three months
8) TECHNICALSPECIFICATIONS
MODEL 500 600 1000 1200 1500
Capacity 500VA
600VA 1000VA 1200VA 1500VA
Voltage 165 to 275V
Input Frequency 50 or 60Hz +/- 10%
Voltage (Backup
mode) Simulated sine wave like rating voltage, +/- 15%
Frequency (Backup
Mode) 50 or 60Hz +/- 1%
Auto Voltage
Regulation (AVR)
AVR automatically increase output voltage 14%
above input voltage if -10% to-25% of nominal.
AVR decrease output voltage 11% below input
voltage if +7% to +25% of nominal
Output
Transfer Time 8-10 milliseconds
Protection Short Circuit, Overload, Over Discharge, Over/Low Voltage
Type Sealed, maintenance-free lead acid batteries.
Battery Typical Recharge
Time 8-10 hours (to 90% of full capacity)
Net Weight Kg 5,5 6 10 11 12
Physical Dimension (mm)
Dx W x H
340x97x170 350x120x200
Function Cold Start Availability to switch on from batteries
Interface RS-232 Available at AP Models
Normal Operation 0-95% humidity non-condensing, 0-40°C
Environment
Audible Noise <45 dBA (1 meter from surface)
