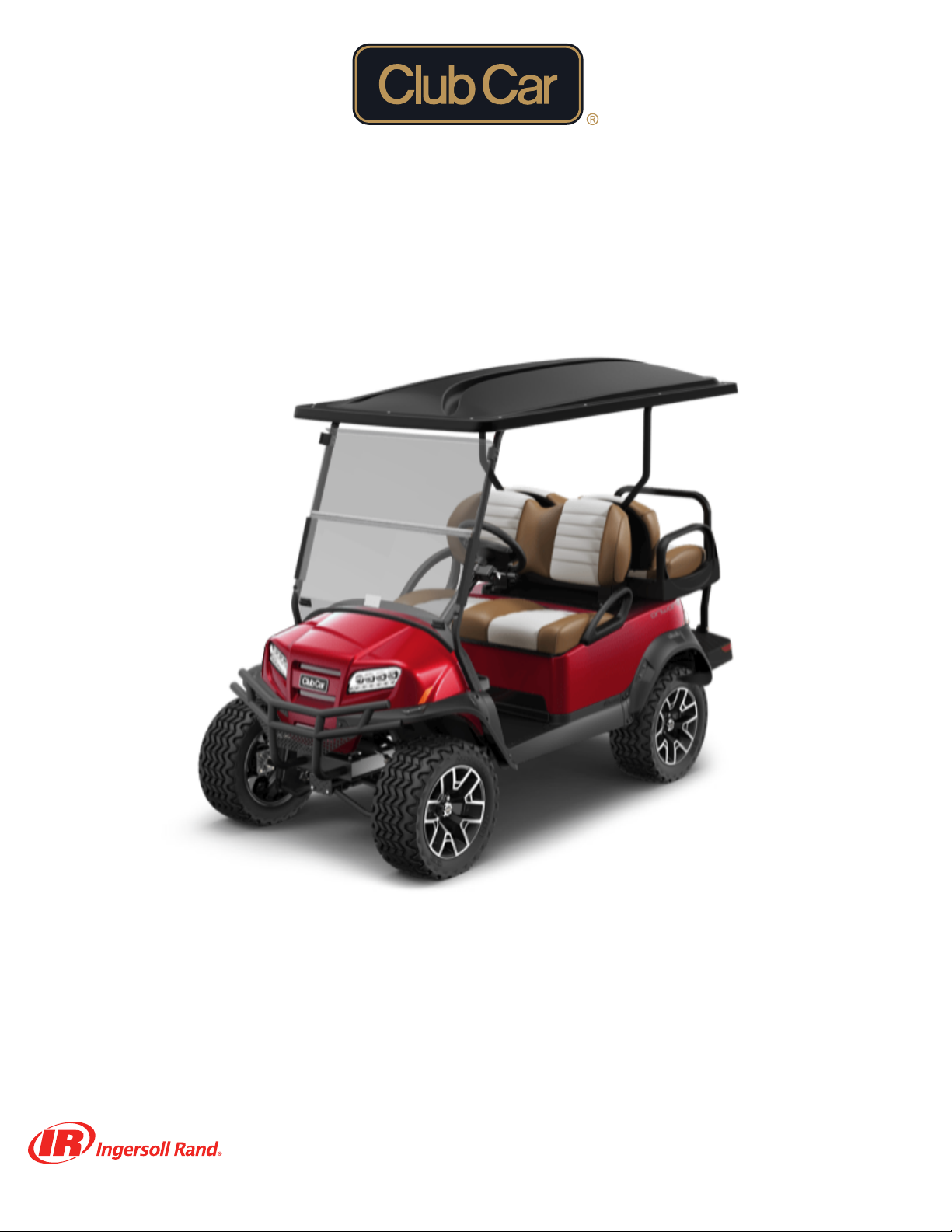

Ingersoll-Rand Club Car ONWARD LIFTED User manual

ONWARD LIFTED 4-PASSENGER LITHIUM-
ION
Operators Manual
APPLICABLE TO VEHICLES WITH SERIAL PREFIX OF DM

Copyright © 2020 Club Car, LLC
This manual effective December 1, 2020

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page i
INTRODUCTION
VEHICLE OWNERSHIP
Congratulations! The Club Car brand is widely recognized as the industry leader in vehicle efficiency
and long-lasting value. Read, understand, and obey the technical content in this manual to protect
your investment and provide years of reliable vehicle operation.
Read, understand, and obey all instructions and safety precautions in this manual to prevent the risk of
personal injury or property damage.
Club Car recommends owners that rent or loan vehicles make sure operators read this manual before
vehicle operation.
Club Car recommends owners register their vehicles immediately after purchase. The previous owner
must include this manual with the vehicle when sold to a new owner. Registration of the vehicle will
make sure Club Car is able to communicate necessary information directly to owners. Send your
name, address, and serial number of the vehicle to:
Club Car, LLC
Attention: Vehicle Registration
P.O. Box 204658
Augusta, Georgia 30917-4658
United States Of America
CALIFORNIA PROPOSITION 65
WARNING OPERATING, SERVICING AND MAINTAINING A
PASSENGER VEHICLE OR OFF-ROAD VEHICLE
CAN EXPOSE YOU TO CHEMICALS INCLUDING
ENGINE EXHAUST, CARBON MONOXIDE,
PHTHALATES, AND LEAD, WHICH ARE KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE
CANCER AND BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. TO MINIMIZE
EXPOSURE, AVOID BREATHING EXHAUST, DO
NOT IDLE THE ENGINE EXCEPT AS NECESSARY,
SERVICE YOUR VEHICLE IN A WELL-
VENTILATED AREA AND WEAR GLOVES OR
WASH YOUR HANDS FREQUENTLY WHEN
SERVICING YOUR VEHICLE. FOR MORE
INFORMATION GO TO WWW.P65WARNINGS.
CA.GOV/PASSENGER-VEHICLE.

Page ii
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
APPROVED DEALERS AND DISTRIBUTORS
Club Car’s customer support system offers fast and courteous service. Speak with your dealer or
distributor for:
• Accessories
• Publications
• Replacement Parts
• Technical Advice
• Warranty Work
To find your nearest dealer or distributor:
• Visit www.clubcardealer.com
• Scan the dealer locator Quick Response (QR) code
COMPANY CONTACT INFORMATION
Send written correspondence to:
Club Car, LLC
Attention: Marketing Services
P.O. Box 204658
Augusta, Georgia 30917-4658
United States Of America
SATISFACTION AND FEEDBACK
Let your voice be heard!
Your feedback will help improve our publications. You can access the survey
through any internet-connected device with a web browser. The survey is available
in many different languages.
Scan the Quick Response (QR) code or type the web address http://bit.ly/1w9uFMh
to complete the survey.

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page iii
NOTICES
VEHICLE MODEL AND SERIAL NUMBER
The vehicle serial number is located on a bar code decal installed below the passenger-side cup holder.
1. A two-letter code that identifies the vehicle
model.
2. A four-digit code that identifies the model
year and production week the vehicle was
assembled.
3. A unique six-digit number given to each
vehicle built within a specified model year.
LIABILITY AND VEHICLE DESIGN CHANGES
Club Car is not liable for errors in this manual or for incidental or consequential damages that result
from the use of the material in this manual.
Club Car reserves the right to make design changes to vehicles without obligation to make these
changes on units previously sold.
This manual is the original instructions provided by the manufacturer if in English. This manual is a
translation of the original instructions if in any language other than English.
VEHICLE MODIFICATIONS
DANGER MODIFICATIONS OR CHANGES TO THE VEHICLE THAT AFFECT
THE OCCUPANT RETENTION, ELECTRICAL SYSTEM, STABILITY
OR HANDLING OF THE VEHICLE, OR INCREASES THE MAXIMUM
VEHICLE SPEED CAN CAUSE SERIOUS PERSONAL INJURY OR
DEATH.
NOTICE MODIFICATIONS TO THE VEHICLE MUST NOT COMPROMISE
COMPLIANCE WITH STATE OR FEDERAL REGULATIONS.
Modifications made to vehicles or installation of accessories that are not approved by Club Car may
adversely affect the safe operation and performance of the vehicle. These modifications include, but
are not limited to lift kits, seating changes, increased speed and cargo capacity. Club Car does not
recommend any modification of this vehicle except kits and upgrades specifically designed and offered
by Club Car. However, if the vehicle is modified, the modifier shall:
1. arrange for the modification to be designed, tested and implemented by an engineer with expertise
in vehicles and their safety;
2. maintain a permanent record of the design, testing and implementation of the modification;
3. make appropriate changes to the capacity, plate(s), decals, and operation and maintenance
manuals; and
4. apply a permanent and readily visible label on the vehicle stating the vehicle has been modified with
the date of the modification and the name of the entity that made the modification.
The entity making any modification becomes the original equipment manufacturer of the modified
vehicle, assumes liability for the vehicle, and has the responsibilities listed above.
Modifications may void the warranty. Refer to the warranty for more details.

Page iv
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
VEHICLE WARRANTY
Warranty information is located in the warranty section of this manual. No other expressed or implied
warranties are contained herein.
Your dealer or distributor examined the vehicle before it was delivered to you. The dealer or distributor
will also supply you a copy of the completed vehicle warranty registration form.
GOVERNMENTAL AND INDUSTRY STANDARDS
AMERICAN NATIONAL STANDARDS INSTITUTES ANSI Z135
The configuration of this vehicle complies with American National Standards Institutes (ANSI) Z135
Safety Standards for Personal Transport Vehicles (PTVs). The vehicle should only be operated in areas
approved for PTV operation. The words “PTV” and “vehicle” are used inter-changeably in this manual.
U.S.A. FEDERAL VEHICLE SAFETY STANDARDS
The configuration of this vehicle does not comply with United States Of America Federal Motor Vehicle
Safety Standards (FMVSS) for automobiles and FMVSS 500 for low-speed vehicles as it existed on the
date the vehicle was shipped from the Club Car manufacturing facility.
CANADIAN STANDARD ICES-002
This vehicle complies with CAN ICES-2 / NMB-2 as it was on the date the vehicle was shipped from the
Club Car manufacturing facility.
EUROPEAN UNION VIBRATION AND NOISE PREN 15997
European Union specification prEN 15997 was used to measure the vibration and noise levels of the
vehicle. The vibration and noise values are recorded in the vehicle specification section of this manual.
EUROPEAN UNION DIRECTIVES
This vehicle, when marked with a CE decal, complies with:
• 2014/30/EU
• 2006/42/EC
• 2006/66/EC
• 2014/35/EU
The following standards were used:
• EN ISO 12100:2010
• EN ISO 13857:2008
• EN 60204-1
• EN 61000-6-2:2005
• EN 61000-6-4:2007/A1:2011
• EN 60335-2-29:2004
EUROPEAN UNION LOW VOLTAGE DIRECTIVE
The 2014/35/EU Low Voltage Directive does not apply to the propulsion system of this vehicle because
the DC and AC voltages are below the minimum threshold.

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page v
PUBLICATION COPYRIGHT
This manual contains proprietary information that is protected by copyright. All rights are reserved.
Express written consent of Club Car, LLC is necessary to photocopy, replicate, or translate this manual.
The information contained in this publication is subject to change without notice.

(Page intentionally left blank.)

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page vii
CONTENTS
INTRODUCTION ........................................................................................................................................I
NOTICES ................................................................................................................................................. III
SECTION 1 – SAFETY INFORMATION ...............................................................................................11
General Safety Information ................................................................................................................ 12
Note To The Owner ......................................................................................................................... 12
Practice Safety................................................................................................................................ 12
Safety Signal Words ....................................................................................................................... 12
Safety Committee .......................................................................................................................... 13
Vehicle Safety Information.................................................................................................................. 13
Vehicle Safety And Compliance Decals.......................................................................................... 14
Vehicle Safety Features ....................................................................................................................... 18
Battery Charging Interlock ............................................................................................................ 18
Multi-Purpose Buzzer ..................................................................................................................... 18
Regenerative Braking..................................................................................................................... 18
Walk-Away Braking ........................................................................................................................ 19
Battery Safety Information ................................................................................................................. 19
Battery International Safety Symbols ........................................................................................... 19
Lithium-Ion Battery Recycling ....................................................................................................... 20
SECTION 2 – INDICATORS, GAUGES, AND DISPLAYS ..................................................................21
Indicator, Gauge, And Display Locations ............................................................................................ 22
Dash Display ........................................................................................................................................ 22
SECTION 3 – VEHICLE CONTROLS.....................................................................................................27
Vehicle Controls Locator ...................................................................................................................... 28
Accelerator Pedal ................................................................................................................................. 29
Brake Pedal .......................................................................................................................................... 29
Forward / Neutral / Reverse Control ................................................................................................... 29
Hazard Light Switch............................................................................................................................. 30
Headlight Switch.................................................................................................................................. 30
Horn...................................................................................................................................................... 30
Key Switch............................................................................................................................................ 30
Park Brake............................................................................................................................................ 31
Run/Tow-Stow Switch ......................................................................................................................... 32
Turn Signal Lever ................................................................................................................................. 33
SECTION 4 – VEHICLE FEATURES......................................................................................................35
Vehicle Features Description ............................................................................................................... 36
Fold-Down Rear Seat........................................................................................................................... 36
Off Peak Charging ................................................................................................................................ 36
USB Receptacle.................................................................................................................................... 36
SECTION 5 – BATTERY CHARGER ......................................................................................................37
Introduction ......................................................................................................................................... 38
IC650 Specifications............................................................................................................................ 39
Manufacturer Information ............................................................................................................. 39
Dimension And Weight ................................................................................................................... 39
Operational Temperature............................................................................................................... 39
AC Input.......................................................................................................................................... 39

Page viii
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
DC Output ....................................................................................................................................... 39
IC900 Specifications............................................................................................................................ 40
Manufacturer Information ............................................................................................................. 40
Dimension And Weight ................................................................................................................... 40
Operational Temperature............................................................................................................... 40
AC Input.......................................................................................................................................... 40
DC Output ....................................................................................................................................... 40
Governmental And Industry Certifications ......................................................................................... 40
European Conformity ..................................................................................................................... 40
Federal Communications Commission .......................................................................................... 41
International Protection Marking................................................................................................... 41
Underwriters Laboratories And Canadian Standards Association ................................................ 41
Features ............................................................................................................................................... 41
AC Electrical Cord And Plug............................................................................................................ 41
Status Indicator Lights................................................................................................................... 42
Battery Charging Interlock ............................................................................................................ 43
External Battery Charger Mounting............................................................................................... 43
How To Make Strain Relief And Drip Loop ...................................................................................... 44
Inspection And Maintenance ............................................................................................................... 44
Electrical Cords............................................................................................................................... 44
Electrical Plugs And Receptacles.................................................................................................... 44
Clean The Electrical Plugs And Receptacles................................................................................... 45
Battery Charger USB Receptacle ................................................................................................... 45
Clean The USB Receptacle ............................................................................................................. 45
SECTION 6 – VEHICLE SPECIFICATIONS.........................................................................................47
Dimensions .......................................................................................................................................... 48
Performance......................................................................................................................................... 48
Tires ..................................................................................................................................................... 48
Electric Motor ....................................................................................................................................... 48
Battery ................................................................................................................................................. 48
Noise And Vibration ............................................................................................................................. 49
Transaxle.............................................................................................................................................. 49
Vehicle Weights And Load Capacities.................................................................................................. 49
SECTION 7 – VEHICLE OPERATION ..................................................................................................51
Daily Pre-Operational Safety And Performance Checks..................................................................... 53
Overview......................................................................................................................................... 53
Daily Pre-Operational Safety Checklist ......................................................................................... 53
Vehicle Performance Inspection .................................................................................................... 54
Vehicle Movement................................................................................................................................ 55
Overview......................................................................................................................................... 55
Motor Start ..................................................................................................................................... 56
Turn Off Motor................................................................................................................................. 56
Forward Movement ........................................................................................................................ 56
Reverse Movement......................................................................................................................... 57
Slow Or Stop The Vehicle ............................................................................................................... 57
Park The Vehicle ............................................................................................................................. 58
Driving Conditions ............................................................................................................................... 58
Unpaved Surfaces .......................................................................................................................... 58
Uphill Slope..................................................................................................................................... 58
Side Hill Slope................................................................................................................................. 59
Downhill Slope ................................................................................................................................ 59
Over Obstacles ............................................................................................................................... 60
Below Obstacles ............................................................................................................................. 60
Night Time ...................................................................................................................................... 60
Through Water................................................................................................................................ 61

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page ix
SECTION 8 – VEHICLE MAINTENANCE .............................................................................................63
Disable The Vehicle .............................................................................................................................. 64
Vehicle Cleaning................................................................................................................................... 65
Windshield ...................................................................................................................................... 65
Vehicle Exterior .............................................................................................................................. 65
Vehicle Interior ............................................................................................................................... 65
Maintenance Schedule ........................................................................................................................ 65
Overview......................................................................................................................................... 65
Service Schedule ............................................................................................................................ 66
Maintenance Tasks............................................................................................................................... 67
Clean The Dynamic Braking Resistor............................................................................................. 67
Lift The Vehicle ............................................................................................................................... 67
Lower The Vehicle........................................................................................................................... 70
Tire Pressure Measurement ........................................................................................................... 72
Wheel Assembly ............................................................................................................................. 72
SECTION 9 – BATTERY MAINTENANCE ............................................................................................75
Battery Maintenance Overview ........................................................................................................... 76
Battery Cleaning .................................................................................................................................. 76
Battery Charging ................................................................................................................................. 76
Charging With External Charger.................................................................................................... 76
Charging With Onboard Charger ................................................................................................... 77
SECTION 10 – TRANSPORT AND TOW ..............................................................................................79
Prepare The Vehicle To Be Towed......................................................................................................... 80
Towing A Trailer Or Vehicle .................................................................................................................. 80
Tow The Vehicle With Approved Tow Vehicle ...................................................................................... 80
Vehicle Transport Preparation ............................................................................................................. 81
Vehicle Transport Recovery ................................................................................................................. 81
SECTION 11 – EXTENDED STORAGE .................................................................................................83
Extended Storage Preparation ............................................................................................................ 84
Return To Service From Extended Storage ......................................................................................... 85
SECTION 12 – WARRANTIES ..............................................................................................................87
Limited Warranty ................................................................................................................................. 88
Warranty ......................................................................................................................................... 88
Warranty Timeframe ...................................................................................................................... 88
Exclusions....................................................................................................................................... 89
Voiding Of Warranty ....................................................................................................................... 90
Sole Remedy................................................................................................................................... 90
Disclaimer....................................................................................................................................... 90
No Consequential Damages........................................................................................................... 90
How To Make A Warranty Claim ..................................................................................................... 91

(Page intentionally left blank.)

1SAFETY INFORMATION
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page 11
Safety Information
Notices 1

Page 12
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
GENERAL SAFETY INFORMATION
This vehicle is designed and intended to transport people on improved or semi-improved surfaces for
applications including commercial, industrial, agriculture and personal use, where permitted by law or
by regulatory authority rules. Always adhere to local laws and regulations pertaining to the use of the
vehicle.
Only operate this vehicle as described in this manual. Speak with your local dealer or distributor for
changes, additions, or modifications that are necessary to comply with local laws and regulations
pertaining to the use of the vehicle.
Any vehicle can be used in a variety of usages outside of the manufacturer’s intent. Club Car cannot
anticipate and warn for every possible usage condition. Therefore, the operator must exercise good
sense and judgement and must operate the vehicle in an appropriate manner for the way in which the
vehicle is being used.
PRACTICE SAFETY
101960501
WARNING
!
ROTATING PARTS AND BURN RISK
Rotating parts can cause serious injury.
Keep body, hands, hair, and clothes away
from rotating parts.
Hot surfaces can cause serious burns.
Allow to cool before servicing.
Signal words (DANGER, WARNING, CAUTION, and NOTICE)
and safety messages are in this manual and on safety
decals. Read, understand, and obey all instructions, safety
precautions, and safety decals before vehicle operations.
Replace missing, damaged, or unreadable safety decals
immediately to prevent possible property damage, personal
injury, or death. Purchase replacement safety decals from
your dealer or distributor.
Know and understand all laws and regulations for vehicle
operation in your area.
Speak with your dealer or distributor if you have questions
about material contained in this manual or the vehicle.
SAFETY SIGNAL WORDS
Signal words (DANGER, WARNING, CAUTION, and NOTICE) and safety messages are in this manual
and on safety decals. Read, understand, and obey all instructions, safety precautions, and safety
decals before vehicle operations.
Safety messages are necessary and must be obeyed.
The safety alert symbol is used to alert you to possible personal injury hazards.
Obey all safety messages that follow this symbol to prevent possible injury or
death.
1Safety Information
General Safety Information

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page 13
SAFETY SIGNAL WORD SIGNIFICANCE
DANGER
A DANGER identifies a hazardous situation which will result in
death or serious injury.
WARNING
A WARNING identifies a hazardous situation which could result
in death or serious injury.
CAUTION
A CAUTION identifies a hazardous situation which could result
in minor or moderate injury.
NOTICE
A NOTICE identifies a hazardous situation which could result in
property damage.
SAFETY COMMITTEE
If the vehicle is rented or part of a fleet, Club Car recommends a safety committee. The primary
concern of the safety committee is safe vehicle operation.
Safety committee objectives include:
• Approve vehicle operation areas.
• Identify all hazards.
• Identify who is approved to operate the vehicle.
• Keep the vehicles in a safe and serviceable condition.
• Supply instructions on safe vehicle operation.
• Visually show all hazards.
VEHICLE SAFETY INFORMATION
DANGER FAILURE TO OBEY INSTRUCTIONS IN THIS MANUAL CAN CAUSE
PROPERTY DAMAGE, SERIOUS PERSONAL INJURY, OR DEATH.
BEFORE YOU OPERATE THE VEHICLE OR DO THE SERVICING OF
THE VEHICLE, READ AND FULLY UNDERSTAND THE OWNER’S
MANUAL.
CLUB CAR VEHICLES ARE NOT RATED FOR OPERATION IN
EXPLOSIVE AREAS. THE VEHICLE OR BATTERY CHARGER CAN
CAUSE FLAMMABLE MATERIAL AND FUME IGNITION. DO NOT
OPERATE THE VEHICLE OR BATTERY CHARGER NEAR FLAMMABLE
MATERIALS AND FUMES.
Safety Information
Vehicle Safety Information 1

Page 14
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
THE VEHICLE DOES NOT GIVE PROTECTION FROM LIGHTNING,
FLYING OBJECTS, OR OTHER STORM RELATED HAZARDS. DO NOT
OPERATE THE VEHICLE IN STORMS. STOP THE VEHICLE. GET OUT
OF THE VEHICLE IMMEDIATELY AND FIND A SHELTER IN
ACCORDANCE WITH APPLICABLE SAFETY GUIDELINES FOR
YOUR LOCATION IF IN A STORM.
UNINTENDED VEHICLE OPERATION CAN CAUSE SERIOUS
PERSONAL INJURY OR DEATH. MAKE SURE THAT CHILDREN ARE
ALWAYS SUPERVISED IN AND AROUND THE VEHICLE.
DO NOT OPERATE THE VEHICLE UNDER THE INFLUENCE OF
ALCOHOL, DRUGS, MEDICATIONS, OR WHILE DISTRACTED.
WARNING ELECTRICAL SHORTS CAN CAUSE A FIRE, ELECTRICAL SHOCK,
SERIOUS PERSONAL INJURY, OR DEATH. PREVENT CONTACT
BETWEEN POSITIVE VOLTAGE AND THE GROUND CIRCUIT. USE
INSULATED TOOLS.
TO HELP PREVENT BEING HIT, DO NOT STAND IN FRONT OF OR
BEHIND THE VEHICLE.
ONLY TWO PERSONS PER BENCH SEAT. ONLY RIDE ON THE
BENCH SEAT. DO NOT LET PEOPLE RIDE ON ANY PART OF THE
VEHICLE THAT IS NOT EQUIPPED WITH A SEAT. DO NOT LET A
PASSENGER HOLD A CHILD IN HIS OR HER LAP WHILE THE
VEHICLE MOVES.
ONLY TRAINED TECHNICIANS SHOULD SERVICE OR REPAIR THE
VEHICLE. ANYONE DOING EVEN SIMPLE REPAIRS OR SERVICE
SHOULD HAVE KNOWLEDGE AND EXPERIENCE IN ELECTRICAL
AND MECHANICAL REPAIR. THE APPROPRIATE INSTRUCTIONS
MUST BE USED WHEN PERFORMING MAINTENANCE, SERVICE, OR
ACCESSORY INSTALLATION.
VEHICLE SAFETY AND COMPLIANCE DECALS
WARNING MAKE SURE ALL OF THE SAFETY AND OPERATION DECALS ARE IN
THE CORRECT LOCATION ON THE VEHICLE. REPLACE THE SAFETY
AND OPERATION DECALS THAT ARE MISSING OR DAMAGED.
Understand and obey all safety decals. The instructions on these safety decals must be followed in
order to prevent the risk of dangerous personal injury or property damage.
Use a soft moist cloth to clean the decals. Do not use solvents, gasoline, or other chemicals to clean
the decals. Do not pressure wash decals.
1Safety Information
Vehicle Safety Information

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page 15
WARNING
!
Before leaving vehicle:
• Engage park brake to lock wheels.
• Set the FNR control to NEUTRAL (N).
• Turn the key to OFF and remove key.
TO OPERATE
Before using vehicle, read owner’s manual and vehicle safety warnings.
Study and understand controls.
OPERATING INSTRUCTIONS
103783001
UNINTENDED VEHICLE MOVEMENT CAN CAUSE SERIOUS
INJURY OR DEATH
• Ensure wheels are turned in desired direction of travel and path is
clear.
• Turn key to ON.
• Set the FNR control to FORWARD (F) or REVERSE (R) only when
stopped.
• Disengage the park brake.
• Vehicle will start moving when accelerator pedal is pushed.
• Slowly push the accelerator pedal to increase speed.
• During operation, a beeping alarm indicates a reduction in
regenerative braking.
• To stop, release accelerator pedal and push the brake pedal.
WARNING
47586040001
ACCIDENTAL VEHICLE
MOVEMENT HAZARD MAY CAUSE
SERIOUS INJURY OR DEATH.
Before
leaving
the vehicle: • Engage the park brake
• Turn the key to OFF and remove the key.
• Set the FNR control to NEUTRAL (N)
1. Operating Instructions Decal 2. Vehicle Movement Warning Decal
Safety Information
Vehicle Safety Information 1

Page 16
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
WARNING
Windshield does not
provide protection from
golf balls or other flying
objects.
47592393001
RISK OF EYE INJURY
47574958001
WARNING
!
COLLISION, UNINTENDED MOVEMENT, ROLLOVERS, OR FALLING OUT CAN CAUSE
SERIOUS INJURY OR DEATH.
Maximum Load: 800 lb (360 kg)Maximum Grade: 20%
• Vehicle to be operated by licensed or authorized persons only.
• Only operate vehicle in compliance with local and state laws.
• Use caution when operating vehicle in the presence of higher
speed vehicles, in congested areas, or on unimproved surfaces.
• Do not operate this vehicle in a manner that impedes traffic.
• Do not start the vehicle until all occupants are fully seated.
• Two (2) persons per bench seat maximum.
• Operate the vehicle from the driver side only.
• Remain fully seated while moving.
• Do not leave children unattended at any time.
• Drive slowly in turns and straight up and down slopes.
• Hold on and keep entire body inside vehicle while moving.
• Never operate the vehicle under the influence of alcohol or drugs
or when distracted.
3. Windshield Warning Decal 4. Rollover Warning Decal
47586191001
This vehicle complies with Part III of the
ANSI / ILTVA Z135 - PTV Safety Standard
when equipped with rear view mirrors
Do not expose electrical components to water. Water can
cause damage to electrical components.
• Do not direct water stream in the area of this plate.
• See vehicle service manual before servicing.
NOTICE
RISK OF ELECTRONIC COMPONENT DAMAGE
103384601
5. Vehicle Compliance Decal 6. Water Exposure Caution Decal
47624328001
DANGER
47628717001
Keep sparks and flames away from
battery.
Fire and explosion can cause
severe injury or death.
Do not flood or submerge.
Do not incinerate or crush.
Do not operate if battery pack is
damaged or bulging.
Do not open battery.
Electrolyte for lithium ion battery can
cause blindness or severe burns.
Electrical shock can cause severe
injury or death.
Remove the high voltage interlock
fuse before servicing the vehicle.
7. Terminal Cover Hazard Decal 8. Battery Danger Decal
1Safety Information
Vehicle Safety Information

ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
Page 17
!WARNING
TOW
RUN
STOW
BATTERY EXPLOSION
CAN CAUSE
SERIOUS INJURY
• Towing this vehicle
• Extended storage
• Servicing the vehicle
• Read the vehicle service manual before servicing.
• Keep electronic components dry.
• The battery compartment is not a storage area. Do
not keep items in battery compartment.
• Do not operate the vehicle without this plate
correctly installed.
• Battery contains no internal servicable
parts.
SET THE RUN/TOW-STOW SWITCH TO TOW
BEFORE:
47624651001
MAXIMUM TONGUE WEIGHT
150 lb (68 kg)
NOTICE
101155301
9. Run/Tow-Stow Warning Decal 10. Trailer Hitch Notice Decal
WARNING
STAYCLEAR
101609401
!
CRUSHAREA
WARNING
RIDING IN THE CARGO BED CAN CAUSE
SERIOUS INJURY OR DEATH
• Cargo bed has a 150 lb (68 kg) load limit
• Do not stand, sit, or ride in the cargo bed
101972001
11. Crush Area Warning Decal 12. Box Bed Warning Decal
!
WARNING
105267501
• Children requiring a child safety seat must not ride in the vehicle.
• Do not leave children unattended in the vehicle at any time.
13. Children Unattended Warning Decal
WARNING
!
FALLING OFF CAN CAUSE SERIOUS INJURY OR DEATH
105267401
• Hold on and keep entire body inside vehicle while moving.
• Remain fully seated while moving.
14. Hold On Warning Decal
Safety Information
Vehicle Safety Information 1

Page 18
ONWARD LIFTED 4-PASSENGER LITHIUM-ION
Operators Manual
TPCC01DM00EN019 (Edition D)
• Two (2) persons per bench seat maximum.
WARNING
105267301
!
FALLING OFF CAN CAUSE SERIOUS INJURY OR DEATH
15. Falling Off Warning Decal
VEHICLE SAFETY FEATURES
BATTERY CHARGING INTERLOCK
External Battery Charger: The battery charging interlock is a safety feature that prevents possible
damage to the battery charger and vehicle. The battery charging interlock will automatically engage
when the DC cord is connected to the vehicle. The vehicle will not operate when the DC cord is
connected.
Note: The AC cord does not have to be connected for the battery charging interlock to operate.
Onboard Battery Charger: The battery charging interlock is a safety feature that prevents possible
damage to the battery charger and vehicle. The battery charging interlock will automatically engage
when the AC cord is connected to a power source. The vehicle will not operate when the AC cord is
connected.
MULTI-PURPOSE BUZZER
The vehicle comes equipped with a multi-purpose buzzer. The multi-purpose buzzer makes an audible
tone when:
• The Forward / Neutral / Reverse control (FNR) is set to R.
• The walk-away braking engages for longer than two seconds.
• The regenerative braking performance decreases because the battery is fully charged.
• The battery starts to charge.
• The battery state of charge (SOC) is low.
• The turn signal lever is on.
REGENERATIVE BRAKING
CAUTION WHEN THE BATTERY IS FULLY CHARGED, A WARNING BUZZER
WILL OPERATE DURING REGENERATIVE BRAKING TO TELL THE
DRIVER THAT REGENERATIVE BRAKING PERFORMANCE WILL
DECREASE. USE THE BRAKE PEDAL TO CONTROL THE VEHICLE
SPEED.
Regenerative braking helps maintain the downhill speed of the vehicle in relation to the accelerator
pedal position.
Regenerative braking performance decreases when the battery is fully charged.
Regenerative braking cannot maintain the vehicle speed on an excessive grade (more than 20%). Use
the brake pedal to control the vehicle speed.
1Safety Information
Vehicle Safety Features
