Innotech EAP-QUADRAT-11 User manual

EAP-QUADRAT-11
Instruction manual
© INNOTECH Arbeitsschutz GmbH. Irrtümer, Druckfehler, technische Änderungen vorbehalten! © INNOTECH Arbeitsschutz GmbH. Errors and misprints accepted. We reserve the right to make technical changes.
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
DE
EN – ATTENTION: Use of the INNOTECH product is only permitted after the instruction
manual has been read and fully understood in the respective language.
EN
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
IT
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
FR
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
NL
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
ES
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
PT
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
DK
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
SV
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
CZ
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
PL
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila pre-
brali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
SL
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
SK
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
HU
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
TR
ZH – 注意：只有在仔细阅读并完全理解了当地语言的使用说明后，才能使用 INNOTECH 公司的产品。
ZH

2EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
1TABLE OF CONTENTS
[2] EXPLANATION OF SYMBOLS 3
[3] SAFETY INSTRUCTIONS 4
[4] COMPONENTS/MATERIAL 6
[5] PRODUCT SUITABILITY/APPROVAL 7
[6] INSPECTION 8
[7] WARRANTY 9
[8] SIGNS & MARKINGS 9
[9] DIMENSIONS 10
[10] INSTALLATION SUBSTRUCTURE 11
[11] INSTALLATION TOOL 13
[12] INSTALLATION 13
[13] STRESS DIRECTIONS 15
[14] WASTE DISPOSAL 15
[15] ACCEPTANCE REPORT 16
[16] NOTICE - FALL PROTECTION SYSTEM 18
[17] INSPECTION LOG 19
[18] DEVELOPMENT & SALES 21

3
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at

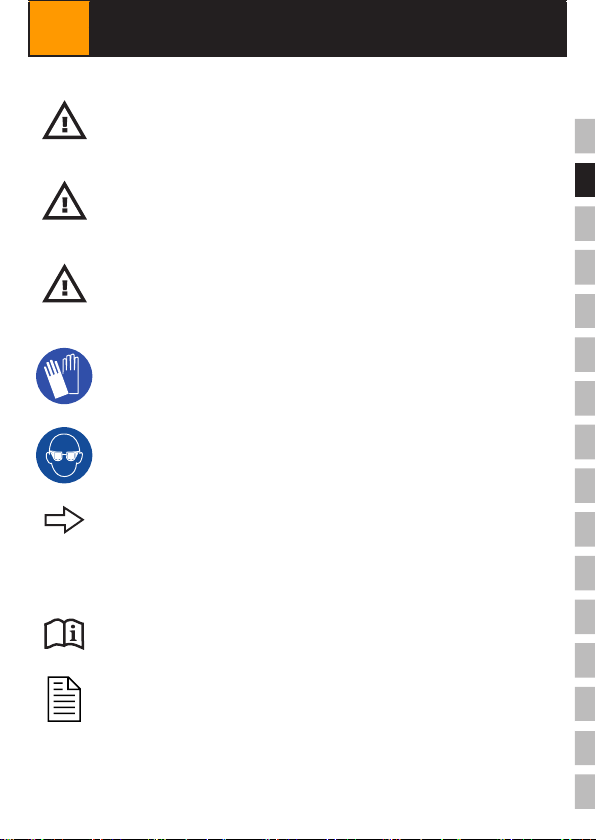

2EXPLANATION OF SYMBOLS
Additional information / instructions
Warning/danger notices
For an IMMEDIATE danger that can cause serious injuries or death.
üCorrect Incorrect
For a POTENTIALLY dangerous situation that can cause serious physical
injuries or death.
For a POTENTIALLY dangerous situation that could lead to minor physical
injuries and damage to property.
DANGER
WARNING
CAUTION
Comply with manufacturer information/instruction manual.
Wear protective gloves!
Wear safety glasses!
Comply with the respective manufacturer informatin / assembly manual.

4EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
3SAFETY INSTRUCTIONS
3.1 ALLGEMEIN
The following safety instructions and the current state of the art must be
taken into consideration.
3.1 GENERAL
- The fall protection system may be installed only by specialised experts familiar
with the fall protection system, and in accordance with the current state of the art.
- The protective equipment may be used only by people who are
• trained in the use of "personal protective equipment" (PPE).
• are in good physical and mental health. Medical conditions such as cardiovascular
problems, intake of medicines, consumption of alcohol, etc. negatively aect the
safety of the user.
- • are familiar with the locally applicable safety regulations.
- During installation/use of the fall protection system, the respective accident preven-
tion regulations (e.g. working on roofs) must be complied with.
- Understand and accept the capabilities, restrictions, and risks of the protective equip-
ment .
-A plan must be available that species rescue procedures for all possible emergencies .
- Before starting work, ensure that no objects can fall to the ground from the work
site. The area below the work site (pavement, etc.) must be kept clear.
- You should plan, install, and use the anchorage point in such a way that no one can
fall over the edge if the personal protective equipment (PPE) is used properly.
(See planning documents on www.innotech.at)
- At the access to the roof fall protection system, you must document the positions
of the attachment devices by means of plans (e.g. top view of the roof).
-If following the certication of the fall protection system, structural changes are
carried out in the immediate vicinity of the fall protection system, it must be ensured
that these changes do not aect the security of the installed fall protection system!
Where there is any doubt, consult a structural engineer or the manufacturer.
- After being subjected to the stress of a fall, the use of the fall protection system
must be stopped, and it must be checked by a specialised expert (component parts,
attachment to the substructure, etc.).
- Do not make any changes to the fall protection system.
- If used on sloping roofs, roof avalanches (ice, snow) must be avoided by means of
suitable devices to prevent snow from sliding.

5
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
3SAFETY INSTRUCTIONS
3.2 FOR FITTERS: FOR SAFE ASSEMBLY
3.3 FOR USERS: FOR SAFE USE
If uncertainties arise during installation, it is imperative that you contact
the manufacturer.
- All stainless steel bolts must be greased with a suitable lubricant before installation
(included: Weicon AntiSeize ASW 10000, or equivalent).
- Ensure that stainless steel does not come into contact with swarf or steel tools,
as this may lead to corrosion.
- Document the professional attachment of the fall protection system to the building
structure with dowel logs and photos of each tting situation.
-The tters must ensure that the substructure is suitable for fastening the anchorage
device. If in doubt, consult a structural engineer.
- The roof covering must be properly sealed in accordance with applicable guidelines.
- The minimum free space necessary under the edge is calculated as follows:
Deformation of the anchorage device in the event of strain + Manufacturer's
specication of the personal protective equipment used including deection of the
cable + body height + 1 m safety margin.
- Correct use of the individual elements including "personal protective equipment"
must be ensured, because otherwise the safe functioning of the fall protection sys-
tem is NOT guaranteed.
- Attachment to the fall protection system is completed through the rotating ancho-
rage eye with a karabiner and it must always be used with personal protective
equipment in accordance with EN 361 (safety harness) and EN 363 (fall protection
system).
-ATTENTION! For horizontal use, only lanyards may be used that are suited for this
purpose and have been tested for the respective edges (sharp edges, trapezoidal
sheets, steel girders, concrete, etc.).
- Do NOT use fall protection systems if wind speeds exceed normal parameters.
- The fall protection system must NOT be used by children and pregnant women.
- If you provide the fall protection system to external contractors, their understanding
of this instruction manual must be conrmed in writing.
- If the equipment is sold to other countries, the instruction manual must be provided
in the respective national language!
- Comply with the customary national provisions for lightning protection.

6EAP-QUAD-11 / Version 181008 / www.innotech.at
EN

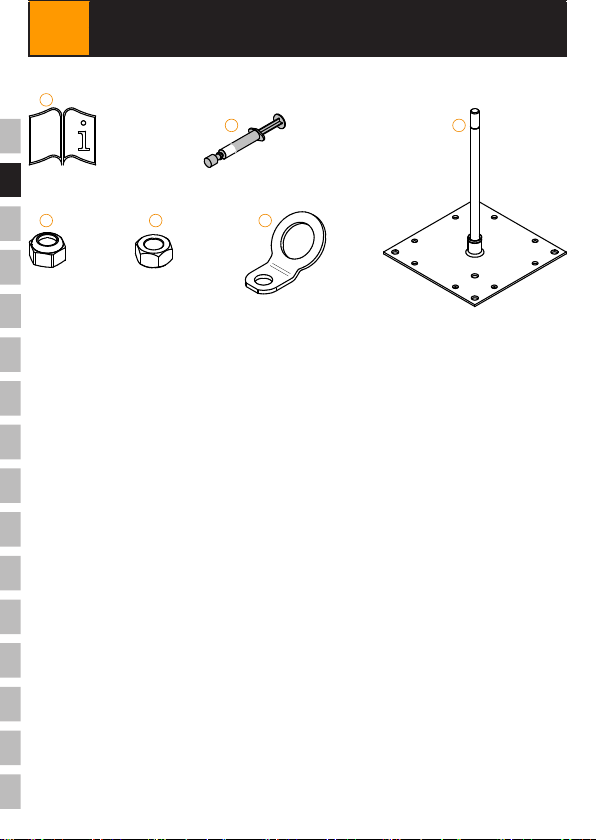

4COMPONENTS/MATERIAL
A) Instruction manual
B) Lubricant: Weicon AntiSeize ASW10000
C) INNOTECH Standartposts: Stainless steel AISI 304
D) M16 locking nuts: Stainless steel AISI 304
E) M16 hex nuts: Stainless steel AISI 304
F) Anchorage eye: Stainless steel AISI 304
B C
D E F
A

7
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
5PRODUCT SUITABILITY/APPROVAL
INNOTECH "EAP-QUADRAT-11" has been developed as anchorage point for the per-
sonal safety of 3 people (including 1 person for the provision of rst aid) in accordance
with EN 795:2012 & CEN/TS 16415:2013 TYPE A and it is suitable for the following
fall protection systems in accordance with EN 363:2008:
- Restraint systems
- Workplace positioning systems
- Fall arrest systems
- Rescue systems
DANGER OF DEATH from incorrect use.
- Use INNOTECH standard posts ONLY for personal safety.
-NEVER hang loads from INNOTECH standard posts that have not been
approved in this instruction manual.
!
DANGER
Comply with the manufacturer instructions for the personal
protective equipment used.
INNOTECH "EAP-QUADRAT-11" has been tested and certied in accordance
with EN 795:2012 & CEN/TS 16415:2013 TYPE A.
The notified authority participating in the type test:
DEKRA EXAM GmbH, Dinnendahlstr. 9, 44809 Bochum

8EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
6.1 TO BE CHECKED BEFORE EACH USE
6INSPECTION
The inspection intervals are found in the test log.
If there are any doubts concerning the reliable operation of
the fall protection system, it must NO longer be used, and
must be checked by an expert (with written documentation)
If necessary, replace the product.
6.2 ANNUAL CHECKS
INNOTECH standard posts must be inspected at least once a year by a specially trained
technician who is familiar with the fall protection system. The user's safety depends on
the eectiveness and durability of the equipment.
Shorter intervals between inspections may be required, depending on the intensity
of use and the environment (e.g. in corrosive atmospheres, etc.).
Document the verication by the specialist in the inspection log in the instruction manu-
al, and keep it with the instruction manual.
DANGER TO LIFE through damage to INNOTECH standard posts.
- INNOTECH standard posts must be in faultless condition.
- INNOTECH standard post must NO longer be used, if
• Damage or wear to its components are obvious,
• Other defects were observed (loose threaded connections,
deformation, corrosion, wear, etc.),
• Strain has occurred due to a fall (Exception: provision of rst aid),
• The product identication is illegible.
!
DANGER
Prior to each use, INNOTECH standard posts must be checked visually for any obvious
defects.
Check the entire fall protection systems's suitability for use by using the acceptance
report and test log.

9
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
Q
U
A
D
R
A
T
-
1
1
-
X
X
X
max.
J
J
J
J
-
.
.
-
.
.
.
E
N
7
9
5
:
2
0
1
2
T
Y
P
A
7WARRANTY
The warranty period for manufacturing defects on all components (under normal con-
ditions of use) is 2 years from the date of purchase. The term is shortened if used in
corrosive atmospheres.
If there is strain (a fall, weight of snow, etc.,) the warranty claim is void for those com-
ponents that have been designed to absorb energy, or that may have been deformed.
For system installation and for components planned and installed
under the responsibility of specialised installation companies,
INNOTECH® assumes neither responsibility nor warranty in the
case of improper installation.
8ZEICHEN & MARKIERUNGEN
A B
C
D
E F
A) Name or logo of the manufacturer/reseller: INNOTECH
B) Type designation: EAP-QUADRAT-11
C) Signs stating that instructions in the manual
must be followed:
D) Maximum number of people who can be secured: 3 (including 1 person for
rst aid administration)
E) Year of manufacture and manufacturer's
serial number: YYYY-..-...
F) Number of the applicable standard: EN 795:2012 &
CEN/TS 16415:2013 TYP A
C

10 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
[mm]
9DIMENSIONS
Standard length (L): 300/400/500/600 mm
105
105
205
q
235
q
4
L
8x O 10,5
6x O 13
O 13

11
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at

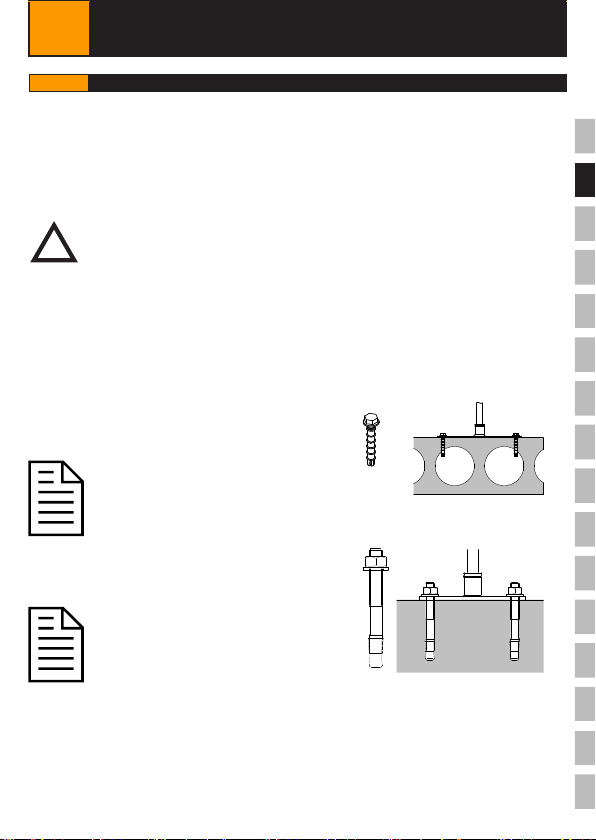

10 INSTALLATION SUBSTRUCTURE
10.1 CONCRETE
INNOTECH "BEF-103"
4 x screw-in anchors
The basic prerequisite for professional/proper installation is static load-bearing con-
struction concrete (solid concrete) with a concrete quality of at least C20/25
or a hollow core slab (minimum hollow core cross-section of 25 mm) with a
concrete quality of at least C 50/60 B4 and use of the original fasteners listed in
this instruction manual.
DANGER OF DEATH as a result of installation on an unsuitable
substructure .
- Install INNOTECH standard posts on a static load-bearing construction
concrete (solid concrete) with a concrete quality of at least C20/25.
-DO NOT install on screed, levelling concrete,
blinding concrete etc.
- In case of doubt, the installation substrate must be checked by a
structural engineer or by the manufacturer.
!
DANGER
INNOTECH "BEF-104"
4 x concrete anchors

12 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
10 INSTALLATION SUBSTRUCTURE
10.2 WOOD CONSTRUCTION
INNOTECH "BEF-205"
4 x fastening bolts 8.0 x 120 mm
8 x fastening bolts 6.0 x 40 mm
INNOTECH "BEF-307"
Screw fastening for OSB-PLATE
4 x special anchors
INNOTECH "BEF-209"
4 x fastening bolts 8.0 x 80 mm
4 x washers
INNOTECH "BEF-208"
24 x fastening bolts 6.0 x 50 mm
14 x washers

13
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
10.3 TRAPEZOIDAL SHEETING
10 INSTALLATION SUBSTRUCTURE
INNOTECH "BEF-307 + BEF-307-3"
TRAPEZOIDAL SUPPORTING SHEET,
4 x special anchors
2 x stabilisation bar
356
310
250
INNOTECH "BEF-307"
TRAPEZOIDAL SUPPORTING SHEET ,
4 x special anchors

14 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
11 INSTALLATION TOOL
[mm]
SW = 24
2x
12 MONTAGE
1.
DANGER OF DEATH if NOT properly installed.
- Install INNOTECH standard posts properly as specied in the instruction
manual.
!
DANGER

15
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
12 INSTALLATION
ü
FINISHED
2x
2.
3.
≥
0,5
2
≥
[mm]

16 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN

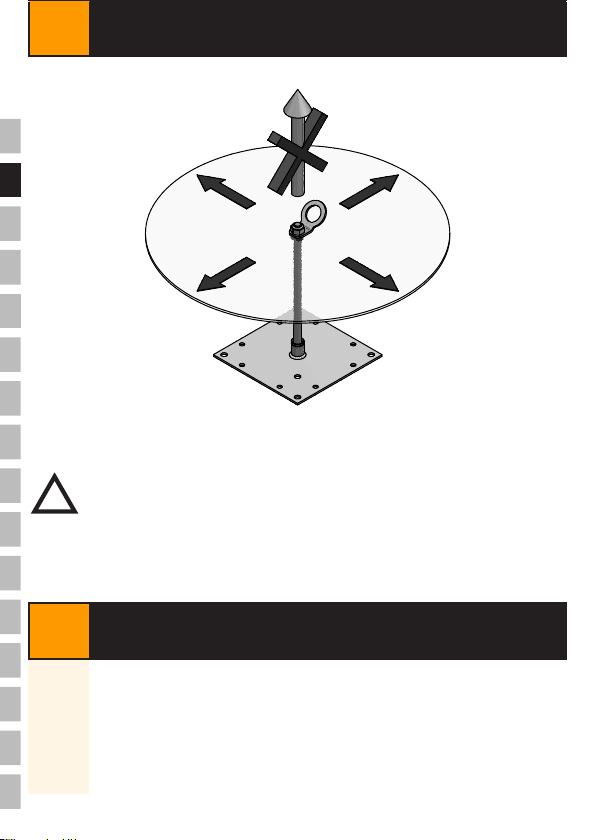

13 STRESS DIRECTIONS
DANGER OF DEATH when used in UNAPPROVED stress directions.
- Only use INNOTECH Quadrat in the approved stress directions.
!
DANGER
14 WASTE DISPOSAL
Do NOT dispose of the fall protection system in the house waste.
As per national requirements, gather together the used parts,
and dispose of them in an environmentally sound fashion.
X
Y
Z

17
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
15 COPY TEMPLATE
ACCEPTANCE REPORT
ORDER NUMBER:
PROJECT:
CLIENT: Specialist: 
Company address:
CONTRACTOR: Specialist: 
Company address:
INSTALLATION: (please tick as appropriate!)
EAP (single anchorage points)
ANCHORAGE POINTS of a horizontal lifeline system in accordance
with EN 795:2012 TYPE C
Specialist: 
Company address:
OPTIONAL: For set up of a horizontal lifeline system in accordance
with EN 795:2012 TYPE C
Installation of the anchorage points by:
Installation of the lifeline system by: _____
ACCEPTANCE REPORT NR. ____ (PART 1/2)
EAP-QUADRAT-11

18 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
15 COPY TEMPLATE
ACCEPTANCE REPORT
FASTENER & PHOTO DOCUMENTATION
PRODUCT: Item Year of construction/Serial number:
(Type designation EAP/anchorage point)
Installation substructure:
(e.g. solid concrete, concrete quality: C20/25, wood rafter dimension, for sheet metal roofs: roof manufacturer, profile, material,
sheet metal thickness, etc.)
Date: Location:
Dowel type:
BEF/Sticker?/
Designation
Setting
depth:
[mm]
Drill bit Ø:
[mm]
Tightening
torque:
Photos:
(storage
location)
mm mm Nm
mm mm Nm
The undersigned installation company guarantees proper workmanship (edge spacing, inspection of the substructure, proper
cleaning of boreholes, compliance with curing times and processing temperature, compliance with the dowel manufacturer's
guidelines, etc.)
The client accepts the work performed by the contractor. The instruction manual, documentation of the anchorage points/photo
documentation and test logs have been transferred to the client (building owner) and have been made available to the user.
Near the system access to the fall protection system, the positions of the anchorages must be documented by the building owner
with plans (e.g. top view of the roof).
The expert tter familiar with the fall protection system conrms that the installation tasks have been executed prop-
erly, in accordance with the state of the technology, and in accordance with the manufacturer's instruction manual.
The technical safety reliability is conrmed by the installation company.
Handover of: (e.g: Personal protective equipment PPE, fall arrest devices HSG, storage cabinet, etc.)
Item Item Item Item
Integrated in the existing lightning protection system? YES NO
Comments:
Name:
ACCEPTANCE REPORT NR. ____ (PART 2/2)
EAP-QUADRAT-11
Client
Date, company stamp, signatureDate, company stamp, signature
Inspection: Contractor (expert who is familiar
with the fall protection system)

19
EN
EAP-QUAD-11 / Version 181008 / www.innotech.at
16 NOTICE - FALL PROTECTION SYSTEM
INFORMATION ON THE CURRENT FALL PROTECTION
SYSTEM
The building owner must ax this notice in a conspicuous
location near the access to the system.
This system must be used in accordance with the state
of the art and the instruction manual.
The storage location for the instruction manual, inspection logs, etc. is:
• Overview showing the position of the anchorage device:
Mark the areas where there is a break-through hazard
(e.g. light domes and/or roof lights).
The maximum limit values of the anchorage devices are to be found in the respective
instructions and on the rating plate of the fall protection system.
If there is strain caused by fall, or if in doubt, the anchorage device must be taken out of service immediately
and sent to the manufacturer, or to a specialised workshop for inspection and repair.
This applies if there is damage to the anchorage equipment.

20 EAP-QUAD-11 / Version 181008 / www.innotech.at
EN
17 COPY TEMPLATE
INSPECTION LOG
INSPECTION LOG NR. (PART 1/2)
EAP-QUADRAT-11
ORDER NUMBER:
PROJECT:
PRODUCT: Item Year of construction/Serial number:
(Type designation EAP/anchorage point)
ANNUAL SYSTEM INSPECTION EXECUTED ON:
LATEST DATE FOR NEXT ANNUAL SYSTEM INSPECTION:
CLIENT: Specialist: 
Company address:
CONTRACTOR: Specialist: 
Company address:
INSPECTION POINTS:
checked and in order!
DEFECTS DETECTED:
(Description of defects/measures)
DOCUMENTATION:
Instruction manual
Acceptance logs/documentation of the anchorage/
photo documentation
PPE (personal protective equipment against falls from a height):
Inspection in accordance with manufacturer's specications
Expiration date
Annual inspection performed
Not checked (no authorisation)
ROOF SEALING:
No damage
No corrosion
........................................
