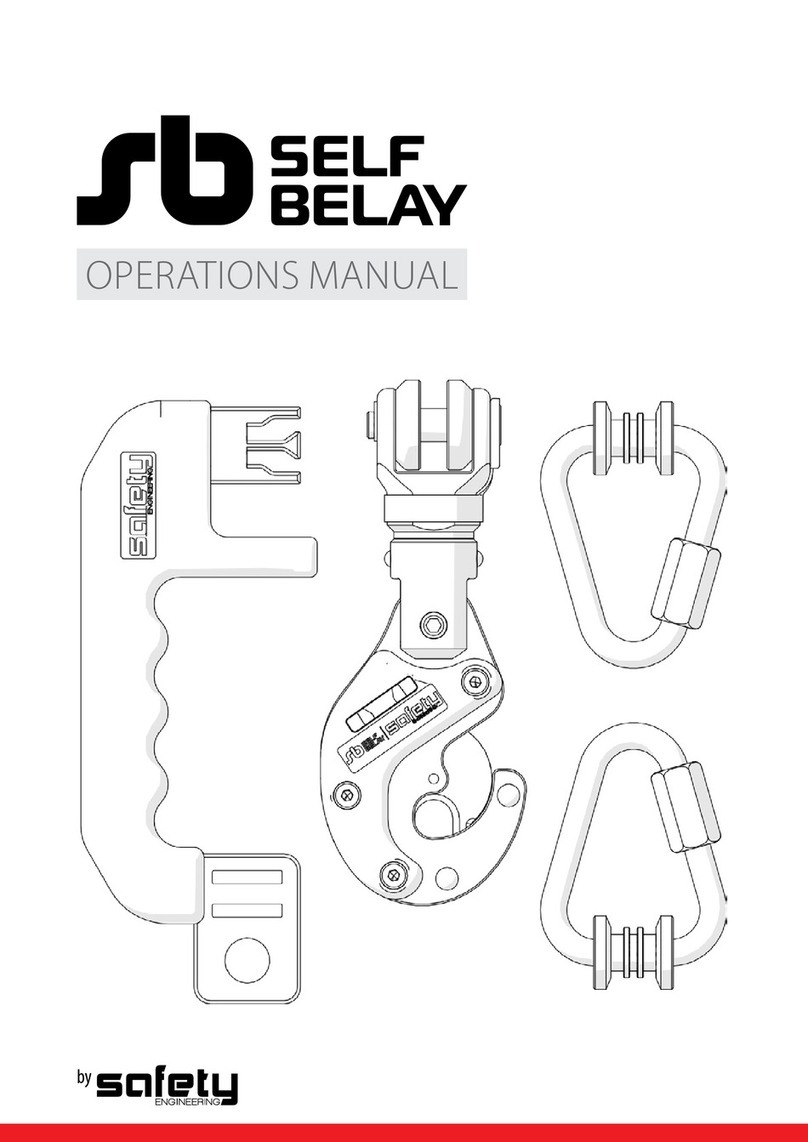

Safety Engineering SELF BELAY User manual

|page 1 of 5 | www.safetyeng.eu
INSTALLTION MANUAL
INSTALLING AND USING SELF BELAY
CONNECTOR WITH KANOPEO
SAFEROLLER AND HIROPE 2
OFFICE ADDRESS:
111 Tsarigradsko shose,
1784 Sofia, Bulgaria
www.safetyeng.eu
ACCOUNTING DETAILS:
EUR: BG75UNCR70001520885679
USD: BG56UNCR70001523186764
Bank: UniCredit Bulbank AD
BIC code: UNCRBGSF
VAT number: BG 175376730
WARNING: Do not install or operate the device until you have fully read
and fully understood this manual! FAILING TO DO SO MAY LEAD TO
SERIOUS INJURIES OR FATALITIES!

Ver. 1.0 10.07.2018 г.|page 2 of 5 | www.safetyeng.eu
Self Belay Connector With Kanopeo
Saferoller And Hirope 2 Installtion Manual
Installing the Self Belay to the Hirope 2 User’s Side Loop
1. Using a at screwdriver remove the retaining
E-clip:
3. Arrange the plastic spacers so that the chamfer is on the inside:
2. With the screwdriver lift to unlock and remove the
folding spring bolt:

Ver. 1.0 10.07.2018 г.|page 3 of 5 | www.safetyeng.eu
Self Belay Connector With Kanopeo
Saferoller And Hirope 2 Installtion Manual
4. Align the Hirope 2 user’s side loop
between the spacers:
6. Using pliers lock back the retaining E-clip:
5. Insert back the folding spring bolt and lock it. Make sure you match the cone/tapered side of the swivel
with the cone/tapered side of the bolt:
cone
click
click

Ver. 1.0 10.07.2018 г.|page 4 of 5 | www.safetyeng.eu
Self Belay Connector With Kanopeo
Saferoller And Hirope 2 Installtion Manual
Installing Hirope 2 to the Saferoller
1. Insert the carabiner in the Saferoller eye. Use a rubber band or similar tool to avoid having the carabiner
turn upside down:
2. Insert the lanyard loop rst and then the Hirope 2 lock device:

Ver. 1.0 10.07.2018 г.|page 5 of 5 | www.safetyeng.eu
Self Belay Connector With Kanopeo
Saferoller And Hirope 2 Installtion Manual
Using Safety Engineering Self Belay connector
with KANOPEO Saferoller and Hirope 2
WARNING: Always refer to the KANOPEO and Safety Engineering corresponding user manuals to
fully understand how to properly operate each device. Failing to do so may lead to
serious injuries or fatalities!
service standard
Make sure that the Hirope 2 is always
in working position when in use:
To attach the customer to the
Self Belay simply fully insert the
harness piece in the Self Belay.
Make sure it is locked:
To disconnect the customer use the Service key to unlock the device and
remove the harness piece:
