inout Panelplayer User manual

0
0
USER MANUAL
0
Version 1.4

Panelplayer User Manual v.1.4
Page 1
Warranty
Panelplayer has a 24 month warranty on the electronic parts, running from the date of
purchase. The warranty will not be valid in case of tampering with the device or in case
personnel not authorised by the manufacturer or by the authorised dealer should carry out
work on it.
N.B. responsibility of the purchaser: in case of operation under warranty, the device must
be packaged so as to prevent damage during transport and shipped to the manufacturer
together with all the accessories.
Warranty rules
1. In order to exercise his warranty rights, the purchaser must enclose with the device a
copy of evidence of purchase duly stamped by the dealer (bill/invoice).
2. The warranty lasts for 24 months for the electronic parts. The warranty is granted at the
point of sale or else directly requested from the manufacturer.
3. The warranty only covers damage to the product which makes it work badly.
4. Work under warranty will only mean repairing or replacing, free of charge, any parts
acknowledged to be defective during manufacture or in their material, including labour
costs.
5. The warranty does not apply to damage caused by negligence or failure to comply with
the instructions, or damage caused by unauthorised people, with a special reference to
the outside parts.
6. Also, the warranty does not apply to damage caused to the device by connection to
unsuitable power sources.
7. The warranty does not cover parts subject to wear after use, or the container if the
material is not defective.
8. The warranty does not include transport costs, which will be paid for by the purchaser
in relation to the manner and time of transport.
9. The warranty will run out after 24 months have elapsed. In this case, service will be
provided charging for the parts replaced, labour costs and transport according to the
current rates.
10. Any dispute will be settled exclusively before the Court of Law of Venice.

Panelplayer User Manual v.1.4
Page 2
TABLE OF CONTENTS
1.
Introduction
1.1 What is Panelplayer?
1.2 What is Mp3?
1.3 Encoder
1.4 Decoder
1.5 Player
1.6 Wave
1.7 Audio compression in various formats
2.
Installation
2.1 Content of the Panelplayer kit
2.2 Notices
3.
Description and connections
3.1 Command description
3.2 Connection description
3.3 Power supply
3.4 Logical inputs
3.5 IN/OUT 8 - Vlink input/output
3.6 Serial RS485 connection
3.7 Pre-amplified audio input
3.8 Pre-amplified audio output
3.9 Amplified audio output
4.
Configuration file
4.1 What is the configuration file?
4.2 Content of the configuration file
4.3 How it is managed by Panelplayer
4.4 Preparing the file
4.5 Memorising the files in the Flash memory
4.6 Audio adjustment parameters
4.7 Timing and switchover parameters
4.8 Diagram of the operating parameters
4.9 Input management parameters
4.10 Infrared movement sensor management parameters
5.
Scheduled operation
5.1 Introduction to timed operation
5.2 The palimpsest file – palin.txt
5.3 MIXER function
5.4 AVC function – automatic control of the output volume
6.
Playlist operation
6.1 Introduction to playlist mode operation
6.2 What is a playlist file?
6.3 Playlist activation by logical inputs - MPLL (Mode PLayList) parameter
6.4 Stop & Play Priority Playlist
6.5 Priority Playlist
6.6 Stop & Play Standard Playlist
6.7 Standard Playlist
6.8 Stop & Play Restart Playlist
6.9 Restart Playlist
6.10 Music player function

Panelplayer User Manual v.1.4
Page 3
7.
Operation with logical inputs
7.1 Introduction to the logical input operation mode
7.2 Binary input command codes
8.
Special operations
8.1 Connection of two Panelplayers with different programming
8.2 Amplifier connection to 40W bridge
9.
RS485 serial communication
9.1 RS485 communication
9.2 Serial port communication parameters (config.txt)
9.3 Framing error on master
9.4 NAK reply by Panelplayer
9.5 Transmitting a command by master
9.6 How to read the figures of the dedicated protocols
9.7 When the Master delivers a command to Panelplayer
9.8 Basic format of the dedicated protocols
9.9 Basic set-up of the data transmission
9.10 Control codes
9.11 Address (ADD)
9.12 Command (CMD)
9.13 CheckSum (CHK)
9.14 Basic protocol
9.15 Basic protocol with CheckSum
9.16 Basic protocol with CR and LF
9.17 Basic protocol with CheckSum, CR and LF
9.18 List of commands
9.19 Error codes
10.
Specifications
10.1 Technical features
10.2 Obsolete devices disposal
Addendum:
Examples of serial RS485 communication

Panelplayer User Manual v.1.4
Page 4
1Introduction
1.1 What is Panelplayer?
Panelplayer is a sophisticated amplified player of audio MP3 with a solid state memory,
designed to manage sequences of audio messages, musical items, commercial
communications and all kinds of audio MP3 files in a rapid, effective and interactive way.
Coupled with switches, touch-sensors or infrared movement sensors, it permits one to
create info-interactive areas, didactic and museum routes, information totems for trade
fairs and expositions, musical shows and interactive points for commercial promotions.
1.2 What is Mp3?
Mp3 is an acronym for Mpeg-1 layer 3. This is an audio compression standard which
eliminates sounds which the human ear cannot hear via a psycho-acoustic algorithm. The
purpose of this compression is to reduce the space taken up by an audio file while still
ensuring excellent quality. The greater the compression, the less the audio quality. The
right compromise, which guarantees a quality comparable to that of a Compact Disc, is
128 Kbps (thousands of bits per second) which represents the most widely used manner,
and reduces the size of an uncompressed file by 10 times.
1.3 Encoder
Software which compresses a CD audio or wave file in MP3. There are many programmes
of this kind, and it is virtually impossible to say which is the best.
1.4 Decoder
Software which decompresses an MP3 audio file in order to send it to a digital-analog
converter and reconstruct the original audio signal.
1.5 Player
Hardware and software system able to read MP3 audio files. Panelplayer is able to carry
out this function.
1.6 Wave
High quality audio format (extension .wav), compatible with the tracks of normal music
CD’s. If one uses a wave file in format 44.1 KHz/sec. at 16 bit in stereo, one will get
exactly the same quality as a music CD, but the size of the file is about 10Mb per minute.
1.7 Audio compression in various formats.
The following graphic shows the space taken up by an uncompressed audio file of about 5
minutes (.wav) and compressed in MP3 at 128Kbps (MP3).
Wave 51,1 MB
MP3 4,6 MB

Panelplayer User Manual v.1.4
Page 5
2Installation
2.1 Content of the kit Panelplayer
-n° 1 Panelplayer device;
-n° 1 Panelplayer user manual;
-n° 1 adaptor mains AC230V (*)
-n° 1 flash memory.
(*) optional depending on the country )
2.2 Notices
1. Panelplayer has been designed and made to work only with the following mains power
supply: 12÷24VDC.
2. The device must be serviced only by qualified staff.
3. Do not put objects inside the device through the openings, in order to prevent the risk
of fire or shock.
4. Disconnect the device from the power socket before cleaning. Clean the device using a
soft, dry cloth. Do not use liquids or spray which can contain flammable substances.
Obsolete devices disposal :

When you find this picture on a device, it means that the device is
compliant with European Directive 2002/96/EC.
All electronic and electric devices should be disposed separately from
normal garbage.
The proper disposal of old devices, accessories, and of the batteries in
particular, it contributes to prevent possible negative consequences for
human health and for the environment.
For more detailed information on the disposal of obsolete devices, contact
the municipality, the garbage disposal service or the shop in which the
product has been acquired.

Panelplayer User Manual v.1.4
Page 6
3Description and connections
3.1 Command description
1Connector for outside connection of the memory and command buttons.
2Flash memory introduction slot for Secure Digital or MultiMedia Card.
3
Command keys:
= (brief pressure) precedent MP3 file / (prolonged pressure) reduce output volume
= STOP
= PLAY
= (brief pressure) next MP3 file / (prolonged pressure) increase output volume
4Red LED: lit = device is live.
5Green LED: lit =
blinking =
MP3 file playing;
Panelplayer in pause/STOP.
IMPORTANT:
volume control with the keys is active only during the playing of the MP3 file.
pressing STOP during play, Panelplayer remains in pause excluding all the logical inputs until
reactivation with the PLAY key. This condition is indicated by the blinking green LED.

Panelplayer User Manual v.1.4
Page 7

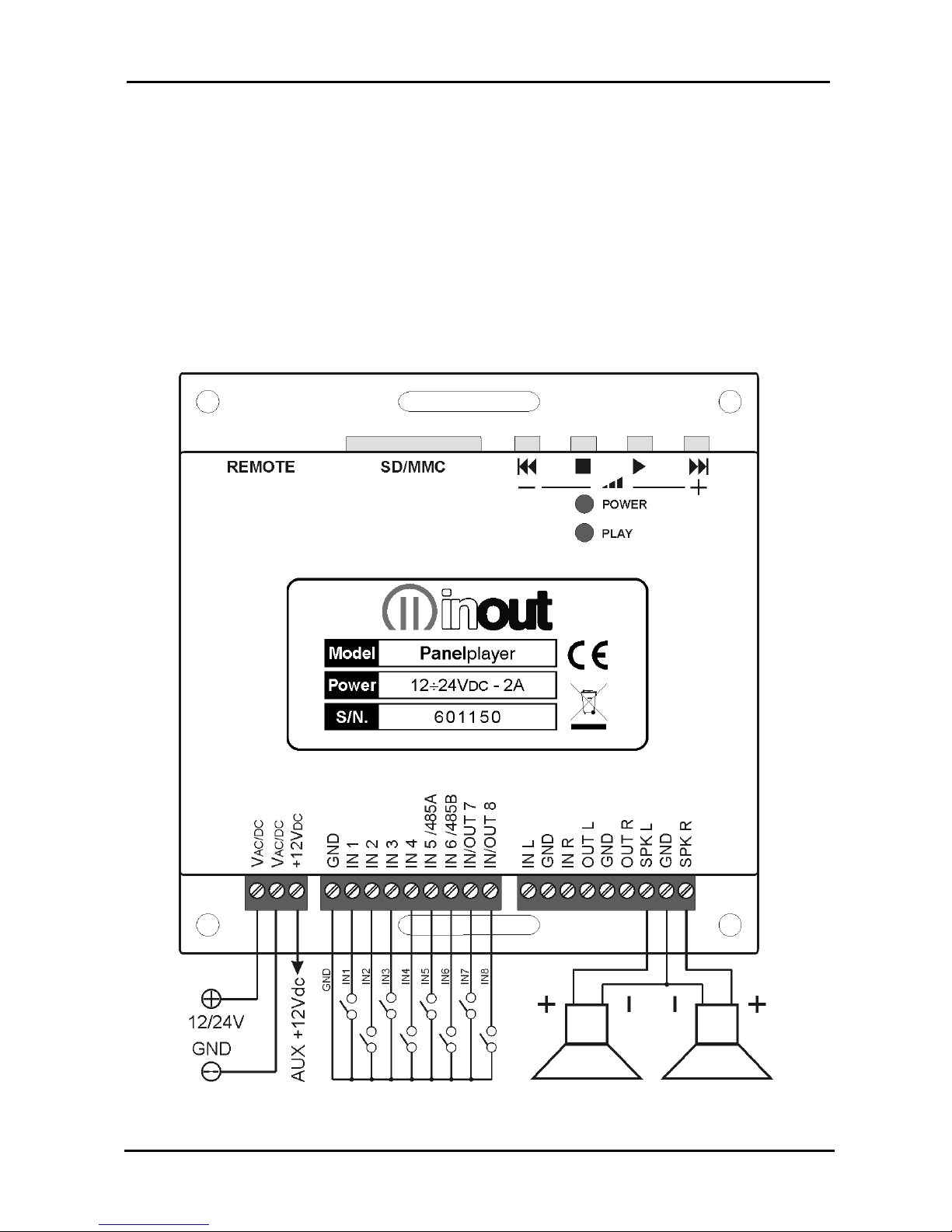

3.2 Connection description
6
VAC/DC Input feed 12÷24VDC.
+12VDC Auxiliary + 12Vdc voltage, available for input activation or outside feed sensors.
MAX. 100mA.
7
GND Ground for input activation using outside contacts; auxiliary ground voltage.
IN1 Multi-function input for activating 1.mp3 file or 1.m3u playlist (direct or bit 0 in
binary combination).
IN2 Multi-function input for activating 2.mp3 file or 2.m3u playlist (direct or bit 1 in
binary combination).
IN3 Multi-function input for activating 4.mp3 file or 3.m3u playlist (direct or bit 2 in
binary combination).
IN4 Multi-function input for activating 8.mp3 file or 4.m3u playlist (direct or bit 3 in
binary combination).
IN5/485A
Multi-function input for activating 16.mp3 file or 5.m3u playlist (direct or bit 4 in
binary combination).
Configurable for serial RS485 communication (see chap. 9).
IN6/485B
Multi-function input for activating 32.mp3 file or 6.m3u playlist (direct or bit 5 in
binary combination).
Configurable for serial RS485 communication (see chap. 9).
IN/OUT7 Multi-function input/output for activating 64.mp3 file or 7.m3u playlist (direct or bit
6 in binary combination).
IN/OUT8 Multi-function input/output for activating 128.mp3 file (direct or bit 7 in binary
combination).
Configurable for outside applications. 0=standby 1=in play (+5V). Permits two
Panelplayers to be connected in cascade for the synchronised management of
t
he musical bases and commercials and spots in a scheduled time frame
(connection Vlink, par. 8.1).
8
IN L Pre-amplified audio input L channel, for outside music sources (SAT, DAB, CDE,
etc.) with Mixer function.
GND Ground signal of pre-amplified audio input.
IN R Pre-amplified audio input R channel, for outside music sources (SAT, DAB, CD,
etc.) with Mixer function.
9
OUT L Pre-amplified audio output L channel.
GND Ground signal of pre-amplified audio output.
OUT R Pre-amplified audio output R channel.
10
SPK L Amplified 20W audio output for speaker, L channel.
GND Ground signal of amplified audio output.
SPK R Amplified 20W audio output for speaker, R channel.

Panelplayer User Manual v.1.4
Page 8
3.3 Power supply
Panelplayer may operate with the following voltage power supplies: 12÷24VDC.
The red POWER LED lights up when it is turned on with active feed.
3.4 Logical inputs
Panelplayer has six/eight multi-function logical inputs to control the playing of the playlists or
direct calling up of individual audio files.
In order to activate the playing of a file, connect the desired GND input (or the desired inputs
when one is operating in binary logic).

Panelplayer User Manual v.1.4
Page 9
3.5 IN/OUT 8 - input/output Vlink
Programmable input/output to connect two Panelplayers in cascade, for synchronised
management of musical playlists with commercials at scheduled introduction without
interruptions.
Vlink: 0 = standby
1 = in play (+5V).
3.6 Serial RS485 connection
Panelplayer can be connected through serial gate, to a RS485 bus that can be controlled
by a system master or by a computer. To enable the RS485 gate (pin IN5/485A and
IN6/485B), raise the cover of the device and move the relative jumpers (see para. 9.1).
3.7 Pre-amplified audio input
Pre-amplified STEREO L+R audio input for outside music source (SAT, DAB, CD, etc.)
with Mixer function to mix a music source with scheduled commercials; extractable
terminal strip.
3.8 Pre-amplified audio output
Pre-amplified STEREO L+R audio output on extractable terminal strip.
3.9 Amplified audio output
Amplified STEREO 20W+20W audio output on extractable terminal strip.
Connect the outside 4/8speakers to the SPK L/GND and SPK R/GND terminal strip.
IMPORTANT:
Use a speaker with equal or greater power to that supplied to the amplifier within
Panelplayer.
It is recommended to cable the device far from power cables; the two cables that
connect the speaker with Panelplayer could be a potential source of interference.

Panelplayer User Manual v.1.4
Page 10
4Configuration file
4.1 What is the configuration file?
Panelplayer is a very versatile device which can be adapted to the needs of the application
in which it is used. Different applications may require adjustment of volume, tone,
loudness, special parameters of communication or timing. The text file, called
‘configuration file’ and stored in the main directory of the flash memory, together with the
audio files, makes it possible to programme the various parameters of Panelplayer.
This file must be assigned the name config.txt (this extension has been used so it can be
modified by any text editor, including those for portable PocketPC terminals).
4.2 Content of the configuration file
Each line of the configuration file consists of:
Mnemonic code of the parameter to be set. It always consists of four CAPITAL
alphanumeric characters, and must always be at the beginning of the line. No more
than one parameter is permitted on the same line.
Separating character. ‘=’. This MUST be inserted just after the mnemonic code, without
any spacing or tabulation character.
The relevant numerical parameter expressed as a decimal, to be inserted directly after
the separation character, without any spacing or tabulation character.
Example of file config.txt:
LOUT=14
LLOU=10
LTRE=14
LBAS=10
MOMD=0
Audio adjustment parameters
TPCM=10
MICP=1
MIRS=0
IMOD=0
Logical inputs parameters (direct or binary combinaton)
MPLL=14 Playlist/music player mode parameter
CMAD=0
CMCK=1
CMCL=0
CMBR=3
CMPR=0
CMSB=1
CMDB=8
CMDR=0
CMNR=0
RS485 serial port communication parameters

Panelplayer User Manual v.1.4
Page 11
4.3 How it is managed by Panelplayer
At the time the device is turned on, or when the flash memory is inserted, Panelplayer will
start to read the main directory of the memory; once it has found the file config.txt, it
interprets the parameters inserted in each line, memorising them permanently in its
internal memory, of a non volatile kind. The parameters therefore stay in memory even
after the device has been turned off. This is why it is not indispensable for the
configuration file to be always present in the flash memory: once all the parameters have
been acquired, this file can also be deleted.
NOTE: If it is necessary to configure various Panelplayers with the same parameters, one
can prepare a single flash memory with the appropriate config.txt file, alternately insert this
memory on all the modules to be configured, then insert the memory with the audio files
only.
4.4 Preparing the file
To create the file, one can use an ordinary text editor (like Windows Notebook). The file
must be saved as a pure text file (.txt). Should other programmes be used (e.g. Microsoft
Word) one must be careful to save the document as “text only”: otherwise, control
characters would be inserted which would make it impossible for Panelplayer to interpret
this file.
4.5 Memorising the files in the flash memory
The configuration file and all the MP3 audio files can be memorised in the flash memory
via a special USB reader/writer for PC.
4.6 Audio adjustment parameters
Panelplayer allows for the following audio adjustments:
Independent adjustments of the MP3 file level, INL/INR music source input and general
amplified/pre-amplified output.
Adjustment of loudness level.
Separate adjustment of high and low levels.
Adjusting the level of the musical background while delivering the spots.
Activation/deactivation audio amplifier muting in output.
The following tables show the relation between the value set in the configuration file and
the actual value of the audio parameter.
Mnemonic Description
LMP3 MP3 decoder output level (value between 0 and 20 in decimal).
LOUT Level audio output LINE OUTPUT (value between 0 and 20 in decimal).
LLIN Input level LINE INPUT (value between 0 and 20 in decimal).
LLI2 Background level LINE INPUT (value between 0 and 20 in decimal).
LLOU Loudness level (value between 0 and 20 in decimal).
LTRE High tone level (value between 0 and 20 in decimal).
LBAS Low tone level (value between 0 and 20 in decimal).
MOMD Mode output muting deactivation (0=OFF/1=ON ).

Panelplayer User Manual v.1.4
Page 12
LMP3 (MP3 decod
er output level)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level OFF 2% 5% 9% 14% 20% 26% 33% 40% 48% 56% 66% 77% 88% 100%
0dB
112% 128% 144% 161% 178% 200%
+6dB
LOUT (general output amplified/pre-amplified level)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level OFF -55
dB
-35
dB
-28
dB
-23
dB
-20
dB
-17
dB
-14
dB
-12
dB
-10
dB
-8
dB
-6
dB
-4
dB
-2
dB
0
dB
+2
dB
+4
dB
+6
dB
+8
dB
+10
dB
+12
dB
LLIN (input level INL/INR)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level OFF -55
dB
-35
dB
-28
dB
-23
dB
-20
dB
-17
dB
-14
dB
-12
dB
-10
dB
-8
dB
-6
dB
-4
dB
-2
dB
0
dB
+2
dB
+4
dB
+6
dB
+8
dB
+10
dB
+12
dB
LLI2 (input level INL/INR of the background during the playing of the MP3 file)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level OFF -55
dB
-35
dB
-28
dB
-23
dB
-20
dB
-17
dB
-14
dB
-12
dB
-10
dB
-8
dB
-6
dB
-4
dB
-2
dB
0
dB
+2
dB
+4
dB
+6
dB
+8
dB
+10
dB
+12
dB
LLOU (loudness level)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level
0
dB
+0,5
dB
+ 1
dB
+1,5
dB
+ 2
dB
+2,5
dB
+ 3
dB
+ 4
dB
+ 5
dB
+ 6
dB
+ 7
dB
+ 8
dB
+ 9
dB
+ 10
dB
+11
dB
+ 12
dB
+ 13
dB
+ 14
dB
+ 15
dB
+ 16
dB
+ 17
dB
LTRE (high tone level)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level -12
dB
-10
dB
-8
dB
-7
dB
-6
dB
-5
dB
-4
dB
-3
dB
-2
dB
-1
dB
0
dB
+ 1
dB
+ 2
dB
+ 3
dB
+ 4
dB
+ 5
dB
+6
dB
+7
dB
+8
dB
+10
dB
+12
dB
LBAS (low tone level)
Value 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Level -12
dB
-10
dB
-8
dB
-7
dB
-6
dB
-5
dB
-4
dB
-3
dB
-2
dB
-1
dB
0
dB
+ 1
dB
+ 2
dB
+ 3
dB
+ 4
dB
+ 5
dB
+6
dB
+7
dB
+8
dB
+10
dB
+12
dB
MOMD (Mode Output Muting Disable)
MOMD
1 = Muting deactivated (amplifier power always active).
0 = Muting active. The power amplifier is active only during the playing of the
MP3 files.

Panelplayer User Manual v.1.4
Page 13
4.7 Timing and switchover parameters
One can set the fade-off time, the reaction time of the automatic output volume and the
advance time for starting the spot before the end of the piece of music.
Example: TFOU=15
TFIN=15
TAVC=3
TADU=15
Mnemonic Description of timing parameter
TFOU Setting the Fade-Out time in 1/10 of one second (value between 1 and 30 in decimal).
TFIN Setting the Fade-In time in 1/10 of one second (value between 1 and 30 in decimal).
TAVC Setting the reaction time of the automatic output volume control.
TADU Setting the advance Play time of the spot in 1/10 of one second between Panelplayers
in cascade (value between 0 and 20 in decimal).
TFOU (fade OUT):
setting the fading time of the INL/INR before playing the MP3 file (spot).
Value 1 2....4 5 6....9 10 11...14 15 16...19 20 21...24 25 26...29 30
Time
1/10
second
½
second
1
second
1,5
seconds
2
seconds
2,5
seconds
3
seconds
TFIN (fade IN):
setting the fading time of the INR/INL after playing the MP3 file (spot).
Value 1 2....4 5 6....9 10 11...14 15 16...19 20 21...24 25 26...29 30
Time
1/10
second
½
second
1
second
1,5
seconds
2
seconds
2,
5
seconds
3
seconds
TAVC:
Setting the reaction time of the automatic output volume control.
Value 0 1 2 3 4
Time OFF
2/10
second
2
seconds
4
seconds
8
seconds
TADU: Setting the advance Play time of the spot in 1/10 second between Panelplayers in cascade.
Value 1 2....4 5 6....9 10 11...14 15 16...19 20 21...24 25 26...29 30
Time
1/10
second
½
second
1
second
1,5
seconds
2
seconds
2,5
seconds
3
seconds

Panelplayer User Manual v.1.4
Page 14

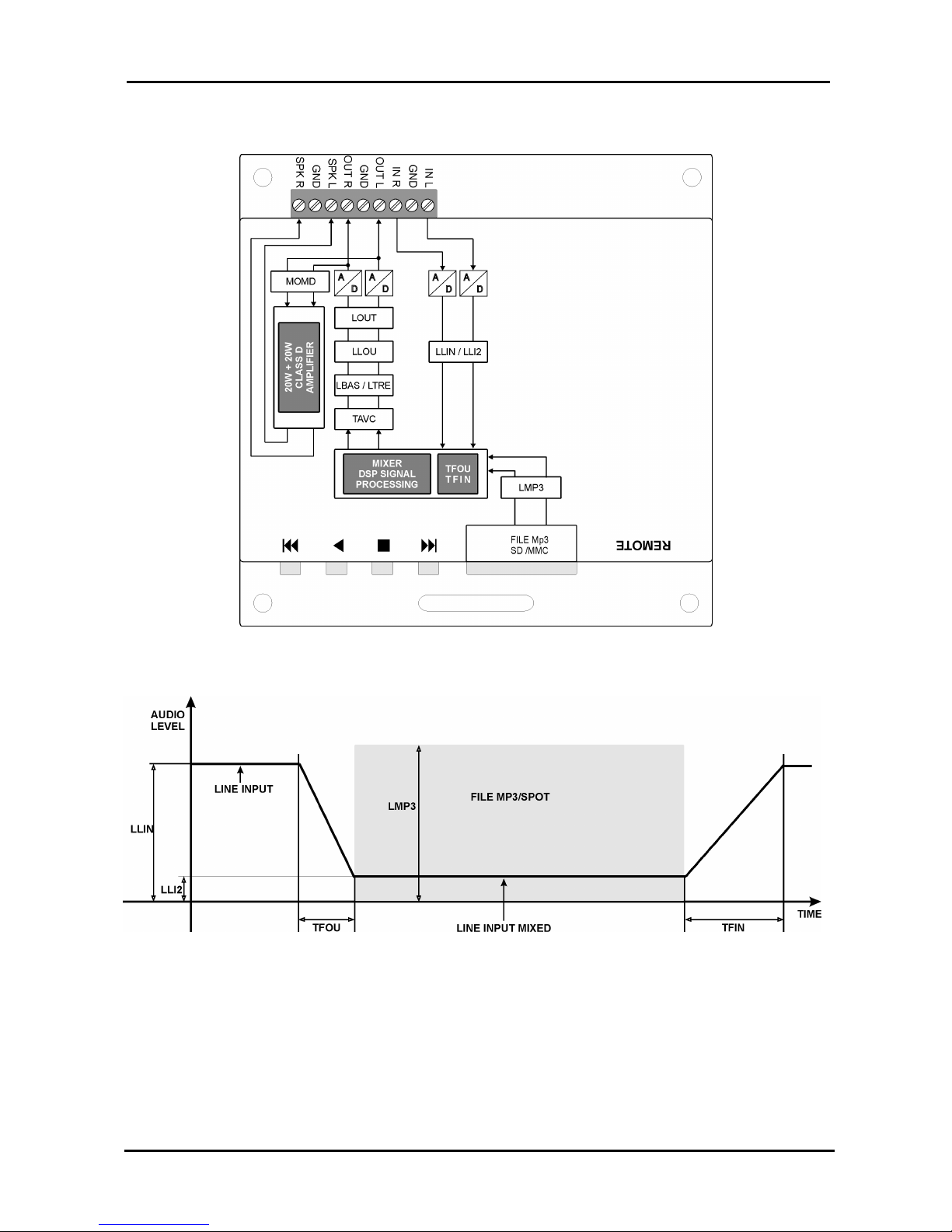

4.8 Diagram of the operating parameters

Panelplayer User Manual v.1.4
Page 15
4.9 Input management parameters
The playing of the files takes place by activating the available logical inputs, the activation
modes are set through the IMOD, TPCM MICP and MIRS parameters inserted in the
configuration files.
Example: IMOD=0
TPCM=10
MICP=1
MIRS=0
Mnemonic Description of timing parameter
IMOD Setting the mode of input active high or active low.
TPCM
Setting the persistence time of the input command (time to wait before Panelplayer is
able to interpret the input command) expressed in decimals of milliseconds (value
between 0 and 255 in decimal).
MICP Setting Mode Input Continuous Play
MIRS Setting Mode Input ReStart
IMOD (Input management mode)
IMOD
0= active-low input mode; the functioning of the input is connected to the
ground/GND of the device.
1= active-high input mode; the functioning of the input is applied with a positive
voltage between 5 and 12Vdc.
TPCM (Time persistence input command mode)
TPCM
0 =no delay
1 =10mSeconds
2 =20mSeconds
100= 1 second
200= 2 seconds
250= 2,5 seconds
MICP (Mode Input Continuous Play)
MICP
0=having terminated the playing of the codified file, requested from the input
code, Panelplayer goes in standby.
1=the requested codified file is continuously played until the relevant input code
is inserted.
MIRS (Mode input Restart)
MIRS
0=repeated activation or deactivating of the same input code does not
influence the playing of the relevant file. Only the activation of a different
code can block the playing underway and activate the playing of the new
requested file.
1=in the moment in which an input code is enabled the playing of the of the
relevant file from its beginning takes place, even if it is already in play.

Panelplayer User Manual v.1.4
Page 16
4.10 Infrared movement sensor management parameters
IMPORTANT:the following parameters are enabled exclusively for the IN1 input.
and in the presence of a playlist 1.m3u (see paragraph 6.2).
Example: PYDT=1
PYDL=10
TAPL=0
RSPL=3
Mnemonic Description
PYDT Activation IR sensor (0=OFF/1=ON ).
PYDL Delay time between two activations of the IR sensor (value between 0 and 240 in
decimal).
TAPL Setting of the AUTOPLAY time for playing of a message when the IR sensor is not
activated (value between 0 and 240 in decimal).
RSPL Delay time of the Play message from the activation of the IR
sensor (value between
0 and 20 in decimal).
PYDT (activation infrared movement sensor)
PYDT 1 = IR sensor activated
0 = sensor deactivated
PYDL (pause between two activations of the IR sensor)
Value 0 1 2 3 4 5 10 20 30 60 120 180
240
Time
IR
1
second
2
seconds
3
seconds
4
seconds
5
seconds
10
seconds
20
seconds
30
seconds
1
minute
2
minutes
3
minutes
4
minutes
TAPL (setting AUTOPLAY time for playing files when the IR se
nsor is not
activated)
Value 0 1 2 3 4 5 6 12 18 30 60 180 240
Time
Not
managed
10
seconds
20
seconds
30
seconds
40
seconds
50
seconds
1
minute
2
minutes
3
minutes
5
minutes
10
minutes
30
minutes
40
minutes
RSPL (delay time of the Play message from the activation of the IR sensor)
Value 1 2....4 5 6....9 10 11...14 15 16...19 20 21...24 25 26...49 50
Time
1/10
second
½
second
1
second
1,5
seconds
2
seconds
2,5
seconds
5
seconds

Panelplayer User Manual v.1.4
Page 17
5Scheduled operation
5.1 Introduction to timed operation
When the flash memory is inserted, Panelplayer will analyse its contents and – depending
on the files which are present – will automatically set the mode of operation.
In the presence of the PALIN.TXT file, Panelplayer plays the sequence of communiqués in
a cyclical emission (one hour cycles) called PALIMPSEST which are contained in the
same PALIN.TXT file.
5.2 The palimpsest file – palin.txt
With Panelplayer one can draw up a sequence or list of communiqués to be played according
to pre-set intervals. This list is a simple text file (palin.txt) which contains the indication in
minutes (00:00÷00:59) and the names of the MP3 files to be played.
There are a few simple rules on how to set the palimpsest; first of all, you must set the time.
Es: 00:10
N.B. It is very important to start a new line of text with this, and to separate the hours from the
minutes using the character (:)
On the same line, you must then introduce the names of the MP3 audio files (max. 8 characters).
You can choose among various kinds of introduction:
1. separating character [Tab] between one spot and the next:
E.g.: 00:10 spot01 spot02 spot03
2. comma (,) between one spot and the next:
E.g.: 00:10,spot01,spot02,spot03
3. semicolon (;) between one spot and the next:
E.g.: 00:10;spot01;spot02;spot03
Once the insertion has been completed, the file will appear as in the following example:
00:00 Spot04 Spot07
Example of palin.txt
file with cyclical
emission at intervals
of 5 minutes of
commercial spots
00:05 Spot09 Spot17
00:10 Spot11 Spot02
00:15 Spot01 Spot08 Spot03 Spot06 Spot05
00:20 Spot12 Spot03
00:25 Spot16 Spot17
00:30 Spot09 Spot10
00:35 Spot05 Spot11 Spot12 Spot13 Spot14
00:40 Spot02 Spot11
00:45 Spot04 Spot07
00:50 Spot02 Spot11
00:55 Spot09 Spot11
An example of the reading and functioning of a timetable bar is provided below:
00:05 Spot05 Spot11 Spot12 Spot13 Spot14
00:11 Spot01 Spot07 Spot03

Panelplayer User Manual v.1.4
Page 18
In this case, Panelplayer remains in standby for 5 minutes from the moment it is turned on;
at the 5th minute Panelplayer fades out the input audio signal in order to play the 00:05
bar, composed of 5 files/spots.
Once the bar has finished, Panelplayer brings the input audio signal to its precedent value
and remains in standby until reaching the 11th minute, fading in the input audio to play the
00:10 bar, composed of 3 files/spots.
IMPORTANT:Using the pre-amplified audio input, verify the setting of the LLIN, LLI2 and
MOMD parameters inserted in the configuration files (par. 4.6).
Programming limits:
Max. programming permitted……………………… 1 hour (cyclic) from 00:00 to 00:59
Max. quantity of hour bars…………………………. 60 bars
Max. quantity of commercials per bar…….…….... 8 spots/file
Max. quantity of commercials per palimpsest…… 500 spots/file
5.3 MIXER function
Panelplayer has an audio input for connection to outside music sources, with a mixer
function to mix this source with the files played by flash memory (see par. 8.3). At the time
scheduled for delivering the advertising bar, Panelplayer fades out the input audio signal
from the level LLIN to the level LLI2, according to a programmed fade TFOU. Then the
MP3 file of the bar with level LMP3 is played, mixed with the outside audio source, present
in the background with level LLI2.
Once the whole hour bar has been finished, Panelplayer brings the input audio signal back
to the level LLIN according to a programmed fade TFIN.
5.4 AVC function – automatic control of the output volume
Panelplayer has an automatic control of the output volume (parameter TAVC, par. 4.7)
which allows you to normalise the level of the audio contributions: signal from LINE IN
(radio, CD, other Panelplayer).
This allows you to make less evident any differences of levels among the various MP3 files
being played.

Panelplayer User Manual v.1.4
Page 19
6Playlist operation
6.1 Introduction to playlist mode operation
When the flash memory is introduced, Panelplayer analyses its content on the base of the
presence of the relevant files, and automatically sets the following operation mode:
1. FILE PLAYLIST:TXT: audio player with pieces in sequence according to the list
present in the files.
2. FILE 1.M3U, 2.M3U, 3.M3U, 4.M3U, 5.M3U, 6.M3U, 7.M3U: audio player of the
sequence contained in the files depending on the logical input activated:
1.m3u = IN 1 2.m3u = IN 2 3.m3u = IN 3 4.m3u = IN 4
5.m3u = IN 5 6.m3u = IN 6 7.m3u = IN 7
During play the four command buttons REW, STOP, PLAY and FWD are activated.
6.2 What is a playlist file?
Panelplayer is able to follow a sequence or list of music pieces; this play list is a simple
text file called playlist.txt which can be inserted in the main directory of the same memory
containing the audio files (this extension is used so it can be modified via a handy
PocketPC portable terminal).
Follow a few, easy rules to set the sequence:
Example
with
numbers:
1
3
7
9
5
01
005
Example
with
names:
intro
part 1
part 2
monologu
music
part 3
finale
IMPORTANT:
Rename the MP3 audio files with
numbers or names with max. 8
characters.
Do not write in the extension (.mp3)
Max. 500 pieces per playlist
Fit the memory into its seat and wait for Panelplayer to read the playlist in order to check
the list of pieces contained.
At the end of the reading operation, if the names of the pieces have been fitted in correctly,
Panelplayer will automatically start to play the musical items in the programmed sequence
or it will await the activation of a logical input.
6.3 Playlist activation by logical inputs - MPLL (Mode PLayList) parameter
The seven available playlists, activated by the logical inputs, can be played with different
modes, depending upon the varying needs.
To choose these different manners of operation, you must work directly on the configuration
parameter MPLL (Mode PLayList) inserted in the file config.txt.
When the flash memory is put in, Panelplayer, depending on the configuration of the
parameter MPLL in the file config.txt, will switch over to the relevant manner of operation.
IMPORTANT:

the names of the 7 playlists are fixed

the loading times of the Playlists may last even tens of
seconds, in the meantime, Panelplayer is not able to play.
