User Guide

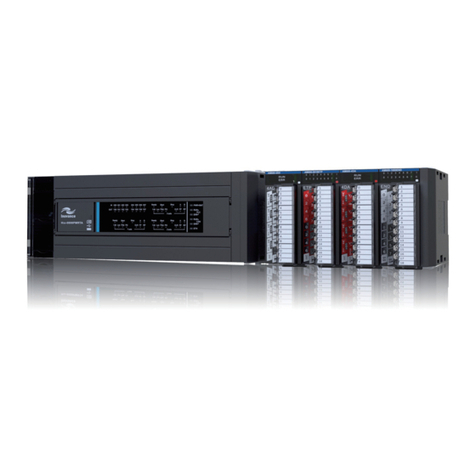

H3U Series PLC User Guide

Preface
- 1 -
Preface
Thank you for purchasing the H3U series programmable logic
controller (PLC). It is a third-generation high-performance PLC
development by Inovance based on the new-generation industrial CPU
and FPGA hardware architecture and self-owned industrial embedded
software design.
■Approvals
Certi󶍾cation marks on the product nameplate indicate compliance
with the corresponding certi󶍾cates and standards.
Certi󶍾cation Mark Directives Standard
CE
EMC directives 2014/30/EU EN61131-2
LVD directives 2014/35/EU EN 61010-1
EN61010-2-201
RoHS directives 2011/65/EU EN 50581
TUV -EN 61010-1
EN61010-2-201
NOTE
◆The above EMC directives are complied with only when the
EMC electric installation requirements are strictly observed.
◆Machines and devices used in combination with this PLC
must also be CE certi󶍾ed and marked. The integrator who
integrates the PLC with the CE mark into other devices has
the responsibility of ensuring compliance with CE standards
and verifying that conditions meet European standards.
◆The installer of the PLC is responsible for complying with
all relevant regulations for wiring, circuit fuse protection,
earthing, accident prevention and electromagnetic (EMC
regulations). In particular fault discrimination for preventing
󶍾re risk and solid earthing practices must be adhered to for
electrical safety (also for good EMC practice).
◆For more information on certi󶍾cation, consult our distributor
or sales representative.

Contents
- 2 -
Contents
Preface........................................................................................................1
1 Product Information...............................................................................4
1.1 Designation Rule and Nameplate ................................................4
1.2 General Speci󶍾cation....................................................................4
1.3 Product Structure..........................................................................6
1.4 Dimensions....................................................................................7
2 Installation ..............................................................................................9
2.1 Installation Environment..............................................................9
2.2 Installation Position and Space....................................................9
2.3 Installation Procedure ................................................................10
2.4 Installation of Expansion Modules.............................................11
2.5 Dismantling Connection Terminals ...........................................12
2.6 Installation of Lithium Cell .........................................................12
2.7 Installation of COM0 and Ethernet Cables.................................13
3 Wiring.....................................................................................................14
3.1 I/O Terminals ...............................................................................14
3.2 Input Wiring ................................................................................16
3.3 Output Wiring ..............................................................................18
3.4 Communication...........................................................................20
4 Quick Setup...........................................................................................22
4.1 Tools Requirements ....................................................................22
4.2 Hardware Connection.................................................................23
4.3 Installation of AutoShop.............................................................23
4.4 Program Download Procedure...................................................25
5 Troubleshooting....................................................................................32
5.1 System Error Code D8060...........................................................32
5.2 System Error Code D8061...........................................................32
5.3 System Error Code D8062...........................................................33
5.4 System Error Code D8063...........................................................35

Contents
- 3 -
5.5 System Error Code D8064...........................................................37
5.6 System Error Code D8065...........................................................38
5.7 System Error Code D8066...........................................................39
5.8 System Error Code D8067...........................................................40
Revision History.......................................................................................43

1 Product Information
- 4 -
1 Product Information
1.1 Designation Rule and Nameplate
H3U 32 32 M T
Mark Input Po ints
08 8 inpu ts
Mark Series
H3U
Mark Out put Poi nts
8 outputs08
H3U series PLC
Mark M odules
General Purpose PLC
M
32 32 inpu ts
32 outputs32
36 36 inpu ts
24 outputs24
Pos itio nin g PLC
P
N etw or k P LC
N
Mark Out put Typ e
Motion control PLC
PM
Relay output
Transist or ou tpu t
Rel ay an d t ra ns ist or m ix ed
output
R
RTA
T
Figure 1-1 Designation rule of H3U-0808PMRTA, H3U-3232MR/T, H3U-3624MR/T
H 3U 16 16 M T XP
Mark Input Points
16 16 inputs
Mark Series
H
3U
Mark Output Points
16 outputs
16
H3U series PLC
Mark Structure
Mark Modules
General Purpose PLC
M
New structure
24 24 inputs
Positioning PLC
P
Network PLC
N
Mark Output Type
Motion control PLC
PM
Relay output
Transistor output
Relay and transistor
mixed output
XP
R
RT
T
Figure 1-2 Designation rule of H3U-1616MT/R-XP, H3U-2416MR/T-XP
MODEL: H
3U
-3232MT-INT
INPUT: AC 100-240V 1A 50/60Hz
OUTPUT: DC 30V 0.5A RES LOAD
Suzhou Inovance Technology Co.,Ltd.
Made in China
AC drive model
Rated input
Rated output
Nameplate
Manufacturer
SERIAL NO.:014400154F800120
Version
PRODUCT: Programmable Logic Controller
Product name
Certificates
Ver: 24301-0000 38301-000
Figure 1-3 Nameplate
1.2 General Speci󶍾cation

1 Product Information
- 5 -
PLC Model H3U-1616MT-
XP H3U-
1616MR-XP H3U-
2416MT-XP H3U-2416MR-XP H3U-3624MT H3U-3624MR H3U-3232MT H3U-3232MR H3U-0808PMRTA
Category Standard motion[5] High-end
motion[6]
Power Supply 220 VAC (85 to 264 VAC), 1 A Output voltage 24 VDC (Rated), 350 mA Built-in inputs
Total inputs 16 16 24 24 36 36 32 32 8[1]
High-speed inputs 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 8 x 200 kHz 3 x 200 kHz[2]
Built-in outputs
Total outputs 16 16 16 16 24 24 32 32 8[3]
High-speed outputs 5 x 200 kHz N/A 5 x 200 kHz N/A 5 x 200 kHz N/A 5 x 200 kHz N/A 3 x 500 kHz[4] Output type Transistor
(NPN) Relay[7] Transistor
(NPN) Relay[7] Transistor
(NPN) Relay[7] Transistor
(NPN) Relay[7] 4 x Relay[7]
4 x Transistor
(NPN)
Built-in ports
Serial port COM0(RS422/RS485), COM1(RS485), Modbus-RTU, DB9 CAN port CANopen/CANlink Ethernet port Modbus-TCP, RJ45 USB (device) Mini-B
[1] 8 inputs = X0-X7, normal inputs [2] 3 x 200 kHz = 3-channel A/B phase di󶍽erential high-speed inputs [3] 8 outputs = Y0-Y7, normal outputs [4] 3 x 500 kHz = 3-channel di󶍽erential high-speed outputs [5] Supports two-axes circular and point to point interpolated [6] Supports three-axes point to point interpolated and spiral curve [7] Maximum output current: Resistive load: 2 A/1 point; 8 A/4 point common terminal; 8 A/8 point common terminal Inductive load: 220 VAC, 80 VA Lamp load: 220 VAC, 100 W

1 Product Information
- 6 -
1.3 Product Structure
1.3.1 H3U-0808PMRTA, H3U-3232MR/T, H3U-3624MR/T
 
 
 
 
18 3#" 5
36/
&33
36/
&33
&5)
1-$
$" /












































































































































$PWFS
$0.DPNNVOJDBUJPO
QPSUDPWFS
&UIFSOFU
DPNNVOJDBUJPOQPSU
DPWFS
64#QPSUDPWFS
*0TUBUVT-& %
*0QSPUFDUJPO DPWFS
5BJMDPWFSCVDLMF
&YUFOTJPONPEVMFUBJMDPW FS
%*/TMPUJOTUBMMBUJPOCVDLMF
5BJMDPWFSCVDLMF








06 5
*/
      
       
     
     






$0.34DPNNVOJDBUJPO
UFSNJOBM
-JUIJVNCBUUFSZTMPU
#BSSJFS*0UFSNJOBMCMPD L
$0.34QPSU
36/4501TXJUDI
$"/CBVESBUFTUBUJPO
OVNCFSTFUUJOH
&UIFSOFUDPNNVOJDBUJPO
3+QPSU $"/DPNNVOJDBUJPOUFSNJOBM
-JUIJVNCBUUFSZTMPU
64#QPSU
$"/34UFSNJOBMSFTJTUPS


































0
6
5
*
/





















































































1 Product Information
- 7 -
1.3.2 H3U-1616MT/R-XP, H3U-2416MR/T-XP
$"/
DPNN VOJDBUJPOQPSU
DPWFS
36/TXJUDIDPWFS*0TUBUVT-&%
*0QSPUFDUJPODPWFS
%*/TMPUJOTUBMMBUJ PO CVDLMF
&YUFOTJ PO NPEVMFUBJMDPWFS
5BJMDPWFSCV DLMF
5BJMDPWFSCVDLMF
$0.34QPSU
36/4501TXJUDI
&UIF SOFUDPNNVOJDBUJPO3+QPSU
34DPNNVO JDBUJPOUFSNJOBM
$"/CBVESBUFTUBUJPOOVNCFSTFUUJOH
64#QPSU
-JUIJVNCBUUFSZTMPU
-JUIJVNCBUUFSZ
$"/DPNNVO JDBUJPOUFSNJOBM
#BSSJFS*0UFSNJ OB MCMPDL
#BSSJFS*0UFSNJOBMCMPDL
1.4 Dimensions
1.4.1 H3U-0808PMRTA, H3U-3232MR/T, H3U-3624MR/T
230.00
90.00
IN
00 01 02 03 04 05 06 07 20 21 22 23 24 25 26 27
10 11 12 13 14 15 16 17 30 31 32 33 34 35 36 37
00 01 02 03 04 05 06 07 20 21 22 23 24 25 26 27
10 11 12 13 14 15 16 17 30 31 32 33 34 35 36 37
SD
OUT
(Unit: mm)

1 Product Information
- 8 -
185.00 10.00
80.00
Mounting hole
Φ4.50 x 4
95.00
(Unit: mm)
1.4.2 H3U-1616MT/R-XP, H3U-2416MR/T-XP
170.00 10.00
90.00
(Unit: mm)
90.00
Mounting hole
Φ4.50 x 4
135.00 10.00
80.00
(Unit: mm)

2 Installation
- 9 -
2 Installation
2.1 Installation Environment
Item Speci󶍾cations
Ambient
temperature Running: -5-55° C, storage: -25-75° C
Relative
humidity Running: 5-95%RH (non-condensing)
Vibration
Frequency
(Hz)
Acceleration
(m/s2)
One-way
amplitude
(mm)
Ten times
in each
of the X,
Y and Z
direction
for 80
minutes
When DIN rail is
installed
10-57 -- 0.035
57-150 4.9 --
When PLC
is directly
installed
10-57 -- --
57-150 9.8 0.075
Working
environment
Do not use the PLC in environments with strong erosive and
󶍿ammable gases or conductive dust.
Elevation Below 2000m
2.2 Installation Position and Space
The PLC should be installed in the correct position horizontally as
shown in the following 󶍾gure.

2 Installation
- 10 -
To ensure properly ventilation, the distance A between the PLC and
modules should be larger than 50 mm.
)6
)6
0UIFS
EFWJDF
0UIFS
EFWJDF
"
"
"
"
"
"
"
&YUFOTJPO
NPEVMF
&YUFOTJPO
NPEVMF
&YUFOTJPO
NPEVMF
&YUFOTJPO
NPEVMF
2.3 Installation Procedure
The H3U series PLC can be installed on DIN rails or mounted on wall
using M4 screws.
2.3.1 Installation of DIN Rail (DIN46277, 35 mm wide)
1) Fix the DIN rail on the mounting surface in the control cabinet;
2) Clip the mounting slot on the rear side of the PLC in the upper edge
of the rail horizontally as shown in the following 󶍾gure;

2 Installation
- 11 -
3) Press the PLC in the direction B shown in the following 󶍾gure until
you hear the click sound. Check if the PLC is fully and vertically
clipped in on the DIN rail.
A
B
2.3.2 Mounting on Wall
Use M4 screws to 󶍾x the PLC on the installation surface in the control
cabinet through the mounting holes on four corners as shown in the
following 󶍾gure:
2.4 Installation of Expansion Modules
Pull the lock catch on the expansion module to the direction shown in
the following 󶍾gure. Push the expansion module to the PLC. Pull the
lock catch back to lock it.

2 Installation
- 12 -
Unlock
Lock
2.5 Dismantling Connection Terminals
When dismantling the barrier terminal block, loosen the screws on
both sides concurrently to remove the terminal block horizontally.
2.6 Installation of Lithium Cell
Follow the procedure to install a new lithium cell if necessary.

2 Installation
- 13 -
2.7 Installation of COM0 and Ethernet Cables
Setting of DIP switch: when you need to set the Ethernet IP address,
CAN communication Baud rate and station number, you need to open
the cover on the left side as shown in the following 󶍾gure.
Press with both
hands and rotate

2 Installation
- 14 -
3 Wiring
3.1 I/O Terminals
3.1.1 Layout of Terminals
■Terminals of H3U-3232MT
S/S0 0V 0V X00 X02 X04 X06 X10 X12 X14 X16 X20 X22 X24 X26 X30
L N 24V 24V X01 X03 X05 X07 X11 X13 X15 X17 X21 X23 X25 X27
X32 X34 X36
X31 X33 X35 X37
S/S1
Y02Y00 Y03 Y04 Y05 Y06 COM5 Y11 Y13 Y14 Y16 COM7 Y21 Y23 Y24 Y26 Y30
COM0 Y01 COM1 COM2 COM3 COM4 Y07 Y10 Y12 COM6 Y15 Y17 Y20 Y22 COM8 Y25 Y27
Y32 Y34 Y36
Y31 Y33 Y35 Y37
COM9
■Terminals of H3U-3624MR/T
LN
X10
X7
X12
X11
X14
X13
X16X20
X17
X22X24
X23
X26
X25X15X21
X0
X1 X5
X30
X3
X4
0V Y01Y05
Y06Y00
Y10Y16
Y07Y11
Y12Y14
Y15
COM0 COM2 COM4
Y03
COM5
S/S0 X2 X32X34 X36X40 X42
X27X31 X35X41 X43X33X37
X6 S/S1
0V
24V24V Y02Y04 Y13Y17 Y21Y23Y25Y27
COM1 COM3 Y22
Y20
COM6 Y26
Y24
COM7
L N
X 10
X 7
X 12
X 11
X 14
X 13
X 16 X 20
X 17
X 22 X 24
X 23
X 26
X 25X 15 X 21
X0
X1 X5
X30
X3
X4
0V Y01 Y05
Y06Y00
Y10 Y16
Y07 Y11
Y12 Y 14
Y 15
COM0 COM2 COM4
Y03
COM5
S/S0 X2 X 32 X 34 X 36 X 40 X42
X 27 X 31 X 35 X 41 X 43X 33 X 37
X6 S/S1
0V
24V 24V Y02 Y04 Y13 Y17 Y 21 Y23 Y 25 Y27
COM1 COM3 Y22
Y 20
COM6 Y26
Y 24
COM7
■Terminals of H3U-2416MR/T-XP
L N
X 11
X 10
X13
X 12
X 15
X 14
X 17 X 21
X 20
X23 X 25
X 24
X 27
X 26X 16 X 22
X01
X02 X06X04
X05
0V Y01 Y05
Y06Y00
Y10 Y16
Y07 Y11
Y12 Y 14
Y 15
COM0 COM2 COM4
Y03
COM5
S/S0 X03 X07
0V
24V 24V Y02 Y04 Y13 Y17
COM1 COM3
X00
L N
X 11
X 10
X 13
X 12
X 15
X 14
X 17 X 21
X 20
X 23 X 25
X 24
X 27
X 26X 16 X 22
X01
X02 X06X04
X05
0V Y01 Y05
Y06Y00
Y10 Y16
Y07 Y11
Y12 Y 14
Y 15
COM0 COM2 COM4
Y03
COM5
S/S0 X03 X07
0V
24V 24V Y02 Y04 Y13 Y17
COM1 COM3
X00
■Terminals of H3U-1616MT/R-XP
L N
X 00
X 01
X 02
X 03
X 04
X 05
X 06 X 10
X 11
X 12 X 14
X 15
X 16
X 17X 07 X 13
0V
24V
0V
S/S0
S/S1
24V
S/S0
COM0 COM2 Y07Y05
Y06
Y 00
Y01
Y02
Y03 Y11 Y17
Y10 Y12
Y13
Y 14
Y15
Y 16
COM1 COM3 COM4
Y04
COM5
L N
X 00
X 01
X 02
X 03
X 04
X 05
X 06 X 10
X 11
X 12 X 14
X 15
X 16
X 17X 07 X 13
0V
24V
0V
S/S0
S/S1
24V
S/S0
COM0 COM2 Y07Y05
Y06
Y 00
Y01
Y02
Y03 Y11 Y17
Y10 Y12
Y13
Y 14
Y15
Y 16
COM1 COM3 COM4
Y04
COM5
■Terminals of H3U-0808PMRTA
0V S/S0 STOP0 LSP0 PG0-
L N 24V DOG0 LSN0 PG0+
B0+A0+ A1+ B1+ A2+ B2+ CLR0+ FP0+ RP0+ CLR1+ FP1+ RP1+ CLR2+ FP2+ RP2+ Y00 Y02
A0- B0- A1- B1- A2- B2- CLR0- FP0- RP0- CLR1- FP1- RP1- CLR2- FP2- RP2- COM0 Y01
Y04 Y06
Y03 COM1 Y05 Y07
STOP1 LSP1 PG1-
DOG1 LSN1 PG1+
S/S1 STOP2 LSP2 PG2-
DOG2 LSN2 PG2+
S/S2 X01 X03 X05
X00 X02 X04 X06
S/S3 X07
START0 START1 START2

3 Wiring
- 15 -
3.1.2 Functions of Terminals
Function Terminals Remarks
Power input L, N, PE
To the two-phase AC power
supply, 85-264 VAC, 220
VAC(Rated)
Power
output 24V, 0V
Provide +24 VDC power supply
externally. Usually, it provides
power
supply to DI/DO terminals and
external sensors.
Max. output current: 350 mA.
Normal
transistor
NPN output
Y00-Y03 on H3U-0808PMRTA
Y05-Y17 on H3U-1616MR/T
Y05-Y17 on H3U-2416MR/T
Y05-Y27 on H3U-3624MR/T
Y05-Y37 on H3U-3232MR/T
Open-collector, optical coupling
isolated.
Circuit power voltage: 5 to 24 VDC.
Max. output current: Resistive
load: 2 A/1 point; 8 A/4 point
common terminal; 8 A/8 point
common terminal;
Inductive load: 220 VAC, 80 VA;
Lamp load: 1.5 W/24 VDC;
Hi-speed
transistor
NPN output
Y00-Y04 on H3U-1616MR/T
Y00-Y04 on H3U-2416MR/T
Y00-Y04 on H3U-3624MR/T
Y00-Y04 on H3U-3232MR/T
Open-collector, optical coupling
isolated.
Circuit power voltage: 5 to 24 VDC.
Max. output current: Resistive
load: 0.5 A/point; 0.8A/4 points;
1.6A/8 points;
Inductive load: 12 W/24 VDC;
Lamp load: 1.5 W/24 VDC;
Max. frequency: 200 kHz(each
channel)
Relay output
Y04-Y07 on H3U-0808PMRTA
Y00-Y17 on H3U-1616MR/T
Y00-Y17 on H3U-2416MR/T
Y00-Y27 on H3U-3624MR/T
Y00-Y37 on H3U-3232MR/T
Circuit power voltage: Below 250
VAC, 30 VDC
Relay mechanical insulation ;
Max. output current: Resistive
load: 0.5 A/point; 0.8 A/4 points;
1.6 A/8 points;
Inductive load: 12 W/24 VDC;
Lamp load: 220 VAC, 100 W
Hi-speed
di󶍽erential
output
(FPx+, FPx-) and (RPx+, RPx-)
on H3U-0808PMRTA
Max. frequency: 500 kHz
Output voltage: ±5 V (3.1 V when
the load is 100 Ω)

3 Wiring
- 16 -
Function Terminals Remarks
Normal
transistor
zero-
clearing NPN
output
CLRx+ and CLRx- (common
terminal) on H3U-0808PMRTA
Open-collector, optical coupling
isolated.
Circuit power voltage: 5 to 24 VDC.
Max. output current: Resistive
load: 0.1 A ;
Normal
input
X10-X17 on H3U-1616MR/T
X10-X27 on H3U-2416MR/T
X10-X43 on H3U-3624MR/T
X10-X37 on H3U-3232MR/T
STOPx, LSPx, LSNx, DOGx and
STARTx on H3U-0808PMRTA
Detection voltage: 24 VDC1
Input resistance: 4.3 kΩ
Hi-speed
input
X00-X07 on H3U-1616MR/T
X00-X07 on H3U-2416MR/T
X00-X07 on H3U-3624MR/T
X00-X07 on H3U-3232MR/T
Detection voltage: 24 VDC1
Input resistance: 3.3 kΩ
Max. frequency: 200 kHz
Hi-speed
di󶍽erential
input
(Ax+, Ax-) and (Bx+, Bx-) on H3U-
0808PMRTA, (PGx+, PGx-) can
serve as the leakage-type and
source-type input terminal.
Input mode: Di󶍽erential input,
leakage/source type;
Detection voltage: When the
voltage is larger than 3V, it is ON;
when the voltage is smaller than 2
V, it is OFF.
NOTE
15 V-24 V is ON. Voltage smaller than 5 V is OFF. The
maximum value is 30 V. When all inputs are ON, the
input voltage should not exceed 26.4 V.
3.2 Input Wiring
3.2.1 Normal Input Wiring
24 VDC output
Logic processing unit
24V+
24V-
24V
0V
X0
X1
X2
Xn
Sensor
User signal wiring
Equivalent circuit in
PLC main module
Various signal input devices
S/S
24 VDC output
Logic processing unit
24V+
24V-
24V
0V
X0
X1
X2
Xn
Sensor
User signal wiring
Equivalent circuit in
PLC main module
Various signal input devices
S/S
Sink input wiring Source input wiring

3 Wiring
- 17 -
3.2.2 Hi-speed Input Wiring
24V+
24V-
24V
0V
X0
X1
X2
Xn
Sensor
S/S
24V+
24V-
24V
0V
X0
X1
X2
Xn
Sensor
S/S
Logic processing unit
Logic processing unit
24 VDC output 24 VDC output
User signal wiring User signal wiring
Various signal input devices
Various signal input devices
Equivalent circuit in
PLC main module
Equivalent circuit in
PLC main module
Sink input wiring Source input wiring
3.2.3 Di󶍽erential Input Wiring
Logic processing
unit
Equivalent circuit in
PLC main module
Ax+
Ax-
Bx+
Bx-
PGx+
PGx-
Standard wiring
Logic processing
unit
Equivalent circuit
in PLC main
module
Ax+
Ax-
Bx+
Bx-
PGx+
PGx-
24 VDC
auxiliary
power
24V+
24V-
24V
COM
Sensor
User signal
wiring
Various signal input devices
Sink input wiring
Logic processing
unit
Equivalent circuit
in PLC main
module
Ax+
Ax-
Bx+
Bx-
PGx+
PGx-
24 VDC
auxiliary
power
24V+
24V-
24V
COM
User signal
wiring
Various signal input devices
Sensor
Source input wiring

3 Wiring
- 18 -
3.3 Output Wiring
3.3.1 Normal/Hi-speed Transistor Output Wiring
DC5V Power
supply
Logic processing circuit
Working power supply of
the internal logic circuit
Y0
Y4
Y5
Equivalent circuit
in the PLC
Output driving circuit
COM0
Y1
COM3
Y6
Y7
Y2
COM1
Y3
COM2
… …
NOTE
The preceding 󶍾gure takes terminal layout of H3U-
1616MT/R as an example. The wiring of other models is
subject to the actual terminal layout
3.3.2 Wiring of Relay Outputs
24Vdc Power
supply
Logic processing circuit
Working power supply of the
internal logic circuit
Y0
Y4
Y5
Equivalent circuit
in the PLC
Output driving circuit
COM0
Y1
COM3
Y6
Y7
·
·
·
Y2
COM1
Y3
COM2
·
·
·

3 Wiring
- 19 -
NOTE
The preceding 󶍾gure takes terminal layout of H3U-
1616MT/R as an example. The wiring of other models is
subject to the actual terminal layout
3.3.3 Wiring of Hi-Speed Di󶍽erential Outputs
FP1+
FP1
RP1+
FP1-
RP1
RP1-
CPU
in the
PLC
Interior of the PLC
3.3.4 Wiring of Normal Transistor Zero-Clearing NPN
Outputs
DC5 V power supply
Logic processing circuit
Equivalent circuit in the PLC
Output driving circuit
CLR0+
CLR0-
CLR1+
CLR1-
CLR2+
CLR2-
The normal transistor zero-clearing NPN output is the motion control
pin of H3U-0808PMRTA. It is designed for error resetting signal of servo.
It is generally used for original point returning and electronic cam
synchronization signal output.
