Inovonics EN1236D User manual

8/28/18 05601E © Inovonics, 2018 - www.inovonics.com
EN1236D Double-Button Three Condition
Pendant
Installation Instructions
1 Overview
The EN1236D double-button three condition pendant can send up
to three alarm conditions.
1.1 Inovonics Contact Information
If you have any problems with this procedure, contact Inovonics
technical services:
• E-mail: [e-mail].
• Phone: [phone].
1.2 EN1236D Components
Figure 1 EN1236D components
1.3 What’s in the Carton
• One double-button three condition pendant.
• One 3.0V lithium battery
2 Installation and Startup
2.1 Install/Replace the Battery
1. Pry the housing apart at either end and pull the two halves
apart.
2. If replacing a battery, remove the old battery.
3. Install the new battery.
4. Press the reset button to initialize the pendant.
2.2 Select the Frequency Band
EchoStream products are able to use a range of radio frequencies,
and must be configured for your geographic area. This product
ships with a default frequency range of 902-928 MHz for use in
North America. If you are using the product in North America, skip
to section 2.3, “Register the Pendant”; if you are using the product
in Australia or New Zealand, you will need to configure the pendant.
1. Pry the housing apart at either end and pull the two halves
apart.
2. Place a selection jumper on the appropriate frequency band
selection pins.
• Leave the jumper off the pins to set the frequency range to
902-928 MHz for North America.
• Place the jumper on the bottom pins, marked NZ, to set the
frequency range to 921-928 MHz for New Zealand.
• Place the jumper on the top two pins, marked AU, to set the
frequency range to 915-928 MHz for Australia.
3. Press the reset button to complete configuration.
Caution: When pressing the reset button, make sure you don’t also
touch the frequency band selection pins. Touching the frequency
band selection pins while pressing the reset button can
inadvertently set the pendant to the wrong frequency band.
2.3 Register the Pendant
The EN1236D must be registered with the system in order to be
monitored and supervised. When supervised, the EN1236D will
send a check-in message every three minutes to the RF gateway.
Each pendant has a unique factory-programmed identification
number. Refer to the control panel’s installation instructions for
details on registering the pendant.
1. When prompted by the receiver to reset the pendant, press the
reset button.
2. Replace the cover.
3 Operation
Caution: The EchoStream system should be tested regularly to
ensure operation. To test the system, activate each of the EN1236D
conditions and ensure an appropriate response.
3.1 Activating EN1236D Conditions
The EN1236D can send three different conditions. To send the first
condition, press and hold the left pendant button for one second; to
send the second condition, press and hold the right pendant button
for one second; to send the third condition, press and hold both
buttons simultaneously for one second.
Condition signals are transmitted multiple times and are indicated
by the blinking transmission LED. Inovonics recommends you test
the pendant at least once per week.
For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
AReset button BFrequency band selection pins
CBattery
B
AC
Printing Instructions
1. Print Duplex
2. Align and orient back page to match front
page.
3. Cut on dashed line
4. Fold cutsheet in half along the 8.5" axis.

8/28/18 05601E © Inovonics, 2018 - www.inovonics.com
3.2 Converting the EN1236D Belt Clip
If you’d like to convert the EN1236D belt clip to a belt loop,
secure the bottom of the belt clip to the housing with a
coarse thread screw.

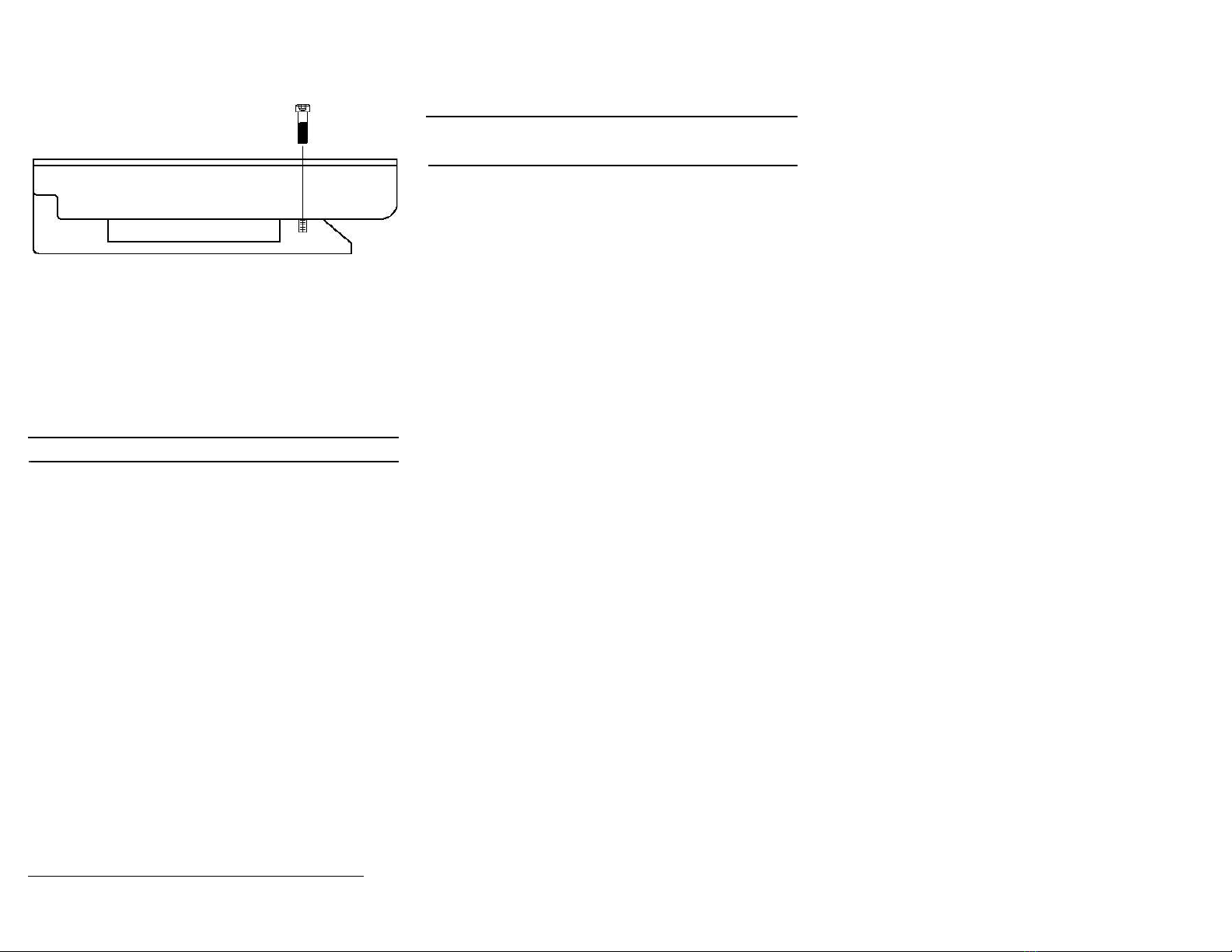

Figure 2 Use a coarse thread screw to secure the belt clip
4 Specifications
Typical battery life: 3-5 years.
Battery type: Panasonic CR2 or equivalent.
Operating environment: 0 to 60°C (32 to 140°F).
Operating humidity: 0 to 90%, non-condensing.
Operating frequencies: 902-928 MHz, frequency hopping spread
spectrum.
Check-in time frequency: 3 minutes.
System requirements: The application controller (e.g. control panel)
must be designed to accept the multiple conditions.
Regulatory listings: FCC, RoHS, RCM, ISED.
Note: Specifications and data are subject to change without notice.
5 Television and Radio Interference
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
6 FCC Part 15 and Innovation, Science and
Economic Development Canada (ISED)
Compliance
This device complies with part 15 of the FCC Rules, and ISED
license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR Innovation, Sciences et
Développement économique Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Note: Changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
7 Radiation Exposure Limits
7.1 FCC
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. In order to avoid the
possibility of exceeding the FCC radio frequency exposure limits,
human proximity to the antenna shall not be less than 20 cm during
normal operation and must not be co-located or operating in
conjunction with any other antenna or transmitter.
7.2 ISED
This equipment complies with ISED RSS-102 radiation exposure
limits set forth for an uncontrolled environment. This transmitter
must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet équipement est conforme avec ISED RSS-102 des limites
d'exposition aux rayonnements définies pour un environnement non
contrôlé. Cet émetteur doit être installé à au moins 20 cm de toute
personne et ne doit pas être colocalisé ou fonctionner en
association avec une autre antenne ou émetteur.
