Inovonics EchoStream EN1223S User manual

© Inovonics, 2011 - www.inovonics.com
EN1223S EchoStream®Water-Resistant
Single-Button Pendant Transmitter
Installation and Operation Manual - 05582D
1 Overview
The Inovonics EN1223S pendant transmitter is our smallest, lightest, and
most versatile pendant.
1.1 Inovonics Wireless Contact Information
If you have any problems with this procedure, contact Inovonics Wireless
technical services:
• E-mail: [email protected]
• Phone: [phone]
1.2 Transmitter Components

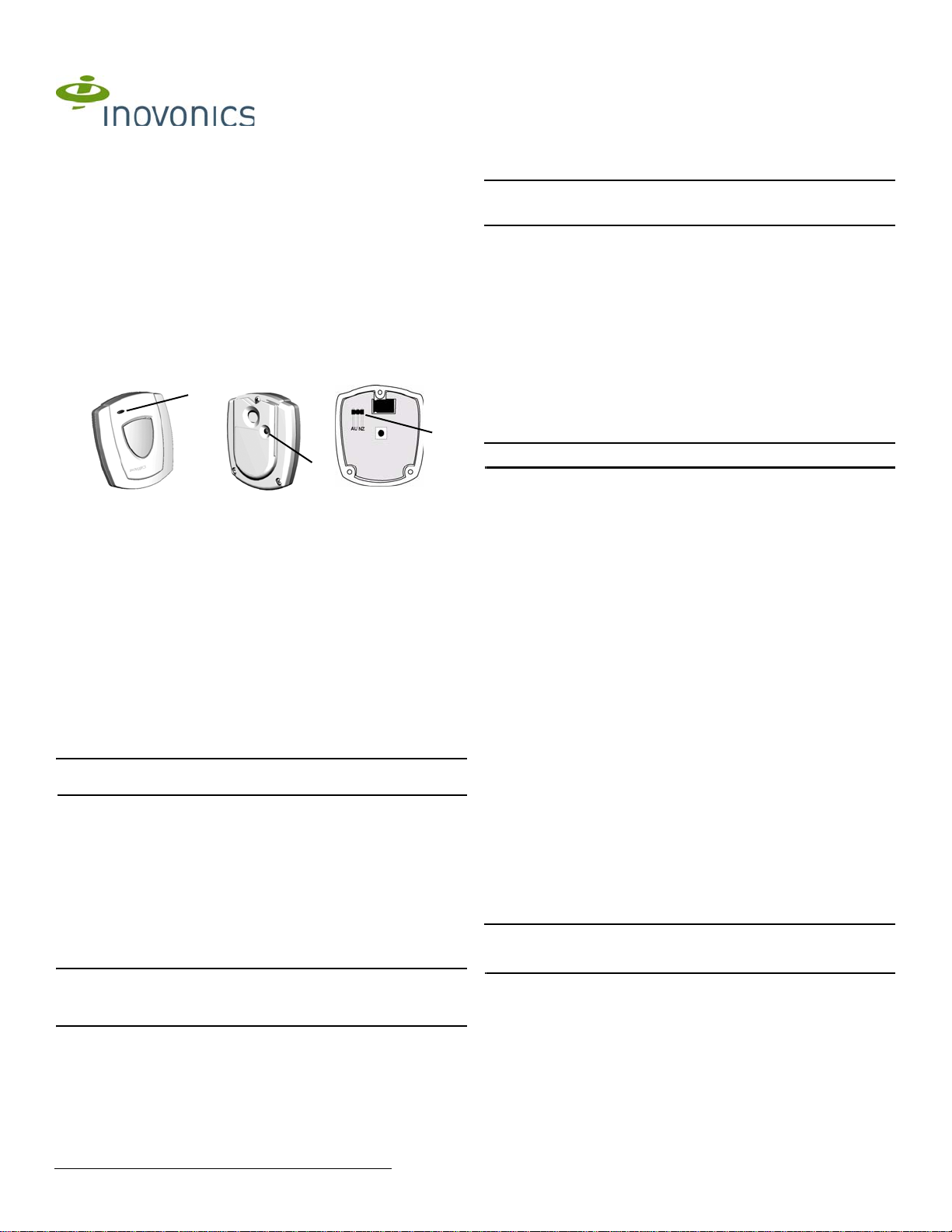

Figure 1 Transmitter components
2 Installation and Startup
2.1 Installation Notes
• These products are designed to be maintained by professional
security technicians.
• Products are intended for indoor use.
• Manually test all products weekly.
2.2 Install/Replace the Battery
1. If present, remove the 3 three housing screws on the back of the
transmitter.
2. Open the housing.
3. Install the new battery, ensuring the positive terminals (+) face the
indicated side of the holder.
4. Allow 30 seconds for the capacitor to charge and then press Reset.
Note: When the battery is removed the transmitter may continue to operate
or report a low battery until all energy is discharged from the capacitor.
2.3 Select the Frequency Band
EchoStream products are able to use a range of radio frequencies, and
must be configured for your geographic area. To configure the transmitter:
1. Place a selection jumper on the appropriate frequency band selection
pins.
• Place the jumper on the right two pins, marked NZ, to set the
frequency range to 921-928 MHz for New Zealand.
• Place the jumper on the left two pins, marked AU, to set the frequency
range to 915-928 MHz for Australia.
• Leave the jumper off the pins to set the frequency range to 902-928
MHz for North America.
2. Press the Reset button to complete configuration.
Caution: When pressing the Reset button, make sure you don’t also touch
the frequency band selection pins. Touching the frequency band selection
pins while pressing the Reset button can inadvertently set the transmitter
to the wrong frequency band.
2.4 Register the Transmitter
The transmitter must be registered with the system in order to be monitored
and supervised. When supervised, the transmitter will send a check-in
message to the serial receiver or network coordinator every three minutes.
Each transmitter has a unique factory-programmed identification number.
Refer to the receiver’s installation instructions for details on registering a
transmitter.
1. When prompted by the receiver to reset transmitter, press the Reset
button.
Caution: The transmitter should be tested after registration to ensure
operation. To test the transmitter, activate each of the conditions and
ensure an appropriate response.
3 Operate the Transmitter
To activate the transmitter, press the button for at least one second. Alarm
signals are transmitted multiple times and are indicated by the blinking
transmission LED. When the buttons are released, the transmitter sends an
alarm restoral signal.To test a transmitter, activate the alarm by pressing
the button(s).
4 Specifications
Dimensions: 5.6 x 4.8 x 1.8 cm (2.2 x 1.9 0.72”)
Operating temperature: 0 to 60°C (32 to 140°F)
Operating environment Water-resistant, non-submersible
Typical battery life: 3-5 years
Battery type (BAT609): Renata CR2450, Panasonic CR2450
Power requirement: 3 VDC, 60 mA
Note: Specifications and data are subject to change without notice.
5 Television and Radio Interference
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
6 FCC Part 15 and Industry Canada Compliance
This device complies with part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
7 Warranty and Disclaimer
Note: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Inovonics Wireless Corporation ("Inovonics") warrants its products
("Product" or "Products") to conform to its own specifications and to be free
of defects in materials and workmanship under normal use for a period of
thirty-six (36) months from the date of manufacture. Within the warranty
period, Inovonics will repair or replace, at its option, all or any part of the
warranted Product. Inovonics will not be responsible for dismantling and/or
reinstallation charges. To exercise the warranty, the User ("User", "Installer"
or "Consumer") must work directly through their authorized distributor who
will be given a Return Material Authorization ("RMA") number by Inovonics.
Details of shipment will be arranged directly through the authorized
distributor.
ATransmit LED BReset button CFrequency band
selection pins
B
A
C
