Insignia HD Radio NS-HD02 User manual

®
HD Radio™ Portable Player - Touchscreen
NS-HD02
User Guide
NS-HD02_11-0133_MAN_V3.fm Page 1 Tuesday, March 8, 2011 1:04 PM

2www.insigniaproducts.com
HD Radio™ Portable Player -
Touchscreen
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important safety instructions. . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using your radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Using the menu to change settings . . . . . . . . . . . . . . . 38
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Checking the battery level. . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
90-day limited warranty . . . . . . . . . . . . . . . . . . . . . . . . 49
Introduction
Congratulations on your purchase of an NS-HD02 HD Radio™
Portable Player - Touchscreen. We have designed this
product to provide you with access to the full FM spectrum
of features that HD Radio Technology offers. This HD Radio is
reliable and easy to use. Make sure you read through this
guide to familiarize yourself with its features.
NS-HD02_11-0133_MAN_V3.fm Page 2 Tuesday, March 8, 2011 1:04 PM

HD Radio™ Portable Player - Touchscreen
3
www.insigniaproducts.com
Important safety instructions
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with a dry cloth.
7Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9Protect the USB cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
10 Only use attachments/accessories specified by the
manufacturer.
11 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
12 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
13 To reduce the risk of fire or electric shock, do not expose
this device to rain, moisture, dripping, or splashing, and
no objects filled with liquids, such as vases, shall be
placed on it.
NS-HD02_11-0133_MAN_V3.fm Page 3 Tuesday, March 8, 2011 1:04 PM

4
NS-HD02
www.insigniaproducts.com
Additional safety information
• Be careful when you use your radio with the USB
plug pulled out. The sharp USB connection plug
may cause injury.
• Observe local laws regarding using earphones
while driving a motor vehicle. Some locales allow
only one ear to be covered by an earphone. Using
the earphones while walking or jogging on a road
or on a crosswalk can lead to a serious accident.
• Do not leave your radio in temperatures above
104°F (40°C), such as in a sauna or a parked car.
• Using earphones or headphones for an extended
time may cause serious damage to your hearing. If
you are exposed to sound louder than 85dB for
extended time, you may adversely affect your
hearing. The louder the sound is, the more seriously
damaged your hearing may be (an ordinary
conversation is between 50dB to 60dB and road
noise is approximately 80dB).
• You are strongly advised to set the volume level to
medium (the medium level is usually less than 2/3
of the maximum).
• If you hear a ringing in your ear(s), lower the volume
or stop using the earphones or headphones.
• Do not place your radio near magnetic objects.
NS-HD02_11-0133_MAN_V3.fm Page 4 Tuesday, March 8, 2011 1:04 PM

HD Radio™ Portable Player - Touchscreen
5
www.insigniaproducts.com
Features
• 20 station presets
• 10 Song List Memos (Bookmark)
• Artist Experience (for example, album art)
• 3.5 mm output jack
• Touch-screen LCD
• Built-in lithium-ion rechargeable battery
•USBcharging
• Live Pause (lets you pause and replay music)
Package contents
• HD Radio Portable Touchscreen Player

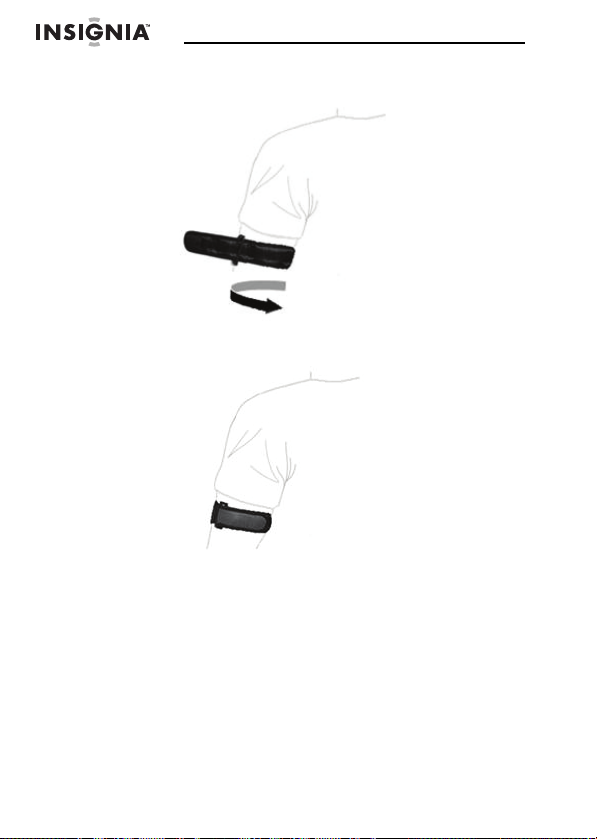

•Armband
•Earphones
• USB cable for charging the battery
• User Guide
• Quick Setup Guide
NS-HD02_11-0133_MAN_V3.fm Page 5 Tuesday, March 8, 2011 1:04 PM
