InSinkErator 2200 User manual

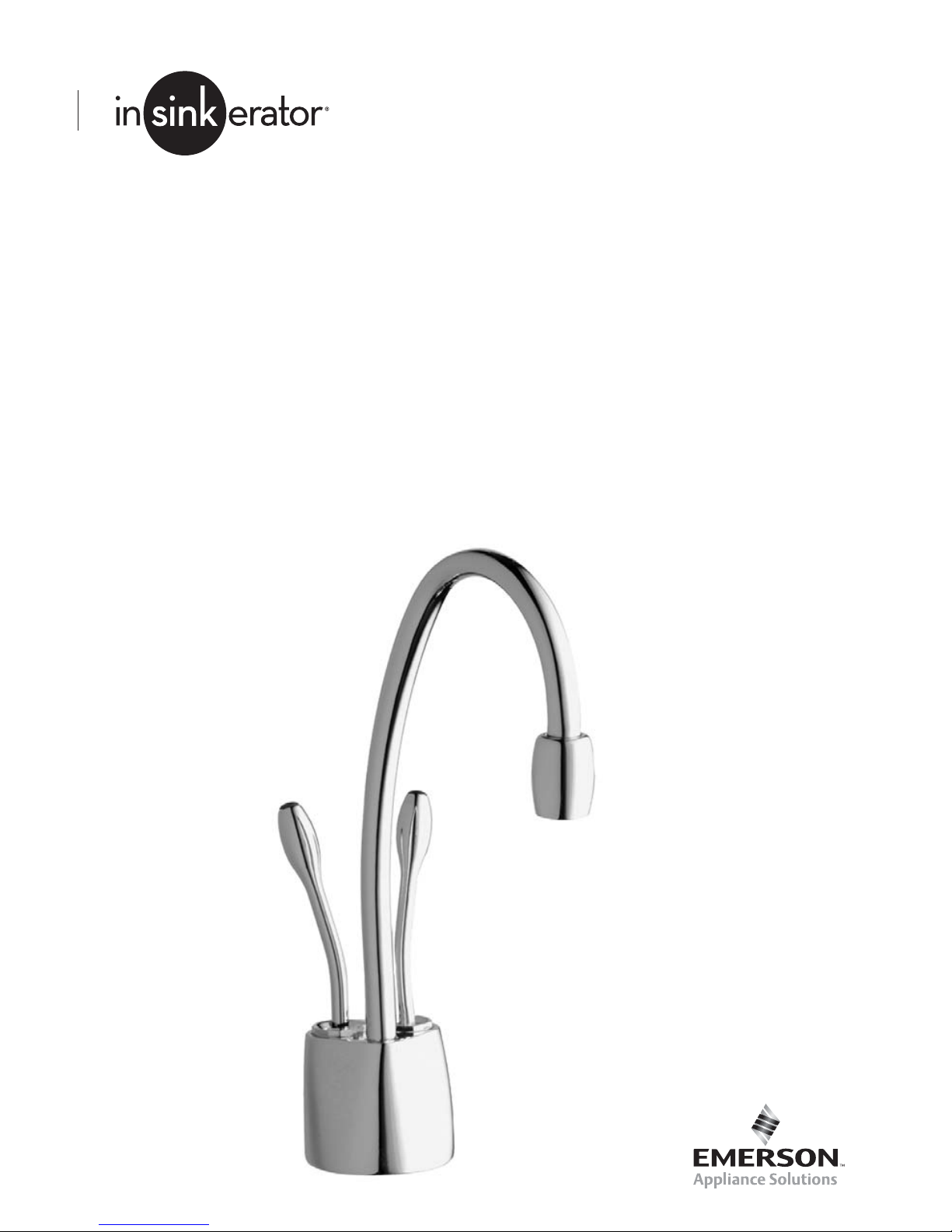

Instant Hot Water Dispenser
Owner’s Manual
Series 2200
Series 1100
SST-FLTR
Installation, Care & Use
Instalacion, cuidado & uso
Installation, soin et utilisation

Equipment You May Need:
We are delighted that you have chosen the InSinkErator®Instant Hot Water Dispenser
to be a part of your home. This unique appliance will save you time and effort in the
kitchen, and you’ll enjoy discovering new uses for it each day. That’s exactly why
millions of people are now using an InSinkErator Instant Hot Water Dispenser.
We are confident that by following our step-by-step instructions, you’ll soon be enjoying
the convenience of instant hot water.
For your satisfaction and safety, read all instructions, cautions, warnings and dangers before installing
or using this instant hot water dispenser.
This particular unit is not intended for commercial use.
Make sure that all electrical wiring and connections conform to local codes.
A standard 120-volt grounded electrical outlet is required under the sink for the dispenser’s electrical power.
The wall outlet powering your dispenser must have power supplied to it continuously.
This outlet must be fused and should not be controlled by the same wall switch that operates the
disposer, unless you have a SinkTop Switch™from InSinkErator®.
It is recommended that a dedicated control valve be installed on the cold water line supplying water
to this system.
If you suspect elevated levels of chlorine in your water, it is recommended to use our water
filtration system.
The use of a water filter should NOT result in the water pressure to drop below 30 psi (207kPa).
If it does, this will prevent your unit from operating properly.
Moving parts inside the tank causing a rattling noise is normal.
WHAT YOU SHOULD KNOW BEFORE YOU BEGIN
Equipment Required:
 Drill
 T-fitting
 Dedicated control valve
 Adjustable wrench
 Phillips and flat blade screwdrivers
 Pencil
 Tape measure
 Level
Anchors for drywall
Hole saw
Basin wrench
Hole punch
If you intend to use the sprayer hole in your sink for your dispenser, you may need a basin wrench and a
1/8" plug or a 1/4" cap (not supplied) for the faucet spray hose line. See Step 1-B.
If you need to cut a mounting hole in your stainless steel sink, you may need a 11 ⁄4" - 11 ⁄2" hole saw made
for cutting stainless steel or a hole punch. Consult a professional if you are drilling into a surface other
than stainless steel.
WHAT YOU NEED TO GET STARTED
2

HOW TO USE THIS INSTRUCTION MANUAL
Provides a step-by-step narrative describing the installation step, with check boxes
that can be marked as you progress through the installation.
Contains simple illustrations that provide visual instruction to support the narrative.
CAUTIONS, WARNINGS and DANGERS that will require your attention during the step.
These instructions are separated into main sections, indicated by numbers, and subsections,
indicated by capital letters. The manual is setup this way to allow you to take a break at any
point after completing a section or subsection without affecting the installation process.
What you’ll see in the
instruction manual:
1
2
3
Identify the model of your instant hot water dispenser and record it here:________________
A
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
INSTALLINGTHE FAUCET
Unpackdispenser components.
On a firm, flat surface, carefully
straighten the copper tubing.
1
2
An imminently hazardous situation, which, if not avoided, will result in death or serious injury.
A potentially hazardous situation, which, if not avoided, could result in death or serious injury.
A potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
3
F-HC1100 F-GN1100
F-GN2215F-HC2215
F-GN2200
F-HC2200
OVERVIEW OF A
COMPLETED SETUP
3

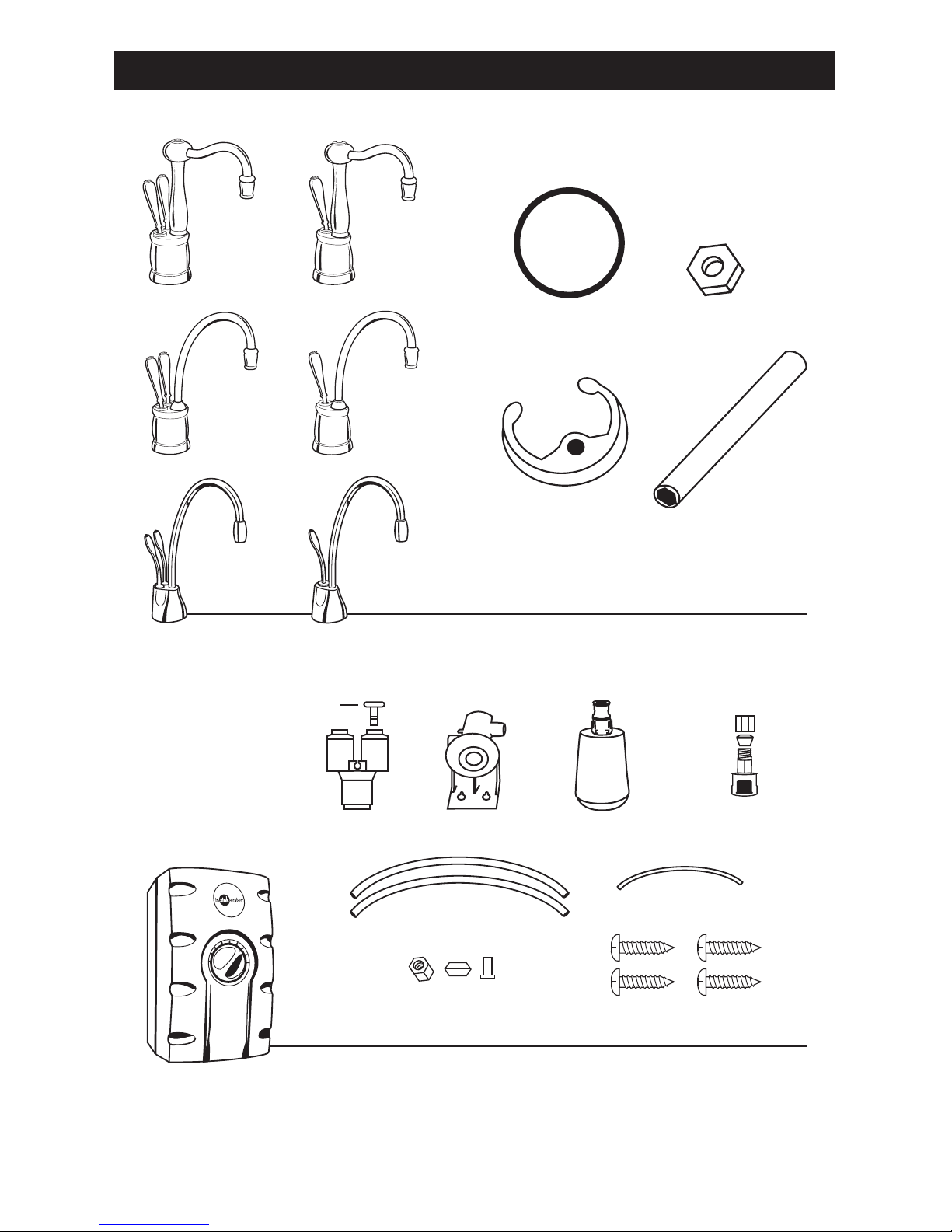

COMPONENTS IN THIS PACKAGE
SST-FLTR
Filter Head
3/8" Tubes(2) Filter
Discharge Tube
Filter Cartridge
3/4" Screws(4)
Brass Nut / Ferrule /
Tube Insert
F-HC1100 F-GN1100
F-HC2215 F-GN2215
F-HC2200 F-GN2200
Semi-circular
Mounting Plate
Rubber O-Ring Hex Nut
Hex Tool
QuickConnector
Plug (1)
Snap-Connect
Fitting (3 pieces)
4

5
The wall outlet for your dispenser must have power supplied to it continuously
and must be fused. It should not be controlled by the same wall switch
that operates your disposer, unless using an InSinkErator SinkTop SwitchTM.
PREPARATION
START HERE PROPER INSTALLATION SHOULD TAKE ABOUT 2-4 HOURS
Identify locations for the dispenser
faucet, tank and filter.
Check to make sure there is proper
clearance for dispenser handles to
be fully opened.
Check to make sure counter is 3"
thick or less.
Make sure there is a grounded
electrical outlet under the sink.
Turn off water supply.
If using the sink sprayer hose hole,
remove nut that connects sprayer
hose at bottom of faucet.
Using adjustable wrench, remove nut
connecting sprayer washer flange in
sprayer hole.
Plug hose opening with either a 1/8"
plug or a 1/4"cap (not supplied).
1A
B
If you have to drill through sink or
countertop, you may need to rent or purchase
the appropriate tools.
Consult a professional before drilling into
a surface other than stainless steel.
CWhat if you don’t have a sprayer hole or
don’t want to use it?
Many homeowners replace the soap
dispenser in their sink with an instant
hot water dispenser.
If drilling a hole into a stainless steel
sink or counter top, you can cut a
mounting hole for the dispenser with a
hole saw for stainless steel, or you can
use a hole punch.
Required Hole Size
Hot & Cool Models 13⁄8" - 11⁄2"
Hot Only Models 11⁄4" - 11⁄2"
F-HC2215................31⁄8"
F-GN2215................37⁄8"
F-HC2200................31⁄8"
F-GN2200................37⁄8"
F-HC1100................31⁄8"
F-GN1100................37⁄8"
Required minimum from
center of hole to wall
Maximum counter
thickness is 3".
If installing ONLY new faucet or new tank, see Page 10.

Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
From under the sink, place the
semi-circular mounting plate onto
the threaded stud.
Place hex nut onto the threaded stud.
Ensure faucet head is at desired angle.
Insert screwdriver into hole on side of
hex tool (creating a “T”), and use tool
to tighten nut and secure faucet.
2
Semi-circular mounting plate should
encircle all descending tubes and
extend beyond sink hole when tight.
Ensure that the black O-ring is
properly seated in the base of the
dispenser head (the groove on the
underside of the dispenser).
Feed tubes down through the hole
in the sink or countertop until the
base is at rest on the sink or
countertop surface.
Unpack dispenser components.
On a firm, flat surface, carefully
straighten the copper tubing.
An assistant may be needed to hold
the dispenser head in place
while securing the dispenser.
B
A
C
D
Make sure to use rubber O-ring
to ensure proper seal.
INSTALLING THE FAUCET
6

7
ASelect a spot under the sink to mount
tank vertically within reach of both
plumbing and electrical connections.
The tank should be within 16"or less
of faucet water lines and within 30"
or less of a standard grounded outlet.
While holding tank in place on
the spot selected for installation,
use a pencil to mark locations for
2 hanging screws.
Property Damage: Tank must be locatedwithin 16" of
faucet andwithin 30" or less of a standardgrounded
outlet. DO NOT extendplumbingor electrical lines.
3
Tank must be
mountedlevel
to ensure
proper operation.
Mount tank vertically in an area that
allows clearance on the underside of the
tank for drainage, if necessary.
DO NOT over tighten screws.
Pre-drill 1/8"pilot holes at marks.
Turn screws into pre-drilled holes,
leaving 1/4"exposed.
Hang the tank on the screws.
Tighten the screws with only
1/2 turn clockwise.
BScrews provided are for use in wood
studs or cabinets only. Use wall anchors
(not supplied) for installation into drywall.
Leave 1/4"for
hanging tank.
Tank A
Without depressing the gray button,
place the snap-connect fitting at
the end of the blue or copper 1/4"
tube onto the left fitting on the tank,
pushing until it clicks into place. (1)
Tank B
Insert blue 1/4"tube into quick-
connect fitting at left. (1)
Both Tanks
Slip the flexible white 7/16"tube
over barbed steel fitting and slide
down approximately 1/2". (2)
Slip the clear 5/16"tube over the
smooth plastic fitting and slide down
approximately 1/2". (3)
Check for pinched or crimped tubes.
4A
Property Damage: Pinchedor blockedwater lines
may cause damage to the dispenser tank.
Hose clamps are not needed for any
of the connections.
Property Damage: Check to make sure
tubesare connectedproperly andare
pusheddown asfar aspossible.
(1) (2) (3)
(1) (3) (2)
Tank A
Tank B
MOUNTING THE TANK
CONNECTING FAUCET TO TANK

Property Damage: Do not extendthe copper
linesfarther than the 16" provided.
Personal Injury: Do not locate filter above an outlet or other
electrical device. Install headandbracket so that connec-
tionsrequire no stretching, kinkingor pinchingof tubing.
It is normal for approximately 2 oz. of water to
discharge when filter is removed.
Property Damage: Tube runsneedto form to the cabinet’s
contoursto allow storage space with no sharp bends. Tubes
needclean, perpendicular, burr-free cutsto ensure a true fit.
A
Determine length of tubing required,
then cut to length making sure the cut
is perpendicular and burr-free.
Insert a white 3/8"tube into inlet side
of filter head until it stops.
Press in again to ensure a secure fit.
Insert the other white 3/8"tube
into outlet side of filter head
until it stops. Press in again to
ensure a secure fit.
Mark hole locations for filter head
and bracket in a spot that allows
for filter replacement.
Drill 1/8"starter holes and attach racket to
wall with wood screws, turning until snug.
Remove red filter cap, insert filter
cartridge into filter head and twist
clockwise until “LOCK” arrow on the
filter aligns with arrow on bracket.
To redirect filter replacement water
discharge, place 6"clear tube over
vent hole on the left side of filter head.
Note: 3/8"fitting is required to make
connection to water supply.
Connect remaining white 3/8"tube to
incoming water supply line.
(See Step 6.)
CInsert the copper tube(s) from the
dispenser into the 3/8"to 1/4"
quick-connect fitting.
Connect the white 3/8"tube
from the right outlet on the filter
head into the quick-connect fitting until
it stops. Press in again to ensure a
secure fit.
from water
supply line to dispenser
To remove tube(s) or plug from quick-connector,
depress the release ring and gently pull away.
Discharge tube
From water
supply line To dispenser
From filter or
water supply line
From filter or
water supply line
D
Plug
5INSTALLING FILTRATION SYSTEM
Hot & cool models Hot only models
8
Screws provided are for use in wood
studs or cabinets only. Use wall anchors
(not supplied) for installation into drywall.
B

9
Scalding Hazard: The faucet dispensesnear-boiling
(212ºF) water which can instantly cause scalds or
burns. Use care when operatingthisappliance.
Property Damage: Join remainingtube
to coldwater supply only.
C
Turn on the cold water supply.
Depress the dispenser’s HOT handle
and hold it until water flows from the
spout (approximately 1 to 2 minutes).
Run the water for at least 2 minutes
to flush lines (both the hot and cold
handles independently if applicable).
B
A
 Check all connections to ensure they are
tight
and that there are no leaks.
 Plug in instant hot water tank.
Water will be cold at first.
Allow 12-15 minutes for water to reach
target temperature.
Gurgling or hissing is normal during the
initial heating cycle.
6
Brass Nut
Ferrule
Brass Insert
Plastic
tube
 Install a T-fitting (not included)
onto the cold water supply line.
 Install dedicated water control valve
with 3/8"compression fitting.
 At the end of the white 3/8"tube from the
filter or quick-connector, slide the supplied
brass nut and ferrule over the tube and
then push in the brass tube insert.
 Insert the white 3/8"tube into the 3/8"
compression fitting and tighten.
Property Damage: A standardgroundedoutlet within
30" of the dispenser isrequiredunder the sink. Do
not use an extension cordset with the dispenser.
If the water coming from the faucet is not hot 15 minutes after the unit
has been plugged in – or for other issues related to the operation of your
instant hot water dispenser – refer to the “Troubleshooting” section on Page 14.
FINAL WATER CONNECTION

10
B
 At tank top, depress release ring or gray
release tab into quick-connect fitting
securing blue or copper 1/4"tube and
gently pull line off tank fitting. Pull white
7/16"tube and clear 5/16"tube off fittings.
 If not already equipped, the included
snap-connect fitting must be installed.
 To install snap-connect fitting, unscrew
brass mounting nut and remove snap-
connect fitting, brass ferrule and nut.
A
Slide brass nut and plastic ferrule
onto the 1/4"blue or copper tube
running from the faucet.
Insert blue or copper tube into snap-
connect fitting and tighten brass nut
with a wrench, 1 to 2 turns clockwise.
You may elect to use existing tank
mounting bracket.
Refer to Page 7, Steps 3-4 for
complete installation instructions.
ADetermine if your existing tank is A, gray
plastic shell, or B, white metal shell.
At tank top, depress gray release tab
(if A) or release ring (if B) into quick-
connect fitting securing blue or
copper 1/4"tube and gently pull line
out of fitting. Pull white 7/16"tube
and clear 5/16"tube off fittings.
Remove existing faucet.
Blue Tube
Property Damage:
Do not over tighten brass nut.
Property Damage:
Turn off water & unplug tank.
Property Damage:
Unplug tank before connectingfaucet.
Tank A
The snap-connect fitting will be
attached directly to the tank.
Tank B
Cut off snap-connect fitting at the
end of the blue 1/4"tube. Ensure
that cut is straight and burr free.
Insert blue tube into fitting on tank.
Skip to Step 2 (pages 7-11) for
complete installation instructions.
Property Damage: Do not pinch or break copper
tubing. Do not distort the last 1 inch of tubing.
IF INSTALLING ONLY NEW TANK
B
Release
Tab
1/4"
blue 7/16"
white
5/16"
clear
Release
Ring
1/4"
blue or
copper
7/16"
white
5/16"
clear
Cut
here
Check
orientation
of ferrule
Make note of
orientation
of ferrule
IF INSTALLING ONLY NEW FAUCET
Tank A
Tank A
Tank B
Tank B

Electric Shock Hazard: Using an ungrounded or improperly connected
appliance can result in serious injury or death from electrical shock.
Property Damage: To avoid water damage, replace any loose or split tubing.
Periodically inspect the unit for any signs of leakage and immediately remove from
service any unit suspected of leaking.
Personal Injury: This tank is a non-pressurized tank. DO NOT modify this system.
DO NOT close vent tube or connect other type dispensers or valves to the tank. Use only
the InSinkErator dispenser faucet supplied. Use only parts provided. Contact an
authorized InSinkErator Service agent for repairs or replacement components.
Dispenser: 5-year warranty
Stainless Steel Tank: 3-year warranty
Filtration System: 1-year warranty (excluding replaceable filter cartridge)
Covers all replacement parts and labor to correct defects in material or workmanship in the
dispenser system, excluding the replaceable filter cartridge, for the full warranty period from
the date of installation in your home. If warranty service is required during the warranty period,
contact an authorized InSinkErator service agent to replace or repair the unit in your home at
no cost to you. If your dispenser is replaced rather than repaired, the warranty on the new unit
shall be for the duration of the remaining portion of the original dispenser’s warranty. Note:
Warranty is determined by unit serial number and/or date of installation. Purchase or
installation receipt may be required to verify warranty status. When service is required, and for
the location of your nearest factory authorized service center, call toll free 1-800-558-5700.
The foregoing warranty does not apply to damage or inoperation resulting from accident,
alteration, misuse, abuse, improper installation, installation not in accordance with these
instructions or local electrical and/or plumbing codes. We do not assume any responsibility for
consequential damage. Install using genuine InSinkErator®manufactured components only.
Use of non InSinkErator components will void your warranty.
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitations of incidental or consequential damages, so the above limitations or
exclusion may not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
This appliance must be grounded. This instant hot water dispenser is equipped with a cord that
has a grounding conductor and a grounding pin. The plug must be connected to an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Check with a qualified electrician or serviceman if you are in
doubt as to whether the instant hot water dispenser is properly grounded.
WARRANTY INFORMATION
Fire Hazard: To minimize possibility of fire, DO NOT store flammable items such as
rags, paper or aerosol cans near the tank. DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of this or any other appliance.
An instant hot water dispenser, like any water heater, has a limited life and will eventually
fail. To avoid possible property damage, this instant hot water dispenser should be
regularly examined for leakage and replaced when necessary. A drain pan, plumbed to
an appropriate drain or outfitted with a leak detector, should be used in those
applications where any leakage could cause property damage.
11

Electric Shock Hazard: To prevent electrical shock, disconnect power before
servicing unit. Use only a properly grounded and polarized electric outlet.
CARE AND USE
Scalding Hazard: Do not allow
water to boil. May result in
severe burns.
Factory temperature pre-set is
200˚F. To reset the thermostat
to 200°, turn the indicator two
notches to the right of vertical.
Adjust the thermostat
slowly, turning the dial
clockwise to increase
temperature or counter clockwise to decrease
temperature, then activate faucet handle for
20 seconds to bring in fresh water to be
heated at the new setting. Allow 5-7 minutes
for water to reach new temperature.
ADJUSTING THE THERMOSTAT
 Only use mild cleaners to clean the faucet
and plastic components.
 Cleaners with acids, abrasives, alkaline or
organic solvents will result in deterioration of
the plastic components and void the warranty.
CLEANING THE FAUCET AND TANK
Replace filter cartridge when there is an obvious
decrease in water flow to the faucet or if there is an
objectionable taste or odor to the water.
When the inlet and outlet ports have been closed
and the filter’s internal pressure has been relieved,
water (about 2 oz) will discharge from vent line.
If the new filter cartridge cannot be inserted,
insert the old one and turn until it stops, remove it
and then retry the new cartridge.
Carbon filters should be replaced within 12 months.
FILTER GUIDE AND REPLACEMENT
Filter replacement instructions:
Replace with an InSinkErator®filter.
Place pan or dish towel under the filter to
catch water drainage during change.
Slowly turn the cartridge counter-clockwise
completely until it stops (1/4 turn).
Pull cartridge straight down and discard.
Insert new cartridge into filter head.
Top surface of cartridge will become flush
with the bottom of the filter head when
fully engaged.
Turn the cartridge clockwise until it stops
(1/4 turn).
Align the in/out arrow on the head and
bracket assembly to the in/out arrow on
the cartridge.
Open faucet to expel trapped air.
Run water for 3 minutes before usage.
 Regularly inspect the unit for any signs of
leakage. If there are signs of water damage,
immediately remove the unit from service.
 To avoid water damage from leakage,
replace all cut, loose or split tubing.
 A drain pan, plumbed to an appropriate
drain or outfitted with a leak detector,
should be used in those applications where
any leakage could cause property damage.
PROPERTY DAMAGE
Anytime the instant hot water dispenser is not
used for extended periods of time, unplug and
drain unit. If it is below freezing you will need
to unplug the unit and drain it.

Disconnect power from unit.
 Push hot water dispenser faucet lever
and allow water to flow until it is cool.
 Shut the cold water supply off at the valve.
 Locate and remove drain screw from
bottom center of water tank and drain
the water into empty pail.
 Empty the tank and then reinstall drain
screw into the bottom of tank, turning
until snug. Do NOT over tighten.
 Remove and discard filter cartridge.
 To put back into working order, install
new filter cartridge, fill tank with water
and reconnect the electrical cord. (Refer
to Page 9, Step 6B)
SEASONAL STORAGE/DRAINAGE
12
approx. 200°

FILTRATION INFORMATION
To reduce the risk associated with ingestion of contaminates due to use with water that is
microbiologically unsafe or of unknown quality, do not use with water that is microbiologically
unsafe or of unknown quality without adequate disinfection before or after the system.
To reduce the risk associated with property damage due to water leakage:
• Protect filter from freezing. Drain filter when temperatures drop below 40°F (4.4°C).
• Do not install if water pressure exceeds 120 psi (828 kPa). If your water pressure
exceeds 120 psi, you must install a pressure limiting valve. Contact a plumbing
professional if you are uncertain how to check your water pressure.
• Do not install where water hammer conditions may occur. If water hammer
conditions exist you must install a water hammer arrester. Contact a plumbing
professional if you are uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum operating water temperature
of this filter system is 100°F (38°C).
• The disposable filter cartridge must be replaced every twelve months or at the
specified service cycle.
• Read and follow instructions before installation and use of this system.
The InSinkErator
®
Instant Hot Water Dispenser Filtration System is intended for use in filtering
sediment, chlorine taste and odor from drinking water, and has not been evaluated for other
uses. The system is typically installed (near or beneath a sink) where filtered drinking water is
desired, and must be installed, operated and maintained as specified in the installation and
use instructions.
13

TROUBLESHOOTING
WHAT TO DO
Water and steam spits
forcefully from spout
without turning on the
dispenser faucet.
Water is not hot.
• Unit is boiling.
May be normal during initial setup.
• The unit is unplugged.
• The electric outlet is inoperative.
• Activate faucet lever to release some water from
the tank.
• Adjust water temperature using dial on tank front.
Remember that at higher altitudes, water boils
at lower temperatures.
• Make sure the unit is connected to a properly grounded
electric outlet.
• Make sure the circuit breaker or fuses are
functioning properly.
• Check that the outlet is not switched off.
Water is too hot
or not hot enough.
• Thermostat is not adjusted to
your needs.
•
Adjust the thermostat slowly, then activate faucet lever for 20
seconds to bring in fresh water to be heated at the new setting.
Allow 5-7 minutes for water to reach new temperature.
Water comes out the
vent instead of spout.
• Outlet tube is blocked. • Check that outlet tube is not kinked, twisted or pinched.
• Unscrew spout end piece and clean out any debris.
Water is dripping from
the spout/vent
intermittently.
• The expansion chamber isn’t draining
properly due to low water pressure.
• The spout is blocked.
• Unplug the unit. If the dripping doesn’t stop after a few
minutes, check the supply valve to ensure that is fully
open and there are no obstructions in the water line
reducing the pressure below 30 psi (
i.e., a poorly mounted
saddle valve, a clogged water filter, or a partially opened
shut-off valve).
• Unscrew spout end piece and clean out any debris.
Water is dripping
from the spout/vent
constantly.
• Debris in the water line may be
in the faucet valve seat causing a
slow water leak.
• Unscrew spout end piece and clean out any debris.
• Activate faucet lever 7-10 times to flush faucet & lines.
Divided stream. • Debris in the end piece. • Unscrew spout end piece and clean out any debris.
PROBLEM POSSIBLE CAUSE
FILTRATION ISSUES
If you are still experiencing trouble call the AnswerLine™1-800-558-5700.
Water taste or odor
New filter leaks or
doesn’t fit
No water flow or
low water flow
• Filter needs to be flushed out
• Life of filter has expired
• Head and bracket not fully rotated
• Filter O-ring breach
• Life of filter has expired
• Activate the faucet lever and run until the water is cold.
If there is no change, replace filter cartridge.
• Remove, inspect, reinstall filter cartridge.
• Remove new filter, replace with old filter. Check operation.
If OK, reinstall new filter and recheck operation.
• Replace filter cartridge. See page 12.
Please read Troubleshooting Guide and/or visit
www.insinkerator.com before calling AnswerLine™
14

Dispensador de agua caliente instantánea
Manual del usuario
Serie 2200
Serie 1100
SST-FLTR
Instalacion, cuidado & uso
Installation, Care & Use
Installation, soin et utilisation

Equipo que puede necesitar:
Nos complace que haya elegido el dispensador de agua caliente instantánea
InSinkErator®para formar parte de su hogar. Con este singular electrodoméstico
usted ahorrará tiempo y esfuerzo en su cocina, y disfrutará al descubrir un nuevo
uso cada día. Es por eso que millones de personas utilizan hoy en día el dispensador
de agua caliente instantánea InSinkErator.
Confiamos en que al aplicar las instrucciones paso por paso, usted estará
disfrutando pronto de los beneficios del agua caliente instantánea.
Para su satisfacción y propia seguridad, lea todas las instrucciones, así como los enunciados de
precaución, advertencia y peligro antes de instalar o de utilizar su dispensador de agua instantánea.
Esta unidad en particular no está preparada para uso comercial.
Verifique que todo el cableado y conexiones eléctricas cumplan con las especificaciones de
las normas de su localidad.
El dispensador debe enchufarse en una toma eléctrica estándar de 120 voltios con conexión
a tierra ubicada bajo el fregadero.
Esta toma eléctrica debe tener energía ininterrumpida.
La toma debe contar con un fusible y no debe ser controlada por el mismo interruptor de pared con el que
funciona el dispensador, excepto si usted tiene un interruptor marca SinkTop Switch de InSinkErator®.
Se recomienda la instalación de una válvula de corte en la linea de agua fría que alimenta
de agua al sistema.
Si usted sospecha de elevados niveles de cloro en el agua, le recomendamos que use
nuestro sistema de filtración de agua.
El uso de un filtro de agua NO DEBE causar disminución de la presión por abajo de 30 psi
(207 kPa). En caso de ocurrir, esto impedirá el funcionamiento correcto de la unidad.
Las partes internas del tanque provocan un traqueteo normal.
LO QUE USTED DEBE SABER ANTES DE COMENZAR
Herramientas:
 Taladro
 Conector “T”
 Válvula de control dedicada
 Llave ajustable
 Destornilladores phillips y planos
 Lápiz
 Cinta métrica
Tarugos para panel de yeso
Broca corta-círculos
Llave para fregadero
Punzón
Si tiene planeado usar el orificio del rociador del fregadero para el dispensador, es posible que
necesite una llave para fregadero y un tapón de 1/8" ó 1/4" (no incluido) para la manguera del
rociador.
Vea el paso 1-B.
Si necesita hacer un orificio para montaje en un fregadero de acero inoxidable, es posible que
necesite una broca corta-círculos de 1 1⁄4" a 1 1⁄2" para cortar el acero inoxidable o un punzón. Si
va a perforar una superficie que no sea de acero inoxidable, solicite los servicios de un profesional.
LO QUE USTED NECESITA PARA COMENZAR
16

CÓMO USAR ESTE MANUAL DE INSTRUCCIONES
Describe paso a paso en forma narrativa el proceso de instalación, con cuadros que usted
puede ir marcando conforme avanza en la instalación.
Contiene ilustraciones sencillas como ayuda visual para la narración.
Enunciados de PRECAUCIÓN, ADVERTENCIA y PELIGRO que requieren su atención
durante el proceso.
Estas instrucciones están divididas en apartados principales indicados por números, y apartados
secundarios indicados por letras mayúsculas. El manual está organizado en esta forma para
permitir al usuario hacer una pausa en cualquier momento después de terminar un apartado
principal o secundario sin afectar el proceso de instalación.
Lo que usted verá en el
manual de instrucciones:
1
2
3
VISTA GENERAL DE LA
INSTALACIÓN TERMINADA
A
■
■
■
■
INSTALACIÓN DEL GRIFO
Desempaque loscomponentes
del dispensador.
Enderece con cuidado el tubo de cobre
sobre una superficie firme y plana.
Daños materiales: No apriete ni rompa el tubo de
cobre. No deforme la última pulgada (2.5 cm) del
extremo del tubo de cobre.
ÓPRECAUCI N
1
2
Una situación peligrosa inmediata que si no se evita puede causar la muerte o lesiones graves.
Una situación potencialmente peligrosa que si no se evita podría causar la muerte o lesiones graves.
Una situación potencialmente peligrosa que si no se evita podría causar lesiones menores o moderadas.
3
PRECAUCIÓN
ADVERTENCIA
PELIGRO
Identifique el número de modelo de su dispensador y anótelo aquí:________________
F-HC1100 F-GN1100
F-GN2215F-HC2215
F-GN2200
F-HC2200
17

CONTENIDO DE ESTE PAQUETE
SST-FLTR
Cabeza Del Filtro
Tubo de 3/8" (2)
Tubo De la
Descarga Del Filtro
Cartucho De Filtro
Tornillosde 3/4" (4)
Tuerca de latón/Casquillo/
Inserto para tubo
Conector rápido
Tapón (1)
Adaptador de encaje
a presión (3 piezas)
F-HC1100 F-GN1100
F-HC2215 F-GN2215
F-HC2200 F-GN2200
Placa de montaje
semicircular
Anillo "O" de caucho Tuerca
hexagonal
Herramienta
hexagonal
18

19
PREPARACIÓN
COMIENCE AQUÍ
LA INSTALACIÓN CORRECTA DEBE HACERSE ENTRE 2-4 HORAS
Identifique las ubicaciones del
grifo, tanque y filtro (si es el caso)
del dispensador.
Compruebe que haya espacio libre
suficiente (vea la tabla a la izquierda) para
poder abrir las manijas del dispensador.
Asegúrese de que la cubierta no sea
demasiado gruesa (máximo de el 3").
Asegúrese de que haya una toma eléctrica
con conexión a tierra debajo del fregadero.
1A
El tomacorriente de pared para su surtidor debe estar constantemente
energizado y protegido con fusibles. No debe estar controlado por el
mismo interruptor de pared que opera su triturador de desechos, a
menos que use un interruptor InSinkErator SinkTop SwitchTM.
Cierre la toma del agua.
Si utiliza el orificio de la manguera del
rociador, quite la tuerca que conecta la
manguera del rociador debajo del grifo.
Quite con la llave ajustable la pestaña
de la arandela del rociador que está en
el orificio del rociador.
Tape la abertura de la manguera con un
tapón de 1/8"o de 1/4"(no incluido).
B
Si es necesario perforar el fregadero o la
cubierta, es posible que tenga que rentar o
comprar las herramientas apropiadas.
Consulte los servicios de un profesional
antes de perforar una superficie que no sea
de acero inoxidable.
CSi no hay un orificio para rociador
o si no lo usa
Muchas personas colocan un
dispensador de agua caliente
instantánea en lugar de un dispensador
para jabón en el fregadero.
Si perfora un fregadero de acero
inoxidable o una cubierta, puede hacer el
orificio de montaje para el dispensador
con una broca corta-círculos en el acero,
o puede usar un punzón.
Tamaño Requerido Del Agujero
Modelos calientes 13⁄8" - 11⁄2"
y frescos
Modelos calientes 11⁄4" - 11⁄2"
(3.5cm-3.8cm)
(3.1cm-3.8cm)
F-HC2215................31⁄8" (8 cm)
F-GN2215................37⁄8" (10 cm)
F-HC2200................31⁄8" (8 cm)
F-GN2200................37⁄8" (10 cm)
F-HC1100................31⁄8" (8 cm)
F-GN1100................37⁄8" (10 cm)
Mínimo requerido del
centro del orificio a la pared
El grosor máximo de la cubierta
(profundidad) es de 3 pulgadas ( 5 cm)
Si va a instalar SÓLO un nuevo grifo o
un nuevo tanque consulte la página 24.

Daños materiales: No apriete ni rompa el tubo de
cobre. No deforme la última pulgada (2.5 cm) del
extremo del tubo de cobre.
Coloque la placa de montaje semicircular en
el perno roscado por abajo del fregadero.
Enrosque la tuerca hexagonal en el
perno. Compruebe que la cabeza del
grifo quede al ángulo deseado.
Inserte un destornillador en el orificio de
la herramienta hexagonal (para formar
una “T”), y apriete la tuerca y fije el grifo
con esta herramienta.
2
La placa de montaje semicircular debe circundar
todos los tubos que descienden y rebasar el
agujero del fregadero cuando esté apretada.
Compruebe que el anillo "O"quede
sentado correctamente en la base de
la cabeza del dispensador (la ranura en
la parte inferior del dispensador).
Inserte los tubos por el orificio en el
fregadero o cubierta hasta que el
extremo descanse en la superficie del
fregadero o cubierta.
Desempaque los componentes
del dispensador.
Enderece con cuidado el tubo de
cobre sobre una superficie firme
y plana.
Puede ser necesario un ayudante para
sostener el dispensador mientras
se fija en su lugar.
B
A
C
D
PRECAUCIÓN
Asegúrese de usar una anillo "O" de caucho
para obtener un sellado correcto.
20
INSTALACIÓN DEL GRIFO
