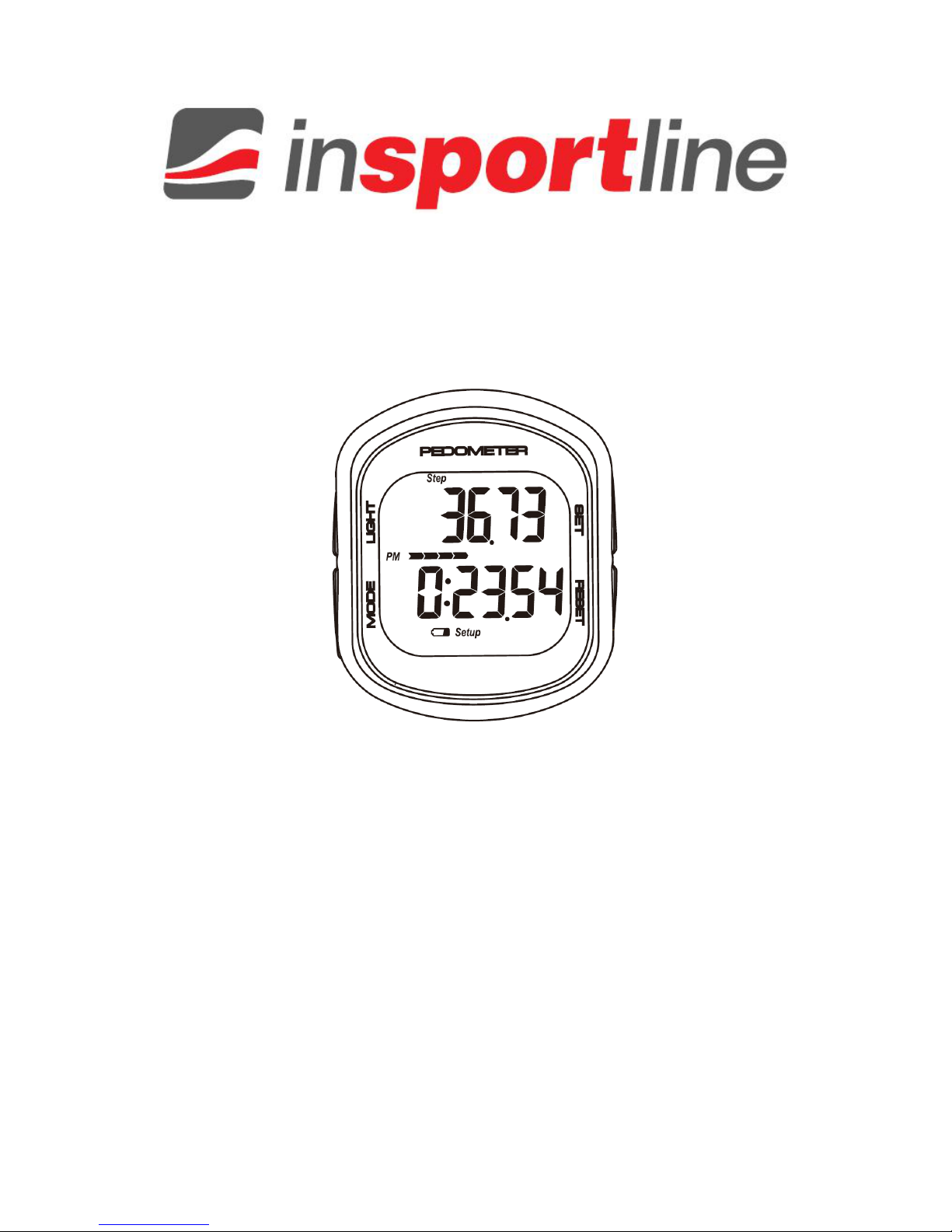

IN 8124 3D Motion Sensor USB Pedometer inSPORTline 181
(OD69041)
1

CONTENTS
INTRODUCTION.....................................................................................................................................................3
BUTTONS................................................................................................................................................................3
OPERATING MODES.............................................................................................................................................4
SETTING YOUR PEDOMETER.............................................................................................................................4
CALCULATING STRIDE LENGTH......................................................................................................................5
OPERATING INSTRUCTIONS..............................................................................................................................5
STEP MODE.........................................................................................................................................................5
DISTANCE MODE..............................................................................................................................................5
CALORIES MODE..............................................................................................................................................6
EXERCISE TIME MODE....................................................................................................................................6
MEMORY MODE................................................................................................................................................6
TOTAL DATA MODE.........................................................................................................................................6
ALARM MODE....................................................................................................................................................7
RESETTING THE PEDOMETER.......................................................................................................................7
USB CONNECTION................................................................................................................................................7
UPLOADING YOUR DATA...................................................................................................................................7
BATTERY REPLACEMENT..................................................................................................................................8
CARE AND MAINTENANCE & CLEARING.......................................................................................................8
TERMS AND CONDITIONS OF WARRANTY WARRANTY CLAIMS...........................................................9
2

INTRODUCTION
This digital pedometer displays steps taken distance traveled calories burned total exercise time and 30-days
memory storage among many other useful features. Also the most important could download your exercise
data to the PC.
Please read this manual carefully before using this pedometer. We suggest you keep this manual for future
reference.
To keep your health and reduce chronic disease risk we recommend you to take 10 000 steps a day. For an
effective weight loss the total steps should be between 12 000 and 15 000. If you want to achieve a higher
fitness level you are suggested to take at least 30 000 steps per day.
REMARK: In any mode (except for SET mode) press and hold MODE button for more than 2 seconds to turn
on/off the pedometer function. When the pedometer function is on the sign is flashing.
BUTTONS
1. Port USB
2. LIGHT
3. SET
4. MODE
5. RESET
MODE BUTTON
Scroll through modes
Decrease value in time and user information
SET BUTTON
Press and hold to access SETTING mode while in STEP mode & ALARM mode
To shift between display in DISTANCE / CALORIES mode
Scroll data in TOTAL DATA mode
RESET BUTTON
Press and hold to clear data in STEP DISTANCE CALORIES TIMER mode and TOTAL DATA
mode
Increase value in SETUP mode and Alarm setting
Scroll through data in the past 30 days
MASTER RESET BUTTON
Hard reset for device (will clear all data & memory)
3

OPERATING MODES
This pedometer has 7 operational modes. Press Mode button to scroll through modes in the following sequence:
STEP Display the numbers of steps taken
KM/MILE Display distance traveled
KCAL Display calories burned
MIN Display total exercise time
RECORD Display the numbers of steps taken calories burned distance traveled and exercise time for
the past 30 days
TOTAL Display the numbers of total steps taken total calories burned total distance traveled and total
exercise time for the past few days
ALM Optional function for 2 alarm to go off at the user's expected time
SETTING YOUR PEDOMETER
SETUP MODE

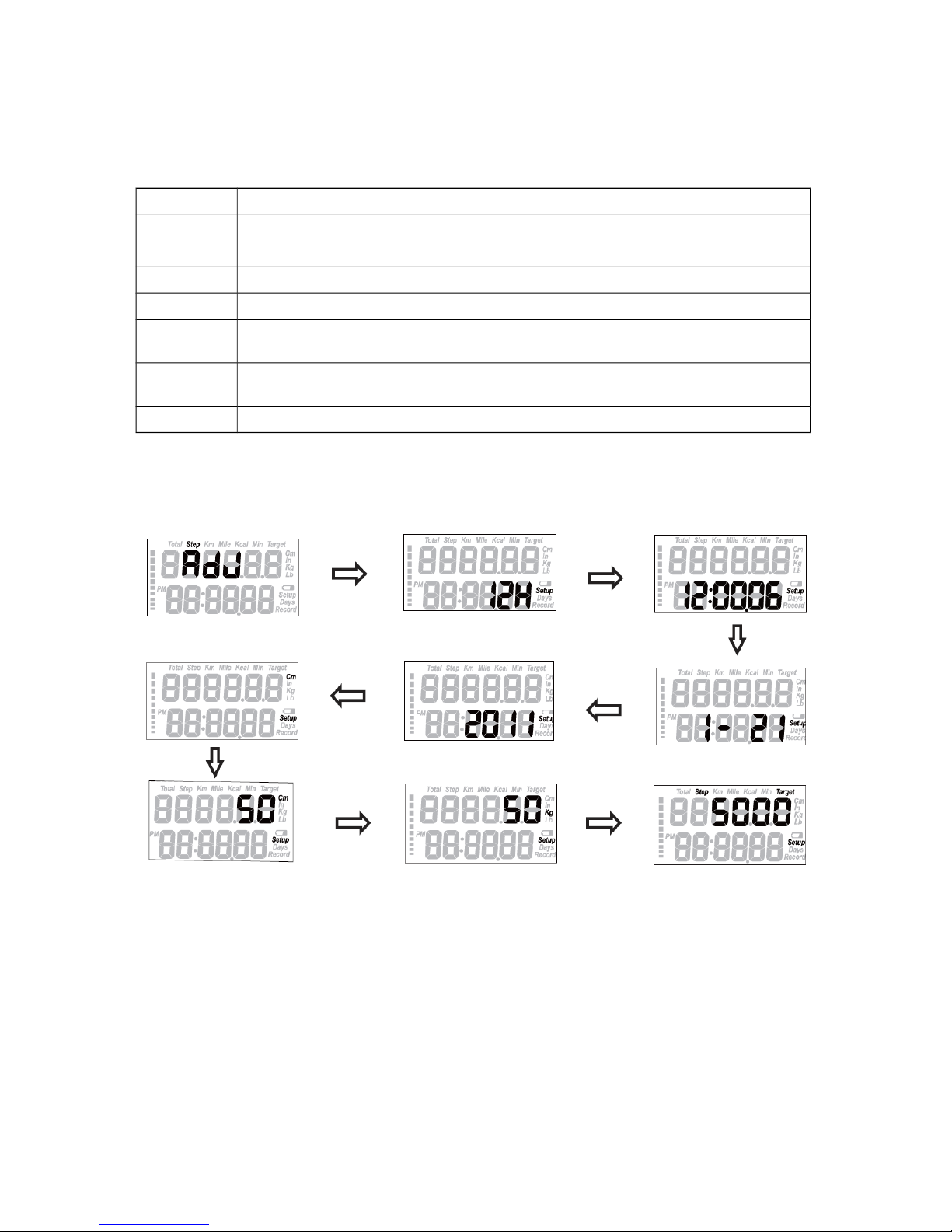

Press MODE to enter into STEP mode. Press and hold the SET button for 2 seconds to enter SETUP mode as
follows: 12-24 Hour Format / Seconds / Hours / Minutes / Month / Day / Year / Measurement Units / Stride /
Weight / Target Steps.
Press RESET button to increase the setting value while Press MODE button to decrease; pressing and holding
the button will change the number rapidly.
When the value is correct press SET to move to next. Continue to press SET and change values as required until
the pedometer returns to STEP mode.
There are 10 icons which show the percentage of your step to the target steps on the left side of LCD screen.
When you reach target steps (100%). The icon will be full of 10 icons and will flash with an alarm for 30
seconds. The default goal is 5000 steps you can change your target steps to reflect your fitness goals.
NOTE: The pedometer will automatically back to STEP mode if there is no input for 10 seconds in the SETUP
mode.
4

CALCULATING STRIDE LENGTH
In order to calculate accurate DISTANCE traveled you need to measure and input your stride length.
How to calculate your stride length:
To properly calculate your stride length measure a predetermined distance in feet. Correct stride distance is
defined as a tip of your foot to another one. To measure the correct average stride distance divide the total
distance of ten steps you walked / run by the number of step (10).
Calculate the stride distance in the following way: You walk 6.2 meters 6.2m (total distance) / 10 (number of
steps) = 0.62m (62cm).
NOTE: Unlike the conventional pedometer this pedometer using a 3D motion sensor that can detect fine body
step movement without mechanical sensor so no rattle sound will create.
NOTE: To avoid inaccurate counting the pedometer only will show the number of steps taken after continuous
steps for 5 seconds This means that the pedometer won’t display the number taken during the first 5 seconds
you walk. All the steps taken will be counted and displayed 5 seconds afterward.
OPERATING INSTRUCTIONS
STEP MODE
The default mode for the device is Step.

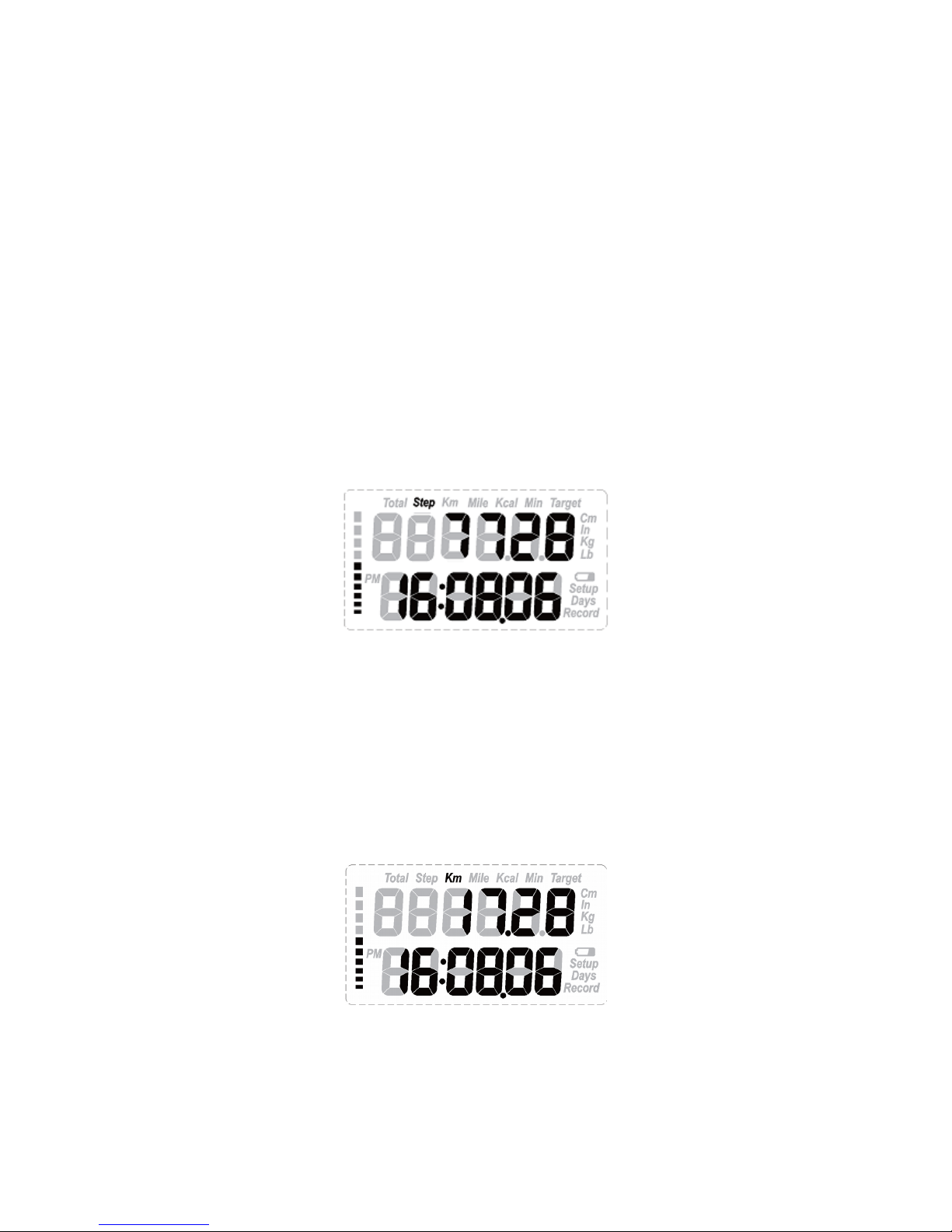

In STEP mode the first line display the total number of steps taken that day.
The time in 12-Hour or 24-Hour format is displayed at the bottom of LCD screen.
Press and hold SET button for 2 seconds to enter into Time/Weight/Strides/Target SETUP mode.
Press and hold RESET button for 2 seconds to clear the data.
Steps taken distance traveled calories burned total exercise time will be saved to MEMORY mode up
to 30 days and cleared to zero at midnight automatically.
DISTANCE MODE
Press MODE to enter into Km/Mile.
Press and hold RESET button for 2 seconds to clear the data.
5

CALORIES MODE
Press MODE to enter into Kcal.
Press and hold RESET button for 2 seconds to clear the data.
EXERCISE TIME MODE
Press MODE to enter into Min.
Press and hold RESET button for 2 seconds to clear the data.
MEMORY MODE
Press MODE to enter into Record.
Press SET button to recall the data as follows: Step / Distance / Calories / Exercise Time.
Press RESET button to scroll through the days.
TOTAL DATA MODE
Press MODE to enter into Total.
In this MODE the top number displays the total accumulated data in the past few days.
Press SET to recall total accumulated data as follows: Step / Distance / Calories / Exercise Time.
6

Press and hold RESET button for 2 seconds to clear the data.
ALARM MODE
Press MODE to enter into ALM.
Press and hold SET button for 2 seconds to set the alarm.
Press RESET button to increase the value while press MODE button to decrease the value.
RESETTING THE PEDOMETER
There are two different ways to RESET your pedometer: DAILY RESET and FULL RESET
To perform a DAILY RESET Press & Hold RESET for 2 seconds while in STEP DISTANCE CALORIES or
EXERCISE TIME MODE. The data for the current day is erased.
To perform a FULL RESET Press & Hold RESET for 2 seconds while in TOTAL MEMORY MODE to erase
all accumulated data and reset the pedometer to factory fresh condition.
NOTE: Reset any of the step distance calories burned exercise time data will cause all date mentioned above
for current day being erased.
USB CONNECTION
If you want to upload the data to your PC firstly you need to install the driver from the CD to your computer.
After installed the pedometer driver plug the supplied USB cable into the USB port and connect it to your
computer.
1. Run the software.
2. For the first time to use you are required to register your pedometer in the software by clicking “Create
New Profile”.
3. Log into the system with your user name and password.
UPLOADING YOUR DATA

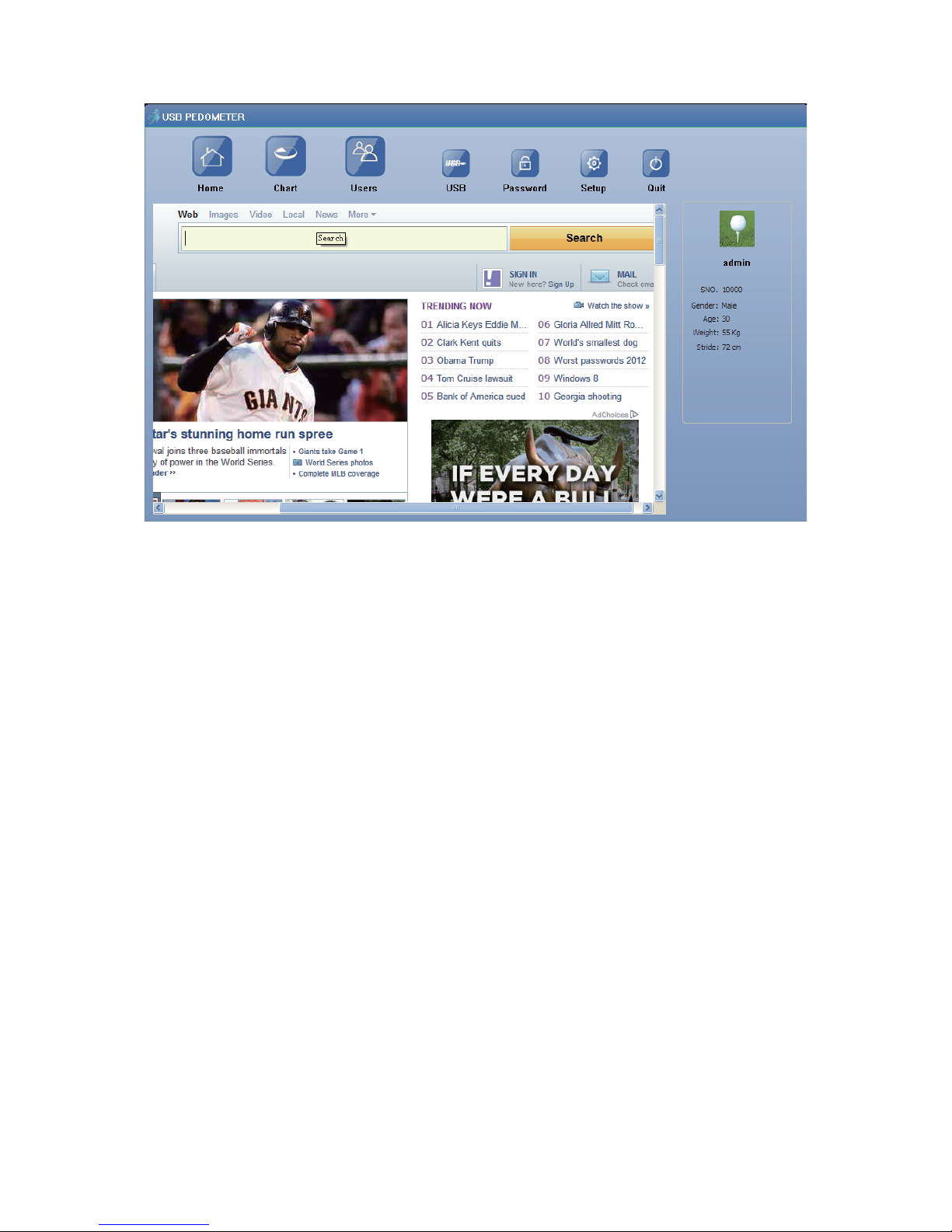

Here is main screen of the system and its fiction.
7

Home: Web browser
Chart: To view your workout data in various mode
Users: To manage different user accounts who registered in the system
USB: To export pedometer data to PC or synchronize profile between PC and pedometer
Password: To change password or permission
Quit: Quit the system
BATTERY REPLACEMENT
WE STRONGLY RECOMMEND TAKING YOUR PEDOMETER TO A LOCAL JEWELER STORE TO
HAVE BATTERY REPLACED TO AVOID POSSIBILITY OF PERMANENTLY DAMAGE OF THE
PEDOMETER.
1. Take the pedometer out of silicone set then remove the battery cover.
2. Remove the exhausted battery from the unit and inset a new one. Make sure the battery positive (+)
side point to the battery compartment cover.
3. Replace the cover on the battery compartment
CARE AND MAINTENANCE & CLEARING
Do not disassemble the pedometer. If in need of repair refer to the warranty section of this manual.
Do not subject the device to extreme shocks (do not drop on the floor).
Do not expose the device to strong chemicals such as gasoline clean solvents acetone alcohol or
insect repellents as they may damage the device's seal case and finish.
Store the product in a dry place when you are not using it.
Leaky batteries can damage the device. Remove the battery when the device will not be used for a long
time.
To avoid accidental strangulation keep the pedometer out of reach of young children.
8

The operation environment of the pedometer must be free from shocks magnetic fields electrical noise
and strong vibration.
Do not immerse the product in water as this will result in damage to it.
It could be cleaned with a lightly moistened cloth. Apply mild soap to the area if there are stubborn
stains or marks.
