Intel I865PE User manual

TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subject to change without notice.
Manual Revision 1.0
October 15, 2004
User’User’
User’User’
User’ss
ss
s
ManualManual
ManualManual
Manual
60000025PDA10
IntelIntel
IntelIntel
Intel i865PEi865PE
i865PEi865PE
i865PE mainboardmainboard
mainboardmainboard
mainboard
for Intel Socket 775 processorfor Intel Socket 775 processor
for Intel Socket 775 processorfor Intel Socket 775 processor
for Intel Socket 775 processor

ii
DISCLAIMER OF WARRANTIES:
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE
DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED
WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS
PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR
NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL
APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE
COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW
OR LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

iii
80 Port Frequently Asked Questions
Below is a list of some basic POST Codes, possible problems, and solutions. For
more detailed information about POST Codes, refer to Appendix C in this manual.
POST CODE Problem Solution
FFh or CFh 1.BIOS chip inserted
incorrectly
2. Incorrect BIOS update
version
3. Mainboard problem
4. Add-on card inserted
incorrectly.
1. Reinsert the BIOS
chip
2. Download the correct
BIOS version update
from the manufacturer's
Web site.
3. Replace mainboard
4. Remove and replace the
add-on card
C1h - C5h 1. Memory module
inserted incorrectly
2. Memory compatibility
problem
3. Memory module
damaged
1. Reinsert memory
module
2. Replace memory
with correct type
3. Replace memory
module
2Dh 1. Error occured in VGA
BIOS
2. VGA card inserted
incorrectly
1. Replace VGA card
2. Reinsert the VGA
card
26h Overclock error Clear CMOS or press the insert
key to power on the system
07h - 12h 1. Init keyboard
controller error
2. RTC error
1. Ensure that the keyboard and
mouse are connected
correctly.
2. Replace the RTC battery.
Initial Keyboard

iv
Table of Contents
Section 1 Introduction
Package Contents ...................................................... 1- 1
Mainboard Features ................................................... 1- 2
System Block Diagram ............................................... 1- 5
Section 2 Specification
Mainboard Specification ............................................ 2- 1
Section 3 Installation

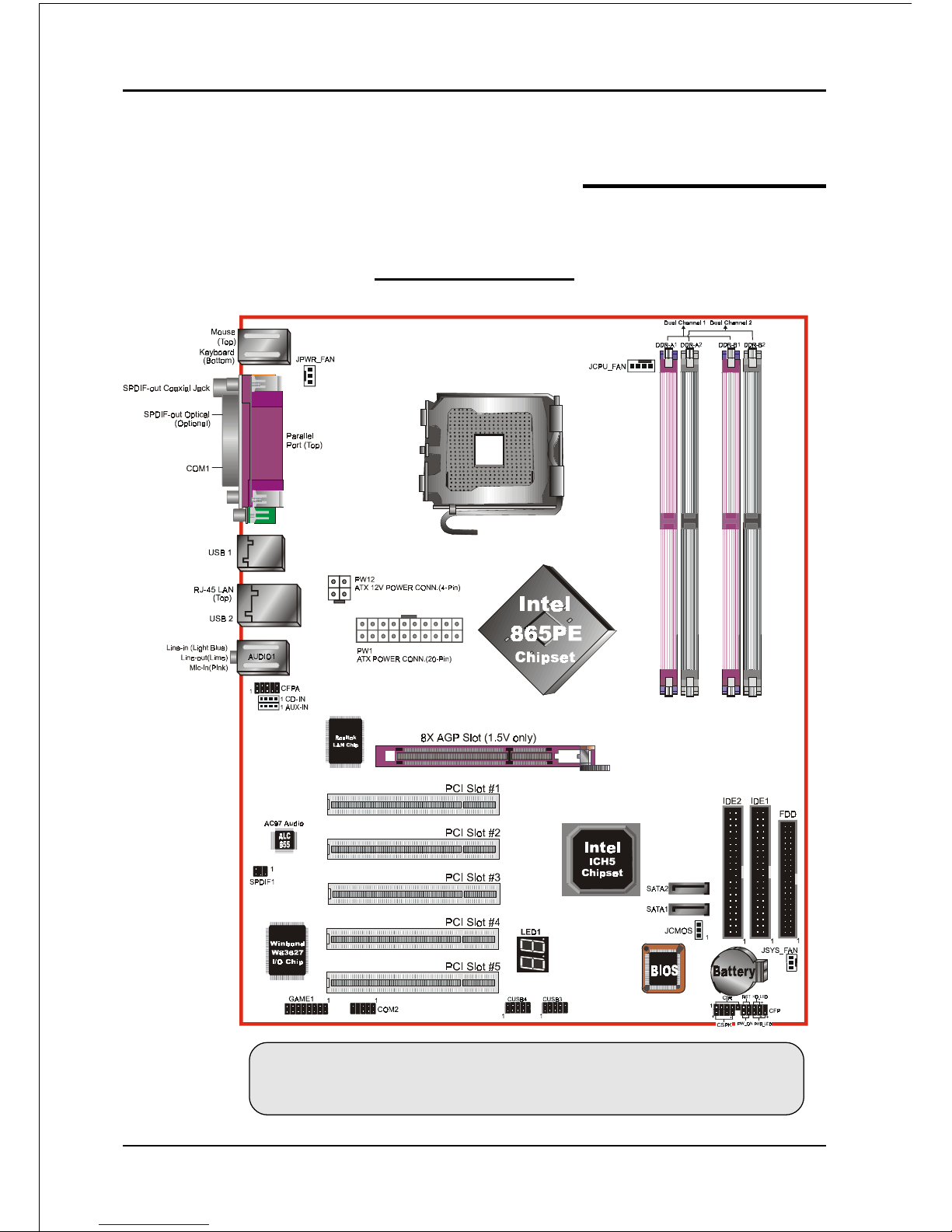

Mainboard Layout ..................................................... 3- 1
Easy Installation Procedure ....................................... 3- 3

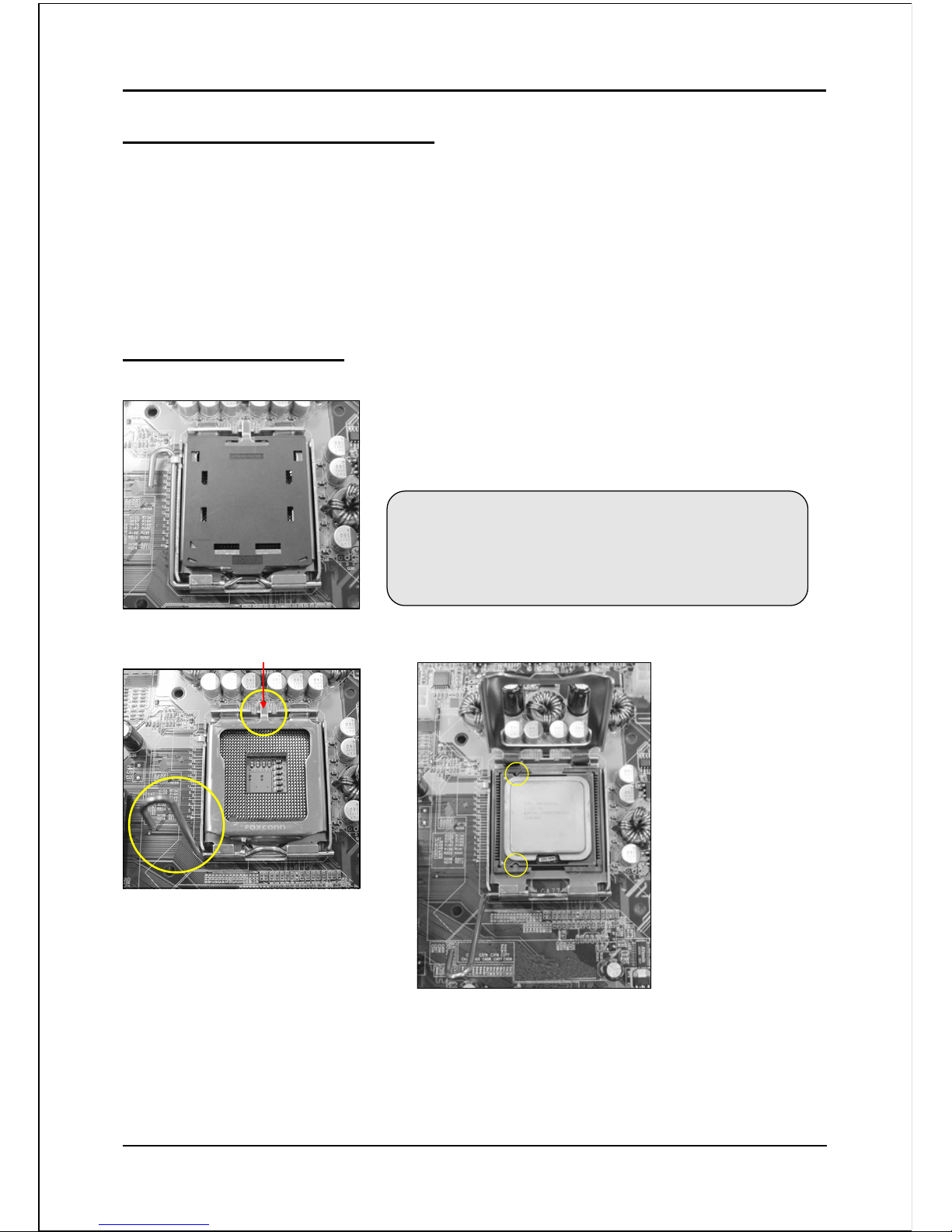

CPU Insertion ............................................................. 3- 3
Jumper Settings .......................................................... 3- 4
System Memory Configuration .................................. 3- 5
Expansion Slots .......................................................... 3- 7
Device Connectors..................................................... 3- 8
Power-On/Off (Remote) .............................................. 3-14
External Modem Ring-in Power ON and
Keyboard Power ON Function (KBPO) ..................... 3-14
ACPI S3 (Suspend To RAM) Function ...................... 3-15
Section 4 BIOS Setup
Main Menu ................................................................ 4- 1
Standard CMOS Setup ............................................... 4- 2
Advanced BIOS Features .......................................... 4- 3
Advanced Chipset Features ...................................... 4- 5
Integrated Peripherals ................................................ 4- 8
Power Management Setup ......................................... 4- 13
PNP/PCI Configuration Setup .................................... 4-17
PC Health Status ........................................................ 4-18
Power BIOS Features ................................................. 4-20
Page

v
Defaults Menu ........................................................... 4-23
Supervisor/User Password Setting ............................ 4-24
Exit Selecting .............................................................. 4- 25
Section 5 Driver Installation
Easy Driver Installation .............................................. 5- 1
Realtek Sound Manager Quick User guide ................ 5- 2
Appendix Appendix A
Update Your System BIOS ......................................... A- 1
Appendix B
EEPROM BIOS Remover ........................................... B-1
Appendix C
POST Codes ............................................................... C- 1

vi
Page Left Blank

Introduction
Page 1-1
Section 1
INTRODUCTION

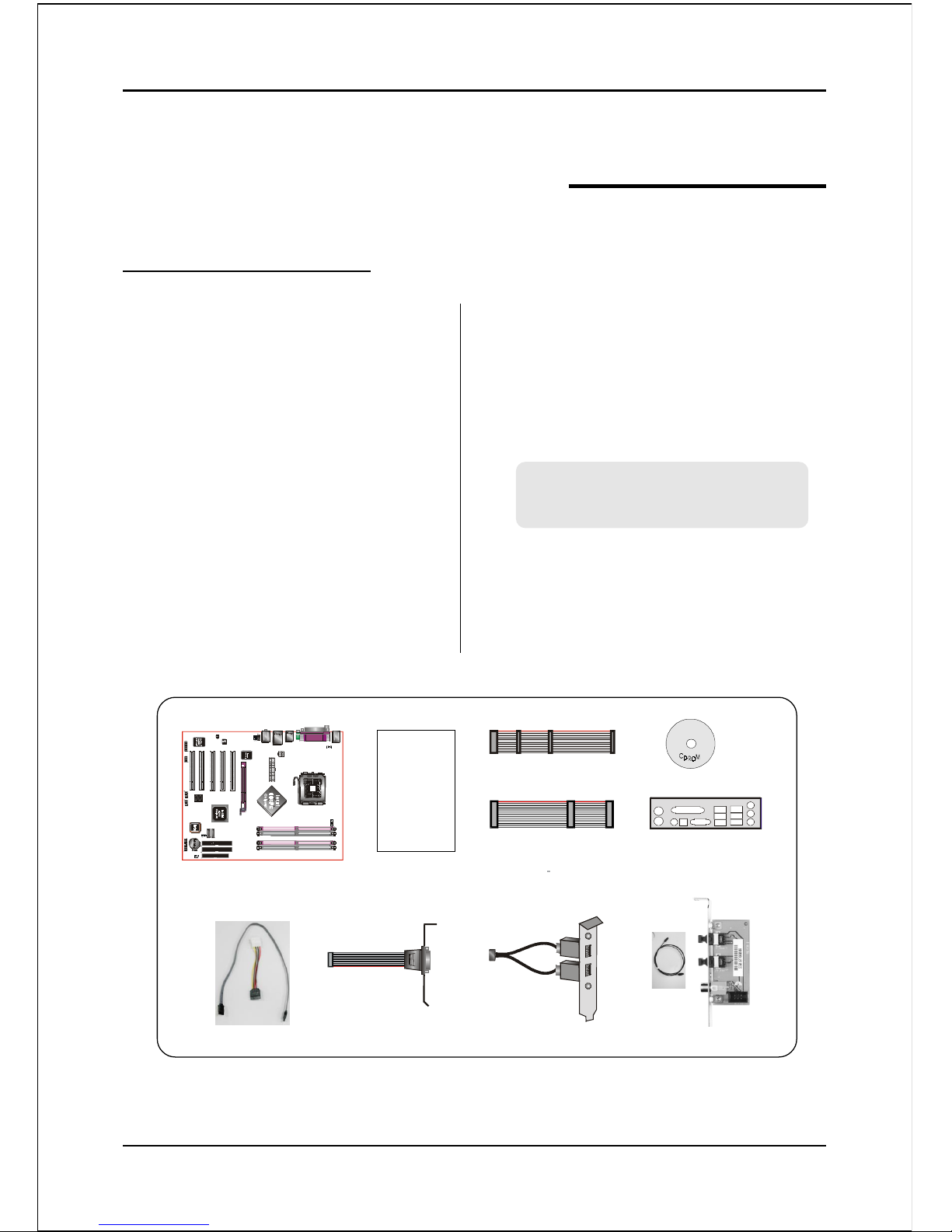

1-1 Package Contents
Contents
A. Mainboard
B. User’s manual
C. Floppy drive cable
D. HDD drive cable
E. CD (drivers and utilities)
F. I/O Shield
G. S-ATA data and power cable
Optional Items
H. Game port cable
I. Extra USB2.0 port cable
J. S/PDIF Module
B
A
C
D
USER’S
MANUAL
E
F
HI
GJ
If you need the optional item, please
contact your dealer for assistance.

Introduction
Page 1-2
1-2 Mainboard Features
Brief Introduction
2Intel®Pentium®4 processors
The Pentium 4 processor is designed to deliver performance across applications
and usages where end-users can truly appreciate and experience the
performance. The Pentium 4 processor delivers this world-class performance for
consumer enthusiasts and business professional desktop PC users as well as for
entry-level workstation users.
Intel adds support for Hyper-Threading Technology to the Pentium 4 processor
family. HT Technology allows a single, physical Pentium 4 processor to function
as two logical processor for next generation multi threaded application.
For more information about all the new features the Pentium 4 delivers, check out the
Intel website at http://www.intel.com
2Chipset
This board is designed with Intel®865PE (Springdale-PE) chipset. The Intel®
865PE chipset consists of the Memory Controller Hub (MCH) and the I/O
Controller Hub (ICH5).
2DDR400
Supports dual channel of DDR400 memory to give you twice the memory
bandwidth for greater system performance.
2Accelerated Graphics Port (AGP)
The AGP slot is compliant with the new AGP 3.0 specification. This new specifi-
cation enhances the functionality of the original AGP specification by allowing
8X data transfers ( 8 data samples per clock) resulting in maximum bandwidth of
2.1GB/s. Only 1.5V AGP cards are supported.
2Ultra ATA100
The mainboard provides an Ultra ATA100 Bus Master IDE controller. This
controller supports Ultra ATA100 protocols which are ideal to support demanding
applications such as real-time video, multimedia, and a high performance operating
system. A new IDE cable is required for Ultra ATA100.

Introduction
Page 1-3
2Hardware Monitoring
Hardware monitoring enables you to monitor various aspects of the system
operation and status. This includes CPU temperature, voltage and fan speed in
RPMs.
10/100 LAN
This mainboard is mounted with an ethernet LAN chipset. It allows the mainboard
to connect to a local area network by means of a network hub.
2GbE LAN (for high-end model only)
This mainboard is optionally mounted with a Gigabit ethernet LAN chipset. The
new Gigabit Ethernet LAN allows data transmission at 1,000 megabits per second
(Mbps), which runs 10 times faster than conventional 10/100BASE-T Ethernet
LANs.
2Serial ATA
Support Serial ATA, an evolutionary replacement for Parallel ATA IDE storage
interface. Increases the peak data transfer speed up to 150MB/sec and allows
future enhancements to the computing platform.
2USB2.0
A popular USB standard for plugging in peripherals with up to 480Mbps transfer
speed while maintaining backward compatibility with older USB1.1 device.
26ch
Delivers 6 channel audio to bring you the latest in audio realism from DVD
movies and games. Perfect for your home theatre system.

Introduction
Page 1-4
Special Features
&80 Port
An onboard LED-display trouble-shooting device, facilitating user to detect
boot-up problems.
&QuickSPDIF
On board SPDIF-out connector for quick connection to multi-channel speakers.
Not only removes cable cluttering but also delivers loss-free digital audio to let
you enjoy DVD movies and games with crystal clear sound.
&Magic Health
Reports your system hardware status for every boot-up to help detect faults
early. Monitor hardware status including CPU temperature, CPU/Memory/AGP
voltage, fan RPM speed for chassis fan, CPU fan & Power supply fan.
&EZ-Boot
Simply press “ESC” to select your bootable device. No more hassle to search the
BIOS menu, change and re-start.
&PowerBIOS
Supporting a full range of overclocking setting via BIOS. Various adjustable
feature include clock and voltage tweaking for FSB/AGP/Memory.
