Four-Way Cassette
MDV-D28Q4/N1-D, MDV-D36Q4/N1-D, MDV-D45Q4/N1-D, MDV-D56Q4/N1-D,
MDV-D71Q4/N1-D, MDV-D80Q4/N1-D, MDV-D90Q4/N1-D, MDV-D100Q4/N1-D,
MDV-D112Q4/N1-D, MDV-D140Q4/N1-D
SERVICEMANUAL
9,600 Btus/hr, 12,300 Btus/hr, 15,400 Btus/hr
19,100 Btus/hr, 24,200 Btus/hr, 27,300 Btus/hr,
30,700 Btus/hr, 34,100 Btus/hr, 38,200 Btus/hr,
47,800 Btus/hr

MAN-S-4WC-1112 Four-way Cassette Type
2
Four-way Cassette Type
1. Features ........................................................................................... 3
2. Specifications .................................................................................. 6
3. Dimensions ...................................................................................... 9
4. Service Space ..................................................................................10
5. Piping Diagram ................................................................................11
6. Wiring Diagram ................................................................................12
7. Capacity Tables ...............................................................................13
8. Electric Characteristics ..................................................................20
9. Sound Levels ...................................................................................21
10. Accessories ...................................................................................23

3
1. Features
(1) Low operation noise
—Streamline plate ensures quietness
—Creates natural and comfortable environment
(2) Efficient cooling——Equal, fast and widerange cooling
(3) Excellent performance. Higher heat-exchanging efficiency and lower noise.
The optimal evaporator & sufficient airflow volume guarantees the excellent capacity
(4) The adoption of the most advanced 3- Dimensional Screw fan
—Reduces the air resistance passing through
—Smoothes the air flow
—Makes air speed distribution tothe heat exchange uniform
(5) Adding digital tube displaying on the display board. LED can display the Error Code to make the
malfunction checking easier.
(6) Fresh air makes life healthier and more comfortable.
(7) Drainage pump can take up the condenser water to 29-17/32in(750mm).
(8) Ultra-thin machine body to easy installation and maintenance:
9600Btu/h~27300Btu/h(2.8Kw~8.0Kw):9-1/16(230mm),
30700Btu/h~47800But/h(9.0Kw~14Kw):11-13/16(300mm).
29-17/32in
(750mm)
MAN-S-4WC-1112 Four-way Cassette Type

4

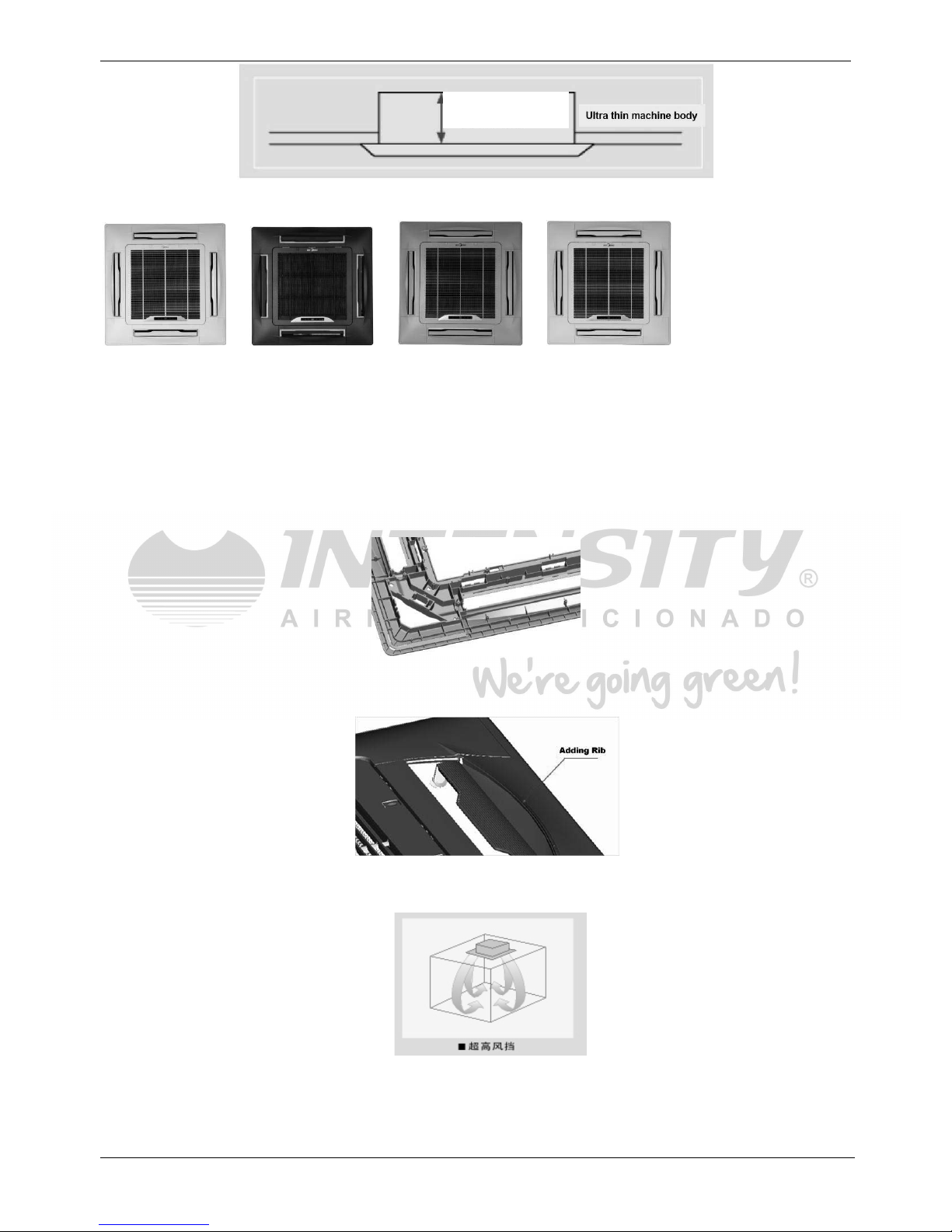

(9)Different color panels for choose: White、Gray、Blue、Black
(White) Standard (Black) Optional (Gray) Optional (Blue) Optional
*The optional can be customized if it is more than 500 units.
(10) Swing angle of louver
1) Add one more swing motor, one motor driving two louvers. Controlling the interspace of each part,
minimizing the angle loss.
2) The swing angle of the first louver are 40~42 degrees and the second louver are 37~38 degrees. New
evaporator and inner configuration designed can acquire high heat-exchanger effect.
(11) More strengthening rib design around the panel, preventing the distortion for the panel.
(12) New outlet frame design to make the phenomena of coagulation great improvement: prevent the
condensing water from damaging the air guide strip.
(13) Adding rib on the panel of fan outlet, which can avoid the air outlet direct flow to people.
(14) 4 speeds available, optional super high fan speed design suitable for the large building over 3m
high.
(15) Reserve spaces for air side-outlet, it is available to connect duct pipe hence Air supplying from the
four sides to nearby small room.
9-1/16(230mm)
MAN-S-4WC-1112 Four-way Cassette Type

5
(16)Optimal design, smaller Control Box, Space saving and convenient for wiring,
Using fire resistance galvanized steel for E-box material. Metal box make the control part more stable and
prevent damaging.
MAN-S-4WC-1112 Four-way Cassette Type

6
2. Specifications
Model
MDV-D28Q4/N1-D
MDV-D36Q4/N1-D
MDV-D45Q4/N1-D
Power supply
V-Ph-Hz
220-240V, 1Ph, 60Hz
Cooling
Capacity
kW
2.8
3.6
4.5
Btu/h
9600
12300
15400
Input
W
60
60
71
Rated current
A
0.4
0.4
0.4
Heating
Capacity
kW
3.2
4.0
5.0
Btu/h
10900
13600
17100
Input
W
60
60
71
Rated current
A
0.4
0.4
0.4
Indoor fan motor
Model
YDK60-6F-4
YDK60-6F-4
YDK60-6F-4
Type
AC motor
AC motor
AC motor
Brand
Welling
Welling
Welling
Input
W
80.3
80.3
95.1
Capacitor
uF
2.5
2.5
3.5
Speed (hi/mid/lo)
r/min
558/497/431
558/497/431
637/656/487
Indoor coil
Number of rows
1
1
2
Tube pitch(a)x row pitch(b)
in(mm)
13/16 x 17/32(21 x 13.37)
13/16 x 17/32(21 x 13.37)
13/16 x 17/32(21 x 13.37)
Fin spacing
in(mm)
1/16(1.5)
1/16(1.5)
1/16(1.5)
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube outside dia. and type
in(mm)
1/4(Ф6.35),Innergroove Tube
Coil length x height x width
in(mm)
75-63/64 x 6-5/8 x 17/32(1930x168x13.37)
77-13/64 x 6-5/8 x 1-1/16
(1961x168x26.74)
Number of circuits
4
4
8
Indoor air flow (H/M/L)
m3/h
847/766/640
847/766/640
864/755/658
CFM
514/454/384
514/454/384
526/463/390
Indoor noise level (Hi/Mid/Lo)
dB(A)
42/38/35
42/38/35
42/38/35
Indoor unit
Dimension (WxHxD)
in(mm)
33-1/16 x 9-1/16 x 33-1/16(840x230x840)
Packing (WxHxD)
in(mm)
37-19/32 X 9-23/32 X 37-19/32(955X247X955)
Net/Gross weight
lbs(kg)
53 /61.7(24/28)
53 /61.7(24/28)
57.3 /66.2(26/30)
Panel
Dimension (WxHxD)
in(mm)
37-13/32 x1-13/16 x37-13/32 (950x46x950)
Packing (WxHxD)
in(mm)
39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)
Net/Gross weight
lbs(kg)
13.2/17.6(6/8)
13.2/17.6(6/8)
13.2/17.6(6/8)
Refrigerant type
R410A
R410A
R410A
Throttle
Electric expansive valve
Design pressure
MPa
4.4/2.6
4.4/2.6
4.4/2.6
Refrigerant piping
Liquid side
in(mm)
1/4(Ф6.35)
1/4(Ф6.35)
1/4(Ф6.35)
Gas side
in(mm)
1/2(Ф12.7)
1/2(Ф12.7)
1/2(Ф12.7)
Connecting wiring
Power wiring
Nb×mm2
3×2.5(L≤20m)；3×3.5(L≤50m)
Signal wiring
Nb×mm2
3×0.75
3×0.75
3×0.75
Drainage water pipe dia.
mm
IDФ28.5 ODФ32
IDФ28.5 ODФ32
IDФ28.5 ODФ32
Controller
Wireless remote controller(RM05/BG(T)E-A) (Standard)
Operation temp
℉(℃)
Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)
Notes:
1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and
outdoor temp.: 95℉(35℃)DB,equivalent ref. piping: 26.25ft(8m) (horizontal)
2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉
(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)
MAN-S-4WC-1112 Four-way Cassette Type

7
Model
MDV-D56Q4/N1-D
MDV-D71Q4/N1-D
MDV-D80Q4/N1-D
Power supply
V- Ph-Hz
220-240V, 1Ph, 60Hz
Cooling
Capacity
kW
5.6
7.1
8.0
Btu/h
19100
24200
27300
Input
W
71
94
94
Rated current
A
0.4
0.5
0.5
1Heating
Capacity
kW
6.3
8.0
9.0
Btu/h
21500
27300
30700
Input
W
71
94
94
Rated current
A
0.4
0.5
0.5
Indoor fan motor
Model
YDK60-6F-4
YDK80-6F-1
YDK80-6F-1
Type
AC motor
AC motor
AC motor
Brand
Welling
Welling
Welling
Input
W
95.1
113.3
113.3
Capacitor
uF
3.5
3.5
3.5
Speed (hi/mid/lo)
r/min
637/656/487
781/670/526
781/670/526
Indoor coil
Number of rows
2
2
2
Tube pitch(a)x row pitch(b)
in(mm)
13/16 x 17/32(21 x 13.37)
13/16 x 17/32(21 x 13.37)
13/16 x 17/32(21 x 13.37)
Fin spacing
in(mm)
1/16(1.5)
1/16(1.5)
1/16(1.5)
Fin type
Hydrophilic Aluminum
Hydrophilic Aluminum
Hydrophilic Aluminum
Tube outside dia. and type
in(mm)
1/4(Ф6.35),Innergroove Tube
Coil length x height x width
in(mm)
77-13/64 x 6-5/8 x 1-1/16(1961x168x26.74)
Number of circuits
8
8
8
Indoor air flow (H/M/L)
m3/h
864/755/658
1157/955/749
1236/973/729
CFM
526/463/390
681/562/441
727/573/429
Indoor noise level (Hi/Mid/Lo)
dB(A)
42/38/35
45/42/39
45/42/39
Indoor unit
Dimension (WxHxD)
in(mm)
33-1/16 x 9-1/16 x 33-1/16(840x230x840)
Packing (WxHxD)
in(mm)
37-19/32 X 9-23/32 X 37-19/32(955X247X955)
Net/Gross weight
lbs(kg)
57.3 /66.2(26/30)
57.3 /66.2(26/30)
57.3 /66.2(26/30)
Panel
Dimension (WxHxD)
in(mm)
37-13/32 x1-13/16 x37-13/32 (950x46x950)
Packing (WxHxD)
in(mm)
39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)
Net/Gross weight
lbs(kg)
13.2/17.6(6/8)
13.2/17.6(6/8)
13.2/17.6(6/8)
Refrigerant type
R410A
R410A
R410A
Throttle
Electric expansive valve
Design pressure
MPa
4.4/2.6
4.4/2.6
4.4/2.6
Refrigerant piping
Liquid side
in(mm)
3/8(Ф9.53)
3/8(Ф9.53)
3/8(Ф9.53)
Gas side
in(mm)
5/8(Ф15.9)
5/8(Ф15.9)
5/8(Ф15.9)
Connecting wiring
Power wiring
Nb×mm2
3×2.5(L≤20m)；3×3.5(L≤50m)
Signal wiring
Nb×mm2
3×0.75
3×0.75
3×0.75
Drainage water pipe dia.
mm
Ф32
Ф32
Ф32
Controller
Wireless remote controller (RM05/BG(T)E-A) (Standard)
Operation temp
℉(℃)
Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)
Notes:
1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and
outdoor temp.: 95℉(35℃)DB, equivalent ref. piping: 26.25ft(8m) (horizontal)
2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉
(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)
MAN-S-4WC-1112 Four-way Cassette Type

8
Model
MDV-D90Q4/N1-D
MDV-D100Q4/N1-D
MDV-D112Q4/N1-D
MDV-D140Q4/N1-D
Power supply
V- Ph-Hz
220-240V, 1Ph, 60Hz
Cooling
Capacity
kW
9.0
10.0
11.2
14.0
Btu/h
30700
34100
38200
47800
Input
W
173
173
173
186
Rated current
A
0.7
0.7
0.7
0.8
Heating
Capacity
kW
10.0
11.0
12.5
15.0
Btu/h
34100
37500
42700
51200
Input
W
173
173
173
186
Rated current
A
0.7
0.7
0.7
0.8
Indoor fan motor
Model
YDK90-6F
YDK90-6F
YDK90-6F
YDK100-6P
Type
AC motor
AC motor
AC motor
AC motor
Brand
Welling
Welling
Welling
Welling
Input
W
182
182
182
218
Capacitor
uF
3.5
3.5
3.5
4
Speed (hi/mid/lo)
r/min
750/610/500
750/610/500
750/610/500
750/605/510
Indoor coil
Number of rows
2
2
2
2
Tube pitch(a)x row pitch(b)
in(mm)
13/16 x 17/32(21 x 13.37)
13/16 x 17/32(21 x 13.37)
Fin spacing
in(mm)
1/16(1.5)
1/16(1.5)
1/16(1.5)
1/16(1.5)
Fin type
Hydrophilic Aluminum
Tube outside dia. and type
in(mm)
1/4(Ф6.35), Innergroove Tube
Coil length x height x width
in(mm)
76-31/32 x 9-29-32 x 1-1/16(1955x252x26.74)
Number of circuits
8
8
8
12
Indoor air flow (H/M/L)
m3/h
1590/1300/1090
1590/1300/1090
1590/1300/1090
1678/1358/1115
CFM
936/765/642
936/765/642
936/765/642
988/799/656
Indoor noise level (Hi/Mid/Lo)
dB(A)
48/45/43
48/45/43
48/45/43
50/47/44
Indoor unit
Dimension (WxHxD)
in(mm)
33-1/16 x 1-13/16 x 33-1/16(840x300x840)
Packing (WxHxD)
in(mm)
37-19/32 X12-15/32 X 37-19/32(955X317X955)
Net/Gross weight
lbs(kg)
70.6/81.6(32/37)
70.6/81.6(32/37)
70.6/81.6(32/37)
70.6/81.6(32/37)
Panel
Dimension (WxHxD)
in(mm)
37-13/32 x1-13/16 x37-13/32 (950x46x950)
Packing (WxHxD)
in(mm)
39-3/8 x 2-23/32 x 39-3/8 (1000x60x1000)
Net/Gross weight
lbs(kg)
13.2/17.6(6/8)
13.2/17.6(6/8)
13.2/17.6(6/8)
13.2/17.6(6/8)
Refrigerant type
R410A
Throttle
Electronical expansive valve
Design pressure
MPa
4.4/2.6
4.4/2.6
4.4/2.6
4.4/2.6
Refrigerant piping
Liquid side
in(mm)
3/8(Ф9.53)
3/8(Ф9.53)
3/8(Ф9.53)
3/8(Ф9.53)
Gas side
in(mm)
5/8(Ф15.9)
5/8(Ф15.9)
5/8(Ф15.9)
5/8(Ф15.9)
Connecting wiring
Power wiring
Nb×mm2
3×2.5(L≤20m)；3×3.5(L≤50m)
Signal wiring
Nb×mm2
3×0.75
3×0.75
3×0.75
3×0.75
Drainage water pipe dia.
mm
Ф32
Ф32
Ф32
Ф32
Controller
Wireless remote controller (RM05/BG(T)E-A) (Standard)
Operation temp
℉(℃)
Cooling：62.6~89.6℉ (17～32℃)；Heating:50~82.4℉(10～28℃)
Notes:
1. Nominal cooling capacities are based on the following conditions: return air temp.: 80.6℉(27℃)DB,66.2℉(19℃)WB,and
outdoor temp.: 95℉(35℃)DB, equivalent ref. piping: 26.25ft(8m) (horizontal)
2. Nominal heating capacities are based on the following conditions: return air temp.: 68℉(20℃)DB, outdoor temp.: 44.6℉
(7℃)DB,42.8℉(6℃)WB, and equivalent ref. Piping: 26.25ft(8m)(horizontal)
MAN-S-4WC-1112 Four-way Cassette Type

9

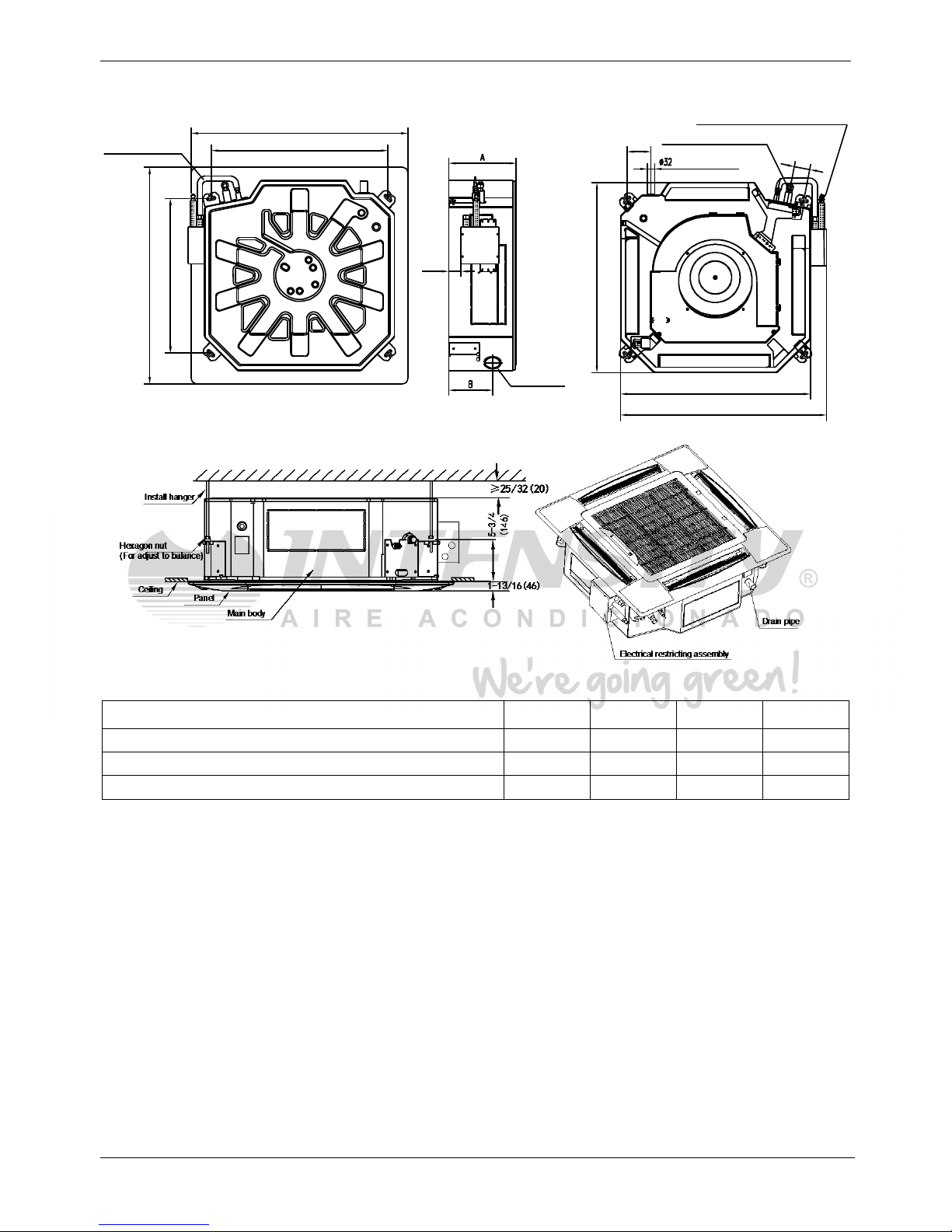

3. Dimensions
Unit:in(mm)
The connective pipe
of restricted assembly
(accessories)
Φ75New air
supply orifice
Drain pipe outter diameter
2-5/32
(55)
37-13/32(950)
30-23/32(780)
37-13/32(950)
26-25/32(680)
4-1/8
(105)
33-1/16(840)
33-1/16(840)
35-19/32(904)
2-3/4(70)
Refrigerant pipe orifice(Liquid side C)
Refrigerant pipe orifice(Air side D)
Indoor unit model
A
in(mm)
B
in(mm)
C
in(mm)
D
in(mm)
MDV-D28Q4/N1-D～ MDV-D45Q4/N1-D
9-1/16(230)
6-11/16(170)
1/4(Ф6.35)
1/2(Ф12.7)
MDV-D56Q4/N1-D～ MDV-D80Q4/N1-D
9-1/16(230)
6-11/16(170)
3/8(Ф9.53)
5/8(Ф15.9)
MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D
11-13/16(300)
7-15/32(190)
3/8(Ф9.53)
5/8(Ф15.9)
MAN-S-4WC-1112 Four-way Cassette Type

10
4. Service Space
1) There is enough room for installation and maintenance.
2) The ceiling is horizontal, and its structure can endure the weight of the indoor unit.
3) The outlet and the inlet are not impeded, and the influence of external air is the least.
4) The air flow can reach throughout the room.
5) The connecting pipe and drainpipe could be extracted out easily.
6) There is no direct radiation from heaters.
>39-3/8
(1000mm)
>39-3/8
(1000mm)
>39-3/8 (1000mm)
>39-3/8 (1000mm)
L
13/32～15/32 (10～12mm)
Main body of the unit
Ceiling
Unit: in(mm)
Indoor unit
A
in(mm)
H
in(mm)
MDV-D28Q4/N1-D～ MDV-D80Q4/N1-D
9-1/16(230)
≥10-1/4(260)
MDV-D90Q4/N1-D～ MDV-D140Q4/N1-D
11-13/16(300)
≥13(330)
MAN-S-4WC-1112 Four-way Cassette Type

11

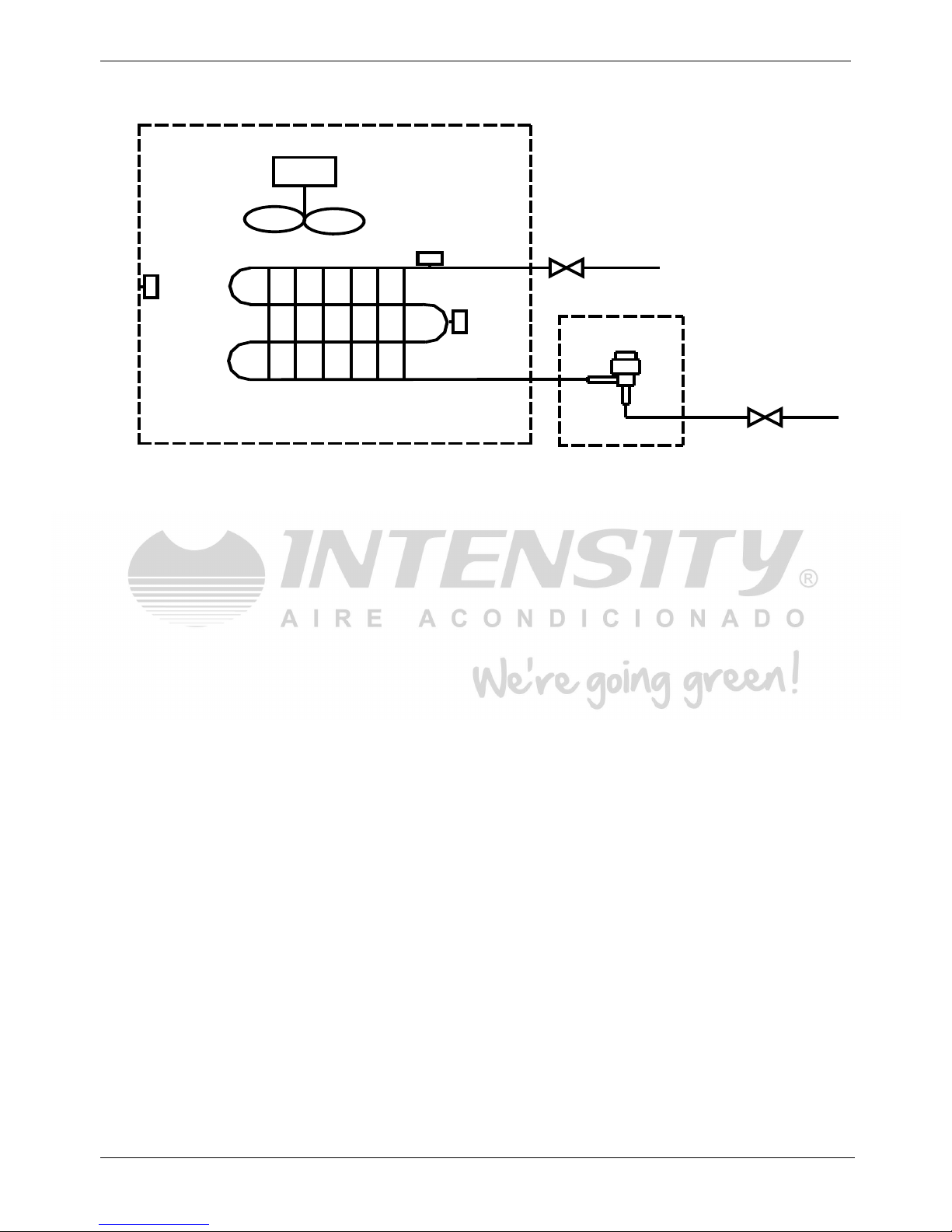

5. Piping Diagram
flare nut
flare nut
T2B
gas side
motor
heat exchanger
fan
EXV
liquid side
T2
T1
MAN-S-4WC-1112 Four-way Cassette Type

12
6. Wiring Diagram
MDV-D28Q4/N1-DMDV-D36Q4/N1-DMDV-D45Q4/N1-DMDV-D56Q4/N1-DMDV-D71Q4/N1-DMDV-D80Q4/N1-DM
DV-D90Q4/N1-DMDV-D100Q4/N1-DMDV-D112Q4/N1-DMDV-D140Q4/N1-D
MAN-S-4WC-1112 Four-way Cassette Type

13
7. Capacity Tables
7.1 Cooling
TC: total capacity SC: sensible capacityWB: wet-bulb temperatureDB:dry-bulb temperature
Indoor
Unit size
(kW)
Outdoor
temperature
(℉ DB)
Indoor temperature (℉ WB/DB)
57.2/68
60.8/73.4
64.4/78.8
75.2/80.6
68/82.4
71.6/86
75.2/89.6
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
TC
SC
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
kW
2.8
50
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.7
2.0
53.6
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
57.2
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.6
2.0
60.8
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
64.4
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.5
1.9
68
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
69.8
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
73.4
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.3
2.0
3.4
1.9
77
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3
1.9
80.6
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.2
1.9
3.3
1.9
84.2
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2
1.8
87.8
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.2
1.7
91.4
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
3.0
1.9
3.1
1.8
3.1
1.7
95
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.1
1.7
98.6
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.8
3.0
1.7
102.2
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
107.6
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
111.2
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
114.8
1.9
1.6
2.3
1.8
2.6
1.9
2.8
1.9
2.9
1.9
3.0
1.9
3.0
1.7
3.6
50
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
53.6
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.7
2.5
57.2
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.6
2.4
60.8
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
64.4
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.5
2.4
68
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
69.8
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.3
2.4
4.4
2.3
73.4
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.3
2.2
77
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.1
2.3
4.2
2.2
80.6
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.2
2.2
84.2
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.0
2.2
4.1
2.2
87.8
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
4.1
2.2
91.4
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
95
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.8
2.5
4.2
2.6
3.9
2.1
98.6
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.9
2.1
102.2
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
107.6
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
111.2
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
114.8
2.5
1.9
2.9
2.1
3.4
2.3
3.6
2.4
3.7
2.4
3.8
2.3
3.8
2.1
4.5
50
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
53.6
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.9
3.0
57.2
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.8
3.0
60.8
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
2.9
64.4
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
68
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.7
3.0
69.8
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.6
3.0
73.4
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.3
3.4
5.5
3.0
77
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.2
3.0
5.4
2.9
80.6
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
3.0
5.2
2.8
84.2
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.1
2.9
5.2
2.8
87.8
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
5.0
2.9
5.1
2.7
91.4
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.9
2.8
5.1
2.7
95
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.8
5.0
2.7
98.6
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.8
3.0
4.8
2.9
4.9
2.6
102.2
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
107.6
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
MAN-S-4WC-1112 Four-way Cassette Type

14
111.2
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
2.8
4.8
2.6
114.8
3.1
2.4
3.7
2.6
4.2
2.8
4.5
2.9
4.6
2.8
4.7
3.1
4.8
2.6
5.6
50
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.3
3.5
53.6
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.2
3.5
57.2
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.1
3.5
60.8
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
7.0
3.4
64.4
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.8
3.4
68
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.7
3.3
69.8
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
73.4
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.6
3.3
77
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.6
3.6
6.5
3.2
80.6
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.4
3.5
6.4
3.2
84.2
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.3
3.5
6.4
3.3
87.8
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
91.4
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.2
3.4
6.2
3.2
95
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
6.0
3.3
6.0
3.1
98.6
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.9
3.5
5.9
3.2
6.0
3.1
102.2
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
107.6
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
111.2
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.4
5.8
3.2
6.0
3.1
114.8
3.9
2.7
4.6
3.0
5.3
3.3
5.6
3.4
5.7
3.7
5.8
3.2
6.0
3.1
7.1
50
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.2
4.6
53.6
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.1
4.5
57.2
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
9.0
4.5
60.8
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.9
4.4
64.4
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.7
4.3
68
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.5
4.2
69.8
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.4
4.2
73.4
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.3
4.1
77
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.4
4.5
8.2
4.1
80.6
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.4
8.1
4.3
8.2
4.1
84.2
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
8.0
4.3
8.1
4.1
87.8
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.9
4.3
7.8
4.0
91.4
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.8
4.2
7.8
4.0
95
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.5
4.5
7.6
4.1
7.7
3.9
98.6
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.4
4.4
7.5
4.1
7.6
4.0
102.2
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
107.6
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
111.2
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
114.8
4.9
3.6
5.8
4.0
6.7
4.3
7.1
4.5
7.2
4.3
7.4
4.1
7.6
4.0
8.0
50
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.4
5.6
53.6
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
57.2
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.2
5.5
60.8
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
10.0
5.4
64.4
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.8
5.3
68
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.6
5.2
69.8
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
73.4
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.4
5.1
77
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.4
5.5
9.3
5.0
80.6
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.4
9.1
5.3
9.2
5.1
84.2
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
9.0
5.3
9.1
5.0
87.8
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.9
5.2
8.8
4.8
91.4
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.8
5.2
8.8
4.8
95
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.4
5.5
8.6
5.1
8.6
4.8
98.6
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.3
5.4
8.4
5.0
8.6
4.9
102.2
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
107.6
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
111.2
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
114.8
5.5
4.4
6.6
4.9
7.5
5.3
8.0
5.5
8.1
5.3
8.3
5.0
8.6
4.9
9.0
50
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.7
6.0
53.6
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.5
5.9
57.2
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.4
5.9
60.8
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.3
5.8
64.4
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
11.0
5.8
68
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.8
5.7
MAN-S-4WC-1112 Four-way Cassette Type

15
69.8
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.6
5.6
73.4
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.5
5.5
77
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.6
6.1
10.4
5.5
80.6
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.3
5.9
10.4
5.4
84.2
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.1
5.7
10.3
5.4
87.8
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
10.0
5.7
9.9
5.3
91.4
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.6
6.0
9.9
5.6
9.9
5.3
95
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.5
6.0
9.6
5.5
9.7
5.3
98.6
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.3
5.8
9.5
5.4
9.6
5.3
102.2
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
107.6
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
111.2
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
114.8
6.2
4.9
7.3
5.3
8.4
5.8
9.0
5.9
9.2
5.7
9.4
5.3
9.6
5.3
10.0
50
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
13.0
7.3
53.6
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.8
7.2
57.2
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.7
7.1
60.8
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.5
7.0
64.4
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.2
6.8
68
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
12.0
6.7
69.8
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.9
7.3
11.8
6.6
73.4
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.7
7.3
11.7
6.6
77
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.6
7.2
11.6
6.5
80.6
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.5
7.1
11.5
6.6
84.2
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.4
7.1
11.4
6.5
87.8
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.3
7.0
11.0
6.3
91.4
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.6
7.0
11.2
6.9
11.0
6.3
95
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.5
6.9
10.8
6.7
10.8
6.3
98.6
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.4
6.9
10.8
6.7
10.7
6.2
102.2
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
107.6
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
111.2
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
114.8
6.9
5.6
8.1
6.2
9.4
6.9
10.0
7.0
10.2
6.7
10.4
6.6
10.7
6.3
11.2
50
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
15.5
8.2
53.6
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.4
7.7
57.2
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.2
7.6
60.8
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.1
7.5
64.4
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
14.0
7.5
68
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.9
7.4
69.8
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.3
7.6
13.8
7.4
73.4
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.1
7.5
13.7
7.3
77
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
13.0
7.4
13.6
7.2
80.6
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.9
7.3
13.4
7.2
84.2
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.8
7.3
13.3
7.2
87.8
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.7
7.2
12.8
6.9
91.4
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.9
7.4
12.5
7.2
12.5
6.8
95
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.8
7.4
12.4
7.1
12.3
6.7
98.6
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.6
7.3
12.3
7.0
12.1
6.6
102.2
7.7
5.9
9.1
6.5
10.5
7.1
11.2
7.2
11.4
7.1
12.2
7.0
11.9
6.6
107.6
7.7
6.0
9.1
6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0
6.6
111.2
7.7
6.0
9.1
6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0
6.6
114.8
7.7
6.0
9.1
6.6
10.4
7.2
11.2
7.3
11.4
7.1
11.6
6.6
12.0
6.6
14.0
50
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
18.2
9.4
53.6
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.9
9.2
57.2
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.8
9.2
60.8
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.5
9.0
64.4
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
17.1
8.8
68
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.8
8.7
69.8
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.7
9.3
16.5
8.5
73.4
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.4
9.3
16.4
8.4
77
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.2
9.3
16.2
8.4
80.6
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.1
9.2
16.1
8.4
84.2
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
16.0
9.1
16.0
8.4
87.8
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.8
9.0
15.4
8.1
91.4
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.8
9.0
15.7
8.9
15.4
8.1
95
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.7
8.9
15.1
8.6
15.1
8.1
MAN-S-4WC-1112 Four-way Cassette Type

16
98.6
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.6
8.8
15.1
8.6
15.0
8.0
102.2
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
107.6
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
111.2
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
114.8
9.7
7.2
11.3
7.9
13.2
8.8
14.0
9.0
14.3
8.7
14.6
8.4
15.0
8.1
7.2 Heating
TC: total capacity WB: wet-bulb temperature DB:dry-bulb temperature
Indoor Unit size
(kW)
Outdoor temperature
(℉)
Indoor temperature (℉ DB)
60.8
64.4
68
69.8
71.6
75.2
TC
TC
TC
TC
TC
TC
WB
DB
kW
kW
kW
kW
kW
kW
2.80
-4
-3.64
1.79
1.79
1.79
1.79
1.79
1.79
-2.2
-1.84
1.92
1.92
1.92
1.92
1.92
1.92
1.4
1.94
2.02
2.02
2.02
2.02
2.02
2.02
5
5.54
2.02
2.02
2.02
2.02
2.02
2.02
8.6
9.32
2.14
2.14
2.14
2.14
2.14
2.14
12.2
13.1
2.24
2.24
2.24
2.24
2.24
2.24
14
14.9
2.34
2.34
2.34
2.34
2.34
2.34
15.62
16.7
2.40
2.40
2.40
2.40
2.40
2.40
18.32
19.4
2.43
2.43
2.43
2.43
2.43
2.43
21.92
23
2.53
2.53
2.53
2.53
2.53
2.53
25.34
26.6
2.66
2.66
2.66
2.66
2.66
2.66
30.74
32
2.85
2.85
2.85
2.85
2.85
2.69
35.96
37.4
3.01
3.01
3.01
3.01
2.94
2.69
39.38
41
3.10
3.10
3.10
3.10
2.94
2.69
42.8
44.6
3.20
3.20
3.20
3.10
2.94
2.69
46.22
48.2
3.30
3.30
3.20
3.10
2.94
2.69
49.64
51.8
3.39
3.39
3.20
3.10
2.94
2.69
53.24
55.4
3.52
3.46
3.20
3.10
2.94
2.69
56.66
59
3.62
3.46
3.20
3.10
2.94
2.69
3.60
-4
-3.64
2.24
2.24
2.24
2.24
2.24
2.24
-2.2
-1.84
2.40
2.40
2.40
2.40
2.40
2.40
1.4
1.94
2.52
2.52
2.52
2.52
2.52
2.52
5
5.54
2.60
2.60
2.60
2.60
2.60
2.60
8.6
9.32
2.68
2.68
2.68
2.68
2.68
2.68
12.2
13.1
2.80
2.80
2.80
2.80
2.80
2.80
14
14.9
2.92
2.92
2.92
2.92
2.92
2.92
15.62
16.7
3.00
3.00
3.00
3.00
3.00
3.00
18.32
19.4
3.04
3.04
3.04
3.04
3.04
3.04
21.92
23
3.16
3.16
3.16
3.16
3.16
3.16
25.34
26.6
3.32
3.32
3.32
3.32
3.32
3.32
30.74
32
3.56
3.56
3.56
3.56
3.56
3.36
35.96
37.4
3.76
3.76
3.76
3.76
3.68
3.36
39.38
41
3.88
3.88
3.88
3.88
3.68
3.36
42.8
44.6
4.00
4.00
4.00
3.88
3.68
3.36
46.22
48.2
4.12
4.12
4.00
3.88
3.68
3.36
49.64
51.8
4.24
4.24
4.00
3.88
3.68
3.36
53.24
55.4
4.40
4.32
4.00
3.88
3.68
3.36
56.66
59
4.52
4.32
4.00
3.88
3.68
3.36
4.50
-4
-3.64
2.80
2.80
2.80
2.80
2.80
2.80
-2.2
-1.84
3.00
3.00
3.00
3.00
3.00
3.00
1.4
1.94
3.15
3.15
3.15
3.15
3.15
3.15
5
5.54
3.25
3.25
3.25
3.25
3.25
3.25
8.6
9.32
3.35
3.35
3.35
3.35
3.35
3.35
12.2
13.1
3.50
3.50
3.50
3.50
3.50
3.50
14
14.9
3.65
3.65
3.65
3.65
3.65
3.65
15.62
16.7
3.75
3.75
3.75
3.75
3.75
3.75
18.32
19.4
3.80
3.80
3.80
3.80
3.80
3.80
21.92
23
3.95
3.95
3.95
3.95
3.95
3.95
25.34
26.6
4.15
4.15
4.15
4.15
4.15
4.15
30.74
32
4.45
4.45
4.45
4.45
4.45
4.20
35.96
37.4
4.70
4.70
4.70
4.70
4.60
4.20
39.38
41
4.85
4.85
4.85
4.85
4.60
4.20
42.8
44.6
5.00
5.00
5.00
4.85
4.60
4.20
MAN-S-4WC-1112 Four-way Cassette Type

17
46.22
48.2
5.15
5.15
5.00
4.85
4.60
4.20
49.64
51.8
5.30
5.30
5.00
4.85
4.60
4.20
53.24
55.4
5.50
5.40
5.00
4.85
4.60
4.20
56.66
59
5.65
5.40
5.00
4.85
4.60
4.20
5.60
-4
-3.64
3.53
3.53
3.53
3.53
3.53
3.53
-2.2
-1.84
3.78
3.78
3.78
3.78
3.78
3.78
1.4
1.94
3.97
3.97
3.97
3.97
3.97
3.97
5
5.54
4.10
4.10
4.10
4.10
4.10
4.10
8.6
9.32
4.22
4.22
4.22
4.22
4.22
4.22
12.2
13.1
4.41
4.41
4.41
4.41
4.41
4.41
14
14.9
4.60
4.60
4.60
4.60
4.60
4.60
15.62
16.7
4.73
4.73
4.73
4.73
4.73
4.73
18.32
19.4
4.79
4.79
4.79
4.79
4.79
4.79
21.92
23
4.98
4.98
4.98
4.98
4.98
4.98
25.34
26.6
5.23
5.23
5.23
5.23
5.23
5.23
30.74
32
5.61
5.61
5.61
5.61
5.61
5.29
35.96
37.4
5.92
5.92
5.92
5.92
5.80
5.29
39.38
41
6.11
6.11
6.11
6.11
5.80
5.29
42.8
44.6
6.30
6.30
6.30
6.11
5.80
5.29
46.22
48.2
6.49
6.49
6.30
6.11
5.80
5.29
49.64
51.8
6.68
6.68
6.30
6.11
5.80
5.29
53.24
55.4
6.93
6.80
6.30
6.11
5.80
5.29
56.66
59
7.12
6.80
6.30
6.11
5.80
5.29
7.10
-4
-3.64
4.48
4.48
4.48
4.48
4.48
4.48
-2.2
-1.84
4.80
4.80
4.80
4.80
4.80
4.80
1.4
1.94
5.04
5.04
5.04
5.04
5.04
5.04
5
5.54
5.20
5.20
5.20
5.20
5.20
5.20
8.6
9.32
5.36
5.36
5.36
5.36
5.36
5.36
12.2
13.1
5.60
5.60
5.60
5.60
5.60
5.60
14
14.9
5.84
5.84
5.84
5.84
5.84
5.84
15.62
16.7
6.00
6.00
6.00
6.00
6.00
6.00
18.32
19.4
6.08
6.08
6.08
6.08
6.08
6.08
21.92
23
6.32
6.32
6.32
6.32
6.32
6.32
25.34
26.6
6.64
6.64
6.64
6.64
6.64
6.64
30.74
32
7.12
7.12
7.12
7.12
7.12
6.72
35.96
37.4
7.52
7.52
7.52
7.52
7.36
6.72
39.38
41
7.76
7.76
7.76
7.76
7.36
6.72
42.8
44.6
8.00
8.00
8.00
7.76
7.36
6.72
46.22
48.2
8.24
8.24
8.00
7.76
7.36
6.72
49.64
51.8
8.48
8.48
8.00
7.76
7.36
6.72
53.24
55.4
8.80
8.64
8.00
7.76
7.36
6.72
56.66
59
9.04
8.64
8.00
7.76
7.36
6.72
8.00
-4
-3.64
5.04
5.04
5.04
5.04
5.04
5.04
-2.2
-1.84
5.40
5.40
5.40
5.40
5.40
5.40
1.4
1.94
5.67
5.67
5.67
5.67
5.67
5.67
5
5.54
5.85
5.85
5.85
5.85
5.85
5.85
8.6
9.32
6.03
6.03
6.03
6.03
6.03
6.03
12.2
13.1
6.30
6.30
6.30
6.30
6.30
6.30
14
14.9
6.57
6.57
6.57
6.57
6.57
6.57
15.62
16.7
6.75
6.75
6.75
6.75
6.75
6.75
18.32
19.4
6.84
6.84
6.84
6.84
6.84
6.84
21.92
23
7.11
7.11
7.11
7.11
7.11
7.11
25.34
26.6
7.47
7.47
7.47
7.47
7.47
7.47
30.74
32
8.01
8.01
8.01
8.01
8.01
7.56
35.96
37.4
8.46
8.46
8.46
8.46
8.28
7.56
39.38
41
8.73
8.73
8.73
8.73
8.28
7.56
42.8
44.6
9.00
9.00
9.00
8.73
8.28
7.56
46.22
48.2
9.27
9.27
9.00
8.73
8.28
7.56
49.64
51.8
9.54
9.54
9.00
8.73
8.28
7.56
53.24
55.4
9.90
9.72
9.00
8.73
8.28
7.56
56.66
59
10.17
9.72
9.00
8.73
8.28
7.56
9.00
-4
-3.64
5.60
5.04
5.60
5.60
5.60
5.60
-2.2
-1.84
6.00
5.40
6.00
6.00
6.00
6.00
1.4
1.94
6.30
6.30
6.30
6.30
6.30
6.30
5
5.54
6.50
6.50
6.50
6.50
6.50
6.50
MAN-S-4WC-1112 Four-way Cassette Type

18
8.6
9.32
6.70
6.70
6.70
6.70
6.70
6.70
12.2
13.1
7.00
7.00
7.00
7.00
7.00
7.00
14
14.9
7.30
7.30
7.30
7.30
7.30
7.30
15.62
16.7
7.50
7.50
7.50
7.50
7.50
7.50
18.32
19.4
7.60
7.60
7.60
7.60
7.60
7.60
21.92
23
7.90
7.90
7.90
7.90
7.90
7.90
25.34
26.6
8.30
8.30
8.30
8.30
8.30
8.30
30.74
32
8.90
8.90
8.90
8.90
8.90
8.40
35.96
37.4
9.40
9.40
9.40
9.40
9.20
8.40
39.38
41
9.70
9.70
9.70
9.70
9.20
8.40
42.8
44.6
10.00
10.00
10.00
9.70
9.20
8.40
46.22
48.2
10.30
10.30
10.00
9.70
9.20
8.40
49.64
51.8
10.60
10.60
10.00
9.70
9.20
8.40
53.24
55.4
11.00
10.80
10.00
9.70
9.20
8.40
56.66
59
11.30
10.80
10.00
9.70
9.20
8.40
10.00
-4
-3.64
6.16
6.16
6.16
6.16
6.16
6.16
-2.2
-1.84
6.60
6.60
6.60
6.60
6.60
6.60
1.4
1.94
6.93
6.93
6.93
6.93
6.93
6.93
5
5.54
7.15
7.15
7.15
7.15
7.15
7.15
8.6
9.32
7.37
7.37
7.37
7.37
7.37
7.37
12.2
13.1
7.70
7.70
7.70
7.70
7.70
7.70
14
14.9
8.03
8.03
8.03
8.03
8.03
8.03
15.62
16.7
8.25
8.25
8.25
8.25
8.25
8.25
18.32
19.4
8.36
8.36
8.36
8.36
8.36
8.36
21.92
23
8.69
8.69
8.69
8.69
8.69
8.69
25.34
26.6
9.13
9.13
9.13
9.13
9.13
9.13
30.74
32
9.79
9.79
9.79
9.79
9.79
9.24
35.96
37.4
10.34
10.34
10.34
10.34
10.12
9.24
39.38
41
10.67
10.67
10.67
10.67
10.12
9.24
42.8
44.6
11.00
11.00
11.00
10.67
10.12
9.24
46.22
48.2
11.33
11.33
11.00
10.67
10.12
9.24
49.64
51.8
11.66
11.66
11.00
10.67
10.12
9.24
53.24
55.4
12.10
11.88
11.00
10.67
10.12
9.24
56.66
59
12.43
11.88
11.00
10.67
10.12
9.24
11.20
-4
-3.64
7.00
7.00
7.00
7.00
7.00
7.00
-2.2
-1.84
7.50
7.50
7.50
7.50
7.50
7.50
1.4
1.94
7.88
7.88
7.88
7.88
7.88
7.88
5
5.54
8.13
8.13
8.13
8.13
8.13
8.13
8.6
9.32
8.38
8.38
8.38
8.38
8.38
8.38
12.2
13.1
8.75
8.75
8.75
8.75
8.75
8.75
14
14.9
9.13
9.13
9.13
9.13
9.13
9.13
15.62
16.7
9.38
9.38
9.38
9.38
9.38
9.38
18.32
19.4
9.50
9.50
9.50
9.50
9.50
9.50
21.92
23
9.88
9.88
9.88
9.88
9.88
9.88
25.34
26.6
10.38
10.38
10.38
10.38
10.38
10.38
30.74
32
11.13
11.13
11.13
11.13
11.13
10.50
35.96
37.4
11.75
11.75
11.75
11.75
11.50
10.50
39.38
41
12.13
12.13
12.13
12.13
11.50
10.50
42.8
44.6
12.50
12.50
12.50
12.13
11.50
10.50
46.22
48.2
12.88
12.88
12.50
12.13
11.50
10.50
49.64
51.8
13.25
13.25
12.50
12.13
11.50
10.50
53.24
55.4
13.75
13.50
12.50
12.13
11.50
10.50
56.66
59
14.13
13.50
12.50
12.13
11.50
10.50
14.0
-4
-3.64
8.68
8.68
8.68
8.68
8.68
8.68
-2.2
-1.84
9.30
9.30
9.30
9.30
9.30
9.30
1.4
1.94
9.77
9.77
9.77
9.77
9.77
9.77
5
5.54
10.08
10.08
10.08
10.08
10.08
10.08
8.6
9.32
10.4
10.4
10.4
10.4
10.4
10.4
12.2
13.1
10.9
10.9
10.9
10.9
10.9
10.9
14
14.9
11.3
11.3
11.3
11.3
11.3
11.3
15.62
16.7
11.6
11.6
11.6
11.6
11.6
11.6
18.32
19.4
11.8
11.8
11.8
11.8
11.8
11.8
21.92
23
12.3
12.3
12.3
12.3
12.3
12.3
25.34
26.6
12.9
12.9
12.9
12.9
12.9
12.9
30.74
32
13.8
13.8
13.8
13.8
13.8
13.0
MAN-S-4WC-1112 Four-way Cassette Type

19
35.96
37.4
14.6
14.6
14.6
14.6
14.3
13.0
39.38
41
15.0
15.0
15.0
15.0
14.3
13.0
42.8
44.6
15.5
15.5
15.5
15.0
14.3
13.0
46.22
48.2
16.0
16.0
15.5
15.0
14.3
13.0
49.64
51.8
16.4
16.4
15.5
15.0
14.3
13.0
53.24
55.4
17.1
16.7
15.5
15.0
14.3
13.0
56.66
59
17.5
16.7
15.5
15.0
14.3
13.0
MAN-S-4WC-1112 Four-way Cassette Type

20
8. Electric Characteristics
Model
Indoor Unit
Power Supply
IFM
Hz
Voltage
Min.
Max.
MCA
MFA
kW
FLA
MDV-D28Q4/N1-D
60Hz
220-240V
198V
254V
0.5
15A
0.06
0.38
MDV-D36Q4/N1-D
60Hz
220-240V
198V
254V
0.5
15A
0.06
0.38
MDV-D45Q4/N1-D
60Hz
220-240V
198V
254V
0.5
15A
0.06
0.38
MDV-D56Q4/N1-D
60Hz
220-240V
198V
254V
0.5
15A
0.06
0.38
MDV-D71Q4/N1-D
60Hz
220-240V
198V
254V
0.65
15A
0.080
0.5
MDV-D80Q4/N1-D
60Hz
220-240V
198V
254V
0.65
15A
0.080
0.5
MDV-D90Q4/N1-D
60Hz
220-240V
198V
254V
0.85
15A
0.09
0.67
MDV-D100Q4/N1-D
60Hz
220-240V
198V
254V
0.85
15A
0.09
0.67
MDV-D112Q4/N1-D
60Hz
220-240V
198V
254V
0.85
15A
0.09
0.67
MDV-D140Q4/N1-D
60Hz
220-240V
198V
254V
0.85
15A
0.09
0.67
Remark:
MCA: Min. Current Amps. (A)
MFA: Max. Fuse Amps. (A)
kW: Fan Motor Rated Output (kW)
FLA: Full Load Amps. (A)
IFM: Indoor Fan Motor
MAN-S-4WC-1112 Four-way Cassette Type
