Quick Start
Model 730
Mobile
Computer
Guide

2 Model 730 Color Quick Start Guide
Thank you for purchasing the Intermec
Model730ColorMobileComputerwith
Microsoft Windows Mobile 2003. You will
find your Model 730 useful in a variety of
applications. Its integrated peripherals and
rugged design ensure reliable service for years
to come.
This guide provides information needed to get
started using your Model 730. For more de-
tailed information refer to “Where to Find
More Information” on page 20 of this guide.

3Model 730 Color Quick Start Guide
Table of Contents
Model 730 Color Mobile Computer
Description 4.................
Setting up your Model 730 5...........
Learning About the Keypad 7...........
Gold Plane Keys 7.............................
Alpha Blue Plane Keys-Numeric Keypad 7..........
Linear Imager/Keypad Shift and Notification LED 8...
Action and Up/Down Navigational Buttons 8........
Battery Status LED 9..........................
About Microsoft Windows Mobile 2003
software for Pocket PC 10.......
The Today Screen 11..........................
Navigation Bar and Command Bar 12..............
Pop-up Menus 12.............................
Entering Information 13........................
Battery Management 14...............
Linear Imager 15.....................
Data Collection Applet 15.............
Wireless Printing 16..................
Wireless Network 17..................
Warm Resetting Your Model 730 17.....
Cold Resetting Your Model 730 18......
Troubleshooting 18...................
Cleaning Your Model 730 20...........
Case and Display 20...........................
Where to Find More Information 20.....
End User License Agreement 21.........
Intermec Technologies Corporation
End User License Agreement 26..
Product Warranty 27.................
Obtaining Warranty Service 27...................
Patent Information 28................

4 Model 730 Color Quick Start Guide
Model 730 Color Mobile Computer
Description
Front View
Backlight
(Gold + 3)
Gold plane
key
ON/OFF
Navigational
key
Imager/
Alpha
LED Power
Status
LED
Alpha (Blue)
plane key
Battery
compartment
Speaker
Stylus
IrDA
Back View

5Model 730 Color Quick Start Guide
IrDA
Scanner trigger
Charging/Docking
connector
Microphone
Headset
jack
Scanner trigger or
Recorder button
left side of unit
Linear
Imager
lens Secure Digital
(SD) card slot
Setting Up Your Model 730
Battery pack
Hand strap clip-in slot
1
Unclip Hand Strap
and move Hand Strap
outoftheway.
Remove Battery
Pack and insert
new or fresh pack.
Replace Hand
Strap when done.
2

6 Model 730 Color Quick Start Guide

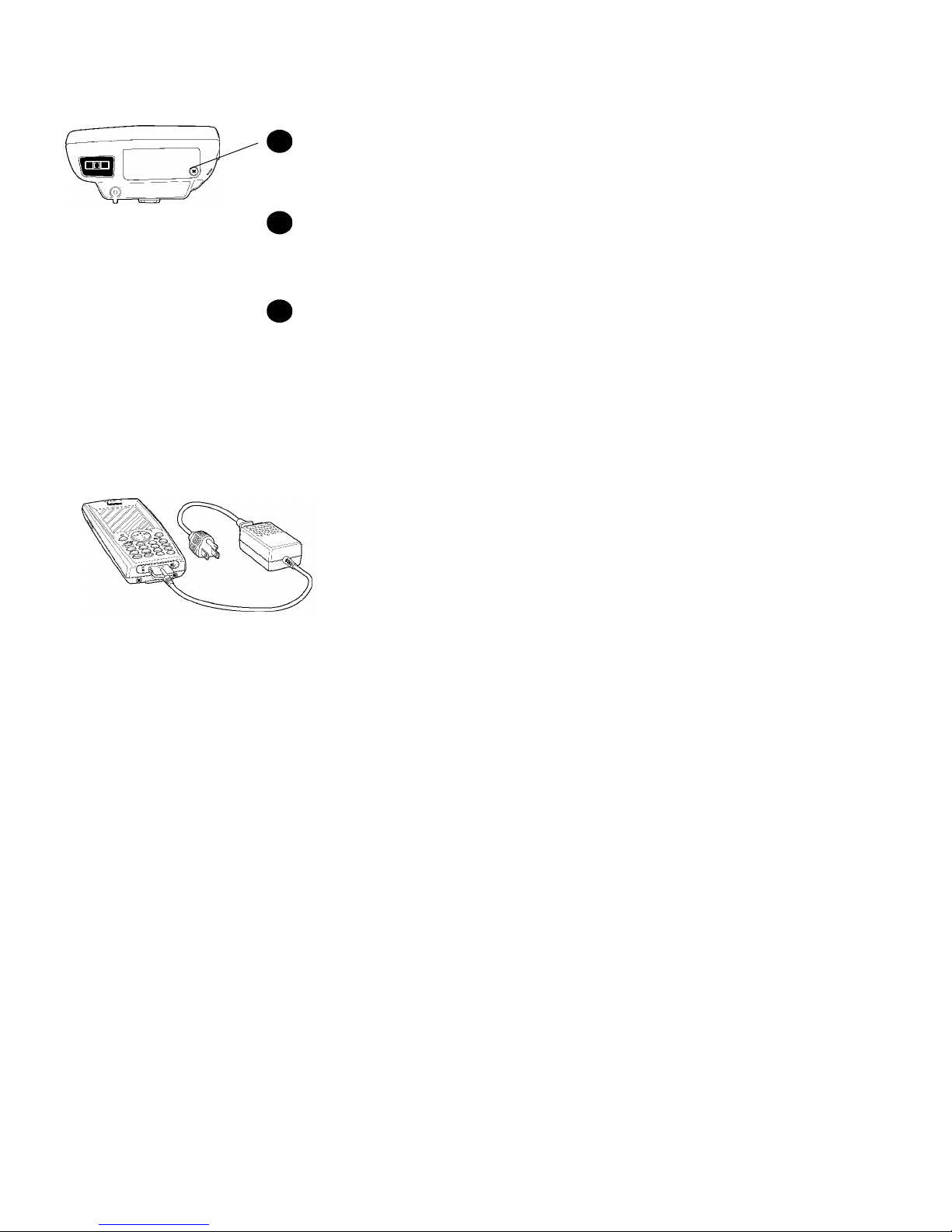

1Insert SD card (if applicable).
Remove the cover
screw and lift
cover off
Reinstall cover
Insert SD Card
into card slot
with label side
toward keypad.
1a
1c
1b
2Connect to AC Adapter or dock (dock not
shown).
3Charge battery pack (4 hours) before us-
ing. However, to ensure proper charging,
perform the remaining steps first, with the
AC adapter or dock connected.
4ThefirsttimeyouturnonyourModel730
it boots to the operating system. After a
few seconds you see the Windows Mobile
2003 Welcome screen. Tap your stylus to
advance to the next screen.

7Model 730 Color Quick Start Guide
5Youwillbepromptedthroughtheseveral
screens to complete the setup process. Read
the display messages and follow the in-
structions. When you reach the Windows
Mobile Today screen, you have completed
the setup.
Learning About The Keypad
Gold Plane Keys
The Gold bplane keys provide you access to
display controls, special characters, and Win-
dows Mobile 2003 options.
Press the gold bkey for each gold plane key
stroke you wish to make. For example to turn
on the front light, press and hold the gold b
key plus the 3key. To turn the front light
off press and hold the gold and the 3key
again.
Alpha (Blue) Plane Keys-Numeric
Keypad
The Alpha (Blue) Fplane keys work a bit
differently than the gold plane keys. When
you press the Alpha key, the Imager/Alpha
CLED lights ‘red’ to indicate Alpha mode.
ThekeypadstaysintheAlphamodeuntilyou
press it again.
For example, pressing the Alpha Fkey and
the 1key allows the next letter to be capi-
talized. Again it stays in this mode until you
press the Alpha key again.
Another example of how this works, if you
want to type a ‘c’ press the Fkey and the
2key three times. If you need a letter that
is on the same key as the last letter entered,
wait two seconds after you pressed the last key

8 Model 730 Color Quick Start Guide
then you can enter the correct series of key-
strokes to create the next letter.
Linear Imager/Keypad Shift and
Notification LED
The Linear Imager/Keypad Shift and Noti-
fication LED Cturns red, green, or yel-
low.
SMomentary Green:Indicatesa‘goodscan’.
SBlinking Green: Indicates that the imager
is initializing.
SSteady Red: Indicates the keypad is shifted
totheAlpha(Blue)planeandtheModel
730 is On.
SYellow:Whenkeypadisinalphamode,
the LED momentarily changes from red to
yellow indicating a ‘good scan’.
ThisLEDisalsotheWindowsMobile
2003 Notification signal. It blinks yellow at
regular intervals indicating a Calendar or
Task activity occurred.
Action and Up/Down Navigational
Buttons
SAction button:Presstoopenanitem(simi-
lar to pressing ENTER on the keypad).
SUp/Down controls: Press to scroll through
a list (similar to pressing the arrow keys on
akeyboard).

9Model 730 Color Quick Start Guide
Battery Status LED
Power to run your Model 730 is supplied by a
powerful Li-Ion battery pack designed to give
you approximately 6-10 hours of operation
(depending on application). In addition, your
Model 730 contains backup capabilities to
prevent loss of data when the main battery is
discharged or when switching out battery
packs.
For maximum effectiveness it is important to
leave the main battery installed in your Model
730 even if it is discharged. If the main bat-
tery is removed, it should be replaced within
10 minutes to avoid the possibility of data
loss.
The Battery status LED Bturns red,
green, or yellow.
SSteady Green: Battery is more than 95%
charged and unit is on a charger.
SBlinking Red: Battery is low. The speed of
the blinking increases as the battery’s power
gets increasingly lower.
SRed: Main battery is low, or if charging,
will remain red until your Model 730
reaches 95% charge status.
SYellow:YourModel730isonacharging
source and there is no battery pack
installed.CanalsomeanthatyourModel
730 is out of charging range 32°to 122°F
(0°to 50°C). Once your Model 730 gets
back in range, charging resumes and the
LED changes to red or green.
SAlternating between Red and Yellow: The
battery pack needs to be replaced.

10 Model 730 Color Quick Start Guide
About Microsoft Windows Mobile
2003 software for Pocket PC
Your Model 730 comes with Microsoft Win-
dows Mobile 2003 software preloaded. For
more information regarding:
SPrograms on your device: See the 700 Series
Color Mobile Computer User’s Manual (p/n:
961-054-031) or access the Help screen on
the Start Menu. To view Help, tap
then tap Help.
SAdditional programs that can be installed
on the device: The Windows Mobile 2003
Companion CD (included with your Model
730).
SConnecting to and synchronizing with a
desktop computer: ActiveSync Help on
your desktop computer. To view Help,
click Help and then Microsoft ActiveSync
Help.
SLast-minute updates and detailed technical
information: The Readme files, located in
the Microsoft ActiveSync folder on the
desktop computer and on the Windows Mo-
bile 2003 Companion CD.
SUp-to-date information on Windows Mo-
bile 2003: <http://www.microsoft.com/
windowsmobile>

11Model 730 Color Quick Start Guide

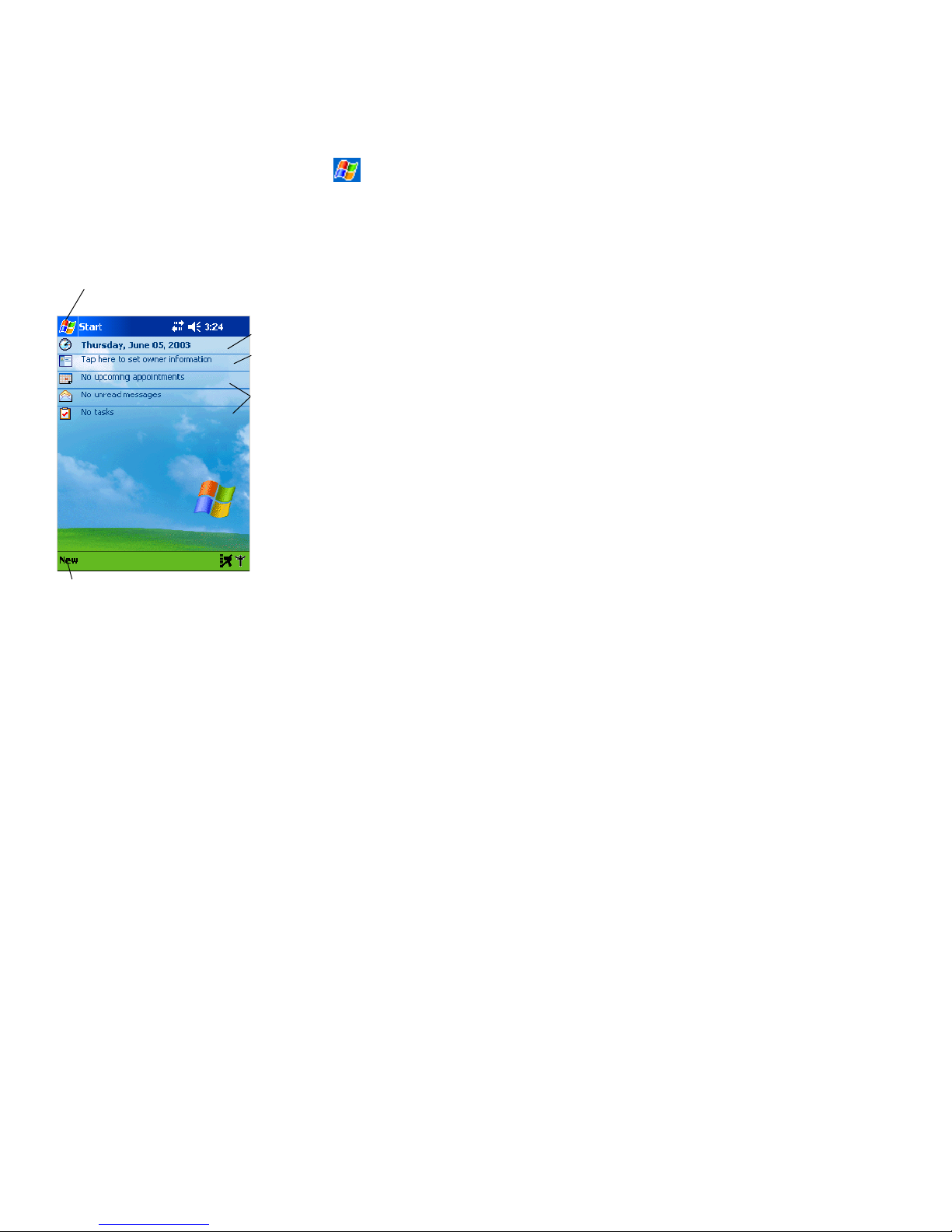

The Today Screen
WhenyouturnonyourModel730forthe
first time each day you’ll see the Today
screen. You can also display it by tapping
then tap Today.OntheToday screen, you
can see at a glance the information you need
for the day.
Taptoswitch
to a program
Tap to change
date and time
Tap to establish
ownership info
Your day at a
glance
Taptocreate
a new item

12 Model 730 Color Quick Start Guide
Navigation Bar and Command Bar
The Navigation Bar is located at the top of
the screen. It displays the active program and
current time, and allows you to switch to pro-
grams and close screens. The Command Bar
is displayed at the bottom of the screen. Use
the menus and buttons to perform tasks in
programs.

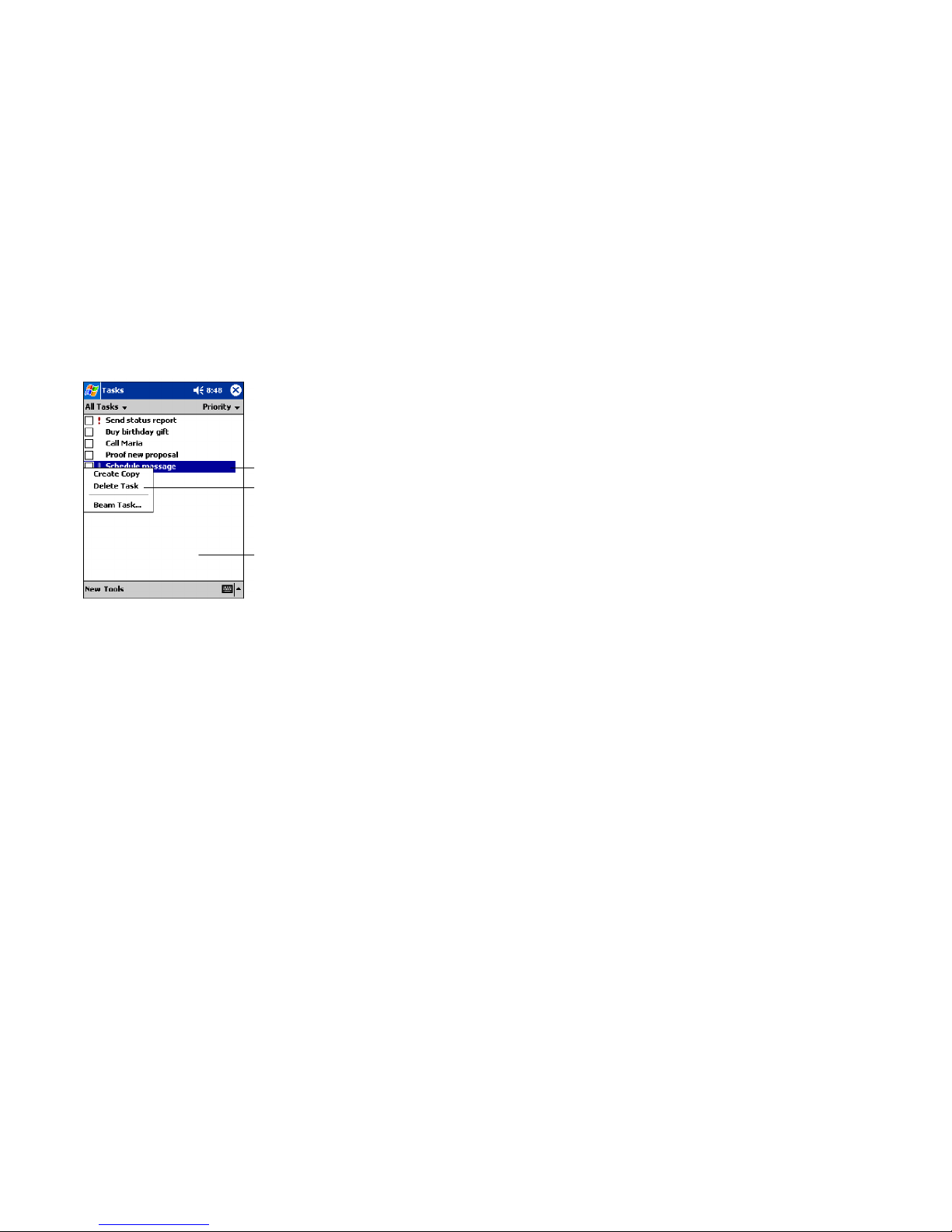

Pop-up Menus
With pop-up menus, you can quickly choose
an action for an item.
Tap to select an
option
Tap outside
window to
cancel

13Model 730 Color Quick Start Guide

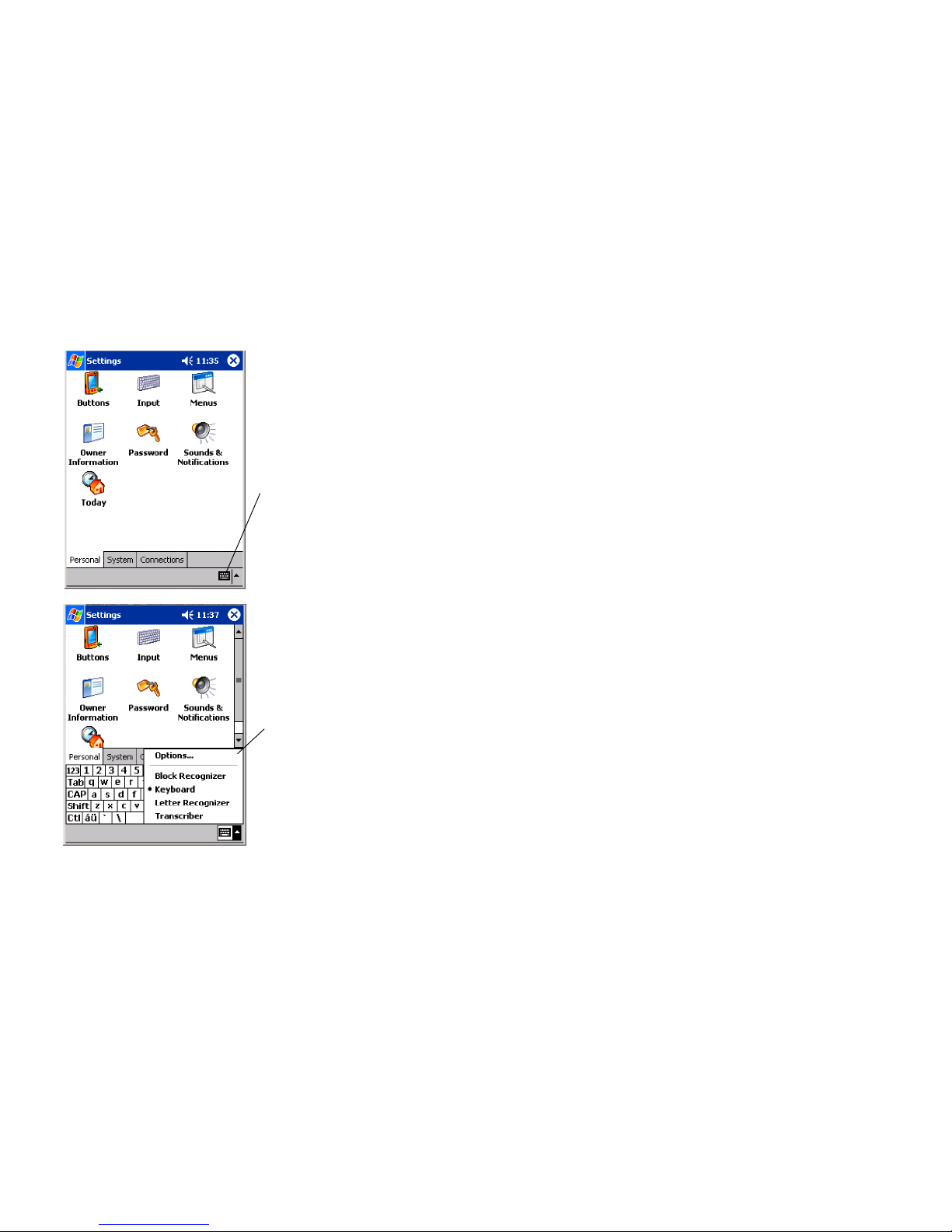

Entering Information into Your Model
730
You can enter information in any program on
your Model 730 by typing on the keypad or
by using one of the on-screen imput options,
such as Block Recognizer. For more informa-
tion regarding the options shown in the fol-
lowing pop-up menu, refer to the 700 Series
Color Mobile Computer User’s Manual (p/n:
961-054-031).
Tap on the
keyboard
icon at the
bottom of
the Com-
mand bar
To change
your option,
tap on the
preferred
choice. The
default is
Keyboard

14 Model 730 Color Quick Start Guide

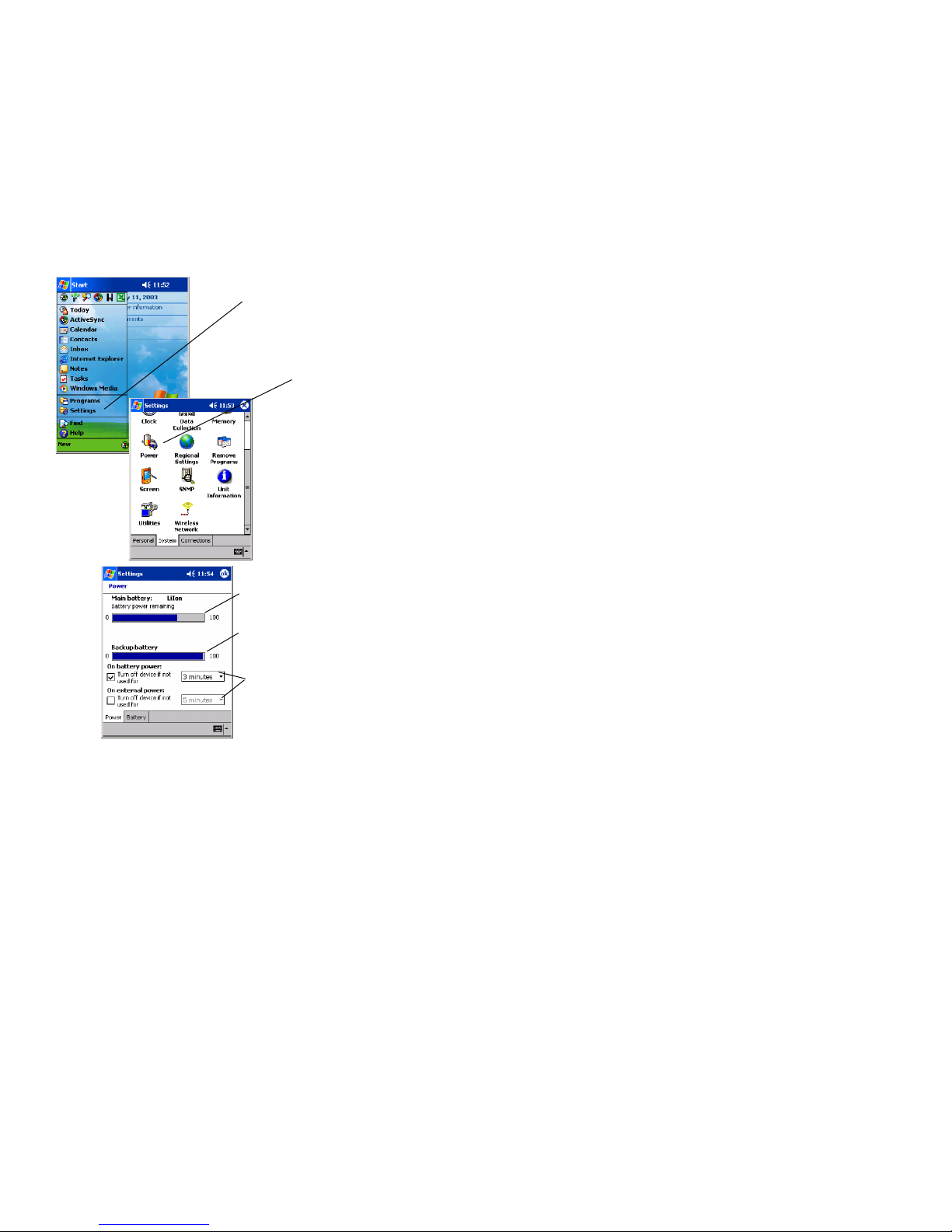

Battery Management
To maximize the life of your batteries, your
mobile computer can be set to automatically
suspend (turn itself Off). The timeout period
is set through the Setting>System>Power
menu. Options are 1-5 minutes with the de-
fault being 3 minutes.
Tap on
Settings
Taponthe
Power
icon
Observe the re-
maining battery
capacity
Change op-
tions to con-
serve bat-
tery use
Observe the
backup battery
capacity

15Model 730 Color Quick Start Guide
Linear Imager
Your Model 730 comes preloaded with soft-
ware needed to read barcodes using the Linear
Imager. To modify the default settings, use
the Data Collection Applet.
Data Collection Applet
To change any default settings tap Start>Set-
tings>System> then the Data Collection ap-
plet. For more detailed explanation of bar
codes refer to the 700 Series Color Mobile
Computer User’s Manual (p/n: 961-054-031).
Select System
tab and Data
Collection
applet

16 Model 730 Color Quick Start Guide

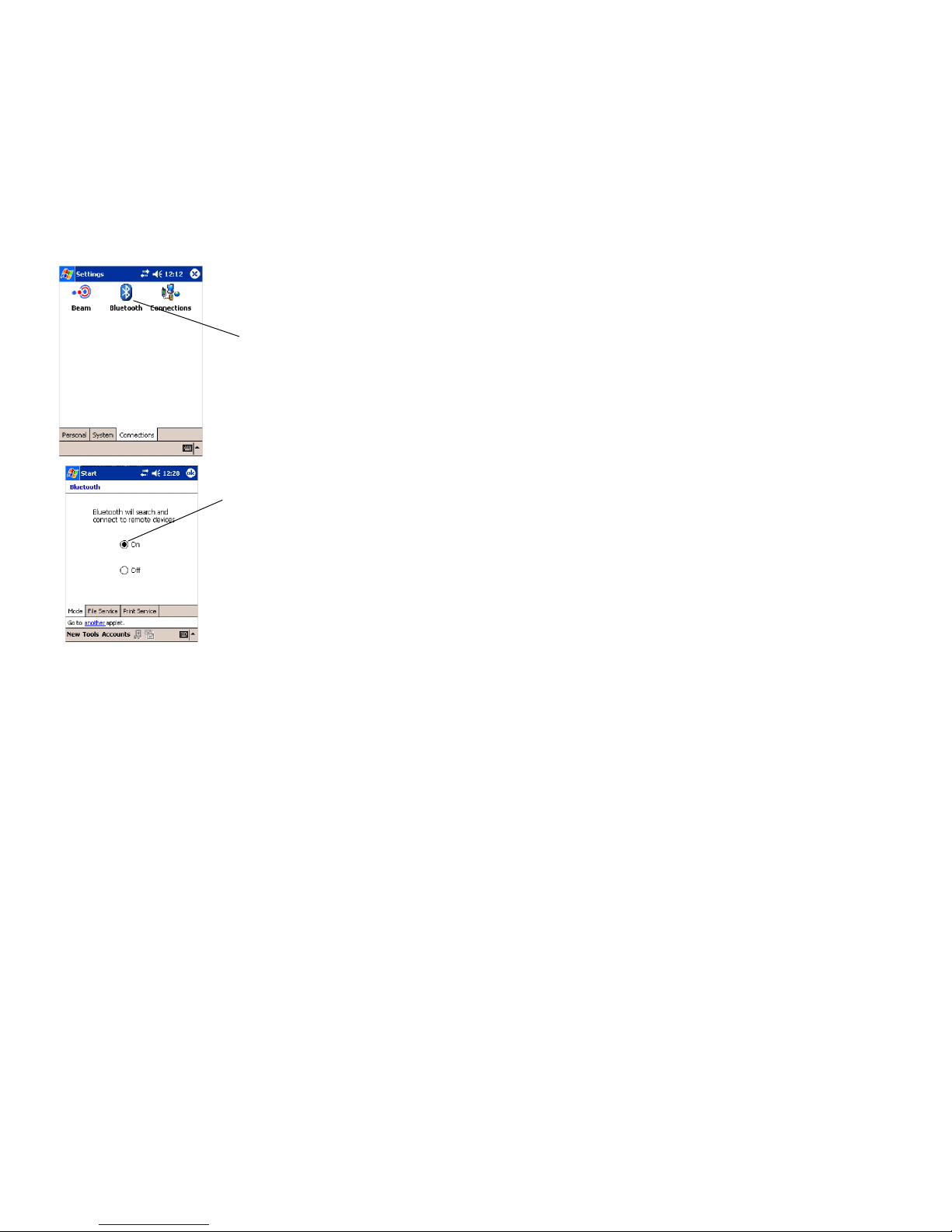

Wireless Printing
To check your wireless printing connection
tap Start>Settings>Connections> then the
Bluetooth applet. For more detailed explana-
tion of wireless printing refer to the 700 Series
Color Mobile Computer User’s Manual (p/n:
961-054-031).
Select Connections
tab and the Bluetooth
applet.
To change your
wireless printing so
it connects to re-
mote devices tap
the On radio button.

17Model 730 Color Quick Start Guide
Wireless Network
To change any default setting tap Start>Set-
tings>System> then the Wireless Network ap-
plet. For more detailed explanation of wireless
printing refer to the 700 Series Color Mobile
Computer User’s Manual (p/n: 961-054-031).
Select System
tab and Wire-
less Network
applet
Warm Resetting Your Model 730
A warm reset may be necessary to correct con-
ditions where an application stops responding
to the system. A warm reset causes all running
programs to be unloaded, but all programs
and data remain in the object store.
SPress and hold the Ikey for about 10
seconds.

18 Model 730 Color Quick Start Guide
Cold Resetting Your Model 730
In some cases where the Model 730 complete-
ly stops responding, it may become necessary
to perform a Cold Reset. Because cold reset-
ting may result in data loss, it is not recom-
mended unless all other recovery methods
have failed.
Cold booting deletes all programs and data
stored in RAM including the Object Store.
Ensure that data is backed up to the Host
PC or a Storage Card before cold booting.
1Release the lower clip of the hand strap.
2Remove the battery pack.
3Press the Reset button.
Reset
button
4Reinstall the battery pack.
Troubleshooting
Model 730 does not respond when
connected to a power supply.
Check to ensure that your AC adapter or
dock is plugged in and that it is making
good contact with your mobile computer.
Model 730 will not turn On when I
key is pressed
The battery may be low and need recharging.

19Model 730 Color Quick Start Guide
The Power Status LED Bstarts
blinking
The Power Status LED informs you of the sta-
tus of your battery pack when it is connected
to a charging device. See page 9 for LED ex-
planations.
Model 730 will not power up, screen is
blank
The Battery may be critically low.Ensure that
your computer has been on a charger for at
least five minutes, then remove from the char-
ger and press the Ibutton. The display will
then be active.Continue to charge your mo-
bile computer for 4 hours to ensure that the
battery is fully charged.
Model 730 will not turn On when
placed in a dock
Ensure that the dock is plugged in and your
computer is securely seated in the dock.
Model 730 shuts down during opera-
tion
You may have a very low battery, try recharg-
ing the battery.
Model 730 does not turn Off
May not turn Off when it is processing data.
If this condition continues for a long period of
time it will run down the battery unless it is
connected to external power.
IntherareeventthatyourModel730locks
up, do a Warm Reset and if that doesn’t
resolve the problem then do a Cold Reset.
Seepage18forColdResetdetails.

20 Model 730 Color Quick Start Guide
Model 730 takes a long time to boot
up after a reset
Normal time is between 30-45 seconds. If it
takes longer than this, contact support per-
sonnel.
Cleaning Your Model 730
Periodic cleaning helps maintain the appear-
ance of your Model 730. When cleaning your
Model 730, inspect the keyboard, covers, dis-
play, and connectors for obvious signs of
damage or wear.
Note:Donotuseabrasivecleaning
compounds, alkaline compounds, ke-
tonic solvents (acetone or ketone) or
aromatic solvents (toluene or xylene)
to clean any part of your Model 730.
These solutions cause permanent
damage.
Note: Never pour cleaners directly
on the display or the case. Instead
put the cleanser on a soft cloth and
gently wipe the case.
Case and Display
We recommend cleaning the exterior of your
mobile computer using a soft cloth dampened
with MICRO-CLEAN II cleanser, made by
Foresight International, Inc. 4887 F Street,
Omaha, NE 68127-0205 (phone:
1-800-637-1344).
Where to Find More Information
S700 Series Color Software Tools CD-ROM
(p/n: 235-099-001) which contains the
700 software developer’s kit (SDK). The
SDKisusedbyapplicationdeveloper’sto
access features such as radios and scanners.
