1 INTRODUCTION
This manual describes the instructions for use and
maintenance of the HF pump and should be carefully read and
understood before using the pump.
Proper pump operation and duration depend on the correct
use and maintenance.
Interpump Group disclaims any responsibility for damage
caused by negligence or failure to observe the standards
described in this manual.
Upon receipt, verify that the pump is intact and complete.
Report any faults before installing and starting the pump.
2 DESCRIPTION OF SYMBOLS
Read the contents of this manual carefully before each
operation.
Warning Sign
Read the contents of this manual carefully before
each operation.
Danger Sign
Danger of electrocution.
Danger Sign
Wear a protective mask.
Danger Sign
Wear protective goggles.
Danger Sign
Put on protective gloves before each operation.
Danger Sign
Wear appropriate footwear
3 SAFETY
3.1 General safety warnings
Improper use of pumps and high pressure systems as well as
non-compliance with installation and maintenance standards
can cause serious damage to people and/or property.
Anyone assembling or using high pressure systems must
possess the necessary competence to do so, knowing the
characteristics of the components that will assemble/use and
take all precautions necessary to ensure maximum safety in all
conditions of use. In the interest of safety, both for the Installer
and the Operator, no reasonably applicable precaution should
be omitted.
3.2 Essential safety in the high pressure system
1. The pressure line must always be provided with a safety
valve.
2. High pressure system components, particularly for systems
that operate primarily outside, must be adequately
protected from rain, frost and heat.
3. The electrical control system must be adequately
protected against sprays of water and must meet specic
regulations in force.
4. The high pressure pipes must be properly sized for
maximum operating pressure of the system and always
and only used within the operating pressure range
specied by the Manufacturer of the pipe itself. The same
rules should be observed for all other auxiliary systems
aected by high pressure.
5. The ends of high pressure pipes must be sheathed
and secured in a solid structure, to prevent dangerous
whiplash in case of bursting or broken connections.
6. Appropriate protective casing must be provided in pump
transmission systems (couplings, pulleys and belts,
auxiliary power outlets).
3.3 Safety during work
The room or area within which the high pressure system
operates must be clearly marked and prohibited to
unauthorised personnel and, wherever possible, restricted or
fenced. Personnel authorised to access this area should rst
be instructed how to operate within this area and informed
of the risks arising from high pressure system defects or
malfunctions.
Before starting the system, the Operator is required to verify
that:
1. The high pressure system is properly powered, see
chapter9 par.9.5.
2. The pump suction lters are perfectly clean; it is
appropriate to include a device indicating the clogging
level on all devices.
3. Electrical parts are adequately protected and in perfect
condition.
4. The high pressure pipes do not show signs of abrasion and
the ttings are in perfect order.
Any fault or reasonable doubt that may arise before or
during operation should be promptly reported and veried
by qualied personnel. In these cases, pressure should be
immediately cleared and the high pressure system stopped.
3.4 Rules of conduct for the use of lances
1. The operator must always place his safety and security
rst, as well as that of others that may be directly aected
by his/her actions, or any other assessments or interests.
The operator's work must be dictated by common sense
and responsibility.
2. The operator must always wear a helmet with a protective
visor, waterproof gear and wear boots that are appropriate
for use and can ensure a good grip on wet oors.
Note: appropriate clothing will protect against sprays of water
but not from direct impact with jets of water or very close sprays.
Additional protections may therefore be necessary in certain
circumstances.
3. It is generally best to organise personnel into teams of at
least two people capable of giving mutual and immediate
assistance in case of necessity and of taking turns during
long and demanding operations.
4. The work area jet range must be absolutely prohibited to
and free from objects that, inadvertently under a pressure
jet, can be damaged and/or create dangerous situations.
5. The water jet must always and only be pointed in the
direction of the work area, including during preliminary
tests or checks.
6. The operator must always pay attention to the trajectory
of debris removed by the water jet. Where necessary,
suitable guards must be provided by the Operator to
protect anything that could become accidentally exposed.
7. The operator should not be distracted for any reason
during work. Workers needing to access the operating area
must wait for the Operator to stop work on his/her own
initiative, after which they should immediately make their
presence known.
8. It is important for safety that all team members are always
fully aware of each other's intentions in order to avoid
dangerous misunderstandings.

ENGLISH
23
9. The high pressure system must not be started up and run
under pressure without all team members in position and
without the Operator having already directed his/her lance
toward the work area.
3.5 Safety during system maintenance
1. High pressure system maintenance must be carried out
in the time intervals set by the manufacturer who is
responsible for the whole group according to law.
2. Maintenance should always be performed by trained and
authorised personnel.
3. Assembly and disassembly of the pump and the various
components must only be carried out by authorised
personnel, using appropriate equipment in order
to prevent damage to components, in particular to
connections.
4. Always only use original spare parts to ensure total
reliability and safety.
4 PUMP IDENTIFICATION
Each pump has its own Serial No. XX.XXX.XXX see pos.cand
an identication label, see pos.dof Fig.1 which shows:
- Pump model and version
- Max revs
- Absorbed power HP - kW
- Pressure bar - P.S.I.
- Flow rate l/min - Gpm
Fig.1
Model, version and serial number must always be
indicated when ordering spare parts
5 TECHNICAL CHARACTERISTICS
Model Rpm Flow rate Pressure Power
l/min Gpm bar psi kW HP
HF 18 800
1000
30
38
8.1
10.1
600
500
8700
7250
35.5
36.8
48
50
HF 20 1000 47 12.4 400 5800 36.8 50
HF 22 800
1000
45
57
12
15
400
350
5800
5075
35.5
36.8
48
50
HF 25
HF 25N
HF 25N-F
1000 73 19.3 280 4060 36.8 50
WK355 1000 57 15.1 350 5075 38.1 51.8

ENGLISH
24
6 DIMENSIONS AND WEIGHT

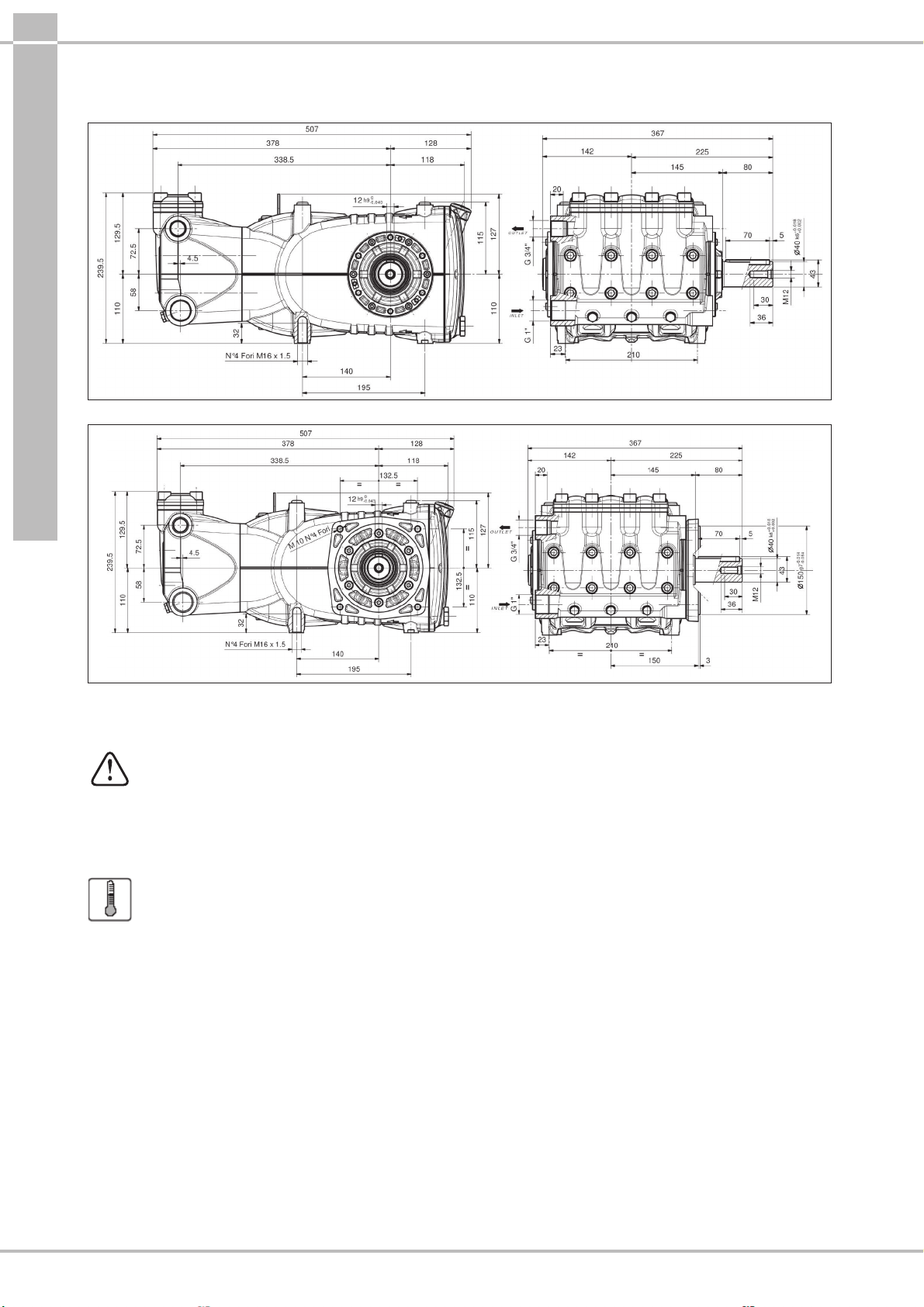

For Standard Version pump dimensions and weight, refer to Fig.2.
For type "A" Flange Version pump dimensions and weight, refer to Fig.2/a.
Dry weight 60 kg. Fig.2
Dry weight 61 kg. Fig.2/a
7 OPERATING INSTRUCTIONS
The HF pump has been designed to operate in
environments with atmospheres that are not
potentially explosive, with ltered water (see
par.9.7) and at a maximum temperature of 40°C.
Other liquids can be used only upon formal approval
by the Technical or Customer Service Departments.
7.1 Water temperature
The maximum permissible water temperature is
40°C. However, the pump can be used with water up
to a temperature of 60°C, but only for short periods.
In this case, it is best to consult the Technical or
Customer Service Departments.
7.2 Maximum pressure and ow rate
The rated specications stated in our catalogue are the max.
that can be obtained by the pump. Independently of the
power used, the maximum pressure and rpm indicated in the
specication label can never be exceeded unless upon prior
formal authorisation by our Technical or Customer Service
Departments.
7.3 Minimum rotating speed
Any rotating speed other than that indicated in the
performance table (see chapter9) must be expressly
formally authorised by our Technical or Customer Service
Departments.
7.4 Sound emission
The sound pressure detection test was performed according
to Directive 2000/14 of the European Parliament and Council
(Machinery Directive) and EN-ISO 3744-1995 with class 1
instrumentation.
A nal detection of sound pressure must be performed on the
complete machine/system.
Should the operator be located at a distance of less than 1
metre, he will have to use appropriate hearing protection
according to current regulations.
7.5 Vibration
The detection of this value shall be carried out only with the
pump set up on the plant and at the performance declared by
the customer.
Values must be in accordance with regulations.

ENGLISH
25

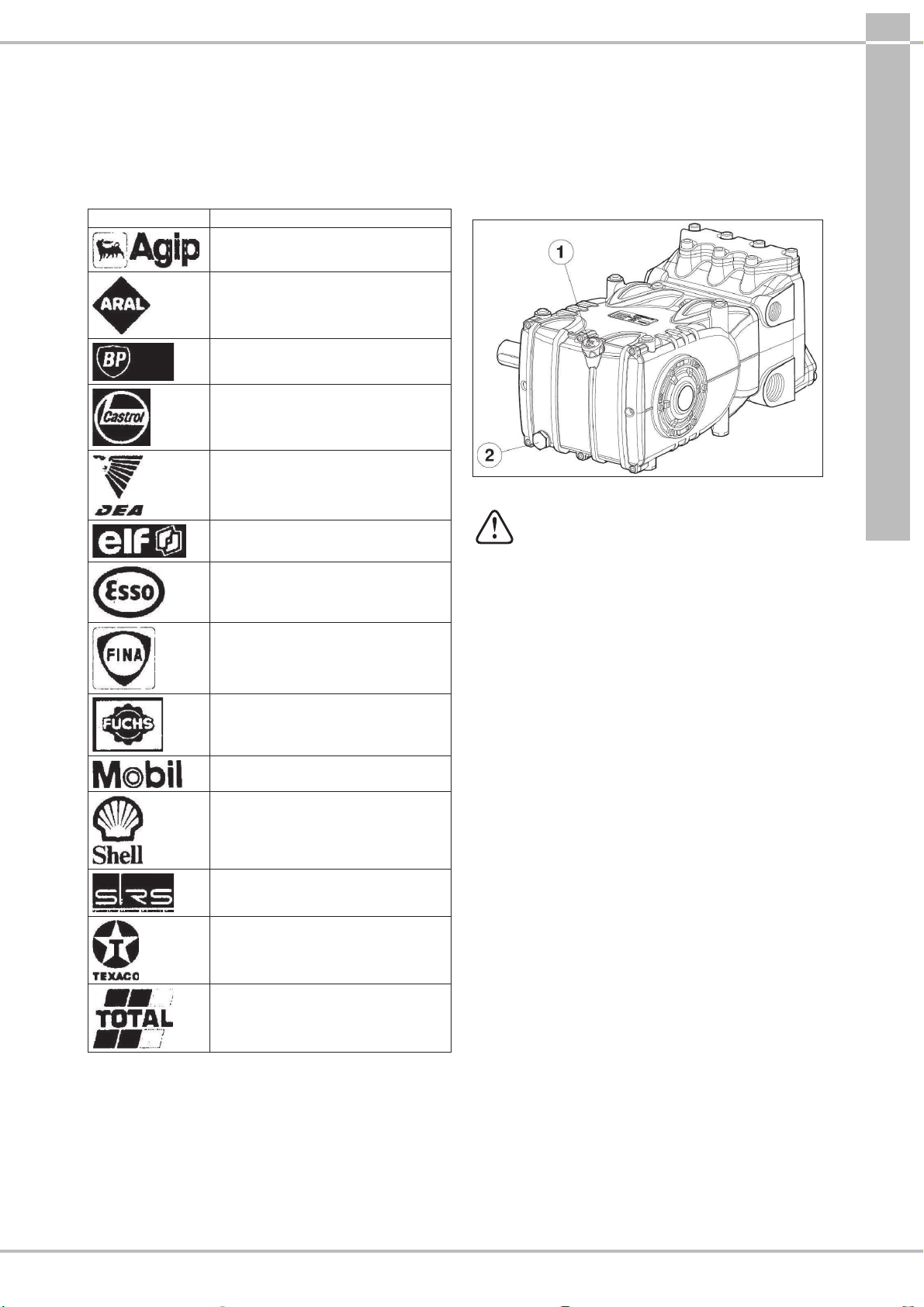

7.6 Brands and types of oils recommended
The pump is supplied with oil suitable for room temperatures
from 0°C to 30°C.
Some types of recommended oil are indicated in the table
below, these oils have additives to increase corrosion
resistance and fatigue resistance (DIN 51517 part 2).
Alternatively you can also use Automotive Gear SAE 85W-90
oil for gearing lubrication.
Manufacturer Lubricant
AGIP ACER220
Aral Degol BG 220
BP Energol HLP 220
CASTROL HYSPIN VG 220
CASTROL MAGNA 220
Falcon CL220
ELF POLYTELIS 220
REDUCTELF SP 220
NUTO 220
TERESSO 220
FINA CIRKAN 220
RENOLIN 212
RENOLIN DTA 220
Mobil DTE Oil BB
Shell Tellus Öl C 220
Wintershall Ersolon 220
Wintershall Wiolan CN 220
RANDO HD 220
TOTAL Cortis 220
Check the oil level and top up if necessary
Using the oil dipstick pos.c, Fig.3.
The correct checking of the oil level is made with the pump
not running, at room temperature. The oil change must be
made with the pump at working temperature, removing: the
oil dipstick, pos.c, and then the plug pos.d, Fig.3.
The oil check and change must be carried out as indicated in
the table in Fig.14 chapter11.
The quantity required is ~3.8 litres.
Fig.3
In any case the oil must be changed at least once
a year, as it is degraded by oxidation.
For a room temperature other than between 0°C - 30°C, follow
the instructions in the following diagram, considering that oil
must have a minimum viscosity of 180 cSt.

ENGLISH
26
Viscosity / Room Temperature diagram
mm2/s = cSt
Viscosity ν
Ambient temp. (°C)
The used oil must be placed in a suitable container and disposed of in special centres.
It absolutely should not be discarded into the environment.
8 PORTS AND CONNECTIONS
The HF series pumps (see Fig.4) are equipped with:
c2“IN“ inlet ports 1” Gas.
Line connection to any of the two ports is indierent for
proper pump functioning. The unused ports must be
hermetically closed.
d2“OUT“ outlet ports 3/4” Gas.
Fig.4

ENGLISH
27
9 PUMP INSTALLATION
9.1 Installation
The pump must be xed horizontally using the M16x1.5
threaded support feet. Tighten the screws with a torque of 210
Nm.
The base must be perfectly at and rigid enough as not to
allow bending or misalignment on the pump coupling axis/
transmission due to torque transmitted during operation.
The unit cannot be xed rigidly to the oor but must
interposed with vibration dampers.
For special applications contact the Technical or Customer
Service Departments.
A lifting bracket is mounted on the pump for easy installation,
as per the gure below.
Replace the oil lling hole closing service plug
(red) positioned on the rear casing cover. Check
the correct quantity with the oil dipstick.
The oil dipstick must always be reachable, even
when the unit is assembled.
The pump shaft (PTO) should not be rigidly
connected to the propulsion unit.
The following types of transmission are
recommended:
- Hydraulics by ange, for proper application
consult with our Technical or Customer Service
Departments.
- V-belts.
- Cardan-shaft (comply with manufacturer's Max.
recommended working angles).
- Flexible joint.
9.2 Rotation direction
The rotation direction is indicated by an arrow located on the
casing near the drive shaft.
From a position facing the pump head, the rotation direction
will be as in Fig.5.
LH SIDE
clockwise
RH SIDE
anticlockwise
Fig.5
9.3 Version change
The pump version is dened as right when:
Observing the pump facing the head side, the pump shaft
must have a PTO shank on the right side.
The pump version is dened as left when:
Observing the pump facing the head side, the pump shaft
must have a PTO shank on the left side.
Note. The version shown in Fig.5 is right.
The version can only be modied by trained and
authorised personnel and carefully following the
instructions below:
1. Separate the hydraulic part from the mechanical
part as indicated in chapter2 par.2.2.1 of the
Repair manual.
2. Turn the mechanical part 180° and reposition
the rear casing cover in such a way that the
oil dipstick is turned upward. Reposition the
lifting bracket and relative hole closing plugs
in the upper part of the casing. Finally, properly
reposition the specication label in its housing
on the casing.
Make sure that the lower casing draining
holes in correspondence with the pistons are
open and not closed from the plastic plugs
provided for the previous version.
3. Unite the hydraulic part to the mechanical part
as indicated in chapter2 par.2.2.5 of the Repair
manual.
9.4 Hydraulic connections
In order to isolate the system from vibrations produced by
the pump, it is advisable to make the rst section of the duct
adjacent to the pump (both suction and outlet) with exible
piping. The consistency of the suction section must be such as
to prevent deformations caused by vacuums produced by the
pump.
9.5 Pump supply
To obtain the best volumetric eciency, feed the pumps with
a positive head (NPSHr).
The recommended value, measured on the head suction
ange, is given in the following table:
HF 18 HF 20 HF 22 HF 25
NPSHr(m) 2.5 4.0 4.0 4.5
The values given apply to the rated speed of
rotation; otherwise, contact our Technical or
Customer Service Departments.
For any supply conditions other than those
specied above, contact our Technical or
Customer Service Departments.

ENGLISH
28
9.6 Suction line
For a smooth operation of the pump, the suction line should
have the following characteristics:
1. Minimum internal diameter as indicated in the graph in
par.9.9 and in any case equal to or exceeding that of the
pump head.
Localised restrictions should be avoided
along the run of the duct, as these can cause
load losses resulting in cavitation. Avoid 90°
elbow bends, connections with other piping,
constrictions, counterslopes, inverted U- curves and
T-connections.
2. With a layout that is set in such a way to prevent
cavitation.
3. Completely airtight and constructed to ensure sealing
over time.
4. Prevent that pump stopping causes emptying, even
partial.
5. Do not use 3 or 4-way hydraulic ttings, adapters, swivel
joints, etc. as they could jeopardise pump performance.
6. Do not install Venturi tubes or injectors for detergent
suction.
7. Avoid use of base valves or other types of unidirectional
valves.
8. Do not recirculate by-pass valve discharge directly into
suction.
9. Provide for proper guards inside the tank to prevent that
water ow from the bypass and the tank supply line can
create vortexes or turbulence near the pump supply pipe
port.
10. Make sure the suction line is thoroughly clean inside
before connecting it to the pump.
9.7 Filtration
1 lter must be installed on the pump suction line, positioned as indicated in Fig.6 and Fig.6/a.
With a manually activated control valve
1 Filter 1
2 Plunger pump
3 Pressure gauge
4 Safety valve
5 Manual control valve
Inlet
Supply tank
Bypass
Fig.6
With a pneumatically activated control valve
1 Filter 1
2 Plunger pump
3 Pressure gauge
4 Safety valve
5 Pneumatic control valve
Inlet
Supply tank
Bypass
Fig.6/a

ENGLISH
29
The lter must be installed as close as possible to the pump,
it must be easily inspected and must have the following
characteristics:
1. Minimum ow rate at least 3 times the nominal ow rate
of the pump.
2. Inlet/outlet port diameters no smaller than the inlet port
diameter of the pump.
3. Filtration grade between 200 and 360 µm.
For smooth pump operation, regular lter
cleaning is necessary, planned according to the
actual use of the pump in relation to the quality
of water used and actual clogging conditions.
9.8 Outlet line
For the correct laying of the outlet line, the following
installation rules must be followed:
1. The internal diameter of the pipe must be sucient to
ensure correct uid velocity, see graph in par.9.9.
2. The rst section of the line connected to the pump outlet
must be a exible hose, in order to isolate the vibrations
produced by the pump of the rest of the system.
3. Use high pressure pipes and ttings to ensure high safety
margins in all operating conditions.
4. The outlet line must always be provided with a Max.
pressure valve.
5. Use pressure gauges suitable to withstand pulsating loads
typical of the plunger pumps.
6. During the design stage, keep in mind the line load losses
which result in a drop in pressure during use with respect
to the pressure measured on the pump.
7. For those applications where pulses produced by the
pump on the outlet line may prove harmful or unwanted,
install a pulsation dampener of sucient size.
9.9 Calculation of the internal diameter of the
duct pipes
To determine the internal diameter of the duct, refer to the
following diagram:
Suction duct
With a ow rate of ~74 l/min and a water velocity of 0.5 m/sec.
The graph line joining the two scales meets the central scale
showing the diameters, corresponding to a value of ~55mm.
Outlet duct
With a ow rate of ~74 l/min and a water velocity of 5.5 m/sec.
The graph line joining the two scales meets the central scale
showing the diameters, corresponding to a value of ~19mm.
Optimal speeds:
- Suction: ≤ 0.5 m/sec.
- Outlet: ≤ 5.5 m/sec.
The graph does not take into account pipe
resistance, valves, load loss produced by the length
of the ducts, the viscosity of the liquid pumped or
the temperature itself.
If necessary, contact our Technical or Customer
Service Departments.

ENGLISH
30
9.10 V-belt transmission
The pump can be controlled by a V-belt system.
For this pump model, we recommend use of 4 XPB belts
(16.5x13 serrated). Use an XPC prole only for long durations.
Both the characteristics and transmissible power of each

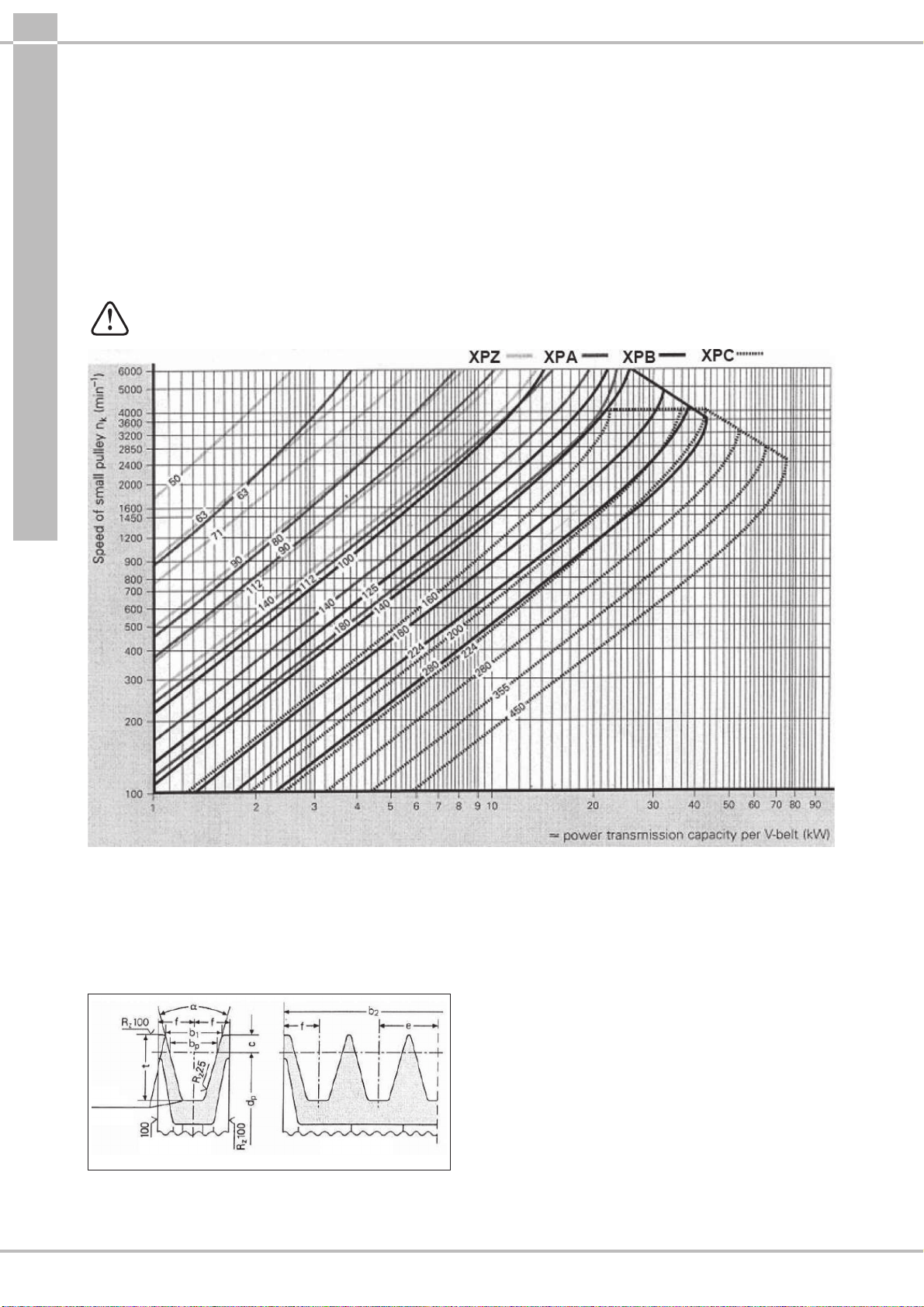

belt can be veried in the diagram in Fig.7, in relation to the
number of rpm normally declared by the manufacturer.
Minimum duct pulley diameter (on pump shaft): ≥250mm.
The radial load on the shaft must not exceed 7500N
(value necessary for Layout denition). The transmission is
considered adequate if the load is applied to a maximum
distance a=40mm from the shaft shoulder (P.T.O) as shown in
Fig.10.
For dimensions diering from those specied
above, contact our Technical or Customer Service
Departments.
Fig.7
9.11 Transmission denition
To prevent irregular radial loads on the shaft and the relative
bearing, follow these directions:
a) Use pulleys with V-belts with the size of the groove
required/recommended by the manufacturer of belt used.
In the absence of directions, follow Fig.8 and the table in
Fig.9.
Single groove
Break
corners
Multiple groove
Fig.8

ENGLISH
31

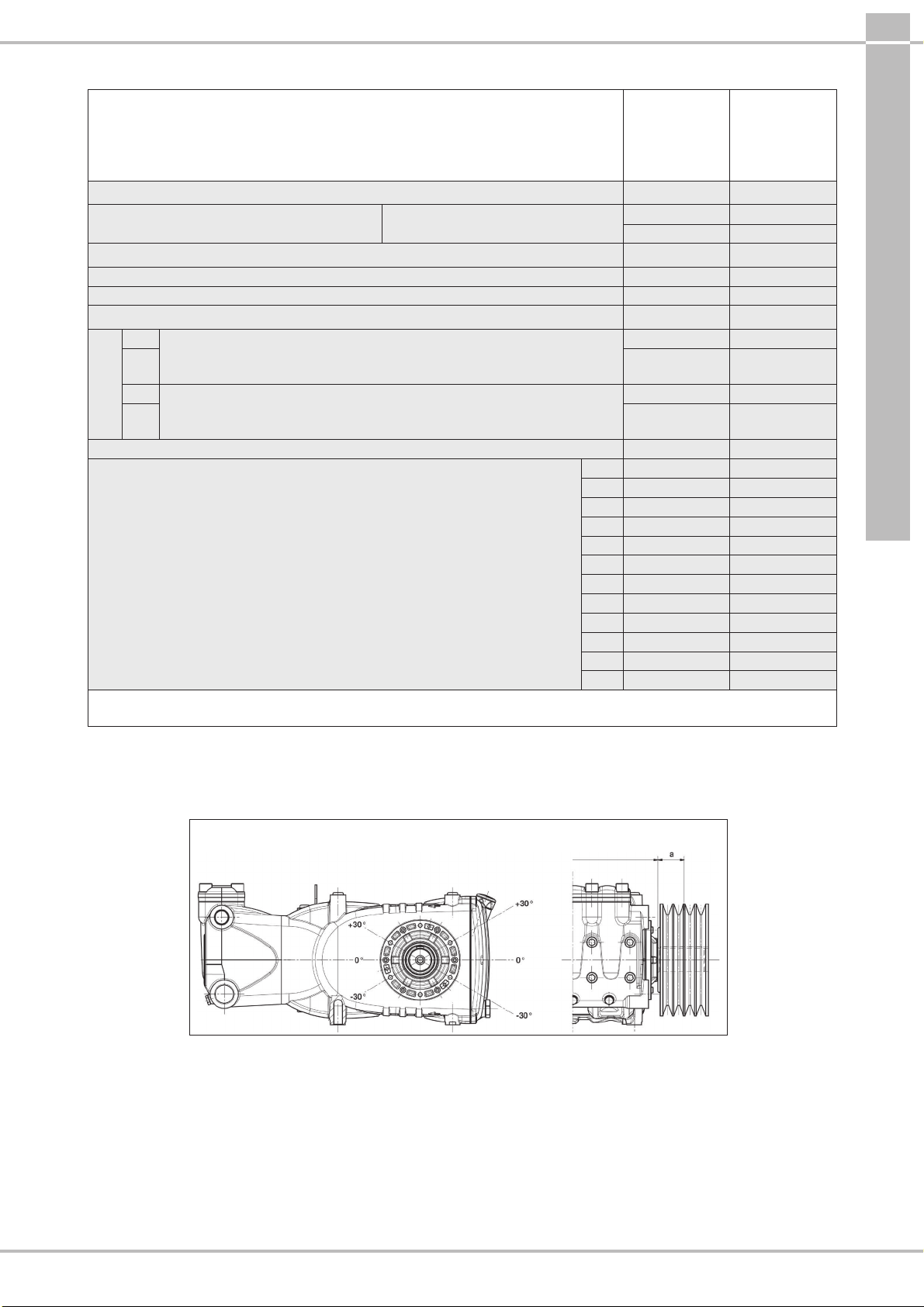

Dimensions (inmm)
Belt section as per DIN symbol
DIN 7753 part 1 and B.S. 3790 symbol B.S./ISO
Belt section as per DIN symbol
DIN 2215 and B.S. 3790 symbol B.S./ISO
XPB/SPB
SPB
17
B
XPC/SPC
SPC
22
C
Pitch width bw14.0 19.0
Increased grooving width b1≈ α = 34° 18.9 26.3
α = 38° 19.5 27.3
c 8.0 12.0
Distance between grooving e 23 ± 0.4 31 ± 0.5
f 14.5 ± 0.8 20.0 ± 1.0
Increased grooving depth tmin 22.5 31.5
α 34° by primitive diameter dwfrom 140 to 190 from 224 to 315
38° narrow-section V-belts
DIN 7753 part 1 > 190 > 315
α 34° by primitive diameter dwfrom 112 to 190 from 180 to 315
38° classic section V-belts
DIN 2215 > 190 > 315
Tolerance for α = 34°-38° ± 1° ± 30’
Pulleys for b2 by grooving number z
b2 = (z-1) e + 2 f
1 29 40
2 52 71
3 75 102
4 98 133
5 121 164
6 144 195
7 167 226
8 190 257
9 213 288
10 236 319
11 259 350
12 282 381
Minimum pulley diameter must be respected.
Do not use laminated V-belts. Fig.9
b) Use high performance belts – for example XPB instead of
SPB – as a lower quantity of belts for the same transmitted
power may be necessary and a consequent shorter
resulting distance compared to the shaft shoulder (P.T.O)
“a“ of Fig.10.
Shaft
shoulder
(P.T.O.)
Fig.10
c) Pull the belts according to manufacturer instructions.
Excessive pulling can cause reduced bearing life and wear
out the pulley prematurely. Pulling depends on dierent
variables as indicated in par.9.12.
d) Belt length has a natural tolerance ≥ ± 0.75%. For this
reason, the 2 belts must be purchased as a pair.
e) Follow the direction of the belt pull as shown in Fig.9 for
other needs, contact our Technical or Customer Service
Departments.
f) Take care of the alignment of the driving pulley and driven
pulley grooves.

ENGLISH
32
9.12 Denition of static pull to apply on belts
Static pull depends on:
a) The wheelbase between the two pulleys (belt length).
b) The load due to static pull of the belt.
c) The number of belts.
d) The winding angle of the smallest pulley.
e) Average speed.
f) Etc.
Values of the static pull to be applied can be obtained from
the diagram in Fig.11 for belts with a XPB prole in relation to
the wheelbase.

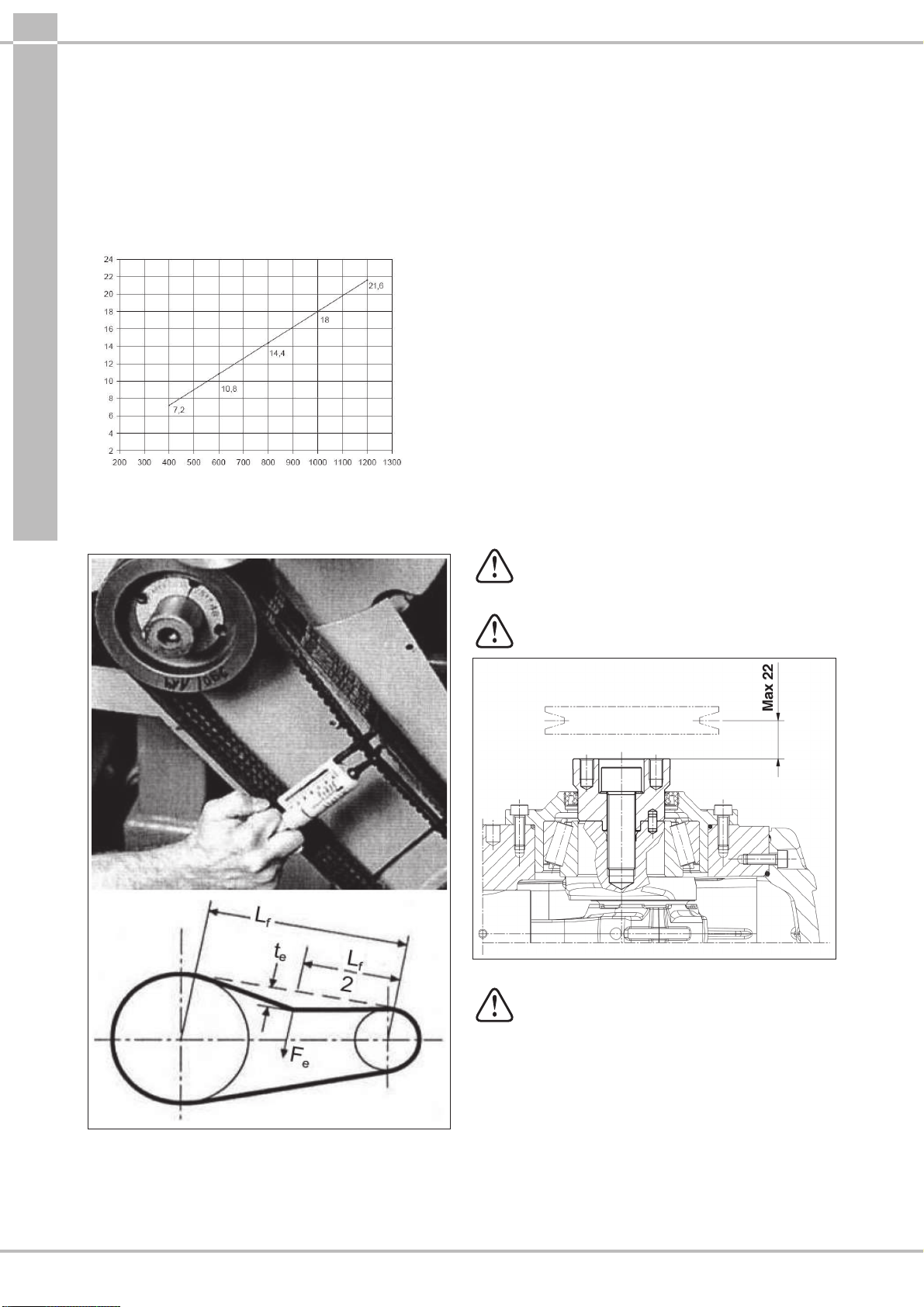

te = Belt bendmm
Lf= Wheelbasemm
Fig.11
Conclusion: with a wheelbase of 600mm and with a
dynamometer, loading the belt branch with 75 N as indicated
in Fig.12, a "te" bend of approximately 10.8mm is obtained.
Lf = Wheelbase
te = Belt bend
Fe = 75 N Dynamometer load
Fig.12
Note1.Unless otherwise stated by the supplier of the belts,
control of proper pull and its relative re-tensioning should be
performed after no less than 30 minutes of motion necessary
for the normal adjustment of the belts. Best performance and
durability will be achieved with proper tensioning.
Note2.In case of necessity or for routine maintenance, never
replace a single belt but the complete set.
9.13 Transmission of power from the second PTO
Upon request, HF series pumps can be supplied with an
auxiliary PTO on the opposite side to the drive (Transmission
of power from the second PTO).
Transmission can be carried out:
t#ZNFBOTPGUIF7CFMUTt#ZNFBOTPGUIFKPJOUBy means of the V-Belts, withdrawable Max Torque is:
65 Nm which corresponds to:
7 HP at 750 rpm;
7.4 HP at 800 rpm;
8.3 HP at 900 rpm;
9.3 HP at 1000 rpm;
11.1 HP at 1200 rpm.
By means of the joint, withdrawable Max Torque is:
130 Nm which corresponds to:
14 HP at 750 rpm;
14.8 HP at 800 rpm;
16.6 HP at 900 rpm;
18.6 HP at 1000 rpm;
22.2 HP at 1200 rpm.
By means of the V-belt, the transmission is
considered suitable if: belt pull is applied at a max
distance of 22mm from the bend shaft shoulder
Fig.13. Min diameter of pulley to be used = Ø 100 m
With transmission by means of the joint, pay
particular attention to perfect alignment so that no
transverse forces are generated on the pump shaft.
Fig.13
For applications diering from those specied
above, contact our Technical or Customer Service
Departments.

ENGLISH
33
10 START-UP AND OPERATION
10.1 Preliminary checks
Before start-up, ensure that:
The suction line is connected and pressurised
(see par.9.4 - 9.5 - 9.6) the pump must never run
dry.
1. The suction line ensures a hermetic seal over time.
2. Any shut-o valves between the supply source and
the pump are fully open. The outlet line during is free
discharge, to permit air present in the pump head to come
out quickly and therefore favour fast priming.
3. All suction and outlet ttings and connections are
properly tightened.
4. The coupling tolerances on the pump/transmission axis
(half-joint misalignment, Cardan joint tilt, belt pulling,
etc.) remain within limits required by the transmission
manufacturer.
5. Oil in the pump casing is at level, veried with a dipstick
(Fig.14, pos.c) and exceptionally with a level indicator
(Fig.14, pos.d).
Fig.14
In case of prolonged storage or long-term
inactivity, check proper functioning of the
suction and outlet valves.
10.2 Start-up
1. At rst start-up, verify that the rotation direction and the
supply pressure are correct.
2. Start-up the pump without any load.
3. Check that the supply pressure is correct.
4. Check that the rotation rpm during operation does not
exceed the nominal rpm of the pump.
5. Let the pump run for a period of no less than 3 minutes,
before putting it under pressure.
6. Before each pump stop, reset pressure by means of the
control valve or with any relieving devices and reduce to a
minimum rpm (activation with combustion motors).
11 PREVENTIVE MAINTENANCE
For pump reliability and eciency, comply with maintenance
intervals as shown in the table of Fig.15.
PREVENTIVE MAINTENANCE
Every 500 hours Every 1000 hours
Check oil level Change oil
Check / Replace:
Valves
Valve seats
Valve springs
Valve guides
Check / Replace:
H.P. seals
L.P. seals
Fig.15
12 PUMP STORAGE
12.1 Long-term inactivity
If the pump is started for the rst time after a long
period from the date of shipment, before operation
check the oil level, inspect the valves as specied
in chapter 10, then follow described start-up
procedures.
12.2 Method for lling pump with anti-corrosion
emulsion or anti-freeze solution
Method for lling pump with anti-corrosion emulsion or anti-
freeze solution using an external diaphragm pump based on
the layout shown in par.9.7, between pos.cand pos.dof
Fig.6 and Fig.6/a:
t*OQMBDFPGUIFTFSWJDFUBOLVTFBTVJUBCMFDPOUBJOFScontaining the solution to be pumped.
t$MPTFUIFöMUFSESBJOBHFJGPQFOt.BLFTVSFUIBUUIFIPTFTUPCFVTFEBSFDMFBOJOTJEFBOEspread grease on their connections.
t$POOFDUUIFIJHIQSFTTVSFFYIBVTUQJQFUPUIFQVNQt$POOFDUUIFTVDUJPOQJQFUPUIFEJBQISBHNQVNQt$POOFDUUIFTVDUJPOQJQFCFUXFFOUIFQVNQIFBEBOEthe diaphragm pump.
t'JMMUIFTFSWJDFDPOUBJOFSXJUITPMVUJPOFNVMTJPOt*OTFSUUIFGSFFFOETPGUIFTVDUJPOQJQFTBOEUIFIJHIpressure exhaust pipe inside the container.
t4XJUDIPOUIFEJBQISBHNQVNQt1VNQUIFFNVMTJPOVOUJMJUFYJUTGSPNUIFIJHIQSFTTVSFexhaust pipe.
t$POUJOVFQVNQJOHGPSBUMFBTUBOPUIFSNJOVUFt4UPQUIFQVNQBOESFNPWFUIFQSFWJPVTMZDPOOFDUFEpipes.
t$MFBOHSFBTFBOEQMVHUIFDPOOFDUJPOTPOUIFQVNQhead.
The characteristics of the emulsion can be strengthened if
necessary by adding, for example, Shell Donax.
13 PRECAUTIONS AGAINST FROST
Follow the instructions in Chapter 12 in areas and
times of the year at risk of frost (see par.12.2).
In the presence of ice, do not run the pump
for any reason until the circuit has been fully
defrosted, in order to avoid serious damage to
the pump.

ENGLISH
34
14 GUARANTEE CONDITIONS
The guarantee period and conditions are contained in the
purchase agreement.
The guarantee will in any case be invalidated if:
a) The pump is used for purposes other than for those agreed
upon.
b) The pump is tted with an electric or combustion motor
with performance exceeding those indicated in the table.
c) Safety devices are decalibrated or disconnected.
d) The pump is used with accessories or parts not supplied
by Interpump Group.
e) Damage has been caused by:
1) improper use
2) failure to follow maintenance instructions
3) any use dierent from that described in the operating
instructions
4) lack of sucient ow rate
5) defective installation
6) improper positioning or sizing of pipes
7) unauthorised design modications
8) cavitation.
15 OPERATING FAULTS AND THEIR
POSSIBLE CAUSES
The pump does not produce any noise upon
start-up:
- The pump is not primed and is running dry.
- No suction water.
- Valves are blocked.
- The outlet line is closed and does not allow air
present in the pump head to come out.
The pump pulsates irregularly:
- Air suction.
- Insucient supply.
- Bends, elbow bends, ttings along the suction
line are choking the passage of liquid.
- The suction lter is dirty or too small.
- The booster pump, where installed, is supplying
insucient pressure or ow rate.
- The pump is not primed for insucient head or
the outlet is closed during priming.
- The pump is not primed due to valve jamming.
- Worn valves.
- Worn pressure seals.
- Imperfect functioning of the pressure control
valve.
- Problems on the transmission.
The pump does not supply the nominal ow rate/
excessive noise:
- Insucient supply (see various causes as above).
- The number of rpms is less than the nominal rate;
- Excessive leakage of the pressure control valve.
- Worn valves.
- Excessive leakage of the pressure seals.
- Cavitation due to:
1) Improper sizing of suction ducts/undersized
diameters.
2) Insucient ow rate.
3) High water temperature.
The pressure supplied by the pump is insucient:
- Use (nozzle) is or has become higher than the
capacity of the pump.
- The number of rpms is insucient.
-
Excessive leakage of the pressure seals .
- Imperfect functioning of the pressure control
valve.
- Worn valves.
The pump is overheated:
- The pump is working in pressure excess or the
number of rpms is higher than the nominal rate.
- Oil in the pump casing is not at level or not the
recommended type as detailed in chapter 7 (see
par.7.6).
- Excess belt tension or joint or pulley alignment is
incorrect.
- Excessive pump tilt during operation.
Vibrations and shock to pipes:
- Air suction.
- Imperfect functioning of the pressure control
valve.
- Valve malfunction.
- Non-uniformity in the transmission motion.

ENGLISH
35
16 EXPLODED DRAWING AND PARTS LIST

ENGLISH
36
 



   


   











         
            
  !"        
   
     #  $ 
  $!    
  %      %&$ 
  !"       $  
    
  %&     # 
 ! "     !  
  $'("   ! !!  
  "    ! $ !" 
      ! ! 
! ! "    !!    $ # 
  # ! !    ! %&$ 
  %$$""!  ! ! 
  $  !      %& 
  $ "" !  !     $ "" ! 
    !!      
  ""%   ! !!    ""% 
  $ !     $# 
  $      " 
! ! "  ! !   ! % 
  ""'   !      &!& 
 ! ""  ! !    ! %&!$ 
    
        %& 
        $ "" ! 
   !     
  "       ""% 
  %$$      " 
  &   ! ! %$'( 
    ! %&$) 
         
         
        !"
 !   #   !"
 !   #   !"
 !          
 !    ! %&! 
      $$ 
       " !"
    !   " !"
   ! !   " !"
!  *" #     ! "# 
 !$    !    
 !$      "! 
 !$     ! $'!(" 
 $!      "#$+ 
   ! $   
#""#%
#
#


%"*
%




 

!!#&&%
''
*"*
''( 
''&%

*!"*

!&%
 
*!"*"*
*"*
,*!"

!!#&
''( &%

$'("
$ %%
*"*
*""*
!!
 %%



  






 
%%
%!"!*$)
!*"!"
%%
$ %%

,"
 
 
  &-
 $&
%%
''%"&% 
 


 
!$!&


''%"
%"$)




 $ $-

$%$
##-%
$!&


)*)+!*)+!*

,-./012,13.,3443"01/05.678,19:,-
,--316-3;0;<1-,46193/;<=:,19:,-
,-><4>043<7;,/<2,0136=-,01><4>37:,-
,-><4>0435,<15<-<6-43-><4>37:,-
,--316-3=0;43-3"0;43-373<47:,-
$!&
#""#+!%


 #""#+!%

$!&

 





#""#+!
#""#+!
#""#

ENGLISH
37

ENGLISH
38















    
        
         
      
   !     "! 
  !#$          
  "%%&        "' 
  %%&        %! 
  !!     
  !#$        %!" 
  %%       "!!" 
  (!         
  "%%       !! 
  "%%       ' 
  !!         ! 
  !#$        % 
  !#$        !! 
  "%%        %! 
  !!     
  !#$')       %!" 
  %%      "!!" 
         
  (!       !! 
  !!        ! 
  %%       % * 
  !#'$         %!" 
        " 
        " 
  !#$       
       
       
        " 
        %! 
         
      
      
  %   
      ! 
      " 
  %!"    ! 
  %!"        *! 
  !!       ! 
  !!     "" 
""+,
"+






 -
%
"

%!"
 *+
%!.
.!.#$

!"" 
%
!""#
 
%
!""$ 
!""$ 
"

 
--
%&'&$'&$'
%())*+,)*-./-0+)(1,+2*3-045(+25()
 ' 
%
%
%
%
%()63.+7(+*6(*11*.+3.86,9:(+25()
"",
 -





"!!"
!""$#

.!
!
.!.#$
%!"
/%
-
# 

!!

!
"

 


0
!""$#

# 
'

//
//
""
!#$

 
 
'',%
%();01;.1*09-(307(.+*,4)(.+;01;*95()
%();01;.1*8(/0+80)0,)1*);01;*95()
%())*+,)*4./-1*)*./-1*)*9*0195()
%
%
 
 
 
 
 

ENGLISH
39

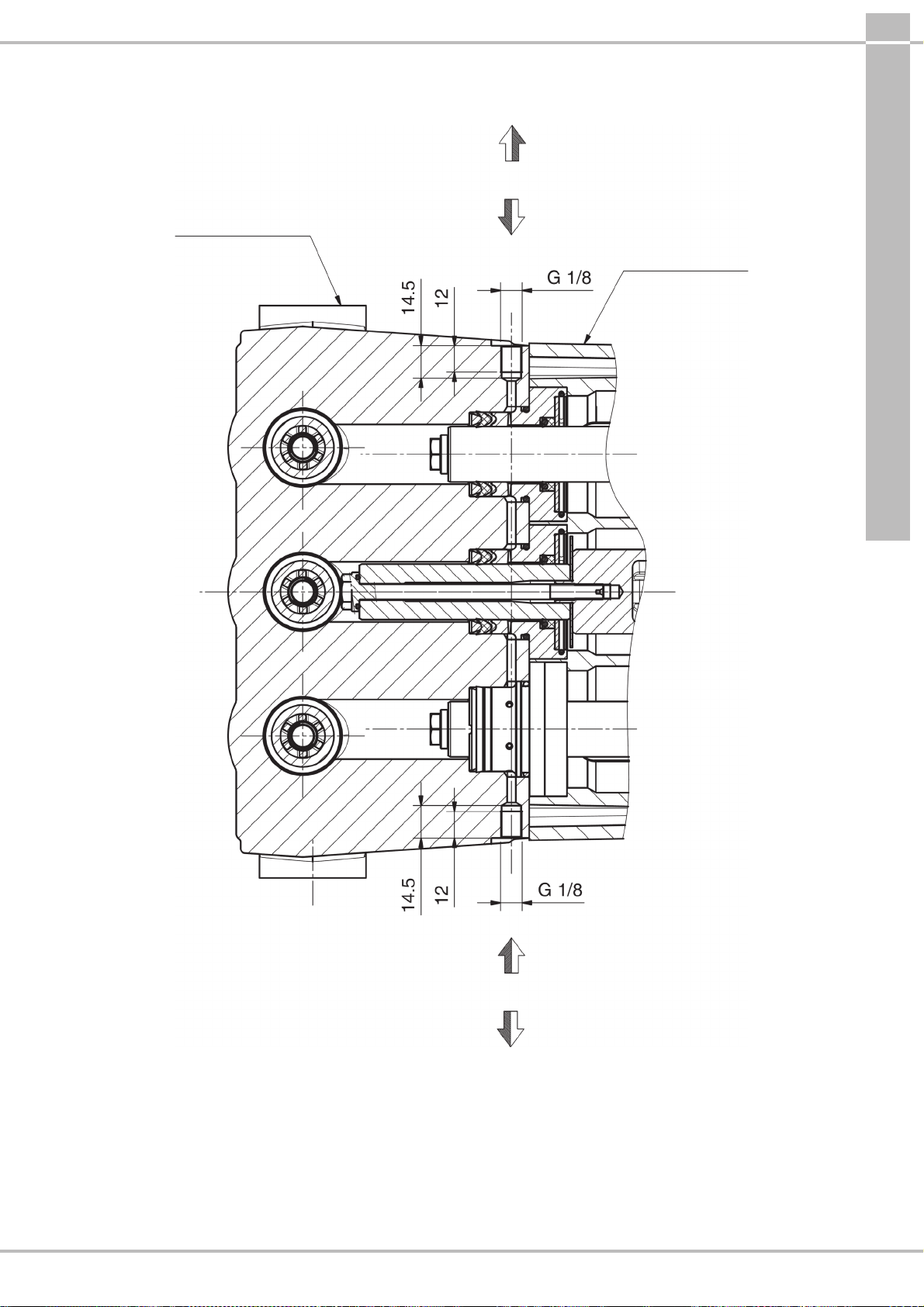

17 FLUSHING CIRCUIT DIAGRAM OF USE
Adhere to the following values for proper system operation:
minimum circuit ow rate 4 l/min, maximum uid pressure 6 bar.
Pump head
Pump casing
Outlet
Inlet
Outlet
Inlet
