128636GS - Krystal Clear cartridge filter unit C1500
Cartridge Filter Unit 2
Hydro Aeration Technology 18
Air Valve For Water Revitalization Set 20
Setup Video 22
Service Center 24

108
GS
(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
English
OWNER’S MANUAL
IMPORTANT
SAFETY RULES
Please read, understand, and follow all
instructions carefully before installing
and using this product. Keep for
future reference.
Don’t forget to try these other fine Intex products: pools, pool
accessories, inflatable pools and in-home toys, airbeds and
boats available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
For illustrative purposes only.
©2022 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp.
All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle
Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/
Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous
licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in
einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &
Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans
l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,
Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited,
21 Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com 108-*GS-R0-2305
Krystal Clear™ Filter Pump
Certified Model Number 636G
12 V~, 50 Hz, 15 A
Hmax 1.0 m, Hmin 0.19 m, IPX5
Max. Water Temperature 35 °C

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 2
Warnings.......................................................................... 3
Parts Reference............................................................... 4-5
Setup Instructions.......................................................... 6-9
Operating Instructions................................................... 10
Operating Time Table..................................................... 11
Pool Care and Chemicals............................................... 12
Maintenance.................................................................... 12-13
Long Term Storage......................................................... 13
Troubleshooting Guide.................................................. 14
Common Pool Problems................................................ 15
General Aquatic Safety.................................................. 15
Limited Warranty............................................................. 16
TABLE OF CONTENTS

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 3
WARNING
IMPORTANT SAFETY RULES
Read, understand and follow all instructions carefully before installing and using this product.
READ AND FOLLOW ALL INSTRUCTIONS
These product warnings, instructions and safety rules provided with the product represent some
common risks of water recreation devices and do not cover all instances of risk and danger. Please
use common sense and good judgement when enjoying any water activity.
• Always supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Assembly and disassembly by adults only.
• Risk of electric shock. Connect transformer only to a grounding type receptacle protected by a
ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified
electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. Use a qualified
electrician to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a portable
residual current device (PRCD).
• Always unplug the transformer from the electrical outlet before removing, cleaning, servicing or
making any adjustment to the product.
• The plug must be accessible after produc t is installed.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers,
hedge trimmers and other equipment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or
converter plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are
wet.
• Keep the transformer more than 3.5m away from the product.
• Keep the plug of the transformer more than 4.0m away from the product.
• Position this product away from the pool, so as to prevent children from climbing on it and
accessing the pool.
• Do not operate this product when the pool is occupied.
• This product is for use with storable pools only. Do not use with permanently installed pools. A
storable pool is constructed so that it may be readily disassembled for storage and reassembled
to its original configuration.
• The appliance is intended only for household use.
• This product is intended to be used only for the purposes described in the manual!
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE,
ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
If the pump was purchased
individually, only these inlet fitting
parts are included. No tools are
required for the assembly.
NOTE: Drawings for illustration purpose only.
Actual product may vary . Not to scale.
2
3
4
5
1
6
3
7
2
8
10
10
Type of filter medium:
Synthetic cartridge #29000
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 THREADED FILTER HOUSING COLLAR 1 10749
2 AIR RELEASE VALVE/SEDIMENT RELEASE VALVE 2 10460
3 VALVE O-RING 2 10264
4 FILTER HOUSING COVER 1 10750
5 FILTER HOUSING O-RING 1 10325
6 FILTER CARTRIDGE 1 29000
7 PUMP HOSE WITH NUTS 2 11009
8 TRANSFORMER 1 10985
12
16
18
13 17 15
INLET

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 5
PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only.
Actual product may vary . Not to scale.
If the pump was purchased as part of a pool set, below fitting parts are included.
Contact our Authorized Service Centers to order these parts if needed.
When ordering parts, be sure to quote the model number and part numbers.
9
10
11 12 13 14 19
OUTLET
9
10
11 12
16
18
13 17 15
INLET
REF.
NO. DESCRIPTION QTY. SPARE PART NO.
Individually Pool Set
9PLUNGER VALVE (HOSE O-RING &
STEP WASHER INCLUDED) 0 2 10747
10 HOSE O-RING 2 4 10262
11 STEP WASHER 0 2 10745
12 STRAINER NUT 1 2 10256
13 FLAT STRAINER RUBBER WASHER 1 2 10255
14 THREADED STRAINER CONNECTOR 0 1 10744
15 ADJUSTABLE POOL INLET JET NOZZLE 1 1 12369
16 AIR JET VALVE 1 1 12363
17 INLET THREADED AIR CONNECTOR 1 1 12371
18 AIR JET VALVE CAP 1 1 12373
19 STRAINER GRID 0 1 12198

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 6
1. In a counter-clockwise motion unscrew
plunger valve union from the threaded
strainer connector (14) (see drawing 1).
Be careful not to lose the step rubber
washer (11). Place the plunger valve on
the ground in a safe place.
2. In a counter-clockwise motion unscrew
the strainer nut (12) from the threaded
connector (14). Leave the flat
washer (13) on the connector (14).
3. Install the strainer and plunger valve at the
lower position of pool outlet (marked "+").
From the inside of the pool liner insert
the connector (14) into one of the
pre-cut holes with the washer remaining
on the connector to be placed against
the inside of the liner wall.
4. Before assembly, lubricate the threads
with a petroleum jelly. Then, with the flat
side of the strainer nut (12) facing the
outside wall of the liner in a clockwise
motion screw the strainer nut (12) back
onto the threaded connector (14) (see
drawing 2).
5. Finger tighten the strainer nut (12) onto
the threaded connector (14).
6. Grasp the plunger valve assembly. Make
sure the step washer (11) is in place.
7. In a clockwise motion screw the plunger
valve union back onto the threaded
connector (14) (see drawing 3).
8. In a clockwise motion turn the plunger
valve handle to close position. Ensure the
plunger valve is securely closed. This will
prevent water from flowing out during
filling of the pool (see drawing 4).
POOL OUTLET -STRAINER & PLUNGER VALVE SETUP (optional)
The strainer grid prevents large objects from jamming and/or damaging the filter pump.
The plunger valve assembly prevents water from flowing into the filter pump while the
filter cartridge is being placed or cleaned. If your pool has an inflatable top ring, install the
strainer, nozzle and plunger valve before inflating the pool liner top ring. The parts
numbers here onward, refer to the parts depicted in the Parts List section of this manual.
To install, do the following:
2
INSIDE
LINER WALL
12 13 14
1
2
1
3
1
2
4
INSIDE
LINER WALL
19

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 7
POOL INLET -NOZZLE & PLUNGER VALVE SETUP (optional)
5
2
1
7
1
2
8
INSIDE
LINER WALL
9
WATER
FLOW
POOL
6
13 17 15
INSIDE LINER
WALL
12
16
NOTE: Do not cover the air jet
valve (16) with the valve cap (18)
under normal situation or when
the pump is operating. See
Troubleshooting Guide section
for more details.
1. In a counter-clockwise motion unscrew
plunger valve union from the inlet threaded air
connector (17) (see drawing 5) Be careful not
to lose the step rubber washer (11). Place the
plunger valve on the ground in a safe place.
2. In a counter-clockwise motion unscrew the
strainer nut (12) from the inlet threaded air
connector (17). Leave the flat washer (13) on
the connector (17).
3. Install the nozzle and plunger valve at the
upper position of pool inlet. From the inside of
the pool liner insert the nozzle union (15 & 17)
into one of the pre-cut holes with the washer
remaining on the connector to be placed
against the inside of the liner wall.
4. Before assembly, lubricate the threads with a
petroleum jelly. Then, with the flat side of the
strainer nut (12) facing the outside wall of the
liner in a clockwise motion screw the strainer
nut (12) back onto the inlet threaded air
connector (17) (see drawing 6).
5. Finger tighten the adjustable pool inlet jet
nozzle (15) and the strainer nut (12) onto the
inlet threaded air connector (17).
6. Grasp the plunger valve assembly. Make sure
the step washer (11) is in place.
7. Screw the air jet valve (16) over the inlet
threaded air connector (17). NOTE: Make sure
the air jet valve is securely tighten and facing
up. In a clockwise motion screw the plunger
valve union back onto the inlet threaded air
connector (17) (see drawing 7).
8. In a clockwise motion turn the plunger valve
handle to close position. Ensure the plunger
valve is securely closed. This will prevent water
from flowing out during filling of the pool (see
drawing 8).

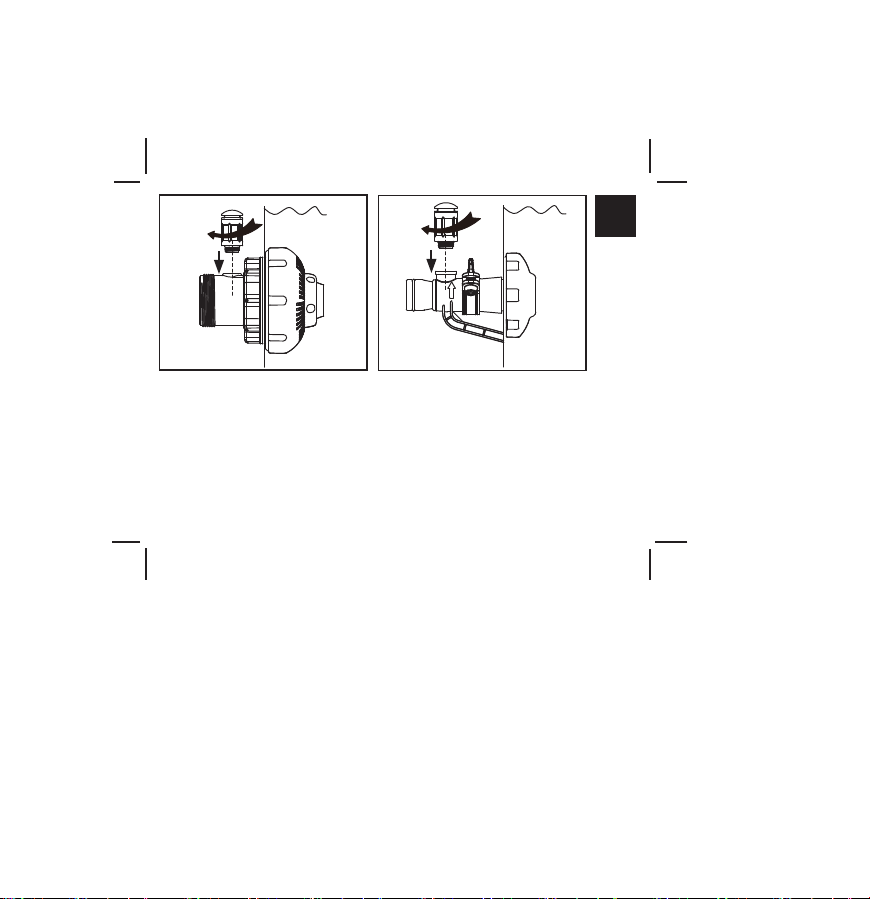

9. Adjust the direction of the nozzle head
pointing away from the pool outlet for a better
circulation result (see drawing 9).
10. The pool liner is now ready to be filled with
water. Consult the above-ground-pool owner’s
manual for the filling instructions.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 8
SETTING UP FILTER PUMP
Some countries, especially in the European community, require the filter pump to be secured to
the ground or to a base in a permanent upright position. Check your local authorities to determine
if there is a regulation in your area regarding above-the-ground swimming pool filter pumps. If yes,
then the filter pump can be mounted to a platform using the two holes located in the base. See
drawing below.
The filter pump can be mounted on a cement base or onto a wooden platform to prevent
accidental falling over. Total assembly must exceed 18kg.
1. The mounting holes are 6.4mm in diameter and spaced 130mm apart.
2. Use two bolts and lock nuts with a maximum of 6.4mm in diameter.
For your own personal safety, it is very important that you place your transformer more than 3.5m
away from your pump.
FILTER PUMP STATIONARY MOUNTING OPTION
130 mm
3.5 m
The power cord plug to the 220-240 volt electrical power source of the filter pump must be
positioned more than 3.5m away from the pool walls. Check your local authorities to determine the
appropriate standard and requirements for “electrical installation of swimming pools and basins
equipment”. The following table is for reference only:
International
France
Germany
The Netherlands
Country/Region Standard Number
IEC 60364-7-702
NF C 15-100-7-702
DIN VDE 0100-702
NEN 1010-702

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 9

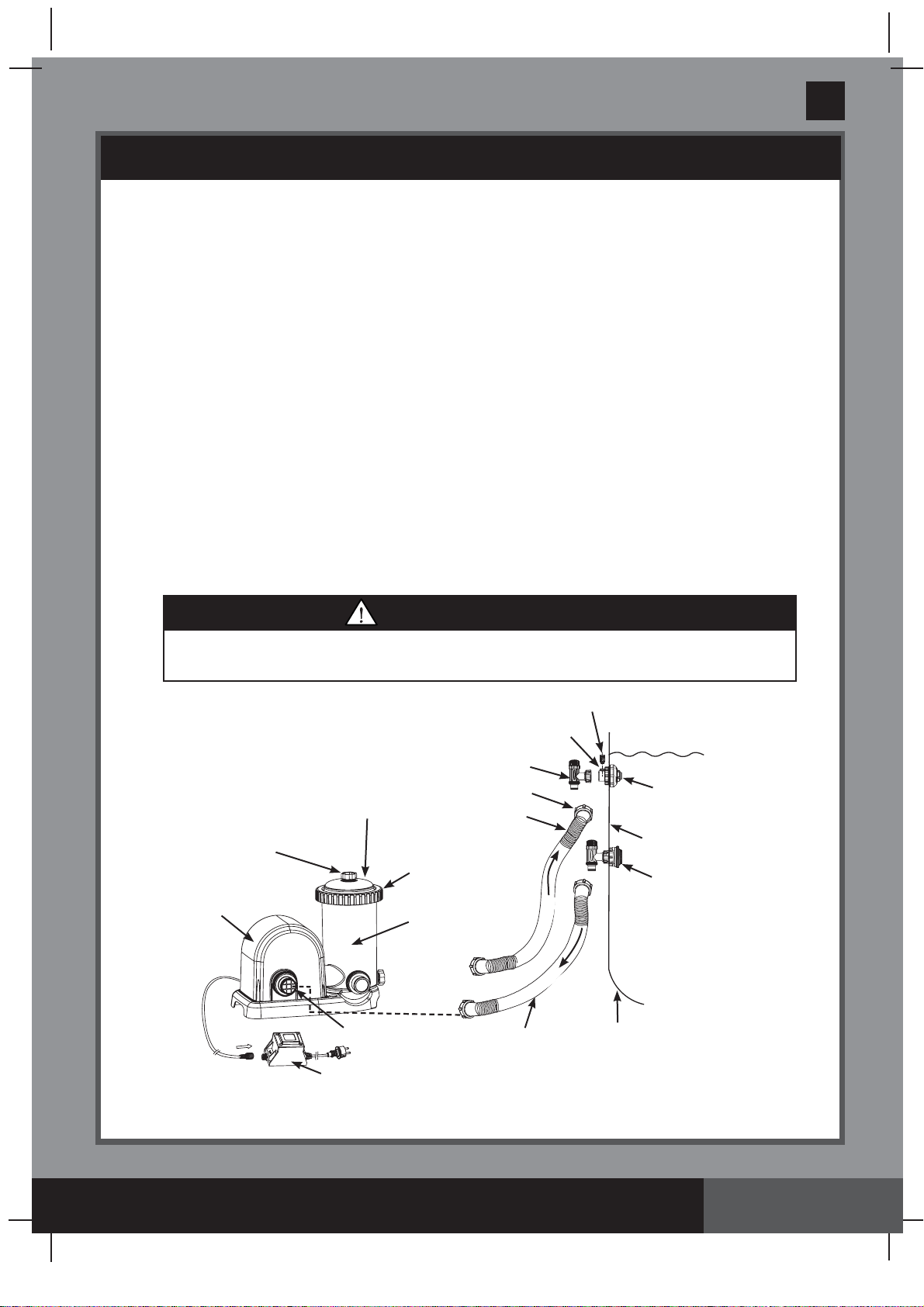

FILTER PUMP HOSE CONNECTION SETUP
It is essential to change any damaged element or set of elements as soon as possible.
Use only parts approved by the manufacturer.
1. Remove the Krystal Clear™ filter pump and hoses from the packaging.
2. Place the filter pump in such a manner, that you can easily assemble the hose (7)
connections to the plunger valve. Ensure the filter pump is accessible at all time for service
and maintenance.
Note: Some regional regulations may require the filter pump to be mounted on a
stationary platform. There are two mounting holes located in the pump base for this
reason. Consult your local authorities for filter pump mounting requirements.
3. Grasp the two pump hoses (7) and connect the hose nuts to the filter pump.
4. In a counter-clockwise motion unscrew the threaded filter housing collar (1) from the filter
housing. Place it in a safe place.
5. The filter pump is an airtight system. Turn the top air release valve (2) once or twice in a
counter-clockwise motion. DO NOT remove the air release valve from the top cover, as
water will expel with force if the motor is turned on. This may cause injury.
6. Grasp and remove the filter housing cover (4). Check to see if a cartridge is inside the
housing. If yes, replace the cover, finger tighten the housing collar (1) back onto the filter
housing.
7. Gently finger tighten the sediment release valve located at the bottom of the housing to be
sure that water does not leak out.
8. When the pool is filled connect the hose from the bottom of the filter housing to the highest
strainer assembly. You will find the hose connection at the bottom of the plunger valve
assembly. Use the hose nut to attach the hose.
9. Connect the second hose which is fixed to the middle of the motor housing to the remaining
liner connection.
WARNING
Position this product away from the pool, so as to prevent children from
climbing on it and accessing the pool.
The installation instruction shall provide information on requirements specified for the electrical
installation and shall include reference to national wiring rules.
THREADED FILTER
HOUSING COLLAR
HOSE NUT
OUTLET HOSE
WATER LEVEL
ADJUSTABLE POOL
INLET JET NOZZLE
INSIDE LINER
WALL
THREADED
STRAINER
CONNECTOR
OUTSIDE LINER
WALL
(ILLUSTRATION NOT TO SCALE)
INLET HOSE
W
A
T
E
R
F
L
O
W
W
A
T
E
R
F
L
O
W
PLUNGER VALVE
ASSEMBLY
FILTER CARTRIDGE
INSIDE
MOTOR
HOUSING
AIR RELEASE
VALVE
FILTER HOUSING
COVER
HOSE O-RING
TRANSFORMER
AIR JET VALVE
INLET THREADED
AIR CONNECTOR

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 10

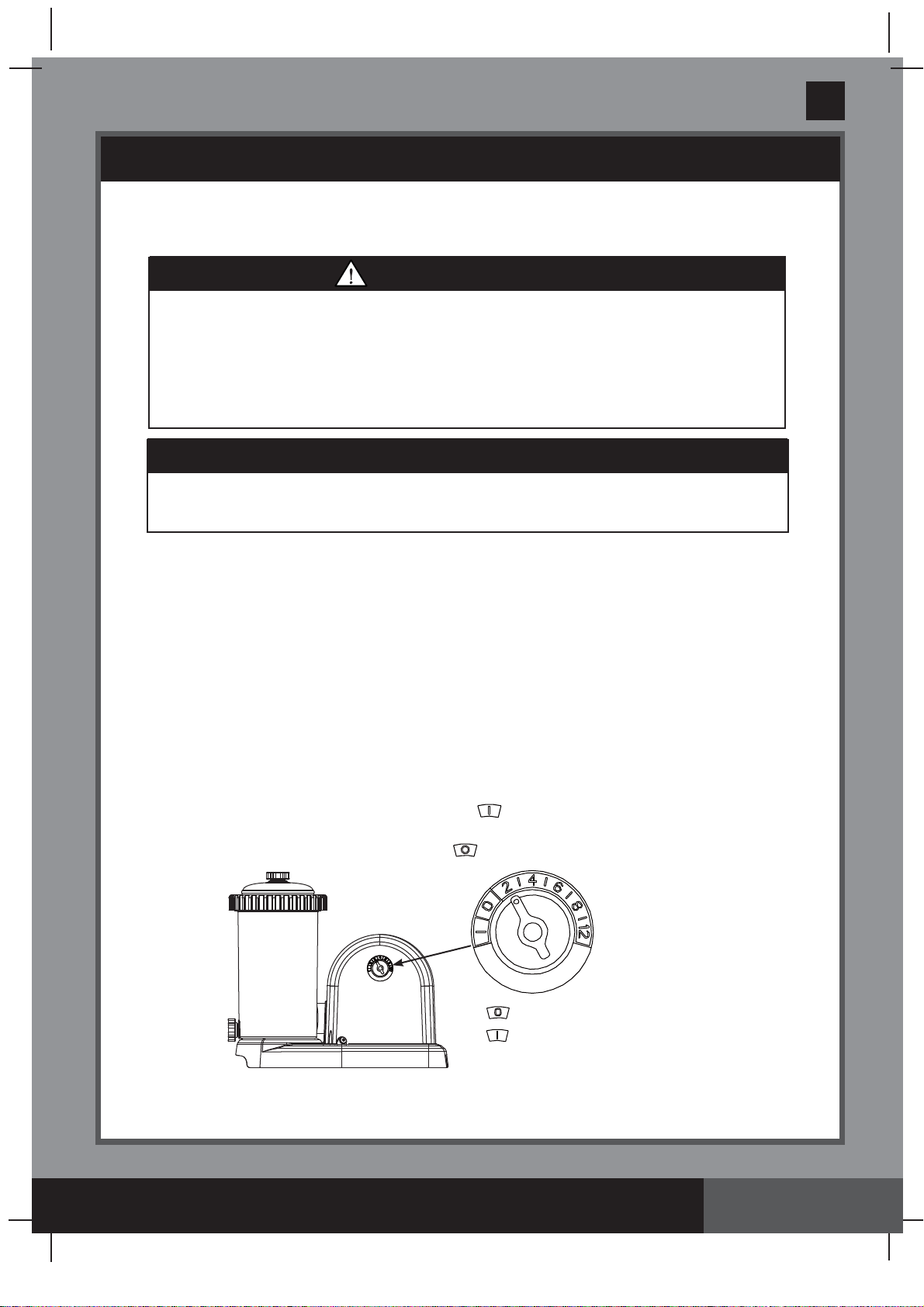

1. Make sure the filter pump is switched off. The switch is located on the motor housing.
2. Connect the filter pump power cord end to the transformer output receptacle and screw in
the cover. Plug the transformer power cord into a properly installed electrical socket.
OPERATING INSTRUCTIONS
3. Turn both plunger valve handles fully counter-clockwise until they stop. This opens the
valve, allowing water to flow into the filter pump.
4. With water flowing into filter pump, the water pressure will allow the air trapped inside to
escape from the air release valve (2). When all the air has escaped water will flow out of the
valve (2). When this occurs gently finger tighten the valve (2) in a clockwise direction.
5. To operate the filter pump on “TIMER” mode:
A. Plug the power cord into the electrical outlet and set the timer dial to the desired
operating hours (see Fig. 10). See the “Operating Time Table” for the required operating
hours related to each pool size.
B. The filter pump is now filtering the water and will stop after the operating hours are
completed. The built-in timer will now operate for the number of hours selected at the
same time each day.
C. Operating hours can be re-adjusted if necessary. Follow step A – B.
To operate the filter pump manually (without the “TIMER” mode):
A. Turn on the pump by setting the dial to “ ” position, the filter pump is now filtering
the water.
B. To turn off the pump, set the dial to “ ” position.
FIG 10
: ON (without the Timer)
2 / 4 / 6 / 8 / 12 : Timer operating time (hours)
: OFF
6. Never put pool chemicals directly into the filter pump. This may damage the pump and void
the warranty.
IMPORTANT
To prevent air lock, open the lower plunger valve (connected inlet hose) first and
then the upper plunger valve (connected outlet hose). Open the air release valve,
wait until water starts to flow out of the air release valve, close air release valve.
WARNING
Risk of electric shock. Connect this product only to a grounding type
receptacle protected by a ground-fault circuit interrupter (GFCI) or
residual current device (RCD). Contact a qualified electrician if you
cannot verify that the receptacle is protected by a GFCI/RCD. Use a
qualified electrician to install the GFCI/RCD, which has a maximum rate
of 30mA. Do not use a portable residual current device (PRCD).

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 11
OPERATING TIME TABLE
This table shows the required operating time for average use of the filter pump with AGP's.
The filter pump running time should be 1 hour longer than the required operating time of the
Saltwater System.
Pool Size
Water Capacity (Calculated at 90%
for Frame Pool and 80% for Easy Set
& Oval Pool)
Recommend
operating hours
per day
(Gals) (Liters) (Hours)
INTEX ABOVE GROUND POOLS (AGP’s)
EASY SET®
POOL
18ʹ x 42ʺ (549cm x 107cm)
4,786 18,115 4
18ʹ x 48ʺ (549cm x 122cm)
5,455 20,647 6
CIRCULAR
METAL FRAME
POOL
18ʹ x 48ʺ (549cm x 122cm)
6,423 24,311 6
21ʹ x 52ʺ (640cm x 132cm)
9,533 36,082 8
ULTRA/XTR
FRAME
POOL
16ʹ x 48" (488cm x 122cm)
5,061 19,156 4
18ʹ x 48ʺ (549cm x 122cm)
6,423 24,311 6
18ʹ x 52ʺ (549cm x 132cm)
6,981 26,423 6
20ʹ x 48ʺ (610cm x 122cm)
7,947 30,079 6
GRAPHITE GRAY
PANEL POOL
SET™
15ʹ8ʺ x 49ʺ (478cm x 124cm)
4,440 16,805 4
16ʹ8" x 49" (508cm x 124cm)
5,061 19,156 4
18ʹ8" x 53" (569cm x 135cm)
6,981 26,423 6
OVAL FRAME
POOL
20ʹ x 12ʹ x 48ʺ (610cm x 366cm x 122cm)
4,393 16,628 4
RECT. ULTRA
FRAME POOL
15ʹ x 9ʹ x 48ʺ (457cm x 274cm x 122cm)
3,484 13,187 4
18ʹ x 9ʹ x 52ʺ (549cm x 274cm x 132cm)
4,545 17,203 4
20ʹ x 10ʹ x 52ʺ (610cm x 305cm x 132cm)
5,611 21,238 4
24ʹ x 12ʹ x 52ʺ (732cm x 366cm x 132cm)
8,403 31,805 6

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 12
POOL CARE AND CHEMICALS
CLEANING OR REPLACING FILTER CARTRIDGE
It is recommended that the filter cartridge be replaced at least every 2
weeks. Regularly monitor the filter clogging level.
1. Make sure the filter pump is turned off, then unplug the transformer power cord from the
electrical socket.
2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it
stops and then turn it clockwise until the plastic protruding notch anchors in the "0/1"
position. Repeat for the second plunger valve. This prevents the water from flowing out
of the pool.
3. Gently turn the top air release valve once or twice in a counter-clockwise direction. The
housing cover can now be easily removed.
4. In a counter-clockwise direction remove the filter housing collar (1). Place it in a safe
location.
5. Remove the housing cover (4).
6. Now remove the used filter cartridge.
• All pools require care to keep the water clear and hygienically clean. With proper chemical
control, your filter will help attain this objective. Consult your pool supply dealer for
instructions regarding the proper use of chlorine, algaecide and other chemical agents
required for sparkling clear water.
• Keep pool chemicals away from children.
• Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could
occur.
• Daily pH checking and chemical treatment of the water is very important and can not be
overemphasized. Chlorine, algaecide and maintenance of proper pH levels are required
when filling the pool as well as during the season. Consult your local swimming pool
supply store for instructions.
• The season's first filling of the pool may have brackish water requiring extra water
additives and extra filter changes. Do not allow swimming in pool until the pH level is
balanced. Consult your local swimming pool supply store for instructions.
• Keep spare filter cartridges on hand. Replace cartridges every two weeks.
• Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool
and splash water outside the pool. Lawn areas underneath the pool liner will be destroyed.
Note that some types of grass may grow through the liner.
• Filter run time depends on pool size, weather and usage level. Experiment with various run
times so as to produce clean clear water.
• European standard EN16713-3 lists some additional pool water quality and water treatment
information that can be found at www.intexcorp.com/support.
CAUTION
Concentrated chlorine solutions may damage the pool liner. Always
follow the chemical manufacturer’s directions, and the health
warnings.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 13
LONG TERM STORAGE & WINTERIZATION
1. Before emptying your pool for long term storage, or relocation, be sure the water is directed
towards an acceptable drain water receptacle away from the house. Check local regulations
for specific directions regarding disposal of swimming pool water.
2. Disconnect power cord from electrical outlet.
3. Now, drain the pool.
4. When the pool is empty, disconnect all hoses from the pump and plunger valves and remove
the strainers from the pool wall.
5. Drain all water from the filter pump.
6. Leave filter pump pieces & hoses outside to thoroughly air dry.
7. Remove both plunger valves from the connectors (14 & 17). Be careful not to lose the step
rubber washer (11).
8. Coat the following O-rings and washers with petroleum jelly for long term storage:
• Air release valve & sediment O-rings (3).
• Filter housing cover O-ring (5).
• Pump hose O-rings (10).
• Strainer valve assembly step washers (11).
• Flat strainer rubber washers (13).
9. Discard the used filter cartridge. Put aside 1 or 2 new cartridges for next season’s use.
10. It is best to place all dry pieces in the original packaging for storage or place them in an
airtight plastic bag.
11. Store the unit and accessories in a dry place. The storage's temperature should be
controlled, between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit
(40 degrees Celsius) storage location.
CLEANING OR REPLACING FILTER CARTRIDGE (continued)
7. Examine the inside of the filter housing.
8. If dirt or sediment is located on the bottom of the housing then:
A. In a counter-clockwise motion gently unscrew and remove the sediment valve (2) located
at the bottom of the housing. Place it in a safe place.
B. With a bucket of water or a garden hose pour water into the housing flushing out the
sediment.
C. Screw back the sediment valve (2) in a gentle clockwise motion. Do not over-tighten.
9. Place a new cartridge filter in the housing. Only use the original Intex cartridge for
replacement. See “Parts Reference” section for detail.
10. Return the housing cover (4) to its position and in a clockwise direction rescrew the housing
collar (1) onto the filter housing.
11. Turn both plunger valve handles in a counter-clockwise direction, pull up until they stop, and
then turn them clockwise until the metal protruding notch anchors in the "0/1" position.
12. When the trapped air has escaped through the air release valve gently retighten the valve (2)
in a clockwise direction.
13. Reconnect the power cord.
14. Turn on the pump.
15. Check the inlet and outlet openings regularly to ensure they are not obstructed thus
preventing a good filtration.
16. The disposal of any used filter media should be in accordance with applicable local regulation
and legislation.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 14
TROUBLESHOOTING GUIDE
FILTER MOTOR
FAILS TO START
FILTER DOESN’T
CLEAN POOL
FILTER DOESN’T PUMP
WATER OR THE WATER
FLOW IS VERY SLOW
PUMP DOESN’T WORK
TOP COVER
LEAKING
HOSE LEAKING
AIR LOCK
INLET THREADED
AIR CONNECTOR/AIR
JET VALVE LEAKING
SMALL LEAK FROM
AIR JET VALVE WHEN
PUMP IS ON
• The motor is not plugged in.
• The GFCI/RCD circuit breaker is
tripped.
• Motor too hot and overload protection is
shut off.
• Improper chlorine or pH levels.
• Filter cartridge is dirty.
• Damaged cartridge.
• Excessively dirty pool.
• The strainer screen is
restricting the water flow.
• Clogged inlet or discharge.
• An air leak on the intake line.
• Scale or buildup on cartridge.
• Excessively dirty pool.
• Dirty filter cartridge.
• The nozzle and strainer
connection are reversed.
• Inlet threaded air connector connected
to the wrong hole on the liner.
• Low water level.
• Strainer screen plugged up.
• An air leak on the intake hose.
• Faulty motor or the impeller is jammed.
• An air lock inside the cartridge chamber.
• O-ring missing.
• Cover or air release valve are not tight.
• Hose nuts are not well-fitted.
• Hose o-ring dislodged when connecting
the hose.
• Hose broken.
• There’s air trapped in the pump housing
and inlet hose.
• The inlet and outlet hoses connection
are reversed.
• Plunger valve not well-fitted.
• Air jet valve is not tight and facing up.
• Air jet valve internal seal blocked.
• Air jet valve internal seal dirty.
• Air jet valve broken.
• Accessories attached to the water
circulation line.
TROUBLE CAUSE SOLUTION
• Filter cord must be plugged into a 3 wire outlet
that is protected by a Class A Ground Fault Circuit
Interrupter, or RCD.
• Reset circuit breaker. If circuit breaker trips
repeatedly, your electrical system may have
a defect. Turn off circuit breaker and call an
electrician to correct the problem.
• Let the motor cool down.
• Adjust the chlorine and pH level. Consult your
local swimming pool supply stores.
• Clean or replace cartridge.
• Check the cartridge for holes. Replace if damaged.
• Operate the filter for longer periods.
• Clean the strainer screen at the inlet.
• Clear any obstructions in the intake hose by
discharging it inside pool wall.
• Tighten hose nuts, check hoses for damage, check
pool water level.
• Replace cartridge.
• Clean cartridge more often.
• Clean inside the plunger valve.
• Pull valve handle to full upright position.
• Install the nozzle at the upper position of the pool inlet,
and the strainer at the lower position of the pool outlet.
• Make sure the inlet threaded air connector is
connected to the pool inlet upper hole.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose nuts, check hose for damage.
• Clear any sticks or leaves in the intake hose.
• Turn and pull valve handle to full upright position.
• Remove cover & check for O-ring.
• Tighten cover or valve (Manually).
• Tighten or reinstall hose nut.
• Put the o-ring back into the groove.
• Replace a new hose.
• Open air release valve, wait until water starts to
flow out of the valve, then close it.
• The lower position of pool outlet connects to filter
pump water inlet. The upper position of pool inlet
connects to filter pump water outlet.
• Tighten or reinstall plunger valve.
• Tighten air jet valve and make sure it’s facing up.
• Turn pump ON and run for few seconds, then turn
OFF, repeat 3 times.
• Remove air jet valve, flush dirt out with water and
replace valve back.
• Replace a new air jet valve.
• Remove all the accessories (such as solar mat,
auto pool cleaner, LED light) from the water
circulation line and place the air jet valve cap (18)
over the air jet valve (16). Do not cover the air jet
valve (16) with the valve cap (18) under normal
situation or when the pump is operating.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 15
COMMON POOL PROBLEMS
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED
WATER
FLOATING
MATTER IN
WATER
CHRONIC LOW
WATER LEVEL
SEDIMENT ON
POOL BOTTOM
SURFACE DEBRIS
• Chlorine and pH levels
need adjustment.
• Copper, iron or manganese in
water being oxidized by the
added chlorine.
This is Common.
• "Hard water" caused by a too
high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Rip or hole in pool liner or hoses.
• The drain valves are loose.
• Heavy use, getting in
and out of pool.
• Pool too close to trees.
• Super chlorinate with shock
treatment. Correct pH to your pool
store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH level to the
recommended level.
• Run filter until water is clear.
• Clean cartridge frequently.
• Correct the pH level. Check with your
pool dealer for advice.
• Adjust the chlorine level.
• Clean or replace your filter.
• Repair with a patch kit.
• Finger tighten all caps.
• Use Intex pool vacuum to clean
bottom of pool.
• Use Intex pool skimmer.
• Greenish water.
• Green or black spots on
pool liner.
• Pool liner is slippery and/
or has a bad odor.
• Water turns blue,
brown, or black
when first treated
with chlorine.
• Water is cloudy or
milky.
• Level is lower than
on previous day.
• Dirt or sand on
pool floor.
• Leaves, insects etc.
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of
injury and death. To reduce your risk of injury, read and follow all product, package and
package insert warnings and instructions. Remember, however, that product warnings,
instructions and safety guidelines cover some common risks of water recreation, but do
not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general guidelines
as well as guidelines provided by nationally recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard” or
water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about the
use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.
IMPORTANT
If you continue to experience difficulty, please contact our Consumer Service
Department for assistance. See separate “Authorized Service Centers” sheet.

(108GS) MODEL 636G FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/23/2022
108
GS
SAVE THESE INSTRUCTIONS
English
Page 16
LIMITED WARRANTY
Your Krystal Clear™ Filter Pump has been manufactured using the highest quality materials
and workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This limited warranty applies only to the Krystal Clear™ Filter Pump and
accessories listed below.
This limited warranty is in addition to, and not a substitute for, your legal rights and remedies.
To the extent that this warranty is inconsistent with any of your legal rights, they take priority.
For example, consumer laws across the European Union provide statutory warranty rights in
addition to the coverage you receive from this limited warranty: for information on EU-wide
consumer laws, please visit the European Consumer Center website at http://ec.europa.eu/
consumers/ecc/contact_en/htm.
The provisions of this limited warranty apply only to the original purchaser and are not
transferable. This limited warranty is valid for the period noted below from the date of the
initial retail purchase. Keep your original sales receipt with this document, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty
is invalid.
Krystal Clear™ Filter Pump Warranty – 2 Years
Hoses, Plunger Valves & Fittings Warranty – 180 days
If you find a manufacturing defect in the Krystal Clear™ Filter Pump during the warranty
periods noted above, please contact the appropriate Intex Service Center listed in the
separate “Authorized Service Centers” sheet. If the item is returned as directed by the Intex
Service Center, the Service Center will inspect the item and determine the validity of the
claim. If the item is covered by the provisions of the warranty, the item will be repaired or
replaced, with the same or comparable item (at Intex’s choice) at no charge to you.
Other than this warranty, and other legal rights in your country, no further warranties are
implied. To the extent possibly in your country, in no event shall Intex be liable to you or any
third party for direct or consequential damages arising out of the use of your Krystal Clear™
Filter Pump, or Intex or its agents’ and employees’ actions (including the manufacture of the
product). If your country does not allow the exclusion or limitation of incidental or
consequential damages, this limitation or exclusion does not apply to you.
You should note that this limited warranty does not apply in the following circumstances:
• If the Krystal Clear™ Filter Pump is subject to negligence, abnormal use or application,
accident, improper operation, improper voltage or current contrary to operating instructions,
improper maintenance or storage;
• If the Krystal Clear™ Filter Pump is subject to damage by circumstances beyond Intex’s
control, including but not limited to, ordinary wear and tear and damage caused by
exposure to fire, flood, freezing, rain, or other external environmental forces;
• To parts and components not sold by Intex; and/or
• To unauthorized alterations, repairs or disassembly to the Krystal Clear™ Filter Pump by
anyone other than Intex Service Center personnel.
The costs associated with the loss of pool water, chemicals or water damage are not covered
by this warranty. Injury or damage to any property or person is not covered by this warranty.
Read the owner’s manual carefully and follow all instructions regarding proper operation and
maintenance of your Krystal Clear™ Filter Pump. Always inspect your product prior to use.
This limited warranty will be void if use instructions are not followed.

1702
Intex Hydro Aeration Technology™ inlet tting installation on Bestway®Pool /
Installation de la buse de refoulement avec oxygénation INTEX sur les piscines Bestway®/
Accesorio de conexión a piscinas Bestway® del Sistema Intex Hydro Technology™ de aireación /
Montage des “Intex Hydro Aeration Technologie” - Einlass-Anschlussstücks an den Bestway®-Pool /
Installazione della bocchetta in entrata con Tecnologia di aerazione Hydro Intex su piscine Bestway®/
Hydro Beluchtingstechnologie™ inlaat aansluitbaar op een Bestway® zwembad
For 38 mm (1.5 in) tting / Pour les connexions diamètre 38 mm / Ajuste para medida de 38 mm (1,5 pulgadas) /
Für 38 mm - Anschlussstück / Per bocchetta da 38mm / Geschikt voor een 38mm (1.5 in) aansluiting :
For 32 mm (1.25 in) tting / Pour les connexions diamètre 32 mm / Ajuste para medida de 32 mm (1,25 pulgadas) /
Für 32mm - Anschlussstück / Per bocchetta da 32mm / Geschikt voor een 32mm (1.25 in) aansluiting :

p

pool wall


1702-***-R0-2106
 4.875” X 7.25”  
®
®
®
®
®
® 
#12334

1702
O encaixa da entrada da tecnologia de Hidro Aeração Intex pode ser utilizado em piscinas da Bestway®/
Intex Hydro Aeration Technology™ indløbsarmatur til Bestway®Pool /
Wlot Intex Hydro Aeration Technology™ do instalacji w basenach Bestway®/
Крепление насадки Hydro Aeration Technology™ от Intex на бассейн Bestway®/
Intex 文丘里系统用于 Bestway®泳池的安装说明
Encaixe para 38 milímetros (1,5 in) / Til armatur på 38 mm / Do instalacji 38 mm (1,5 in) /
Для отверстий 38 мм (1,5 дюйма) / 用于 38 mm (1.5 in) 装置 :
Encaixe para 32 milímetros (1,25 in) / Til armatur på 32 mm / Do instalacji 32 mm (1,25 in) /
Для отверстий 32 мм (1,25 дюйма) / 用于 32 mm (1.25 in) 装置 :


p

pool wall


#12334
®
®
®
® 
Bestway® 是 Bestway Inflatables & Material Corp 的注册商标。Intex 与 Bestway 没有任何关联或由其赞助。

1701
1701-***-R0-2206
(1701) Aeration adaptor air valve EN, FR, SP, GE, IT, DU, PT, DA, PL, RU, CH SIZE: 3.5” X 2.5” 06/02/2021
NOTE: When the pump is off there might be some tear drop water coming out of the air jet valve. This is normal!
NOTE: Lorsque la pompe est arrêtée, des gouttes d’eau peuvent apparaître au niveau de la valve d’entrée d’air. Ceci est normal.
NOTA: Cuando la bomba esté apagada puede que salga alguna gota de agua por la válvula de salida de aire. Esto es normal.
HINWEIS: Wenn die Pumpe ausgeschaltet ist, könnten einige kleine Wassertropfen aus dem Luftventil kommen. Das ist normal!
NOTA: Quando la pompa è spenta potrebbe uscire un po' di acqua dalla valvola, è normale!
NB: Wanneer de pomp uitgeschakeld is, kan er een druppel water uit het ventiel komen. Dit is normaal.
NOTE: Quando a bomba estiver desligada, pode haver um pouco de água saindo da válvula de ar. Isto é normal!
BEMÆRK: Når pumpen er slukket kan der komme vanddråber ud af luftventilen. Dette er normalt!
UWAGA: Kiedy pompa jest wyłączona z zaworu może sięsączyćwoda. To jest normalne.
ПРИМЕЧАНИЕ:Ввыключенном состоянии возможно появление капель воды врайоне воздушного клапана. Это норма!
备注：关闭过滤器后，单向阀可能会有水滴落，属正常现象！
