(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 1
INTEX®OWNER’S MANUAL
Krystal Clean Poolwater™ System
Model 8221 220 - 230 V~, 50 Hz
Model 8231 230 - 240 V~, 50 Hz
450W, IPX4, Hmax 1.5 m, Hmin 0.19 m
Max. Water Temperature 35
o
C
Warning 2
Parts Reference 3-4
Product Information and Specifications 5
Set Up Instructions 6-8
Salt & Pool Water Volumes 9
Intex Pools Salt Table 10
Intex Pools Operating Time Table 11
Non Intex Pools Salt Table 12
Non Intex Pools Operating Time Table 12
Operating Instructions 13-15
Alarm Codes & LED Code Chart 16-17
Stationary Mounting Option 17
Maintenance 18-20
Long Term Storage 20
INTEX 3-Way Test Strips 21
Pool Maintenance and Chemical Definitions 21
Trouble Shooting Guide 22-24
General Aquatic Safety 24
Limited Warranty 25
Intex Service Center Locations 25
TABLE OF CONTENTS
IMPORTANT SAFETY RULE
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING
AND USING THIS PRODUCT.
Made in China
© 2006 ®™ Intex Recreation Corp.
Intex Trading Ltd.
C/O Intex (HongKong) Ltd.
Intex Trading B.V.
P. O. Box nr. 1075-4700 BB Roosendaal
104**-R0-0709

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 2
This Saltwater System/Filter Pump is intended to be used only for the purposes described in this
manual. Failure to follow all product, package and package insert safety and installation instructions
could result in property damage, electric shock, entanglement or other serious injury or death.
READ AND FOLLOW ALL INSTRUCTIONS
•To reduce the risk of injury, do not permit children to use this product. Always supervise children
and those with disabilities.
•Risk of electric shock. Connect this product only to a grounding type receptacle protected by a
ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified
electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. Use a qualified
electrician to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a portable
residual current device (PRCD).
•Do not bury electrical cord. Locate cord where it will not be damaged by lawn mowers, hedge
trimmers, and other equipment.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
•To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter
plugs to connect unit to electric supply; provide a properly located outlet.
•Assembly and disassembly by adults only.
•Do not attempt to plug in or unplug this product while standing in water or when your hands are
wet.
•Children must stay away from this product and all electrical cords.
•Do not operate this product when pool is occupied.
•Always unplug this product from the electrical outlet before cleaning and servicing.
•This product is for use with storable pools only. Do not use with permanently-installed pools. A
storable pool is constructed so that it is capable of being readily disassembled for storage and
reassembled to its original integrity.
•Keep this product more than 2m away from the pool.
•Keep this product more than 3.5m away from the pool (for France only).
•Keep the plug of this product more than 3.5m away from the pool.
•The plug shall be accessible after product installed.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, ELECTRIC
SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.
WARNING
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
IMPORTANT SAFETY RULE
The product warnings, instructions and safety rules provided with this product represent some of the
common risks associated with water recreation appliances and do not cover all instances of risk or
danger. Please use common sense and good judgement when enjoying any water activity.
For Portable, Above-The-Ground Pools Only

REF. NO. DESCRIPTION QTY. REMARK
05CG-01 Electrolytic Cell (with Titanium Plates) 1
05CG-02 O-Ring A (pre-installed in 05CG-01) 1
05CG-03 Screw 2
05CG-04 Flow Sensor 1
05CG-05 O-Ring B (pre-installed in 05CG-06) 1
05CG-06 Flow Sensor Conduit 1
05CG-07 O-Ring C (pre-installed in 05CG-06) 1
05CG-08 Debris Screen 1
05CG-14 Angle Joint 1
05CG-15 O-Ring D (pre-installed in 05CG-14) 1
5F12 Air Release Valve/Sediment Release Valve 2
5F13 Valve O-Ring 2
6F14 Filter Housing Cover 1
6F15 Filter Housing O-Ring 1
6F16 Threaded Filter Housing Collar 1
5NF32 Pump Hose with nuts 2
59905 Filter Cartridge 1
05F-37 Air Release Valve B (with o-ring) 1
05F-38 Water Transfer Hose (with collar and 2 hose clamps) 1
104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 3
Before assembling your product, please take a few minutes to check the contents and become familiar
with all the parts.
PARTS REFERENCE
5F12
05F-37
05CG-03
05F-38
5NF32 05CG-02 05CG-01 05CG-05 05CG-06 05CG-08 05CG-14
CELL HOUSING
RECEPTACLE
ELECTROLYTIC CELL
LINE CORD
POWER CORD
5F13
6F16
5F13
05CG-04 05CG-15
05CG-07
5F12
FLOW SENSOR
LINE CORD
6F14
6F15
5NF32
WATER FROM
POOL
WATER TO
POOL
59905

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 4
REF. NO. DESCRIPTION QTY. REMARK
5F01 Strainer Grid
06NF-02 Threaded Strainer Connector
5F03 Flat Strainer Rubber Washer
5F04 Strainer Nut
06NF-05 Step Washer
5F11 Hose O-Ring
06NF-30 Plunger Valve (06NF-05 & 5F11 included) 2
5F31 Large Strainer (5F01/03/04 & 06NF-02) 2 For 18’ and above Pools
05CG-12 Adaptor B 2 For 16’ and below Pools
F12 Strainer 2 For 16’ and below Pools
5F11
LINER
06NF-30
06NF-05
5F04
05CG-12
5F03 06NF-02 5F01
PARTS REFERENCE (CONT.)
F12

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 5
Product Information and Specifications
How the Chlorine is Generated
Common salt (sodium chloride) is made up of two elements, sodium and chloride. During the installation of
your Saltwater System/Filter Pump, a measured quantity of salt is dissolved in the pool water to make it
slightly salty. This pool water is passed through the Saltwater System’s electrolytic cell to produce chlorine
which is dissolved instantly in the water. The chlorine instantly starts to destroy bacteria, viruses, algae and
oxidizes other organic materials.
Key Saltwater System Parts:
•Power Supply
The power supply converts AC electrical current to a low voltage DC current. This is required by the
cell to perform the electrolysis that creates chlorine.
•Electrolytic Cell (with Titanium Plates)
The electrolytic cell contains bipolar titanium electrodes which perform the electrolysis and produce liquid
chlorine when energized with DC electricity. Chlorine is generated when pool water containing salt
passes through the cell. The chlorine production can be varied by changing the number of hours the
Saltwater System is operating each day. The Saltwater System has a built-in self cleaning cycle that
operates every two hours without interrupting chlorine production.
•Flow Sensor
The flow sensor protects the electrolytic cell and ensures there is adequate water flowing through the
cell. When the water flow drops below minimum flow rate, the electrolytic cell will automatically shut
down to protect the titanium plates. A safety buzzer will sound and the LED display panel will show a
signal code (see “LED Code Chart”) indicating the problem.
•Electronic Control Station
The electronic control station contains an LED display panel and a set of pushbuttons to program the
Saltwater System operating hours. It also monitors the different parameters such as salt level, water
flow and the electrolytic cell activity. If any deviation from the norm occurs then a buzzer will sound and
the LED display panel will show a signal code (see “LED Code Chart”) indicating the problem.
PRODUCT SPECIFICATIONS
Wattage: 450 W
Ideal Salt Level: 3000 ppm (parts per million)
Maximum Chlorine Output/hour: 24 grams/hour
Limited Warranty: 1 Year (see “Limited Warranty”)
Water Outlet
Water Inlet
Flow Sensor
Electronic
Control Station
Electrolytic Cell
(with Titanium
Plates)

IMPORTANT: The Saltwater System/Filter Pump must be installed as the last piece of pool
equipment in the water return line to the pool. This location extends the life of the titanium plates.
Strainer & Plunger Valve Set Up (16’ and below AGP)
The Saltwater System/Filter Pump assembly includes two (2) strainer-control mechanisms that are to
be installed in the pool liner's two (2) protruding hose connections with adaptor B. The strainer grid
prevents large objects from jamming and/or damaging the filter pump and the plunger valve assembly
prevents water from flowing into the filter pump while the filter cartridge is being placed or cleaned.
Install the strainer and plunger valve before inflating the pool liner top ring.
1. Grasp the strainer and plunger valve mechanism.
2. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector
(06NF-02). Be careful not to lose the step rubber washer (06NF-05).
3. Grasp the plunger valve assembly. Make sure the step washer (06NF-05) is in place. Connect
adaptor B (05CG-12) to plunger valve union.
4. Repeat steps 1 through 3 for another plunger valve.
5. Remove wall plug and then insert the strainer (F12) into each of the protruding hose connection.
Adaptor B (05CG-12) fit over the strainer inserted into the connection.
6. Examine the plunger valve to see if the handle is pushed fully down to the "0/1" position. If not,
then grasp the handle at the top and push down turning the handle in a clockwise direction until the
plastic protruding notch anchors in the "0/1" position. This will prevent water from flowing out during
filling.
7. Repeat steps 1 through 6 for the 2nd protruding hose connection.
8. The pool liner is now ready to fill with water. Consult the above-ground-pool owner's manual for
filling instructions.
---- INTERVAL FOR POOL FILLING ----
104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 6
Set Up Instructions

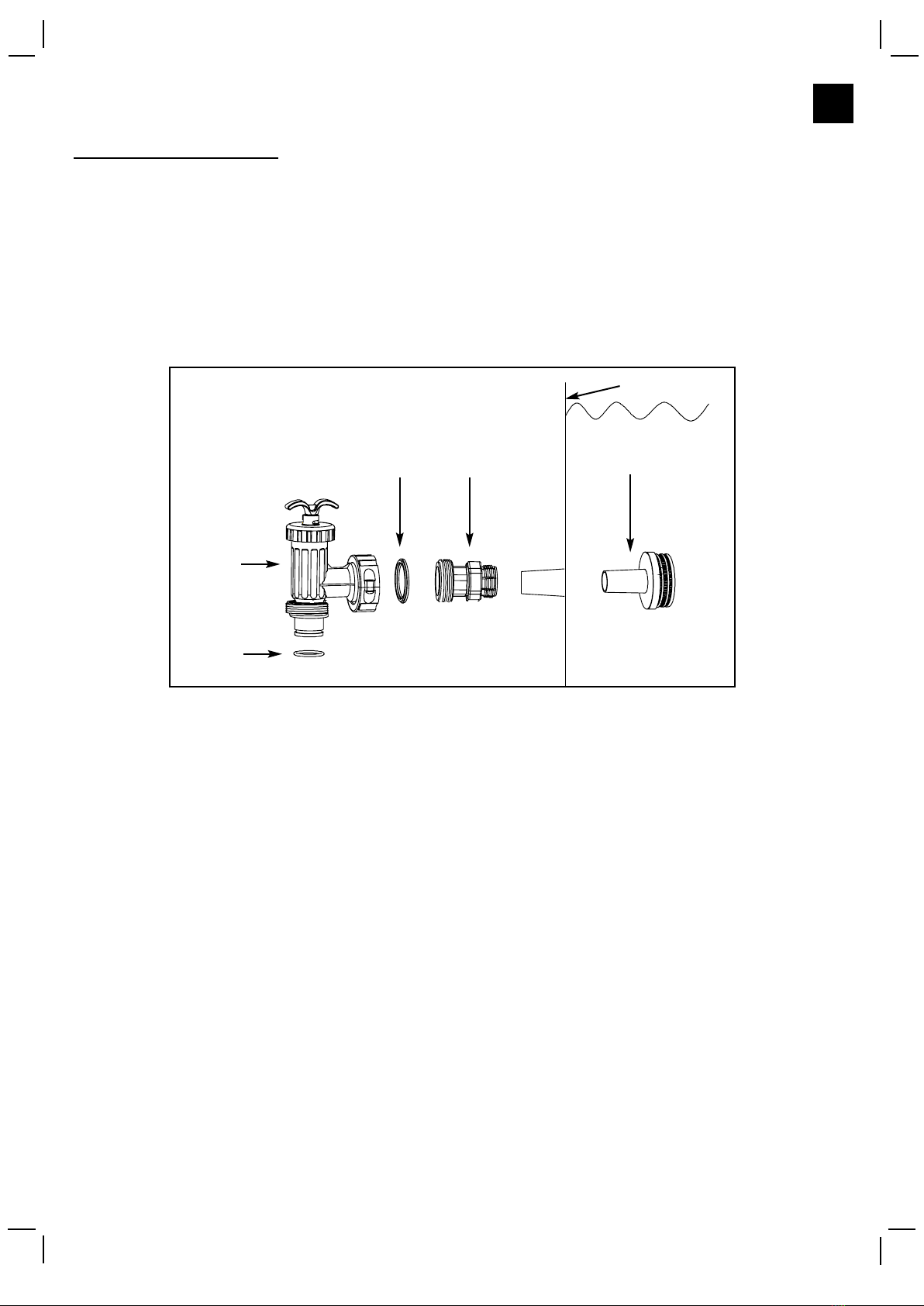

LINER
5F11
F12
06NF-30
06NF-05 05CG-12

Strainer & Plunger Valve Set Up (18’ and above AGP)
The Saltwater System/Filter Pump assembly includes two (2) strainer-control mechanisms that are to
be installed in the pool liner's two (2) pre-cut holes. The strainer grid prevents large objects from
jamming and/or damaging the filter pump and the plunger valve assembly prevents water from flowing
into the filter pump while the filter cartridge is being placed or cleaned. Install the strainer and plunger
valve before inflating the pool liner top ring.
1. Grasp the strainer and plunger valve mechanism.
2. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector
(06NF-02). Be careful not to lose the step rubber washer (06NF-05). Place the plunger valve on the
ground in a safe place.
3. In a counter-clockwise motion unscrew the strainer nut (5F04) from the threaded connector
(06NF-02). Leave the flat washer (5F03) on the connector (06NF-02).
4. From the inside of the pool liner insert the connector (06NF-02) into one of the pre-cut holes with
the washer remaining on the connector to be placed against the inside of the liner wall.
5. With the flat side of the strainer nut (5F04) facing the outside wall of the liner in a clockwise motion
screw the strainer nut (5F04) back onto the threaded connector (06NF-02). Before assembly,
lubricate the threads with a petroleum jelly.
6. Finger tighten the strainer grid (5F01) and the strainer nut (5F04) onto the threaded connector
(06NF-02).
7. Grasp the plunger valve assembly. Make sure the step washer (06NF-05) is in place.
8. In a clockwise motion screw the plunger valve union back onto the threaded connector (06NF-02).
9. Examine the plunger valve to see if the handle is pushed fully down to the "0/1" position. If not,
then grasp the handle at the top and push down turning the handle in a clockwise direction until the
plastic protruding notch anchors in the "0/1" position. This will prevent water from flowing out during
filling.
10. Repeat steps 1 through 9 for the 2nd liner pre-cut hole.
11. The pool liner is now ready to fill with water. Consult the above-ground-pool owner's manual for
filling instructions.
---- INTERVAL FOR POOL FILLING ----
104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 7
Set Up Instructions (cont.)
LINER
5F11
06NF-30
06NF-05 5F04 5F03 06NF-02 5F01

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Set Up Instructions (cont.)
Saltwater System/Filter Pump
1. Remove the Saltwater System/Filter Pump and hoses from the packaging.
2. Place the Saltwater System/Filter Pump in a location for hose (5NF19) connections to the plunger
valve assemblies.
Note: Some regional regulations may require the filter pump to be mounted on a stationary
platform.There are two (2) mounting holes located in the pump base for this reason.
Consult your local authorities for filter pump mounting requirements.
3. Grasp the two (2) pump hoses (5NF19) and connect the hose nuts to the Saltwater Pool
System/Filter Pump.
4. In a counter-clockwise motion unscrew the threaded filter housing collar (6F16) from the filter
housing. Place it in a safe place.
5. The Saltwater System/Filter Pump is an airtight system. In a counter-clockwise motion turn both air
release valves (5F12 & 05F-37) 1 - 2 turns to open. DO NOT remove air release valves as water
will expel with force if the motor is turned on and injury may occur.
6. Grasp and remove the filter housing cover (6F14). Check to see if a cartridge is inside the housing.
If yes, replace the cover, finger tighten the housing collar (6F16) back onto the filter housing.
7. Gently finger tighten the sediment release valve located at the bottom of the housing to be sure
that water does not leak out.
8. When the pool is filled connect the hose from the electrolytic cell outlet to the highest strainer
assembly. The hose connection is made at the bottom of the plunger valve assembly. Use the hose
nut to attach the hose.
9. Connect the 2nd hose to the middle of the motor housing and to the remaining liner connection.
SAVE THESE INSTRUCTIONS
Page 8
To prevent air lock, open the lower plunger valve (connected inlet hose) first and then the upper
plunger valve (connected outlet hose). Open air release valves, wait until water starts to flow out of the
air release valves, close air release valves.
IMPORTANT

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Salt & Pool Water Volumes
Use only Sodium Chloride Salts
Use only sodium chloride (NaCl) salt that is at least 99.8% pure. It is also acceptable to use water
conditioning salt pellets (the compressed forms of evaporated salt), but it will take longer time for them
to dissolve. Do not use iodized or yellow (yellow prussiate of soda) colored salt. Salt is added to
the pool water and the electrolytic cell uses this salt to create chlorine, the purer the salt the better the
performance of the electrolytic cell.
Optimum Salt Levels
The ideal salt level in the pool water is between 2500-3500 ppm (parts per million) with 3000 ppm
being optimal.
A too low salt level will reduce the efficiency of the Saltwater System and result in low chlorine
production. A high salt level may begin to generate a salty taste to your pool water (this may occur at a
salt level above 3500-4000ppm). Too high of a salt level may damage the power supply and cause
corrosion to pool metal fixtures and accessories. The following “salt table” shows the quantity of salt to
use. The salt in the pool is constantly recycled. Salt loss is due only to pool water physically removed
from the pool. Salt is not lost due to evaporation.
How to Add or Remove Salt
Adding Salt
1. Depress the ON button on the filter pump switch to circulate pool water.
2. Keep the Saltwater System “OFF”.
3. Determine the amount of salt to be added (see “Salt Table”).
4. Evenly spread the proper amount of salt around the inside perimeter of the pool.
5. To avoid clogging the filter, do not add salt through the skimmer.
6. Brush the pool bottom to speed up the dissolving process. Do not allow salt to pile up on the
bottom of the pool. Run the filter pump 24 consecutive hours to thoroughly dissolve the salt.
7. After 24 hours and if all the salt is dissolved, turn on the Saltwater System and set the saltwater
pool system to desired operating time (see “Operating Time Table”).
Removing Salt
If too much salt has been added, the unit will beep and display “code 92” (see “Alarm Codes”). You
need to lower the salt concentration. The only way to lower the salt concentration is to partially drain the
pool and refill with fresh water. Drain and refill approximately 20% of the pool’s water until the “Code 92”
disappears.
Pool Volume Calculation
Rectangular Length x Width x Average Depth x 7.5 Length x Width x Average Depth
Circular Length x Width x Average Depth x 5.9 Length x Width x Average Depth x 0.79
Oval Length x Width x Average Depth x 6.0 Length x Width x Average Depth x 0.80
Types of Pool Gallons
(pool size in feet)
Cubic Meters
(pool size in meters)
SAVE THESE INSTRUCTIONS
Page 9

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 10
Intex Pools Salt Table
This table shows how much salt to use to achieve the desired 3000 ppm salt level and how much will
be needed to maintain this level if it drops below this desired level.
Pool Size
Salt Needed for
Startup
Salt Needed when
Low Salt Detected
(CODE “91”)
CIRCULAR
METAL
FRAME POOL
EASY SET POOL
RECTANGULAR
FRAME POOL
OVAL FRAME
POOL
Water Capacity
( Calculated at 90% for Frame Pool
and 80% for Easy Set & Oval Pool)
(Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs)
INTEX ABOVE GROUND POOLS (AGP’s)
3282 12422 80 35 20 10
3861 14614 100 45 25 10
4440 16806 110 50 30 15
4401 16656 110 50 30 15
5061 19154 125 55 35 15
6423 24310 160 75 40 20
6981 26424 175 80 45 20
11483 43462 290 130 75 35
12481 47241 310 140 85 40
2587 9790 65 30 15 10
2822 10680 65 30 20 10
3284 12431 80 35 20 10
3736 14142 95 45 25 10
4032 15262 100 45 25 10
3754 14207 95 45 25 10
4273 16174 110 50 30 15
4614 17462 110 50 30 15
4786 18115 120 55 30 15
5455 20647 135 60 35 15
5894 22309 150 65 40 20
4545 17202 115 50 30 15
7757 29359 195 90 50 25
14364 54368 365 165 95 45
2885 10921 75 35 20 10
4393 16628 110 50 30 15
4738 17935 120 55 30 15
5407 20464 132 60 35 15
5832 22073 145 65 40 20
6925 26212 175 80 45 20
7434 28137 185 85 50 25
9461 35809 235 105 65 30
15' x 36"
15' x 42"
15' x 48"
16' x 42"
16' x 48"
18' x 48"
18' x 52"
24' x 48"
24' x 52"
15' x 33"
15' x 36"
15' x 42"
15' x 48"
15' x 52"
16' x 42"
16' x 48"
16' x 52"
18' x 42"
18' x 48"
18' x 52"
9' x 18' x 52"
12' x 24' x 48"
16' x 32' x 52"
10' x 18' x 42"
12' x 20' x 48"
12' x 20' x 52"
12' x 24' x 48"
12' x 24' x 52"
12' x 28' x 52"
12' x 32' x 48"
12' x 40' x 48"

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 11
Intex Pools Operating Time Table
This table shows the operating time required for normal use of the Saltwater System with AGP’s.
Pool Size
CIRCULAR
METAL
FRAME POOL
EASY SET POOL
RECTANGULAR
FRAME POOL
OVAL FRAME
POOL
Water Capacity
( Calculated at 90% for Frame Pool
and 80% for Easy Set & Oval Pool)
(Gals) (Liters)
INTEX ABOVE GROUND POOLS (AGP’s)
3282 12422 3 3 3
3861 14614 3 3 3
4440 16806 3 3 4
4401 16656 3 3 4
5061 19154 4 5 6
6423 24310 5 6 7
6981 26424 5 6 7
11483 43462 9 10 11
12481 47241 10 11 12
2587 9790 2 2 3
2822 10680 3 3 3
3284 12431 3 3 3
3736 14142 3 3 3
4032 15262 3 3 4
3754 14207 3 3 3
4273 16174 3 3 4
4614 17462 3 4 5
4786 18115 4 5 6
5455 20647 4 5 6
5894 22309 5 6 7
4545 17202 4 5 6
7757 29359 6 7 8
14364 54368 11 12 12
2885 10921 3 3 3
4393 16628 4 5 6
4738 17935 4 5 6
5407 20464 4 5 6
5832 22073 5 6 7
6925 26212 5 6 7
7434 28137 6 7 8
9461 35809 8 9 10
15' x 36"
15' x 42"
15' x 48"
16' x 42"
16' x 48"
18' x 48"
18' x 52"
24' x 48"
24' x 52"
15' x 33"
15' x 36"
15' x 42"
15' x 48"
15' x 52"
16' x 42"
16' x 48"
16' x 52"
18' x 42"
18' x 48"
18' x 52"
9' x 18' x 52"
12' x 24' x 48"
16' x 32' x 52"
10' x 18' x 42"
12' x 20' x 48"
12' x 20' x 52"
12' x 24' x 48"
12' x 24' x 52"
12' x 28' x 52"
12' x 32' x 48"
12' x 40' x 48"
Operating Time (hours)
at different ambient/air
temperatures
20 - 28°C
(68 - 82°F)
29 - 36°C
(84 - 97°F)
37- 42°C
(99 - 108°F)

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 12
Non Intex Pools Operating Time Table
Water Capacity Operating Time (hours)
at different ambient/air temperatures
(Gals) (Liters) 20 - 28°C
(68 - 82°F)
37 - 42°C
(99 - 108°F)
29 - 36°C
(84 - 97°F)
2000
4000
6000
8000
10000
12000
14000
7500
15000
22500
30000
37500
45500
53000
2
3
5
6
8
10
11
2
3
6
7
9
11
12
3
3
7
8
10
12
12
Non Intex Pools Salt Table
Salt Needed for Startup Salt Needed for Startup Salt Needed when Salt Needed when
(Lbs) (Kgs) Low Salt Detected (Lbs) Low Salt Detected (Kgs)
Water Capacity (Gals) x Water Capacity (Liters) x Water Capacity (Gals) x Water Capacity (Liters) x
0.025 0.003 0.0067 0.0008
Salt Needed for
Startup
Salt Needed when
Low Salt Detected
(CODE “91”)
Water Capacity
( Calculated at 90% for Frame Pool
and 80% for Easy Set & Oval Pool)
(Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs)
2000 7500 50 20 10 5
4000 15000 100 45 25 10
6000 22500 150 65 40 20
8000 30000 200 90 55 25
10000 37500 250 110 70 30
12000 45500 300 135 80 35
14000 53000 350 160 95 45
Salt Calculation for Pools

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 13
Operating Instructions
This unit is the combination of filter pump and Saltwater System.
Filter Pump Operation
1. Make sure the unit switch is "OFF". The switch is located on the control box.
2. Connect the power cord to a GFCI protected electrical outlet.
IMPORTANT: To prevent air lock, open the lower plunger valve (connected inlet hose) first
and then the upper plunger valve (connected outlet hose).
3. Grasp a plunger valve handle. Turn the handle counter-clockwise, pull up until it stops, and then
turn it clockwise until the metal protruding notch anchors in the "0/1" position. Repeat for the 2nd
plunger valve. This opens the valves to allow water to flow into the unit.
4. With water flowing into unit, the water pressure will allow the air trapped inside to escape from the
air release valves (5F12 & 05F-37). When all the air has escaped water will flow out of the valves
(5F12 & 05F-37). When this occurs gently finger tighten the valves in a clockwise direction.
5. Turn the switch "ON". The filter pump is now filtering the water.
6. A yellow LED Light on the control panel will light up, that indicates the filter pump is running.
05F-37 5F-12

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Operating Instructions (Cont.)
Saltwater System Operation
After the salt is dissolved, but before starting the chlorine generation be sure that:
•The system is connected to a grounding type receptacle protected by a ground-fault circuit
interrupter (GFCI).
•The filter pump operates several minutes before starting the Saltwater System (This removes
air pockets and debris in the water hoses).
•No air is trapped in any of the hoses. Follow “Filter Pump Operation” above to release any trapped
air.
1. With the Filter Pump turned “ON” and operating. Code “88” appears on the
electronic control station’s LED indicating the unit is in a Stand-By Mode, this
is normal.

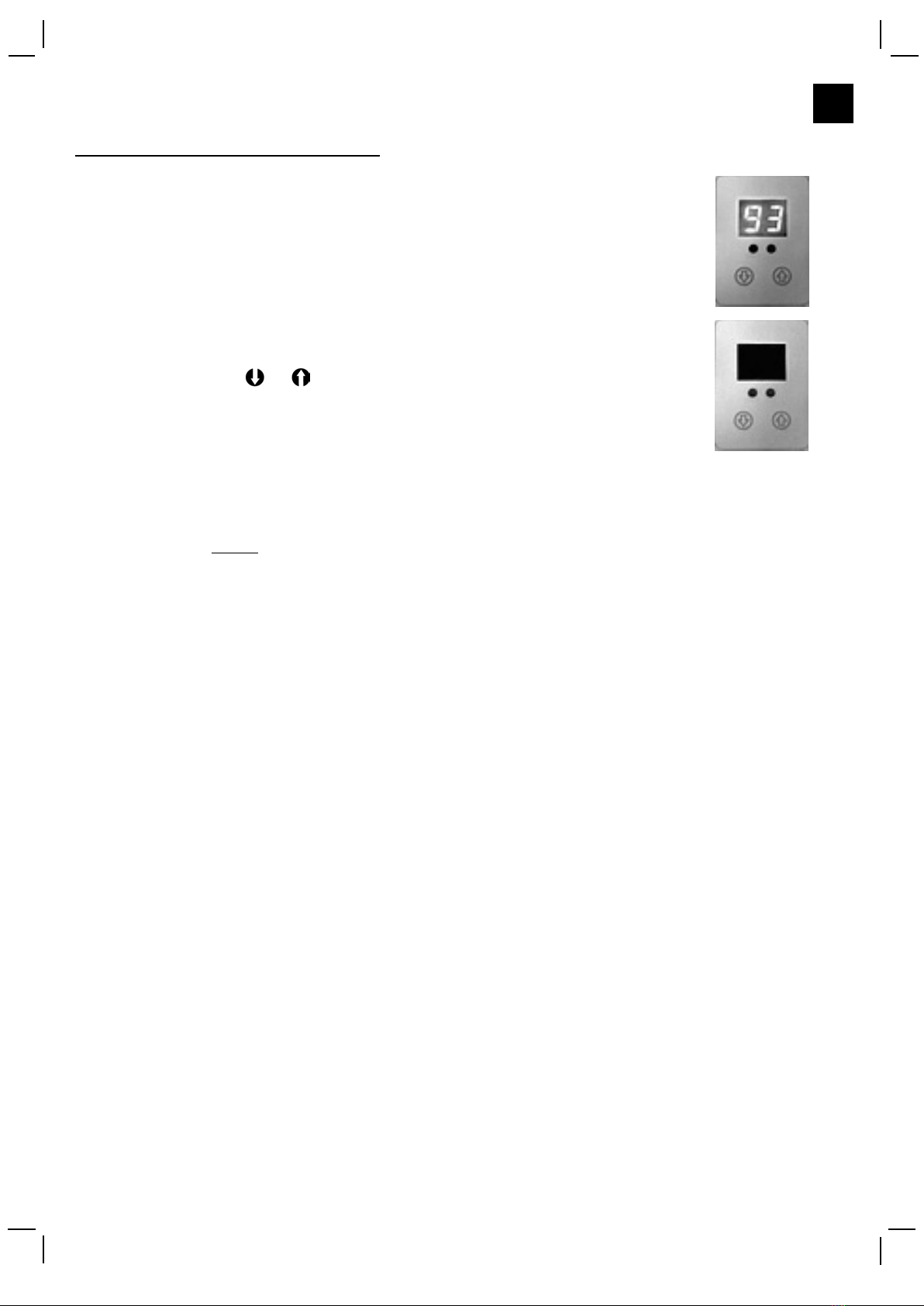

2. Unlock keypad controls:
Press and hold button for 5 seconds until you hear a short “beep”, then
press and hold button for another 5 seconds until you hear the second short
“beep”, LED flashes “00”. This procedure unlocks the keypad control buttons.
3. Set Saltwater System operating hours:
Increase the scheduled number of hours of operation by pressing
button, or reduce by pressing button. See “Operating Time
Table” for pool size and required operating hours. Press button
to select hours required, press if too many hours were selected.
The built-in timer will now operate for the number of hours selected
at the same time each day.
NOTE: The Saltwater System will not operate if the filter pump
is not operating.
4. Re-lock keypad controls:
With the proper hour value showing, press and hold button for 5 seconds
until you hear a long “beep”, then press and hold button for another 5
seconds until you hear the second long “beep”. A green LED light on the
control panel will light up within a few minutes, which indicates the saltwater
pool system starting chlorine production. Filter pump can be run alone
without the Saltwater System, with the proper hour value showing,
press and hold both and buttons for 5 seconds until you hear a long
“beep”. With locking the control buttons into this setting you will have prevented
unauthorized changing of the operating cycle.
5. Operating hours can be re-adjusted if necessary. Follow steps 2 thru 4.
6. The scheduled operating hours displayed on the LED readout will decrease to zero as the unit
operates. The LED shows “hours remaining” in the daily operating cycle.
(1 to 12 hours max per cycle)
SAVE THESE INSTRUCTIONS
Page 14

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Operating Instructions (cont.)
7. The green and yellow LED lights on the control panel will disappear when the
cycle has ended. The system will go into a “Stand-By Mode” with the LED
flashing “93”. The system automatically goes into a “Power Saving Mode” and
will automatically turn itself back on in 24 hours to continue its daily chlorine
production.
8. The LED will be become blank after 1 hour indicating the Saltwater System
is dormant (Power Saving Mode) waiting for the next startup cycle to begin.
Press any button ( or ) to view the last LED code.
SPECIAL NOTES
•Always use a test strip to test the chlorine level before entering or using the pool. If the chlorine
level is too high, wait until the chlorine level drops below 3 ppm before using the pool or
operating the Saltwater System again.
•IMPORTANT: Never use the pool if chlorine level is more than 3 ppm. Do not operate
Saltwater System while the pool is in use or occupied.
•If a power outage occurs or the power cord is unplugged then the Saltwater System operating
hours will have to be reset.
SAVE THESE INSTRUCTIONS
Page 15

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 16
Alarm Codes & LED Code Chart
Alarm Codes
No chlorine production will occur if “Low Water Flow”, “Low Salt Level” or “High Salt Level” are detected.
If any of these conditions occur then the Saltwater System will sound an alarm that indicates chlorine
production has stopped. A buzzer will sound and a Code (see below) will keep flashing on the LED
for 1 hour. The buzzer and flashing light will end after one hour and the Saltwater System will go to
Power Saving Mode. If this occurs then press any button ( or ) to view the code of the original
problem so that it can be corrected.
Turn off the power of the unit and follow the solutions below to solve the problem. Turn on the unit again
by following the “Operating Instructions”.
Code Cause Remedy Flashing Buzzer
1. Circulation line blocked. •Ensure the plunger valves are opened (if any). Yes Yes
•Ensure your filter cartridge, cell and debris
Low Water screen are clear from debris and dirt.
Flow or See “Maintenance”.
No Flow •Release all trapped air in the circulation line.
See Filter Pump Manual.
2. Incorrect inlet and •Check for the direction of water inlet and water
outlet hose direction. outlet hose. Reverse the hoses if necessary.
See “Set Up Instructions”.
3. Scale on the flow sensor. •Ensure the flow sensor (especially the hinge)
is clean. See “Maintenance”.
4. Flow sensor cord is loose. •Check for flow sensor loose or not connected
properly. Plug the flow sensor firmly into the
flow sensor receptacle.
5. Flow sensor failure. •Contact Intex Service Center for replacement.
1. Dirt or scale on titanium •Remove the electrolytic cell for inspection and Yes Yes
plates. clean it if necessary. See “Maintenance”.
Low Salt 2. Low salt level. •Add salt. See “Salt & Pool Water Volumes”.
Level 3. Possible electrolytic cell •Contact Intex Service Center. Replace the cell
failure. if needed.
1. High salt level. •Partially drain the pool and refill with fresh water. Yes Yes
See “Salt & Pool Water Volumes”.
High Salt 2. Possible electrolytic cell •Contact Intex Service Center. Replace the cell
Level failure. if needed.

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
LED Reading Definitions
507mm
LED Code Chart
88 Stand-By Mode (Start-up)
00 Zero Operating Hours
01 Minimum Operating Hour (1 hour remaining)
02 Operating Hours (2 hours remaining)
03 Operating Hours (3 hours remaining)
04 Operating Hours (4 hours remaining)
05 Operating Hours (5 hours remaining)
06 Operating Hours (6 hours remaining)
07 Operating Hours (7 hours remaining)
08 Operating Hours (8 hours remaining)
09 Operating Hours (9 hours remaining)
10 Operating Hours (10 hours remaining)
11 Operating Hours (11 hours remaining)
12 Maximum Operating Hours (12 hours remaining)
90 Alarm Code (Low Water Flow / No Flow)
91 Alarm Code (Low Salt Level)
92 Alarm Code (High Salt Level)
93 Stand-By Mode (Operating Process finished)
94 Stand-By Mode (no Operating Time input)
“BLANK” No Power or “Power Saving Mode” waiting to start next Saltwater System
cycle, or no salt.
Saltwater System/Filter Pump Stationary Mounting Option
Some countries, especially in the European community, require the product to be secured to the
ground or to a base in a permanent upright position. Check your local authorities to determine if there
is a regulation in your area regarding above-the-ground swimming pool filter-pumps. If yes, then the
product can be mounted to a platform using the two (2) holes located in the base. See drawing below.
The product can be mounted on a cement base or onto a wooden platform to prevent accidental falling
over. Total assembly must exceed 18kg. The European norm EN 60335-2-41 requires this product be
secured to the ground or to a base.
1. The mounting holes are 6.4mm in diameter and spaced 507mm apart.
2. Use two bolts and lock nuts with a maximum of 6.4mm in diameter.
SAVE THESE INSTRUCTIONS
Page 17

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Maintenance
IMPORTANT: Unplug power cord before cleaning and close plunger valves or insert black hat-like
plugs in strainer opening to prevent water spillage. Plug in the power cord and open plunger valves or
remove plugs when maintenance tasks are completed.
Flow Sensor Cleaning
1. In a counter-clockwise motion unscrew the collar of the flow sensor (05CG-04) and remove it from
the flow sensor conduit (05CG-06). See “Part Reference”.
2. If deposits and debris are seen on the surface of the flow sensor, then use a garden hose to wash
it off.
3. If flushing does not remove the deposits, use plastic brush (do not use a metal brush) to clean the
surface and the hinge if necessary.
4. After the flow sensor has been inspected and cleaned, align the locator notch on the flow
sensor to the connection ridge in the conduit, turn the collar in a clockwise motion tightening the
sensor back into its position. Do not over tighten.
Electrolytic Cell Cleaning
The electrolytic cell (05CG-01) has a self cleaning function incorporated into the electronic control's
programming. In most cases this self cleaning action will keep the cell working at optimum efficiency. If
the pool water is hard (high mineral content) the cell may require periodic manual cleaning. Follow the
cleaning instructions below. To maintain maximum performance, it is recommended that you open and
visually inspect the electrolytic cell (05CG-01) and debris screen (05CG-08) every 3 months.
Visual Inspection and Cleaning:
1. Switch off the unit, unplug the power cord from the electrical socket.
2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and
then turn it clockwise until the plastic protruding notch anchors in the "0/I" position. Repeat for the
2nd plunger valve. This prevents the water from flowing out of the pool.
Connection Ridge
Locator Notch
Hinge
SAVE THESE INSTRUCTIONS
Page 18

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
SAVE THESE INSTRUCTIONS
Page 19
Maintenance (cont.)
3. Disconnect the water return (to the pool) hose from the Saltwater System outlet. Disconnect
angle joint (05CG-14) from the filter housing and flow sensor conduit (05CG-06).
4. Check for debris which has passed through the filter and been trapped on the debris screen
(05CG-08). If debris is on the debris screen, remove the debris screen and use garden hose to
flush the debris off.
5. Look inside the electrolytic cell (05CG-01) inspect for scale formation (light colored crusty or flaky
deposits) on the titanium plates. If no deposits and debris are visible reinstall the debris screen
(05CG-08), cell and hose.
6. If deposits and debris are seen on the titanium plates, use a high pressure garden hose and try to
flush them off. Only flush from the direction of water inlet to avoid damaging the flow sensor. Do
not use any metal tool as this will scratch the coating off the plates. Note that a buildup on the cell
indicates that there is an unusually high calcium level in the pool. If this is not corrected, you have
to frequently check and clean the cell. To avoid this, always keep your pool chemistry at the
recommended levels. See “Pool Maintenance & Chemical Definitions” for reference.
7. If flushing does not remove the deposits on the plate then disconnect the cell from the base by
removing the 2 mounting screws (05CG-03). Disconnect the flow sensor from the top of the cell
and unplug the electrolytic cell cord. Soak the cell in a vinegar solution (condiment) for 2-3 hours
and then flush with high pressure water from the garden hose.
8. Reconnect electrolytic cell reversing steps 3, 4, 5 and 7. (Reset the Saltwater System’s operating
hours)
NOTE: After cleaning the operating hours have to be reset.
Titanium Plates

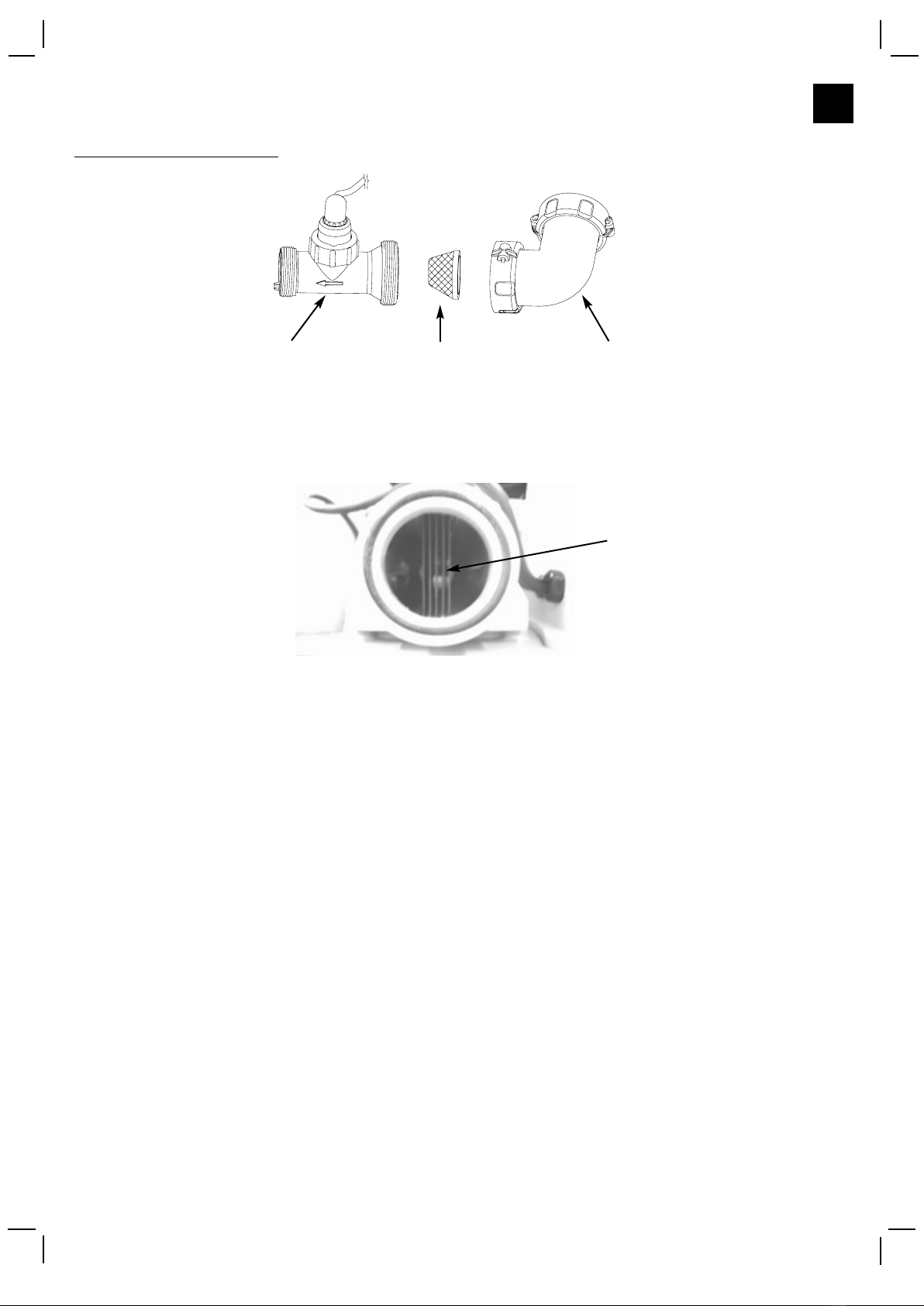

05CG-06 05CG-08 05CG-14

104
(104) ENGLISH SALTWATER SYSTEM/FILTER PUMP MODEL8221/8231 SIZE: 7.5” X 10.5” 09/18/2006
Maintenance (Cont.)
Filter Cartridge Cleaning (Or Replacement)
It is recommended that the filter cartridge be replaced at least every 2 weeks.
1. Make sure the unit is turned off, and disconnect the power cord from the electrical outlet.
2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and
then turn it clockwise until the plastic protruding notch anchors in the "0/1" position. Repeat for the
2nd plunger valve. This prevents the water from flowing out of the pool.
3. Gently turn both air release valves (5F12 & 05F-37) 1-2 turns in a counter-clockwise direction. This
will allow the housing cover to be easily removed.
4. In a counter-clockwise direction remove the filter housing collar (6F16). Place it in a safe location.
5. Remove the housing cover (6F14).
6. Remove the "OLD" filter cartridge.
7. Examine the inside of the filter housing.
8. If dirt or sediment is located on the bottom of the housing then:
A. In a counter-clockwise motion gently unscrew and remove the sediment valve (5F12) located at
the bottom of the housing. Place it in a safe place.
B. With a bucket of water or a garden hose pour water into the housing flushing out the sediment.
C. In a gentle clockwise motion return the sediment valve (5F12) to its location.
Do not over-tighten.
9. Place a new cartridge filter in the housing.
10. Return the housing cover (6F14) to its position and in a clockwise direction rescrew the housing
collar (6F16) onto the filter housing.
11. Turn both plunger valve handles in a counter-clockwise direction, pull up until they stop, and then
turn them clockwise until the metal protruding notch anchors in the "0/1" position.
12. Reconnect the power cord.
13. Turn the unit "ON".
14. When the trapped air has escaped through the air release valves gently retighten the valves
(5F12 & 05F-37) in a clockwise direction.
Long Term Storage
1. Disconnect power cord from electrical outlet.
2. After pool is emptied of all water, disconnect the Saltwater System/Filter Pump from the pool
reversing the installation instructions.
3. Air-dry the unit before storage (It may be prudent to visually inspect and clean the electrolytic cell
at this time).
4. Store the unit and accessories in a dry, cool storage location.
5. The original packing carton can be used for storage.
SAVE THESE INSTRUCTIONS
Page 20
