Invacare Platinum IRC5LXAW User manual

Dealer: This manual must be given to the
end user.
User: Before using this concentrator, read
this manual and save for future reference.
User Manual
Platinum™
Oxygen Concentrators Standard,
with
/SensO
2
®
and HomeFill
®
Model IRC5LXAW
Model IRC5LXO2AW
Model IRC5LXO2AWQ
Model IRC9LXO2AWQ
English UK . . . . . . . . . . 2
French . . . . . . . . . . . . 31
Italian . . . . . . . . . . . . . 61
German . . . . . . . . . . . 92
Polish . . . . . . . . . . . . 124
Czech. . . . . . . . . . . . 156
0434

Platinum™2 Part No 1141491
 WARNING
DO NOT USE THIS PRODUCT OR ANY AVAILABLE
OPTIONAL EQUIPMENT WITHOUT FIRST READING
AND UNDERSTANDING THESE INSTRUCTIONS AND
ANY ADDITIONAL INSTRUCTIONAL MATERIAL
SUCH AS USER MANUALS, SERVICE MANUALS OR
INSTRUCTION SHEETS SUPPLIED WITH THIS
PRODUCT OR OPTIONAL EQUIPMENT. IF YOU ARE
UNABLE TO UNDERSTAND THE WARNINGS,
CAUTIONS OR INSTRUCTIONS, CONTACT A
HEALTHCARE PROFESSIONAL, DEALER OR
TECHNICAL PERSONNEL BEFORE ATTEMPTING TO
USE THIS EQUIPMENT - OTHERWISE, INJURY OR
DAMAGE MAY OCCUR.
ACCESSORIES
There are many different types of humidifiers, oxygen tubing,
cannulas and masks that can be used with this device. You
should contact your local home care provider for
recommendations on which of these devices will be best for
you. They should also give you advice on the proper usage,
maintenance, and cleaning.
The supply accessories (nasal cannula, mask, tubing,
humidifier, etc.) used to deliver oxygen to the patient need to
include a means to reduce the propagation of fire in the
accessories for the safety of the patient and others. If a
commercially available, fire-activated flow stop device is used
in the accessories setup, it should be placed as close to the
patient as practicable.
 ACCESSORIES WARNING
Invacare products are specifically designed and
manufactured for use in conjunction with Invacare
accessories. Accessories designed by other manufacturers
have not been tested by Invacare and are not
recommended for use with Invacare products.

TABLE OF CONTENTS
Part No 1141491 3 Platinum™
TABLE OF CONTENTS
SPECIAL NOTES ...............................................4
RECYCLING INFORMATION .............................5
SECTION 1—GENERAL GUIDELINES ................... 6
Maintenance.......................................................................................... 8
Radio Frequency Interference.......................................................... 8
To Reduce The Risk Of Burns, Electrocution, Fire Or Injury To
Persons .................................................................................................. 8
Oxygen Concentration...................................................................... 9
SECTION 2—FEATURES ................................... 10
SECTION 3—SHIPPING AND HANDLING .......... 11
Unpacking............................................................................................11
Inspection............................................................................................11
Storage.................................................................................................11
SECTION 4—TYPICAL PRODUCT PARAMETERS 13
SECTION 5—OPERATING INSTRUCTIONS ........ 17
Intended Use ......................................................................................17
Introduction........................................................................................17
Select a Location ...............................................................................17
Recommended Guidelines for Optimum Performance............18
Plug in Power Cord ..........................................................................18
Connect Humidifier (If So Prescribed).........................................19
Power Switch .....................................................................................21
Flowrate...............................................................................................22
SensO
2
Oxygen Purity Indicators (LX O
2
Sensor Model).......23
Indicators (LX Model)......................................................................24
Main Power Loss Alarm System ....................................................25
Elapsed Time Meter (Hour Meter) ...............................................25
SECTION 6—MAINTENANCE ........................... 26
Routine Maintenance........................................................................26
SECTION 7—TROUBLESHOOTING GUIDE .......... 29
CUSTOMER SERVICE AND WARRANTY
INFORMATION ............................................ 190

SPECIAL NOTES
Platinum™ 4 Part No 1141491
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or
unsafe practices which could result in personal injury or
property damage. Refer to the following table for definitions
of the signal words.
NOTICE
The information contained in this document is subject to
change without notice.
 DANGER
DO NOT SMOKE while using this device. Keep all
matches, lit cigarettes or other sources of ignition out of
the room in which this product is located and away from
where oxygen is being delivered.
NO SMOKING signs should be prominently displayed.
Textiles and other materials that normally would not
burn are easily ignited and burn with great intensity in
oxygen enriched air. Failure to observe this warning can
result in severe fire, property damage and cause physical
injury or death.
SIGNAL WORD MEANING
 DANGER Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
 WARNING Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION Caution indicates a potentially hazardous situation
which, if not avoided, may result in property
damage or minor injury or both.

RECYCLING INFORMATION
Part No 1141491 5 Platinum™
RECYCLING INFORMATION
This product has been supplied from an environmentally
aware manufacturer that complies with the Waste Electrical
and Electronic Equipment (WEEE) Directive 2002/96/CE.
This product may contain substances that could be harmful to
the environment if disposed of in places (landfills) that are not
appropriate according to legislation.
The 'crossed out wheelie bin' symbol is placed on this product
to encourage you to recycle wherever possible.
Please be environmentally responsible and recycle this
product through your recycling facility at its end of life.

SECTION 1—GENERAL GUIDELINES
Platinum™ 6 Part No 1141491
SECTION 1—GENERAL GUIDELINES
 WARNING
SECTION 1 - GENERAL GUIDELINES contains
important information for the safe operation and use of
this product.
In order to ensure the safe installation, assembly and
operation of the Platinum concentrator these instructions
MUST be followed.
CAUTION
“Caution: Statutory law restricts this device to sale or rental
by or on order of a physician, or any other practitioner
licensed by the law of the governmental agency in which
he/she practices to use or order the use of this device.”
 DANGER
Risk of electric shock. DO NOT disassemble. Refer servicing
to qualified service personnel.

SECTION 1—GENERAL GUIDELINES
Part No 1141491 7 Platinum™
 WARNINGS
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any materials that will burn in air,
and some that will not, are easily ignited and burn rapidly in
high concentrations of oxygen. For safety concerns, it is
necessary that all sources of ignition be kept away from the
product and preferably out of the room in which it is being
used. NO SMOKING signs should be prominently displayed.
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under
pressure. These substances MUST be kept away from the
oxygen concentrator, tubing and connections, and all other
oxygen equipment. DO NOT use any lubricants unless
expressly recommended by Invacare.
For optimum performance, Invacare recommends that each
concentrator be on and running for a minimum of 30 minutes
at a time. Shorter periods of operation may reduce maximum
product life.
If the concentrator has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
dropped into water, call Qualified Service Personnel for
examination and repair.
Keep the oxygen tubing, cord, and unit away from heated or
hot surfaces, including space heaters, blankets, stoves and
similar electrical appliances.
DO NOT move or relocate concentrator by pulling on
the cord.
NEVER drop or insert any object into any opening.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening may
be blocked. Keep the openings free from lint, hair and the like.
Fill humidifier with water to the level shown by the
manufacturer. DO NOT overfill.

SECTION 1—GENERAL GUIDELINES
Platinum™ 8 Part No 1141491
Move oxygen concentrator at least 7,5 cm (3 in) away from
walls, draperies or furniture.
Invacare recommends that Crushproof oxygen tubing
(supplied by Invacare) be used with this product and NOT
exceed 15.2 m (50 ft) in length. Recommended use for
Platinum 9 is up to 15.2 m (50 ft) in length of high flow tubing.
Maintenance
The Invacare Oxygen Concentrator was specifically designed
to minimize routine preventive maintenance at intervals of
once per year. Only professionals of the healthcare field or
persons fully conversant with this process such as authorized
or factory trained personnel should perform preventive
maintenance or performance adjustments on the oxygen
concentrator.
Radio Frequency Interference
Most electronic equipment is influenced by Radio Frequency
Interference (RFI). Caution should be exercised with regard to
the use of portable communications equipment in the area
around such equipment.
To Reduce The Risk Of Burns,
Electrocution, Fire Or Injury To Persons
Avoid using while bathing. If continuous usage is required by
the physician’s prescription:
The concentrator must be located in another room at least
2.1 m (7 ft.) from the bath.
DO NOT come in contact with the concentrator while wet.
A product should NEVER be left unattended when plugged in.
DO NOT place or store product where it can drop into water
or other liquid.
DO NOT reach for product that has fallen into water. Unplug
IMMEDIATELY.

SECTION 1—GENERAL GUIDELINES
Part No 1141491 9 Platinum™
This device is to be used only in accordance with the
prescription of a physician and this User Manual. If at any
time the patient or attendant conclude that the patient is
receiving an insufficient amount of oxygen, the supplier
and/or physician should be contacted IMMEDIATELY. No
adjustments should be made to the flowrate unless prescribed
by a physician.
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this
manual.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers
not specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Invacare recommends that you seek medical advice before
using this machine.
This equipment is to be used as an oxygen supplement and is
not considered life supporting or life sustaining.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any type
of friction.
Oxygen Concentration
Take care not to set the flow above RED ring. An oxygen flow
greater than 5 L/min. (IRC5LXO2AW, IRC5LXAW,
IRC5LXO2AWQ) and 9 L/min. (IRC9LXO2AWQ) will
decrease the oxygen concentration.

SECTION 2—FEATURES
Platinum™ 10 Part No 1141491
SECTION 2—FEATURES

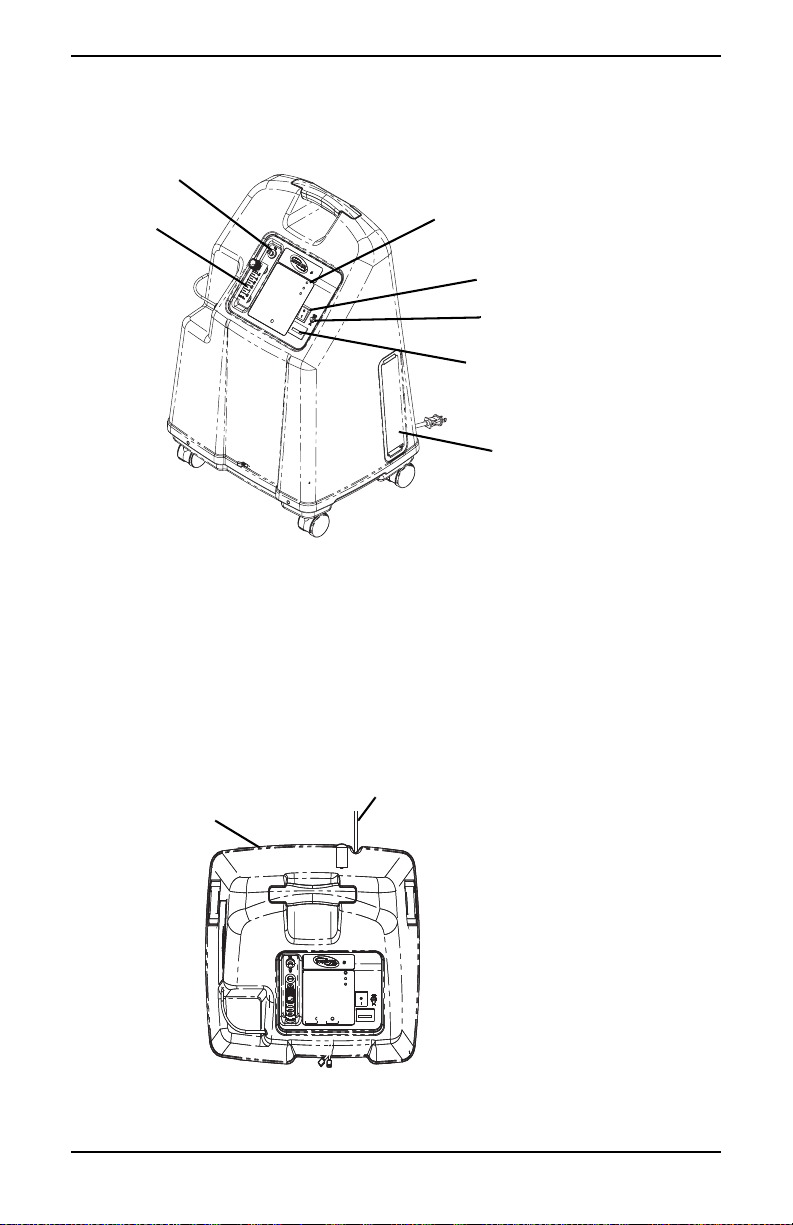

Oxygen Purity and Fault Indicator
Lights (SensO
2
model)/Fault and
Power Indicator Lights (LX model)
Circuit Breaker
Power Switch
Elapsed Time Meter
(Hour Meter)
Cabinet Filter
(one of two
shown)
Flowmeter
Oxygen Outlet
FRONT VIEW
TOP VIEW
ACCESSORIES
(NOT SHOWN):
HomeFill home oxygen
compressor
Contact your local Invacare
representative for available
accessory information.
*NOTE: This outlet fitting is to be used only for filling oxygen
cylinders with the HomeFill home oxygen compressor. The outlet
fitting does not affect concentrator performance. Refer to the
HomeFill user manual, part number 1145804, for connection and
operating instructions. When not in use, the plug provided with
the concentrator should be inserted into the outlet fitting. For
more information about the HomeFill, contact Invacare.
Power Cord
Outlet Fitting*

SECTION 3—SHIPPING AND HANDLING
Part No 1141491 11 Platinum™
SECTION 3—SHIPPING AND
HANDLING
NOTE: For this procedure, refer to FIGURE 3.1 on page 12.
Before you install and operate the concentrator, please refer to
Platinum Series User Manual.
The Platinum concentrator should ALWAYS be kept in the
upright position to prevent cabinet damage while being
transported. The shipping container has been designed to
assure maximum protection of the concentrator.
If the concentrator is to be reshipped by common carrier, it
should be packed in a new carton. Additional cartons are
available from Invacare.
The air compressor suspension system has been engineered to
withstand severe motion and orientation.
Unpacking
1. Check for any obvious damage to the carton or its contents.
If damage is evident, notify the carrier, or Invacare.
2. Remove all loose packing from the carton.
3. Carefully remove all the components from the carton.
NOTE: Retain carton and packing materials for storage of the
Platinum.
Inspection
1. Examine exterior of the oxygen concentrator for nicks,
dents, scratches or other damages. Inspect all components.
Storage
1. Store the repackaged oxygen concentrator in a dry area.
2. DO NOT place other objects on top of the repackaged
concentrator.

SECTION 3—SHIPPING AND HANDLING
Platinum™ 12 Part No 1141491
FIGURE 3.1 Unpacking

SECTION 4—TYPICAL PRODUCT PARAMETERS
Part No 1141491 13 Platinum™
SECTION 4—TYPICAL PRODUCT
PARAMETERS
Regulatory
Listing:
EN/IEC 60601-1
Alternating Current
Type BF equipment
Unit running
Unit not running
Attention - Consider Accompanying Documents
DO NOT smoke
Class II, Double Insulation
This product complies with Directive 93/42/EEC concerning medical
devices.
The launch date of this product is stated in the CE
declaration of conformity.
Electrical Requirements: 230 VAC ± 10% (253 VAC/207 VAC), 50 Hz
Rated Current Input: 1.4 A (IRC5LXO2AWQ)
2.0 A (IRC5LXAW, IRC5LXO2AW)
2.3 A (IRC9LXO2AWQ)
Sound Level: 39.5 dB Average (IRC5LXO2AWQ)
44 dB Average (IRC5LXAW, IRC5LXO2AW)
50 dB Average (IRC9LXO2AWQ)
Altitude: Up to 1828 meters (6,000 ft.) above sea level
without degradation of concentration levels.
NOT RECOMMENDED FOR USE ABOVE
1828 meters (6,000 ft)
For IRC9LXO2AWQ - Up to 4,000 ft. (1230
meters) above sea level without degradation of
concentration levels. For 4,000 ft (1230
meters) to 13,129 ft (4000 meters) below 90%
efficiency.

SECTION 4—TYPICAL PRODUCT PARAMETERS
Platinum™ 14 Part No 1141491
*Oxygen Output
Concentration Levels:
All 5LXO2AWQ/5LXAW/
5LXO2AW/9LXO2AWQ
models
* (Stated concentration levels
achieved after initial warm-up
period (approximately 30
minutes).
IRC5LXAW, IRC5LXO2AW and
IRC5LXO2AWQ
93% minimum at 1 to 3 L/min.
91% minimum at 4 L/min.
87% minimum at 5 L/min. (maximum
recommended flow)
IRC9LXO2AWQ
92% minimum at 1 to 2 L/min.
91% minimum at 8 L/min.
87% minimum at 9 L/min.
93% minimum at 3 to 7 L/min.
Maximum Outlet Pressure: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
34.5 ± 3.45 kPa (5 ± 0.5 psi)
IRC9LXO2AWQ
62.0 kPa ± 3.45 kPa (9 ± 0.5 psi)
Flow Range: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
0.5 to 5 L/min. Flowrates less than 1 L/min. are
not recommend
IRC9LXO2AWQ
1 L/min. to 9 L/min. Flowrates less than 1
L/min. are not recommended.
Potential Obstruction Alert: The concentrator detects a condition that may
indicate a potential obstruction of the output
oxygen.
Rapid audible beeping alert (this alert is
deactivated when accessories are connected).
May be associated with flow setting of 0.5
L/min or less.
Average Power Consumption: (IRC5LXO2AWQ)
300 W
280 W @ 3 L/min.
(IRC5LXO2AW)
365 W
340 W @ 3 L/min.
380 W (IRC5LXAW)
460 W (IRC9LXO2AWQ)
Pressure Relief Mechanism
Operational at: 241 kPa ± 24.1 kPa (35 psi ± 3.5 psi)
Change in maximum
recommended flow when back
pressure of 7k Pa is applied:
0.7 L/min.
Filters: Cabinet (2), Outlet HEPA and Compressor
Inlet.
>
>

SECTION 4—TYPICAL PRODUCT PARAMETERS
Part No 1141491 15 Platinum™
Safety System: Current overload or line surge shutdown.
High temperature compressor shutdown.
High Pressure Alarm w/compressor
shutdown.
Low Pressure Alarm w/compressor
shutdown.
Battery Free Power Loss Alarm.
SensO
2
Oxygen System Possible Obstruction
Alert.
Width: 46.7 cm ± 1 cm (18 3/8 in ± 3/8 in)
Height: 67.0 cm ± 1 cm (6 3/8 in. ± 3/8 in)
Depth: 36.5 cm ± 1 cm (14 3/8 in. ± 3/8 in)
Weight: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
23.6 kg ± 1 kg (52 lbs ± 2 lbs)
IRC9LXO2AWQ
24.0 kg ± 1 kg (53 lbs ± 2 lbs)
Shipping Weight: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
26.8 kg ± 1 kg (59 lbs ± 2 lbs)
IRC9LXO2AWQ
27.2 kg ± 1 kg (60 lbs ± 2 lbs)
Operating Ambient
Temperature: 10°C - 35°C (50°F - 95°F) at 20-60% relative humidity.
Exhaust: Less than Ambient +19°C (+ 35°F).
Oxygen Output: Less than Ambient +2°C (+ 4°F).
Cabinet: Impact Resistant flame-retardant plastic
cabinet that conforms to UL 94-V0.
Regulatory Listing: IRC5LXAW/IRC5LXO2AW/
IRC5LXO2AWQ/IRC9LXO2AWQ
ETL tested as complying with:
EN55011
EN61000-3-2
EN61000-3-3
IEC 60601-1, A1, A2
IEC 60601-1-2
IRC5LXO2AW, IRC5LXO2AWQ,
IRC9LXO2AWQ Models Only
ISO8359
MDD
CE marked models: IRC5LXO2AW, IRC5LXO2AWQ,
IRC9LXO2AWQ
Electrical: No extension cords.
Placement: No closer than 7.5 cm (3 inches) from any
wall, furniture, draperies, or similar surfaces.

SECTION 4—TYPICAL PRODUCT PARAMETERS
Platinum™ 16 Part No 1141491
SENSO
2
INDICATORS
LX INDICATORS
Tubing: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
2.1 m (7 ft) cannula with a maximum 15.2 m
(50 ft) of Crush-Proof Tubing (DO NOT
pinch).
IRC9LXO2AWQ
Recommended use up to 15.2 M (50 ft) high
flow tubing with high flow cannula at all flow
rates.
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Recommended Storage and
Shipping Temperature: -29°C to 65°C (-20°F to 150°F) at 15-95% relative humidity.
LABEL
SYMBOL
STATUS INDICATOR LIGHTS (LED)
SYSTEM OKAY
O
2
over 85% (± 2%) GREEN Indicator Light
O
2
Between 73% (± 3%)
to 85% (±2%)
YELLOW Indicator light
A. YELLOW Solid
B. YELLOW Flashing Sensor
Failure
Call a qualified technician.
SYSTEM FAILURE
O
2
Below 73% (±3%) RED Indicator Light Refer to Troubleshooting Guide
on page 29.
LABEL
SYMBOL
STATUS INDICATOR LIGHTS (LED)
SYSTEM OKAY GREEN Indicator Light
SYSTEM FAILURE RED Indicator light
Continuous Audible Alarm
Sieve-GARD™ Compressor
Shutdown
Call a qualified technician
O
2
I/O

SECTION 5—OPERATING INSTRUCTIONS
Part No 1141491 17 Platinum™
SECTION 5—OPERATING
INSTRUCTIONS
Intended Use
Your oxygen concentrator is intended for individual use by
patients with respiratory disorders who require
suppplemental oxygen. The device is not intended to sustain
or support life.
Introduction
Your oxygen concentrator is intended for individual use in the
home. It is an electronically operated device that separates
oxygen from room air. It provides high concentration of
oxygen directly to you through a nasal cannula. Clinical
studies have documented that oxygen concentrators are
therapeutically equivalent to other types of oxygen delivery
systems.
Your provider will show you how to use your oxygen
concentrator. He/She should be contacted with any questions
or problems regarding your oxygen concentrator. This user
manual will tell you about your concentrator and will serve as
a reference as you use your concentrator.
Select a Location
You may select a room in your house where using your
oxygen concentrator would be most convenient. Your
concentrator can be easily rolled from room to room on its
casters.
Your oxygen concentrator will perform best when operated
under the following conditions. Usage in environments other
than those described may result in the need for increased
equipment maintenance. The air intake of the unit should be
located in a well ventilated area to avoid airborne pollutants
and/or fumes.

SECTION 5—OPERATING INSTRUCTIONS
Platinum™ 18 Part No 1141491
Recommended Guidelines for Optimum
Performance
NOTE: Ensure that your concentrator is at least 7.5 cm (3 in) away
from walls, draperies or furniture to assure sufficient air flow. Avoid
deep pile carpets and heaters, radiators or hot air registers.
Plug in Power Cord
1. Plug in power cord to an electrical outlet.
Temperature: (10°C - 35°C) 50°F - 95°F
Electrical: No extension cords.
Placement: No closer than 7.5 cm (3 in) from the wall,
furniture, draperies, or similar surfaces.
Tubing and Cannula: IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
2.1 m (7 ft) cannula with a maximum 15.2 m
(50 ft) of Crush-Proof Tubing (DO NOT
pinch).
IRC9LXO2AWQ
Recommended use up to 15.2 m (50 ft) high
flow tubing with high flow cannula at all flow
rates.
Environment: Smoke and soot-free. No confined spaces
(Example: No closets).
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Flow Rate IRC5LXAW, IRC5LXO2AW,
IRC5LXO2AWQ
0.5 L/min. to 5 L/min. Flow rates less than 1
L/min., are not recommended.
IRC9LXO2AWQ
1 L/min. to 9L/min. Flow rates less than 1
L/min. are not recommended.
Minimum Operating Time: 30 Minutes

SECTION 5—OPERATING INSTRUCTIONS
Part No 1141491 19 Platinum™

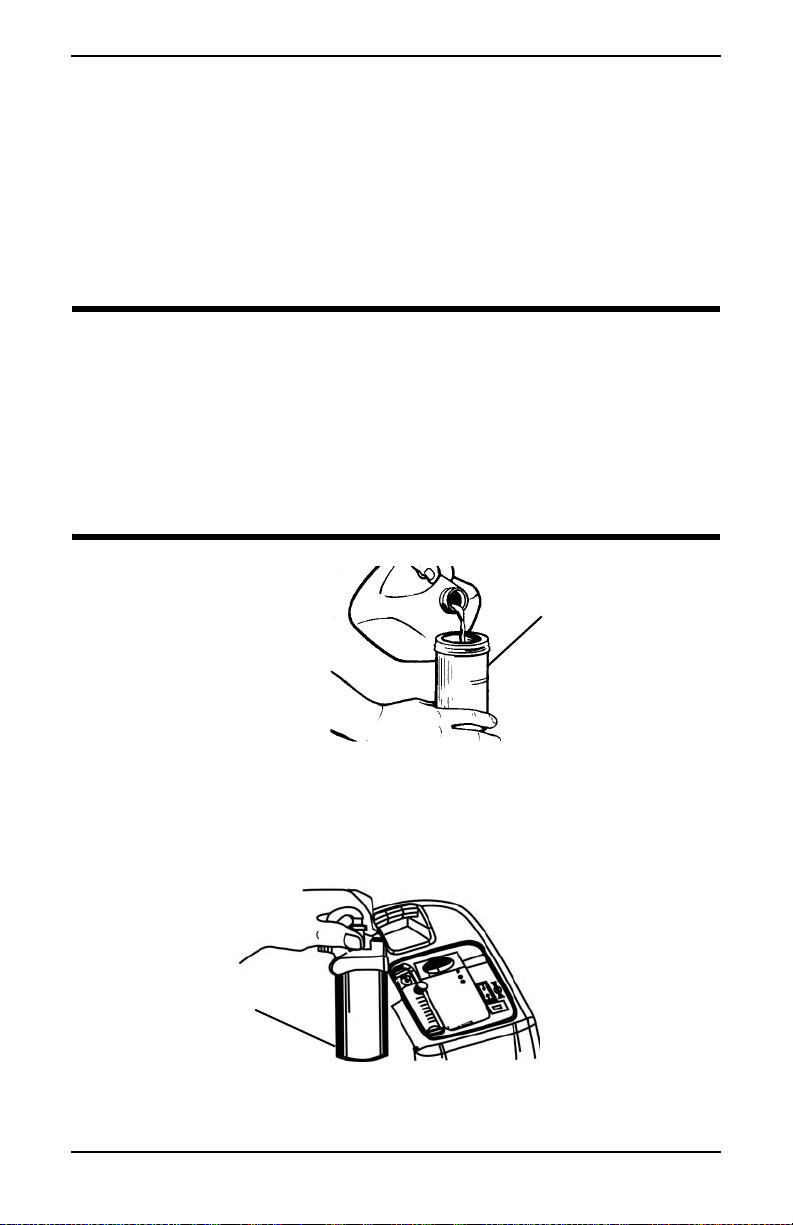

Connect Humidifier (If So Prescribed)
NOTE: For this procedure, refer to FIGURE 5.1,FIGURE 5.2,
FIGURE 5.3 on page 20 and FIGURE 5.4 on page 21.
1. Fill humidifier with distilled water to the level indicated
by the manufacturer. (Please contact Invacare for
recommendations).
 WARNING
DO NOT overfill humidifier.
Replace the humidifier cap and securely tighten.
DO NOT reverse the oxygen input and output
connections. Water from the humidifier bottle will travel
through the cannula back to the patient.
FIGURE 5.1 Filling the Humidifier
2. Place the humidifier bottle in the humidifier
compartment.
FIGURE 5.2 Humidifier Compartment
Humidifier Bottle
Humidifier Bottle

SECTION 5—OPERATING INSTRUCTIONS
Platinum™ 20 Part No 1141491
3. Remove the filter access door located on the side of the
concentrator. Insert a flathead screwdriver in the plate
groove on the top edge of the filter access door and gently
pry the filter access door open. Refer to Detail “A” in
FIGURE 5.3.
4. The humidifier adapter is next to the inlet filter. Pull up
and remove the humidifier bottle adapter. Refer to Detail
“B” in FIGURE 5.3.
5. Attach it to the humidifier by turning the wing nut on the
humidifier bottle counterclockwise until it is securely
fastened. Refer to Detail “C” in FIGURE 5.3.
FIGURE 5.3 Attaching the Humidifier Bottle Adapter
DETAIL “A”
Plate Groove (Insert Flat
Head Screwdriver Here)
Filter Access Door
DETAIL “B”
Humidifier Bottle
Adapter
Humidifier Bottle
Adapter
Filter
Access
Door
DETAIL “C”
