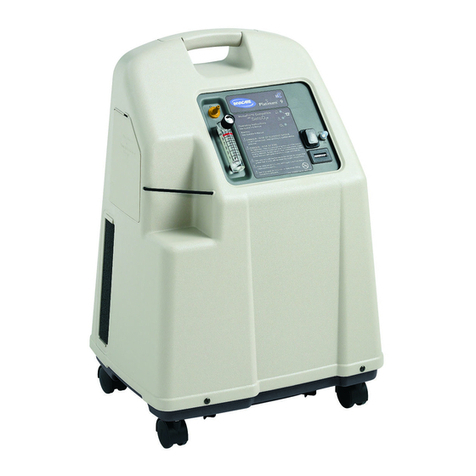

Invacare Platinum IRC5LXO2 User manual

Dealer: This manual MUST be given to the end
user.
User: Before using this product, read this manual
and save for future reference.
Operator’s Manual
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
Platinum™Series
XL, 5, 10
Oxygen Concentrators Standard,
with SensO2
®and HomeFill™II
Invacare 5 with SensO2
Model IRC5LXO2
Invacare 5
Model IRC5LX
Invacare 1 with SensO2
Model IRC1 LXO2
Invacare 1
Model IRC1 LX

WARNING
Platinum™Series 2 Part No 1118353
 WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO UNDERSTAND
THE WARNINGS, CAUTIONS, AND INSTRUCTIONS,
CONTACT INVACARE TECHNICAL SERVICES
BEFORE ATTEMPTING TO USE THIS EQUIPMENT -
OTHERWISE SERIOUS INJURY OR PROPERTY
DAMAGE MAY RESULT.
ACCESSORIES
There are many different types of humidifiers, oxygen tubing,
cannulas and masks that can be used with this device. You
should contact your local home care provider for
recommendations on which of these devices will be best for
you. They should also give you advice on the proper usage,
maintenance, and cleaning.
 WARNING
Invaca e p oducts a e specifically designed and
manufactu ed fo use in conjunction with Invaca e
accesso ies. Accesso ies designed by othe manufactu e s
have not been tested by Invaca e and a e not
ecommended fo use with Invaca e p oducts.

TABLE OF CONTENTS
Part No 1118353 3 Platinum™Series
ACCESSORIES .................................................. 2
SPECIAL NOTES ............................................... 4
SECTION 1—GENERAL GUIDELINES .................. 5
SECTION 2—FEATURES .................................... 9
SECTION 3—HANDLING ................................. 10
Unpacking............................................................................................10
Inspection............................................................................................10
Storage.................................................................................................10
SECTION 4—SPECIFICATIONS ......................... 11
SECTION 5—OPERATING INSTRUCTIONS ....... 21
Introduction........................................................................................21
Select a Location ...............................................................................21
Recommended Guidelines for ptimum Performance............22
Plug in Power Cord ..........................................................................22
Connect Humidifier (If So Prescribed).........................................22
Power Switch .....................................................................................25
Flowrate...............................................................................................26
Sens 2 xygen Purity Indicator (If Your Unit Features the 2
Sensor Feature) ........................................................................................27
Initial Startup of the Concentrator ...............................................27
Explanation of xygen Purity Indicator Lights...........................27
Indicators (If Your Unit Does Not Feature the 2 Sensor) ...28
SECTION 6—MAINTENANCE .......................... 29
Routine Maintenance........................................................................29
SECTION 7—TROUBLESHOOTING GUIDE ......... 32
LIMITED WARRANT .................................... 35

SPECIAL N TES
Platinum™Series 4 Part No 1118353
SPECIAL NOTES
NOTICE
The information contained in this document is subject to
change without notice.
 DANGER
Use s MUST not smoke while using this device. Keep all
matches, lighted ciga ettes o othe sou ces of ignition
out of the oom in which this p oduct is located. No
smoking signs should be p ominently displayed. Textiles
and othe mate ials that no mally would not bu n a e
easily ignited and bu n with g eat intensity in oxygen
en iched ai . Failu e to obse ve this wa ning can esult in
seve e fi e, p ope ty damage and cause physical inju y o
death.
SIGNAL W RD MEANING
DANGER
Danger indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARN NG
Warning indicates a potentially hazardous situation
which, if not avoided, could result in death or seri-
ous injury.
CAUT ON
Caution indicates a potentially hazardous situation
which, if not avoided, may result in property dam-
age.

SECTI N 1—GENERAL GUIDELINES
Part No 1118353 5 Platinum™Series
SECTION 1—GENERAL GUIDELINES
In order to ensure the safe installation, assembly and
operation of the Platinum concentrator these instructions
UST be followed.
CAUTION
“Caution: Federal law restricts this device to sale or rental by
or on order of a physician, or any other practitioner licensed
by the law of the State in which he/she practices to use or
order the use of this device.”
 WARNING
SECTION 1 - GENERAL GUIDELINES contains
impo tant info mation fo the safe ope ation and use of
this p oduct. DO NOT use this p oduct o any available
optional equipment without fi st completely eading and
unde standing these inst uctions and any additional
inst uctional mate ial such as Owne ’s Manuals, Se vice
Manuals o Inst uction Sheets supplied with this p oduct
o optional equipment. If you a e unable to unde stand
the Wa nings, Cautions o Inst uctions, contact a
healthca e p ofessional, deale o technical pe sonnel
befo e attempting to use this equipment - othe wise,
inju y o damage may occu .
Risk of electric shock. DO NOT disassemble. Refer servicing
to qualified service personnel.
The use of oxygen therapy requires that special care be taken
to reduce the risk of fire. Any materials that will burn in air,
and some that will not, are easily ignited and burn rapidly in
high concentrations of oxygen. For safety concerns, it is
necessary that all sources of ignition be kept away from the
product and preferably out of the room in which it is being
used. NO S OKING signs should be prominently displayed.

SECTI N 1—GENERAL GUIDELINES
Platinum™Series 6 Part No 1118353
A spontaneous and violent ignition may occur if oil, grease or
greasy substances come in contact with oxygen under
pressure. These substances UST be kept away from the
oxygen concentrator, tubing and connections, and all other
oxygen equipment. DO NOT use any lubricants unless
recommended by Invacare.
For optimum performance, Invacare recommends that each
concentrator be on and running for a minimum of 30 minutes
at a time. Shorter periods of operation may reduce maximum
product life.
If the concentrator has a damaged cord or plug, if it is not
working properly, if it has been dropped or damaged, or
dropped into water, call qualified technician for examination
and repair.
Keep the cord away from heated or hot surfaces.
DO NOT move or relocate concentrator by pulling on the
cord.
NEVER drop or insert any object into any opening.
NEVER block the air openings of the product or place it on a
soft surface, such as a bed or couch, where the air opening
may be blocked. Keep the openings free from lint, hair and the
like. Fill humidifier with water to the level shown by the
manufacturer. DO NOT overfill.
Keep unit at least three (3) inches away from walls, draperies,
furniture, and the like.
Invacare recommends that Crush-Proof oxygen tubing be
used with this product and not exceed 50 ft. (15.2m) in length.
Recommended use for Platinum 10 is up to 25 ft. in length of
high flow tubing.

SECTI N 1—GENERAL GUIDELINES
Part No 1118353 7 Platinum™Series
AINTENANCE
The Invacare Oxygen Concentrator was specifically designed
to minimize routine preventive maintenance. Only
professionals of the healthcare field or persons fully
conversant with this process such as factory trained personnel
should perform preventive maintenance or performance
adjustments on the oxygen concentrator.
RADIO FREQUENCY INTERFERENCE
ost electronic equipment is influenced by Radio Frequency
Interference (RFI). Caution should be exercised with regard to
the use of portable communications equipment in the area
around such equipment.
TO REDUCE THE RISK OF BURNS, ELECTROCUTION,
FIRE OR INJURY TO PERSONS.
Avoid using while bathing. If continuous usage is required by
the physician’s prescription:
The concentrator UST be located in another room at
least seven (7) feet from the bath.
DO NOT come in contact with the concentrator while wet.
DO NOT place or store product where it can drop into water
or other liquid.
DO NOT reach for product that has fallen into water. Unplug
I EDIATELY.
A product should NEVER be left unattended when plugged
in.
This device is to be used only in accordance with the
prescription of a physician and this Owner’s anual. If at any
time the patient or attendant conclude that the patient is
receiving an insufficient amount of oxygen, the supplier
and/or physician should be contacted immediately.
DO NOT change the L/min. setting on the flowmeter unless a
change has been prescribed by your physician or therapist.

SECTI N 1—GENERAL GUIDELINES
Platinum™Series 8 Part No 1118353
Close supervision is necessary when this product is used near
children or physically-challenged individuals.
Use this product for only intended use as described in this
manual.
DO NOT connect the concentrator in parallel or series with
other oxygen concentrators or oxygen therapy devices.
Use of some administration accessories or certain humidifiers
not specified for use with oxygen concentrator may impair the
performance.
In certain circumstances oxygen therapy can be hazardous.
Invacare recommends that you seek medical advice before
using this machine.
This equipment is to be used as an oxygen supplement and is
not considered life supporting or life sustaining.
Avoid creation of any spark near medical oxygen equipment.
This includes sparks from static electricity created by any type
of friction.
POLARIZED PLUG INSTRUCTION
As a safety feature, this appliance has a polarized plug (one
blade is wider than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safety feature.

SECTI N 2—FEATURES
Part No 1118353 9 Platinum™Series

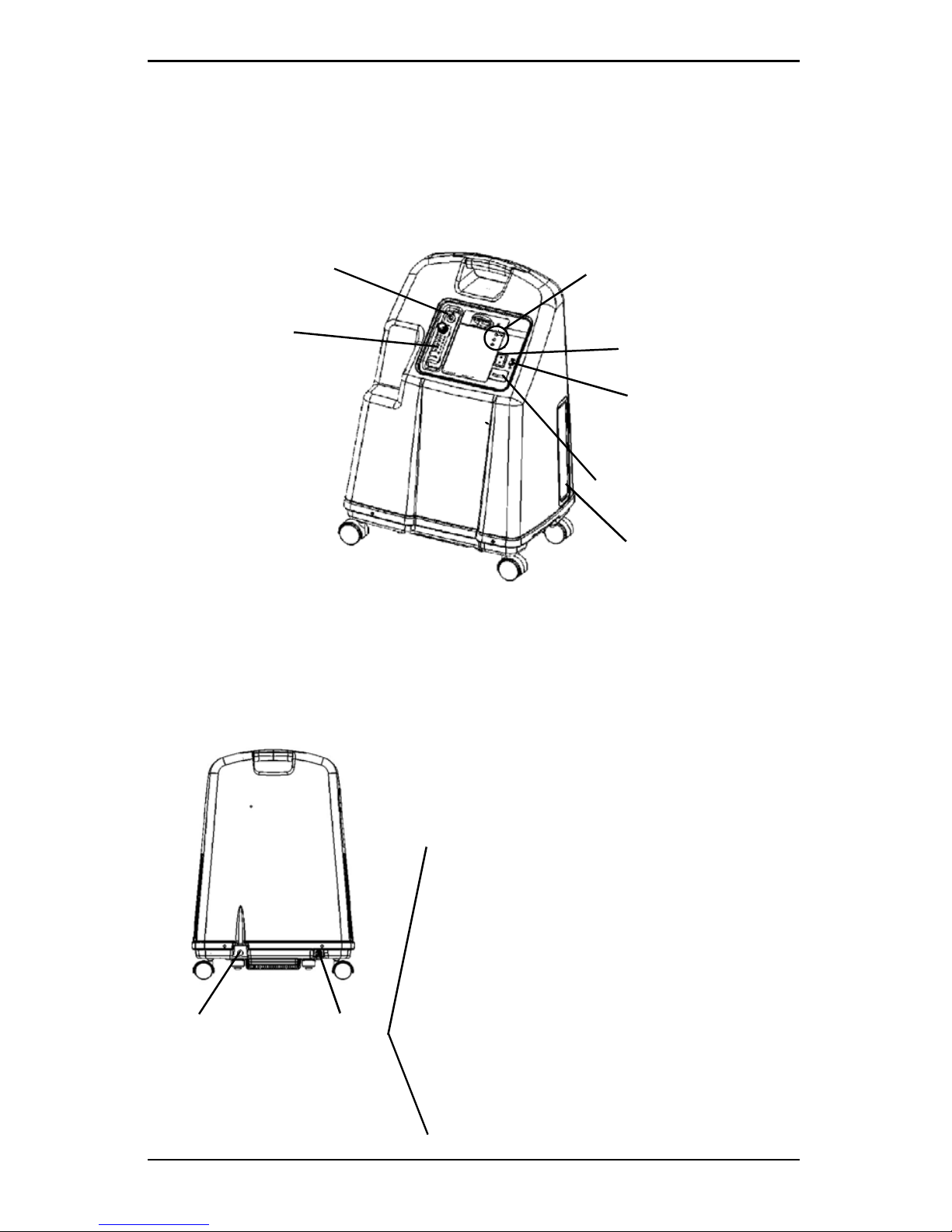

SECTION 2—FEATURES
Oxygen Outlet
Flowmeter
Oxygen Purity Indicator Lights
(SensO2 model only)/ Fault
and Power Indicator Lights
(LX model only)
Power Switch
Circuit Brea er
Elapsed Time Meter
Cabinet Filter
(one of two shown)
REAR VIEW
ACCESSORIES (NOT SHOWN):
Remote Humidifier/Flowmeter Accessory -
IRCRF5
PreciseRX™ Pediatric Humidifier/Flowmeter
Accessory - IRCPF16
Venture® HomeFill II home oxygen
compressor - IOH200
Outlet
Fitting
Power
Cord
NOTE: This outlet fitting is to be used only
for filling oxygen cylinders with the Venture
HomeFill II home oxygen compressor. The
outlet fitting does not ffect concentr tor
perform nce. Refer to the HomeFill II
owner's m nu l, p rt number 1100873, for
connection nd oper ting instructions.
When not in use, the plug provided with the
concentr tor should be inserted into the
outlet fitting. For more inform tion bout the
HomeFill II, cont ct your Inv c re de ler.

SECTI N 3—HANDLING
Platinum™Series 10 Part No 1118353

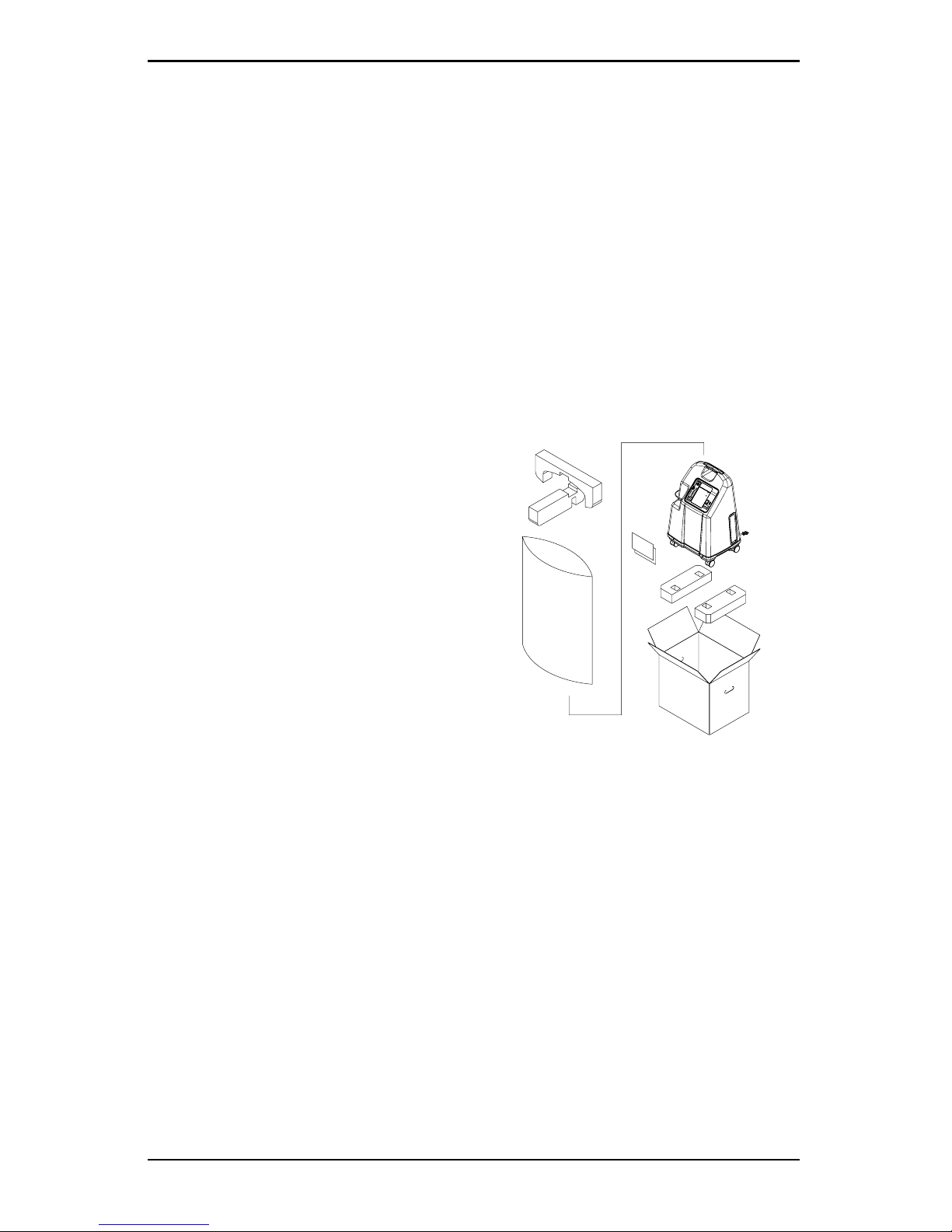

SECTION 3—HANDLING
The concentrator should always be kept in the upright
position to prevent cabinet damage while being transported.
The shipping container has been designed to assure
maximum protection of the concentrator.
If the concentrator is to be reshipped by common carrier,
additional cartons are available from Invacare.
Unpacking
NOTE: For this procedure, refer to FIGURE 3.1.
1. Check for any obvious
damage to the carton or
its contents. If damage is
evident, notify the
carrier, or your local
dealer.
2. Remove all loose packing
from the carton.
3. Carefully remove all the
components from the
carton. FIGURE 3.1 Unpacking
NOTE: Unless the oxy en concentrator is to be used immediately,
retain containers and packin materials for stora e until use of the
concentrator is required.
Inspection
1. Inspect/examine exterior of the oxygen concentrator for
nicks, dents, scratches or other damages. Inspect all
components.
Storage
1. Store the repackaged oxygen concentrator in a dry area.
2. DO NOT place objects on top of repackaged concentrator.

SECTI N 4—SPECIFICATI NS
Part No 1118353 11 Platinum™Series
SECTION 4—SPECIFICATIONS
*NOTE: Stated concentration levels achieved after initial warm-up
period (approximately 30 minutes).
Electrical Requirements: 120 VAC ± 10% (132 VAC/108 VAC), 60
Hz
Rated Current nput: Platinum 5 and XL: 4.3 A
Platinum 10: 4.7 A
Sound Level: Platinum 5 and XL: 50 dB Average
Platinum 10: 58 dB Average
Altitude: Platinum 5 and XL - Up to 6,000 ft. (1828
meters) above sea level without degradation
of concentration levels. From 6,000 ft. (1828
meters) to 13,129 ft. (4000 meters) below
90% efficiency
Platinum 10 - Up to 4,000 ft. (1230 meters)
above sea level without degradation of con-
centration levels. From 4,000 ft. (1230
meters) to 13,129 ft. (4000 meters) below
90% efficiency
*Oxygen Output
Concentration Levels:
All 5LXO2/5LX models 95.6% to 87% at 0.5
to 5 L/min. and all 10LXO2/10LX models
95.6% to 87% at 2 L to 10 L/min.
Maximum Outlet Pressure: 5 ± 0.5 psi. (34.5 ± 3.45 kPa.)

SECTI N 4—SPECIFICATI NS
Platinum™Series 12 Part No 1118353
5LXO2 INDICATORS:
5LX INDICATORS:
Flow Range: Platinum 5 and XL - 0.5 to 5 L/min. For
flowrates less than 1 L/min., we recommend
the use of the nvacare Pediatric Flowmeter
RCPF16 Accessory.
Platinum 10 - 2 L/min. to 10 L/min
Low Flow Alarm: Platinum 5 - 0 L/min. to 0.5 L/min.,
Platinum 10 - 0 L/min. to 1 L/min.
Rapid Audible Alarm Beeping (No
Accessories Connected)
Average Power
Consumption:
Platinum 5 and XL: 400W
Platinum 10: 585W
Pressure Relief Mechanism
Operational at:
35 psi ± 3.5 psi (241 kPa ± 24.1 kPa)
Change in maximum recom-
mended flow when back pres-
sure of 7kPa is applied:
0.7 L/min.
O
2
Purity
SYSTEM FAILURE
Below 73%
73% to 85%
SYSTEM OKAY
Over 85%
ndicator Lights
RED - Contin o s A dible
Alarm Sieve-GARD
Compressor Sh tdown
YELLOW
GREEN
O2
Label
Symbol
Status
SYSTEM FAILURE
SYSTEM OKAY
Indicator Lights
RED
Label
Symbol
I/O
GREEN

SECTI N 4—SPECIFICATI NS
Part No 1118353 13 Platinum™Series
Filters: Cabinet (2), Outlet HEPA and Compressor
nlet.
Safety System: Current overload or line surge shutdown.
High temperature compressor shutdown.
High Pressure Alarm w/compressor shut-
down. Low Pressure Alarm w/compressor
shutdown. Battery Free Power Loss Alarm.
SensO2 Oxygen System (SensO2 Model)
Low Flow Alarm.
Width: 18 3/8 in. ± 3/8 in. (46.7 cm ± 1 cm)
Height: 26 3/8 in. ± 3/8 in. (67.0 cm ± 1 cm)
Depth: 14 3/8 in. ± 3/8 in. (36.5 cm ± 1 cm)
Weight: Platinum 5 and XL: 52 lbs ± 2 lbs (23.6 kg ±
1 kg)
Platinum 10: 53 lbs ± 2 lbs (24.0 kg ± 1 kg)
Shipping Weight: Platinum 5 and XL: 58 lbs ± 2 lbs (26.3 kg ±
1 kg)
Platinum 10: 60 lbs ± 2 lbs (27.2 kg ± 1 kg)
Operating Ambient
Temperature:
50°F - 95°F (10°C - 35°C) at 20-60% relative
humidity
Exhaust: Platinum 5 and XL: Less than Ambient
+ 35°F (+19°C).
Platinum 10: Less than Ambient + 45°F
(+25°C).
Oxygen Output: Platinum 5 and XL: Less than Ambient + 4°F
(+2°C).
Platinum 10: Less than Ambient + 8°F
(+4.4°C).
Cabinet: mpact Resistant flame-retardant plastic cab-
inet that conforms to UL 94-V0.
Regulatory Listing: Double nsulated Product ETL certified
complying with UL 1097 ETL certified to
CSA C22.2 No. 68
Electrical: No extension cords.

SECTI N 4—SPECIFICATI NS
Platinum™Series 14 Part No 1118353
Placement: No closer than three (3) inches from any
wall, furniture, draperies, or similar surfaces.
Tubing: 7 ft cannula with a maximum 50 ft of
Crush-Proof Tubing (DO NOT pinch).
Platinum 10: Recommended use up to 25 ft
high flow tubing with high flow cannula at all
flow rates.
Relative Humidity: 20 to 60%
Time of Operation: Up to 24 hours per day.
Recommended Storage and
Shipping Temperature:
-20°F to 150°F (-29°C to 65°C), at 15-95%
relative humidity

N TES
Part No 1118353 15 Platinum™Series
NOTES

N TES
Platinum™Series 16 Part No 1118353
NOTES

Please Seal with
Tape Before Mailing

REGISTER YOUR PRODUCT!
The benefits of registering:
1. Safeguard your investment.
2. Ensure long term maintenance and servicing of your purchase.
3. Receive updates with product information, maintenance tips, and industry
news.
4. Invacare can contact you or your provider, if servicing is needed on your
product.
5. It will enable Invacare to improve product designs based on your input
and needs.
Register ONLINE at www.invacare.com
- or -
Complete form and mail.
Any registration information you submit will be used by Invacare Corporation
only, and protected as required by applicable laws and regulations.
NAME _____________________________________________________
ADDRESS __________________________________________________
CITY _______________________ STATE/PROVINCE _____________
ZIP/POSTAL CODE ________________
EMAIL ___________________________ PHONE NO. ____________
INVACARE MODEL NO. _____________________________________
SERIAL NO. ______________________
PURCHASED FROM _______________
DATE OF PURCHASE: _____________
PRODUCT REGISTRATION FORM

1. Method of purchase: (check all that apply)
❏ Medicare ❏ Insurance ❏Medicaid ❏ Other
2. This product was purchased for use by: (check one)
❏ Self ❏ Parent ❏ Spouse ❏ Other
3. Product was purchased for use at:
❏ Home ❏ Facility ❏ Other
4. I purchased an Invacare product because:
❏ Price ❏ Features (list features)
5. Who referred you to Invacare products? (check all that apply)
❏Doctor ❏ Therapist ❏ Friend ❏Relative ❏Dealer/Provider ❏Other
❏ Advertisement (circle one): TV, Radio, Magazine, Newspaper ❏ No Referral
6. What additional features, if any, would you like to see on this product?
_________________________________________________________________
7. Would you like information sent to you about Invacare products that may be
available for a particular medical condition? ❏Yes ❏No
If yes, please list any condition(s) here and we will send you information by email and/or
mail about any available Invacare products that may help treat, care for or manage such
condition(s):
_________________________________________________________________
8. Would you like to receive updated information via email or regular mail about the
Invacare home medical products sold by Invacare's dealers? ❏Yes ❏No
_________________________________________________________________
9. What would you like to see on the Invacare website?
_________________________________________________________________
10. Would you like to be part of future online surveys for Invacare products? ❏ Yes
❏ No
11. User's Year of birth: _________________
If at any time you wish not to receive future mailings from us, please contact us at Invacare
Corporation, CRM Department, 39400 Taylor Parkway, Elyria, OH 44035, or fax to
877-619-7996 and we will remove you from our mailing list.
TO FIND MORE INFORMATION ABOUT OUR PRODUCTS, VISIT
WWW.INVACARE.COM
