Invacare Power TigerTM Instruction Manual

Yes, you can. ™
Power Tiger™
Wheelchair
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 93-37. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design are registered trademarks of Invacare Corporation. and Tiger
and MKIV are trademarks of Invacare Corporation. Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie GMBH & Co.. Tash is a
registered trademark of Tash International Inc.. Therafin is a registered trademark of W/R/ Medical Electronics Co.. Bussman is a registered trademark of
Cooper Industries. MIDI is a registered trademark of Littelfuse Inc.. Dynamic is a registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 93-37
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 5
Accessories - Miscellaneous .................................................................................................... 113
Accessories - Power Wheelchair Tool Kit ................................................................................ 111
Arms - Adjustable Height .......................................................................................................... 32
Backs - Solid - Mounting Hardware .......................................................................................... 23
Backs - Solid & Solid Seats ...................................................................................................... 22
Battery Boxes & Tray Assembly - MK6i Electronics ................................................................. 66
Battery Boxes & Tray Assembly - MKIV Electronics ................................................................ 64
Canes - Back & Stroller Handle Assembly ............................................................................... 14
Casters & Forks (6") (8") .......................................................................................................... 55
Cylinders - Lock w/ Stop Assembly .......................................................................................... 21
Electronics - MK6i ~PLEASE READ THIS ............................................................................... 73
Electronics - MK6i IR Wireless Mouse Module ........................................................................ 107
Electronics - MK6i RF Wireless Mouse Module ....................................................................... 109
Electronics - MKIV Controller - Programmer & Attaching Hardware ........................................ 89
Electronics - MKIV Displays ..................................................................................................... 93
Electronics - MKIV Joystick Mounting Hardware & Joystick Accessories ................................ 79
Electronics - MKIV Joystick Options ......................................................................................... 102
Electronics - MKIV Joysticks - PS - PSF & PSR ...................................................................... 77
Electronics - MKIV Joysticks - RII - RX - A - A+ - TCHJOY ..................................................... 74
Electronics - MKIV Mid-Line Swing Bracket Assembly ............................................................ 82
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Electronics - MKIV R.I.M. Head Control Assembly (After 8/15/95) .......................................... 99
Electronics - MKIV R.I.M. Head Control Assembly (Before 8/16/95) ....................................... 95
Electronics - MKIV R.I.M. Head Control Mounting Hardware ................................................... 97
Electronics - MKIV Sip-N-Puff/Digital Interface & COM12 - COM34 ........................................ 91
Electronics - MKIV Swivel Joystick Hardware .......................................................................... 81
Electronics - Quad Link - QLA (After 10/30/05) ........................................................................ 87
Electronics - Quad Link Assembly (Before 10/31/05) ............................................................... 84
Electronics - Tash & Therafin Accessories ............................................................................... 105
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 6
Frames - Seat ........................................................................................................................... 12
Frames - Seat & Back Cane Hardware .................................................................................... 16
Frames - Side & Hardware ....................................................................................................... 51
Frames - Width Growth Kits ..................................................................................................... 53
Front Riggings - AT5043 Flip-Up Footplates ............................................................................ 40
Front Riggings - Calf Pads & Ratchet Assemblies ................................................................... 38
Front Riggings - Footrest & Legrest Accessories ..................................................................... 49
Front Riggings - Footrest Supports .......................................................................................... 36
Front Riggings - Legrest Supports - ATL4A ............................................................................. 34
Front Riggings - One Piece Adjustable Angle Footboard ......................................................... 48
Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates (After 2/28/95) ...... 43
Front Riggings - Pivot/Slide Tube & AT5543 Adjustable Angle Footplates (Before 3/1/95) ..... 41
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Front Riggings - Pivot/Slide Tube and Composite Footplates .................................................. 46
Motor & Gearbox Assembly ..................................................................................................... 60
Orbit Seat Option ...................................................................................................................... 19
Orbit Seat Option - "T" Arm and Hardware .............................................................................. 30
Orbit Seat Option - Foot Pedal Release Assembly .................................................................. 26
Orbit Seat Option - Seat Frame Assembly ............................................................................... 28
Orbit Seat Option - Seat Rail - Lower Seat Plate Assembly ..................................................... 24
Packaging - Literature & Decals ............................................................................................... 10
Tilt & Non-Tilt Hardware ........................................................................................................... 17
Warranty Replacement Parts ................................................................................................... 114
Wheel Locks & Hardware ......................................................................................................... 62
Wheels - Rear & Motor Mounting Hardware ............................................................................ 58
Wiring Harnesses & Chargers - MK6i Electronics .................................................................... 71
Wiring Harnesses & Chargers - MKIV Electronics ................................................................... 68
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Color
Pink Pearl.6 oz103145202P Super Teal.6 oz103145406P Deep Purple.6 oz103145608P Cobalt Blue.6 oz104631917P Anthracite.6 oz103337622P Wet Black.6 oz103145024P White/ White Snow.6 oz103144729P Sunny Yellow.6 oz103144830P Lollipop Pink.6 oz103145331P Red.6 oz103145533P Flat Black.6 oz104632734P Silver MetallicN/AN/A60P
Electric Red.6 oz1046321
61P
See Note(s) A
Electric Blue.6 oz1046320
62P
See Note(s) A
Metallic Blue.6 oz1046324
64P
See Note(s) A
Metallic Green.6 oz.1046323
65P
See Note(s) A Teflon Black.6 oz1101320-NLA69P Silver VeinN/AN/A71P Evergreen with Navy.6 oz107389280P Dark Olive with Copper.6 oz107389381P Fruit Punch with Fucshia.6 oz107389482P Royal Blue with Grape.6 oz107389583P Lavender.6 oz107389684P Jeweled Green.6 oz1101325101P Denim Blue.6 oz1101327102P Mocha Frost.6 oz1101324103P Electric Teal.6 oz1101316104P Midnight Blue.6 oz1101326105P Black PrismN/AN/A115P Sunkissed Orange.6 oz1133372116P Tangerine Red.6 oz1133373117P Fruit FusionN/AN/A118P Bubblegum PinkN/AN/A119P Grape MadnessN/AN/A120P Lolly Pop BlueN/AN/A121P Cosmic BlueN/AN/A122P Celestial PurpleN/AN/A123P Vivid VioletN/AN/A124P Emerald GreenN/AN/A125P
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Frame Finishes, Touch-Up Paints and Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Color
Shamrock GreenN/AN/A126P Grasshopper GreenN/AN/A127P
A - Veiling is not available on these colors.NOTE:
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Frame Finishes, Touch-Up Paints and Upholstery Options
Veil Options
Color Number Color
Dark Purple Veil13V Gold Veil67V Green Veil19V Grey Veil15V
Sparkle Frame Finishes
Color Number Color
Twilight Sparkle72P Gold Sparkle73P Green Sparkle74P Blue Sparkle75P Red Sparkle76P Wet Black with Twilight Sparkle88P
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Frame Finishes, Touch-Up Paints and Upholstery Options
Upholstery Options
Vinyl Colors Nylon Colors
U240 BlackU67 Black
U75 Dove Grey
U85 Dark Blue
U86 Ruby
U97 Sky Blue
U88 Camel
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

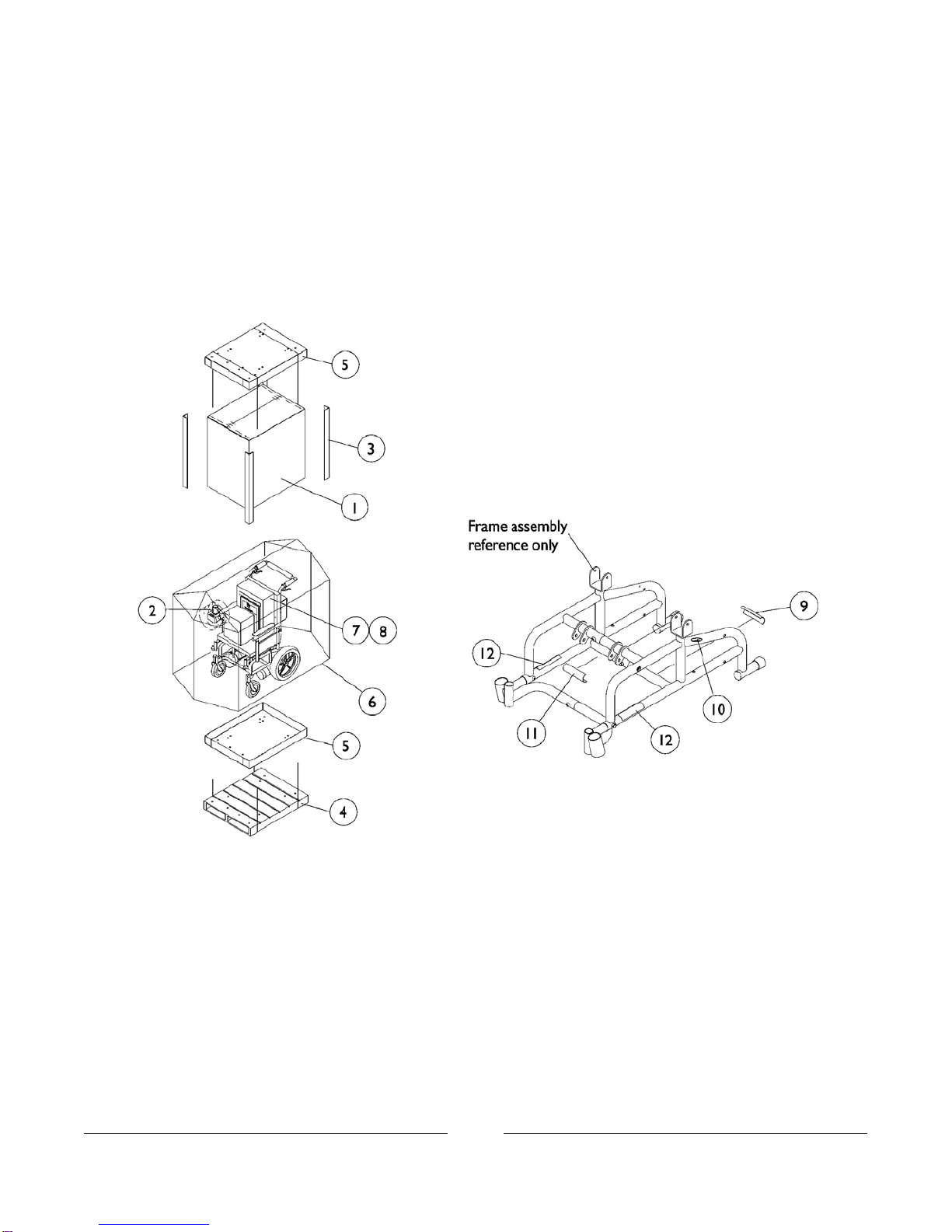

Packaging, Literature and Decals
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 1023612 Tube, Paper 1 12 1115174 Carton, Corner Reinforcement 1 43 See Note See Footnote 1 14 E 1030362 Carton, Tray 1 25 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 16 40131X011 Carton, Front Riggings 1 17 40131X161 Insert, Plain Pad 1 18 1035900 Decal, Transportation 1 19 1095497 Decal, Invacare Logo (1.6) 1 210 C 1119281 Plate, Name, Patent Numbers 1 111 1095220 Decal, Model, Black - Power Tiger 1 212 B,C 1095221 Decal, Model, White - Power Tiger 1 212 C 1038410 Package, Decal, Black - Power Tiger 1 1A,D 1038409 Package, Decal, White - Power Tiger 1 1A,D 1134839 Owner's Manual 1 1D
A - Decal Package includes Invacare logo, model, transportation and patent number decals.
B - Used for chairs with frame colors 02P, 29P, 30P and 84P only.
C - Invacare logo added and model decals changed 1/11/2000. When replacing side frames before 1/11/2000 order decals in
pairs to match.
D - Not Shown.
E - Wood Skid is not supplied.
Note: W
hen adjusting or replacing parts, please refer to your owner's manual for assistance.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Seat Frame Assembly
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Seat Frame Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881037653 Tube, Seat Rail, Color 1 21 A,B 8881037655 Tube, Seat Rail, Color 1 21 A,C 7930323 Package, Locknut (1/4-20) 25 22 1037288 Tube, Spacer 1 23 B 1037291 Tube, Spacer, Black 1 23 C 1037276 Tube, Slide, Seat Frame, Black 1 24 B 1037285 Tube, Slide, Seat Frame, Black 1 24 C 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 25 8881038406 Tube, Fixed Front Frame 1 26 1027095 Plug Button, Black (7/8") 1 27 1052957 Screw, Hex Head w/ Patch (1/4-20 x 2") 1 28 1026907 Washer (1/4 x 1/2 x 1/16") 1 29 8881038407 Footrest Mounting Tube w/ Sector Block, Color -
Right 1 110
8881038408 Footrest Mounting Tube w/ Sector Block, Color -
Left 1 110
1054571 Kit, Sector Block - Right 1 111 1054572 Kit, Sector Block - Left 1 111
A - Specify frame color when ordering.
B - 12-14" Wide Chairs
C - 15-16" Wide Chairs
NOTE:
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Back Canes and Stroller Handle Assembly
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Back Canes and Stroller Handle Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1038249 Tube, Cane Slide, Black 1 11 A 1038250-NLA NLA - Tube, Cane Slide, Black 1 11 B,F 40188X009 Button, Single Snap 1 12 1016298 Grip, Push Handle 1 23 1029959 Cane, Back, Black - Right 1 14 1029960 Cane, Back, Black - Left 1 14 1027095 Plug Button, Black (7/8") 1 15 7930323 Package, Locknut (1/4-20) 25 36 1025331 Bracket, Back Mounting, Black 1 17 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 18 1026031 Nut, Hex with Nylon Cap (#10-32) 1 19 1026034 Washer, Nylon (3/16 x 7/16 x 1/8") 1 110 1025334-NLA NLA - Bracket, Latch, Black - Right 1 111 1025335-NLA NLA - Bracket, Latch, Black - Left 1 111 1025343 Screw, Flat Head (#10-32 x 1-1/2") 1 112 1002102 Washer, Wave (3/16 x 7/16 x 1/16") 1 213 1020363 Spacer (1/4 x 1/2 x 1/2") 1 114 1025337 Latch 1 115 1025325 Spring, Torsion - Right 1 116 1025326 Spring, Torsion - Left 1 116 1029923 Back Cane Assembly - Right 1 117 1029924 Back Cane Assembly - Left 1 117 1001634 Cap, End, Protective, Black 1 218 40314X001-NLA NLA - Ring, Retaining 1 219 1025350-NLA NLA - Grip, Foam, Bottom 1 120 1025341 Rod, Release 1 121 A 1029922-NLA NLA - Rod, Release 1 121 B 1016254 Grip, Push Handle 1 122 1025359 Tube, Spacer, Black (1") 1 123 C 1025360-NLA NLA - Tube, Spacer, Black (2") 1 123 D 1029930 Tube, Spacer, Black (4") 1 123 E 1014386 Screw, Phillips Pan Head (#8-32 x 5/8") 1 224 1045470 Pin, Quick Release with Lanyard 1 225 1038243 Handle, Stroller, Black - Right 1 126 1038244 Handle, Stroller, Black - Left 1 126 1038252 Stroller Handle Assembly, Black (12 - 13" W) 1 127 C 1038253 Stroller Handle Assembly, Black (14" W) 1 127 D 1038255 Stroller Handle Assembly, Black (15 - 16" W) 1 127 E
A - 12-14" Wide Chairs
B - 15-16" Wide Chairs
C - 12"-13" Wide Chairs
D - 14" Wide Chairs. No longer available as a service part, must order Frame Width Growth Kit (1040142) as its replacement.
E - 15"-16" Wide Chairs
F - No longer available as a service part, must order Frame Width Growth Kit (1040142) as its replacement.
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
7930323 Package, Locknut (1/4-20) 25 201 1026060-NLA NLA - Washer, Flat (9/32 x 1 x 5/64) 1 22 40157X019 Spacer, Coved (1/4 x 7/8 x 7/16") 1 43 1027095 Plug Button, Black (7/8") 1 24 1027142 Plate, Back Mounting, Right 1 15 1027143 Plate, Back Mounting, Left 1 15 7930301 Package, Button Head Cap Screw (1/4-20 x 1-3/4") 25 46 1036040 Spacer (9/32 x 7/8 x 1/2") 1 47 A 1020363 Spacer (1/4 x 1/2 x 1/2") 1 28 A 1036394 Spacer (1/4 x 3/4 x 1-7/16") 1 29 7930333 Locknut (1/4-20) 25 210 B 1026035 Locknut (#10-24) 1 210 C 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 611 1036041 Screw, Socket Head (1/4-20 x 3-1/4") 1 212 B 1030957 Screw, Shoulder Hex Socket Head (1/4 x 1-3/4",
#10-24) 1 212 C
1025351 Screw, Shoulder Hex Socket Head (5/16" x 1-1/4",
1/4-20) 1 213
A - 14" Wide
B - 12 to 14" Wide
C - 15 to 16" Wide
NOTE:

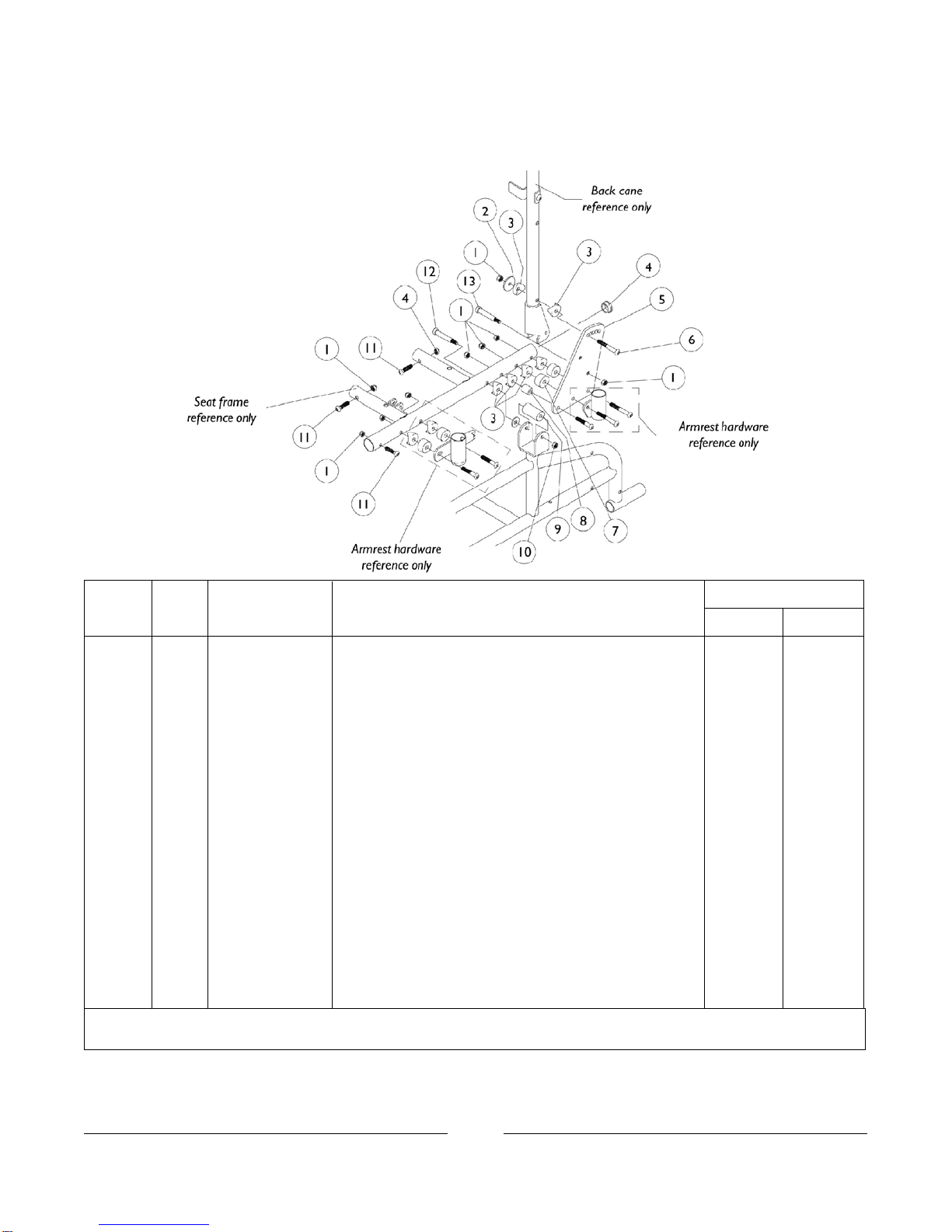

Seat Frame and Back Cane Hardware
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

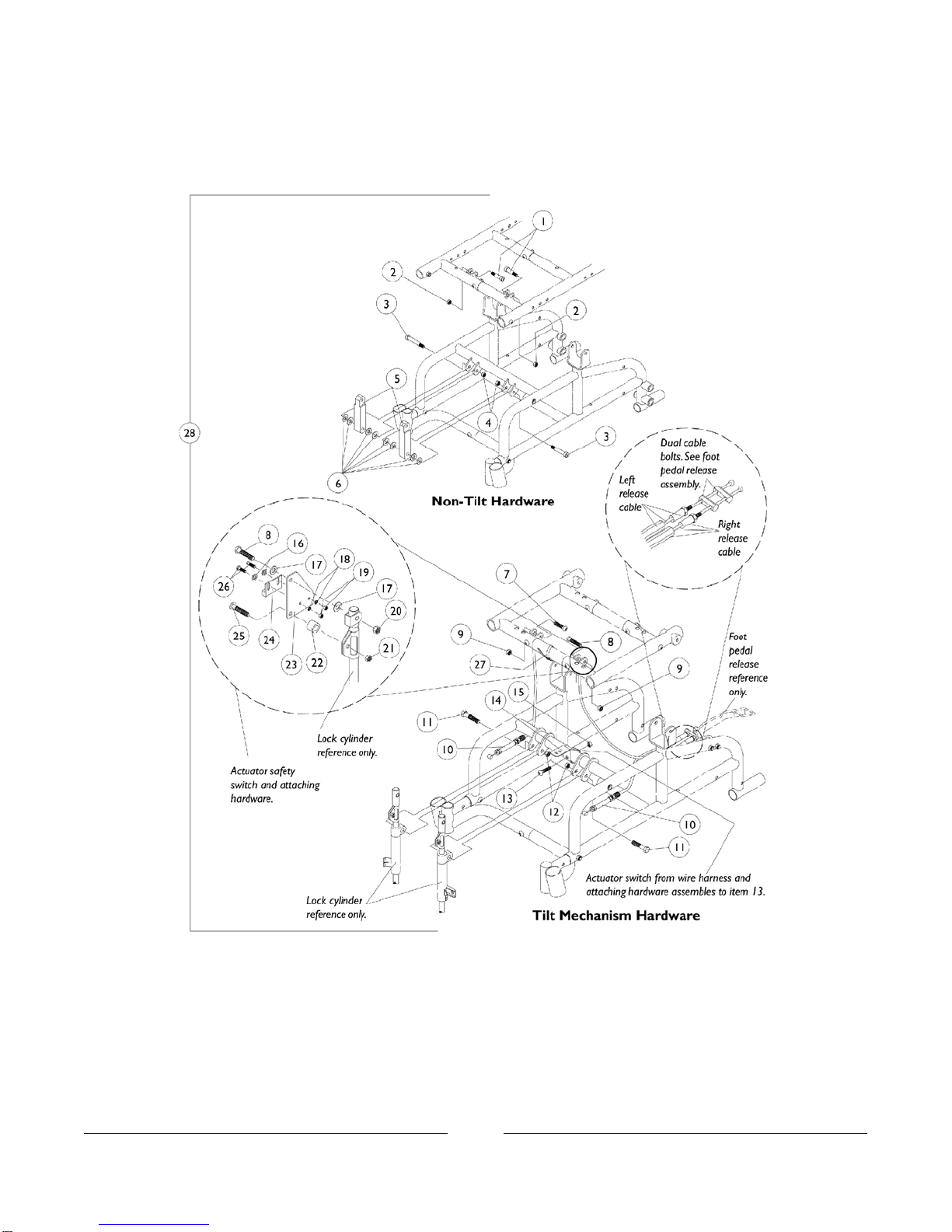

Tilt and Non-Tilt Hardware
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

Tilt and Non-Tilt Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1029966 Bolt, Shoulder (1/4 x 3/4") 1 21 1026035 Locknut (#10-24) 1 22 1025351 Screw, Shoulder Hex Socket Head (5/16" x 1-1/4",
1/4-20) 1 23
7930333 Locknut (1/4-20) 25 24 1030263 Link 1 25 1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 66 1023998-NLA NLA - Lever, Tilt, Black - Right 1 17 E 1023999-NLA NLA - Lever, Tilt, Black - Left 1 17 E 1025352 Cable 1 28 1095503 Package, Tie Wrap (5-5/8" L) 10 69 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 110 7930323 Package, Locknut (1/4-20) 25 311 1009837 Screw, Socket Button Head (1/4-20 x 1") 1 112 1037898 Bracket, Actuator Switch Mounting, Black 1 113 A 1027704 Screw, Phillips Pan Head (#4-40 x 3/8") 1 2B 1011011 Washer, Plain (1/8 x 5/16 x 1/32") 1 2B P0870X000 Nut, Hex Keps (#4-40) 1 2B 7930323 Package, Locknut (1/4-20) 25 114 1013560 Screw, Hex Head (5/16-18 x 1-1/2") 1 215 60290X002 Locknut (5/16-18) 1 216 1008432 Screw, Socket Button Head (1/4-20 x 1-1/4") 1 117 1011011 Washer, Plain (1/8 x 5/16 x 1/32") 1 218 1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 219 1008525 Washer, Internal Tooth Lock (#4-40) 1 220 1005889 Locknut (#4-40) 1 221 7930323 Package, Locknut (1/4-20) 25 222 7930332 Locknut, High Profile (#10-32) 25 123 47330X003 Spacer (5/16 x 1/2 x 3/8") 1 124 1037897 Plate, Actuator Mounting 1 125 1024001 Sensor, Actuator Switch 1 126 1005383 Screw, Socket Button Head (#10-32 x 1") 1 127 1027704 Screw, Phillips Pan Head (#4-40 x 3/8") 1 228 1036832 Hardware, Tilt Mechanism 1 129 C 1030273 Hardware, Non-Tilt 1 129 D
A - Attaching hardware for the Actuator Switch Mounting Bracket consists of part numbers 1027704, 1011011, and
P0870X000.
B - Not Shown
C - Includes Items 7-12, 15, 16, and 18-28
D - Includes Items 1-6
E - Part #'s 1023998 and 1023999 Tilt Lever is no longer available. Item #7 has been replaced with part #1060209, available
from Top End. Please contact Top End directly for this part that can be used on the right or left side of the wheelchair.
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 93-37

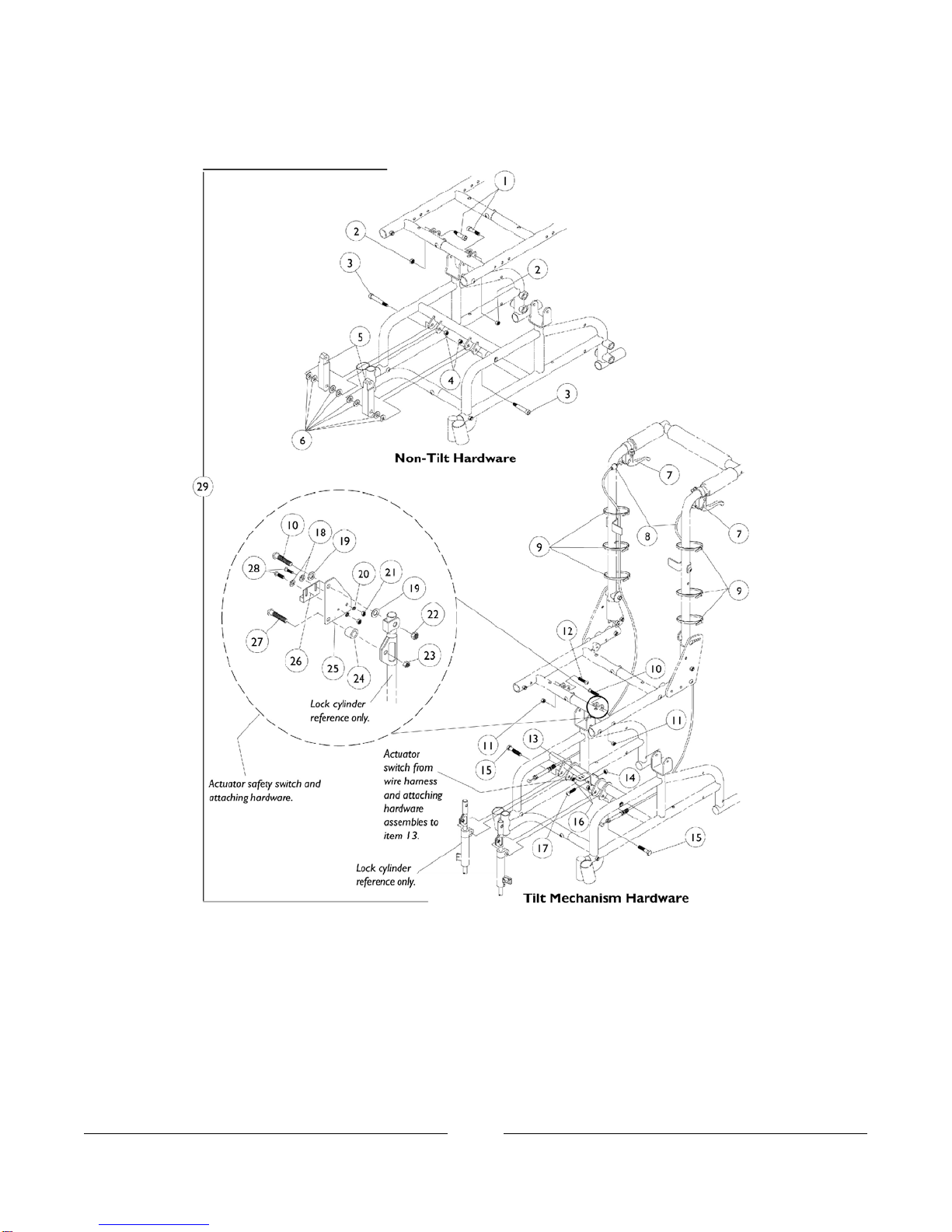

Orbit Seat Option
Tilt and Non-Tilt Hardware
