Invacare At'm User manual

Service Manual
DEALER: Keep this manual. The
procedures in this manual MUST be
performed by a qualified technician.
For more information regarding
Invacare products, parts, and services,
please visit www.invacare.com
At’m and At’m QT

REFERENCE DOCUMENTS
At’m and At’m QT 2Part No. 1125078
 WARNING
A QUALIFIED TECHNICIAN MUST PERFORM THE INITIAL SET UP
OF THIS WHEELCHAIR. ALSO, A QUALIFIED TECHNICIAN MUST
PERFORM ALL PROCEDURES IN THE SERVICE MANUAL.
DEALERS AND QUALIFIED TECHNICIANS: DO NOT SERVICE OR
OPERATE THIS EQUIPMENT WITHOUT FIRST READING AND
UNDERSTANDING (1) THE OWNER’S OPERATOR AND
MAINTENANCE MANUAL, (2) THE SERVICE MANUAL (IF
APPLICABLE) AND (3) THE SEATING S STEM’S MANUAL (IF
APPLICABLE). IF OU ARE UNABLE TO UNDERSTAND THE
WARNINGS, CAUTIONS AND INSTRUCTIONS, CONTACT
INVACARE TECHNICAL SUPPORT BEFORE ATTEMPTING TO
SERVICE OR OPERATE THIS EQUIPMENT - OTHERWISE, INJUR
OR DAMAGE MA RESULT.
REFERENCE DOCUMENTS
Refer to the table below for part numbers of additional documents which are referenced
in this manual.
WHEELCHAIR TYPE OWNER’S MANUAL ELECTRONICS MANUAL
At’m and At’m QT 1125035 1110532
NOTE: Updated versions of this manual are available on www.invacare.com

TABLE OF CONTENTS
Part No. 1125078 3At’m and At’m QT
TABLE OF CONTENTS
REFERENCE DOCUMENTS ................................................................. 2
SPECIAL NOTES ................................................................................ 6
LABEL LOCATION ............................................................................ 7
At’m ...............................................................................................................................................................7
At’m QT .......................................................................................................................................................8
TYPICAL PRODUCT PARAMETERS .................................................... 9
SECTION 1—GENERAL GUIDELINES ................................................. 10
Repai o Se vice Info mation ...............................................................................................................10
Ti e P essu e.............................................................................................................................................10
Ope ation Info mation............................................................................................................................11
Oxygen........................................................................................................................................................11
Batte ies......................................................................................................................................................11
G ounding Inst uctions ...........................................................................................................................13
Rain Test.....................................................................................................................................................13
Weight T aining ........................................................................................................................................13
Weight Limitation.....................................................................................................................................13
SECTION 2—EMI INFORMATION ..................................................... 14
SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING .................... 16
Checklist .....................................................................................................................................................16
T oubleshooting........................................................................................................................................17
Checking Batte y Cha ge Level.............................................................................................................27
Field Load Test..........................................................................................................................................27
Elect o-Mechanical Pa king B ake Test...............................................................................................29
SECTION 4—FOOTBOARD ASSEMBLY .............................................. 30
Removing/Installing the Footboa d Assembly....................................................................................30
Adjusting Footboa d Assembly Height................................................................................................30
SECTION —SEAT ........................................................................... 31
Removing/Installing the Seat...................................................................................................................31
Replacing Seat Positioning St ap ...........................................................................................................33
Removing/Installing Unde -Seat Basket ...............................................................................................34
Removing/Installing Seat Upholste y....................................................................................................34
Replacing the Seat Latches .....................................................................................................................36

TABLE OF CONTENTS
At’m and At’m QT 4Part No. 1125078
TABLE OF CONTENTS
SECTION 6—ARMS ......................................................................... 37
Removing/Installing A m Pads................................................................................................................37
Replacing Clothing Gua d.......................................................................................................................38
Removing/Installing A m Tube ..............................................................................................................39
SECTION 7—JOYSTICK .................................................................... 40
Disconnecting/Connecting the Joystick...............................................................................................40
Removing/Installing the Joystick ............................................................................................................41
Repositioning the Joystick to Opposite A m .....................................................................................43
SECTION 8—BATTERIES .................................................................. 44
Wa nings Fo Handling and Replacing Batte ies...............................................................................44
Recommended Batte y Type .................................................................................................................44
Removing/Installing the Batte y Pack on the At’m ...........................................................................45
Removing/Installing the Batte y Box on the At’m QT.....................................................................46
Removing/Installing the Batte ies F om/Into the At’m Batte y Pack............................................47
Removing/Installing the Batte ies F om/Into the At’m QT Batte y Box.....................................49
Removing/Installing the At’tm QT Batte y Box Assembly..............................................................50
Cha ging Batte ies....................................................................................................................................52
Resetting the Ci cuit B eake ................................................................................................................54
SECTION 9—MOTORS ..................................................................... 6
Engaging/Disengaging the Moto s .........................................................................................................56
Removing/Installing Moto Sh oud .......................................................................................................57
Removing/Installing the Base Plate........................................................................................................58
Removing/Installing MK5 Cont olle ....................................................................................................59
Removing/Installing the Moto s.............................................................................................................60
Replacing the Knu led Cylinde ............................................................................................................61
SECTION 10—FRONT RIGGINGS ...................................................... 64
Installing/Removing the F ont Rigging Suppo t B ackets.................................................................64
Installing/Removing the F ont Rigging Assembly ...............................................................................65
Adjusting Foot est Height ......................................................................................................................66
SECTION 11—WHEELS AND CASTERS .............................................. 67
Replacing F ont Caste s..........................................................................................................................67
Replacing Fo ks .........................................................................................................................................68
Adjusting Fo ks .........................................................................................................................................68
Removing/Installing the D ive Wheels ................................................................................................69
Replacing D ive Wheels on the D ive Axle.......................................................................................70

TABLE OF CONTENTS
Part No. 1125078 5At’m and At’m QT
TABLE OF CONTENTS
SECTION 12—ANTI-TIPPERS ........................................................... 71
Removing/Installing the Anti-Tippe s...................................................................................................71
SECTION 13—TRANSPORTING THE WHEELCHAIR ........................... 74
LIMITED WARRANTY ..................................................................... 76

SPECIAL NOTES
At’m and At’m QT 6Part No. 1125078
SPECIAL NOTES
Signal words are used in this manual and apply to hazards or unsafe practices which
could result in personal injury or property damage. Refer to the table below for
definitions of the signal words.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO
CHANGE WITHOUT NOTICE.
WHEELCHAIR USER
As a manufacturer f wheelchairs, Invacare endeav rs t supply a wide variety f
wheelchairs t meet many needs f the end user. H wever, final selecti n f the
type f wheelchair t be used by an individual rests s lely with the user and his/her
healthcare pr fessi nal capable f making such a selecti n.
WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT RESTRAINTS
Wheelchair users sh uld n t be transp rted in vehicles f any kind while in
wheelchairs. As f this date, the Department f Transp rtati n has n t appr ved
any tie-d wn systems f r transp rtati n f a user while in a wheelchair, in a m ving
vehicle f any type.
It is Invacare’s p siti n that users f wheelchairs sh uld be transferred int
appr priate seating in vehicles f r transp rtati n and use be made f the restraints
made available by the aut industry. Invacare cann t and d es n t rec mmend any
wheelchair transp rtati n systems.
 WARNINGS
Wheelchairs sh uld be examined during maintenance f r signs f c rr si n (water
exp sure, inc ntinence, etc). Electrical c mp nents damaged by c rr si n sh uld
be replaced IMMEDIATELY.
Wheelchairs that are used by inc ntinent users and/ r are frequently exp sed t
water may require replacement f electrical c mp nents m re frequently.
Invacare pr ducts are specifically designed and manufactured f r use in c njuncti n
with Invacare access ries. Access ries designed by ther manufacturers have n t
been tested by Invacare and are n t rec mmended f r use with Invacare pr ducts.
The seat p siti ning strap is a p siti ning belt nly. It is n t designed f r use as a
safety device withstanding high stress l ads such as aut r aircraft safety belts. If
signs f wear appear, belt MUST be replaced IMMEDIATELY.
SIGNAL WORD MEANING
DANGER Danger indicates an imminently hazardo s sit ation which,
if not avoided, will res lt in death or serio s inj ry.
WARNING Warning indicates a potentially hazardo s sit ation which, if
not avoided, co ld res lt in death or serio s inj ry.
CAUTION Ca tion indicates a potentially hazardo s sit ation which, if
not avoided, may res lt in property damage.

LABEL LOCATION
Part No. 1125078 7At’m and At’m QT
LABEL LOCATION
At’m
NOTE: Warning
label 112 068 is also
located on the
opposite side.
NOTE: Warning label
112 069 is also located
on the opposite side.
Serial Number Label is
located on inside of
the base frame tube.

LABEL LOCATION
At’m and At’m QT 8Part No. 1125078
At’m QT
NOTE: Warning label 112 068 is
also located on the opposite side.
NOTE: Warning label 112 069 is
also located on the opposite side.
Serial Number Label is
located on inside of the
base frame tube.

TYPICAL PRODUCT PARAMETERS
Part No. 1125078 9At’m and At’m QT
TYPICAL PRODUCT PARAMETERS
*NOTE: Values for range are calculated for maximum chair weight rating using largest batteries
applicable (M17 - 12 SLSM gel cell/PE 12V 12SLA), per test procedures described in
ANSI/RESNA WC/VOL2-1998 Section 4 and meet federal reimbursement requirements for this
product. While considered typical, they are derived based on certain ideal conditions. Variances in
battery condition, user weight, usage pattern or overall terrain conditions will result in actual
values for range that differ from these stated values. Users should become accustomed to how their
unique conditions impact their individual results. Users should become familiar with the battery
discharge indicator on the joystick to determine the range of their wheelchair. Refer to Charging
Batteries on page 2 for more information about the battery discharge indicator.
PARAMETERS At’m At’m QT
SEAT WIDTH: 16, 18 inches 18 inches
SEAT DEPTH: 14, 16 inches 16 inches
BACK HEIGHT: 18, 21 inches 21 inches
SEAT-TO-FLOOR: 20 inches
OVERALL WIDTH (EXCLUDING JOYSTICK): 25.5 inches
OVERALL HEIGHT
FOR 16 INCHES WIDE:
FOR 18 INCHES WIDE:
38 inches
41 inches
N/A
41 inches
OVERALL LENGTH (INCLUDING ANTI-TIPPERS): 35.5 inches
WEIGHT
BASE WITHOUT BATTERY PACK/BOX:
SEAT:
BATTERY PACK/BOX:
34 lbs
14 lbs
26 lbs
38 lbs
14 lbs
21 lbs
SHIPPING: 90 lbs
DRIVE WHEELS/TIRES: 12½ x 2¼ inches
CASTER WITH PRECISION SEALED BEARINGS: 6-inch solid
UPHOLSTERY: Black Nylon
BATTERY SIZE (TWO REQUIRED): M17 - 12 SLSM gel cell PE 12V 12SLA
PERFOR ANCE
SPEED (M.P.H.):
MAXIMUM RAMP/SLOPE CAPABILITY:
*RANGE (VARIABLE):
WEIGHT LIMITATION:
3¾
6°
Up to 12 miles
250 lbs
3¾
6°
Up to 6 miles
250 lbs

SECTION 1—GENERAL GUIDELINES
At’m and At’m QT 0 Part No. 1125078
SECTION 1—GENERAL GUIDELINES
 WARNING
SECTION 1 - GENERAL GUIDELINES c ntains imp rtant inf rmati n f r the safe
perati n and use f this pr duct. DO NOT use this pr duct r any available
pti nal equipment with ut first c mpletely reading and understanding these
instructi ns and any additi nal instructi nal material such as Owner’s Manuals,
Service Manuals r Instructi n Sheets supplied with this pr duct r pti nal
equipment. If y u are unable t understand the Warnings, Cauti ns r Instructi ns,
c ntact a healthcare pr fessi nal, dealer r technical pers nnel bef re attempting
t use this equipment - therwise, injury r damage may ccur.
Repair or Service Information
Set-up of the Electronics Control Unit is to be performed only by a qualified technician.
he final adjustments of the controller may affect other activities of the wheelchair.
Damage to the equipment could occur if improperly set-up or adjusted.
After any adjustments, repair or service and before use, make sure that all attaching
hardware is tightened securely - otherwise injury or damage may result.
Before performing any maintenance, adjustment or service verify that the On/Off switch
on the joystick is in the Off position.
Wheelchairs should be examined during maintenance for signs of corrosion (water
exposure, incontinence, etc). Electrical components damaged by corrosion should be
replaced IMMEDIA ELY.
Wheelchairs that are used by incontinent users and/or are frequently exposed to water
may require replacement of electrical components more frequently.
Tire Pressure
DO NOT USE YOUR WHEELCHAIR UNLESS IT HAS THE PROPER TIRE
PRESSURE (P.S.I.) - OTHERWISE THE WHEELCHAIR MAY NOT DRIVE
CORRECTLY, STOP CORRECTLY OR MAY EXPERIENCE ERRATIC
PERFORMANCE.
Maintain tire pressure at 30 p.s.i. Otherwise, the wheelchair may not drive correctly, stop
correctly or may experience erratic performance.
DO NO overinflate the tires. Failure to follow these suggestions may cause the tire to
explode and cause bodily harm. he recommended tire pressure is listed on the side wall
of the tire.

SECTION 1—GENERAL GUIDELINES
Part No. 1125078 At’m and At’m QT
Operation Information
Invacare products are specifically designed and manufactured for use in conjunction with
Invacare accessories. Accessories designed by other manufacturers have not been tested
by Invacare and are not recommended for use with Invacare products.
Performance adjustments should only be made by professionals of the healthcare field or
persons fully conversant with this process and the driver's capabilities. Incorrect settings
could cause injury to the driver, bystanders, damage to the chair and to surrounding
property.
After the wheelchair has been set-up, check to make sure that the wheelchair performs to
the specifications entered during the set-up procedure. If the wheelchair does not
perform to specifications, turn the wheelchair off IMMEDIA ELY and reenter set-up
specifications. Repeat this procedure until the wheelchair performs to specifications.
he basket under the seat is designed for light items such as jackets and umbrellas. DO
NO overload the basket.
Ensure that the items stored in the basket are fully contained within the basket - otherwise
they could become entangled with the friction drive and may cause injury to the user or
damage the wheelchair.
Before performing any maintenance, adjustment or service verify that on/off switch on
the joystick is in the Off position.
Avoid storing or using the wheelchair near open flame or combustible products. Serious
injury or damage to property may result.
For use on substantially flat surfaces.
Use EX REME CAU ION on wet surfaces.
Oxygen
Extreme care should be exercised when using oxygen in close proximity to electric circuits
and other combustible materials. Contact your oxygen supplier for instruction in the use
of oxygen.
Batteries
he warranty and performance specifications contained in this manual are based on the
use of deep cycle gel cell batteries. Invacare strongly recommends their use as the power
source for this unit.
Carefully read battery/battery charger information prior to installing, servicing or
operating your wheelchair.
ALWAYS transport the battery pack/box in an upright and secure manner. o prevent
damage, DO NO transport the battery pack/box with other objects that could suddenly
shift during transportation, unless they are secured or in a different vehicle area. DO NO
transport battery pack/box with gas cans or similar containers in the same vehicle area.

SECTION 1—GENERAL GUIDELINES
At’m and At’m QT 2 Part No. 1125078
he use of rubber gloves is recommended when working with batteries.
Some battery manufacturers mold a carrying strap and/or hold down flanges directly into
the battery case. Batteries that interfere with the battery box cannot be used for these
applications. Attempting to “wedge” a battery into a battery box may damage the box,
the battery and/or be a fire hazard, resulting in serious injury or further damage to
property.
Charging Batteries
 DANGER
When using an extensi n c rd, use nly a three wire extensi n c rd having at least
16 AWG (American Wire Gauge) wire and the same r higher electrical rating as
the device being c nnected. Use f impr per extensi n c rd c uld result in a risk f
fire and electric sh ck.
Three pr ng t tw pr ng adapters sh uld n t be used. Use f three pr ng adapters
can result in impr per gr unding and present a sh ck hazard t the user.
NEVER attempt to recharge the batteries by attaching cables directly to the battery
terminals.
DO NO attempt to recharge the batteries and operate the wheelchair at the same time.
DO NO operate wheelchair with extension cord attached to the AC cable.
DO NO attempt to recharge the batteries when the wheelchair has been exposed to any
type of moisture.
DO NO attempt to recharge the batteries when the wheelchair is outside.
DO NO sit in the wheelchair while charging the batteries.
Read and carefully follow the manufacturer’s instructions for each charger (supplied or
purchased). If charging instructions are not supplied, consult a qualified technician for
proper procedures.
Ensure the pins of the extension cord plug are the same number, size, and shape as those
on the charger.
DO NO under any circumstances cut or remove the round grounding plug from the
charger AC cable plug or the extension cord plug.

SECTION 1—GENERAL GUIDELINES
Part No. 1125078 3 At’m and At’m QT
Groun ing Instructions
DO NO , under any circumstances, cut or remove the round grounding prong from any
plug used with or for Invacare products. Some devices are equipped with three-prong
(grounding) plugs for protection against possible shock hazards and fire. Where a
two-prong wall receptacle is encountered, it is the personal responsibility and obligation
of the customer to contact a qualified electrician and have the two-prong receptacle
replaced with a properly grounded three-prong wall receptacle in accordance with the
National Electrical Code. If you must use an extension cord, use only a three-wire
extension cord having the same or higher electrical rating as the device being connected.
In addition, Invacare has placed RED/ORANGE warning tags on some equipment. DO
NO remove these tags.
Rain Test
Invacare has tested its power wheelchairs in accordance with ISO 7176 “Rain est.” his
provides the end user or his/her assistant sufficient time to remove his/her power
wheelchair from a rain storm and retain wheelchair operation.
DO NO leave power wheelchair in a rain storm of any kind.
DO NO store power wheelchair in a damp area for an extended period of time.
Direct exposure to excessive rain or dampness may cause the chair to malfunction electrically
and mechanically, may cause the chair to prematurely rust or may damage the upholstery.
Check to ensure that the battery pack/box is securely fastened, that all electrical
connections are secure at all times and joystick boot is not torn or cracked where water
can enter.
If the joystick boot becomes torn or cracked, replace IMMEDIA ELY.
Weight Training
Invacare does not recommend the use of its wheelchairs as a weight training apparatus.
Invacare wheelchairs have not been designed or tested as a seat for any kind of weight
training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall
not be liable for bodily injury and the warranty is void.
Weight Limitation
he At’m wheelchairs have a weight limitation of 250 lbs.

SECTION 2—EMI INFORMATION
At’m and At’m QT 4 Part No. 1125078
SECTION 2—EMI INFORMATION
 WARNING
CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION
REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC
INTERFERENCE ON YOUR POWERED WHEELCHAIR.
Electr magnetic Interference (EMI) Fr m Radi Wave S urces
P wered wheelchairs and m t rized sc ters (in this text, b th will be referred t
as p wered wheelchairs) may be susceptible t electr magnetic interference (EMI),
which is interfering electr magnetic energy (EM) emitted fr m s urces such as
radi stati ns, TV stati ns, amateur radi (HAM) transmitters, tw way radi s, and
cellular ph nes. The interference (fr m radi wave s urces) can cause the p wered
wheelchair t release its brakes, m ve by itself, r m ve in unintended directi ns. It
can als permanently damage the p wered wheelchair's c ntr l system. The
intensity f the interfering EM energy can be measured in v lts per meter (V/m).
Each p wered wheelchair can resist EMI up t a certain intensity. This is called its
"immunity level." The higher the immunity level, the greater the pr tecti n. At this
time, current techn l gy is capable f achieving at least a 20 V/m immunity level,
which w uld pr vide useful pr tecti n fr m the m re c mm n s urces f radiated
EMI.
There are a number f s urces f relatively intense electr magnetic fields in the
everyday envir nment. S me f these s urces are bvi us and easy t av id.
Others are n t apparent and exp sure is unav idable. H wever, we believe that by
f ll wing the warnings listed bel w, y ur risk t EMI will be minimized.
The s urces f radiated EMI can be br adly classified int three types:
1) Hand-held P rtable transceivers (transmitters-receivers with the antenna
m unted directly n the transmitting unit. Examples include: citizens band (CB)
radi s, "walkie talkie", security, fire and p lice transceivers, cellular teleph nes,
and ther pers nal c mmunicati n devices).
NOTE: Some cellular telephones and similar devices transmit signals while they are ON,
even when not being used.
2) Medium-range m bile transceivers, such as th se used in p lice cars, fire trucks,
ambulances and taxis. These usually have the antenna m unted n the utside f
the vehicle; and
3) L ng-range transmitters and transceivers, such as c mmercial br adcast
transmitters (radi and TV br adcast antenna t wers) and amateur (HAM)
radi s.
NOTE: Other types of hand-held devices, such as cordless phones, laptop computers,
M/FM radios, TV sets, CD players, cassette players, and small appliances, such as elec-
tric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to
your powered wheelchair.

SECTION 2—EMI INFORMATION
Part No. 1125078 5 At’m and At’m QT
 WARNING
P wered Wheelchair Electr magnetic Interference (EMI)
Because EM energy rapidly bec mes m re intense as ne m ves cl ser t the
transmitting antenna (s urce), the EM fields fr m hand-held radi wave s urces
(transceivers) are f special c ncern. It is p ssible t unintenti nally bring high
levels f EM energy very cl se t the p wered wheelchair's c ntr l system while
using these devices. This can affect p wered wheelchair m vement and braking.
Theref re, the warnings listed bel w are rec mmended t prevent p ssible
interference with the c ntr l system f the p wered wheelchair.
Electr magnetic interference (EMI) fr m s urces such as radi and TV stati ns,
amateur radi (HAM) transmitters, tw -way radi s, and cellular ph nes can affect
p wered wheelchairs and m t rized sc ters.
FOLLOWING THE WARNINGS LISTED BELOW SHOULD REDUCE THE
CHANCE OF UNINTENDED BRAKE RELEASE OR POWERED WHEELCHAIR
MOVEMENT WHICH COULD RESULT IN SERIOUS INJURY.
1) DO NOT perate hand-held transceivers (transmitters receivers), such as
citizens band (CB) radi s, r turn ON pers nal c mmunicati n devices, such as
cellular ph nes, while the p wered wheelchair is turned ON;
2) Be aware f nearby transmitters, such as radi r TV stati ns, and try t av id
c ming cl se t them;
3) If unintended m vement r brake release ccurs, turn the p wered wheelchair
Off as s n as it is safe;
4) Be aware that adding access ries r c mp nents, r m difying the p wered
wheelchair, may make it m re susceptible t EMI (NOTE: There is n easy way
t evaluate their effect n the verall immunity f the p wered wheelchair); and
5) Rep rt all incidents f unintended m vement r brake release t the p wered
wheelchair manufacturer, and n te whether there is a s urce f EMI nearby.
Imp rtant Inf rmati n
1) 20 v lts per meter (V/m) is a generally achievable and useful immunity level
against EMI (as f May 1994) (the higher the level, the greater the pr tecti n);
2) This device has been tested t a radiated immunity level f 20 v lts per meter.
3) The immunity level f the pr duct is unkn wn.
M dificati n f any kind t the electr nics f this wheelchair as manufactured by
Invacare may adversely affect the EMI immunity levels.

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING
At’m and At’m QT 6 Part No. 1125078
SECTION 3—SAFETY
INSPECTION/TROUBLESHOOTING
Checklist
hese adjustments should be made whenever you service this product, especially as a
part of the initial set up. Follow these maintenance procedures:
 WARNING
Bef re perf rming any maintenance, adjustment r service, turn p wer ff.
CAUTION
As with any vehicle, the wheels and tires sh uld be checked peri dically f r cracks
and wear, and sh uld be replaced.
❑Check pneumatic tires for proper inflation.
❑Ensure that the wheelchair rolls straight (no excessive drag or pull to one side).
❑Ensure all clothing guard fasteners are secure.
❑Clean seat upholstery and armrests.
❑Ensure armrest pads sit flush against arm tubes.
❑Ensure seat is secured to wheelchair frame.
❑Ensure seat release latches are functional. Replace if necessary.
❑Inspect seat upholstery for rips or sagging.
❑Ensure no excessive side movement or binding occurs when drive wheels are lifted
and spun when disengaged (freewheeling).
❑Ensure caster assembly has proper tension when caster is spun. Caster should come
to a gradual stop.
❑Loosen/tighten caster locknut if wheel wobbles noticeably or binds to a stop.
❑Ensure all caster/wheel/fork/headtube fasteners are secure.
❑Ensure that casters are free of debris.
❑Inspect tires for flat spots and wear.
❑Inspect for any loose hardware on the wheelchair.
❑Inspect the seat positioning strap for signs of wear. Ensure buckle latches. Verify
hardware that attaches strap to frame is secure and undamaged. Replace if necessary.
❑Inspect charger AC power cord for damage. Replace if necessary.
❑Check that all labels are present and legible. Replace if necessary.
❑Inspect electrical components for signs of corrosion. Replace if corroded or damaged.

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING
Part No. 1125078 7 At’m and At’m QT
Troubleshooting
NOTE: For additional troubleshooting information and explanation of error codes, refer to the
individual electronics manual supplied with each wheelchair.
Wheels
Information Gauge and Diagnostics Codes
he joystick information gauge and the Remote Programmer give indications of the type
of fault or error detected by the control module. When a fault is detected, the wheelchair
will stop and not drive. All of the lights on the information gauge will begin to flash. he
number of flashes indicates the nature of an abnormal condition. An error code and a
quick description of the fault will begin to scroll across the Remote Programmer display.
If multiple faults are found, only the first fault encountered by the control module
program will be displayed. A table of the diagnostics codes and their causes follows.
*NOTE: The fault log displays a four digit number. The first two digits are the diagnostic code and
the remaining two digits are the sub code.
WHEELCHAIR VEERS
LEFT/RIGHT
SLUGGISH TURN/
PERFORMANCE
CASTERS
FLUTTER
SQUEAKS AND
RATTLES
LOOSENESS
IN WHEELCHAIR
WHEELCHAIR 3
WHEELS
SOLUTIONS
X X X X X If pne matic, check tires for correct and eq al press re.
X X X X Check for loose stem n ts/bolts.
X X Check that casters contact gro nd at the same time.

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING
At’m and At’m QT 8 Part No. 1125078

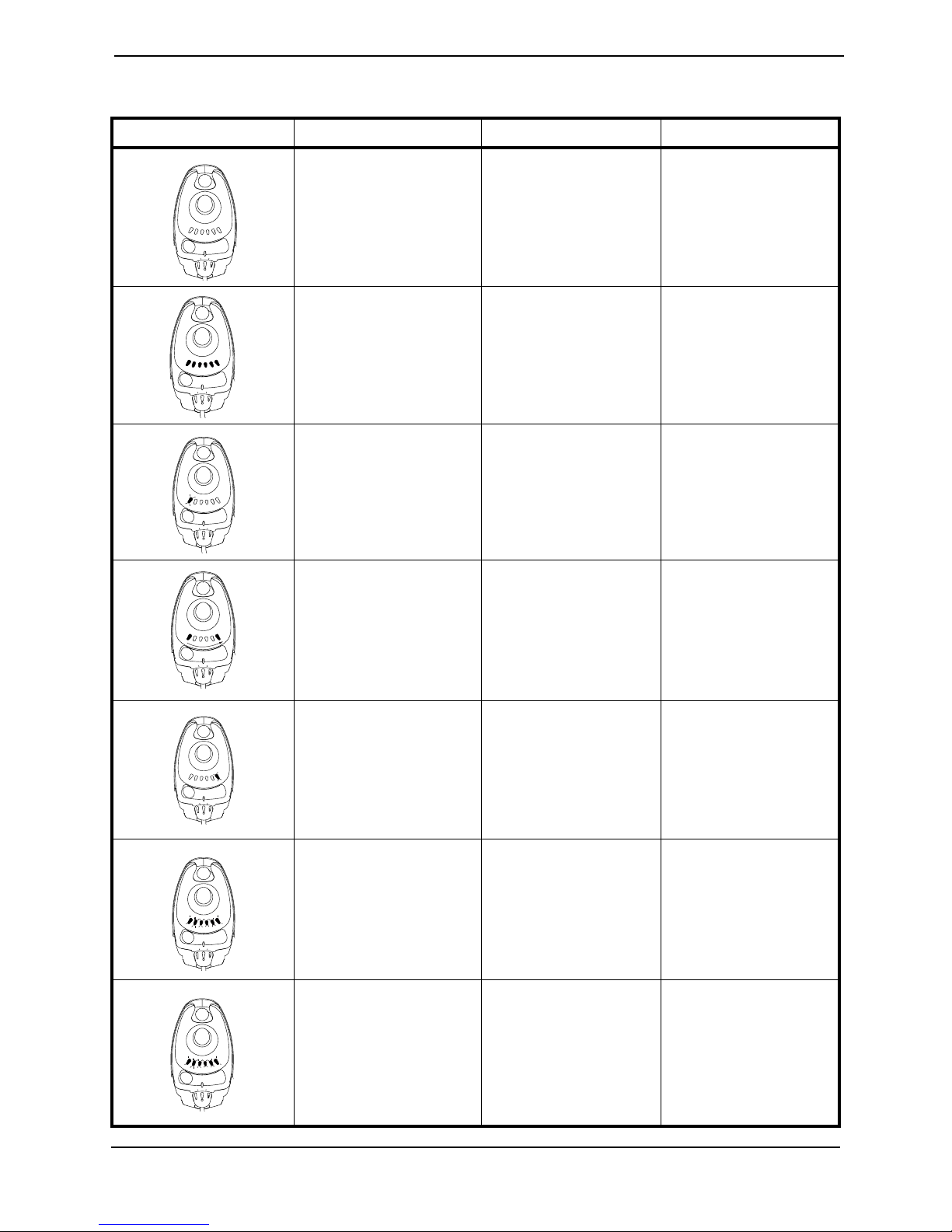

Inf rmati n Gauge
DISPLAY DESCRIPTION DEFINITION COMMENTS
All LEDs are off. Power is Off.
All LEDs are on. Power is On. Fewer than three LEDs on
implies red ced battery
charge.
Left RED LED is flashing. Battery charge is low. The batteries sho ld be
charged as soon as possi-
ble.
Left to Right “chase” alter-
nating with steady display.
Joystick is in program-
ming, inhibit and/or charg-
ing mode.
The steady LEDs indicate
the c rrent state of the
battery charge.
Right GREEN LED is flash-
ing.
Joystick is in Speed Limit
mode.
The c rrent state of bat-
tery charge will be dis-
played at the same time.
All LEDs are flashing slowly. Joystick has detected
O t-of-Ne -
tral-at-Power-Up mode.
Release the joystick back
to Ne tral.
All LEDs are flashing
q ickly.
Joystick has detected a
fa lt.
Joystick ses Flash codes
to indicate fa lts. Refer to
the electronics man al
(Part N mber 1110532).

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING
Part No. 1125078 9 At’m and At’m QT
Diagn stic C des
NUMBER OF FLASHES
DIAGNOSTICS CODE
ERROR CODE
DESCRIPTION
SUB CODE*
DETAILS OF
ERROR CODE
POSSIBLE
SOLUTION
1 E 01 User Fa lt 00 Stall Timeo t or ser error. Release joystick to ne tral and try again.
2 E02 Battery Fa lt 00 Recharge batteries or replace. Check the batteries and cable. Try charg-
ing the batteries. Batteries may req ire
replacing.
3 E03 Left Motor Fa lt 00 Left Motor Short Circ it Check the left motor, connections and
motor cable.
01 Left Motor Open Circ it
02 Left Motor Connection Fa lt
B-
03 Motor Terminal Connected
to B+
04 Left Motor Voltage Fa lt
05 Left Motor Bridge Fa lt
06 Too Many Hardware C rrent
Limit Events
07 C rrent Offset O t of Range
08 Hardware C rrent Limit Fa lt
4 E04 Right Motor Fa lt 00 Right Motor Short Circ it Check the right motor, connections and
motor cable.
01 Right Motor Open Circ it
02 Right Motor Connection Fa lt
B-
03 Motor Terminal Connected
to B+
04 Right Motor Voltage Fa lt
05 Right Motor Bridge Fa lt
06 Too Many Hardware C r-
rent Limit Events
07 C rrent Offset O t of Range
08 Hardware C rrent Limit Fa lt

SECTION 3—SAFETY INSPECTION/TROUBLESHOOTING
At’m and At’m QT 20 Part No. 1125078
5 E05 Left Park Brake
Fa lt
00 Left Park Brake Drive-Time
Test Failed
Check the left park brake connections and
cable.
01 Left Park Brake O tp t
Enabled When Wheelchair
Idle
02 Left Park Brake O tp t Did
not Enable When Entering
Drive Mode
03 Left Park Brake fa lt d ring
power- p testing
04 Left park brake feedback low
d ring drive (park brake
short)
6 E06 Right Park Brake
Fa lt
00 Right Park Brake Drive-Time
Test Failed
Check the right park brake connections
and cable.
01 Right Park Brake O tp t
Enabled When Wheelchair
Idle
02 Right Park Brake O tp t Did
not Enable When Entering
Drive Mode
03 Right Park Brake fa lt d ring
power- p testing
04 Right park brake feedback
low d ring drive (park brake
short)
7 E07 Remote Fa lt 00 Local SR Fa lt (CPU,
EEPROM, etc.)
Check the comm nications b s, connec-
tions and wiring. Replace the remote.
01 Joystick fa lt at the remote
02 Speed pot fa lt at the remote
NUMBER OF FLASHES
DIAGNOSTICS CODE
ERROR CODE
DESCRIPTION
SUB CODE*
DETAILS OF
ERROR CODE
POSSIBLE
SOLUTION
