Invacare Dragon Operating instructions

Edition: 09.07.2013
Invacare
®
Dragon
Invacare
®
Tiger
SERVICE INSTRUCTIONS

SERVICE MANUAL Invacare®- Dragon / Tiger
2
These instructions contain information about:
Testing work
Repair Instructions
This manual is part of the instructions for use.
Service addresses
Invacare Austria GmbH
Herzog Odilostrasse 101
A-5310 Mondsee
Austria
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.at
Invacare n.v.
Autobaan 22
B-8210 Loppem (Brugge)
Belgium
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.be
Invacare AG
Benkenstraße 260
CH-4108 Witterswil
Switzerland
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.ch
Invacare Aquatec GmbH
Alemannenstraße 10
88316 Isny
Deutschland
([phone]
Fax [phone]
@: [e-mail]
WWW: www.invacare-aquatec.de
Invacare A/S
Sdr. Ringvej 37
DK-2605 Brøndby
Danmark
((Kundeservice): [phone]
Fax (Kundeservice): [phone]
@: [e-mail]
WWW: www.invacare.dk
Invacare® SA
c/ Areny s/n
Polígon Industrial de Celrà
E-17460 Celrà (Girona)
ESPAÑA
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.es
Invacare® Poirier SAS
Route de St Roch
F-37230 Fondettes
France
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.fr

Invacare®- Dragon / Tiger SERVICE MANUAL
3
Invacare® Ltd
Pencoed Technology Park
Pencoed
Bridgend CF35 5HZ
United Kingdom
((Customer services): [phone]
Fax (Customer services): [phone]
@: [e-mail]
WWW: www.invacare.co.uk
Invacare Mecc San s.r.l.
Via dei Pini, 62
I - 36016 Thiene (VI)
Italia
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.it
Invacare Ireland Ltd.
Unit 5 Seatown Business Campus
Seatown Rd, Swords
County Dublin
Ireland
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.ie
Invacare® AS
Grensesvingen 9
Postboks 6230
Etterstad
N-0603 Oslo
Norge
((Kundeservice): [phone]
Fax (Kundeservice): [phone]
@: [email protected]
@: [e-mail]
WWW: www.invacare.no
Invacare® B.V.
Celsiusstraat 46
NL-6716 BZ Ede
Nederland
(: [phone]
Fax: [phone]
@: [email protected]om
@: [e-mail]
WWW: www.invacare.nl
Invacare Lda
Rua Estrada Velha, 949
P-4465-784 Leça do Balio
Portugal
(: [phone]
(: [phone]
Fax: [phone]
@: [e-mail]
WWW: www.invacare.pt

SERVICE MANUAL Invacare®- Dragon / Tiger
4
Återförsäljare:
Invacare® AB
Fagerstagatan 9
S-163 91 Spånga
Sverige
Tillverkare:
Invacare® Deutschland GmbH
Kleiststraße 49
D-32457 Porta Westfalica
Deutschland
((Kundtjänst): [phone]
Fax (Kundtjänst): [phone]
@: [email protected]
@: [e-mail]
WWW: www.invacare.se
MÖLNDAL
(: [phone]
Fax: [phone]
@: [e-mail]
LANDSKRONA
(: [phone]
Fax: [phone]
@: [e-mail]
OSKARSHAMN
(: [phone]
Fax: [phone]
@: [e-mail]
Eastern
european
countries
European Distributor
Organisation (EDO)
Kleiststraße 49
D-32457 Porta Westfalica
Deutschland
([phone]
Fax [phone]
@: [email protected]om
WWW: www.invacare.de

Invacare®- Dragon / Tiger SERVICE MANUAL
5
Table of Contents
Chapter Page
TABLE OF CONTENTS 5
1INTRODUCTION 7
1.1 General information 7
1.2 Notes on transport 7
1.3 Definition and representation of information and safety information in this manual 8
1.4 Hazard symbols and symbols used 9
1.5 Images in this manual 10
2SAFETY AND FITTING INSTRUCTIONS 11
2.1 Before any inspection or repair work 11
2.2 Personal safety equipment 11
2.3 General safety information and information about fitting / removal 11
3TIGHTENING TORQUES 13
4ARRANGEMENT OF THE ASSEMBLY GROUPS AND COMPONENTS 14
5SERVICE PLAN (1X ANNUALLY) 15
6OPERATIONAL FAULTS 17
6.1 Operational faults on a wheelchair fitted with Shark electronics 17
6.1.1 Diagnosis of actuation disorders 17
6.1.2 Shark error codes and diagnostic codes 19
7REPAIR WORK 21
7.1 General warning information on installation work 21
7.2 Replacing the motor 21
7.3 Replacing the Shark Electronics 25
7.4 Updating the driving program 27
7.5 Changing the batteries 28
7.5.1 Removing the batteries 29
7.5.2 How to handle damaged batteries correctly 30

SERVICE MANUAL Invacare®- Dragon / Tiger
6
7.6 Checking and replacing the main fuse 31
7.7 Checking the cables 33
7.8 Replacing the Shark Remote 35
7.9 Operating hours counter 37
7.9.1 Replacing the operating hours counter 37
7.9.2 Replacing the connecting cable of the operating hours counter 39
7.10 Replacing the steering head bearings on the steering wheels 41
7.11 Repairing a flat tyre 43
7.11.1 Repairing the rear tyre (wheel size 12½ x 2¼") 43
7.11.2 Repairing a flat tyre (wheel size 220/120 x 50) 45
7.12 Replacing a drive wheel 47
7.13 Adjusting the seat angle/seat height 49
7.13.1 Adjustment tables 51
7.14 Replacing the safety belt 54
7.15 Testing an actuator motor 54

Invacare®- Dragon / Tiger SERVICE MANUAL
7
1 Introduction
1.1 General information
•Service and maintenance work must be carried out taking this service manual into account.
•It is imperative that you observe safety information.
•Information about operation or about general maintenance and care work on the mobility aid
should be taken from the operating manual.
•You can find information about ordering spare parts in the spare parts catalogue.
•Only use original Invacare® spare parts. The guarantee will become invalid if other spare parts
are used!
•We reserve the right to make any alterations on the grounds of technical improvements.
•The mobility aid may only be maintained and overhauled by qualified personnel.
•The minimum requirement for service technicians is suitable training, such as in the cycle or
orthopaedic mechanics fields, or sufficiently long-term job experience.
- Experience in the use of electrical measuring equipment (multimeters) is also a requirement.
- Special Invacare® training is recommended.
•Alterations to the mobility aid which occur as a result of incorrectly or improperly executed
maintenance or overhaul work lead to the exclusion of all liability on the side of INVACARE.
•If you have any problems or questions please contact Invacare® Service.
1.2 Notes on transport
•If the mobility aid has to be shipped back to the manufacturer for major repairs, you should
always use the original packaging for transport.
•Please attach a precise description of the fault.

SERVICE MANUAL Invacare®- Dragon / Tiger
8
1.3 Definition and representation of information and safety
information in this manual
Different types of information and signal words are used throughout this manual.
HAZARD!
The signal word "HAZARD!" refers to immediate hazards.
•The following lines in italics refer to actions which serve to avoid such hazards.
WARNING!
The signal word "WARNING!" refers to possibly-occurring hazards which can lead to
death or serious injuries if they are not avoided.
•The following lines in italics refer to actions which serve to avoid such hazards.
ATTENTION!
The signal word "ATTENTION!" refers to possibly-occurring hazards which can lead to
minor injuries and/or material damage if they are not avoided.
•The following lines in italics refer to actions which serve to avoid such hazards.
CAUTION!
The signal word "CAUTION!" refers to hazards which could lead to material damage if they
are not avoided.
•The following lines in italics refer to actions which serve to avoid such hazards.
Note
The signal word "Note" is used to denote general information which simplifies the handling of
your product and refers to special functions.

Invacare®- Dragon / Tiger SERVICE MANUAL
9

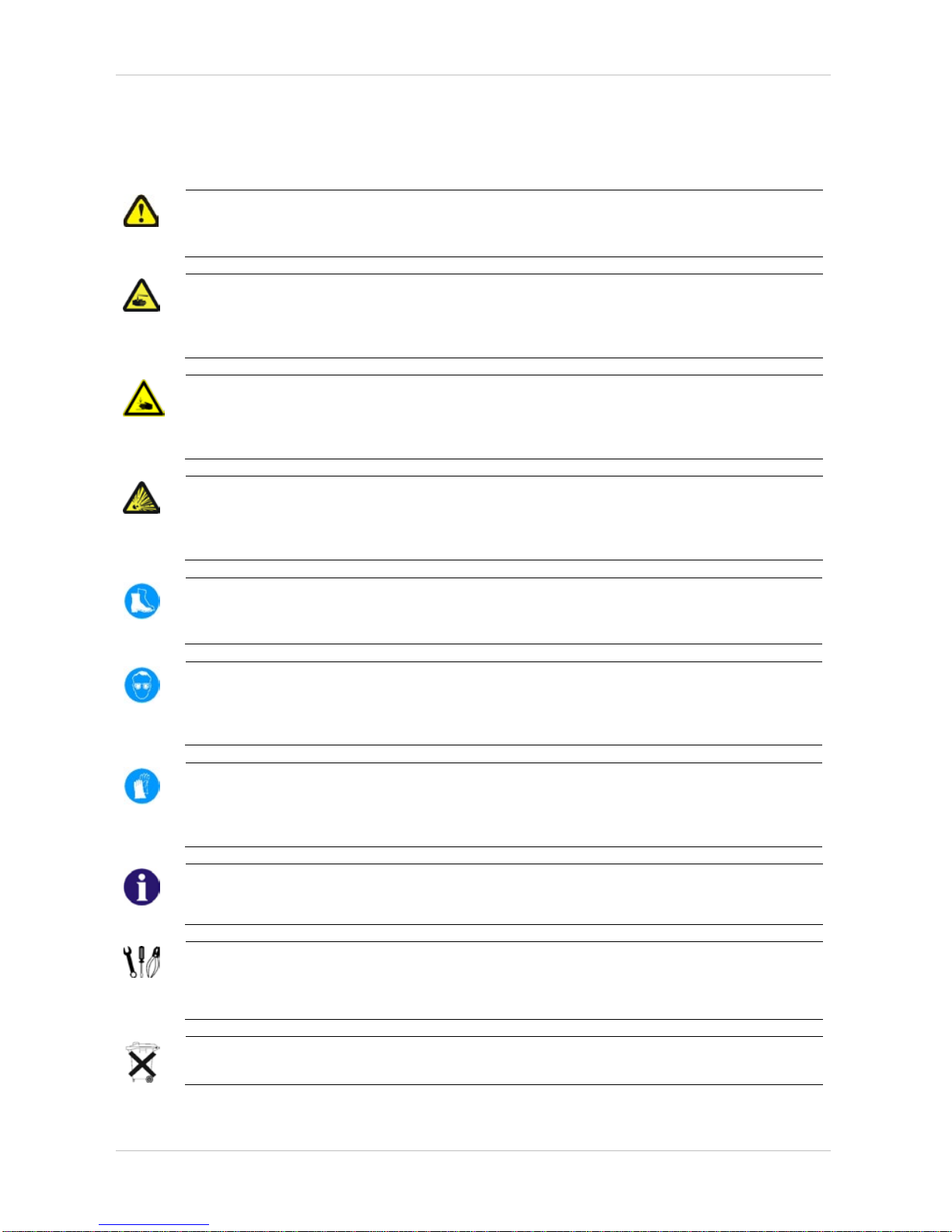

1.4 Hazard symbols and symbols used
Different types of hazard symbols and symbols are used throughout this manual.
General hazards
This symbol warns you of general hazards!
•Always follow the instructions to avoid injury to the user or damage to the product!
BURN HAZARD!
This symbol warns you of the danger of chemical burns, for example due to the discharge
of battery acids!
•Always follow the instructions to avoid injury to the user or damage to the product!
DANGER OF CRUSHING!
This symbol warns you of crushing hazards due to inattentive working with heavy
components.
•Always follow the instructions to avoid injury to the user or damage to the product!
EXPLOSION HAZARD!
This symbol warns you of an explosion hazard, which can be caused by excessive tyre
pressure in a pneumatic tyre.
•Always follow the instructions to avoid injury to the user or damage to the product!
Wear safety shoes
The symbol refers to the requirement for wearing safety shoes.
•Wear standardised safety shoes during all work.
Wear eye protection
This symbol refers to the requirement for wearing eye protection, for example when
working with batteries.
•Wear eye protection when this symbol is shown.
Wear safety gloves
This symbol refers to the requirement for wearing safety gloves, for example when
working with batteries.
•Wear safety gloves when this symbol is shown.
Note
This symbol identifies general information which is intended to simplify working with your product
and which refers to special functions.
Requirements:
•This symbol identifies a list of various tools, components and items which you will need in
order to carry out certain work. Please do not attempt to carry out the work if you do not have
the listed tools available.
Always dispose used or damaged batteries correctly
The symbol refers to information for the correct disposal of used or damaged batteries.

SERVICE MANUAL Invacare®- Dragon / Tiger
10
1.5 Images in this manual
The detailed images in this manual are given digits to identify various components. Component
numbers in text and operational instructions always relate to the image directly above.

Invacare®- Dragon / Tiger SERVICE MANUAL
11
2 Safety and fitting instructions
These safety instructions are intended to prevent accidents at work, and it is imperative that they
are observed.
2.1 Before any inspection or repair work
•Read and observe this repair manual and the associated operating manual!
•Observe the minimum requirements for carrying out the work (see chapter entitled „General
information)!
2.2 Personal safety equipment
Safety shoes
The mobility device, and some of its components, are very heavy. These parts can result
in injuries to the feet if they are allowed to drop.
•Wear standardised safety shoes during all work.
Eye protection
It is possible that battery acid can be discharged when working on defective batteries or
when handling batteries improperly.
•Always wear eye protection when working on any defective or possibly defective batteries.
Safety gloves
It is possible that battery acid can be discharged when working on defective batteries or
when handling batteries improperly.
•Always wear acid-proof safety gloves when working on any defective or possibly defective
batteries.
2.3 General safety information and information about fitting / removal
WARNING! Danger of crushing!
Various components such as the drive unit, batteries, seat etc are very heavy. This results
in injury hazards to your hands!
•Please note the high weight of some components! This applies especially to the removal of
drive units, batteries and the seat.
WARNING!
Injury hazard if the vehicle starts moving unintentionally during repair work!
•Switch the power supply off (ON/OFF key)!
•Engage the drive!
•Before raising the vehicle, secure the wheels by blocking them with wedges!
ATTENTION!
Fire and burn hazard due to electrical short-circuit!
•The mobility device must be completely switched off before removal of voltage-carrying
components! To do this, remove the batteries.
•Avoid short-circuiting the contacts when carrying out measurements on voltage-carrying
components!

SERVICE MANUAL Invacare®- Dragon / Tiger
12
CAUTION!
Danger of burns from hot surfaces on the motor!
•Allow the motors to cool down before commencing work on them.
ATTENTION!
Injury hazard and danger of damage to vehicle due to improper or incomplete
maintenance work!
•Use only undamaged tools in good condition.
•Some moving parts are mounted in sockets with PTFE coating (Teflon™). Never grease these
sockets!
•Never use "normal" nuts instead of self-locking nuts.
•Always use correctly-dimensioned washers and spacers
•When reassembling, always replace any cable ties which were cut during dismantling.
•After completing your work / before renewed start-up of the mobility device, check all
connections for tight fitting.
•After completing your work / before renewed start-up of the mobility device, check all parts for
correct locking.
•Only operate the vehicle with the approved tyre pressures (see technical data).
•Check all electrical components for correct function. Please note that incorrect polarity can
result in damage to the electronics.
•Always carry out a trial run at the end of your work.
Note
Mark all current settings for the mobility aid (seat, armrests, backrest etc.), and the associated
cable connecting plugs, before dismantling. This makes reassembly easier.
All plugs are fitted with mechanical safety devices which prevent release of the connecting plugs
during operation. To release the connecting plugs the safety devices must be pressed in. When
reassembling ensure that these safety devices are correctly engaged.
WARNING!
Any changes to the drive program can affect the driving characteristics and the tipping
stability of the vehicle!
•Changes to the drive program may only be carried out by trained Invacare® specialist
dealers!
•Invacare® supplies all mobility aids with a standard drive program ex-works. Invacare® can
only give a warranty for safe vehicle driving behaviour - especially tipping stability - for this
standard drive program!

Invacare®- Dragon / Tiger SERVICE MANUAL
13
3 Tightening torques
The tightening torques stated in the following list are based on the thread diameter for the nuts and
bolts for which no specific values have been determined. All values assume dry and de-greased
threads.
Thread M4 M5 M6 M8 M10 M12 M14 M16
Tightening torque
in Nm ±10% 3 Nm 6 Nm 10 Nm 25 Nm 49 Nm 80 Nm 120 Nm 180 Nm
CAUTION!
Damage can be caused to the mobility device due to improperly tightened screws, nuts or
plastic connections.
•Always tighten screws, nuts etc. to the stated tightening torque.
•Only tighten screws or nuts which are not listed here finger tight.

SERVICE MANUAL Invacare®- Dragon / Tiger
14
4 Arrangement of the assembly groups and components
Under the seat:
1) Decoupling mechanism
2) Power module
3) Perforated plates for adjusting
the seat height and seat angle
Under the battery cover
4) Main battery fuse
Under the seat frame
5) Operating hours counter
(optional)

Invacare®- Dragon / Tiger SERVICE MANUAL
15
5 Service plan (1x annually)
Component Check Action Notes
ü
Armrests and
side panels
•Armrest damage
and fastening
•Side panel
damage and fixing
•Tighten screws, replace
padding if damaged
•Tighten screws, replace
side panels if damaged
Seat unit / seat
angle
adjustment
•Cushion
•Check seat angle
adjustment
•Replace covers /
upholstery if damaged
•Replace parts if
damaged
Backrest unit
mechanical
Backrest unit
electrical (if
installed)
•Damage and
seams
•Fixing
•Check cabling
•Check function
•Replace parts if
damaged
•Tighten screws
•Replace cable or motor if
necessary
Frame (chassis)
/ battery box
•Check fixings,
welded seams and
battery box
•Tighten screws, replace
components
Wheel
suspension and
wheels
•Check drive
wheels for tight fit
and side play
•Adjust, replace wheel
hubs See "Replacing a
drive wheel" on
page 47
•Check steering
wheels for tight fit,
float, side play and
correct torque (15
Nm +/- 1.5 Nm)
•Replace wheels, wheel
fork or wheel bearings See "Replacing
the steering head
bearings on the
steering wheels"
on page 41
•Pneumatic tyres (if
available)
•Repair or replace if
damaged See "Repairing a
flat tyre" on page
43
Drive units,
disengager
•Check functions in
drive and push
modes
•Check disengager
•Replace motor if
necessary
•Tighten screws / nuts,
adjust or replace if
necessary
Legrests
•Check welded
seams,
interlocking,
screws, footplates
•Tighten, replace if
necessary
Electrical
footrests (if
installed)
•Check cabling
•Check contacts
•Check functions
•Replace cable if
necessary
Lighting (if
installed)
•Check cabling
•Check function
•Replace bulbs or cables
if necessary
Batteries
•Check batteries
for damage
•Replace batteries if
necessary See "Changing the
batteries" on page
28
•Check battery
charge
•Charge batteries
See User Manual

SERVICE MANUAL Invacare®- Dragon / Tiger
16
Component Check Action Notes
ü
•Check contacts
and terminals for
corrosion
•Clean contacts and
terminals See "Changing the
batteries" on page
28 for safety
information when
handling batteries
Remote /
electronics
•Remote,
status display
blinking
•Fixing
•Cable, connecting
plug
•Joystick function
•Power supply
•Evaluate flash code
•Tighten, replace
•Replace
•Replace joystick
•Replace cable, connector
plug or console
Driving
Programme
•Check the
programme
version of the
driving electronics.
Is there a newer
version available?
•Update the software.
See "Updating the
driving program"
on page 27

Invacare®- Dragon / Tiger SERVICE MANUAL
17
6 Operational Faults
6.1 Operational faults on a wheelchair fitted with Shark electronics
Please proceed as follows in the event of operational faults:
•First of all analyse the possible cause of the disorder on the basis of the following tables.
•Check the status display on the remote. Analyse the flashing error code.
•Carry out the necessary checks and repairs as recommended in the following table.
6.1.1 Diagnosis of actuation disorders
Problem Other
Symptoms Possible Cause Solution Documentation
Wheelchair
will not start
up
Status display
on the remote
illuminated as
normal and does
not indicate a
disorder code
Actuation motors
may be
disengaged
•Clutch in
actuation
motors
See operating
instructions
Status display
on the remote is
not illuminated
Batteries may be
faulty •Replace the
batteries See "Changing the
batteries" on page
28
Batteries may be
almost empty •Charge
batteries See User Manual
Power supply to
the remote may
be interrupted
•Check the
main fuse See "Checking
and replacing the
main fuse" on page
31
•Check the
cable
between the
modules for
any loose
connections
or damage
Siehe "Checking
the cables" on
page 33
Remote may be
faulty •Change the
remote on
the
wheelchair
to be able to
exclude the
remote
being the
cause of the
fault.
See "Replacing
the Shark Remote"
on page 35
Status display
on remote
flashing
Various causes •Analyse
error code See "Shark error
codes and
diagnostic codes"
on page 19

SERVICE MANUAL Invacare®- Dragon / Tiger
18
Problem Other
Symptoms Possible Cause Solution Documentation
Wheelchair
jerky in drive
operation
None
Batteries may be
faulty (instable
voltage)
•Replace the
batteries See "Changing the
batteries" on page
28
Actuation
motor(s) may be
faulty
•Replace
motor(s) See "Replacing
the motor" on page
21
Batteries not
being
charged
None Batteries may be
faulty
•Replace
batteries See "Changing the
batteries" on page
28
LEDs flashing
on charger Charger may be faulty
•Replace
charger See operating
instructions for
battery charger
Wheelchair
drives too
slowly
None
Batteries may be
faulty
•Replace
batteries See "Changing the
batteries" on page
28

Invacare®- Dragon / Tiger SERVICE MANUAL
19
6.1.2 Shark error codes and diagnostic codes
The actuation electronics can automatically remedy certain disorders. In this case the status
display will stop flashing. Please switch the remote on and off several times. Please wait about 5
seconds every time before switching the remote on again. If the error is not remedied by this,
please diagnose the cause on the basis on the following flashing codes.
Flashing
Code Meaning Solution Documentation
1 Operational error •Please ensure that the joystick is in
neutral central position (simply
release joystick) and switch on again.
2 Battery error •Check battery and power cable. See "Checking the
cables" on page 33
•Charge batteries. If you switch the
wheelchair off for a few minutes the
batteries are often able to re-charge
sufficiently to enable a short journey.
You should, however, only use this
solution in an emergency as this
leads to the batteries discharging
excessively.
See operating
instructions
•Replace the batteries See "Changing the
batteries" on page
28
3 Error on the left
motor (M2) •Check the motor cable and U-
connector.
•Check the motor.
See "Checking the
cables" on page 33
See "Replacing the
motor" on page 21
4 Error on the right
motor (M1) •Check the motor cable and U-
connector.
•Check the motor.
See "Checking the
cables" on page 33
See "Replacing the
motor" on page 21
5 Fault on the left
(M2) motor brake •Check cable and connector. See "Checking the
cables" on page 33
6 Fault on the right
(M1) motor brake •Check cable and connector. See "Checking the
cables" on page 33
7 Fault on the Shark
remote •Check the bus cable on the remote
and U-connector.
•Replace the remote.
See "Checking the
cables" on page 33
See "Replacing the
Shark Remote" on
page 35
8 Fault on Shark
main module •Check all cables and connectors on
the Shark system.
•Replace the main module.
See "Checking the
cables" on page 33
See "Replacing the
Shark Electronics"
on page 25

SERVICE MANUAL Invacare®- Dragon / Tiger
20
Flashing
Code Meaning Solution Documentation
9 Communication
error on the Shark
system
•Check all cables and connectors on
the Shark system.
•Replace the remote.
See "Checking the
cables" on page 33
See "Replacing the
Shark Remote" on
page 35
10 Unknown error •Check all cables and U-connectors. See "Checking the
cables" on page 33
11 Incompatible
remote •An incorrect remote has been
connected. Ensure that main module
and remote code are concordant.
See "Replacing the
Shark Remote" on
page 35
See "Replacing the
Shark Electronics"
on page 25
