The Invacare®Orbit™Wheelchair has revolutionized the world of pediatric tilt-in-space chairs. Its combination of ingenious
functionality and practical convenience sets it apart as the chair that will serve as the benchmark for years to come. Its detachable
seat frame makes the chair easy to transport and allows the caregiver to mix and match seats and bases for results never before
possible. A flared front end offers more lateral stability, more space for foot positioning and room to accommodate the optional
bilateral contracture footrest. Features like the full 55˚ tilt range, adjustable pivot point, telescoping front riggings and brilliantly
designed axle plate allow the Orbit wheelchair to be tailored to the needs of almost any pediatric tilt user. The search for the
perfect pediatric tilt-in-space wheelchair ends with the Invacare Orbit wheelchair.

Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio
44035-4190
[phone]
Canada
570 Matheson Blvd. E.,
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
[phone]
©2012
Invacare Corporation.
All rights reserved.
Trademarks are identified
by the symbols ™ and
®. All trademarks are
owned by or licensed
to Invacare Corporation
unless otherwise noted.
Schwalbe is a registered
trademark of RALF BOHLE
GmbH Reichshof Germany.
Specifications are subject
to change without
notification.
Form No. 01-199
Rev. 09/12
120722
Features
55˚ of tilt
Unique detachable seat frame
Interchangeable seats and bases
Standard and long frames available
Adjustable pivot point
Choice of T-arm or cantilever arm
Adjustable-angle fold-down back
Telescoping front frame for seat depth adjustments
Seat and base grow from 10" x 10" to 16" x 16"
Flared front end for additional foot-positioning options
Axle plate provides 0.25" seat-to-floor height adjustments and
is compatible with 12", 20", 22" and 24" wheels
Vent tray option available on 16" base frame widths
Reclining back option allows for 90˚ to 170˚ of recline
Adjustable-angle stroller handle can be positioned out of the
way for ease of engaging tilt and/or recline
HCPCS Code: E1233
All references to HCPCS codes: Providers are responsible for determining the appropriate billing codes when submitting claims
to the Medicare program, and should consult an attorney or other advisor to discuss specific situations in further detail.
Model # Overall Seat Seat-to-Floor Tilt Seat-to- Front Frame Tubing
Dimensions* Dimensions Height Range Back Angle Angle Diameter
ORBIT Seat width 10"-16"W 16.5"- 20.5" 5°-30° 90°-110° N/A 1"
+9" W 10"-16"D
35"-42"D
Knee-to- Wheels Casters Total Weight Limited
Heel Range Weight* Capacity Warranty
4.5"-20" 12", 20", 22", 24" 5", 6", 8" 32 lb. 150 lb. 5 Years
* 18x18 frame with 12" wheels
Please see the Owner's Manual and Invacare Configurator for complete option/specification combinations.

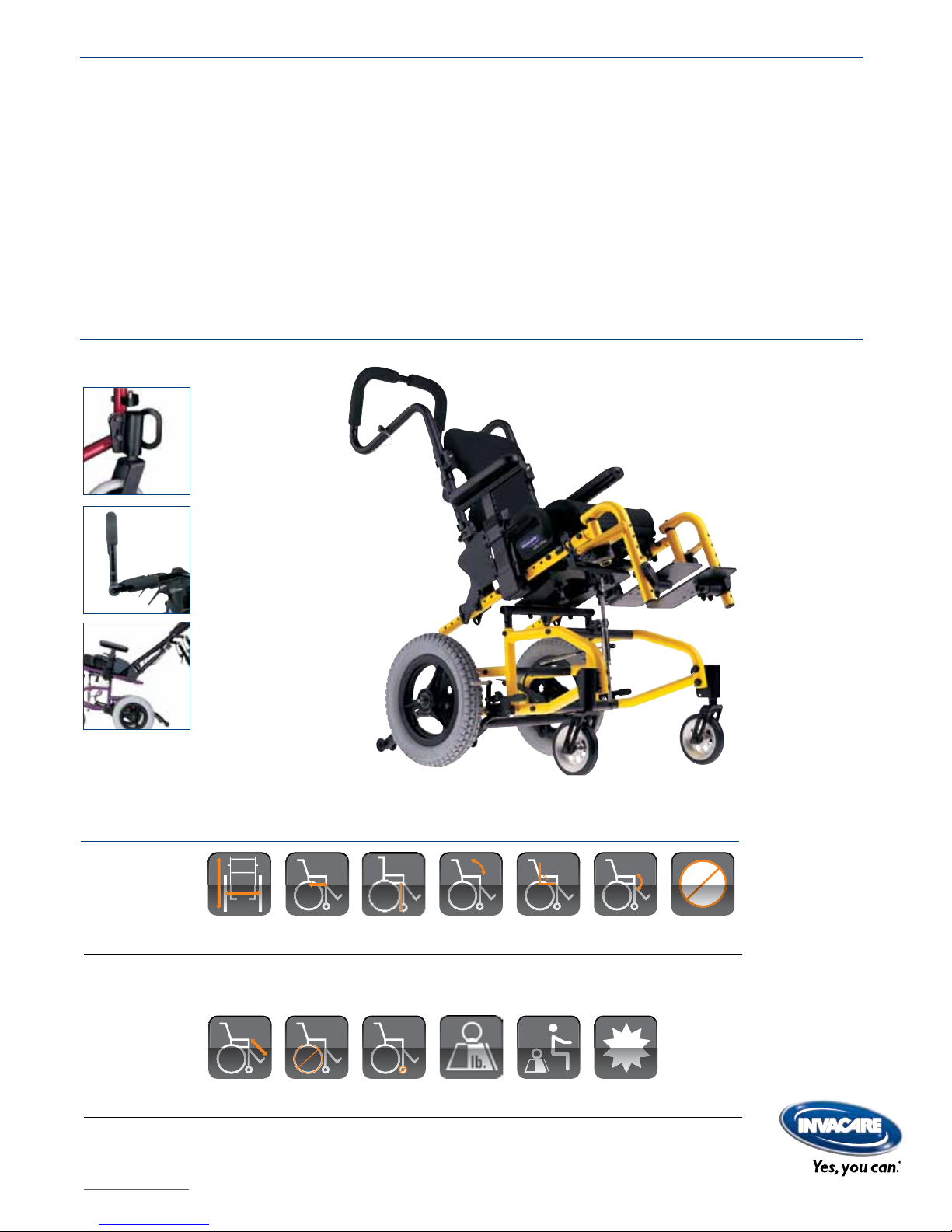

1. Four Factory Installed Tie-Down Brackets*
2. Adjustable Angle Stroller Handles
3. Rolling Back Option Interchangeable with
Fold-Down Back
1
3
2
*The Invacare Transport Ready option consists of four factory-installed tie-down brackets that meet today’s ANSI/RESNA WC19 vol. 1 - section 19.5.3 standard for the frontal impact test. As tested with
the Invacare®KSS Seating System. Invacare has not performed testing with any other seating system. Invacare recommends that wheelchair users NOT be transported in vehicles of any kind
while in wheelchairs. As of this date, the Department of Transportation has not approved any tie-down system for transportation of a user while in a wheelchair in a moving vehicle of any type.
