Pronto® M6
Power Wheelchair
Parts Catalog Issued: Aug 22, 2011

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 00-60. If you have any questions regarding this catalog, please contact one of
our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2011 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Medallion Design, and Pronto are registered trademarks of Invacare Corporation.
Parts Catalog Usage Guide
1
Form No. 00-60
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Miscellaneous .................................................................................................... 31
Accessories - Power Wheelchair Tool Kit ................................................................................ 33
Arms ......................................................................................................................................... 10
Battery Harness - Cables & Charger ........................................................................................ 15
Electronics - Joystick - Controller & Cables ............................................................................. 17
Frames - Front & Rear ............................................................................................................. 4
Front Rigging - Attachment Kit - FRKTM6 ................................................................................ 20
Front Rigging - Footboard Assembly (After 11/05/01) .............................................................. 19
Front Rigging - Footboard Assembly (Before 11/06/01) ........................................................... 18
Front Rigging - Footrest - PW93 .............................................................................................. 21
Front Rigging - Legrest - T94AA/C ........................................................................................... 23
Front Rigging - Legrest, Articulating - PAL4A .......................................................................... 26
Front Rigging - Pivot Slide Tube & Footplates - T94AA/C and PAL4A ................................... 29
Motor & Gearbox Assembly ..................................................................................................... 13
Packaging & Literature ............................................................................................................. 3
Seat and Mounting Hardware ................................................................................................... 8
Shroud Covers ......................................................................................................................... 6
Wheels - Drive & Casters ......................................................................................................... 12
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099761 Kit, Packaging
Includes: Carton, Inserts and Foam. 1 1A
1098184-NLA NLA - Owner's Manual, Pronto M6 1 1A 1102705 Paint, Touch-Up, Candy Red 1 1A 1101326 Paint, Touch-Up, 105P Midnight Blue 1 1A 1101326 Paint, Touch-Up, 105P Midnight Blue 1 1A
A - Not Shown
Whe
n adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
Packaging and Literature
Note: When adjusting or replacing parts, please refer to your Owner's Manual for assistance.
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

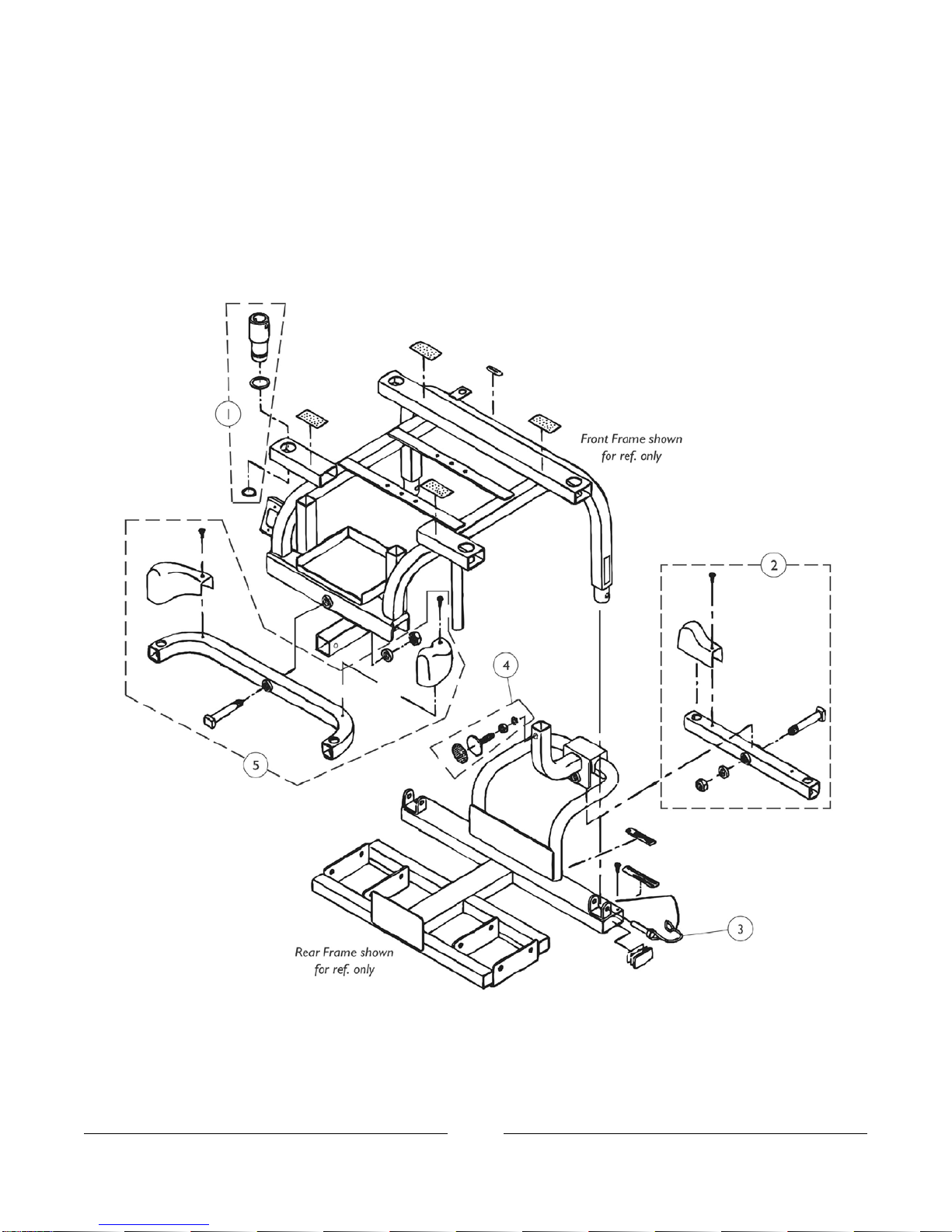

Frame Assembly, Front and Rear
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Frame Assembly, Front and Rear
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099721-NLA NLA - Strut, Housing and Hardware Includes: 4 ea.
Strut Housing, 4 ea. O-Ring, Rubber, 4 ea. Snap
Ring
4 41
1099717-NLA NLA - Axle Assembly (Rear)
Includes:
1 ea. Axle, Rear
1 ea. Bolt, Square Head (M12 x 1.25 x 68)
1 ea. Spacer (M12 x 20 x 4.5)
1 ea. Locknut (M12 x 1.25 x 19)
2 ea. Shroud Cover, Rear Axle
2 ea. Screw, Phillips Pan Head (M4 x 12)
1 12
1099724-NLA NLA - Hardware, Connecting Pin
Includes:
4 ea. Connecting Pin, Frame
4 ea. Screw, Phillips Self Tap (M2 x 10)
4 43
1099722-NLA NLA - Hardware, Adjustable Stop Rear Frame
Includes:
1 ea. Washer, Spring (M8 x 13)
1 ea. Nut (M8 x 1.25 x 13)
1 ea. Screw, Set (M8 x 1.25 x 35)
1 ea. Fastener, Hook Adhesive Back
1 14
1099716-NLA NLA - Axle Assembly (Front)
Includes:
1 ea. Axle, Front
1 ea. Bolt, Square Head (M12 x 1.25 x 68)
1 ea. Spacer (12 x 20 x 4.5)
1 ea. Locknut (M12 x 1.25 x 19)
1 ea. Shroud Cover, Front Axle - Right
1 ea. Shroud Cover, Front Axle - Left
2 ea. Screw, Phillips Pan Head (M4 x 15)
1 15
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Shroud Covers
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Shroud Covers
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099743-NLA NLA - Shroud Cover Assembly with Decals, Red 1 11 1099745-NLA NLA - Shroud Decal Assembly with Decals, Blue 1 11 1099774-NLA NLA - Decal, Model - Pronto M6 1 22 1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 23 1099738 Kit, Shrouds w/ Screws, Front/Rear Axle
Includes:
(1) Shroud Cover, Front Axle - Right
(1) Shroud Cover, Front Axle - Left
(2) Shroud Cover, Rear Axle - Right/Left
(4) Screw, Phillips Pan Head (M4 x 12)
4 44
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Seat Assembly and Mounting Hardware
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Seat Assembly and Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099755-NLA NLA - Seat with Headrest Pillow, Gray Cloth -
Before 3/01/01 1 11 A
1106210 Seat w/ Headrest Pillow, Vinyl, Grey - After 2/28/01 1 11 1099756-NLA NLA - Pillow, Headrest, Gray Cloth (Before 3/01/01) 1 12 1106211-NLA NLA - Headrest, Vinyl (Gray) - Lynx LX3/ LX3 Plus
and Panther LX4/ MX4 1 12
1088768 Knob, Lower Arm Tightening 1 23 P715 Strap, Seat Positioning - All Models 1 14 1099737-NLA NLA - Hardware, Seat Adjusting Collar
Includes:
4 ea. Collar, Seat Adjusting
4 ea. Screw, Phillips Pan Head (M6 x 1.0 x 40)
4 ea. Locknut (M6 x 1.0 x 1.0)
4 45
1099758 Hardware, Seat Stand Mounting
Includes:
4 ea. Washer (M8 x 22 x 2)
4 ea. Washer, Spring (M8 x 13)
4 ea. Screw, Hex Head Cap (M8 x 1.25 x 25)
4 46
1099763-NLA NLA - Connecting Pin Hardware, Seat 4 47 1099740-NLA NLA - Strut, Seat with Hardware
Includes:
4 ea. Strut, Seat
4 ea. Washer, Spring (M8 x 13)
4 ea. Screw, Socket Head (M8 x 1.25 x 20)
4 48
1099757-NLA NLA - Stand, Seat 1 19 A - Cloth seats are NLA. As a replacement, order the vinyl seat with headrest pillow part number 1106210.
NOTE:
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Arm Assembly
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Arm Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099748-NLA NLA - Pad, Arm with Arm Tube Sleeve and
Retractable Joystick Mount - Right 1 11
1099749 Pad, Arm w/ Arm Tube Sleeve and Retractable
Joystick Mount - Left 1 11
1099747 Pad, Arm w/ Arm Tube Sleeve - Right/Left 1 11 1099751 Arm Assembly without Arm Pad - Right 1 12 1099750-NLA NLA - Arm Assembly without Arm Pad - Left 1 12 1099746-NLA NLA - Arm Hardware Package (Pair)
Includes:
4 ea. Screw, Nylok Socket (M8 x 1.25 x 8)
2 ea. Screw, Phillips Head (M8 x 1.25 x 40)
4 ea. Locknut (M8 x 1.25 x 13)
2 ea. Screw, Phillips Head (M8 x 1.25 x 32)
2 ea. Washer, Spring (M8 x 13)
2 ea. Nut (M8 x 1.25 x 13)
2 ea. Screw, Hex Head Cap (M8 x 1.25 x 35)
2 23
1088768 Knob, Lower Arm Tightening 1 14 A 1088769 Knob, Upper Arm Tightening 1 15 B 1099769-NLA NLA - Hardware, Connecting Pin Retractable
Joystick Mount
Includes:
5 ea. Connecting Pin
5 ea. Chain
5 ea. Cable Tie
5 56
A - Width adjustment.
B - Depth adjustment.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly

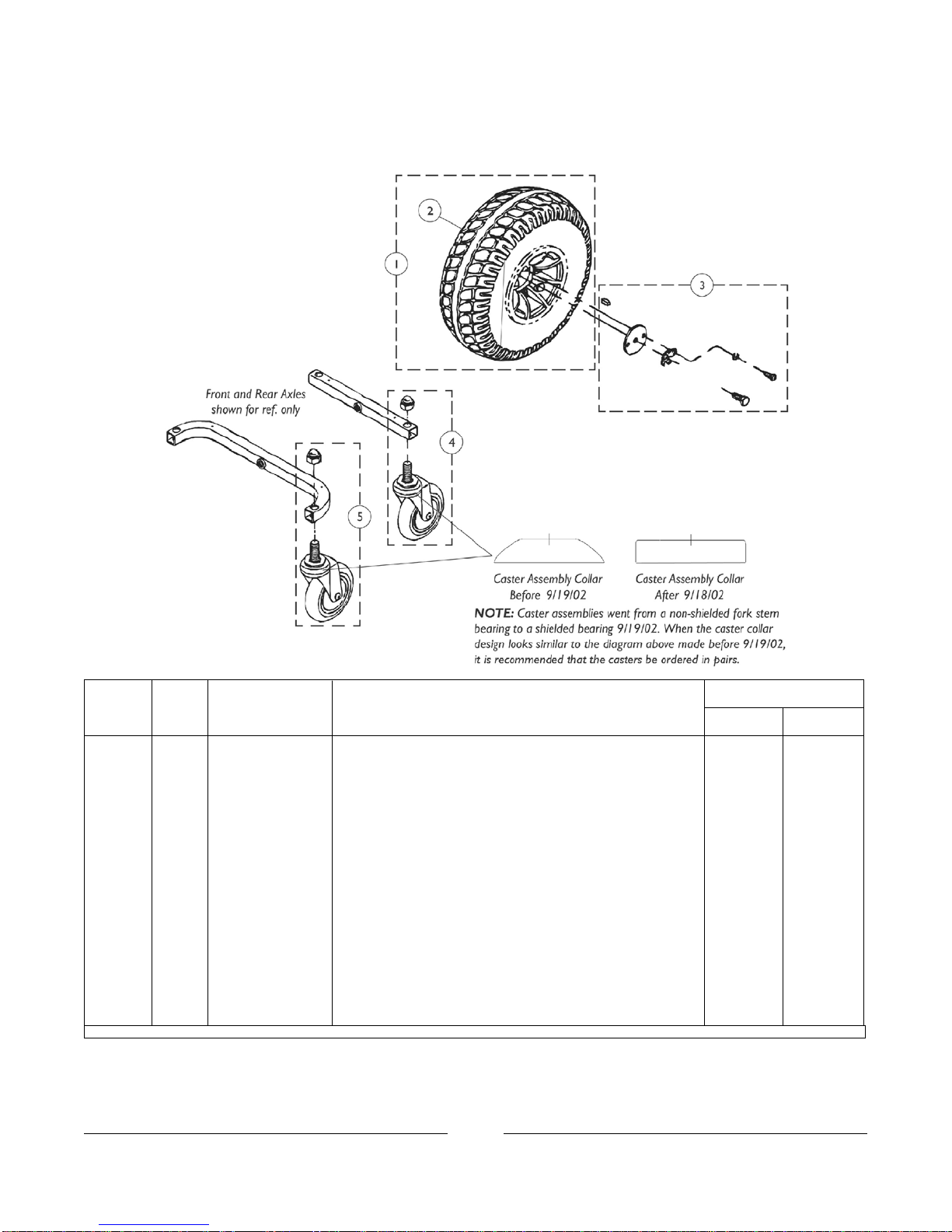

1099771-NLA NLA - Wheel Assembly, Rear (10 x 3.50) - Black
Rim 1 11
1088720-NLA NLA - Tire w/ Foam Fill Insert, Rear, Grey (8" x 2") 1 12 1099739-NLA NLA - Hardware, Rear Wheel Mounting
Includes:
1 ea. Key
1 ea. Washer (M8 x 45 x 3)
1 ea. Washer, Locking Tab
2 ea. Washer, Spring (M6 x 10)
2 ea. Screw, Phillips Pan Head (M6 x 1.0 x 16)
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 20)
1 13
1115709-NLA NLA - Caster with Nut, Rear (5") 1 14 A 1115777-NLA NLA - Caster with Nut, Rear (5") 2 14 A 1115710-NLA NLA - Caster with Nut, Front (6") 1 15 A 1115778-NLA NLA - Caster with Nut, Front (6") 2 15 A
A - Casters are covered under warranty for a period of 1 year.
NOTE:
Drive Wheels and Casters
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Motor and Gearbox Assembly
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Motor and Gearbox Assembly
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099727-NLA NLA - Gearbox - Right 1 11 1099726-NLA NLA - Gearbox - Left 1 11 1099728-NLA NLA - Hardware, Gearbox Mounting
Includes:
8 ea. Washer, Spring (M8 x 13)
8 ea. Screw, Socket Head (M8 x 1.25 x 20)
8 82
1099733-NLA NLA - Switch Assembly with Hardware Includes: 1
ea. Switch, 1 ea. Paper, Switch, 2 ea. Washer (2.2 x
5 x 0.5), 2 ea.Washer, Spring (2.1 x 4.3 x 0.7)
2 ea Nut (M2 x 0.4 x 6)
1 13
1099732-NLA NLA - Handle, Free Wheel, Right 1 14 1099731-NLA NLA - Handle, Free Wheel, Left 1 14 1099730 Brake, Motor with Axle 1 15 1099725-NLA NLA - Package, Hardware, Motor/ Gearbox
Includes:
1 ea. Plate, Motor Cable Tie Down
4 ea. Screw, Socket Head (M8 x 1.25 x 20)
1 ea. Plate, Bushing
1 ea. Bushing
1 ea. Driving Axle, Disc Brake with Set Screw
1 16
1099741-NLA NLA - Motor/ Brake Assembly - Right 1 17 1099729 Motor/ Brake Assembly - Left 1 17 1099735-NLA NLA - Motor/ Gearbox Assembly, Right 1 18 1099734-NLA NLA - Motor/ Gearbox Assembly, Left 1 18 1099736-NLA NLA - Brush, Motor (Pair) 2 29
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

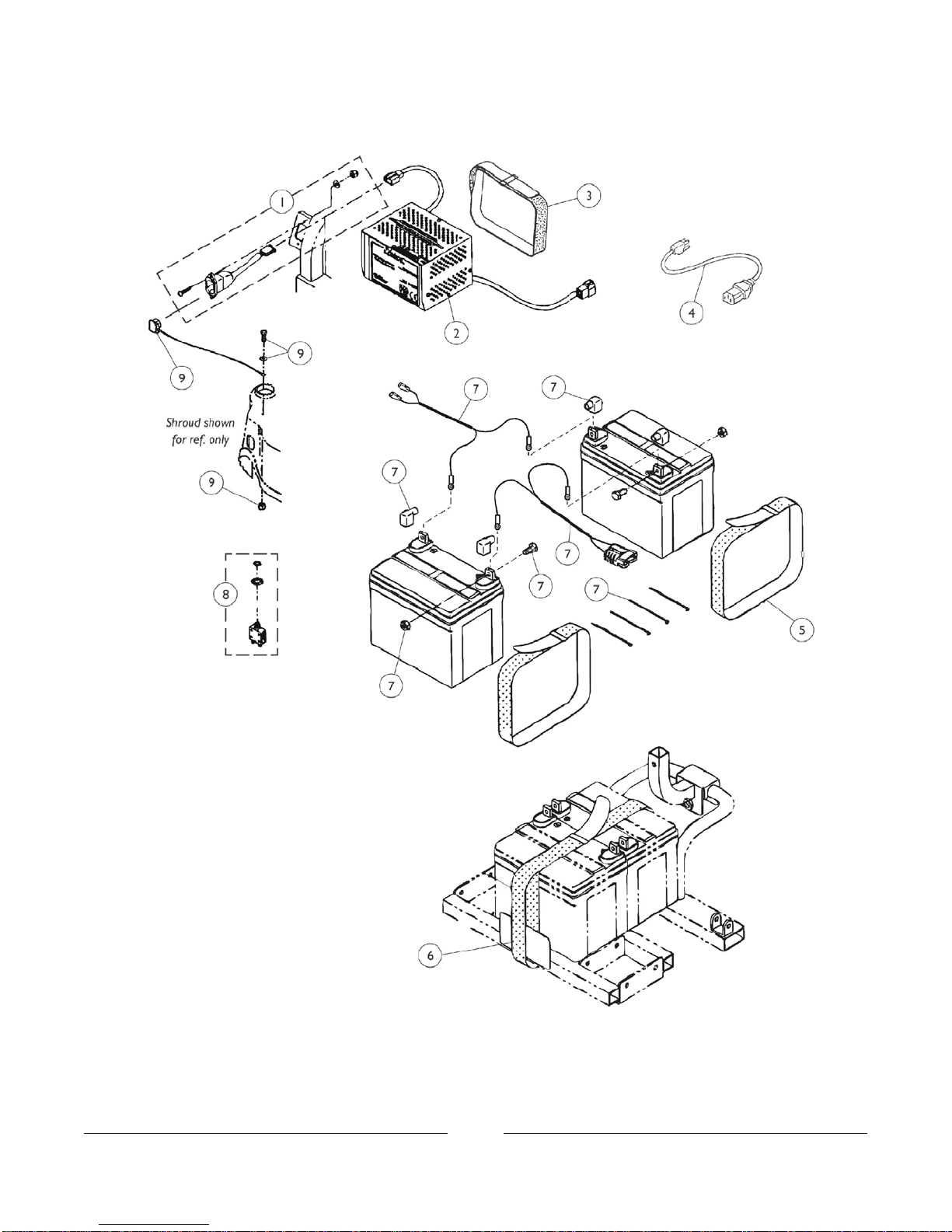

Battery Harness, Cables and Charger
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Battery Harness, Cables and Charger
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099754-NLA NLA - Charging Cable, On Board with Hardware
(Lynx SX3/ LX3/ LX3 Plus and Panther MX4)
Includes: (1) Charging Cable, (2) Screw, Phillips
Pan Head (M3 x 0.5 x 16)
2 ea. Washer (3.2 x 10 x 0.8)
2 ea. Locknut (M3 x 0.5 x 6)
2 ea. Cable Tie
1 ea. Tube, PVC (19 x 20 x 260L)
1 11
1099753-NLA NLA - Charger, Battery, On-Board 1 12 A 1053161 Charger, Battery, 8 Amp, 115vac, Off Board
Dual Mode Round Plug, Lester 1 12
1099744-NLA NLA - Strap, Fastening - On-Board Charger 1 13 1088745 Cord, Charger, AC 1 14 1088742 Strap, Carrying, Battery 1 25 1099760-NLA NLA - Strap, Fastening - Battery 1 16 1099752-NLA NLA - Harness, Power Connector, Circuit Breaker
Cables and Hardware
Includes:
1 ea. Harness Power Connector
2 ea. Cover, Battery Terminal (Red)
2 ea. Cover, Battery Terminal (Black)
1 ea. Cable, Circuit Breaker (Red)
1 ea. Cable, Circuit Breaker (Black)
1 ea. Tube, Snake (10 x 110L)
1 ea. Tube, Snake (10 x 95L)
4 ea. Screw, Hex Head Cap (M6 x 1.0 x 12)
4 ea. Hexnut (M6 x 1.0 x 10)
4 ea. Cable Tie
1 17
1088748 Circuit Breaker (30 AMP) - Lynx SX3P/ SX3/ LX3/
LX3 Plus, Panther LX4 and Zoom-3 1 18
1099772-NLA NLA - Charger Cable Cover Assembly
Includes:
1 ea. Cover, Charger Cable
1 ea. Screw, Phillips Pan Head (M4 x 0.7 x 12)
1 ea. Washer (M4 x 9 x 1)
1 ea. Locknut (M4 x 0.7 x 7)
1 19
A - (On-Board) Battery Charger #1099753 is no longer available. Use the (Off Board) Charger part #1053161 as a
replacement.
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099767-NLA NLA - Screw, Phillips Pan Head (#10-32 x 1/2") 10 21 1098644-NLA NLA - Controller, MKIV 1 12 1099742-NLA NLA - Cable, Motor/ Brake w/ Right and Left Decals
(Pair) 2 23
1099768-NLA NLA - Controller Mounting Hardware 1 14 B 1040225 Potentiometer, Speed 1 15 1025516 Knob, Speed Control 1 16 50000X364 Boot, Joystick 1 17 1036764-NLA NLA - Inductive, Joystick 1 18 1040218 Skirt, Joystick 1 19 1040217 Knob, Joystick, Black 1 110 1092610 Joystick, RII 1 111 A
A - To mount joystick on left side, see arm assembly page item 1.
B - Includes: (3) Screw, Phillips Pan Head (#8-36 x 1/2"), (2) Screw, Phillips Pan Head (1/8 x 3/4").
NOTE:
Electronics
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099770 Footboard Hardware
Includes:
4 ea. Screw, Phillips Head w/Patch
(M6 x 1.0 x 20)
4 ea. Washer (8.2 x 15.8 x 3)
1 ea. Bolt, Hex Head Cap (M8 x 1.25 x 85)
1 ea. Locknut (M8 x 1.25 x 35)
2 ea. Washer, Spring (M8 x 13)
2 ea. Nut (M8 x 1.25 x 13)
2 ea. Screw, Hex Head Cap (M8 x 1.25 x 35)
2 ea. Plug Button, Square (3/4 x 3/4")
2 ea. Plug Button, Square (5/8 x 5/8")
1 11
1099715-NLA NLA - Pin, Safety 4 12 1110986-NLA NLA - Footboard Assembly 1 13
Footboard Assembly
Before 11/06/01
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1099714-NLA NLA - Footboard Assembly
Includes:
1 ea. Footboard with Rubber Pad
1 ea. Adjustment Tube, Footboard
2 ea. Washer (8.2 x 15.8 x 3)
1 ea. Safety Pin
1 ea. Cable Tie
1 ea. Nut (M8 x 1.25 x 13)
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 25)
2 ea. Plug Buttons, Ball
1 ea. Screw, Hex Head Cap (M8 x 1.25 x 60)
1 11
1099715-NLA NLA - Pin, Safety 4 12
Footboard Assembly
After 11/05/01
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-60
