Invacare A-6 Instruction Manual

Yes, you can. ™
A-6
Wheelchair
Parts Catalog Issued: Feb 22, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 00-131. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
© 2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., and the Medallion Design are registered trademarks of Invacare Corporation. KIK is a
registered trademark of KIK Technology, Inc.
Parts Catalog Usage Guide
1
Form No. 00-131
To order call toll free 1-800-333-6900, or www.invacare.com

Accessories - Miscellaneous .................................................................................................... 67
Arms - "T" and Hardware ......................................................................................................... 20
Arms - Half and Hardware ........................................................................................................ 24
Axle Tube Position Assembly ................................................................................................... 32
Axles - Camber Bars and Wheel Attaching Hardware ............................................................. 29
Casters - Front and Hardware .................................................................................................. 69
Forks and Hardware ................................................................................................................. 26
Frame Finishes and Touch-Up Paint ........................................................................................ 4
Frames - Backrest and Rear Upright Tubes ............................................................................. 12
Frames - Seat and Frame Hardware ........................................................................................ 7
Front Riggings - One Piece Adjustable Angle Footplate .......................................................... 61
Front Riggings - Rigid Tubular Footplate ................................................................................. 59
Guards - Rigid Side .................................................................................................................. 63
Handles - Push - Bolt On ......................................................................................................... 65
Handrims .................................................................................................................................. 49
Handrims - Hardware ............................................................................................................... 51
Packaging - Literature and Decals ........................................................................................... 5
Rear Upright Tube Mounting Hardware ................................................................................... 10
Upholstery - Back ..................................................................................................................... 14
Upholstery - Back - Adjustable Tension ................................................................................... 16
Upholstery - Seat ...................................................................................................................... 18
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Wheel Locks - High Mount - Pull to Lock ................................................................................. 53
Wheel Locks - High Mount - Push to Lock ............................................................................... 52
Wheel Locks - Hill Holder and Attaching Hardware ................................................................. 55
Wheel Locks - Undermount ...................................................................................................... 57
Wheels - Rear - Composite ...................................................................................................... 38
Wheels - Rear w/ Handrims - Spoke (After 9/1/11) .................................................................. 45
Wheels - Rear w/ Handrims - Spoke (Before 9/2/11) ............................................................... 47
Wheels - Rear w/o Handrims - Spoke (After 9/1/11) ................................................................ 39
Wheels - Rear w/o Handrims - Spoke (Before 9/2/11) ............................................................. 42
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Color
Number Touch-Up Paint Color
Anthracite103337622P Denim Blue1101327102P Electric Blue104632062P Electric Red104632161P Electric Teal1101316104P Evergreen w/ Navy107389280P Jeweled Green1101325101P Lavender107389684P Midnight Blue1101326105P Mocha Frost1101324103P Passion Purple104632266P Red103145533P Royal Blue w/ Grape107389583P Sunny Yellow103144830P Wet Black103145024P White103144729P Wet Black w/ Twilight SparkleN/A88P
Frame Finishes and Touch-Up Paint
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

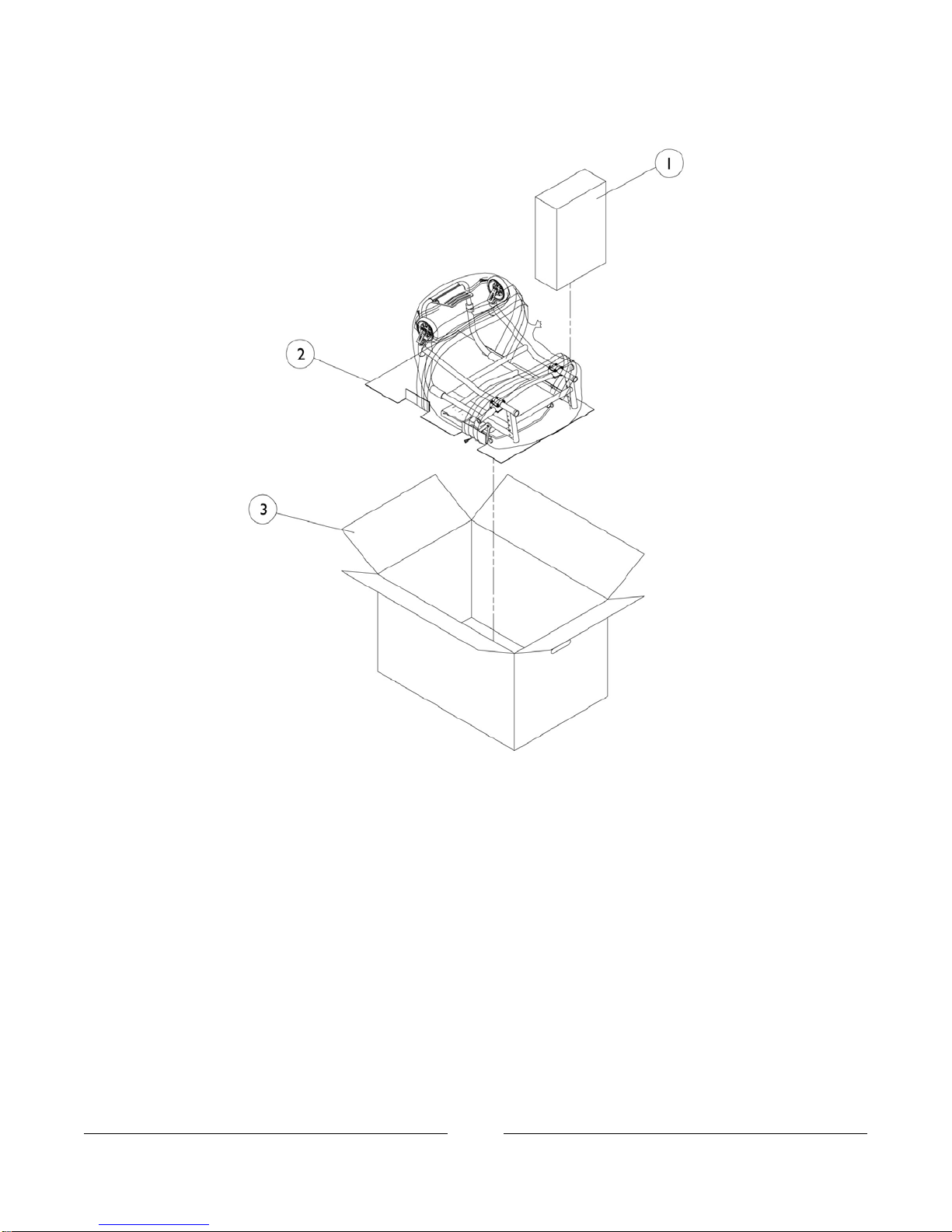

Packaging, Literature, and Decals
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Packaging, Literature, and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
40131X011 Carton, Front Riggings 1 11 1049222 Insert, Bottom Pad 1 12 1045583 Carton, Shipper 1 13 See Chart Decals 1 1A 1092293 Owner's Manual 1 1A 1095497 Decal, Invacare Logo (1.6) 1 1A See Chart Decals 1 1A
A - Not Shown
Not
e: When adjusting or replacing parts please refer to your Owner's Manual for assistance.
NOTE:
Decals
Decal Text
Color A-6S F-6S A-6 F-6
1097363109736110973591097357Black 1097362109736010973581097356White
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

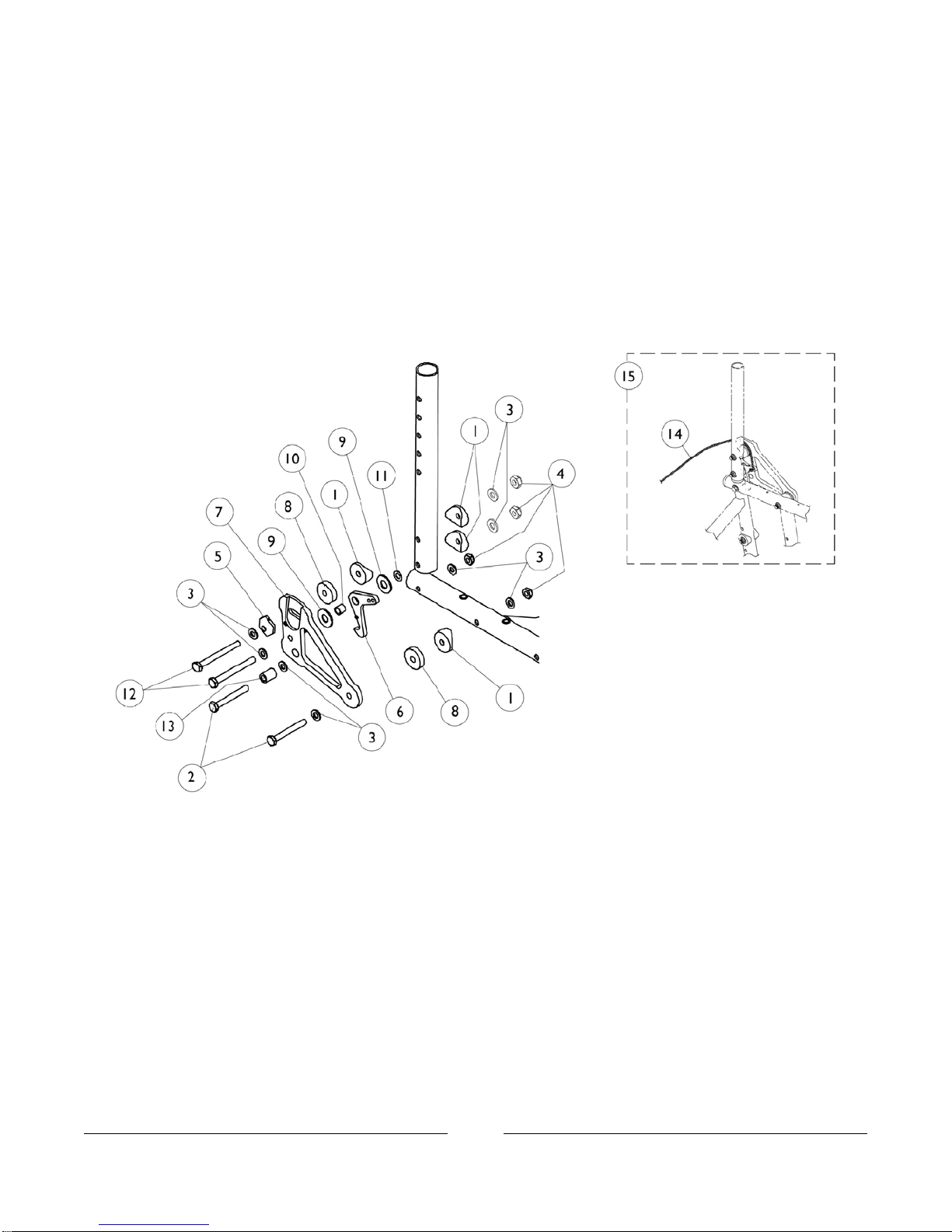

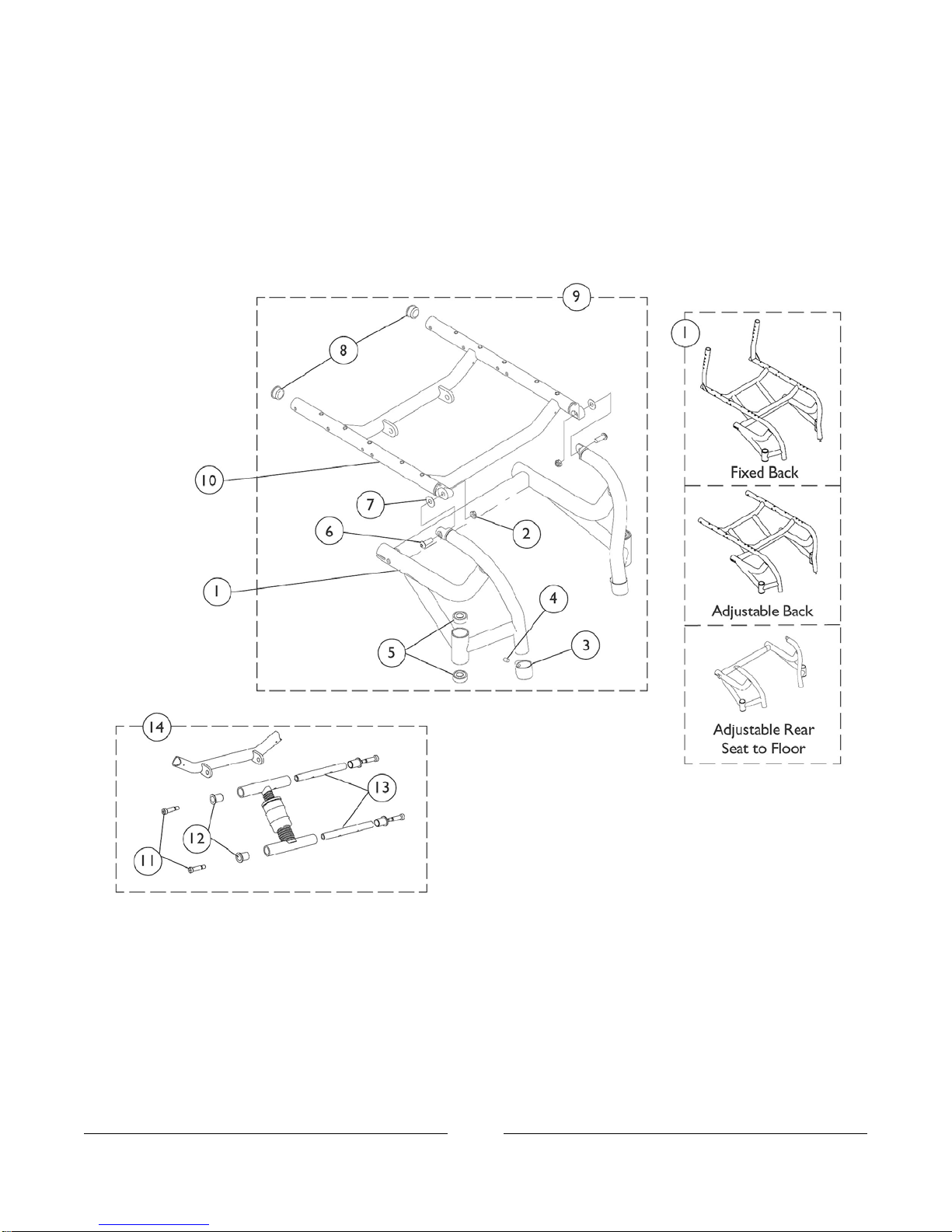

Seat Frames and Frame Hardware
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Seat Frames and Frame Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881101592 Frame, Aluminum, Color 1 11 A 1028769 Locknut (5/16-18) 1 22 1111949 Clamp, Footrest 1 23 1026911 Screw, Socket Set Cone Point (1/4-20 x 1/2") 1 24 40117X021 Bearing (1/2" I.D. x 1-1/8" O.D.) 1 45 1000208 Screw, Shoulder Hex Socket Head (5/16" x 3/8",
1/4-20) 1 26 B
1046494 Screw, Socket Button Head (5/16-18 x 7/8") 1 26 C 1046497-NLA NLA - Washer, Nylon (5/16 x 7/8 x 1/64") 1 47 1056328 Plug Button, Black (1") 1 28 1098112 Hardware, Frame, A6, Both Sides 2 19 D See Chart #10 Seat Frames 1 110 1069421 Screw, Shoulder Hex Socket Head (3/8 x 1",
5/16-18) 1 411
1093116 Flange 1 412 1095638 Rod, Attaching, Adjustable Height 1 213 See Chart #14 Seat Adjustment Assembly 2 114
A - Configured Item
B - Chairs built Before 9/16/02. Due to design improvement, this screw was replaced with part nos. 1046494 and 1028769.
C - Chairs built After 9/15/02.
D - Includes items 2-8.
NOTE:
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Seat Frames and Frame Hardware
#10 Seat Frames
Chair
Width 19" Deep 20" Deep
14"
Deep 15" Deep 16" Deep 17" Deep 18" Deep N/AN/A8881093194888109318788810931808881093173888109316614" N/AN/A8881093195888109318888810931818881093174888109316715" N/A88810932038881093196888109318988810931828881093175888109316816" N/A88810932048881093197888109319088810931838881093176888109316917" N/A88810932058881093198888109319188810931848881093177888109317018" N/A8881093206888109319988810931928881093185N/AN/A19" 88810939728881093207888109320088810931938881093186N/AN/A20"
Due to design improvement, when ordering a Seat Frame for chairs built Before 9/16/02 also order 2 each of item 2 Locknut (1028769) and
item 6 Screw (1046494).
Specify frame color when ordering.
#14 Seat Adjustment Assembly
Front STF 22" Wheels 24" Wheels 26" Wheels
N/A1098519109543117" 10985191095431109543118" 10954311095431109543219" 10954311095432109543220" 10954321095432109543221"
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Rear Upright Tube Mounting Hardware
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Rear Upright Tube Mounting Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
40157X020 Spacer, Coved (1/4 x 1 x 9/16") 1 41 1055349 Screw, Hex Head (1/4-28 x 2") 1 42 1026907 Washer (1/4 x 1/2 x 1/16") 1 163 1025765 Locknut (1/4-28) 1 44 1039232 Cam, Adjustment 1 15 1081354 Latch, Backrest - Right 1 16 1081355 Latch, Backrest - Left 1 16 1079920 Plate, Backrest Support -Right 1 17 1079921 Plate, Backrest Support -Left 1 17 1040776 Spacer, Nylon (1/4 x 1 x 1/4") 1 28 1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 19 1026162 Spacer (1/4 x 3/8 x 11/32") 1 110 1025728 Washer (1/4 x 1/2 x 1/32") 1 111 1055351 Screw, Hex Head (1/4-28 x 2-1/2") 1 112 1039233 Spacer (1/4 x 7/16 x 5/8") 1 113 1141633 Cord, Nylon (6-1/2 ft.) 1 114 1041149 Kit, Backrest Hardware (Pair) 2 115 A 1097082 Kit, Backrest Hardware (Pair) 2 115 B
A - For chairs without Half Arms. Includes items 1-11 and 13- 14.
B - For chairs with Half Arms. Includes items 1-14.
NOTE:
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

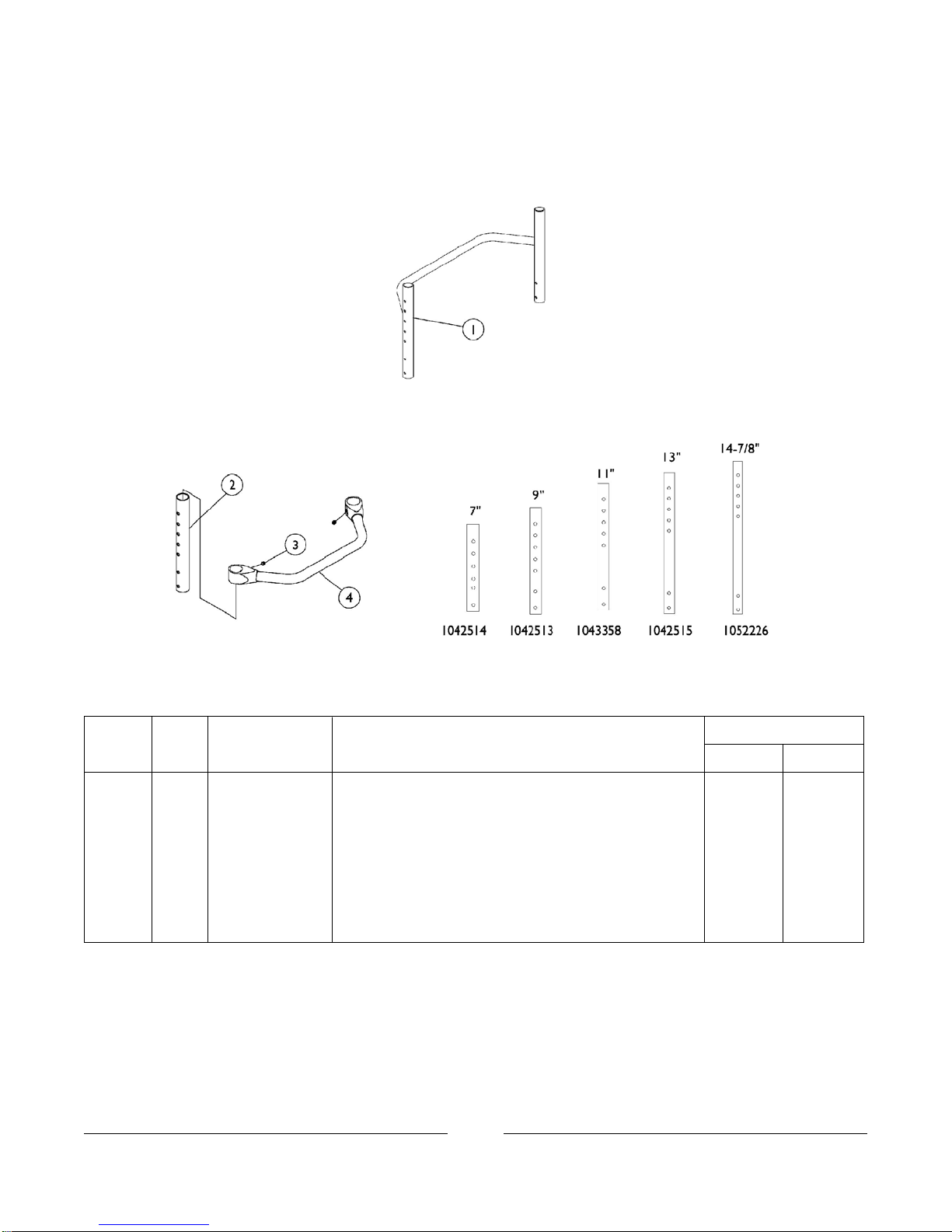

Backrest Frame and Rear Upright Tubes
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 One Piece Backrest Frame 1 11 1042514 Tube, Rear Upright, Black (8 - 11" H) 1 22 1042513 Tube, Rear Upright, Black (10 - 14" H) 1 22 1043358 Tube, Rear Upright, Black (12 - 16" H) 1 22 1042515 Tube, Rear Upright, Black (14 - 18" H) 1 22 1052226 Tube, Rear Upright, Black (16 - 20" H) 1 22 1045495 Screw, Set Socket (1/4-20 x 1/4") 1 23 See Chart #4 Backrest Crossmember 1 14
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Backrest Frame and Rear Upright Tubes
#1 One Piece Backrest Frame
Chair Width 8-11" High 10-14" High 12-16" High 14-18" High 16-20" High
1026764102675710429821026188102470614" 1026765102675810429861026189102470715" 1026766102675910429871026190102470816" 1026767102676010429881026191102470917" 1026768102676110429891026192102471018" 1026769102676210429901026193102471119" 1026770102676310429911026194102471220"
#4 Backrest Crossmember
14" Wide 20" Wide15" Wide 16" Wide 17" Wide 18" Wide 19" Wide 1050074105007710500801050083104251210425111042510
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

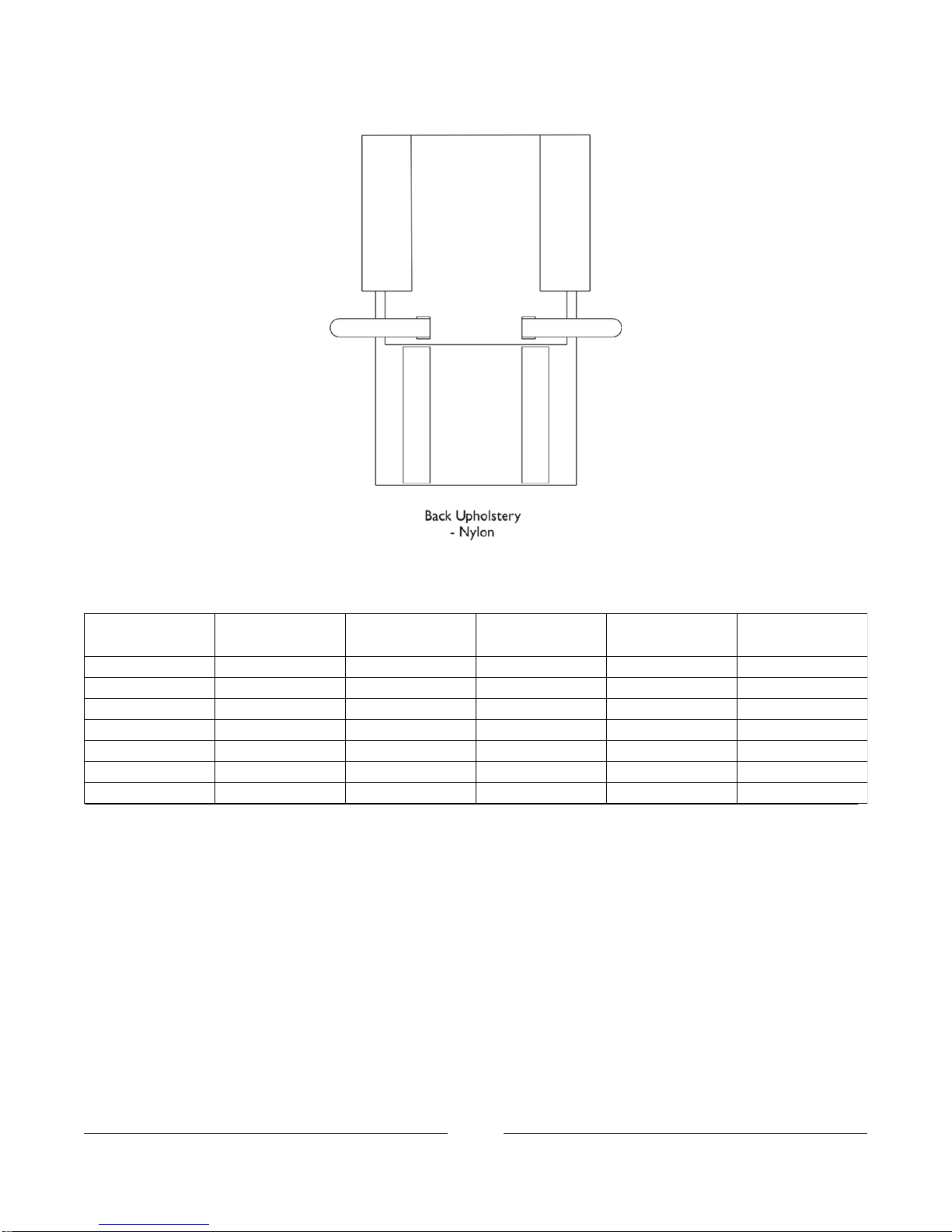

Back Upholstery
Chair
Width 8-12" High 10-14" High 12-16" High 14-18" High 16-20" High
1026816102680910435391026802102679514" 1026817102681010435401026803102679615" 1026818102681110435411026804102679716" 1026819102681210435421026805102679817" 1026820102681310429831026806102679918" 1026821102681410435431026807102680019" 1026822102681510435441026808102680120"
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Back Upholstery
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1026298 Package, Screw with Washer (#10 x 7/8") (Pair) 2 1A See Chart Back Upholstery 1 1A
A - Not Shown
NOTE:
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

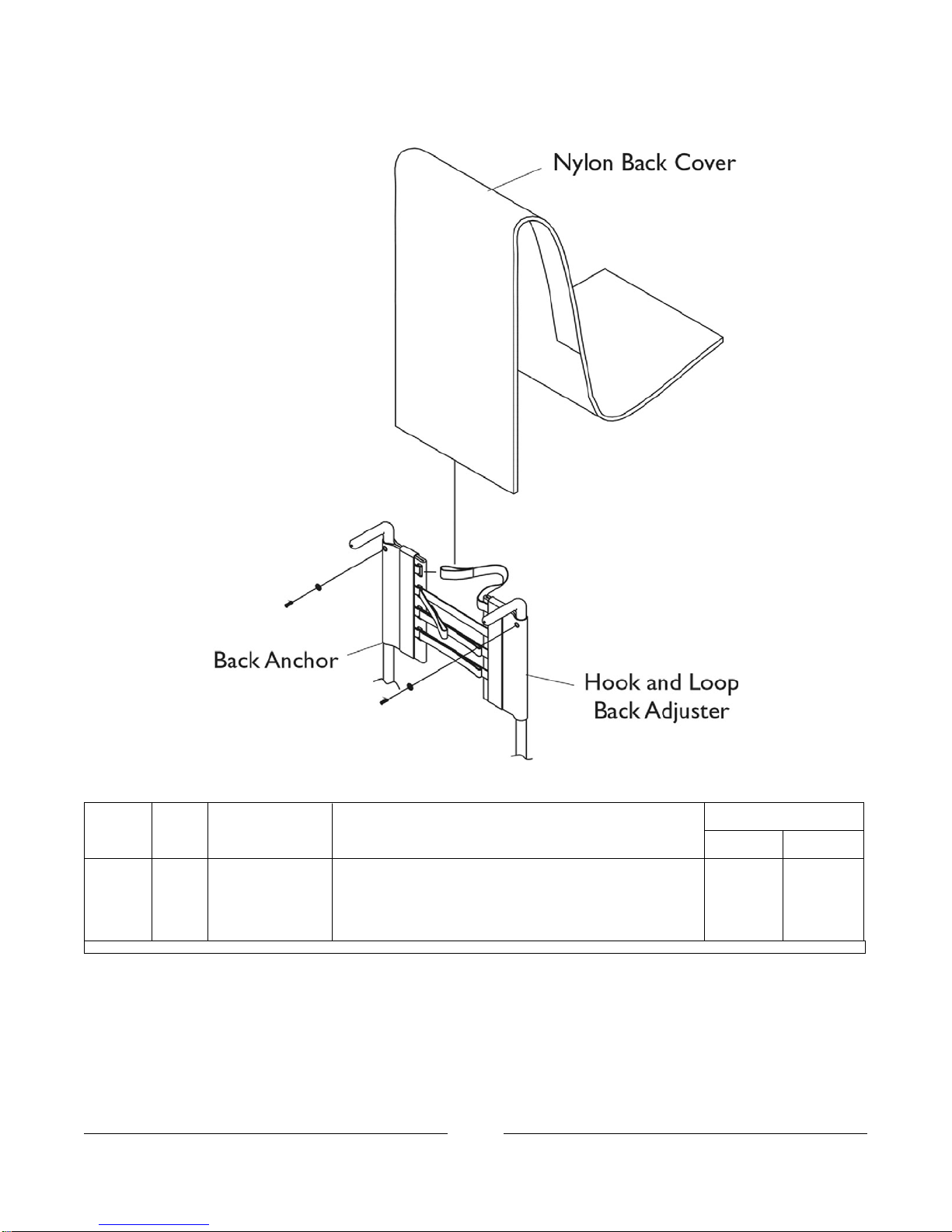

Adjustable Tension Back Upholstery
Back Hardware
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1026298 Package, Screw with Washer (#10 x 7/8") (Pair) 2 1A 1039470 Instruction Sheet, Adjustable Tension Back
Upholstery 1 1A
See Chart Back Upholstery -Adjustable Tension 1 1A
A - Not Shown
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Adjustable Tension Back Upholstery
Back Height Seat Width Back Anchor Hook & Loop
Adjuster Back Cover Back Assembly
See Note(s) A
107909410462441046402104640514"8-11" 107909510462451046402104640515"8-11" 107909610462461046402104640516"8-11" 107909710462471046403104640517"8-11" 10790981046248-NLA1046403104640518"8-11" 107909910462491046404104640519"8-11" 10791001046250-NLA1046404104640520"8-11" 107910310379291046284104628714"10-14" 107910410379301046284104628715"10-14" 107910510379311046284104628716"10-14" 107910610379321046285104628717"10-14" 107910710379331046285104628718"10-14" 107910810379341046286104628719"10-14" 107910910379351046286104628720"10-14" 103947810379181037925103791614"12-16" 103947910379191037925103791615"12-16" 103948010379201037925103791616"12-16" 103948110379211037917103791617"12-16" 103948210379221037917103791618"12-16" 103948310379231037926103791619"12-16" 103948410379241037926103791620"12-16" 103948510379221037736103772014"14-18" 103948610379231037736103772015"14-18" 103948710379241037736103772016"14-18" 103948810379251037721103772017"14-18" 103948910379261037721103772018"14-18" 103949010379271037737103772019"14-18" 103949110377281037737103772020"14-18" 104674210467351046732104673114"16-20" 104674310467361046732104673115"16-20" 104674410467371046732104673116"16-20" 104674510467381046733104673117"16-20" 104674610467391046733104673118"16-20" 104674710467401046734104673119"16-20" 104674810467411046734104673120"16-20"
A - Back Assembly includes Back Anchor, Hook and Loop Adjuster, Back Cover and Instruction Sheet.NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

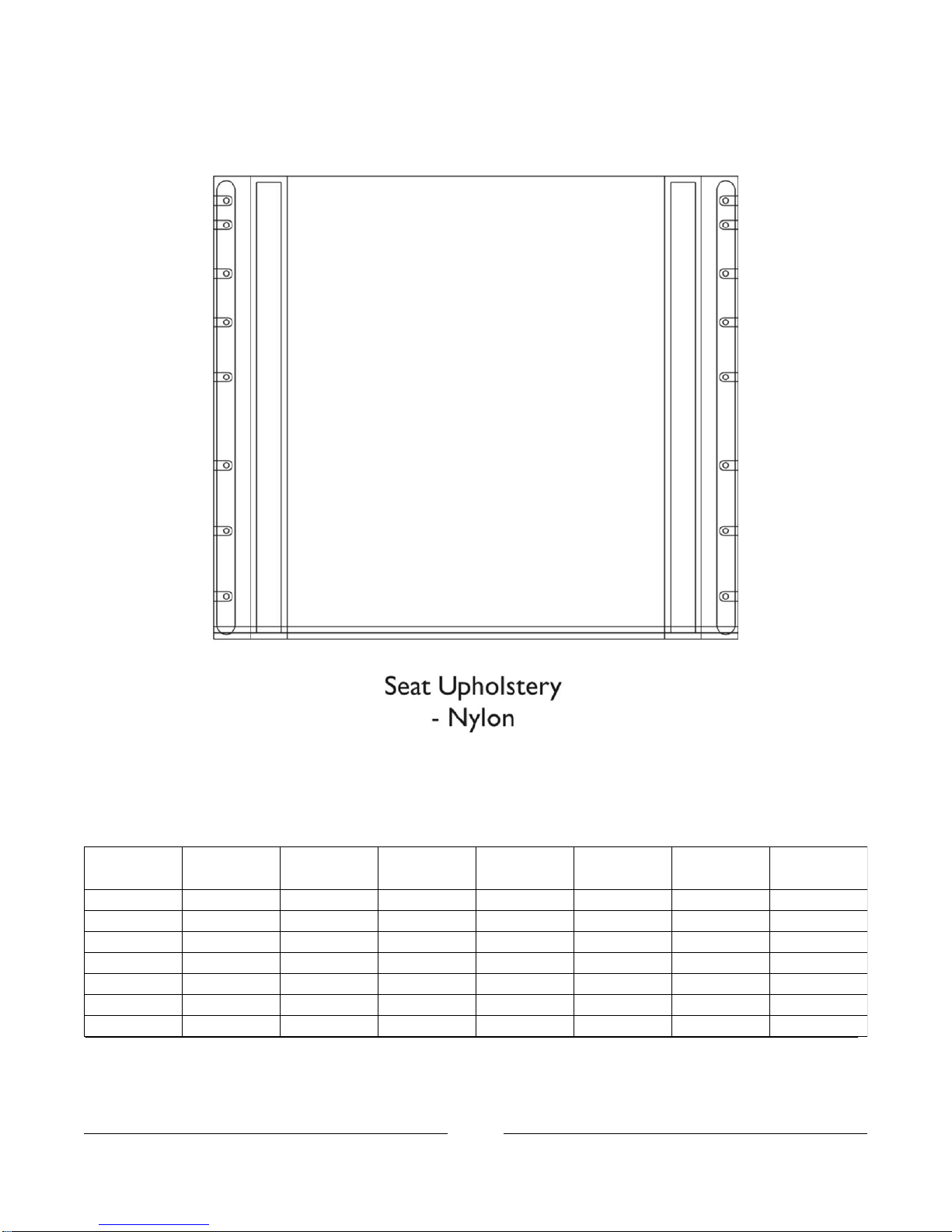

Seat Upholstery
Chair
Width 19" Deep 20" Deep
14"
Deep 15" Deep 16" Deep 17" Deep 18" Deep N/AN/A1032084103208310320821032081103208014" N/AN/A1032089103208810320871032086103208515" N/A10464781032094103209310320921032091103209016" N/A10464791032099103209810320971032096103209517" N/A10464801032104103210310321021032101103210018" N/A1046481103210710321061032105N/AN/A19" 10699311046482103211010321091032108N/AN/A20"
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131

Seat Upholstery
Seat Upholstery Hardware Kits
Seat Depth Hardware
Kit Screw Quantity/Size per Kit
10 ea. (#10-32 x 3/4")102693114" 12 ea. (#10-32 x 3/4")102693215-16" 14 ea. (#10-32 x 3/4")102693317-18" 16 ea. (#10-32 x 3/4")104629419-20"
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-131
