Invacare Tracer EXI Manual

DEALER: THIS MANUAL MUST BE GIVEN TO THE USER OF
THE WHEELCHAIR.
USER: BEFORE USING THIS WHEELCHAIR, READ THIS
MANUAL AND SAVE FOR FUTURE REFERENCE.

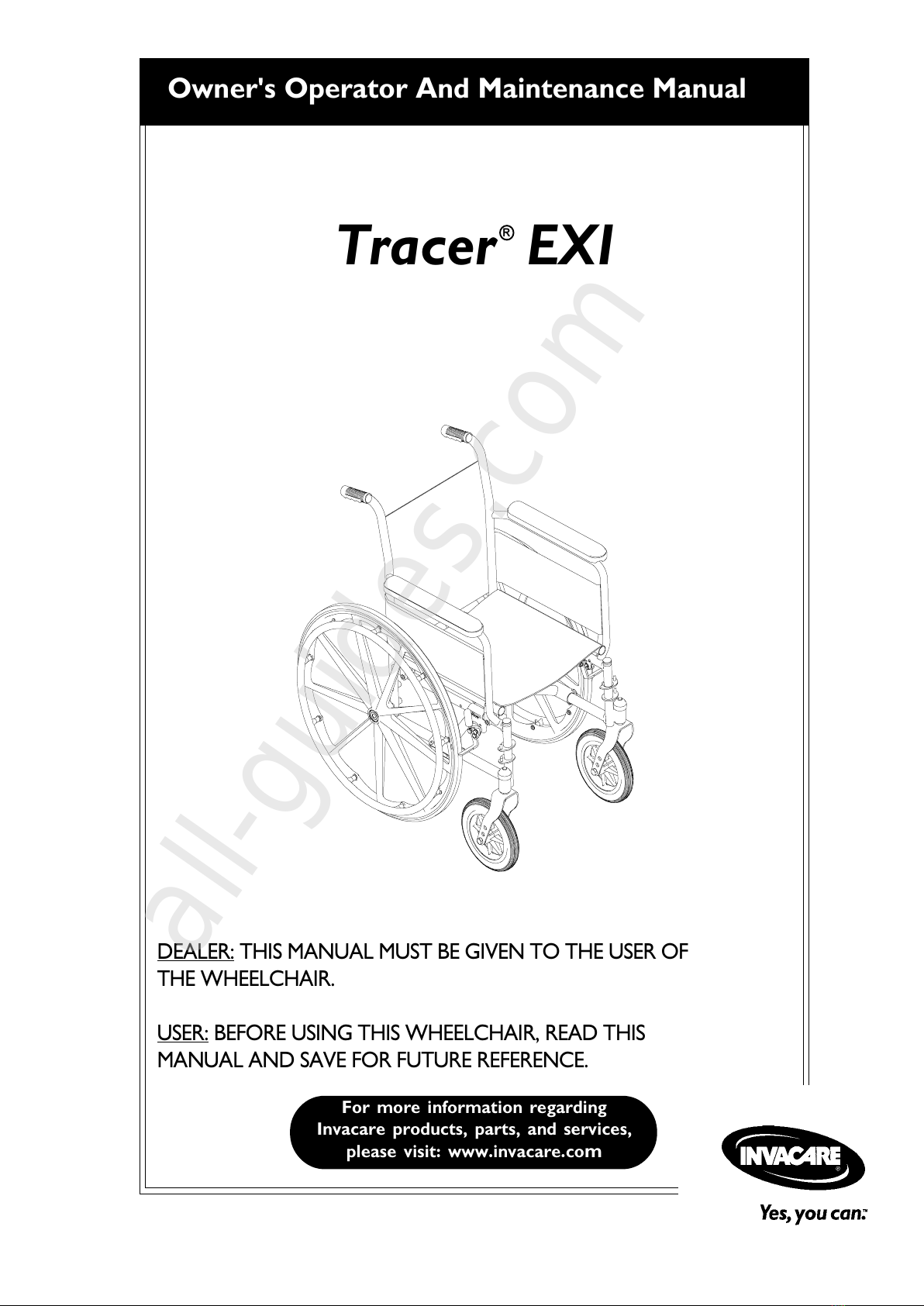

Owner's Operator And Maintenance Manual
Tracer EXI
R
For more information regarding
Invacare products, parts, and services,
please visit: www.invacare.com
All manuals and user guides at all-guides.com
all-guides.com

Tracer® EXI 2Part No. 1110547
WARNING
WARNING
WARNING
DO NOT OPERATE THIS EQUIPMENT WITHOUT
FIRST READING AND UNDERSTANDING THIS
MANUAL. IF YOU ARE UNABLE TO UNDERSTAND
THE WARNINGS, CAUTIONS, AND
INSTRUCTIONS, CONTACT A
HEALTHCARE PROFESSIONAL, DEALER OR A
QUALIFIED TECHNICIAN BEFORE ATTEMPTING
TO USE THIS EQUIPMENT - OTHERWISE INJURY
OR DAMAGE MAY RESULT.
SAVE THESE INSTRUCTIONS
All manuals and user guides at all-guides.com

Part No. 1110547 3Tracer® EXI
CONTENTS
CONTENTS
TABLE OF CONTENTS
SPECIAL NOTES................................................................................ 5
LABEL LOCATIONS ........................................................................... 6
SPECIFICATIONS .............................................................................. 7
SECTION 1 - GENERAL GUIDELINES................................................. 8
STABILITY...................................................................................................................................................... 8
OPERATING INFORMATION ...............................................................................................................9
TIRE PRESSURE........................................................................................................................................ 10
WEIGHT TRAINING ............................................................................................................................. 10
WEIGHT LIMITATION.......................................................................................................................... 10
SAFETY/HANDLING OF WHEELCHAIRS...................................................................................... 11
SECTION 2 - SAFETY INSPECTION .................................................. 18

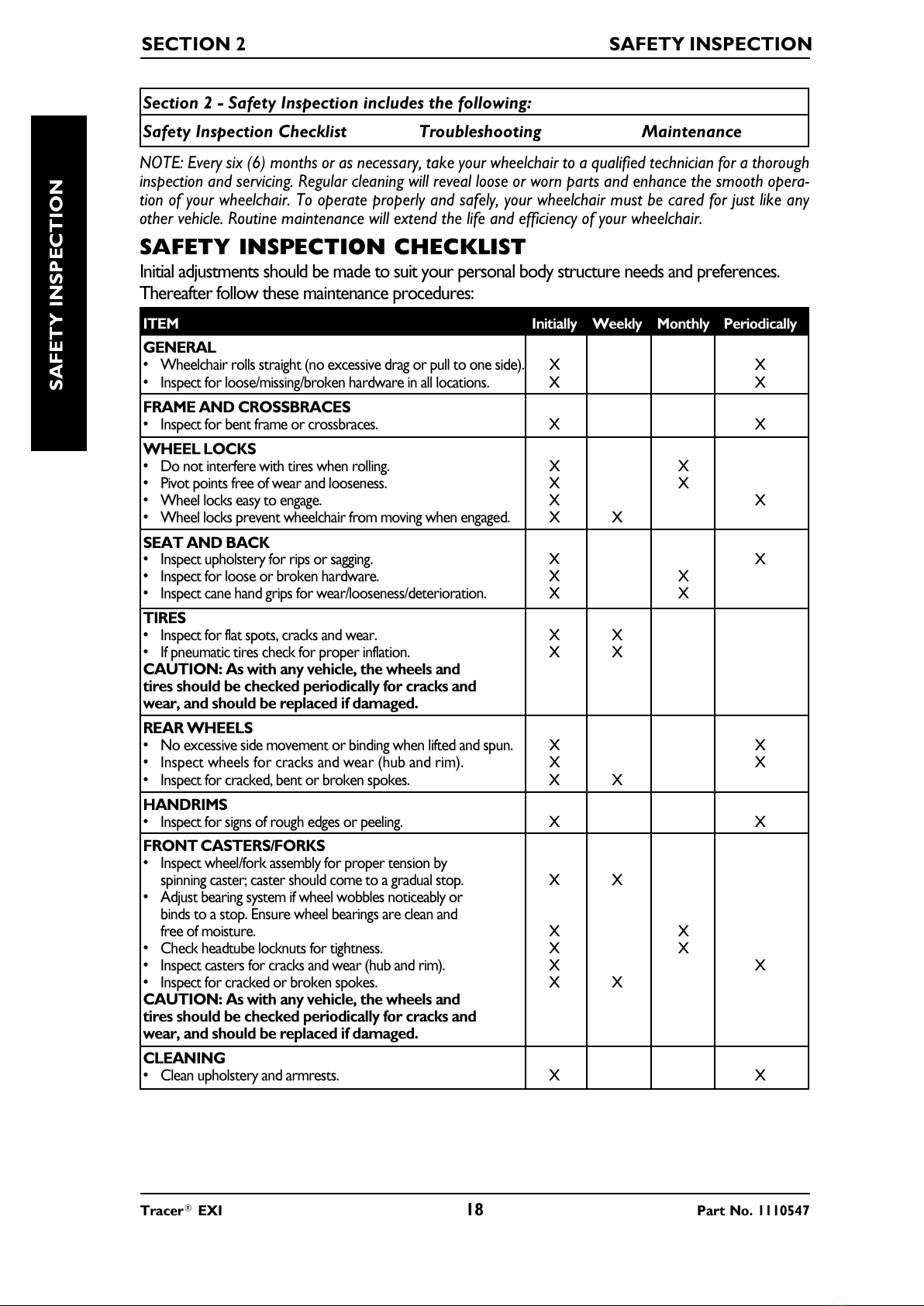

SAFETY INSPECTION CHECKLIST .................................................................................................... 18
TROUBLESHOOTING ............................................................................................................................ 19
MAINTENANCE ....................................................................................................................................... 19
SECTION 3 - FRONT RIGGINGS ....................................................... 21
INSTALLING/REMOVING THE FOOTREST .................................................................................... 21
FOOTREST HEIGHT ADJUSTMENT ................................................................................................ 22
RAISING/LOWERING THE ELEVATING LEGREST ASSEMBLY ............................................. 2
HEEL LOOP REPLACEMENT .............................................................................................................. 2
SECTION 4 - ARMS ........................................................................ 26
REMOVING AND INSTALLING ARMREST ................................................................................... 26
SECTION 5 - SEAT AND BACK ....................................................... 27
REPLACING BACK UPHOLSTERY ................................................................................................... 27
REPLACING SEAT UPHOLSTERY ..................................................................................................... 27
ADJUSTING THE SEAT WIDTH ....................................................................................................... 28
SECTION 6 - REAR W EELS ........................................................... 31
REMOVING/INSTALLING THE REAR WHEELS .......................................................................... 31
REPLACING REAR WHEEL HANDRIM .......................................................................................... 32
REPLACING/REPAIRING REAR WHEEL TIRE/TUBE ................................................................. 32
SECTION 7 - FRONT CASTERS ....................................................... 33
INSTALLING/REPLACING FORK ASSEMBLIES ............................................................................ 33
ADJUSTING FORKS ............................................................................................................................... 33
REPLACING FRONT CASTERS ......................................................................................................... 3
REPLACING/REPAIRING FRONT CASTER TIRE/TUBE ........................................................... 3
All manuals and user guides at all-guides.com

Tracer® EXI 4Part No. 1110547
CONTENTS
CONTENTS
SECTION 8 - ANTI-TIPPERS/W EEL LOCKS .................................... 35
INSTALLING/ADJUSTING THE ANTI-TIPPERS........................................................................... 35
WHEEL LOCK ADJUSTMENT ........................................................................................................... 37
SECTION 9 - SEAT-TO-FLOOR EIG T ........................................... 39
CHANGING SEAT-TO-FLOOR HEIGHT ....................................................................................... 39
SECTION 10 - OPTIONS ................................................................. 41
INSTALLING THE SEAT POSITIONING STRAP ......................................................................... 1
NOTES........................................................................................... 42
LIMITED WARRANTY .................................................................... 43
All manuals and user guides at all-guides.com

Part No. 1110547 5Tracer® EXI
SPECIAL NOTES
WARNING/CAUTION notices as used in this manual apply to hazards or
unsafe practices which could result in personal in ury or property damage.
NOTICE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT
TO CHANGE WITHOUT NOTICE.
WHEELCHAIR USER
As a manufacturer of wheelchairs, Invacare endeavors to supply a wide
variety of wheelchairs to meet many needs of the end user. However, final
selection of the type of wheelchair to be used by an individual rests solely
with the user and his/her healthcare professional capable of making such a
selection.
WHEELCHAIR TIE-DOWN RESTRAINTS AND SEAT RESTRAINTS
Invacare recommends that wheelchair users NOT be transported in
vehicles of any kind while in wheelchairs. As of this date, the Department of
Transportation has not approved any tie-down systems for transportation
of a user while in a wheelchair, in a moving vehicle of any type.
It is Invacares position that users of wheelchairs should be transferred into
appropriate seating in vehicles for transportation and use be made of the
restraints made available by the auto industry. Invacare cannot and does
not recommend any wheelchair transportation systems.
AS REGARDS RESTRAINTS - SEAT POSITIONING STRAPS - IT IS THE
OBLIGATION OF THE DME DEALER, THERAPISTS AND OTHER
HEALTHCARE PROFESSIONALS TO DETERMINE IF A SEATING
RESTRAINT IS REQUIRED TO ENSURE THE SAFE OPERATION OF
THIS EQUIPMENT BY THE USER. SERIOUS INJURY CAN OCCUR IN
THE EVENT OF A FALL FROM A WHEELCHAIR.
SPECIAL NOTES
SPECIAL NOTES
All manuals and user guides at all-guides.com

Tracer® EXI 6Part No. 1110547
IMPORTANT NOTICE
The wheel locks on this wheelchair have been
pre-set at the factory to comply with the
Veterans Administration functional Standard
8320 01 of the Federal Register, paragraph
3 2 4 5 3 If these wheel locks do not meet
your needs, follow instructions below
! CAUTION
Any wheel lock adjustments should embed
wheel lock shoe at least 1/8" into tire when
locked (3/16" on pneumatic tires)
INSTRUCTIONS FOR WHEEL
LOCK ADJUSTMENTS
1 Loosen wheel lock mounting fastener,
which runs through mounting bracket and
frame
2 Slide clamp toward rear wheel until wheel
lock shoe is embedded into tire material at
least 1/8" when handle is engaged to the
lock position (3/16" for pneumatic tires)
3 Tighten mounting fastener to secure
mounting bracket in desired location and
recheck lock shoe embedding
4 Inspect for correct locking action BEFORE
actual use
00078X021-0394

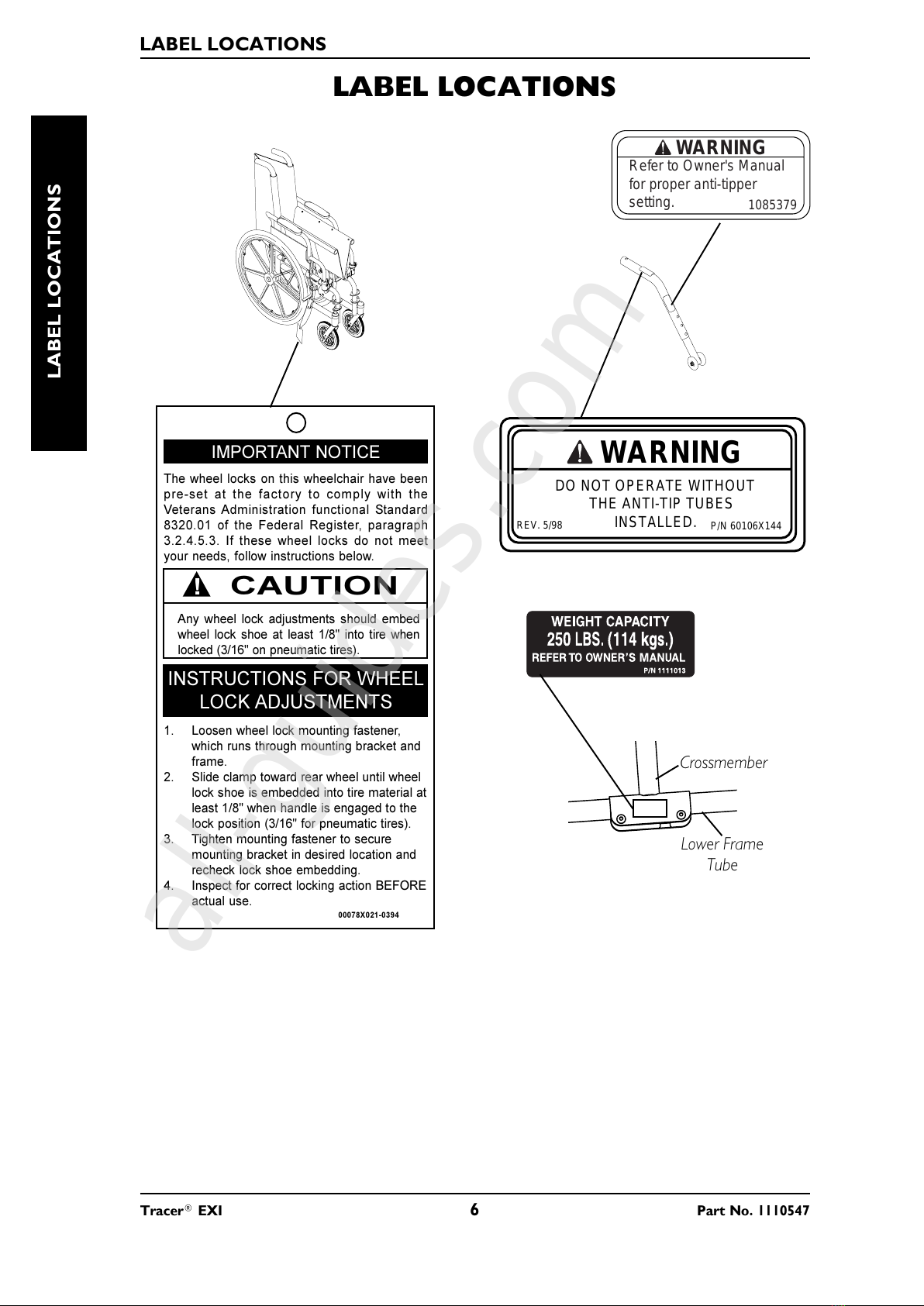

LABEL LOCATIONS
LABEL LOCATIONS
LABEL LOCATIONS
WARNING
DO NOT OPERATE WITHOUT
THE ANTI-TIP TUBES
INSTALLED.
REV. 5/98 P/N 60106X144
Refer to Owner's Manual
for proper anti-tipper
setting.
1085379
WARNING
Crossmember
Lower Frame
Tube
All manuals and user guides at all-guides.com
all-guides.com

Part No. 1110547 7Tracer® EXI

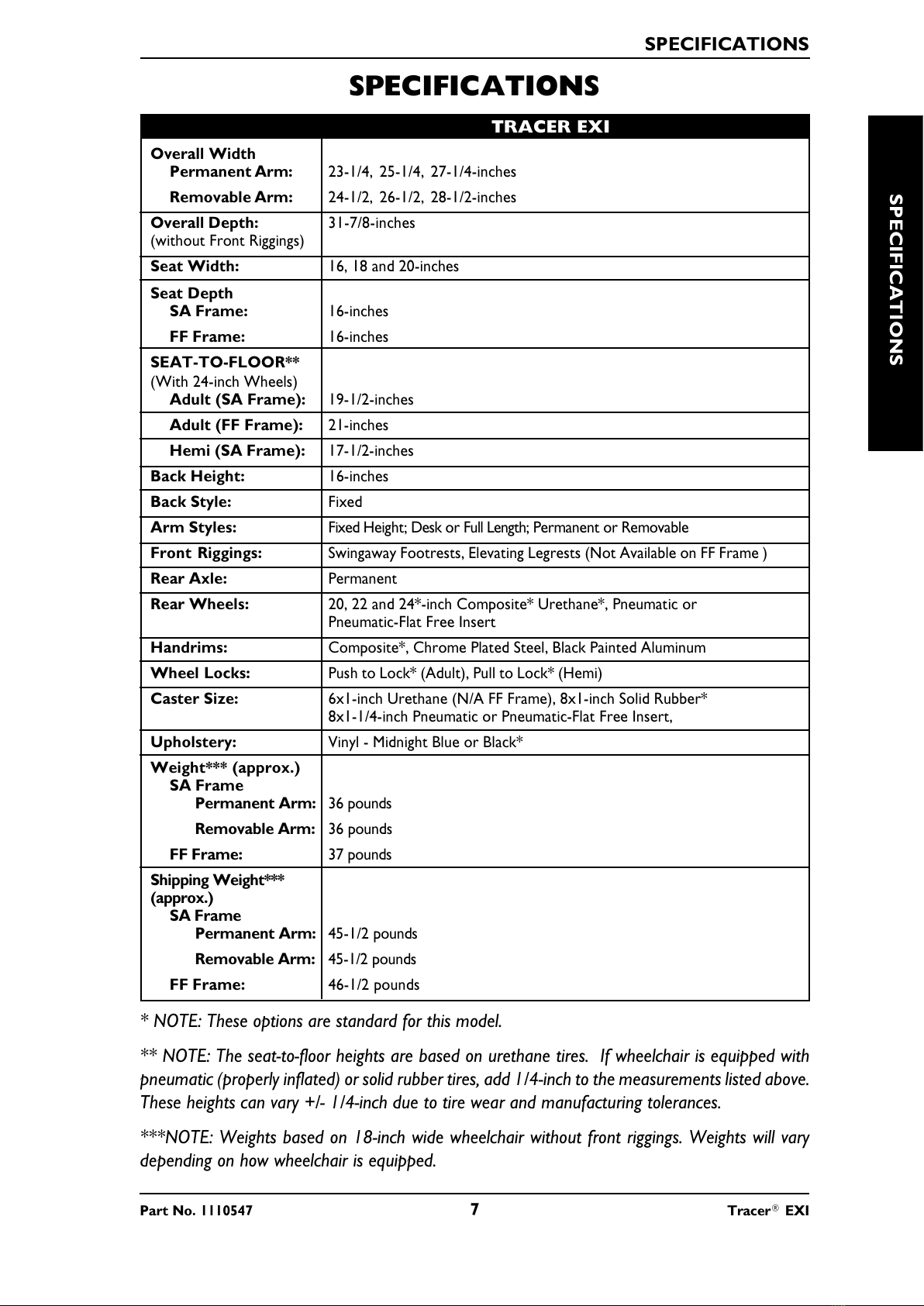

TRACER EXI
Overall Width
Permanent Arm: 23-1/4, 25-1/4, 27-1/4-inches
Removable Arm: 24-1/2, 26-1/2, 28-1/2-inches
Overall Depth: 31-7/8-inches
(without Front Riggings)
Seat Width: 16, 18 and 20-inches
Seat Depth
SA Frame: 16-inches
FF Frame: 16-inches
SEAT-TO-FLOOR**
( ith 24-inch heels)
Adult (SA Frame : 19-1/2-inches
Adult (FF Frame : 21-inches
Hemi (SA Frame : 17-1/2-inches
Back Height: 16-inches
Back Style: Fixed
Arm Styles: Fixed Height; Desk or Full Length; Permanent or Removable
Front Riggings: Swingaway Footrests, Elevating Legrests (Not Available on FF Frame )
Rear Axle: Permanent
Rear Wheels: 20, 22 and 24*-inch Composite* Urethane*, Pneumatic or
Pneumatic-Flat Free Insert
Handrims: Composite*, Chrome Plated Steel, Black Painted Aluminum
Wheel Locks: Push to Lock* (Adult), Pull to Lock* (Hemi)
Caster Size: 6x1-inch Urethane (N/A FF Frame), 8x1-inch Solid Rubber*
8x1-1/4-inch Pneumatic or Pneumatic-Flat Free Insert,
Upholstery: Vinyl - Midnight Blue or Black*
Weight*** (approx.
SA Frame
Permanent Arm: 36 pounds
Removable Arm: 36 pounds
FF Frame: 37 pounds
Shipping Weight***
(approx.
SA Frame
Permanent Arm: 45-1/2 pounds
Removable Arm: 45-1/2 pounds
FF Frame: 46-1/2 pounds
* NOTE: These options are standard for this model.
** NOTE: The seat-to-floor heights are based on urethane tires. If wheelchair is equipped with
pneumatic (properl inflated) or solid rubber tires, add 1/4-inch to the measurements listed above.
These heights can var +/- 1/4-inch due to tire wear and manufacturing tolerances.
***NOTE: Weights based on 18-inch wide wheelchair without front riggings. Weights will var
depending on how wheelchair is equipped.
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
All manuals and user guides at all-guides.com

Tracer® EXI 8Part No. 1110547
SECTION 1 GENERAL GUIDELINES
GENERAL GUIDELINES
STABILITY - ALL MODELS
WARNING
The size/position of the front casters, size/position of the rear wheels, use
of anti-tipper model, as well as the user condition directly relate to the
stability of the wheelchair. Any change to one (1) or any combination of
the six (6) may cause the wheelchair to decrease in stability. These
ad ustments MUST be performed by a qualified technician.
Caster Size Caster Position Wheel Size Wheel Position Anti-Ti ers User Condition
Caster Size üüüüü
Caster Position üüüüü
Wheel Size üü üüü
Wheel Position üüü üü
User Condition üüüüü 
NOTE: When changes to the left hand column occur, follow across the chart and refer to the proce-
dure that is checked (ü) to maintain the proper stabilit , safet and handling of the wheelchair.
Seat-to-floor heights have specific positions depending on rear wheel size,
rear wheel position, front caster size and front caster position. These
ad ustments MUST be performed by a qualified technician.
Anti-tippers are specific to the different seat-to-floor heights. Refer to the
chart in INSTALLING/ADJUSTING THE ANTI-TIPPERS in SECTION 8 of
this manual for correct usage and ad ustment. If these requirements cannot
be achieved, do not use the wheelchair. Contact a qualified technician.
If changing the seat-to-floor height the correct anti-tippers MUST be
ordered to maintain a 1-1/2 to 2-inch ground clearance.
Anti-tippers MUST be fully engaged. Ensure that the release button of
the anti-tipper fully protrudes out of the hole on the bottom of the
wheelchair frame.
Ensure both anti-tippers are ad usted to the same height.
Anti-tippers MUST BE attached at all times. Inasmuch as the anti-tippers
are an option on this wheelchair (you may order with or without the anti-
tippers), Invacare strongly recommends ordering the anti-tippers as an
additional safeguard for the wheelchair user.
Section 1 - General Guidelines includes the following:
Stability
Operating Information
Tire Pressure
Weight Training
Weight imitation
Safety/Handling of Wheelchairs
All manuals and user guides at all-guides.com

Part No. 1110547 9Tracer® EXI

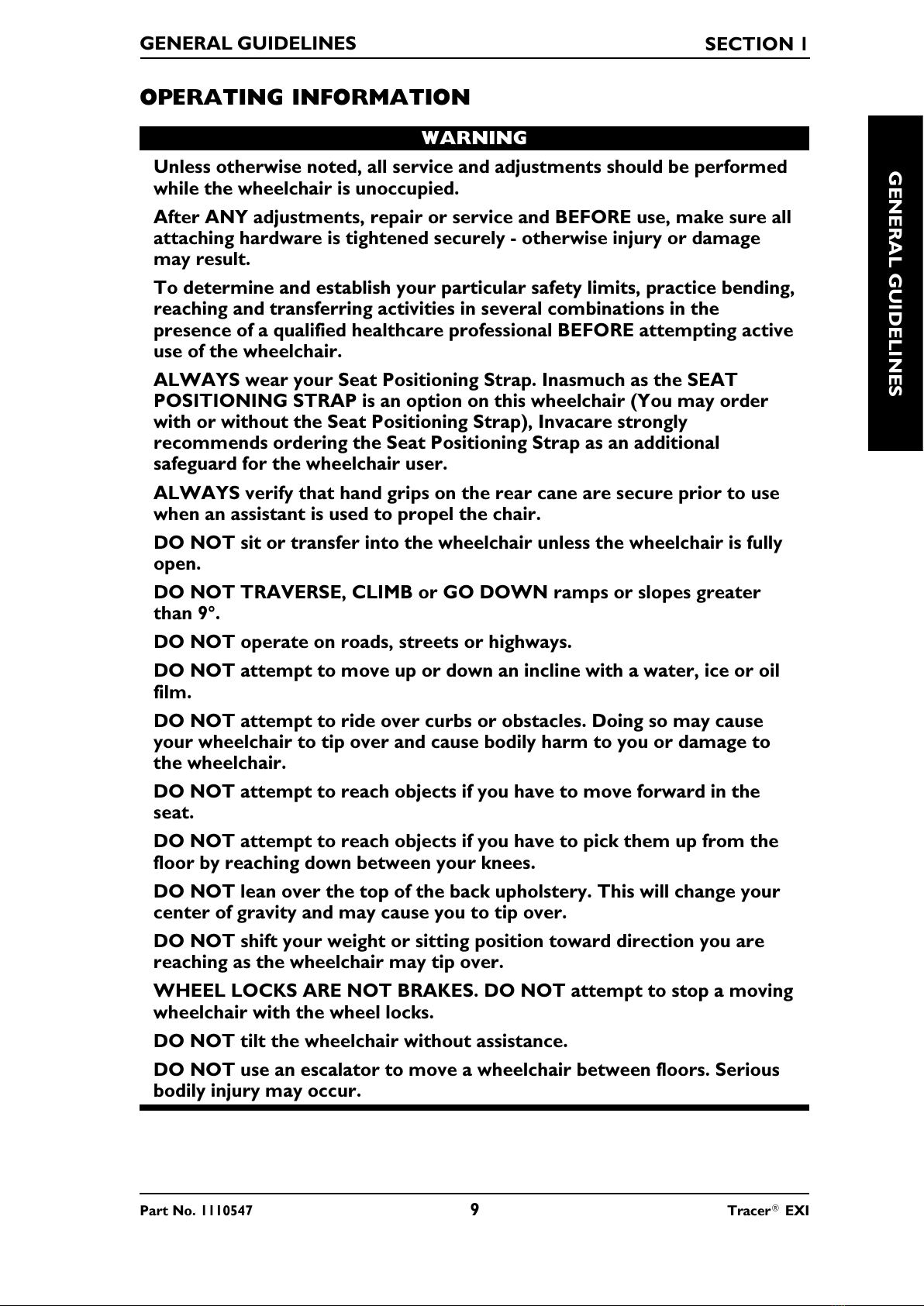

OPERATING INFORMATION
WARNING
Unless otherwise noted, all service and ad ustments should be performed
while the wheelchair is unoccupied.
After ANY ad ustments, repair or service and BEFORE use, make sure all
attaching hardware is tightened securely - otherwise in ury or damage
may result.
To determine and establish your particular safety limits, practice bending,
reaching and transferring activities in several combinations in the
presence of a qualified healthcare professional BEFORE attempting active
use of the wheelchair.
ALWAYS wear your Seat Positioning Strap. Inasmuch as the SEAT
POSITIONING STRAP is an option on this wheelchair (You may order
with or without the Seat Positioning Strap), Invacare strongly
recommends ordering the Seat Positioning Strap as an additional
safeguard for the wheelchair user.
ALWAYS verify that hand grips on the rear cane are secure prior to use
when an assistant is used to propel the chair.
DO NOT sit or transfer into the wheelchair unless the wheelchair is fully
open.
DO NOT TRAVERSE, CLIMB or GO DOWN ramps or slopes greater
than 9°.
DO NOT operate on roads, streets or highways.
DO NOT attempt to move up or down an incline with a water, ice or oil
film.
DO NOT attempt to ride over curbs or obstacles. Doing so may cause
your wheelchair to tip over and cause bodily harm to you or damage to
the wheelchair.
DO NOT attempt to reach ob ects if you have to move forward in the
seat.
DO NOT attempt to reach ob ects if you have to pick them up from the
floor by reaching down between your knees.
DO NOT lean over the top of the back upholstery. This will change your
center of gravity and may cause you to tip over.
DO NOT shift your weight or sitting position toward direction you are
reaching as the wheelchair may tip over.
WHEEL LOCKS ARE NOT BRAKES. DO NOT attempt to stop a moving
wheelchair with the wheel locks.
DO NOT tilt the wheelchair without assistance.
DO NOT use an escalator to move a wheelchair between floors. Serious
bodily in ury may occur.
SECTION 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Tracer® EXI 10 Part No. 1110547
TIRE PRESSURE
WARNING
DO NOT use your wheelchair unless it has the proper tire pressure
(p.s.i.). DO NOT overinflate the tires. Failure to follow these instructions
may cause the tire to explode and cause bodily harm. The recommended
tire pressure is listed on the side wall of the tire.
Replacement of a pneumatic tire or tube MUST be performed by a
qualified technician.
WEIGHT TRAINING
WARNING
Invacare DOES NOT recommend the use of its wheelchairs as a weight
training apparatus. Invacare wheelchairs have NOT been designed or
tested as a seat for any kind of weight training. If occupant uses said
wheelchair as a weight training apparatus, Invacare shall NOT be liable
for bodily in ury and the warranty is void.
WEIGHT LIMITATION
WARNING
The Tracer EXI wheelchair has a weight limitation of 250 lbs. (114 kg.).
SECTION 1 GENERAL GUIDELINES
GENERAL GUIDELINES
WARNING (CONTINUED)
Before attempting to transfer in or out of the wheelchair, every
precaution should be taken to reduce the gap distance. Turn both casters
parallel to the ob ect you are transferring onto. When transferring to and
from the wheelchair, ALWAYS ENGAGE BOTH WHEEL LOCKS.
DO NOT use parts, accessories, or adapters other than those authorized
by Invacare.
DO NOT attempt to lift the wheelchair by any removable (detachable)
parts. Lifting by means of any removable (detachable) parts of a
wheelchair may result in in ury to the user and/or assistant or damage to
the wheelchair.
DO NOT stand on the frame of the wheelchair.
DO NOT use the footplate as a platform. When getting in or out of the
wheelchair, make sure that the footplates are in the upward position.
ALWAYS use the handrims for self-propulsion. Inasmuch as the
HANDRIMS are an option on this wheelchair (you may order with or
without the handrims), Invacare strongly recommends ordering the
handrims as an additional safeguard for the wheelchair user.
All manuals and user guides at all-guides.com

Part No. 1110547 11 Tracer® EXI

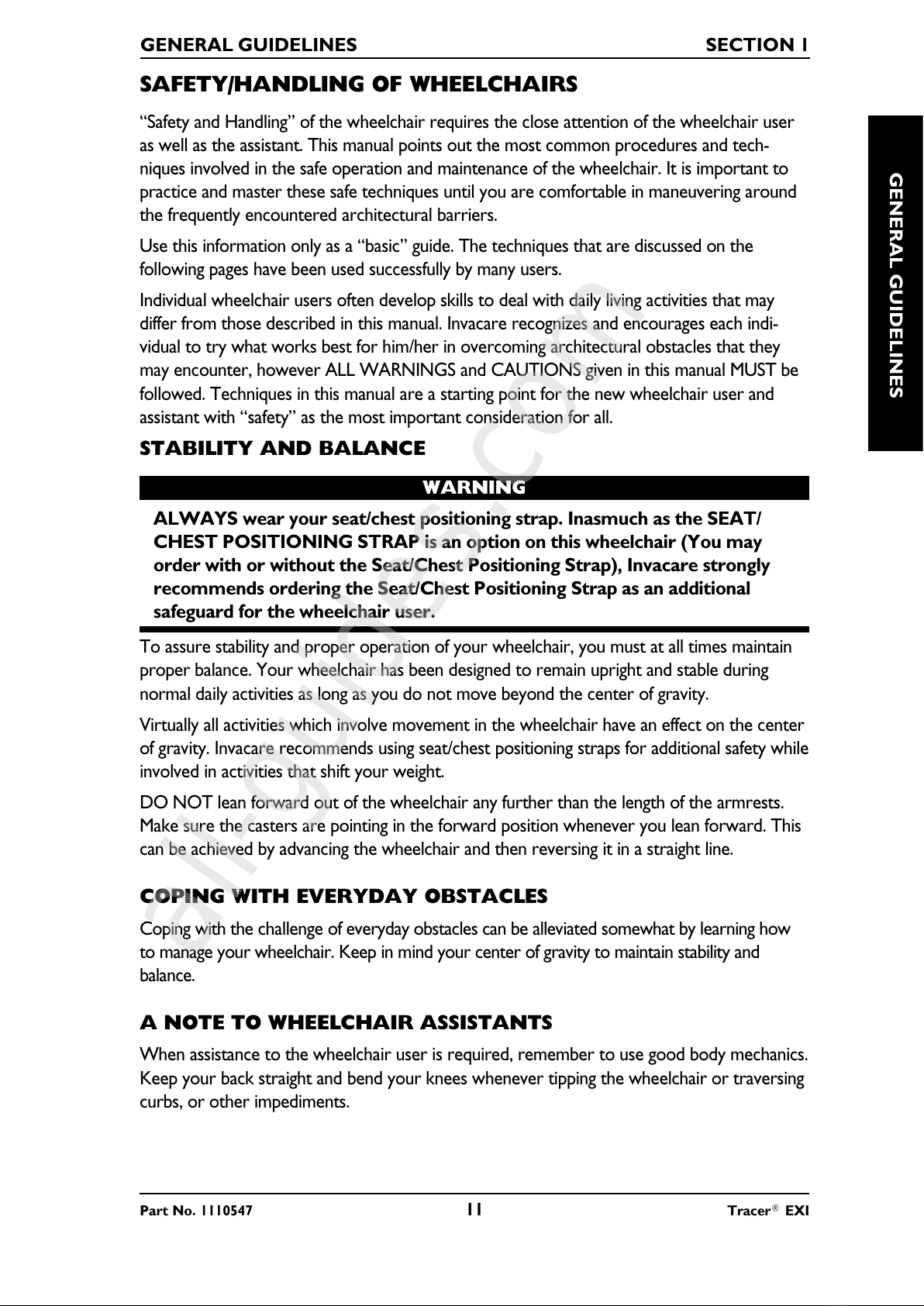

SAFETY/HANDLING OF WHEELCHAIRS
Safety and Handling of the wheelchair requires the close attention of the wheelchair user
as well as the assistant. This manual points out the most common procedures and tech-
niques involved in the safe operation and maintenance of the wheelchair. It is important to
practice and master these safe techniques until you are comfortable in maneuvering around
the frequently encountered architectural barriers.
se this information only as a basic guide. The techniques that are discussed on the
following pages have been used successfully by many users.
Individual wheelchair users often develop skills to deal with daily living activities that may
differ from those described in this manual. Invacare recognizes and encourages each indi-
vidual to try what works best for him/her in overcoming architectural obstacles that they
may encounter, however ALL WARNINGS and CA TIONS given in this manual M ST be
followed. Techniques in this manual are a starting point for the new wheelchair user and
assistant with safety as the most important consideration for all.
STABILITY AND BALANCE
WARNING
ALWAYS wear your seat/chest positioning strap. Inasmuch as the SEAT/
CHEST POSITIONING STRAP is an option on this wheelchair (You may
order with or without the Seat/Chest Positioning Strap), Invacare strongly
recommends ordering the Seat/Chest Positioning Strap as an additional
safeguard for the wheelchair user.
To assure stability and proper operation of your wheelchair, you must at all times maintain
proper balance. Your wheelchair has been designed to remain upright and stable during
normal daily activities as long as you do not move beyond the center of gravity.
Virtually all activities which involve movement in the wheelchair have an effect on the center
of gravity. Invacare recommends using seat/chest positioning straps for additional safety while
involved in activities that shift your weight.
DO NOT lean forward out of the wheelchair any further than the length of the armrests.
Make sure the casters are pointing in the forward position whenever you lean forward. This
can be achieved by advancing the wheelchair and then reversing it in a straight line.
COPING WITH EVERYDAY OBSTACLES
Coping with the challenge of everyday obstacles can be alleviated somewhat by learning how
to manage your wheelchair. Keep in mind your center of gravity to maintain stability and
balance.
A NOTE TO WHEELCHAIR ASSISTANTS
When assistance to the wheelchair user is required, remember to use good body mechanics.
Keep your back straight and bend your knees whenever tipping the wheelchair or traversing
curbs, or other impediments.
SECTION 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com
all-guides.com

Tracer® EXI 12 Part No. 1110547

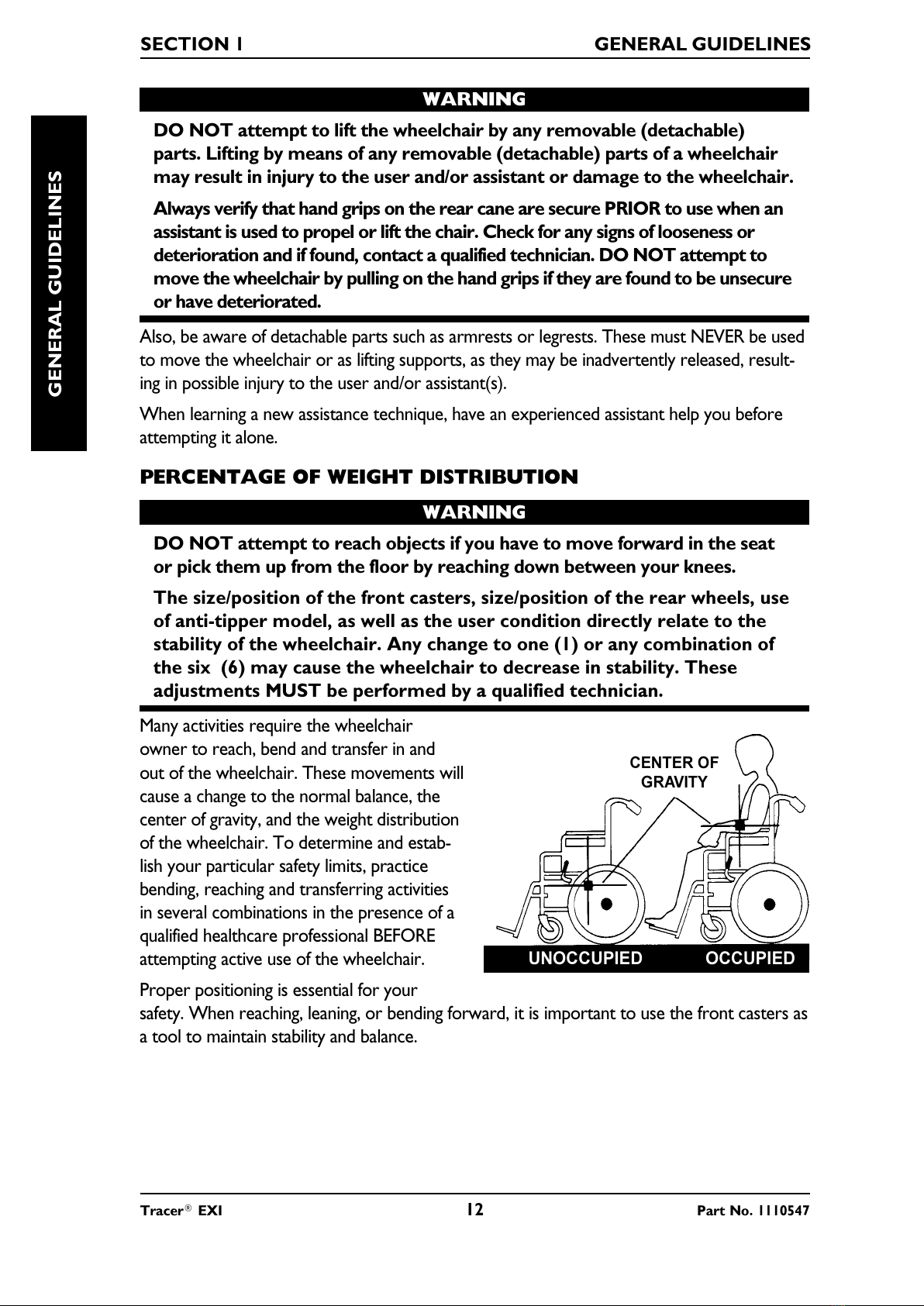

WARNING
DO NOT attempt to lift the wheelchair by any removable (detachable)
parts. Lifting by means of any removable (detachable) parts of a wheelchair
may result in in ury to the user and/or assistant or damage to the wheelchair.
Always verify that hand grips on the rear cane are secure PRIOR to use when an
assistant is used to propel or lift the chair. Check for any signs of looseness or
deterioration and if found, contact a qualified technician. DO NOT attempt to
move the wheelchair by pulling on the hand grips if they are found to be unsecure
or have deteriorated.
Also, be aware of detachable parts such as armrests or legrests. These must NEVER be used
to move the wheelchair or as lifting supports, as they may be inadvertently released, result-
ing in possible injury to the user and/or assistant(s).
When learning a new assistance technique, have an experienced assistant help you before
attempting it alone.
PERCENTAGE OF WEIGHT DISTRIBUTION
WARNING
DO NOT attempt to reach ob ects if you have to move forward in the seat
or pick them up from the floor by reaching down between your knees.
The size/position of the front casters, size/position of the rear wheels, use
of anti-tipper model, as well as the user condition directly relate to the
stability of the wheelchair. Any change to one (1) or any combination of
the six (6) may cause the wheelchair to decrease in stability. These
ad ustments MUST be performed by a qualified technician.
Many activities require the wheelchair
owner to reach, bend and transfer in and
out of the wheelchair. These movements will
cause a change to the normal balance, the
center of gravity, and the weight distribution
of the wheelchair. To determine and estab-
lish your particular safety limits, practice
bending, reaching and transferring activities
in several combinations in the presence of a
qualified healthcare professional BEFORE
attempting active use of the wheelchair.
Proper positioning is essential for your
safety. When reaching, leaning, or bending forward, it is important to use the front casters as
a tool to maintain stability and balance.
CENTER OF
GRAVITY
UNOCCUPIED OCCUPIED
SECTION 1 GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Part No. 1110547 13 Tracer® EXI

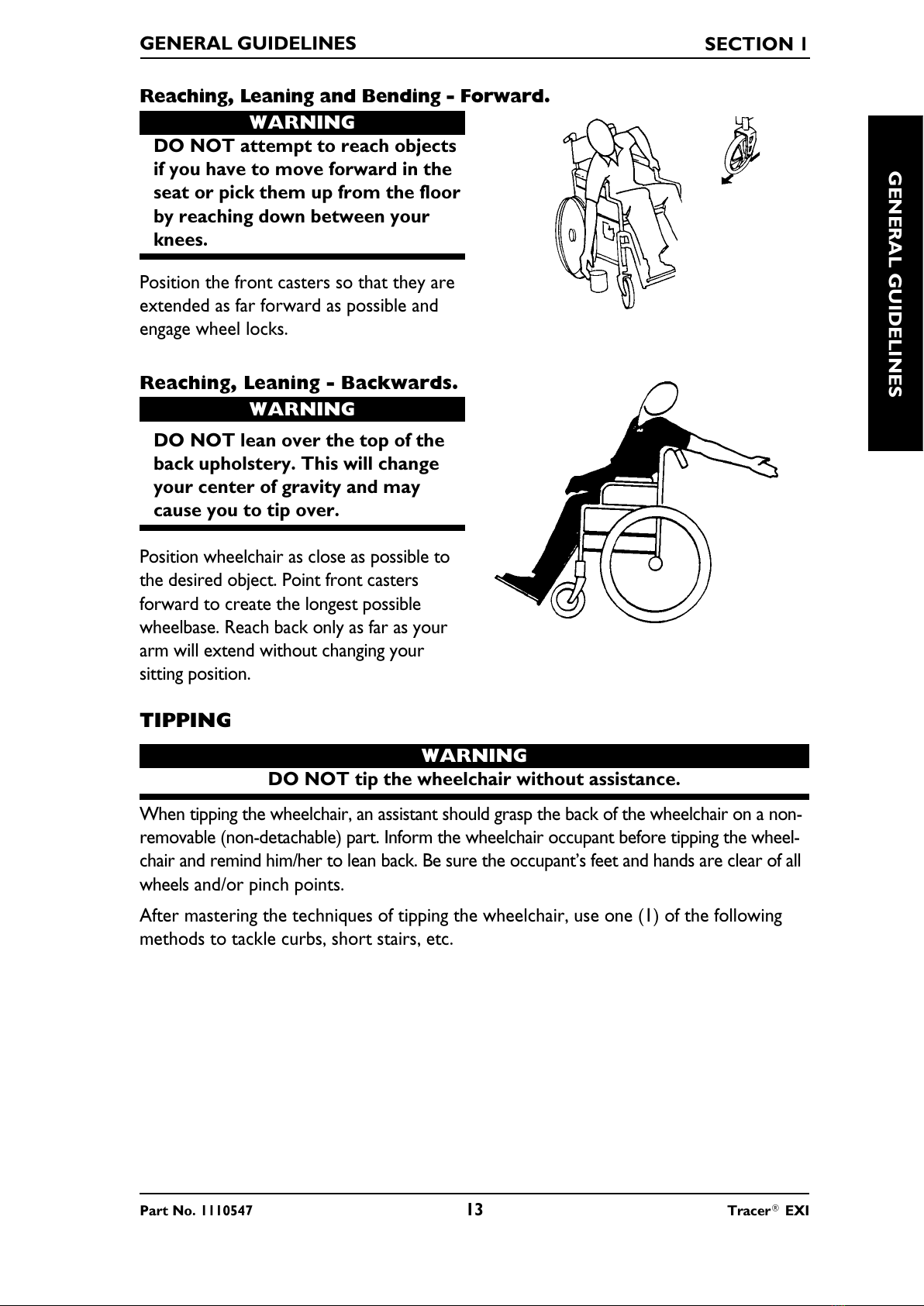

Reaching, Leaning and Bending - Forward
WARNING
DO NOT attempt to reach ob ects
if you have to move forward in the
seat or pick them up from the floor
by reaching down between your
knees.
Position the front casters so that they are
extended as far forward as possible and
engage wheel locks.
Reaching, Leaning - Backwards
WARNING
DO NOT lean over the top of the
back upholstery. This will change
your center of gravity and may
cause you to tip over.
Position wheelchair as close as possible to
the desired object. Point front casters
forward to create the longest possible
wheelbase. Reach back only as far as your
arm will extend without changing your
sitting position.
TIPPING
WARNING
DO NOT tip the wheelchair without assistance.
When tipping the wheelchair, an assistant should grasp the back of the wheelchair on a non-
removable (non-detachable) part. Inform the wheelchair occupant before tipping the wheel-
chair and remind him/her to lean back. Be sure the occupants feet and hands are clear of all
wheels and/or pinch points.
After mastering the techniques of tipping the wheelchair, use one (1) of the following
methods to tackle curbs, short stairs, etc.
SECTION 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Tracer® EXI 14 Part No. 1110547

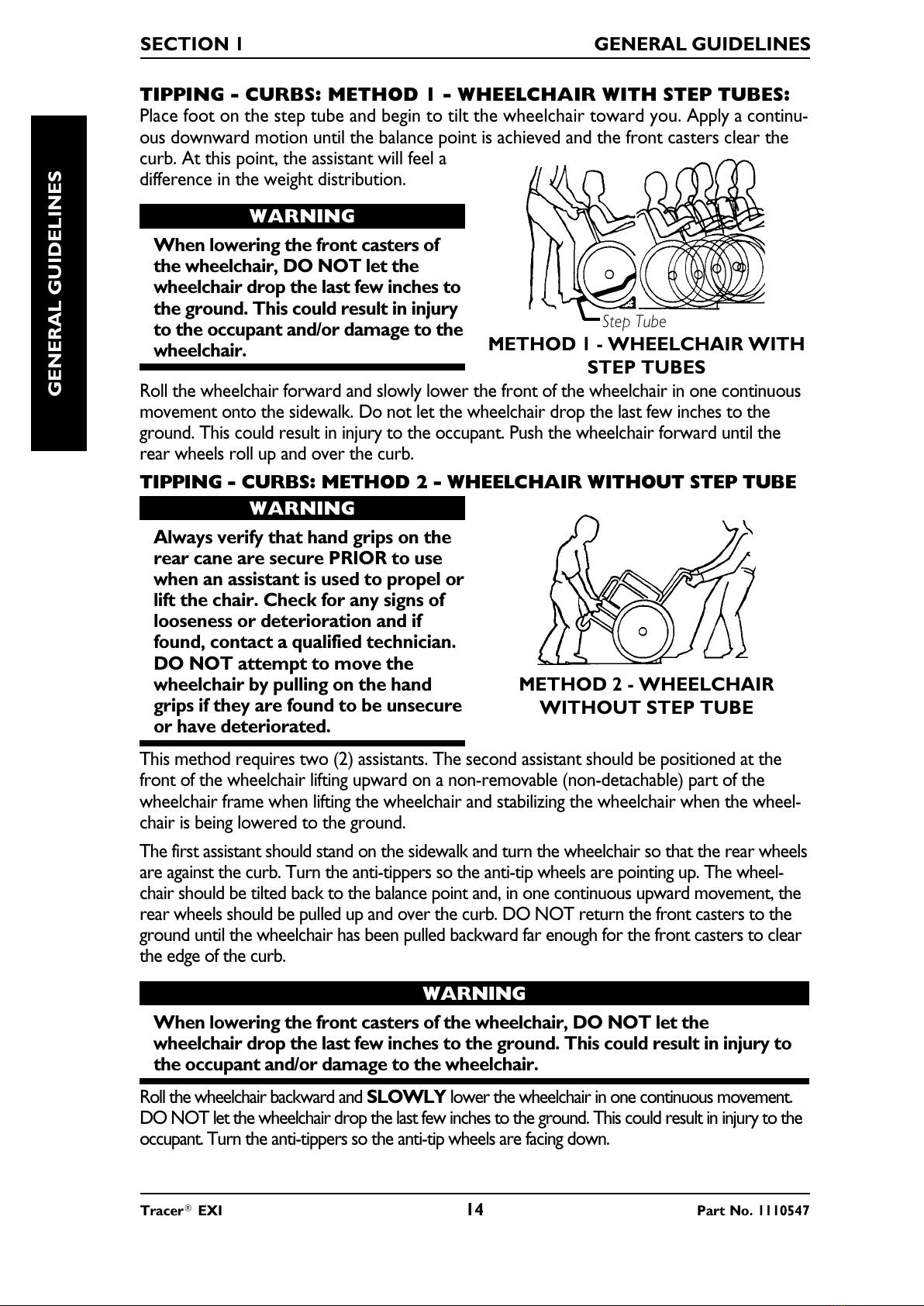

TIPPING - CURBS: METHOD 1 - WHEELCHAIR WITH STEP TUBES:
Place foot on the step tube and begin to tilt the wheelchair toward you. Apply a continu-
ous downward motion until the balance point is achieved and the front casters clear the
curb. At this point, the assistant will feel a
difference in the weight distribution.
WARNING
When lowering the front casters of
the wheelchair, DO NOT let the
wheelchair drop the last few inches to
the ground. This could result in in ury
to the occupant and/or damage to the
wheelchair.
Roll the wheelchair forward and slowly lower the front of the wheelchair in one continuous
movement onto the sidewalk. Do not let the wheelchair drop the last few inches to the
ground. This could result in injury to the occupant. Push the wheelchair forward until the
rear wheels roll up and over the curb.
TIPPING - CURBS: METHOD 2 - WHEELCHAIR WITHOUT STEP TUBE
WARNING
Always verify that hand grips on the
rear cane are secure PRIOR to use
when an assistant is used to propel or
lift the chair. Check for any signs of
looseness or deterioration and if
found, contact a qualified technician.
DO NOT attempt to move the
wheelchair by pulling on the hand
grips if they are found to be unsecure
or have deteriorated.
This method requires two (2) assistants. The second assistant should be positioned at the
front of the wheelchair lifting upward on a non-removable (non-detachable) part of the
wheelchair frame when lifting the wheelchair and stabilizing the wheelchair when the wheel-
chair is being lowered to the ground.
The first assistant should stand on the sidewalk and turn the wheelchair so that the rear wheels
are against the curb. Turn the anti-tippers so the anti-tip wheels are pointing up. The wheel-
chair should be tilted back to the balance point and, in one continuous upward movement, the
rear wheels should be pulled up and over the curb. DO NOT return the front casters to the
ground until the wheelchair has been pulled backward far enough for the front casters to clear
the edge of the curb.
WARNING
When lowering the front casters of the wheelchair, DO NOT let the
wheelchair drop the last few inches to the ground. This could result in in ury to
the occupant and/or damage to the wheelchair.
Roll the wheelchair backward and SLOWLY lower the wheelchair in one continuous movement.
DO NOT let the wheelchair drop the last few inches to the ground. This could result in injury to the
occupant. Turn the anti-tippers so the anti-tip wheels are facing down.
SECTION 1 GENERAL GUIDELINES
GENERAL GUIDELINES
METHOD 2 - WHEELCHAIR
WITHOUT STEP TUBE
METHOD 1 - WHEELCHAIR WITH
STEP TUBES
Step Tube
All manuals and user guides at all-guides.com

Part No. 1110547 15 Tracer® EXI
STAIRWAYS
WARNING
ALWAYS wear your seat/chest positioning strap. Inasmuch as the SEAT/
CHEST POSITIONING STRAP is an option on this wheelchair (You may
order with or without the Seat/Chest Positioning Strap), Invacare strongly
recommends ordering the Seat/Chest Positioning Strap as an additional
safeguard for the wheelchair user.
DO NOT attempt to lift a wheelchair by lifting on any removable
(detachable) parts. Lifting by means of any removable (detachable) parts of a
wheelchair may result in in ury to the user and/or assisstant or damage to
the wheelchair.
Always verify that hand grips on the rear cane are secure PRIOR to use when
an assistant is used to propel or lift the chair. Check for any signs of looseness
or deterioration and if found, contact a qualified technician. DO NOT
attempt to move the wheelchair by pulling on the hand grips if they are
found to be unsecure or have deteriorated.
EXTREME CAUTION is advised when it is necessary to move an occupied
wheelchair up or down the stairs. Invacare recommends that, if possible, the
user be removed from the wheelchair prior to moving. Invacare
recommends using two (2) assistants and making thorough preparations.
Make sure to use ONLY secure, non-detachable parts for hand-held
supports.
Follow this procedure for moving the wheelchair between floors when an eleva-
tor is NOT available:
1. If necessary, rotate the anti-tippers so the wheels are facing up.
2. After the wheelchair has been tilted back to the balance point, one assistant (in the rear)
backs the wheelchair up against the first step, while securely grasping a non-removable
(non-detachable) part of the wheelchair for leverage.
3. The second assistant, with a firm hold on a non-detachable part of the framework, lifts
the wheelchair up and over the stair and steadies the wheelchair as the first assistant
places one (1) foot on the next stair and repeats STEP 1.
4. The wheelchair should not be lowered until the last stair has been negotiated and the
wheelchair has been rolled away from the stairway.
5. If necessary, rotate the anti-tippers so the wheels are facing down.
ESCALATORS? SORRY!
DO NOT use an escalator to move a wheelchair between floors. Serious
bodily in ury may occur.
SECTION 1
GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com

Tracer® EXI 16 Part No. 1110547
UNFOLDING AND FOLDING THE WHEELCHAIR
WARNING
Keep hands and fingers clear of moving parts to avoid in ury.
DO NOT sit or transfer into the wheelchair unless it is fully open and the seat
frame rails are fully seated into the side frame H-blocks.
Unfolding
1. Open the wheelchair by grasping the back cane of the wheelchair closest to you.
2. Tilt the wheelchair towards you (raising the opposite wheel and caster off the ground/
floor).
3. Push downward on the TOP of the seat rail closest to you where the seat upholstery is
attached until the wheelchair is fully open.
4. Engage both wheel locks, open the footrest/legrest for clearance and transfer into the
wheelchair. Refer to TRANSFERRING TO AND FROM OTHER SEATS in this section
of the manual.

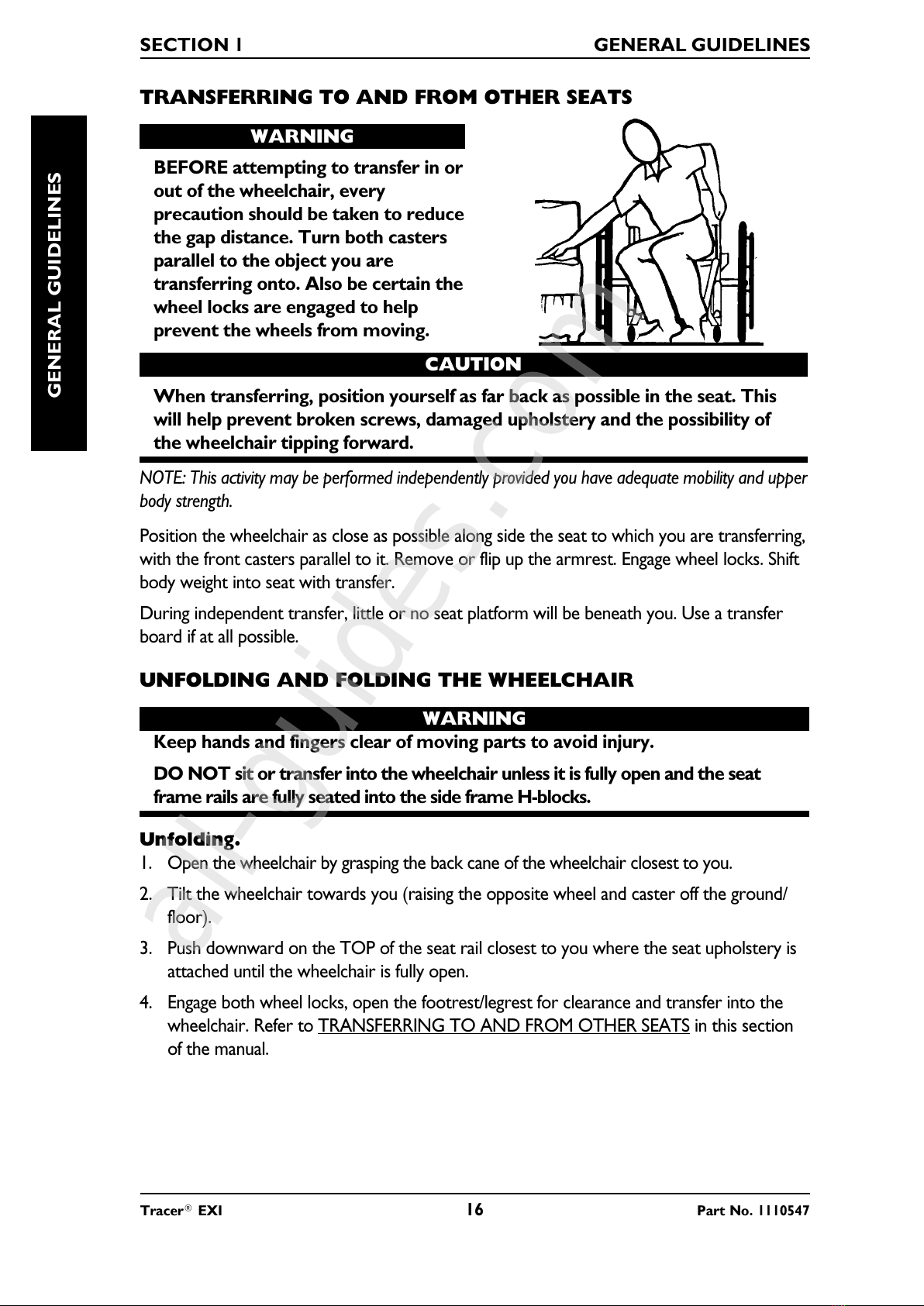

TRANSFERRING TO AND FROM OTHER SEATS
WARNING
BEFORE attempting to transfer in or
out of the wheelchair, every
precaution should be taken to reduce
the gap distance. Turn both casters
parallel to the ob ect you are
transferring onto. Also be certain the
wheel locks are engaged to help
prevent the wheels from moving.
CAUTION
When transferring, position yourself as far back as possible in the seat. This
will help prevent broken screws, damaged upholstery and the possibility of
the wheelchair tipping forward.
NOTE: This activit ma be performed independentl provided ou have adequate mobilit and upper
bod strength.
Position the wheelchair as close as possible along side the seat to which you are transferring,
with the front casters parallel to it. Remove or flip up the armrest. Engage wheel locks. Shift
body weight into seat with transfer.
During independent transfer, little or no seat platform will be beneath you. se a transfer
board if at all possible.
SECTION 1 GENERAL GUIDELINES
GENERAL GUIDELINES
All manuals and user guides at all-guides.com
all-guides.com

Part No. 1110547 17 Tracer® EXI
Folding
1. Swing footrest/legrest and calfpads (if equipped) in locked position to the front of
the wheelchair.
2. Pivot footplates upward to vertical position.
3. With both hands, grasp the middle of the seat upholstery at the front and back edge
and lift up.
4. Continue to close the wheelchair by grasping the back cane furthest from you and
pulling the armrest towards you.
NOTE: If wheelchair is equipped with carr straps, the wheelchair ma be closed b pulling up on
the straps.
FOLDING
UNFOLDING
SECTION 1
GENERAL GUIDELINES
GENERAL GUIDELINES
Press DOWN
On Seat Rail
All manuals and user guides at all-guides.com

Tracer® EXI 18 Part No. 1110547
SECTION 2 SAFETY INSPECTION
SAFETY INSPECTION CHECKLIST
NOTE: Every six (6) months or as necessary, take your wheelchair to a qualified technician for a thorou h
inspection and servicin . Re ular cleanin will reveal loose or worn parts and enhance the smooth opera-
tion of your wheelchair. To operate properly and safely, your wheelchair must be cared for just like any
other vehicle. Routine maintenance will extend the life and efficiency of your wheelchair.
Section 2 - Safety Inspection includes the following:
Safety Inspection Checklist Troubleshooting Maintenance
SAFETY INSPECTION
Initial adjustments should be made to suit your personal body structure needs and preferences.
Thereafter follow these maintenance procedures:
ITEM Initially Weekly Monthly Periodically
GENERAL
 heelchair rolls straight (no excessive drag or pull to one side). X X
 Inspect for loose/missing/broken hardware in all locations. X X
FRAME AND CROSSBRACES
 Inspect for bent frame or crossbraces. X X
WHEEL LOCKS
 Do not interfere with tires when rolling. X X
 Pivot points free of wear and looseness. X X
 heel locks easy to engage. X X
 heel locks prevent wheelchair from moving when engaged. X X
SEAT AND BACK
 Inspect upholstery for rips or sagging. X X
 Inspect for loose or broken hardware. X X
 Inspect cane hand grips for wear/looseness/deterioration. X X
TIRES
 Inspect for flat spots, cracks and wear. X X
 If pneumatic tires check for proper inflation. X X
CAUTION: As with any vehicle, the wheels and
tires should be checked periodically for cracks and
wear, and should be replaced if damaged.
REAR WHEELS
 No excessive side movement or binding when lifted and spun. X X
 Inspect wheels for cracks and wear (hub and rim). X X
 Inspect for cracked, bent or broken spokes. X X
HANDRIMS
 Inspect for signs of rough edges or peeling. X X
FRONT CASTERS/FORKS
 Inspect wheel/fork assembly for proper tension by
spinning caster; caster should come to a gradual stop. X X
 Adjust bearing system if wheel wobbles noticeably or
binds to a stop. Ensure wheel bearings are clean and
free of moisture. X X
 Check headtube locknuts for tightness. X X
 Inspect casters for cracks and wear (hub and rim). X X
 Inspect for cracked or broken spokes. X X
CAUTION: As with any vehicle, the wheels and
tires should be checked periodically for cracks and
wear, and should be replaced if damaged.
CLEANING
 Clean upholstery and armrests. X X
All manuals and user guides at all-guides.com

Part No. 1110547 19 Tracer® EXI
TROUBLESHOOTING
MAINTENANCE
MAINTENANCE SAFETY PRECAUTIONSMAINTENANCE SAFETY PRECAUTIONS
MAINTENANCE SAFETY PRECAUTIONSMAINTENANCE SAFETY PRECAUTIONS
MAINTENANCE SAFETY PRECAUTIONS
WARNING
After ANY ad ustments, repair or service and BEFORE use, make sure all
attachment hardware is tightened securely - otherwise, in ury or damage
may result.
CAUTION
DO NOT overtighten hardware attaching to the frame. This could cause
damage to the frame tubing.
SUGGESTED MAINTENANCE PROCEDURES
1. Before using your Tracer EXI wheelchair, make sure all nuts and bolts are tight. Check
all parts for damage or wear and replace. Check all parts for proper adjustment.
WARNING
DO NOT use the wheelchair unless it has the proper tire pressure (p.s.i.).
DO NOT overinflate the tires. Failure to follow these instructions may
cause the tire to explode and cause bodily harm.
2. If tires are pneumatic, recommended tire pressure is listed on the sidewall of the
tire.
CAUTION
As with any vehicle, the rear wheels, casters and tires should be checked
periodically for cracks and wear, and should be replaced if damaged.
3. The rear wheels, casters and tires should be checked periodically for cracks and
wear, and should be replaced by a qualified technician if damaged.
4. Periodically check handrims to ensure they are secured to the rear wheels. If loose,
have them tightened by a qualified technician.
5. Periodically adjust wheel locks as tires wear. Refer to WHEEL LOCK ADJ ST-
MENT in SECTION 8 of this manual.
SECTION 2
SAFETY INSPECTION
SAFETY INSPECTION
Chair Chair Sluggish Squeaks
Veers 3 Turn or Caster and Looseness
Right/Left Wheels Performance Flutter Rattles in Chair SOLUTIONS
X X X X If pneumatic, check tires for
correct and equal pressure.
X X X X X Check for loose stem nuts and
bolts.
All manuals and user guides at all-guides.com

Tracer® EXI 20 Part No. 1110547
SECTION 2 SAFETY INSPECTION
SAFETY INSPECTION
SAFETY INSPECTION

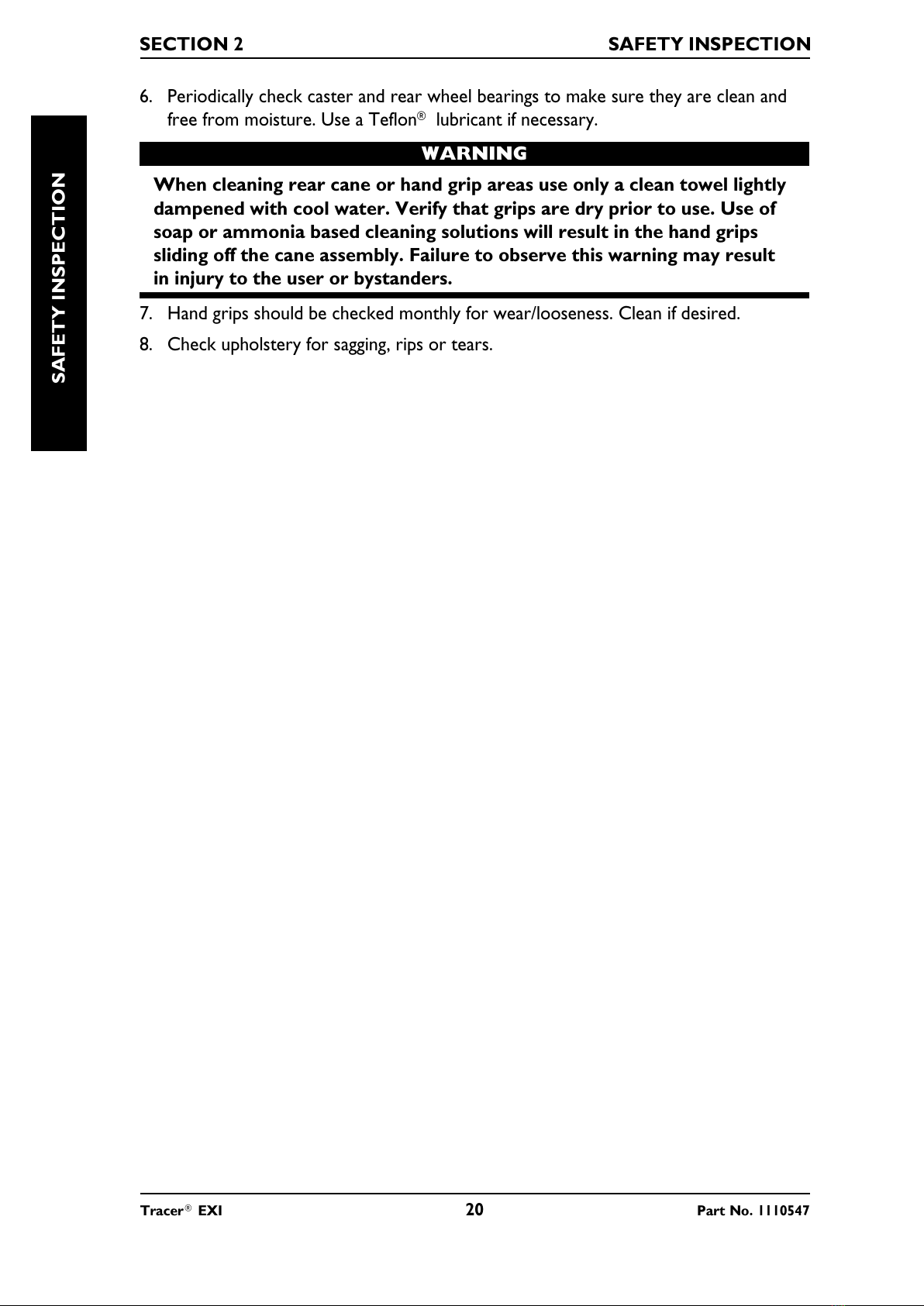

6. Periodically check caster and rear wheel bearings to make sure they are clean and
free from moisture. se a Teflon® lubricant if necessary.
WARNING
When cleaning rear cane or hand grip areas use only a clean towel lightly
dampened with cool water. Verify that grips are dry prior to use. Use of
soap or ammonia based cleaning solutions will result in the hand grips
sliding off the cane assembly. Failure to observe this warning may result
in in ury to the user or bystanders.
7. Hand grips should be checked monthly for wear/looseness. Clean if desired.
8. Check upholstery for sagging, rips or tears.
All manuals and user guides at all-guides.com
