Invacare Action MyOn User manual

Invacare®Action5/MyOnHC
enMediumactivewheelchair
UserManual
ThismanualMUSTbegiventotheuseroftheproduct.
BEFOREusingthisproduct,thismanualMUSTbereadandsavedfor
futurereference.

©2020InvacareCorporation
Allrightsreserved.Republication,duplicationormodicationinwholeorinpartisprohibited
withoutpriorwrittenpermissionfromInvacareCorporation.Trademarksareidentiedby™and®.
AlltrademarksareownedbyorlicensedtoInvacareCorporationoritssubsidiariesunlessotherwise
noted.

Contents
1General.........................................5
1.1Introduction..................................5
1.2SymbolsinthisDocument........................5
1.3WarrantyInformation...........................5
1.4LimitationofLiability............................6
1.5Compliance...................................6
1.5.1Product-specicstandards.....................6
1.6ServiceLife...................................6
2Safety..........................................7
2.1Safetyinformation..............................7
2.2SafetyDevices.................................9
2.3Labelsandsymbolsontheproduct.................9
3ProductOverview.................................11
3.1ProductDescription.............................11
3.2Intendeduse..................................11
3.3Mainpartsofthewheelchair.....................12
3.4Parkingbrakes.................................13
3.5Backrest.....................................14
3.5.1StandardBackrestCover.......................14
3.5.2AdjustableBackrestCover.....................14
3.5.3Backrestcoverheight.........................15
3.5.4Fixedbackrest..............................16
3.5.5Angleadjustablebackrest(-15°/+15°).............16
3.5.6Foldingbackbraceforthebackrest...............17
3.5.7Pushhandles...............................17
3.6Mudguard....................................18
3.7Armrests.....................................19
3.7.1Tubulararmrest,height-adjustable,swiveling.......19
3.7.2Armrest,steplessheightadjustable,removable......20
3.7.3Armrest,heightadjustable,foldable..............20
3.8Legrests.....................................21
3.8.1Swingawaylegrests.........................21
3.8.2Swingaway,angleadjustablelegrests............22
3.9Anti-tipper...................................24
3.10Seatcushion.................................26
4Options.........................................27
4.1Posturebelt..................................27
4.2Tipperaid....................................28
4.3Airpump....................................29
4.4Passiveillumination.............................29
4.5Caneholder..................................29
4.6Luggagecarrier................................30
4.7Securingstrap.................................30
5Setup...........................................31
5.1Safetyinformation..............................31
6Usingthewheelchair...............................32
6.1Safetyinformation..............................32
6.2Brakingduringuse.............................33
6.3Moveto/fromthewheelchair.....................34
6.4DrivingandSteeringtheWheelchair................35
6.5Negotiatingstepsandkerbs......................36
6.6Goingupanddownstairs........................37
6.7NegotiatingRampsandSlopes.....................38
6.8Stabilityandbalancewhenseated..................40
7Transport........................................41
7.1Safetyinformation..............................41
7.2Foldingandunfoldingthewheelchair...............41
7.3Liftingthewheelchair...........................43
7.4Removingandttingtherearwheels...............43
7.5TransportingtheMobilityDevicewithoutOccupant.....44
7.6Transportingtheoccupiedwheelchairinavehicle......44
8Maintenance.....................................50
8.1Safetyinformation..............................50
8.2MaintenanceSchedule..........................50
8.3CleaningandDisinfection........................52
8.3.1GeneralSafetyInformation.....................52

8.3.2CleaningIntervals............................53
8.3.3Cleaning..................................53
8.3.4Disinfection................................53
9Troubleshooting...................................54
9.1Safetyinformation..............................54
9.2Identifyingandrepairingfaults....................55
10AfterUse.......................................57
10.1Storage.....................................57
10.2Disposal....................................57
10.3Reconditioning...............................57
11TechnicalData...................................58
11.1Dimensionsandweight.........................58
11.2MaximumWeightofRemovableParts..............59
11.3Tyres.......................................60
11.4Materials....................................60
11.5Environmentalconditions........................61

General
1General
1.1Introduction
Thisusermanualcontainsimportantinformationaboutthe
handlingoftheproduct.Toensuresafetywhenusingthe
product,readtheusermanualcarefullyandfollowthe
safetyinstructions.
Notethattheremaybesectionsinthisdocument,whichare
notrelevanttoyourproduct,sincethisdocumentapplies
toallavailablemodels(onthedateofprinting).Ifnot
otherwisestated,eachsectioninthisdocumentreferstoall
modelsoftheproduct.
Themodelsandcongurationsavailableinyourcountrycan
befoundinthecountry-specicsalesdocuments.
Invacarereservestherighttoalterproductspecications
withoutfurthernotice.
Beforereadingthisdocument,makesureyouhavethe
latestversion.YoundthelatestversionasaPDFonthe
Invacarewebsite.
Ifyoundthatthefontsizeintheprinteddocumentis
difculttoread,youcandownloadthePDFversionfromthe
website.ThePDFcanthenbescaledonscreentoafont
sizethatismorecomfortableforyou.
Formoreinformationabouttheproduct,forexample
productsafetynoticesandproductrecalls,contactyour
Invacaredistributor .Seeaddressesattheendofthis
document.
Incaseofaseriousincidentwiththeproduct,youshould
informthemanufacturerandthecompetentauthorityin
yourcountry.
1.2SymbolsinthisDocument
Symbolsandsignalwordsareusedinthisdocumentand
applytohazardsorunsafepracticeswhichcouldresultin
personalinjuryorpropertydamage.Seetheinformation
belowfordenitionsofthesignalwords.
WARNING
Indicatesahazardoussituationthatcouldresult
inseriousinjuryordeathifitisnotavoided.
CAUTION
Indicatesahazardoussituationthatcouldresult
inminororslightinjuryifitisnotavoided.
IMPORTANT
Indicatesahazardoussituationthatcouldresult
indamagetopropertyifitisnotavoided.
TipsandRecommendations
Givesusefultips,recommendationsand
informationforefcient,trouble-freeuse.
1.3WarrantyInformation
Weprovideamanufacturer’swarrantyfortheproduct
inaccordancewithourGeneralTermsandConditionsof
Businessintherespectivecountries.
Warrantyclaimscanonlybemadethroughtheprovider
fromwhomtheproductwasobtained.
1587471-F5

Invacare®Action5/MyOnHC
1.4LimitationofLiability
Invacareacceptsnoliabilityfordamagearisingfrom:
•Non-compliancewiththeusermanual
•Incorrectuse
•Naturalwearandtear
•Incorrectassemblyorset-upbythepurchaserora
thirdparty
•Technicalmodications
•Unauthorisedmodicationsand/oruseofunsuitable
spareparts
1.5Compliance
Qualityisfundamentaltothecompany’soperation,working
withinthedisciplinesofISO13485.
ThisproductfeaturestheCEmark,incompliancewiththe
MedicalDeviceRegulation2017/745ClassI.Thelaunchdate
ofthisproductisstatedintheCEdeclarationofconformity.
Wearecontinuouslyworkingtowardsensuringthatthe
company’simpactontheenvironment,locallyandglobally,
isreducedtoaminimum.
WeonlyuseREACHcompliantmaterialsandcomponents.
1.5.1Product-specicstandards
ThewheelchairhasbeentestedinaccordancewithEN
12183.Itincludestestingforammability.
Forfurtherinformationaboutlocalstandardsand
regulations,contactyourlocalInvacarerepresentative.See
addressesattheendofthisdocument.
1.6ServiceLife
Theexpectedservicelifeofthisproductisveyearswhen
useddailyandinaccordancewiththesafetyinstructions,
maintenanceintervalsandcorrectuse,statedinthismanual.
Theeffectiveservicelifecanvaryaccordingtofrequency
andintensityofuse.
61587471-F

Safety
2Safety
2.1Safetyinformation
Thissectioncontainsimportantsafetyinformationforthe
protectionofthewheelchairuserandassistantandforsafe,
trouble-freeuseofthewheelchair.
WARNING!
Riskofdeathorseriousinjury
Incaseofreorsmoke,wheelchairoccupants
areatparticularriskofdeathorseriousinjury,
whentheyarenotabletomoveawayfromthe
sourceofreorsmoke.Lightedmatches,lighter
andcigarettescancauseanopenameinthe
wheelchairsurroundingsoronclothes.
–Avoidusingorstoringthewheelchairnear
openamesorcombustibleproducts.
–Donotsmokewhileusingthewheelchair .
WARNING!
Riskofaccidentsandseriousinjury
Accidentswithresultingseriousinjurycanoccur
ifthewheelchairiswronglyadjusted.
–Adjustmentsatthewheelchairalwaysmustbe
carriedoutbyaqualiedtechnician.
WARNING!
Riskduetodrivingstylebeingunsuitablefor
theconditions
Thereisariskofskiddingonwetground,gravel
oruneventerrain.
–Alwaysadjustyourspeedanddrivingstyleto
theconditions(weather,surface,individual
ability,etc.).
WARNING!
Riskofinjury
Inacollisionyoucouldsustaininjurytopartsof
yourbodythatextendbeyondthewheelchair
(e.g.feetorhands).
–Avoidanunbrakedcollision.
–Neverdriveintoanobjecthead-on.
–Drivecarefullythroughnarrowpassages.
WARNING!
Riskduetowheelchairbeingoutofcontrol
Athighspeedyoucouldlosecontrolofyour
wheelchairandoverturn.
–Neverexceedaspeedof7km/h.
–Avoidcollisionsingeneral.
1587471-F7

Invacare®Action5/MyOnHC
WARNING!
Riskoftilting
Thepositionoftherearwheelaxleandtheangle
ofyourwheelchair’sbackrestaretwoofthekey
adjustmentsthatcanaffectyourstabilitywhilst
sittinginthewheelchair .
–Thesechanges,anyfrontwheelsposition
and/orangleforkadjustmentstotheset-upof
yourwheelchairmustonlybeperformedatthe
directionofaqualiedtechnicianwhohasfully
riskassessedtheimplicationofanychanges
tothewheelchairconguration.Therefore,
consultwithyourauthorizedprovider.
CAUTION!
Riskofburning
Thewheelchaircomponentscanheatupwhen
exposedtoexternalsourcesofheat.
–Donotexposethewheelchairtostrongsunlight
beforeuse.
–Beforeusage,checkallcomponentsthat
comeintocontactwithyourskinfortheir
temperature.
CAUTION!
Riskofgettingngerscaught
Thereisalwaysariskofgetting,e.g.ngers
orarms,caughtinthemovingpartsofthe
wheelchair.
–Makesurewhenactivatingthefoldingor
insertionmechanismsofmovingparts,suchas
theremovableaxleoftherearwheel,folding
backrestoranti-tipper,thatnothingbecomes
caught.
CAUTION!
Riskoftipping
Thehangingofadditionalload(backpackor
similaritems)ontoyourchairbackpostscan
affecttherearwardstabilityofyourwheelchair,
especiallywhenusedincombinationwithangle
adjustablebackrests.
–Invacarestronglyrecommendtheuseof
anti-tipper(availableasanoption)whenusing
yourbackpostswithadditionalload.
CAUTION!
Riskofinjury
–Incaseofpressuresoreorinjuredskin,protect
yourinjuretoavoidadirectcontactwiththe
fabricsofthedevice.Refertoahealthcare
professionalformedicaladvices.
81587471-F

Safety
CAUTION!
Riskofinjury
Whencombiningthewheelchairwithanother
device,therestrictionsofbothdevicesapplyfor
thecombination.E.g.themaximumuserweight
ofthedevicemaybelower.
–Onlyusecombinationswithotherdevices
whichareallowedbyInvacare.Contactyour
authorizedproviderformoreinformation.
–Beforeuse,readtheusermanualofeach
deviceandchecktherestrictions.
2.2SafetyDevices
WARNING!
Riskofaccidents
Safetydevicesthatareincorrectlysetornolonger
working(brakes,anti-tipper)cancauseaccidents.
–Alwayscheckthatthesafetydevicesare
workingbeforeyouusethewheelchairand
havethemcheckedregularlybyaqualied
technicianoryourauthorizedprovider .
CAUTION!
RiskofInjury
Non-originalorwrongpartsmayaffectthe
functionandsafetyoftheproduct.
–Onlyuseoriginalpartsfortheproductinuse.
–Duetoregionaldifferences,refertoyour
localInvacarecatalogorwebsiteforavailable
optionsorcontactyourInvacaredistributor.
Seeaddressesattheendofthisdocument.
Thefunctionsofthesafetydevicesaredescribedinchapter
3ProductOverview,page11.
2.3Labelsandsymbolsontheproduct
Identicationlabel
Theidenticationlabelisattachedtotheframeofyour
wheelchairandgivesthefollowinginformation:
AManufacturer’saddress
BDateofmanufacture
CProductdescription
DSeatwidth
EReferencenumber
FSerialnumber
GMedicaldevice
HSerialnumberbarcode
1587471-F9

Invacare®Action5/MyOnHC
IEAN/HMIbarcode
JMaximumuserweight
KReadusermanual
LEuropeanconformity
Readusermanual
Indicatesahazardoussituationthatcould
resultinseriousinjuryordeathifitisnot
avoided.
Non-lockingsidepartswarninglabel
Donotliftthewheelchairbynon-locking
sideparts.
Posturebeltinformationlabel
Theposturebelthasthegoodlength,when
there’sjustsufcientspaceforaathand
betweenbodyandbelt.
Snaphooksymbols
Dependingontheconguration,somewheelchairsmaybe
usedasaseatinamotorvehicle,somemaynot.
ISO 717
6-19
Tie-downpositionswheretherestraint
systemstrapsmustbeplacedincaseof
transportingtheoccupiedwheelchairina
motorvehicle.Thissymbolisonlyattached
tothewheelchairwhenitisorderedwith
thetransportationkitoption.
WARNINGSymbol
Thiswheelchairisnotconguredfor
passengertransportinamotorvehicle.This
symbolisattachedtotheframeclosetothe
identicationlabel.
101587471-F

ProductOverview
3ProductOverview
3.1ProductDescription
Thisisamediumactivewheelchairwithhorizontalfolding
mechanismandswing-awaylegrests.
IMPORTANT!
Thewheelchairismanufacturedandcongured
individuallytothespecicationsintheorder.The
specicationmustbeperformedbyahealthcare
professionalaccordingtotheuser’srequirements
andhealthcondition.
–Consultahealthcareprofessionalifyouintend
toadaptthewheelchairconguration.
–Anyadaptationshouldbeperformedbya
qualiedtechnician.
3.2Intendeduse
Themediumactivewheelchairisintendedtoprovide
mobilitytopersonslimitedtoasittingposition,whoare
propellingthewheelchairthemselvesfrequently.
Thewheelchairisintendedforpersonsages12andup
(adolescentsandadults).Theweightofthewheelchair
occupantmustnotexceedthemaximumuserweightas
statedintheTechnicalDatasectionandontheidentication
label.
Theintendeduseristhewheelchairoccupantand/oran
assistant.
Theusershouldphysicallyandmentallybeabletousethe
wheelchairsafely(e.g.topropel,steer,brake).
Thewheelchairmaybeusedindoorsandoutdoorsonlevel
groundandaccessibleterrain.
Indications
•Considerabletocompleteimpairmentofmobilitydue
tostructuraland/orfunctionaldamagetothelower
extremities.
•Sufcientstrengthandgrippingfunctionofarmsand
handstopropelthewheelchair.
Therearenocontraindicationsknown,whenusingthe
wheelchairasintended.
1587471-F11

Invacare®Action5/MyOnHC
3.3MainpartsofthewheelchairAPushhandle
BBackrest
CRearwheelwithhandrim
DParkingbrake
EFrontforkwithcastor
FLegrests,swiveling
GFootrest
HFrame
ISeat
JArmrest
Theequipmentofyourwheelchairmaydifferfrom
thediagramaseachwheelchairismanufactured
individuallytothespecicationsintheorder.
121587471-F

ProductOverview
3.4Parkingbrakes
Theparkingbrakesareusedtoimmobilizethewheelchair
whenitisstationarytopreventitfromrollingaway.
WARNING!
Riskofoverturningifyoubrakesharply
Ifyouengagetheparkingbrakeswhileyouare
moving,thedirectionofmovementcanbecome
uncontrollableandthewheelchairmaystop
suddenly,whichcanleadtoacollisionortoyou
fallingout.
–Neverengagetheparkingbrakeswhileyouare
moving.
WARNING!
Riskduetowheelchairbeingoutofcontrol
–Theparkingbrakesmustbeoperated
simultaneously.
–Donotengagetheparkingbrakestoslow
downthewheelchair.
–Donotleanontheparkingbrakesforsupport
ortransfer.
WARNING!
Riskofoverturning
Theparkingbrakeswillnotoperatecorrectly
unlessthereissufcientairinthetyres.
–Ensurethecorrecttyrepressure,11.3Tyres,
page60.
CAUTION!
Riskofpinchingorcrushing
Theremaybeaverysmallgapbetweentherear
wheelandtheparkingbrakewiththeriskthat
youcouldtrapyourngers.
–Keepyourngersawayfrommovableparts
whenusingthebrake,alwayskeepyourhand
onthebrakelever .
Thedistancebetweenthebrakeshoeandthetiyre
canbeadjusted.Theadjustmentmustbecarried
outbyaqualiedtechnician.
Standardbrake
1.Toengagethebrake,pushthebrakeleverforwardswith
thepalmasfaraspossible.
2.Todisengagethebrake,pullthebrakeleverbackwards
withthelowngers.
1587471-F13

Invacare®Action5/MyOnHC
Pullbrake
1.Toengagethebrake,pullthebrakeleverbackwards
withthelowngersasfaraspossible.
2.Todisengagethebrake,pushthebrakeleverforwards
withthepalm.
Theleverofthepushhandlecanbefoldedbackto
facilitatetransfers.Todoso,pulluptheleverand
folditbackwards.
3.5Backrest
Therearetwotypesofbackrest(FixedandAngleadjustable)
available.
WARNING!
Riskofinjurytotheassistantanddamageto
thewheelchair
Tiltingthechairwithaheavyusercanhurtthe
assistant'sbackanddamagethechair .
–Makesuretobeabletosafelycontrolthe
wheelchairwithaheavyuserbeforeperforming
atiltingmaneuver.
3.5.1StandardBackrestCover
Astandardbackrestcoverisavailableforallbackrest
types.Thesecoversarenotadjustable.
WARNING!
Riskoftipping
Ifthestandardbackrestcoverbecomeslack,the
tippingpointofyourwheelchairischangedfor
theworse.
–Slackstandardbackrestcovermustbereplaced
byaqualiedtechnician.
3.5.2AdjustableBackrestCover
Youcanadjustthetensionofthebackrestcoverasrequired.
Adjustingthebackrestcover
141587471-F

ProductOverview
1.RemovethebackrestcushionA.
2.LoosenthehookandloopstripsBontherearofthe
backrestcoverbysimplypullingonthem.
3.Tightenorloosenthestripsasrequiredthenreattach
them.
WARNING!
Riskoftipping
Ifthebandsaresetveryloose,thetippingpoint
ofyourwheelchairischangedfortheworse.
–Ensurethatthebandsaresetcorrectly.
IMPORTANT!
–Donotovertightenthebands;thisistoensure
thatthegeometryofthewheelchairisnot
changed.
IMPORTANT!
–Onlyevertightenthebandswhenthe
wheelchairisunfolded.
3.5.3Backrestcoverheight
Thebackrestcoverheightcanbeadjustedforallbackrest
types.
WARNING!
Riskoftipping
Thehangingofadditionalload(backpack
orsimilaritems)ontoyourwheelchairback
postscanaffecttherearwardstabilityofyour
wheelchair.Thiscancausethechairtotip
backwardscausinginjury.
–Therefore,Invacarestronglyrecommendthe
useofanti-tippers(availableasanoption)
whenusingyourbackpostswithadditional
load(backpackorsimilaritems).
Theheightofthebackrestcovercanbeadjustedon
thebackposts.Theadjustmentmustbecarriedout
byaqualiedtechnician.
1587471-F15

Invacare®Action5/MyOnHC
3.5.4Fixedbackrest
Fixedbackrestof0°and7°:thesetwobackrestsdonot
requireadjustments.
3.5.5Angleadjustablebackrest(-15°/+15°)
Theangleofthebackrestcanbeadjustedfrom–15°to
+15°(stepless).
1.Adjustthebackrestanglethankstotheadjustablescrew
A.
2.Turn5mmAllenkeyclockwisetoobtainanegative
angle.
3.Alternatively,turn5mmAllenkeyunderclockwiseto
obtainapositiveangle.
4.Ensurebothadjustmentstothedesiredangleareequal
onbothsides.
Invacarerecommendsthatthebackrestangleadjustmentis
carriedoutbyaqualiedtechnician.
WARNING!
Riskoftipping
Donotmovethewheelchairwhenthebackrest
isinreclinedposition.
–Invacarestronglyrecommendtheuseof
anti-tippers(availableasanoption)whenthe
backrestisinreclinedposition.
WARNING!
Riskofinjury
–Invacarestronglyrecommendstheuse
ofanti-tippers(availableasanoption)in
combinationwithallrearwheelpositionswhen
youuseyourbackrestwithanangleof12°
andmore
CAUTION!
Riskofuncomfortableposture
Ananglelessthan90°betweentheseatandthe
backrestisuncomfortableforcertainusers.
–Thisadjustmentmustbeperformedbya
qualiedtechnicianuponagreementbya
prescribingphysician.Pleaseconsultwithyour
provider .
161587471-F

ProductOverview
3.5.6Foldingbackbraceforthebackrest
Anoptionalfoldingbackbraceisavailabletoincreasethe
rigidityofthebackrestonwheelchairswithlargeback
heightsorwidths.
CAUTION!
–Donotusethefoldingbackbracetoliftorpush
thewheelchair .Itcouldbreak.
Foldingthebackbrace
1.UnlockthefoldingbackbracebypushingthejointA
slightlydownwards.
2.Foldthebackbracedownwards.
Thefoldingbackbracewillautomaticallyrelease
whenthechairisfolded.
Unfoldingthebackbrace
1.Foldthebackbraceupwards.
2.LockthefoldingbackbracebypullingthejointAslightly
upwards.
3.5.7Pushhandles
IMPORTANT!
–Alwayscheckthepushhandlesbeforeusing
thewheelchair,astowhetherthehandgrips
aresecure,cannotbeturnedandcannotbe
pulledoff.
Heightadjustable,rearsetpushhandles(optional)
Theheightadjustable,rearsetpushhandlesallowany
assistanttoadjustthehandlestoacomfortablelevel.
A
1.Tosettheheightofthepushhandles,loosentheknob
A,pushthehandletothedesiredpositionandtighten
theknobagain.
1587471-F17

Invacare®Action5/MyOnHC
CAUTION!
Iftheknobisnotcorrectlytightened,thepush
handlecouldaccidentallycomeoffthebackrest
tubewhilepushingitupwards.
–Makesurethattheknobisrmlytightened.
Heightadjustable,integratedpushhandles(optional)
Theheightadjustable,integratedpushhandlesallowany
assistanttoadjustthehandlestoacomfortablelevel.
A
1.Tosettheheightofthepushhandles,loosentheknob
A,pushthehandletothedesiredpositionandtighten
theknobagain.
CAUTION!
Iftheknobisnotcorrectlytightened,thepush
handlecouldaccidentallycomeoffthebackrest
tubewhilepushingitupwards.
–Makesurethattheknobisrmlytightened.
3.6Mudguard
Inordertopreventdirtfromthewheelssprayingupwards,
aremovablemudguardcanbetted.Thepositionofthe
mudguardcanbeadjusted.Theadjustmentmustbecarried
outbyaqualiedtechnician.
181587471-F

ProductOverview
Removing
1.Pullthemudguardupwardsoutoftheholder.
2.Toadjusthoweasyordifcultitistopullthemudguard
outoftheholder,changethedegreetowhichthe
screwsAaretightened.
Fitting
1.Pushthemudguardintotheholder .
Adjustingtheheight
1.UnscrewscrewB,placeitinthedesiredholeand
re-tightenthescrews.
Adjustingthedepth,neadjustingtheheight
1.UnscrewscrewsC,repositionthemudguardand
re-tightenthescrews.

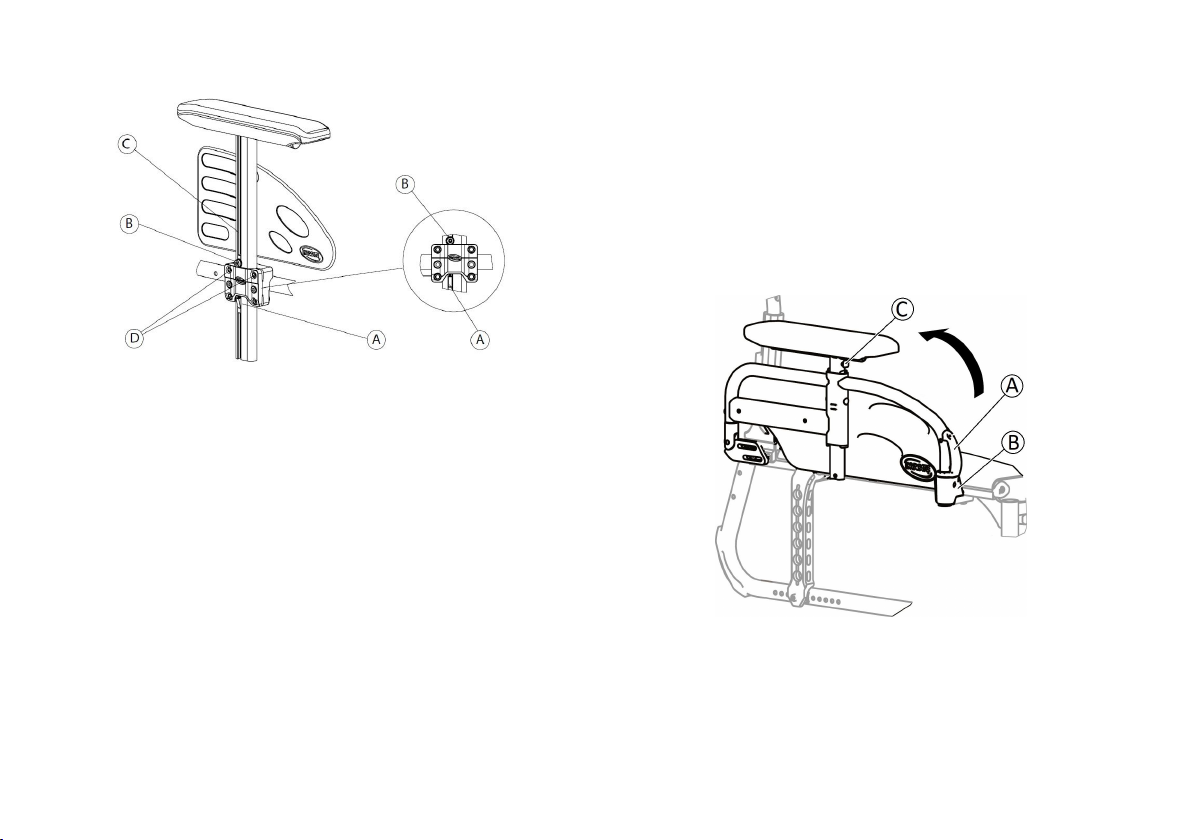

3.7Armrests
WARNING!
Riskofinjury
Thesiderestsarenotlockedandcanbeeasily
pulledoutupwards.
–Donotliftortransferthewheelchairusingthe
siderests.
–Donotusethesiderestsfortransportation
whencarryingthewheelchairup-ordownstairs.
CAUTION!
Riskofpinching
–Keepyourngersawayfrommovableparts
duringremoving,ttingoradjustingthe
armrest.
3.7.1Tubulararmrest,height-adjustable,swiveling
Removing
1.Raisethearmrestandpullitupwardsoutoftheholder.
Fitting
1.Pushthearmrestintotheholder .
Adjustingtheheight
1.Pullthearmrestoutoftheholder .
2.Loosenthescrewonthetubeofthearmrestandscrew
itbackinatthedesiredheight.
3.Pushthearmrestbackintotheholder.
4.Performthesettingonbothsides.
Swiveling
1.Raisethearmrestalittle.
2.Swivelitoutwards.
1587471-F19

Invacare®Action5/MyOnHC
3.7.2Armrest,steplessheightadjustable,removable
Removing
1.Applytheparkingbrakeonbothsides.
2.PreviouslypressonthelockingmechanismAlocated
atthebottomofthearmrestverticalbracket(ifso
equipped).
3.Pullthearmrestbythearmcushionoutoftheholder.
4.Toadjusthoweasyordifcultitistopullthearmrest
outoftheholder,changethedegreetowhichthe
screwsDaretightened.
Fitting
1.Pushthearmrestintotheholder .
Adjustingtheheight
1.LoosenthescrewBwith5mmAllenkeyinthegroove
Cofthearmresttube.
2.Movethearmrestupwardsordownwardsuntilyou
reachthedesiredheight,whilekeepingscrewBin
place(atthetopedgeoftheholder).
3.TightenthescrewB(5–6Nm).
4.Performthesettingonbothsides.
3.7.3Armrest,heightadjustable,foldable
Folding
1.Gripthearmrestbythecushionorbythefrontcurve
andfolditback.
201587471-F
