Invacare Formula TRE Instruction Manual

Yes, you can. ™
Formula™ TRE Powered Seating
Front Riggings & MK5 Electronics
TDX®
Power Wheelchairs
Parts Catalog Issued: Apr 24, 2012

The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 06-102. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples: = Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2012 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, SureStep, Storm Series, TDX are registered trademarks and
Formula, Contoura, Personal Back 10, DualFlex, MKIV, MK5, EX, and TCD are trademarks of Invacare Corporation.
Otto Bock is a registered trademark owned by Otto Bock Orthopaedische Industrie GMBH & Co.. JAY Back is a registered trademark of Sunrise Medical
HHG, Inc. Corporation
Parts Catalog Usage Guide
1
Form No. 06-102
To order call toll free 1-800-333-6900, or www.invacare.com

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 6
Electronics - MK5 TAC, Shroud Cover & Mercury Free Switches, Conventional Tilt & Tilt w/
BPO Option (After 1/25/06)
127
Electronics - 4-Way Switch & Quad Push Button (QPB) Switch w/ Mounting Hardware ......... 145
Electronics - Dual Legs Integrated Actuator Module (DLIAM) MK6i For ELRPW Front Riggings 101
Electronics - ESC Elevating Seat Control Toggle Switch, Elevate Only For ASBA/ADJASBA
Seating
103
Electronics - MK5 SAC & Shroud Cover, Conventional Tilt & Tilt w/ BPO Option
(4/15/05-10/19/05)
117
Electronics - MK5 SAC, Contoura Recline Only & Contoura Tilt Only (Before 1/6/06) ............ 138
Electronics - MK5 SAC, Conventional Recline & Recline w/ BPO Option (Before 1/6/06) ....... 133
Electronics - MK5 SAC, Conventional Tilt & Tilt w/ BPO Option (1/17/05-4/14/05) ................. 115
Electronics - MK5 SAC, Conventional Tilt & Tilt w/ BPO Option (10/20/05-1/5/06) ................. 121
Electronics - MK5 SAC, Conventional Tilt & Tilt w/ BPO Option (Before 1/17/05) ................... 113
Electronics - MK5 SAC-E and (MK6i) Elevate Integrated Actuator Module (EIAM) ................. 111
Electronics - MK5 TAC & Mercury Free Switches, Contoura Recline Only & Contoura Tilt Only
(After 1/5/06)
140
Electronics - MK5 TAC & Mercury Free Switches, Conventional Tilt & Tilt w/ BPO Option
(1/6/06-1/25/06)
123
Electronics - MK5 TAC, Shroud Cover & Mercury Free Switches, Conv. Recline & Recline w/
BPO Option (After 1/5/06)
135
Electronics - MK5 TRECM & Mercury Free Switches - Contoura Tilt - Recline & Tilt/Recline . 165
Electronics - MK5 TRECM & Mercury Free Switches, Conv. Recline & Tilt/Recline (Before
5/19/05)
161
Electronics - MK5 TRECM & Mercury Free Switches, Conventional Tilt & Tilt w/ BPO Option
(1/17/05-4/14/05)
149
Electronics - MK5 TRECM & Mercury Free Switches, Conventional Tilt & Tilt w/ BPO Option
(10/20/05-1/25/06)
155
Electronics - MK5 TRECM & Mercury Free Switches, Conventional Tilt & Tilt w/ BPO Option
(Before 1/17/05)
147
Electronics - MK5 TRECM, Shroud Cover & Mercury Free Switches, Conv. Recline &
Tilt/Recline (After 5/18/05)
163
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Electronics - MK5 TRECM, Shroud Cover & Mercury Free Switches, Conventional Tilt & Tilt w/
BPO Option (After 1/25/06)
157
Electronics - MK5 TRECM, Shroud Cover, Mercury Free Switches, Conv. Tilt & Tilt w/ BPO
Option (4/15/05-10/19/05)
151
Electronics - MK6i ~PLEASE READ FIRST ............................................................................. 100
Electronics - Quad Link (Before 10/31/05) ............................................................................... 167
Electronics - Quad Link (QLA) (After 10/30/05) ........................................................................ 171
Electronics - TRSS Toggle, Contoura Tilt ................................................................................ 109
Electronics - TRSS Toggle, Conventional Tilt & Tilt w/ BPO Option (After 1/16/05) ................ 107
Electronics - TRSS Toggle, Conventional Tilt & Tilt w/ BPO Option (Before 1/17/05) ............. 105
Frame Finishes - Touch-Up Paints & Upholstery Options ........................................................ 7
Front Riggings - Adjustable Angle Footplate Assemblies - AT5543 ......................................... 43
Front Riggings - Calf Pads w/ Attaching Hardware .................................................................. 37
Front Riggings - Center Mount Rigging - CTMT/CTMT-F/CTMT-L/CTMT-FL (Before 12/10/08) 51
Front Riggings - Center Mount Rigging - CTMT-F/CTMT-FL w/ FBCTMT (One PC Flip-Up
Footboard) Before 12/31/09
55
Front Riggings - Center Mount Rigging - CTMTJ/CTMT-FJ (Before 12/10/08) ........................ 49
Front Riggings - Center Mount Rigging (CTMT-F with CTMTFB One PC Flip-Up Footboard)
After 12/30/09
57
Front Riggings - Center Mount Rigging (CTMT-J/CTMT-FJ/CTMT/CTMT-F/CTMT-L/CTMT-FL)
(After 12/09/08)
61
Front Riggings - Center Mount Rigging Kit - CTMTJ - Elevate Only For ASBA Seating (Before
12/10/08)
83
Front Riggings - Center Mount Rigging Kit (CTMT/CTMT-L) Elevate Only For ASBA Seats
(Before 12/10/08)
86
Front Riggings - Ctr. Mt. Rigging Kit - CTMT-F/CTMT-FL/CTMT-FJ - Elev. Only ADJASBA Stg.
- Conv./Contoura Stg. (After 7/4/05 - 12/09/08)
90
Front Riggings - Ctr. Mt. Rigging Mtg. Hdwr. - CTMT/CTMT-L/CTMTJ - Elev. Only For ASBA
Stg. (Before 7/5/05)
74
Front Riggings - Ctr. Mt. Rigging Mtg. Hdwr. - CTMT-F/CTMT-FL/CTMT-FJ - Conventional &
Contoura Seating
79
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Riggings - Ctr. Mt. Rigging Mtg. Hdwr. - CTMT-F/CTMT-FL/CTMT-FJ - Elev. Only For
ADJASBA Stg. (After 7/4/05)
77
Front Riggings - Footrest and Legrest Accessories ................................................................. 46
Front Riggings - Footrest Support Assemblies - Sector Style .................................................. 28
Front Riggings - Footrest Supports - PHW93 (Hemi) ............................................................... 30

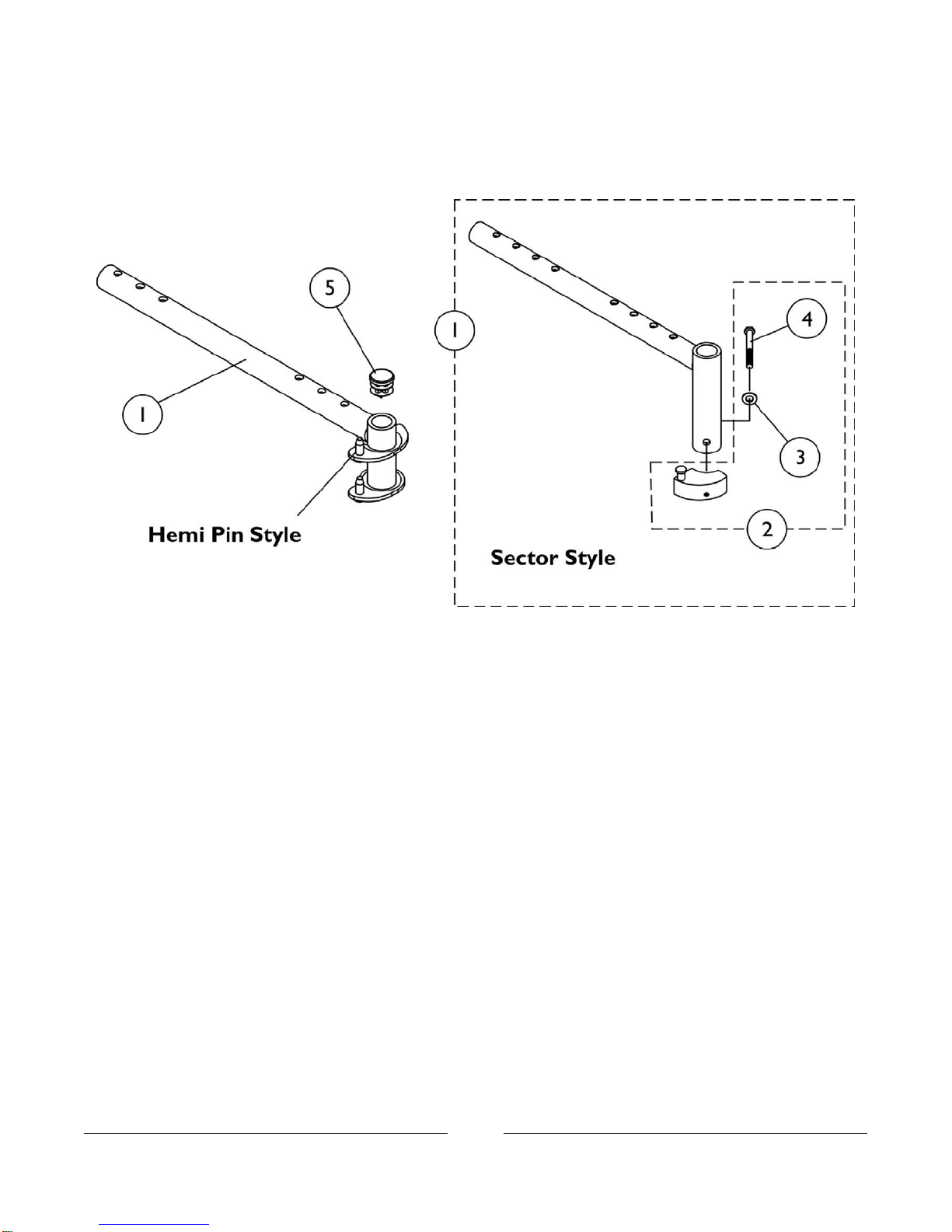

Front Riggings - Front Rigging Hanger Hardware, Pin Style, Conventional & Contoura Seating 20
Front Riggings - Front Rigging Hanger Hardware, Sector Style, Conventional & Contoura
Seating
22
Front Riggings - Front Rigging Hanger Hdwr. - Pin & Sector Style, Elev. Only For ADJASBA
Stg. (After 7/4/05)
18
Front Riggings - Front Rigging Hanger Hdwr. - Pin & Sector Style, Elev. Only For ASBA Stg.
(Before 7/5/05)
16
Front Riggings - Front Rigging Non Hanger Hardware, PCTMT, Conventional & Contoura
Seating
24
Front Riggings - Front Rigging Non Hanger Hdwr. - Rigging Is Excluded From Chair, Conv. &
Contoura Stg.
26
Front Riggings - Legrest Supports - Articulating - PHAL4A (Hemi) .......................................... 34
Front Riggings - Legrest Supports - AT5544 ............................................................................ 32
Front Riggings - Pivot/Slide Tube w/ Footplate Assembly - Aluminum - 1650, 1350 .............. 41
Front Riggings - Pivot/Slide Tube w/ Footplate Assembly - Composite - 1651 ........................ 39
Front Riggings - Power Articulating Legrests - ELRPW/ELRPW22 ......................................... 95
Front Riggings - Power Articulating Legrests - ELRPW/ELRPW22 Harness & Hardware ....... 98
Front Riggings - Power Center Mount Rigging - PCTMT/PCTMT-L ........................................ 69
Front Riggings - Power Center Mount Rigging - PCTMT/PCTMT-L w/ FBCTMT (One PC
Flip-Up Footboard)
72
Front Riggings - Power Center Mount Rigging Mtg. Hdwr. - PCTMT/PCTMT-L ...................... 81
Front Riggings - Reference Chart - 70ST Taper ...................................................................... 15
Front Riggings - Reference Chart - AT5544 - 70NHD - PHW93 .............................................. 13
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Riggings - Reference Chart - PHAL4A ........................................................................... 14
Label Locations For TRBKTS Option ....................................................................................... 11
Packaging - Cartons, Inserts, Bags, Literature & Decals ......................................................... 9
TRBKTS Option Clarification Reference .................................................................................. 12
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

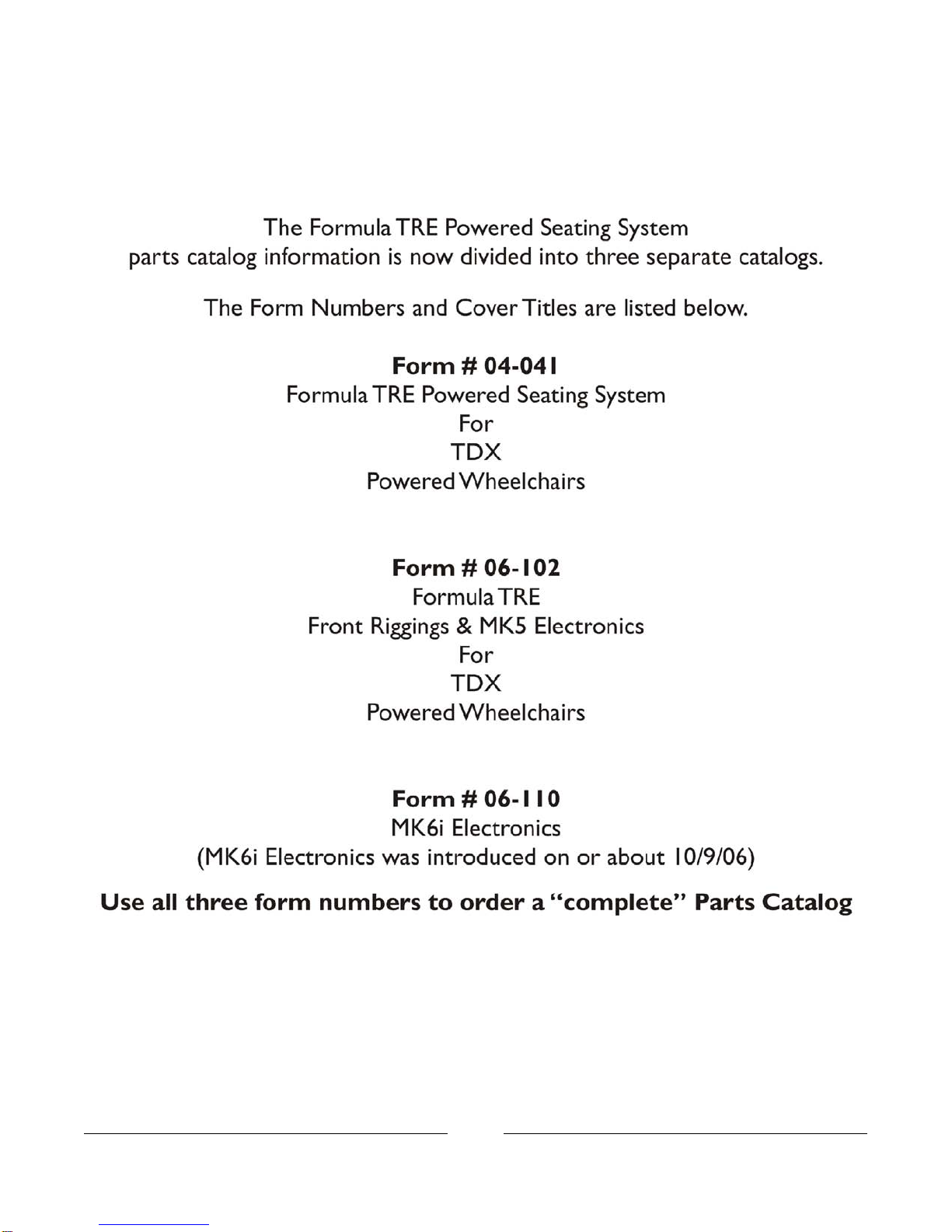

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Frame Finishes, Touch-Up Paints & Upholstery Options
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Deep Purple.6 oz.103145608P Cobalt Blue.6 oz.104631917P Anthracite.6 oz.103337622P Wet Black.6 oz.103145024P Red.6 oz.103145533P Flat Black.6 oz.104632734P Electric Red.6 oz.104632161P Electric Blue.6 oz.104632062P Electric Purple.6 oz.104632266P Teflon Black.6 oz.1101320-NLA69P Silver VeinN/AN/A71P Lavender.6 oz.107389684P Jeweled Green.6 oz.1101325101P Denim Blue.6 oz.1101327102P Electric Teal.6 oz.1101316104P MIdnight Blue.6 oz.1101326105P Black PrismN/AN/A115P Sunkissed OrangeN/AN/A116P Tangerine RedN/AN/A117P Fruit FusionN/AN/A118P Bubblegum PinkN/AN/A119P Grape MadnessN/AN/A120P Lolly Pop BlueN/AN/A121P Cosmic BlueN/AN/A122P Celestial PurpleN/AN/A123P Vivid VioletN/AN/A124P Emerald GreenN/AN/A125P Shamrock GreenN/AN/A126P Grasshopper GreenN/AN/A127P
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Frame Finishes, Touch-Up Paints & Upholstery Options
Sparkle Frame Finishes
Color Number Frame Finish
Wet Black with Twilight Sparkle88P
Upholstery Options For A.S.B.A. Seating
Nylon Color
U240 Black
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Packaging - Cartons, Inserts, Bags, Literature & Decals
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Packaging - Cartons, Inserts, Bags, Literature & Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1036028 Carton, Cover 1 11 40131X161 Insert, Plain Pad 1 22 40131X011 Carton, Front Riggings 1 13 1015592 Bag, Poly (72" L x 35" W x 19" D) 1 14 1043198-NLA NLA - Tube, Paper 1 15 1012001 Carton, Joystick 1 16 1036027 Carton, Tray 1 27 1129590 Carton, Corner Reinforcement 1 48 00077X031-NLA NLA - Warranty Card 1 1A 1114809 Owner's Manual, TDX w/ MK5 Electronics 1 1A 1164348 Mailer, Return, Mercury Free 1 1B
A - Not Shown
B - For Massachusetts providers only.
When
adjusting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Label Locations For TRBKTS Option
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

TRBKTS Option Clarification Reference
TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

NOTE: Calf pads with attaching hardware not included on legrest.
NOTE: Pivot/Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/slide tube.
AT5543 = Adjustable angle footplate with 9-7/8" straight pivot/slide tube.
1350 = Extra large footplate with "L" style pivot/slide tube.
Support Assemblies - AT5544, 70NHD, PHW93
Rigging Type AT5544 70NHD PHW93
8881126089 8881053149 8881045291
Right See Note(s) A See Note(s) A See Note(s) A
8881126090 8881053148 8881045292
Left See Note(s) A See Note(s) A See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".NOTE:
Pivot/Slide Tube and Footplates For AT5544, 70NHD, PHW93
Footplate
Type 1651 16" W 1651 17-24" W 1350 17-24" W AT5543 16-24" W
1062756102639510578791057869Right 1062757102639610578801057870Left 1062760108651510578811057871Right 2" Longer 1062761108651710578821057872Left 2" Longer 1121140108651610584231058421Right 4" Longer 1121141108651810584241058422Left 4" Longer
Front Riggings Reference Chart
For AT5544, 70NHD, PHW93
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

NOTE: Calf pads with attaching hardware not included on legrest.
NOTE: Pivot/Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1650 = Aluminum footplate with "L" style pivot/slide tube.
1350 = Extra large footplate with "L" style pivot/slide tube.
AT5543 = Adjustable angle footplate with 13-7/8" straight pivot/slide tube.
Support Assembly - PHAL4A
Rigging
Type PHAL4A (Chrome Only)
1031437Right 1031438Left
Pivot/Slide Tube and Footplates For PHAL4A
Footplate
Type 1650 16-24" W 1350 17-24" W AT5543 16-24" W
109177710354561023907Right 109177810354571023908Left
Front Riggings Reference Chart
For PHAL4A
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

NOTE: Pivot/Slide tube attaching hardware not included.
NOTE: Pivot/Slide tube and footplates do not include heel loops. See footrest and legrest accessories.
1651 = Composite footplate with 9-7/8" curved pivot/slide tube.
Support Assemblies - 70STAPER
Rigging
Type 70STAPER
8881026996
Right See Note(s) A
8881026997
Left See Note(s) A
A - Specify frame color when ordering, see page titled "Frame Finishes and Touch-Up Paints".NOTE:
Pivot/Slide Tube and Footplates For 70ST TAPER
Footplate
Type 1651 16-17" W 1651 18-19" W 1651 20-24" W
105787910578691057859Right 105788010578701057860Left
105788110578711057861
Right
2" Longer
105788210578721057862
Left
2" Longer
Front Riggings Reference Chart
70ST Taper
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Rigging Hanger Hardware, Pin and Sector Style
Elevate Only For ASBA Seating (Before 7/5/05)
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Rigging Hanger Hardware, Pin and Sector Style
Elevate Only For ASBA Seating (Before 7/5/05)
NOTE: Front rigging hangers and seat pans share the same mounting hardware, see Seat Pan and
Mounting Hardware page.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1068435 Front Rigging Hanger Assembly w/ Sector Block,
Black - Right (12 - 21" D) 1 11 A
1068436 Front Rigging Hanger Assembly w/ Sector Block,
Black - Left (12 - 21" D) 1 11 A
1068437 Front Rigging Hanger Assembly w/ Sector Block,
Black - Right (22" D) 1 11 A
1068438 Front Rigging Hanger Assembly w/ Sector Block,
Black - Left (22" D) 1 11 A
1114766 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Right (12 - 21" D) 1 11
1114767 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Left (12 - 21" D) 1 11
1132339 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Right (22" D) 1 11
1132340 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Left (22" D) 1 11
1054571 Kit, Sector Block - Right 1 12 B 1054572 Kit, Sector Block - Left 1 12 B 1026907 Washer (1/4 x 1/2 x 1/16") 1 13 1052957 Screw, Hex Head w/ Patch (1/4-20 x 2") 1 14 1027097 Plug Button, Black (3/4") 1 15
A - Includes item 2
B - Includes items 3-4
NOTE:
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Rigging Hangers and Hardware
Pin & Sector Style For ADJASBA Seating (After 7/4/05)
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102

Front Rigging Hangers and Hardware
Pin & Sector Style For ADJASBA Seating (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1124723 Kit, Side Rail Cap Hardware (Pair) 1 11 A Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") 1 42 Spacer (1/4 x 3/8 x 29/32") 1 43 Cap, End, Side Rail, Black 1 24 Plug Button, Black (1") 1 25 Block, Threaded 1 26 1125726 Kit, Front Rigging Hanger Mounting Hardware (Pair) 1 17 B Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") 1 48 Spacer (1/4 x 3/8 x 3/16") 1 49 Cap, End, Side Rail, Black 1 210 Block, Threaded 1 211 1122602 Front Rigging Hanger Assembly w/ Sector Block,
Black - Right 1 112 C
1122603 Front Rigging Hanger Assembly w/ Sector Block,
Black - Left 1 112 C
1054571 Kit, Sector Block - Right 1 113 D 1054572 Kit, Sector Block - Left 1 113 D 1124401 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Right 1 114
1124402 Front Rigging Hanger Assembly w/ Plug Button, Pin
Style, Hemi, Black - Left 1 114
1134426 Package, Plug Button, Black (3/4") 10 115
A - Includes items 2-6
B - Includes items 8-11
C - Includes item 13
D - Includes Sector Block, Screw and Washer
NOTE:
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 06-102
