Invacare® XLT is a wheelchair with many adjustment options and
accessories. To ensure that you benefit as much as possible from your
Invacare® XLT, and in order to do its options justice, the chair must be
tested and adjusted by competent personnel. We hope that you have also
received instructions for using your Invacare® XLT in everyday life.
The Invacare® XLT frame, footbow and backrest are manufactured
from high quality titanium. For the Swing version the legrest hangers
are made from aluminium. The cover for the seat cushion is made of
Jemima and the backrest cover is made of nylon.
This manual includes a description of the parts of the chair, simple
adjustment options, how to use the Invacare® XLT safely and how
to transport it. The manual must be read thoroughly before the chair
is used. Also included in this manual is a description of how the most
common accessories are fitted and also some slightly more advanced
settings.
As the Invacare® XLT has many different components and accessories,
the appearance of the accessories you have for your chair may differ
from those shown.
Product description
Invacare®XLT

5
INVACARE®XLT
2.
1.
3.
4.

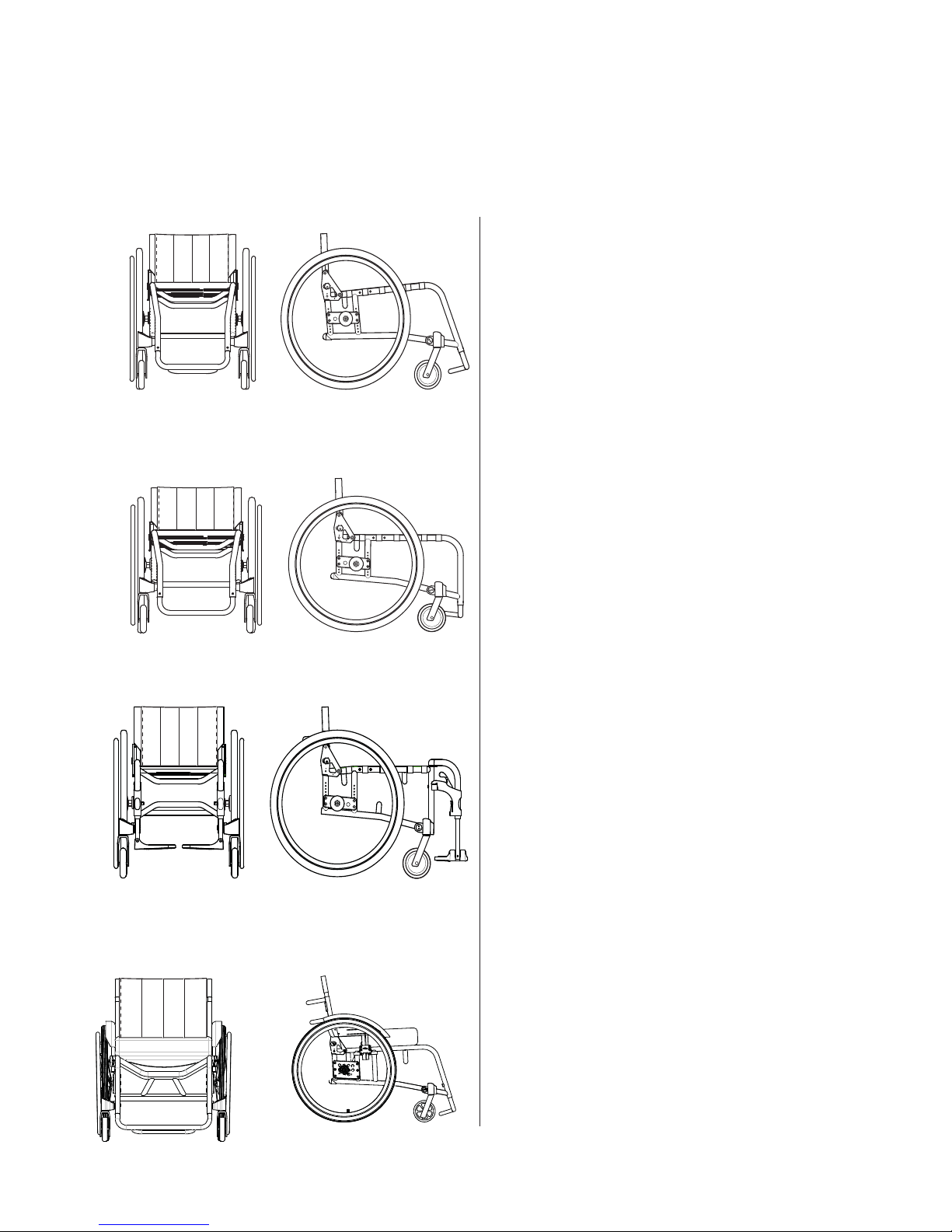

XLT Models
XLT is available in four models.
1. XLT Active (75° knee angle)
The XLT Active front is designed to hold your
feet and lower parts of your leg steady. The
footbow is standard.
Seat angles 0-14° can be obtained, depending on
the size of castors and rear wheels and the row
of mounting holes used for the castors and rear
wheels.
2. XLT Dynamic (90° knee angle)
The XLT Dynamic is designed to hold your feet
steady. The total length of the wheelchair is very
compact. The footbow is standard.
Seat angles 0-14° can be obtained, depending on
the size of castors and rear wheels and the row
of mounting holes used for the castors and rear
wheels.
3. XLT Swing (80°, 90° and angle adjustable
legrests)
The XLT Swing is designed with a front offering
more space for the feet and lower parts of the
legs. The standard delivery includes collapsible
footrests.
Seat angles 0-14° can be obtained, depending on
the size of castors and rear wheels and the row
of mounting holes used for the castors and rear
wheels.
4. XLT Max (75°)
The XLT Max is designed for larger users and has
a user weight capacity of 180 kg.
Seat angles 0-14° can be obtained, depending on
the size of castors and rear wheels and the row
of mounting holes used for the castors and rear
wheels.

6INVACARE®XLT

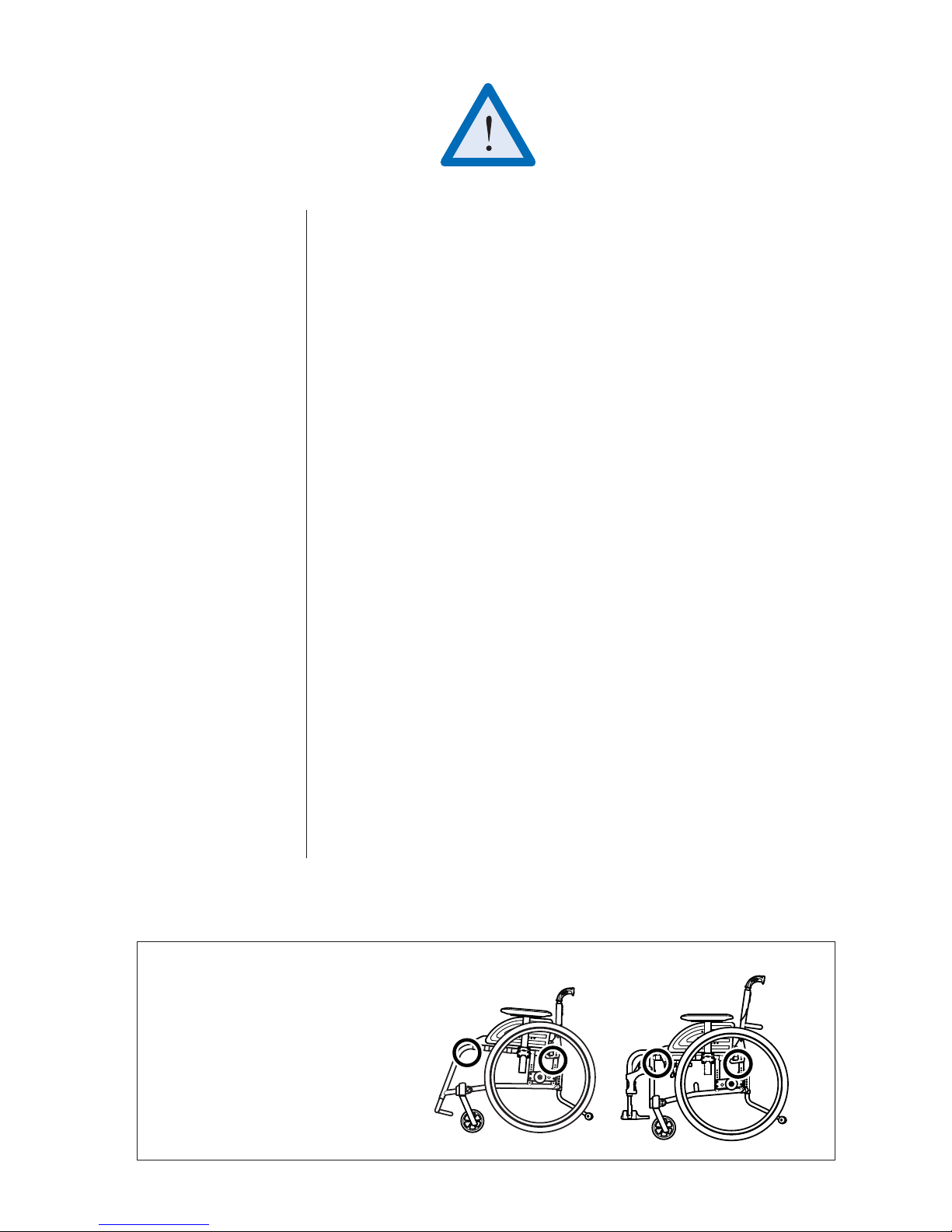

On this page a number of points affecting your personal safety are
shown. Please read it carefully!
Invacare®is only responsible for product changes carried out by per-
sonnel who we authorise. We reserve the right to make any changes
to equipment and specifications without prior notice.
Failure to comply with instructions given may result in personal injury
and/or product damage.
• Check each of the following before using the wheelchair:
- that all parts are attached securely to the frame
- that all wheels and knobs are properly tightened
- that all brakes and anti-tip devices function correctly
• Never lift the wheelchair by the detachable armrests, footrests,
backrest bar or by the adjustable push handles.
• Always apply the brake before getting into or out of the chair.
• Never stand on the footplates when getting into or out of the chair,
because of the risk of tipping.
• Changing the seat angle can give an increased risk of tipping over.
• The hand rims may become hot due to friction, and this may cause
injury to your hands.
• Use extensively the anti-tip device
• Remember that the effectiveness of the carer-operated brake
is reduced in wet and slippery conditions, as well as when on a
slope.
• Be careful to ensure that the drive wheels are securely attached.
• Drive wheels are not to be detached while the user is sitting in the
chair.
• The more the backrest cover’s Velcro straps are slackened the
greater the risk of tipping the wheelchair becomes.
• Surfaces of the wheelchair like frame parts or upholstery can with
long time exposure to sun reach temperatures over 41 °C.
This symbol means warning.
NB!

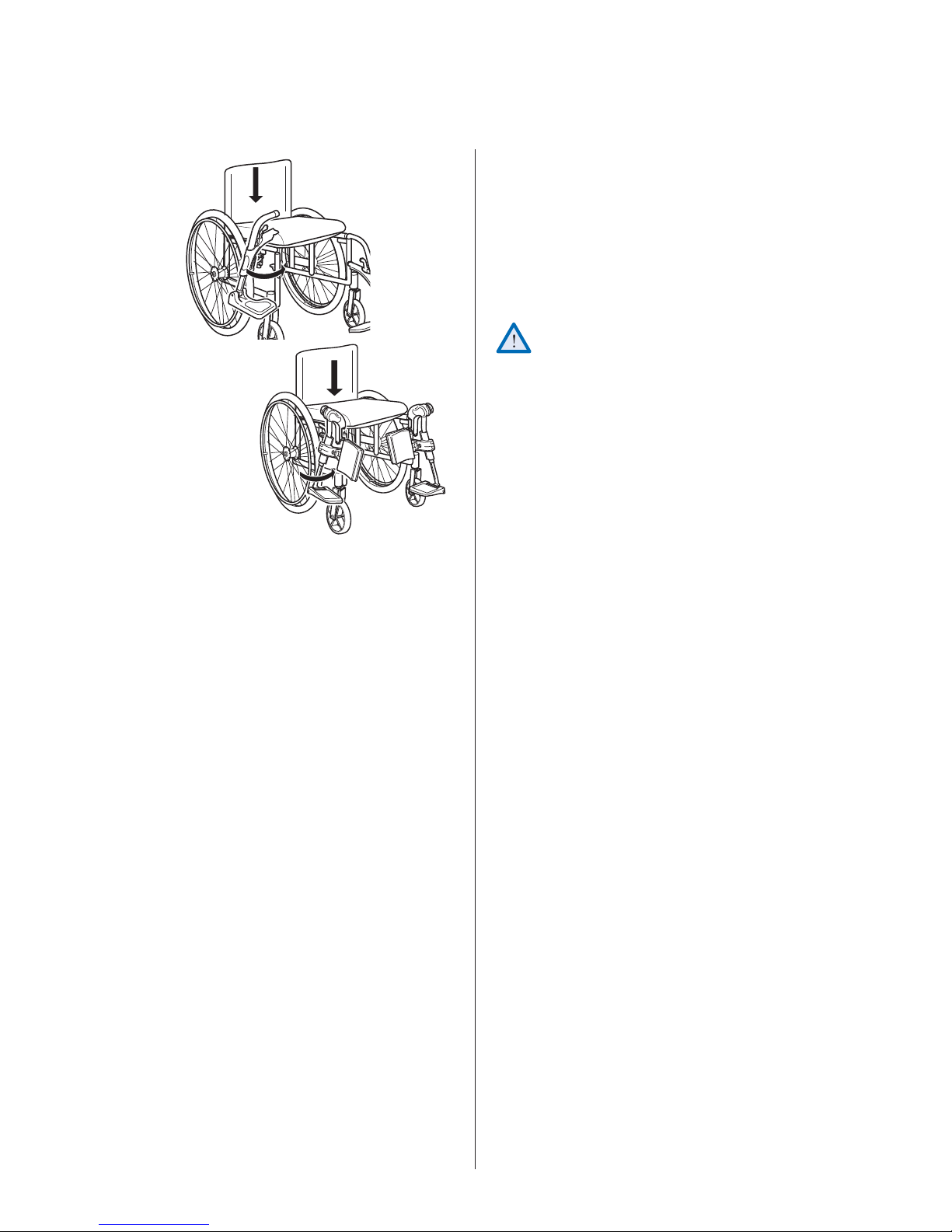

Always lift the wheelchair by grabbing the
frame at the points shown in the picture.
Never lift the wheelchair by the removable
armrests, the footrests or the backrest bar.
Ensure that the backrest and push handles
are securely in place. Also read the chapter
Safety instructions/Propelling techniques.
LIFTING THE WHEELCHAIR

7
INVACARE®XLT
Intended use
Daily performance check
Check that the following parts are securely fitted on the wheelchair
and operational:
• Wheels
• Brakes
• Backrest
• Anti-tip device, if fitted
• Push handles, if fitted
• Footrests or footbow
• Pelvic belt, if fitted
• Neck-/headrest, if fitted
• Invacare® XLT is a manual wheelchair aimed for those who use the wheel-
chair for a longer period of time, i.e. several hours in a row.
• Invacare® XLT is designed for the user who can manoeuvre the wheelchair
him/herself, as well as for the user who requires assistance.
• Invacare® XLT is versatile and has accessories that makes it possible to
adjust the sitting posture so it stays comfortable for several hours.
• Invacare® XLT has many adjustment possibilities. With the right adjust-
ments, carried out by a professional, the wheelchair can be set up specifically
for a user and according to the requirements of a possible assistant.
• Invacare® XLT can be used both indoors and outdoors on level ground
and paved areas. We recommend the larger wheels when the wheelchair
is used on uneven ground.
• Note that there is an increased risk that the Invacare® XLT could tip
backwards, when being wheeled uphill, especially when the incline is more
than 8°. Or if the rear wheels are mounted in their formost position on
the rear wheel attachment. The effect of mounting the rear wheels in their
foremost position is that the chair will be easier to manoeuvre. However,
there is the increased risk of tipping backwards. Therefore the use of anti
tip devices to achieve better stability is strongly recommended.
• Invacare® XLT is designed to have a seat cushion on the seat. The seat
cushion improves the user's body posture and makes it possible to sit
comfortably for longer periods of time.
Invacare® XLT with a backrest, adjusted to a height of minimum•
40 cm, a neckrest and a pelvic belt can be used as a seat in a vehicle. For
other configurations the user must transfer to the normal seat in a car
or bus.

8INVACARE®XLT
EQUIPMENT AND ACCESSORIES
Backrest cover Black Nylon TR33
Seat cushion cover Black Jemima TR18 (standard)
Frame colours Black, Grey, Blue, Red, Blasted titanium and Orange
Backrest
Tension adjustable
Angle adjustable, fixed or height adjustable
Narrow back
Seat
Tension and depth adjustable seat
Seat cushions
Standard 5 cm, Flotech/Contour
Legrests
Footbow rigid**
Footbow rigid with footplate**
Footrest one piece, flipup, angle adjustable
Footrest, high mounted**
80° & 90° fixed legrest*
Angle adjustable legrest*
Fixed footplate*
Angle and depth adjustable footplate*
Armrests
Flip-up armrest with long or short pad
Height adjustable armrest "Rio", with long or short
pad
Hemi armrest
Comfort armrest***
Castors
75 - 125 mm Dynamic
75 - 180 mm Swing, Active
140 - 180 Max
Rear wheels
22", 24", 25", 26" pneumatic or puncture-proof
24", one-arm drive
Brake
User-brake (3 types)
Carer-operated drumbrake
One-arm brake
UPHOLSTERY AND FRAME COLOURS
Invacare® XLT has a wide range of accessories and options. Some of the accessories may not be available
in all countries and all accessories are not available for all models.
Others
Several types of handrims
Spoke guard
Headrest
Neckrest
Headrest with cheek support
Anti-tip device
Trunk Support
Reflectors Kit
Table Tray
Pump
Cane holder
Tool kit
Various push handles
Pelvic belt
Mudguard
Sideguard
Step tube
Brake lever extension
Mounting brackets for E-Motion and E-Fix
* for XLT Swing only
** for XLT Active, Dynamic and Max
*** for XLT Max only

9
INVACARE®XLT
Technical data
* Fixed/Angle adjustable backrest
**Our wheelchairs are crash tested according to the ISO norm 7176-19 (Wheeled mobility devices for use as seats in motor vehicles) See the
chapter on Transport for more details. Wheelchair users should however transfer to the vehicle seat and use the vehicle installed restraint
system whenever it is feasible.
Crash test**
* without seat cushion
** with 0° camber
*** without rearwheels and accessories

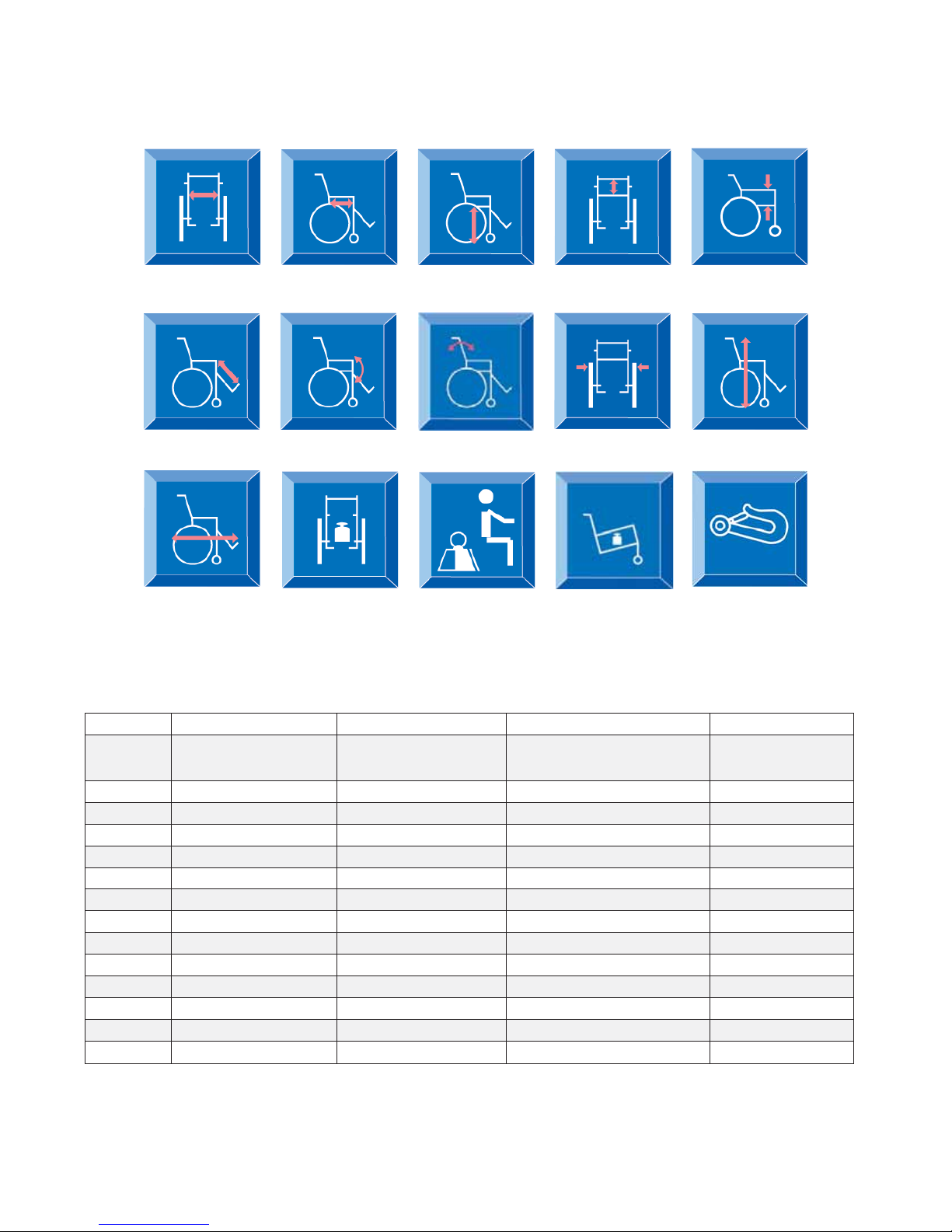

Active Dynamic Swing Max
SW (cm) 35,5/38/40,5/43/45,5/48 35,5/38/40,5/43/45,5/48 33/35,5/38/40,5/43/45,5/48/50,5 50,5 55,5, 60,5 cm
SD (cm) 36-40/41-45/46-50 36-40/41-45/46-50 36-40/41-45/46-50 50, 55, 60 cm
SH (cm)* 40-52 40-50 39-52 44-52 cm
BH (cm)* 20-35 / 30-49 20-35 / 30-49 20-35 / 30-49 40-49 cm
AH (cm) 21-31 21-31 21-31
LL (cm)* 38-50,5 35,5-48,5 28-51 38-48 cm
SA (°) 0°-14° 0°-14° 0°-14° 0°-14°
BA (°) ±10° ±10° ±10° ±10°
W (cm)** Seat width + 20 cm Seat width + 20 cm Seat width + 20 cm Seat width + 21 cm
H (cm) 61-105 61-105 61-105 79-110 cm
L (cm) 83-103 73-88 82-123 93-108 cm
M (kg) 9,8 9,8 11,3 21 kg
ML (kg) 135 135 135 180kg
TW (kg)*** 6 6 6 13,3 kg
SW= Seat width SD= Seat depth
ML= Max user
weight
M=Weight
L= Lenght
H= Height
W= Width
BA= Bacrest
angle
SA= Seat angle
LL= Legrest
lenght
AH= Armrest
height
BH= Backrest
height
SH=Seat height
TW= Transport
weight

10 INVACARE®XLT
1.
3.
2.
Assembly
1. Attach the rear wheels by pressing the button in
the centre of the hub whilst simultaneously sliding
the axle onto the rear wheel position attachment
of the positioning plate.
It is very important that you check that the
locking pin has actually locked the wheel into
position when the centre button has been
released. Take hold of the wheels and try to
detach them. This should NOT be possible.
3. Armrests
Insert the armrests by fitting them into the attach-
ments on the backrest frame and then swinging
them down into position.
Do not place your fingers on the seat frame.
When using detachable armrests, just push them down
into place in their receiver.

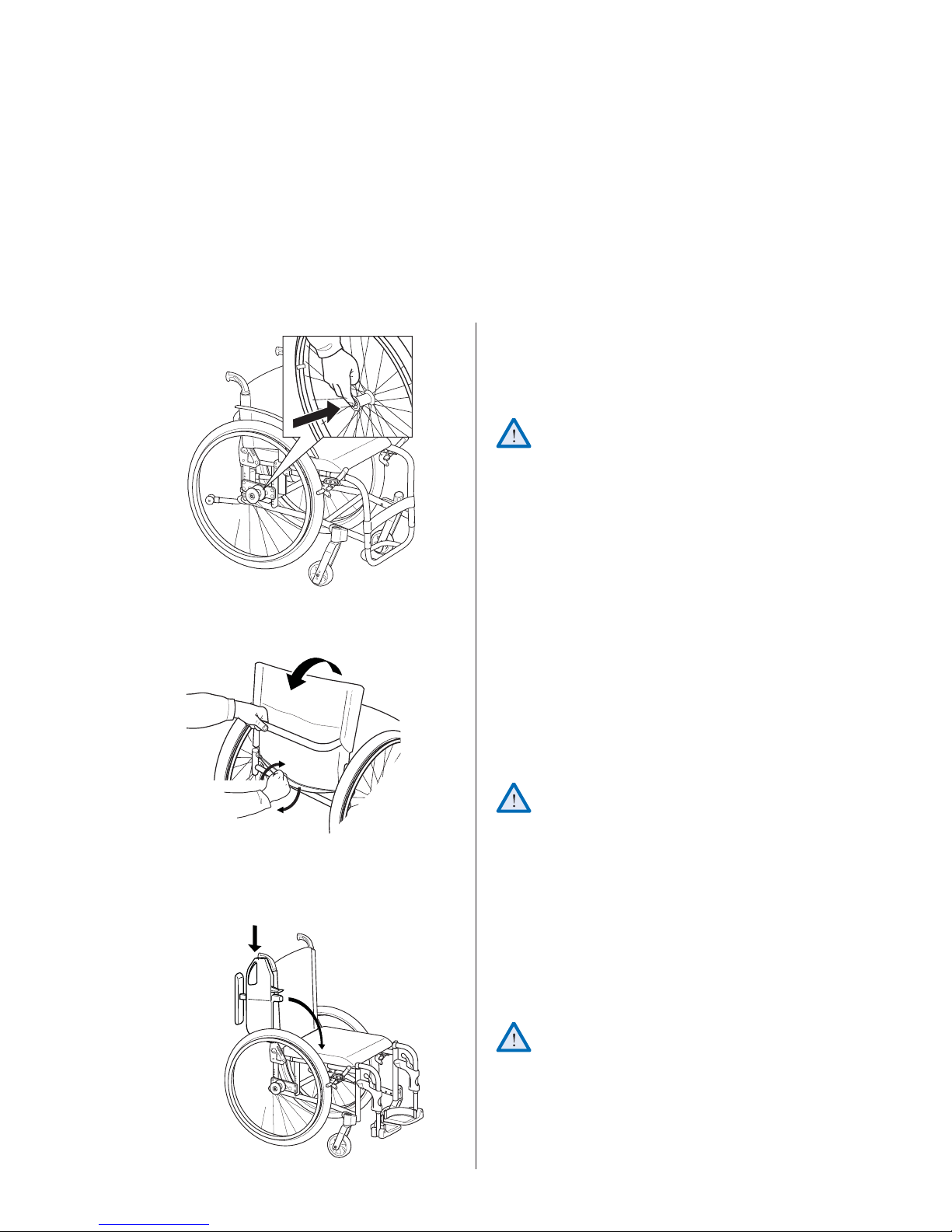

2. Unfold the backrest by grabbing the wire at the
lower back of the backrest and twisting it to
release the backrest locking pins. Pull the backrest
backwards/uppwards until it is fixed into place.
Check that it is fixed properly. The XLT Max does
not have a locking function. Just pull the backrest
upwards and check that it is fixed in place.
Be careful not to trap your fingers between the
frame and the backrest attachments.
Check that all components comply with the delivery note. Any damage incurred during transport should be
reported immediately to the delivery company. Retain all packaging until the transport company has inspected
the consignment and an agreement has been reached.
Delivery check

11
INVACARE®XLT
4. 4. Legrests (XLT Swing)
Attach the legrests by pushing the tube at the
upper part of the legrests down into the tubes
on the wheelchair. You must angle the legrests
outwards when inserting them.
Lock the legrests by turning them inwards. The
legrests are automatically locked so there is no
risk of them coming off the wheelchair.
Be careful not to trap your fingers between
frame and legrest.

12 INVACARE®XLT
A
B
C
Adjustments
Height adjustment, footbow
Loosen the screws (A) using an Allen key, remove
them, and adjust the footbow to the correct height.
Retighten the screws and adjust the calf-strap.
Important
The distance between the lowest part of the
footrest and the floor or ground must be at
least 40 mm.
High mounted footbow
Loosen the screws (B) using an Allen key and adjust
the clamp and footbow to a suitable height. Retighten
the screws and adjust the calf-strap.
Footbow XLT Max
Loosen the screws (C) using an Allen key and adjust
the footbow to a suitable height using one of six
holes on the footbow tube. Retighten the screws and
adjust the calf-strap. Make sure that the screws do not
protrude out of the casing.
Warning!
Risk of injury
The footbow can fall out if the screws are not
tightened properly. Make sure that both screws
are positioned in the holes on the tube.
Important
The distance between the lowest part of the
footrest and the floor or ground must be at
least 40 mm.
Tools: 4 mm Allen Key
10 mm fixed spanner
Tools: 5 mm Allen Key
FOOTBOW
It is important to adjust the footbow, footrests, legrests, footplates and calf pads to obtain a good seating posi-
tion
Tools: 5 mm Allen Key

13
INVACARE®XLT
A
C
2.
B
C
1.
A
Height adjustment
Adjust the height of the footrests by loosening the
screw (A) with an Allen key. When adjusting the height
a clicking sound will occur. One ”click” is one step in
height. Pull the legrest until you have obtained the
correct height and the screw is caught by one of the
recesses on the legrest tube. Then retighten screw.
NOTE! Do not adjust the upper screw (C).
The distance between the lowest part of the
footrest and the floor or ground must be at
least 40 mm.
FIXED LEGRESTS
Tools: 5 mm Allen Key
Angle adjustable legrests support the legs and reduce
pressure. The legrests can be used for bandaged legs,
but not for legs in plaster casts. The legrests must
always be fitted with calf pads, footplates and heel
straps.
It is important to adjust the height and angle of the
legrests to obtain a good seating position.
1. Height adjustment
Loosen screw (A) with an Allen key. Adjust the
legrest into a suitable height and the screw is
caught by one of the recesses on the legrest tube.
Then retighten the screw.
2. Angle adjustment
Pull the lever (B) with one hand while support-
ing the legrest with your other hand. When a
suitable angle is obtained, let go of the lever and
the legrest will look into one of seven preset
positions (C).
Do not place anything heavy, or let children
sit on the legrest. It may cause damage to the
mechanism.
The distance between the lowest part of
the footrest and the ground must be at least
40 mm.
ANGLE ADJUSTABLE LEGRESTS
Tools: 5 mm Allen Key

14 INVACARE®XLT
1.
2.
A
D
B
C
A
FOOTRESTS ONE-PIECE
1. Footrest, one piece
Adjust the angle by loosening the four screws (A)
on the footplate attachment with a 4 mm Allen
key. Adjust the footplate to the correct position
and retighten the screws.
Do not place anything on the footplate when
the screws have been loosened.
Tools: 4 mm Allen Key
10 mm fixed spanner
2. The footrest can be flipped up. Lift the right side
of the footrest upwards.
Be careful not to trap your fingers between
the footrest and the receiver when you fold
down the footrest.
Depth- and angle adjustable footplates
Adjust the angle and the depth by loosening the
screw (A) at the footplate attachment with a
5mm Allen key. Adjust the footplate to the correct
position and retighten the screw.
Do not place anything on the footplate when
the screws have been loosened.
Calf pads
The calf pads can be fitted in two different depth
positions. Swing the pad forwards. Unscrew screw
(B) using an Allen key. Remove the large nut (C) on
the reverse side and place it in the other attachment
hole. Move the calf pad to the new position and secure
it into place with the screw.
The height of the calf pads can easily be adjusted using
the handwheel (D).
CALF PADS/ FOOTPLATES
Tools: 5 mm Allen Key
Tools: 5 mm Allen Key

15
INVACARE®XLT
A
1.
2.
1.
2.
Tools: 5 mm Allen Key
1. Footrest, one piece (XLT Swing)
Adjust the angle and the depth by loosening the
two screws (A) on the footplate attachment with
a 5 mm Allen key. Adjust the footplate to the cor-
rect position and retighten the screws.
Do not place anything on the footplate when
the screws have been loosened.
2. The footrest can be flipped up. Lift the left side of
the footrest upwards.
Be careful not to trap your fingers between
the footrest and the receiver when you fold
down the footrest.

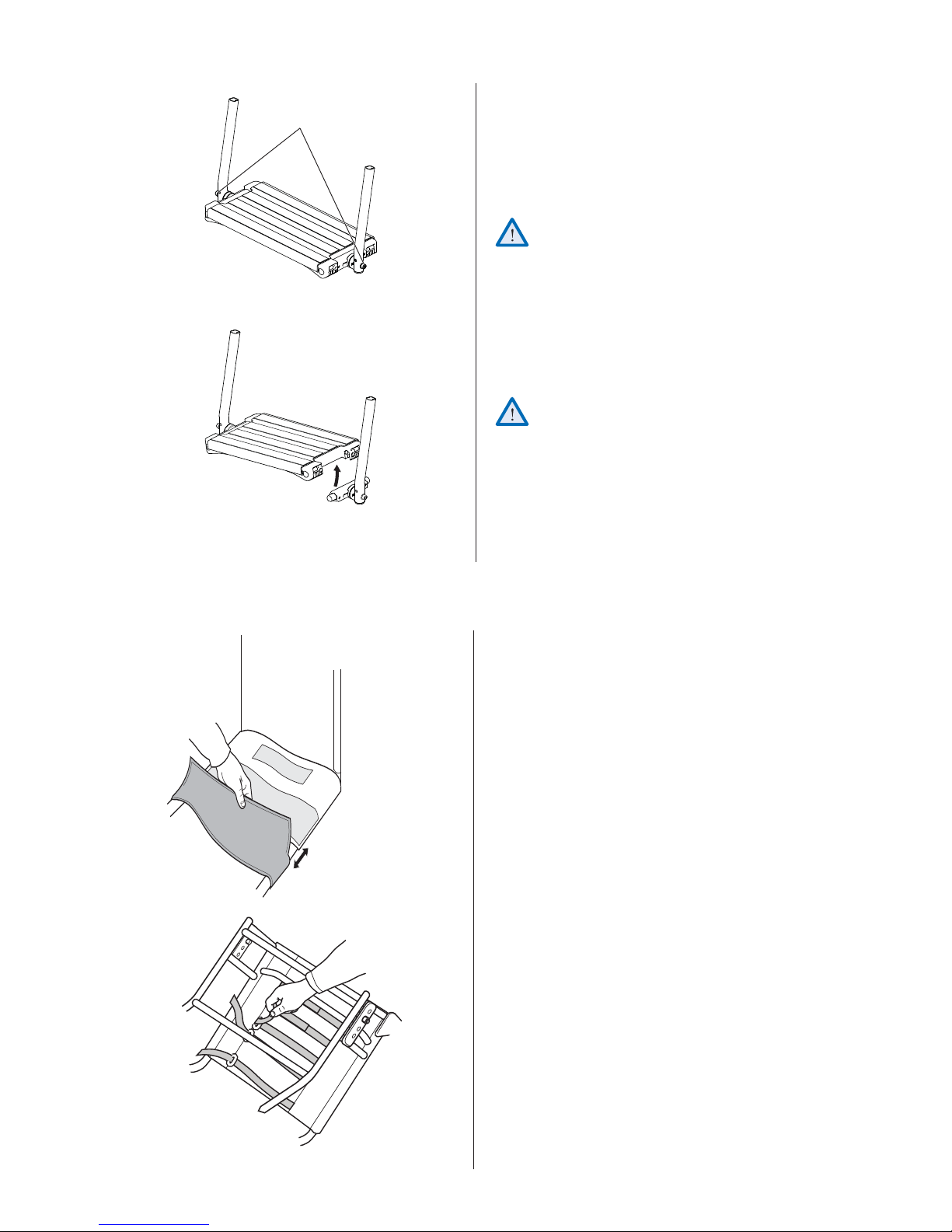

1. Adjusting the seat depth
Lift up the front part, slide into required depth.
SEAT
2. Adjusting the shape
(tension adjustable seat)
Use the straps underneath the seat to adjust the
shape of the seat. Always have a cushion on the
seat when testing its adjusted shape.

16 INVACARE®XLT
1.
3.
2.
4.
XLT Max
BACKREST

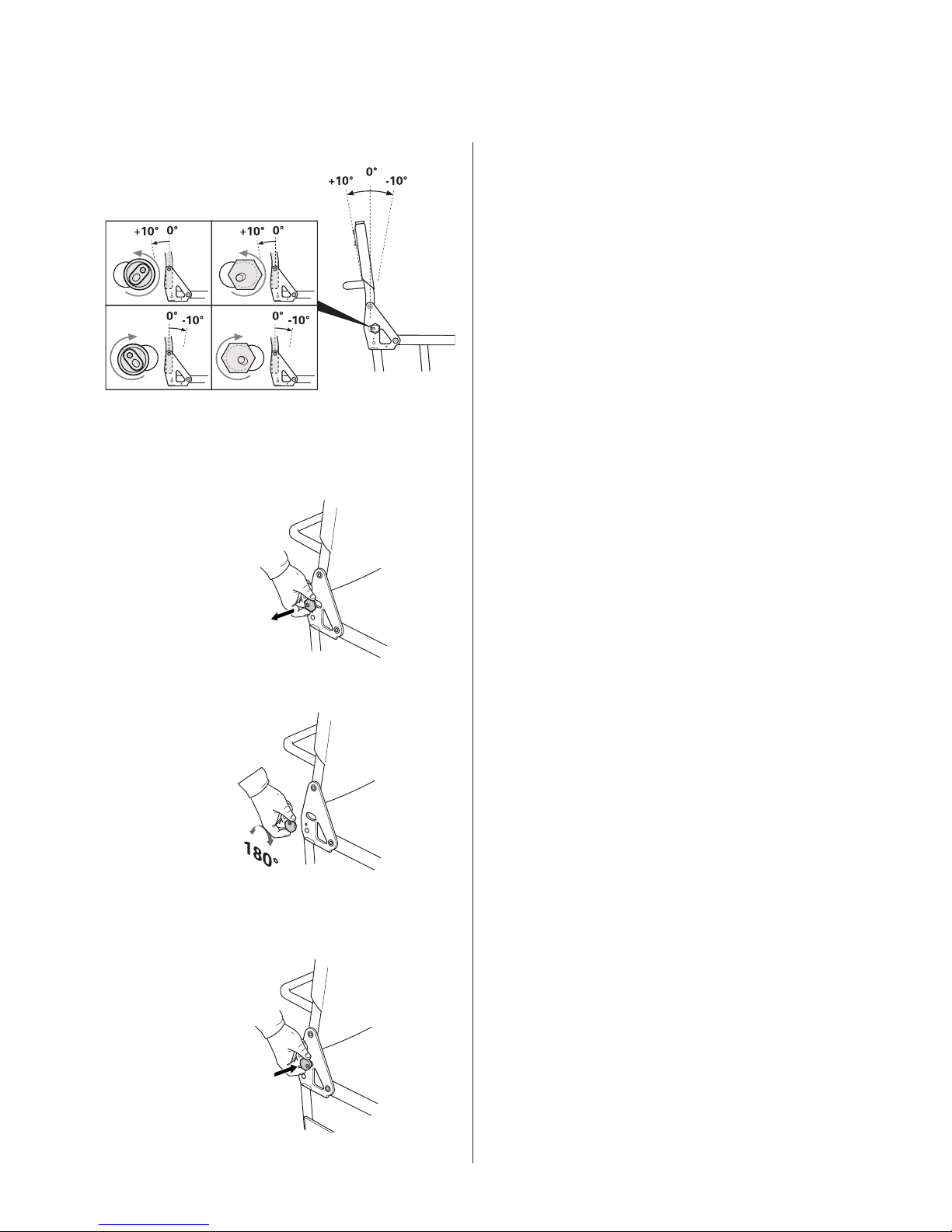

Angle adjustment
1. The backrest can be mounted in two different
positions, each with the possibility to change the
angle of the backrest. The angle is infinitely variable
by ±10 degrees.
The backrest tube has an 8 degree bend towards
the back.
2. If you want to tilt the backrest forwards, position
the eccentric plate in the position furthest back
(as in the illustration). You can then adjust the tilt
of the backrest to maximum –10°.
3. If you want to tilt the backrest backwards, posi-
tion the eccentric plate in the position furthest
to the front. You can then adjust the angle to
maximum +10°.
4 Move the eccentric plate by loosening the socket
cap screw on the plate. Hold the inner nut firmly
in place using a 10 mm fixed spanner. Remove the
plate, push the backrest to the desired angle, move
the plate forwards or backwards and mount it in
that position. Hold the nut steady from the inside,
and retighten the socket cap screw with the Allen
key.
Tools:
4 mm Allen Key
10 mm fixed spanner

17
INVACARE®XLT
2a.
2b.
1
1
.
.
.
B
A
A
A
A
A
A
A
B
B
B
B
B
A
3.
Tools: 4 mm Allen key
10 mm fixed spanner
Tools: 24 mm fixed spanner
Angle adjustment, fine adjustments
When you have decided the direction in which you
want to tilt the backrest, it is time to make the fine
adjustments, i.e. adjusting the backrest to suit your
body. Proceed as follows:
1. Loosen the four nuts (B) on the inside of the
backrest tubes 1- 2 turns with a 10 mm fixed
spanner. Hold screws (A) firmly in place with a
4 mm Allen key.
2a.Then, using a 24 mm fixed spanner, turn the plates
– a little at a time, first on one side of the chair,
then on the other side. By this alternating proce-
dure, you can adjust the tilt of the backrest.
Note! You must alternate between the two plates
whenever you turn them, otherwise, the backrest
could become twisted, and its ergonomic advantages
will be lost.
2b.XLT Max
Then, using a 5 mm Allen key, turn the plates – a
little at a time, first on one side of the chair, then
on the other side. By this alternating procedure,
you can adjust the tilt of the backrest.
Note! You must alternate between the two plates
whenever you turn them, otherwise, the backrest
could become twisted, and its ergonomic advantages
will be lost.
Tools: 4 mm Allen key
10 mm fixed spanner
The tip risk increases the further back the
backrest is tilted. We recommend the use of
anti-tip devices.
Tools: 5 mm Allen key
3. Once you have found the right position, retight-
en the nuts (B) on the inside. Hold the screws (A)
firmly in place with the Allen key.

18 INVACARE®XLT
4.
A
B
Max 2 cm
30-32 cm 35-49 cm
Max 4 cm
Loosen and remove screws (A) and the small plastic
bracket (B) on the back of the back support. Adjust
the backrest extension to the desired height and refit
the screws.
Tools: 4 mm Allen key
4. Adjust the shape of the backrest by adjusting the
Velcro straps.
The user should be seated in the chair when the
Velcro straps are adjusted. When adjustment is
complete fold the backcloth back into position
and secure it with the Velcro straps.
When you loosen the backrest, the tip-risk
increases. We recommend the use of anti-tip
devices.

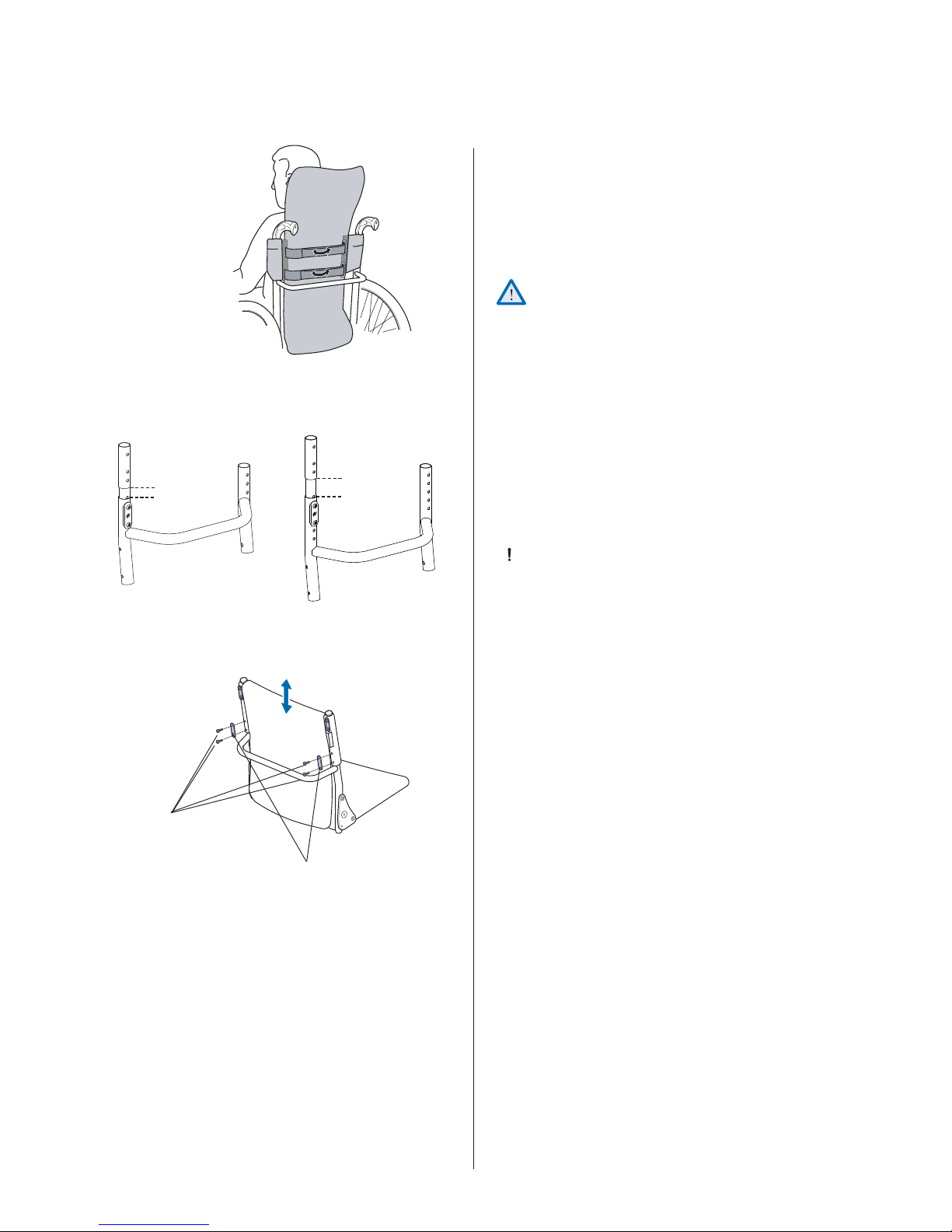

Height adjustment
A backrest extension can be used for adjustable back-
rest heights and to obtain heights over 35 cm. Two
different extenders are available, one for heights 30-32
cm and one for heights 35-49 cm.
Important
Observe that the extenders may not be raised
more than 2 or 4 cm.

19
INVACARE®XLT
1.
A
2.
3-4.
B
D
C
5.
F
Adjusting the height of the armrests
1. Flip up armrest
If your chair is equipped with armrests that can be
raised or lowered, this is achieved by loosening the
screw (A), moving the armrest into the required
position and retightening the screw.
When adjusting the height, do not place
your fingers between armrest pad and side
plate as they may get trapped.
ARMRESTS/MUDGUARD
2. Detachable armrest
If your chair is equipped with armrests that can
be raised or lowered, this is achieved by pulling
up the armrest and loosening the screw (B) under
the armrest. Move the screw up or down to the
desired position and retighten the screw. Lower
the armrest again.
When adjusting the height do not place your
fingers between seat tube and side plate as they
may get trapped.
Tools: 5 mm Allen key.
Tools: 5 mm Allen key.
3. Mudguard
Adjust the height of the mudguard by pulling up
the mudguard and loosening the screw (C). Move
the screw up or down to the desired position and
retighten the screw. Insert the mudguard again in
it's attachment.
When adjusting the height do not place your
fingers between seat tube and side plate as they
may get trapped.
4. To adjust the depth of the mudguard, unscrew
screws (D) using an Allen key. Move the mudguard
into the required position and fasten the screws
again.
Tools:3 mm Allen key
5 mm Allen key
5. Adjusting the play
The armrests and mudguards are equipped with
adjustable supports that enables you to reduce the
play when pulling up or pushing down the tubes.
Tighten or loosen the screws (F) in the four cor-
ners as needed.
Take care not to loosen the two middle screws.
These attach the supports to the frame.
Take care that your fingers do not get caught
between armrest/mudguard and tyre.
Tools: 5 mm Allen key.

20 INVACARE®XLT
1.
A
4.
3.
2.
B
Adjusting the brake
1. Check that the tyres are inflated to the correct
air pressure as indicated on the side of the tyre.
Then use an Allen key to loosen the screw (A)
and slide the brake and brake attachement to the
desired position and tighten. The correct distance
between the brake pin (B) and the tyre, when the
brake is disengaged, is approx. 15 mm. The brake
pin should be in a horizontal position.
Incorrect adjustments or use of the brake can
reduce their performance.
3. Using the Performance brake
Apply the brake by pushing the brake lever for-
wards until it reaches the stopper.
Release the brake by pulling back the brake
lever.
Take care not to trap your fingers between
brake shaft and tyre.
BRAKES
4. Using the Active brake
Apply the brake by pulling the brake lever forwards
(on the side of, or between your legs) until it
reaches the stopper.
Release the brake by pushing the brake lever back
(on the side of, or between your legs).
Take care not to trap your fingers between
brake shaft and tyre.
2. Using the Standard brake
Apply the brake by pushing the brake lever for-
wards until it reaches the stopper.
Release the brake by pulling back the brake
lever.
Take care not to trap your fingers between
brake shaft and tyre.
When the standard brake is applied, the brake lever
can be pushed backwards without disengaging the
brakes.
This is to prevent the brakes from accidentally dis-
engaging during transfer to and from the wheelchair.
Tool: 5 mm Allen key
